Whirlpool GI15NFLTB0 Manuale utente

CABINET LINER AND DOOR PARTS

5−09 Litho In U.S.A. (rrm) (psw) Part No. W10121645 Rev. B

ICE CUBE

MAKER

For Models: GI15NFLTB0, GI15NFLTS0

(Black) (Stainless Steel)

CABINET LINER AND DOOR PARTS

2W10121645

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2313683 Use & Care Guide

8052029 Label,

800−Number

2324311 Service &

Wiring Sheet

2 3400886 Screw 8−18 x 1 1/4

3 2185742 Bin, Door

4 2185678 Spacer

5 2217394 Cover, Wiring

6 489442 Screw

7 Door

2932803B Black

8 2185695 Cam, Door

9 2217393 Assembly,

Magnetic Catch

10 2189000 Hole Plug, Handle

11 692400 Nut, Push−In

13 2217367 Gasket, Bottom

14 489503 Clamp

15 2217294 Gasket, Door

16 2185640 Sleeve, Hinge

18 2185710 Hinge, Top

19 2185709 Shim, Hinge

20 Handle, Door

2313656B Black

2313656US

Stainless Steel

21 3400240 Nut,

Leg Leveler

22 2185730 Assembly,

Unit Cover

23 3400037 Screw

24 Filler, Endcap

Left Side

2185655B Black

Right Side

2185656B Black

25 2185756 Pad, Foam

26 2185691 Channel, Wiring

27 9757613 Nameplate

28 2185989 Tube, Drain

29 585158 Scoop

30 3400884 Screw 8−18 x 5/8

33 2185711 Hinge, Bottom

34 2185712 Pin, Hinge

35 489048 Screw, Ground

8−32 x 1/2

37 2208136 Clip, Water Tube

38 348689 Screw 8−18 x 3/4

39 489423 Screw

40 2185927 Holder, Scoop

41 8281228 Thumbscrew

42 3374849 Leg, Leveler (4)

43 Wrap−Door

2313649B Black

2313649S Stainless Steel

44 Top

2929700B Black

45 2185690 Shield, Electrical

46 2217293 Gasket, Top Panel

47 Grill, Front

2185571B Black

48 489474 Screw 8−18 x 1

49 Cabinet & Liner

(NOT SERVICED)

For Models: GI15NFLTB0, GI15NFLTS0

(Black) (Stainless Steel)

EVAPORATOR, ICE CUTTER GRID AND WATER PARTS

W10121645

For Models: GI15NFLTB0, GI15NFLTS0

(Black) (Stainless Steel)

EVAPORATOR, ICE CUTTER GRID AND WATER PARTS

4W10121645

Illus. Part

No. No. DESCRIPTION

1 2313741 Valve, Complete

Water

2 2217286 Tube, Plastic

3 488208 Screw

4 2185523 Dispenser, Water

5 Evaporator

6 2313705 Pump, Drain

7 2313851 Tube,Reservoir

Pump

8 2172593 Tube, Water Fill

9 488660 Nut, Speed

10 836667 Spacer

11 2208539 Fastener,

Pushnut

12 489443 Screw

13 2185625 Reservoir,

Water Slide

14 2185626 Tube

15 2313890 Hose, Overflow

16 2313604 Guide−Ice, Grid

17 2313603 Bracket, Front

and Rear

18 2313602 Bracket, Side

Left and Right

19 2185681 Harness, Grid

20 2324305 Tube

21 2310169 Wire Assembly

Valve

26 3400886 Screw 8−18 x 1 1/4

28 2313637 Grid Assembly

(Complete)

29 2174754 Wire, Grid Cutter

30 2185570 Cover, Grid

31 8281228 Thumbscrew

32 2313834 Reservoir, Water

33 3400884 Screw 8−18 x 5/8

34 2185696 Cap, Drain

35 3400909 Nut, Push−In

For Models: GI15NFLTB0, GI15NFLTS0

(Black) (Stainless Steel)

W10218037

PUMP PARTS

W10121645

Illus. Part

No. No. DESCRIPTION

1 2313628 Pump−Recirculating

2 3400884 Screw 8−18 x 5/8

3 2185677 Cover, Pump

4 2313844 Bracket, Connector

Assembly

5 2313627 Bracket−Pump

6 2313643 Sensor−Water Level

7 2324307 Clip−Retainer

8 2310092 Wiring Harness

Main To Pump

9 2313702 Pump Assembly

For Models: GI15NFLTB0, GI15NFLTS0

(Black) (Stainless Steel)

CONTROL PANEL PARTS

W10121645

Illus. Part

No. No. DESCRIPTION

1 2185738 Box, Control

2 2310139 Transformer

3 2304121 Assembly, Switch

(Also Order #4)

4 2313692 Overlay

5 2321774 Control Board

6 2149705 Switch, Plunger

(Also Order # 4)

9 745362 Bulb

12 2313633 Thermostat, Bin

13 2185825 Clamp

15 3400884 Screw

18 3400850 Screw 8−16 x 3/8

20 2313635 Thermister,

Ice Control

For Models: GI15NFLTB0, GI15NFLTS0

(Black) (Stainless Steel)

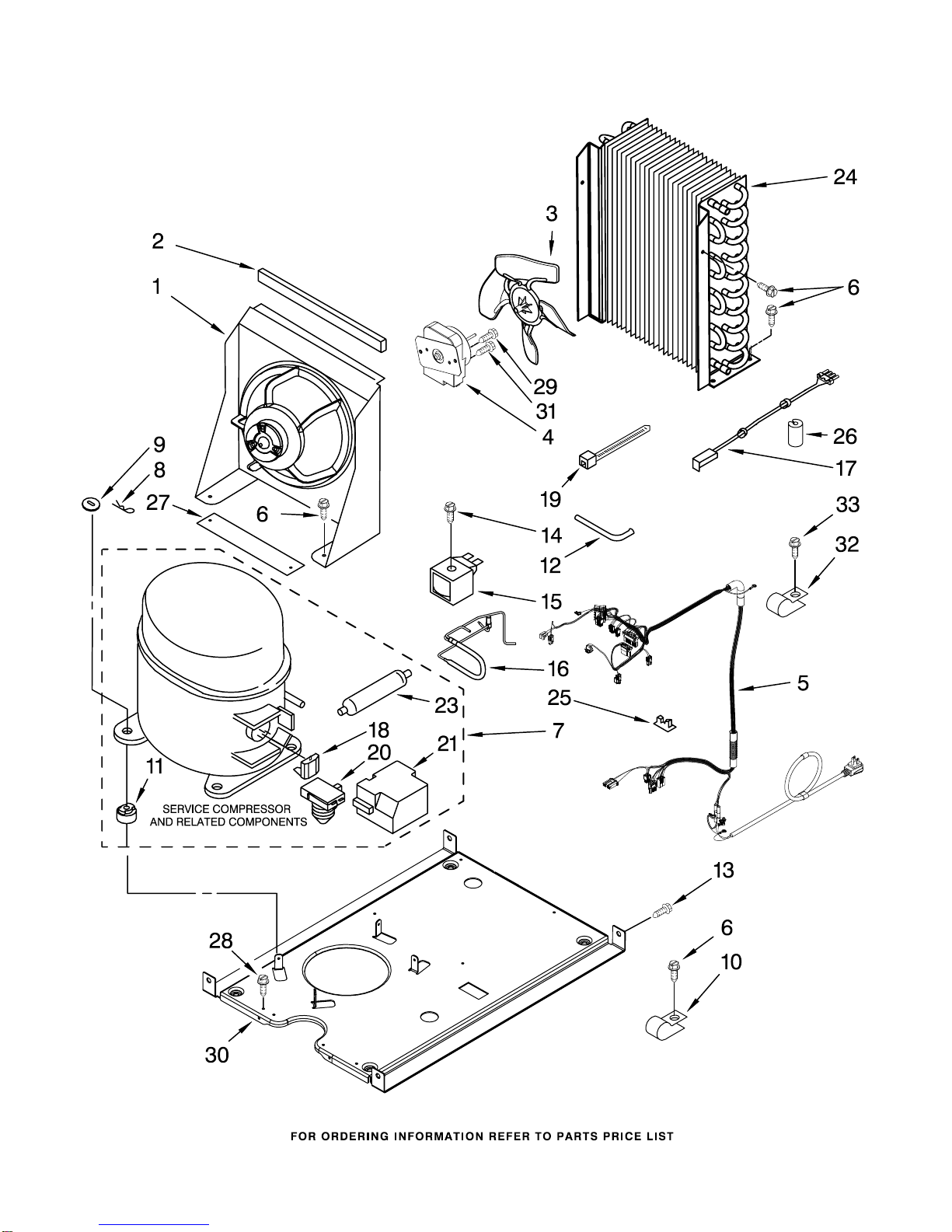

UNIT PARTS

W10121645

For Models: GI15NFLTB0, GI15NFLTS0

(Black) (Stainless Steel)

UNIT PARTS

8W10121645

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2185532 Bracket, Fan Mtg.

2 2185675 Pad, Foam

3 2188935 Blade, Fan

4 2315558 Motor & Mounting

Plate Assembly

5 2310125 Wiring Harness,

Complete Unit

(Includes

Power Cord

6 304392 Screw

7 2313858 Compressor

(Includes

Illus. 11,18,

20,21 & 23)

8 A201435 Clip, Mounting

9 A201441 Shim (4)

10 2185960 Clamp

11 Grommet (4)

2217318 Production

4387558 Service

12 2208415 Tube, Process

13 489423 Screw

14 489472 Screw

15 759112 Coil, Solenoid

16 2313806 Hot Gas Valve

17 2187629 Wiring Harness,

Condenser Fan

18 Overload

2217223 Production

4387938 Service

(Includes Relay)

19 2155774 Strap

20 Relay, Start

2217224 Production

4387938 Service

(Includes

Overload)

21 Cover, Terminal

2208371 Production

4387731 Service

23 Drier

2319826 Production

4387019 Service

24 2313624 Condenser

25 1115375 Clip−Wiring

26 2319835 Grommet−Cond.(1)

27 2217397 Pad, Foam (2)

28 488500 Screw

29 8281197 Screw

30 2217388 Base, Unit

31 8281196 Screw

W10005420

Clamp−Nylon−Cable

33 3400884 Screw

REFRIGERANT CHARGE

6.5 OZ. (R134A)

For Models: GI15NFLTB0, GI15NFLTS0

(Black) (Stainless Steel)

OPTIONAL PARTS (NOT INCLUDED)

W10121645

Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

503695 Sealer, Cork

(1/4 Pound)

797403 Cement, Insulation

(1 Oz.)

505587 Sealer, Mastic

(1 Qt.)

212643 Sealer, Gum

(22 Pcs. 3/16" x 7")

479976 Kit, Insulation

(5 Pcs. 3" x 24"

x 48")

8537055 Cleaner, Stainless

Steel

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

For Models: GI15NFLTB0, GI15NFLTS0

(Black) (Stainless Steel)
