CONTROL PANEL PARTS

For Models: MH2175XSQ1, MH2175XST1, MH2175XSS1

(White) (Biscuit) (Stainless)

12−07 Litho in U.S.A. (rek) Part No. W10166283 Rev. B

Microwave Oven

1.7 Cu. Ft.

Illus. Part

No. No. DESCRIPTION

1 Literature

W10110894

U & C Guide

W10132042

Tech Sheet, Slim

8205888 Cook Guide Label

8206587 Install, Instruct.

2 Panel Asy, Control

Includes Lens and

Membrane Switch

W10166799

White

W10166802

Biscuit

W10166801

Stainless

W10156814

Bracket, Control

W10166798

Microcomputer

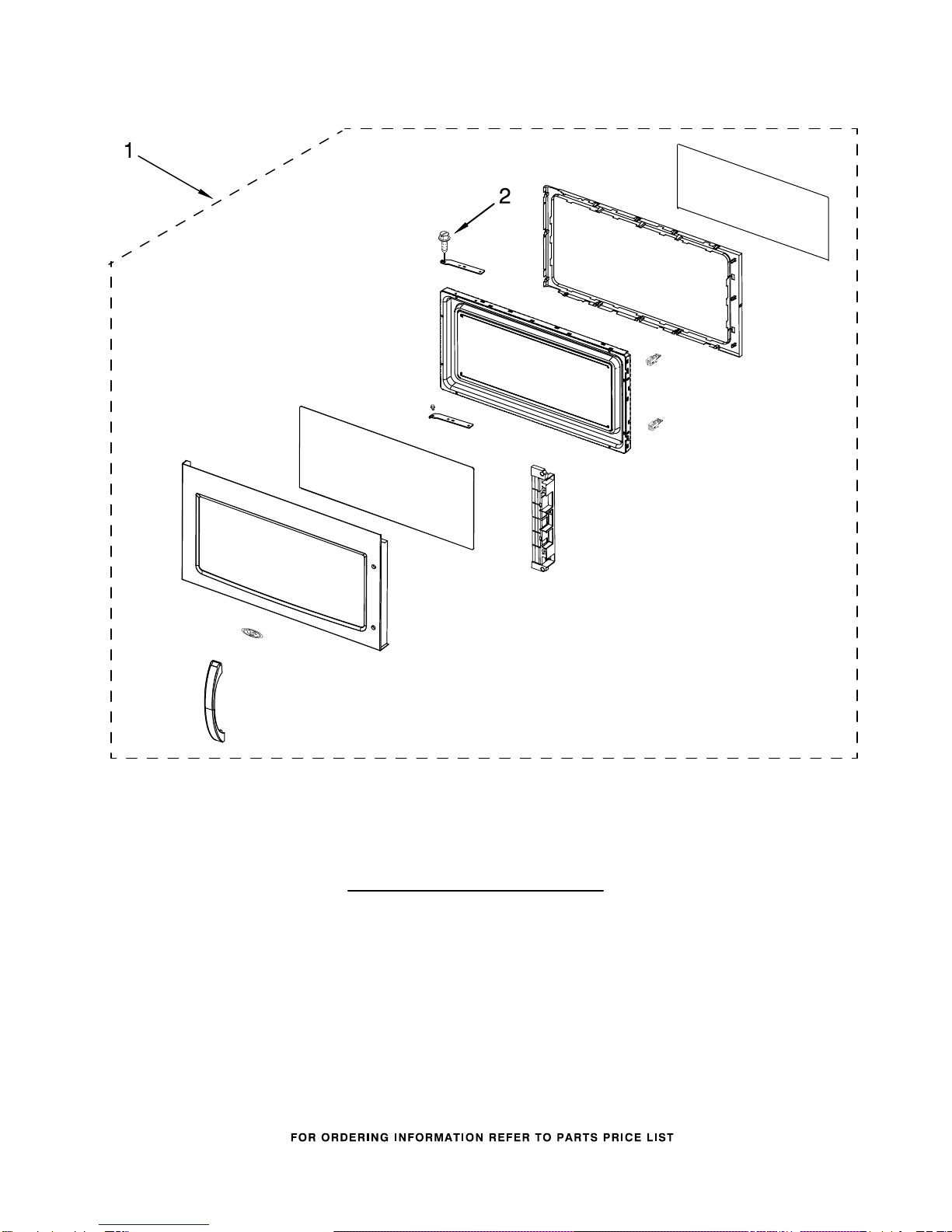

DOOR PARTS

2W10166283

Illus. Part

No. No. DESCRIPTION

1 COMPLETE DOOR

8206394 White

8206397 Biscuit

8206396 Stainless Steel

W10138802

Screw

For Models: MH2175XSQ1, MH2175XST1, MH2175XSS1

(White) (Biscuit) (Stainless)

INTERIOR AND VENTILATION PARTS

W10166283

For Models: MH2175XSQ1, MH2175XST1, MH2175XSS1

(White) (Biscuit) (Stainless)

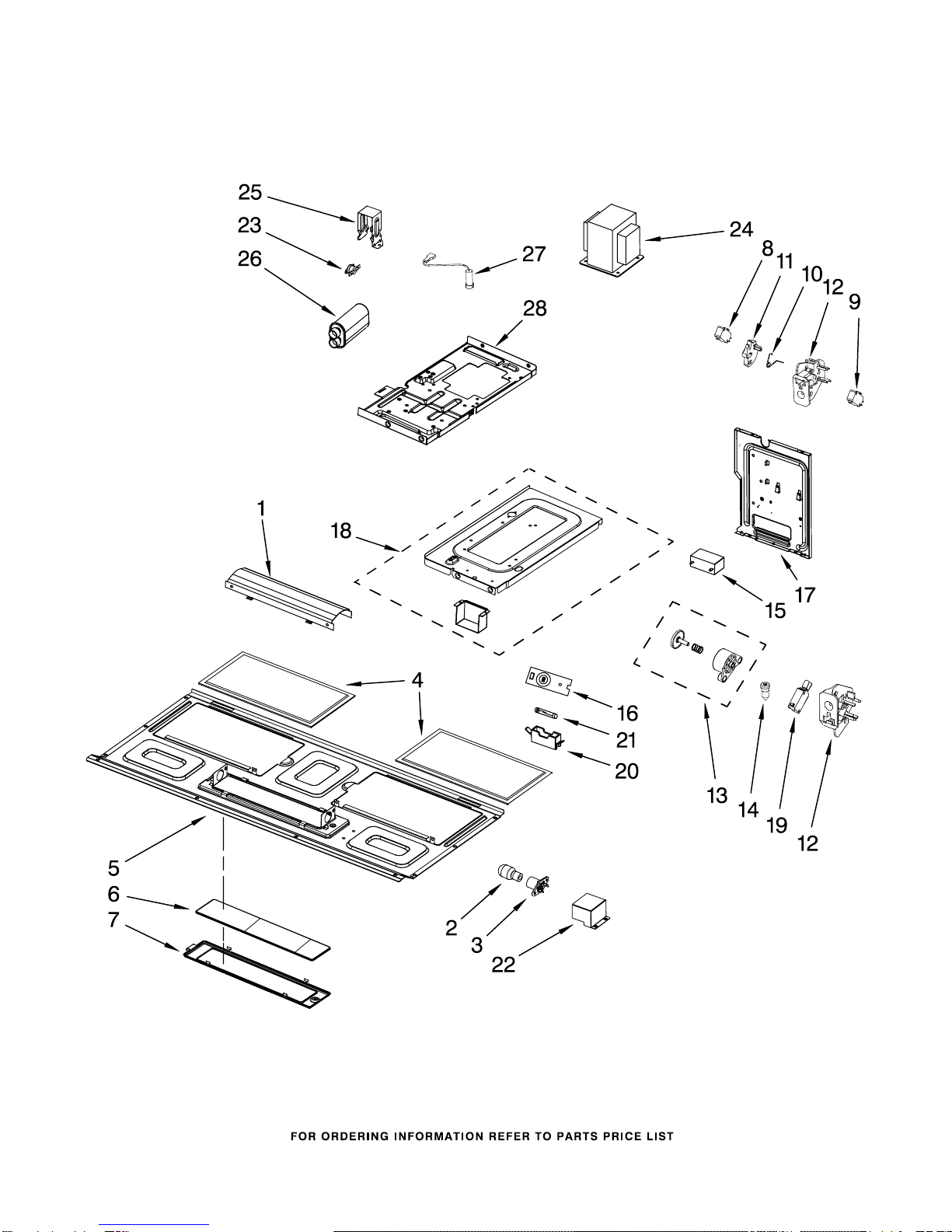

INTERIOR AND VENTILATION PARTS

4W10166283

Illus. Part

No. No. DESCRIPTION

1 8206387 Reflector, Lamp

2 8206232 Lamp

3 8206374 Holder, Lamp

4 8206229 Filter, Grease

5 8206386 Plate, Bottom

6 8206376 Glass, Lamp

7 8206375 Holder, Glass

8 8206345 Switch, Micro

V5P010CG3

9 8206347 Switch, Micro

V5P020CG3

W10156812

Spring, Interlock

W10156811

Plate, Cam

12 Support, Interlock

8206419 Top

W10156813

Bottom

13 8206558 Piston Assembly

14 8206180 Screw

15 8206357 Capacitor, 125 V

W10163422

Thermistor (PCBA)

W10163421

Plate, Side

W10163423

Chassis Assembly

19 8206352 Switch, Micro

V5P030CG3

20 8184312 Holder, Fuse

W10138793

Fuse

22 8206359 Terminal Cvr,Lamp

23 8206379 Thermostat

24 8206343 Transformer, H.V.

W10156817

Bracket, Capacitor

W10138798

Capacitor, H.V.

W10163432

Diode, H.V.

W10163420

Chassis

For Models: MH2175XSQ1, MH2175XST1, MH2175XSS1

(White) (Biscuit) (Stainless)

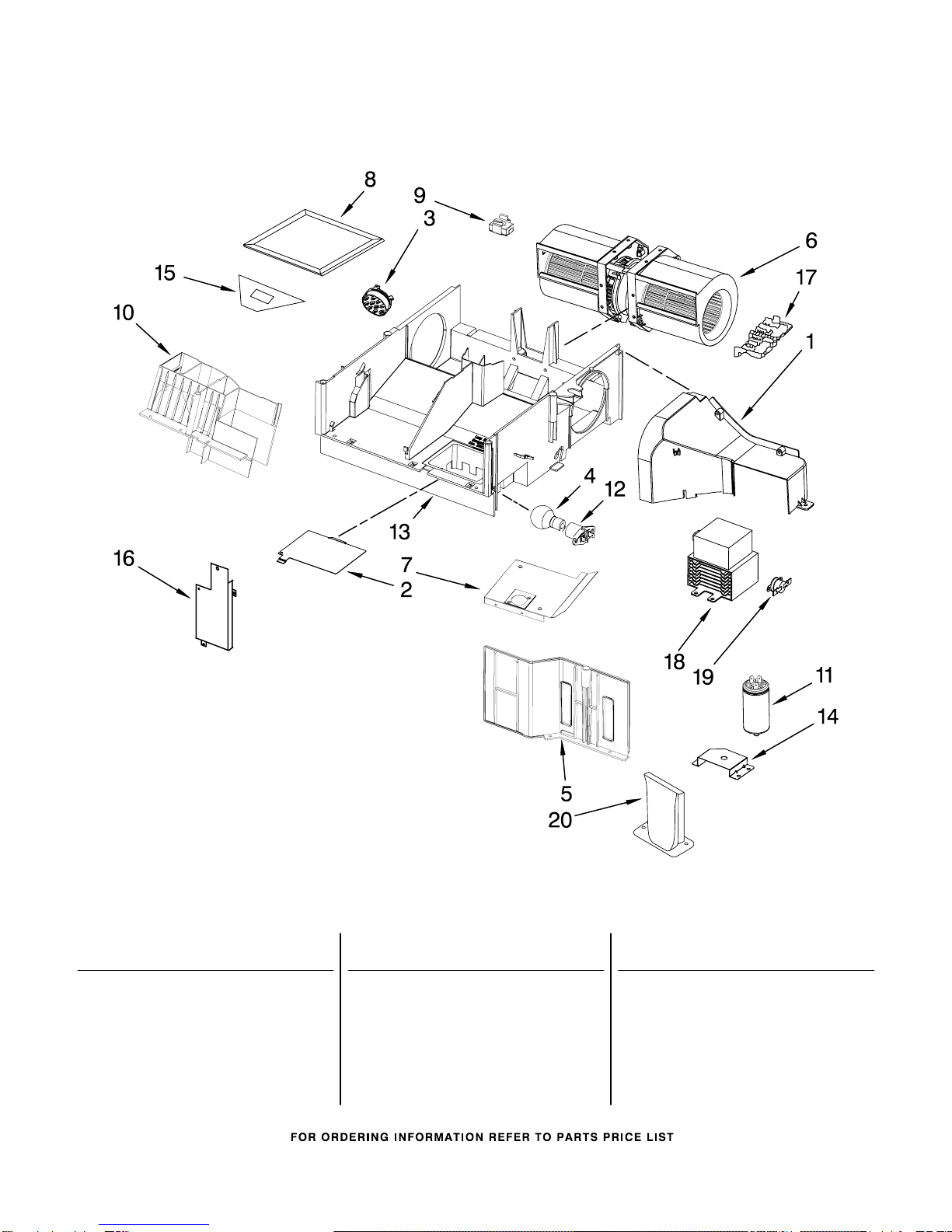

AIR FLOW PARTS

W10166283

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8206340 Deflector, Air

2 8206382 Cover, Lamp

3 8206626 Sensor, Humidity

4 4393681 Lamp

W10163433

Cover, Side Inlet

W10114550

Motor, Fan Assy

7 8206627 Air Guide

8 8206230 Filter, Charcoal

W10110862

Mounting, Nut (2)

W10158781

Air Guide,Plate

11 8206624 Filter

12 8169539 Holder, Lamp

W10138799

Base Plate,

Air Guide

W10156815

Brkt−Mntg,Filter

W10139750

Socket, Motor Wire

16 8206629 Cover, Inlet

Air Cavity Guide

W10110598

Cover, Terminal

18 8206341 Magnetron

19 8206342 Thermostat

W10164716

Plate, Water Proof

For Models: MH2175XSQ1, MH2175XST1, MH2175XSS1

(White) (Biscuit) (Stainless)

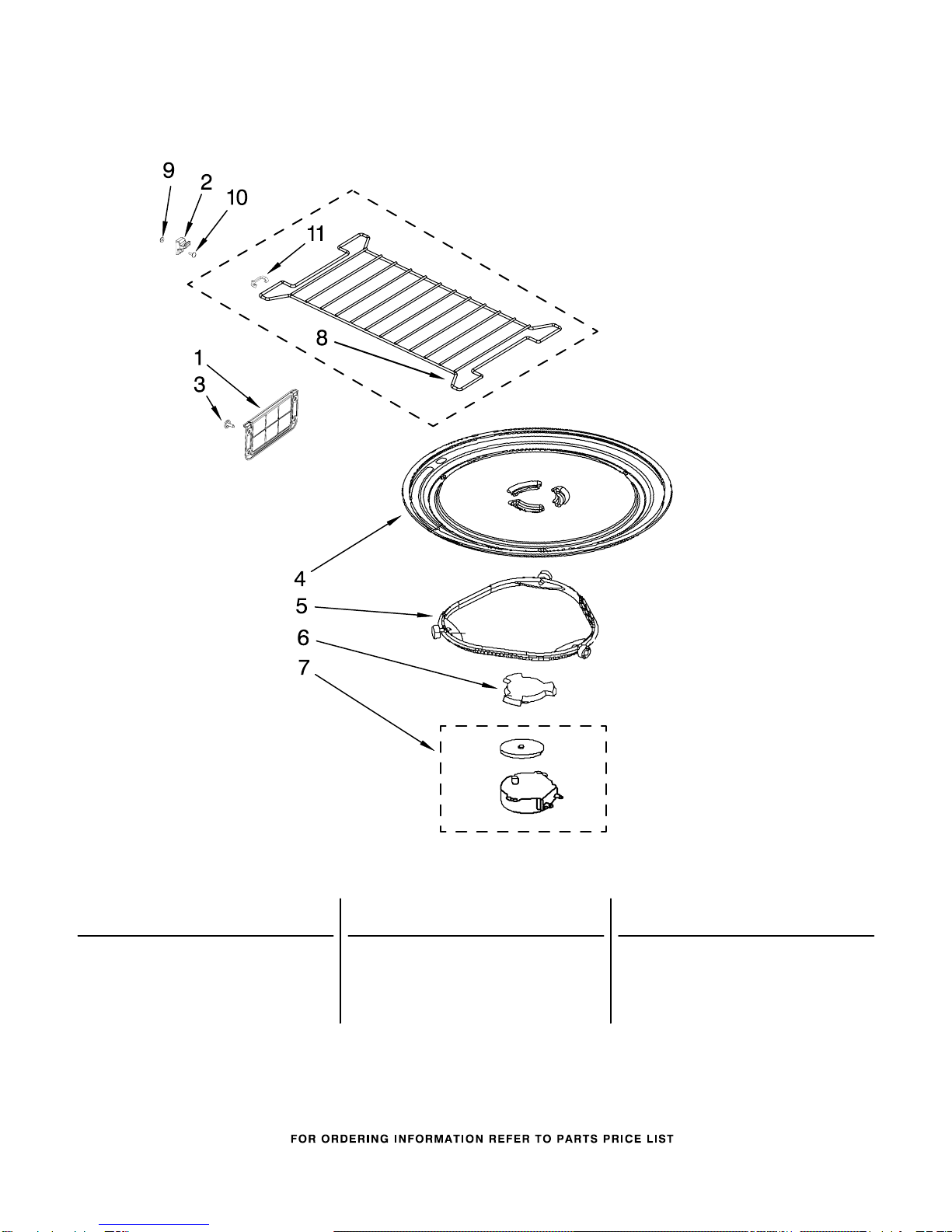

TURNTABLE PARTS

6W10166283

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8206389 Cover, Inlet

Includes Nails

and Bushings

2 8206118 Hook, Rack (4)

W10138801

Plastic Rivets(4)

4 4393799 Turntable

5 8206227 Ring, Turntable

6 8206228 Driver, Turntable

7 8183953 Motor, Turntable

8 8184865 Rack

W10107790

Washer

10 8206618 Screw

W10107780

Spacer (4)

For Models: MH2175XSQ1, MH2175XST1, MH2175XSS1

(White) (Biscuit) (Stainless)

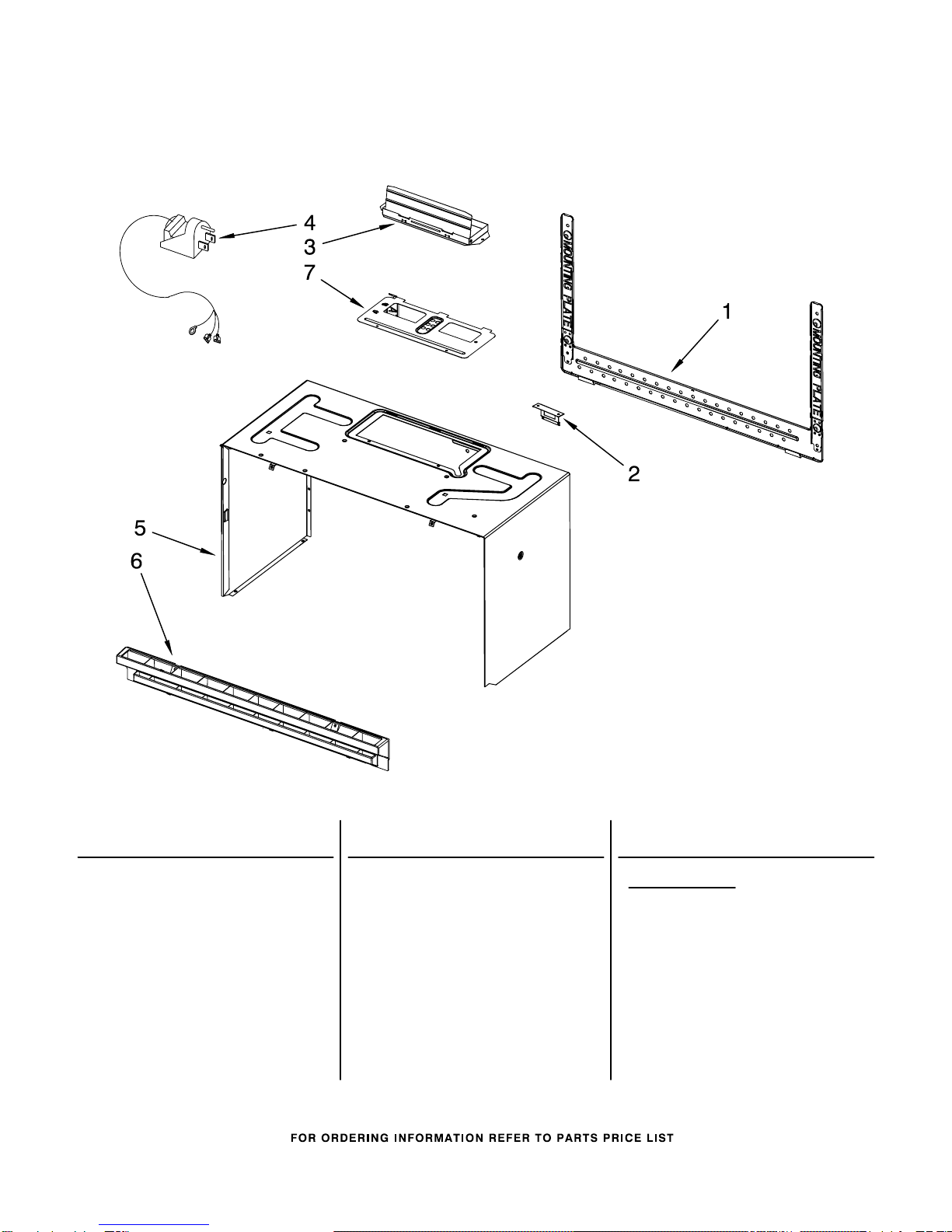

CABINET AND INSTALLATION PARTS

W10166283

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8206315 Plate, Mounting

2 8206385 Support, Wire Clip

3 8206442 Damper Assembly

For Models: MH2175XSQ1, MH2175XST1, MH2175XSS1

(White) (Biscuit) (Stainless)

8206442 Cord, Power

5 Case, Outer

W10163417

White

W10163418

Black

W10163419

Biscuit

6 Grille, Vent

8206390 White

8206391 Black

8206392 Biscuit

W10157207

Plate, Damper

Miscellaneous

8205948 Installation,

Hardware

8205871 Template, Upper

8169704 Screw, Top Mountng

W10163434

Main Harness

W10163438

Ground Wire Assy

8206415 H.V. Wire Assy

W10107760

Grnd Wire, Filter

W10163435

Hdlmp/TT Wire Assy

W10163436

HV Trnsfmr Wr Assy

W10163439

Harness Wire, NTC
