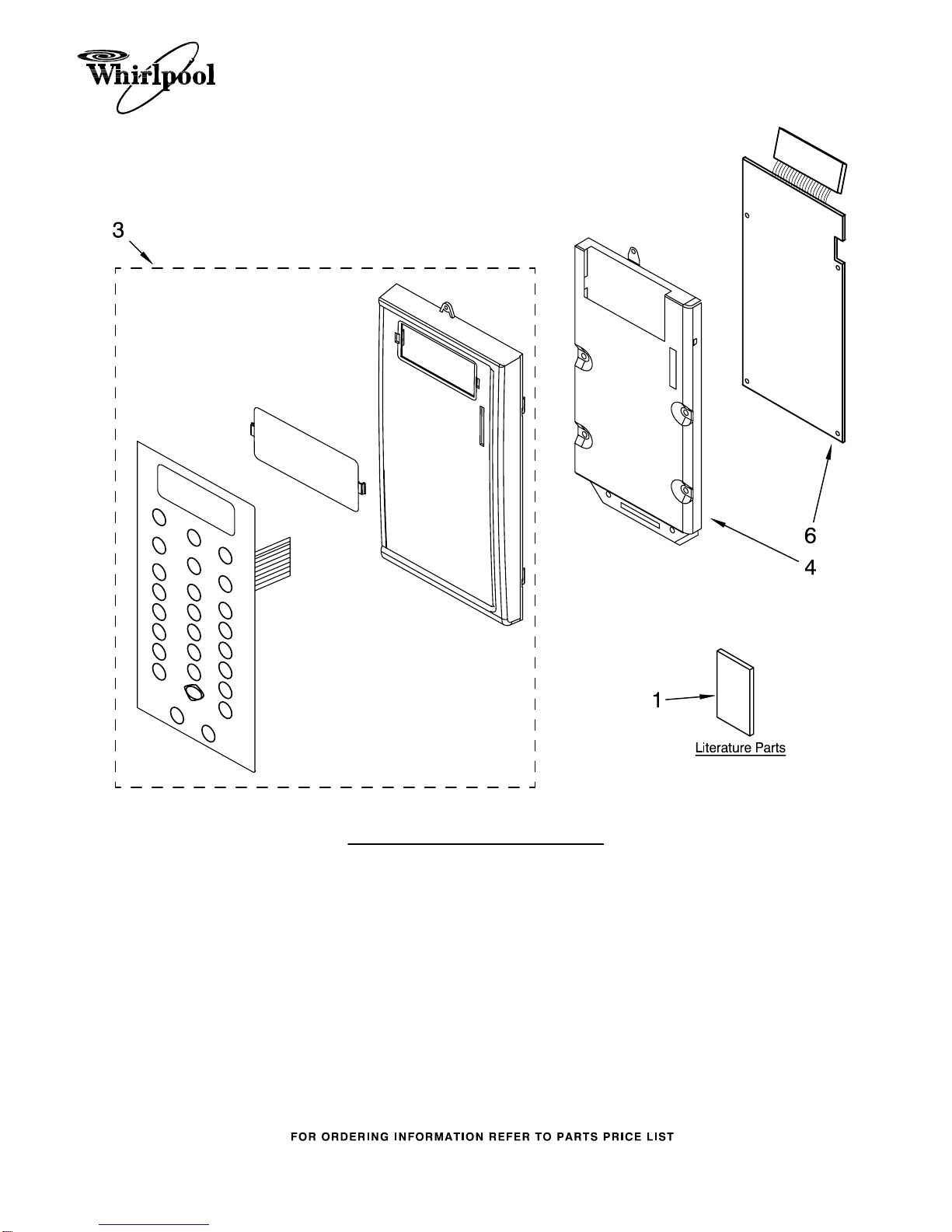

CONTROL PANEL PARTS
1
For Models: MH3184XPQ2, MH3184XPB2, MH3184XPT2, MH3184XPS2
(WHITE) (BLACK) (BISCUIT) (STAINLESS)
10−05 Litho in U.S.A. (dmm) Part No. 8206260
Microwave Oven
1.8 Cu. Ft.
Illus. Part
No. No. DESCRIPTION
1 Literature
8204920 U & C Guide
8205606 Tech Sheet
8205621 Tech Sheet,
Insert
8205142 Instructn, Install
8204931 Cook Guide Label
3 Panel Asy, Control
Includes Lens and
Membrane Switch
8205374 White
8205376 Black
8205377 Biscuit
8205375 Stainless
4 8205378 Bracket, Control
6 8205379 Microcomputer

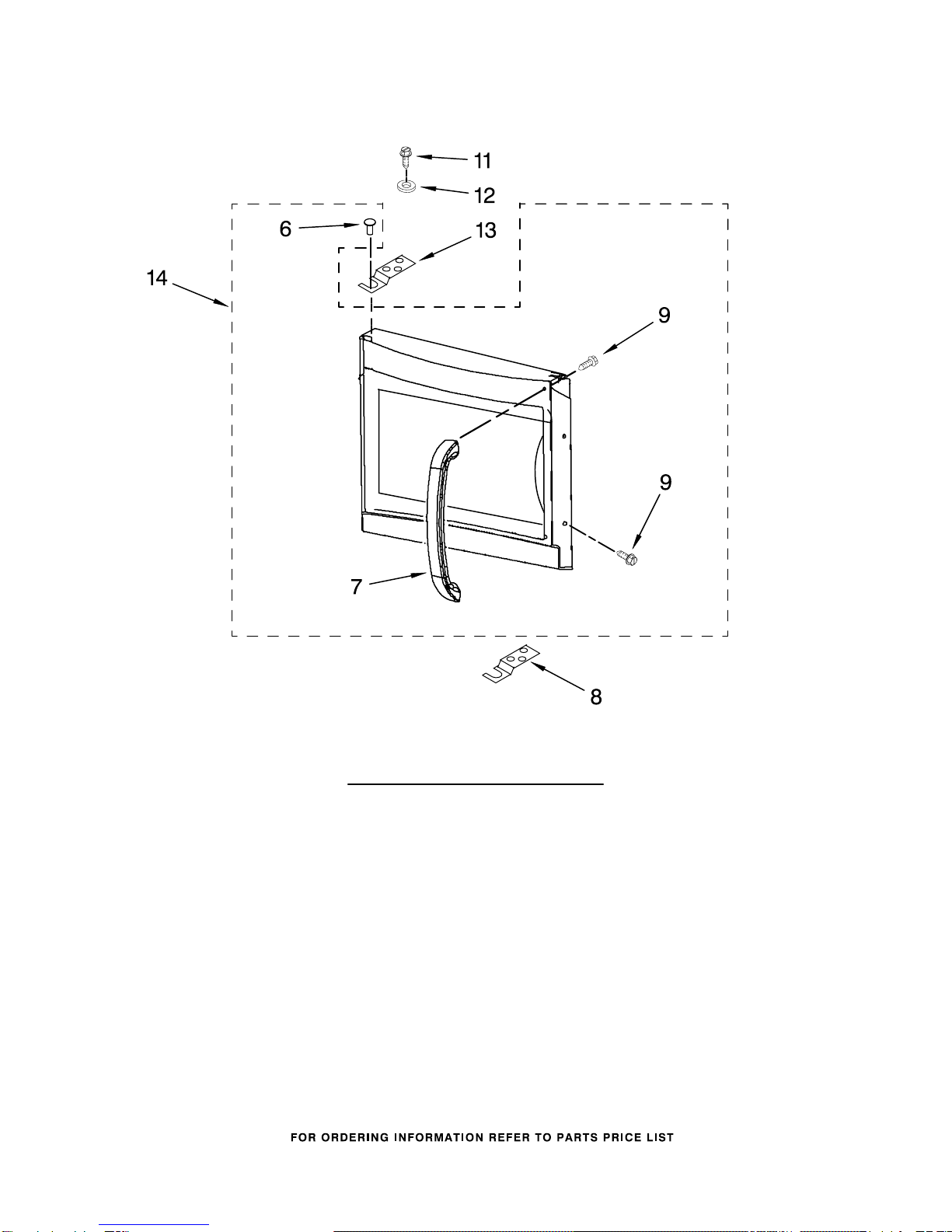

DOOR PARTS
2
For Models: MH3184XPQ2, MH3184XPB2, MH3184XPT2, MH3184XPS2
(WHITE) (BLACK) (BISCUIT) (STAINLESS)
8206260
Illus. Part
No. No. DESCRIPTION
6 8184922 Pivot, Door
7 Handle, Door
8205224 White
8205226 Stainless
8205225 Biscuit
8205226 Black
8 8204678 Lower Hinge
9 8169479 Screw
11 8204690 Screw
12 8204691 Washer
13 8204679 Upper Hinge
14 Complete Door
8205370 White
8205371 Stainless
8205373 Biscuit
8205372 Black
INTERIOR AND VENTILATION PARTS
3
For Models: MH3184XPQ2, MH3184XPB2, MH3184XPT2, MH3184XPS2
(WHITE) (BLACK) (BISCUIT) (STAINLESS)
8206260

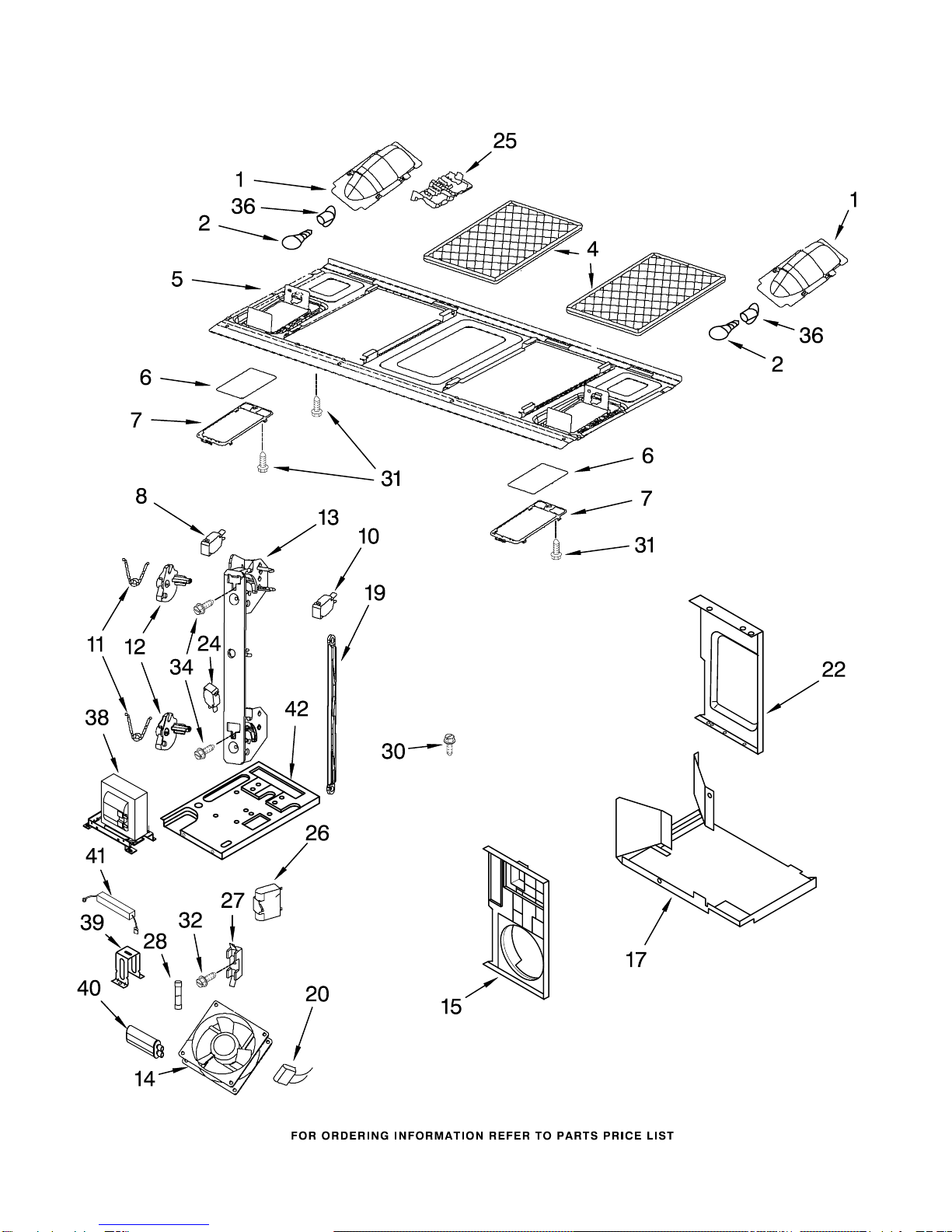

INTERIOR AND VENTILATION PARTS
4
For Models: MH3184XPQ2, MH3184XPB2, MH3184XPT2, MH3184XPS2
(WHITE) (BLACK) (BISCUIT) (STAINLESS)
8206260
Illus. Part
No. No. DESCRIPTION
1 8205096 Reflector, Lamp
2 8183993 Lamp
4 8184001 Filter, Grease
5 8205366 Plate, Bottom
6 8184141 Glass, Lamp
7 8184889 Holder, Glass
8 4393697 Switch, Micro
Primary/Secondary
10 4393599 Switch, Micro
11 8169438 Spring, Interlock
12 8205211 Plate, Cam
13 8185189 Support, Interlock
14 8205362 Fan, DC 12 Volt
15 8205364 Housing, Fan
17 8205357 Diffuser, Housing
19 8185190 Rod−Locking Link
20 8184093 Capacitor, 125 V
22 8205356 Plate, Side
24 4393598 Switch, Micro
25 8184202 Cover, Terminal
26 8184091 Motor, Capacitor
27 8184312 Holder, Fuse
28 4393308 Fuse
30 8184199 Screw
31 4393835 Screw
32 8184200 Screw
34 8169477 Screw
36 8169539 Holder, Lamp
38 8205358 Transformer, H.V.
39 8205359 Bracket, Capacitor
40 8205360 Capacitor, H.V.
41 8205361 Diode, H.V.
42 8205365 Chassis

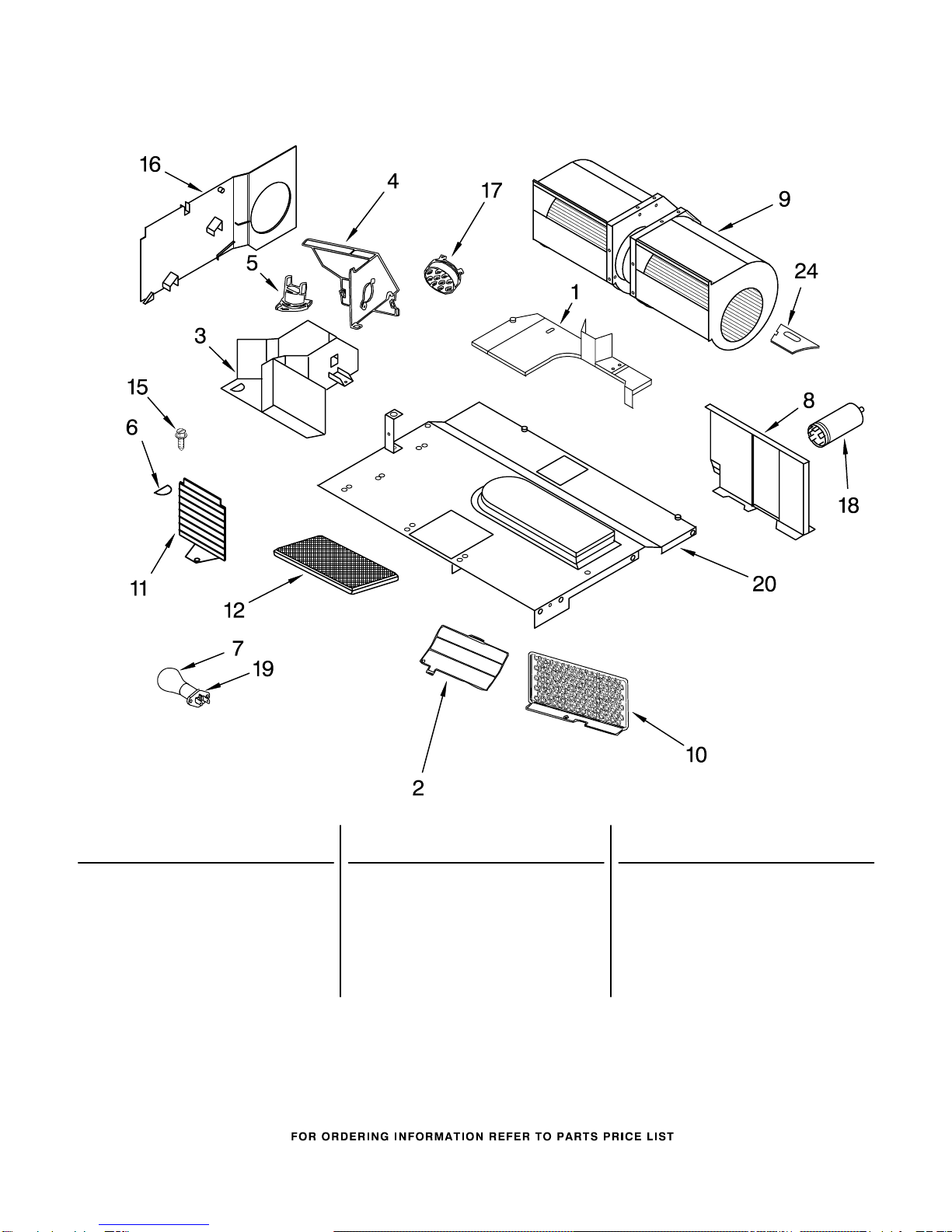

AIR FLOW PARTS
5
For Models: MH3184XPQ2, MH3184XPB2, MH3184XPT2, MH3184XPS2
(WHITE) (BLACK) (BISCUIT) (STAINLESS)
8206260
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8205350 Deflector, Air
2 8205353 Cover, Lamp
3 8205368 Duct, Air
4 8204789 Bracket, Thermostat
5 8183703 Thermostat
6 8204676 Cover
7 8183993 Lamp
8 8205354 Air Guide, Back
9 8184825 Motor, Fan Assy
10 8205355 Shield
11 8204790 Shield
12 8205146 Filter, Charcoal
15 8169474 Screw
16 Air Guide
8205367 Left
8205352 Right
17 4393808 Humidity, Sensor
18 8169561 Filter
19 8169539 Holder, Lamp
20 8205351 Base Plate,
Air Guide
24 8185097 Socket, Motor Wire

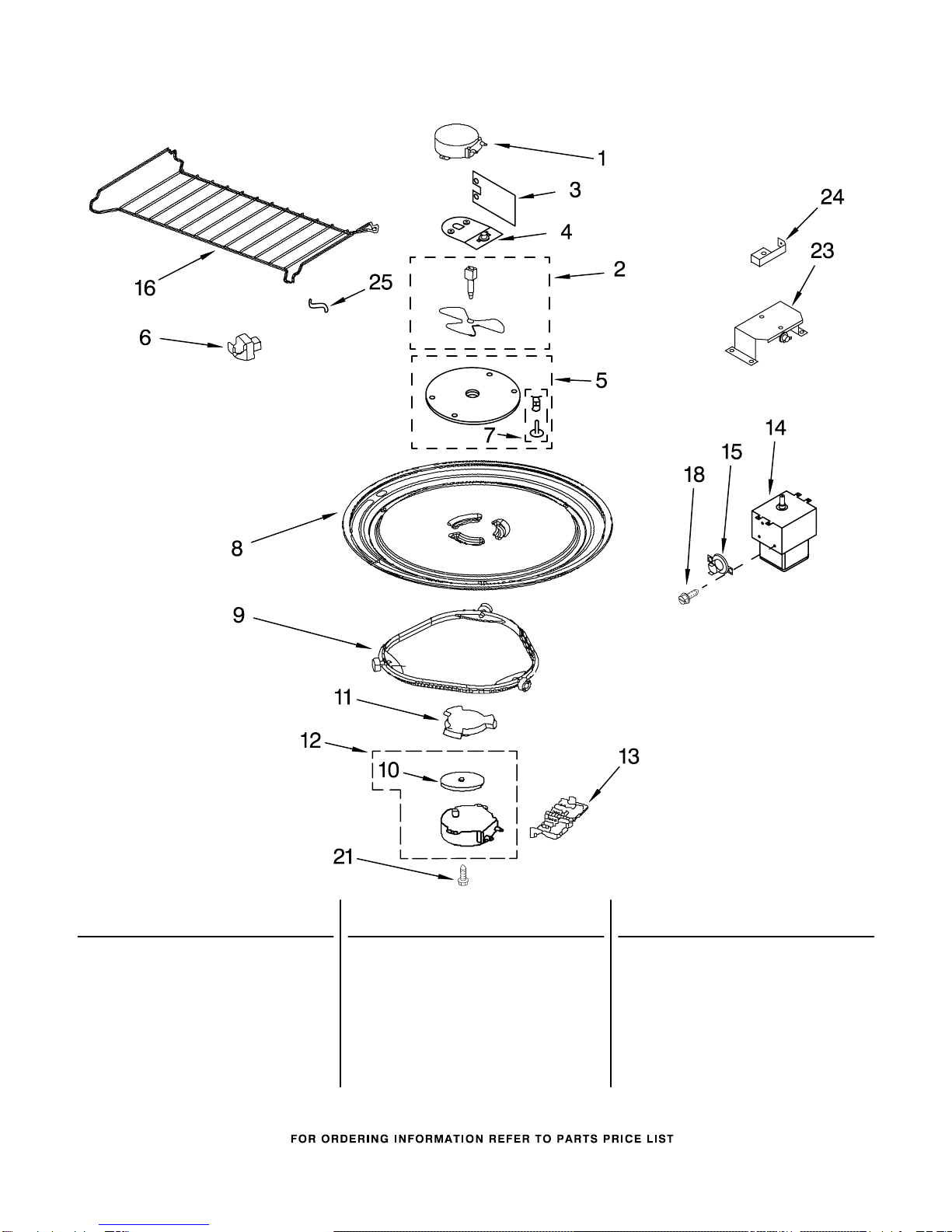

MAGNETRON AND TURNTABLE PARTS
6
For Models: MH3184XPQ2, MH3184XPB2, MH3184XPT2, MH3184XPS2
(WHITE) (BLACK) (BISCUIT) (STAINLESS)
8206260
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8205044 Motor, Stirrer
2 8205202 Stirrer
Shaft/Blade
3 8205369 Shield, Nomex
4 8184585 Thermostat/Bracket
5 8184604 Cover, Inlet
Includes Nails
and Bushings
6 8204662 Hook, Rack (4)
7 8184549 Nails/Bushings
(4 of each)
8 4393799 Turntable
9 8205778 Ring, Turntable
10 8184109 Spacer, Waterproof
11 8205779 Driver, Turntable
12 8183953 Motor, Turntable
13 4393756 Cover, Terminal
14 8205363 Magnetron
15 8184951 Thermostat
16 8205380 Rack
18 4393838 Screw
21 4393832 Screw
23 8184586 Thermostat/Bracket
24 8184669 Bracket, Plug
25 8205039 Spacer (4)

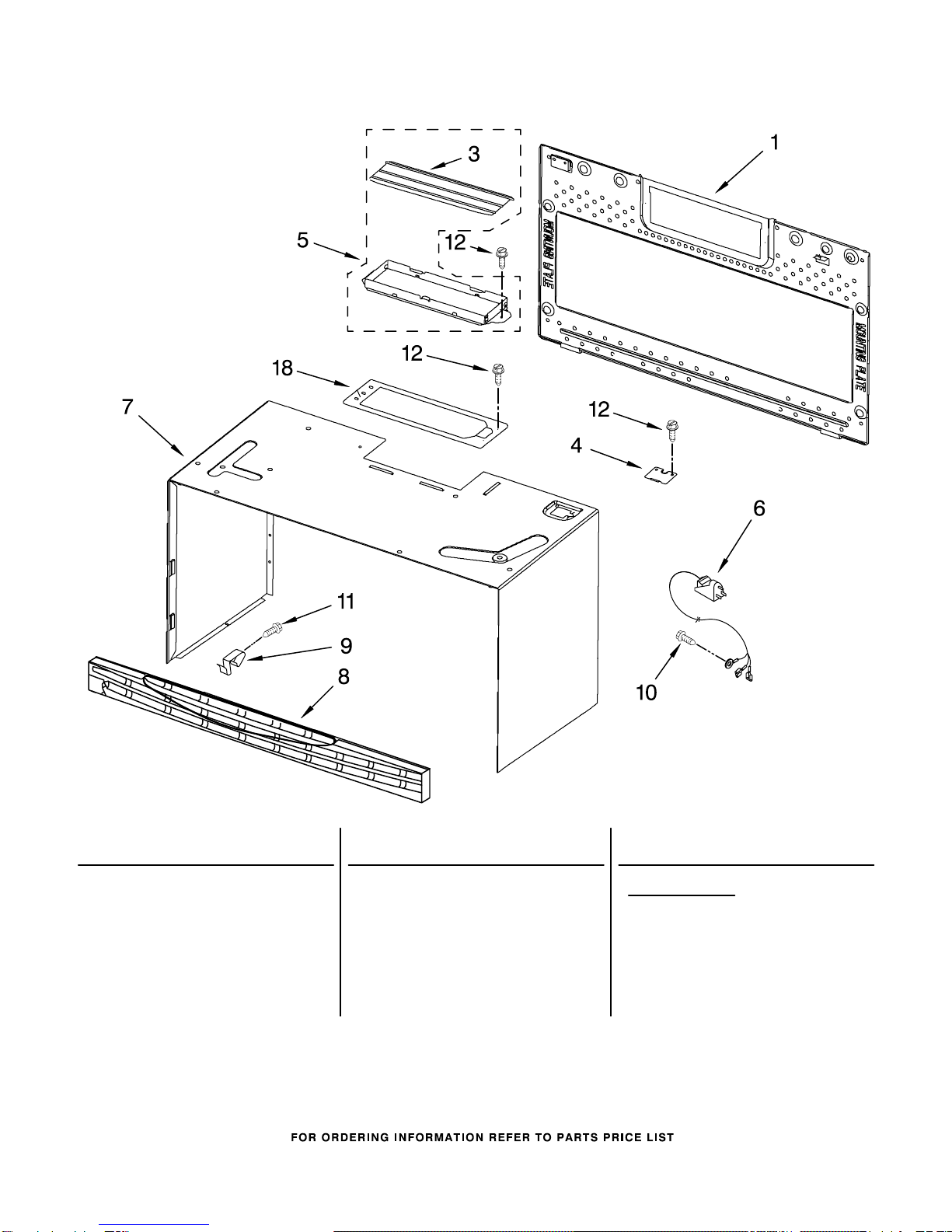

CABINET AND INSTALLATION PARTS
7
For Models: MH3184XPQ2, MH3184XPB2, MH3184XPT2, MH3184XPS2
(WHITE) (BLACK) (BISCUIT) (STAINLESS)
8206260
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8206172 Plate, Mounting
3 4393713 Door, Damper
4 8184897 Lid, Power Cord
5 8205558 Damper Assembly
6 8205808 Cord, Power
7 Case, Outer
8205347 White
8205348 Black
8205349 Biscuit
8 Grille, Vent
8205214 White
8205215 Black
8205216 Biscuit
9 8184190 Clip, Grille
10 4393836 Screw
11 8169475 Screw
12 4393472 Screw
18 8206192 Plate, Damper
Miscellaneous
8205948 Installation,
Hardware
8184731 Template, Upper
8169704 Screw, Top Mountng
8205695 Main Harness
8205696 Ground Wire Assy
8205693 H.V. Wire Assy
