DOOR PARTS

For Models: MT4155SPQ1, MT4155SPB1, MT4155SPT1, MT4155SPS1

(White) (Black) (Biscuit) (Stainless Steel)

11−05 Litho in U.S.A. (dmm) Part No. 8206275

MICROWAVE OVEN

1.5 CUBIC FOOT

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8205085 Use & Care Guide

8205087 Tech Sheet

8204843 Installation

Instructions

8205086 Cook Guide Label

6 8184263 Latch

7 8171918 Spring, Latch

8 8184265 Cap

10 Door Assembly

8205446 Black

8205445 White

8205447 Biscuit

8205569 Stainless Steel

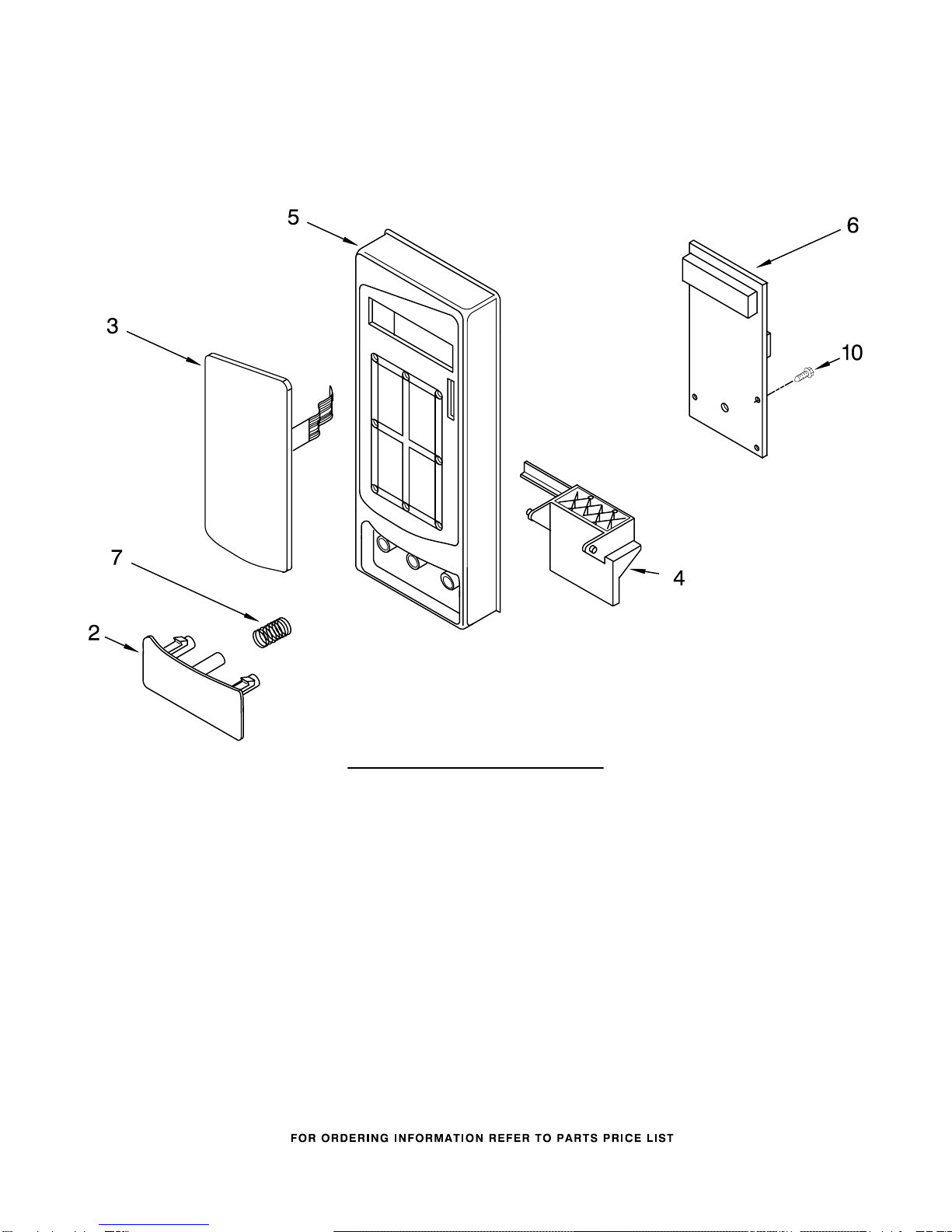

CONTROL PANEL PARTS

For Models: MT4155SPQ1, MT4155SPB1, MT4155SPT1, MT4155SPS1

(White) (Black) (Biscuit) (Stainless Steel)

8206275

Illus. Part

No. No. DESCRIPTION

2 Button

8184427 Black

8184336 White

8184441 Biscuit

8205571 Stainless Steel

3 Switch, Membrane

8205449 Black

8205448 White

8205450 Biscuit

4 8205451 Lever, Release

5 Control Panel

8184541 Black

8184533 White

8184543 Biscuit

8205570 Stainless Steel

(Includes #3)

6 8205452 Microcomputer

7 8184272 Spring

10 4358381 Screw

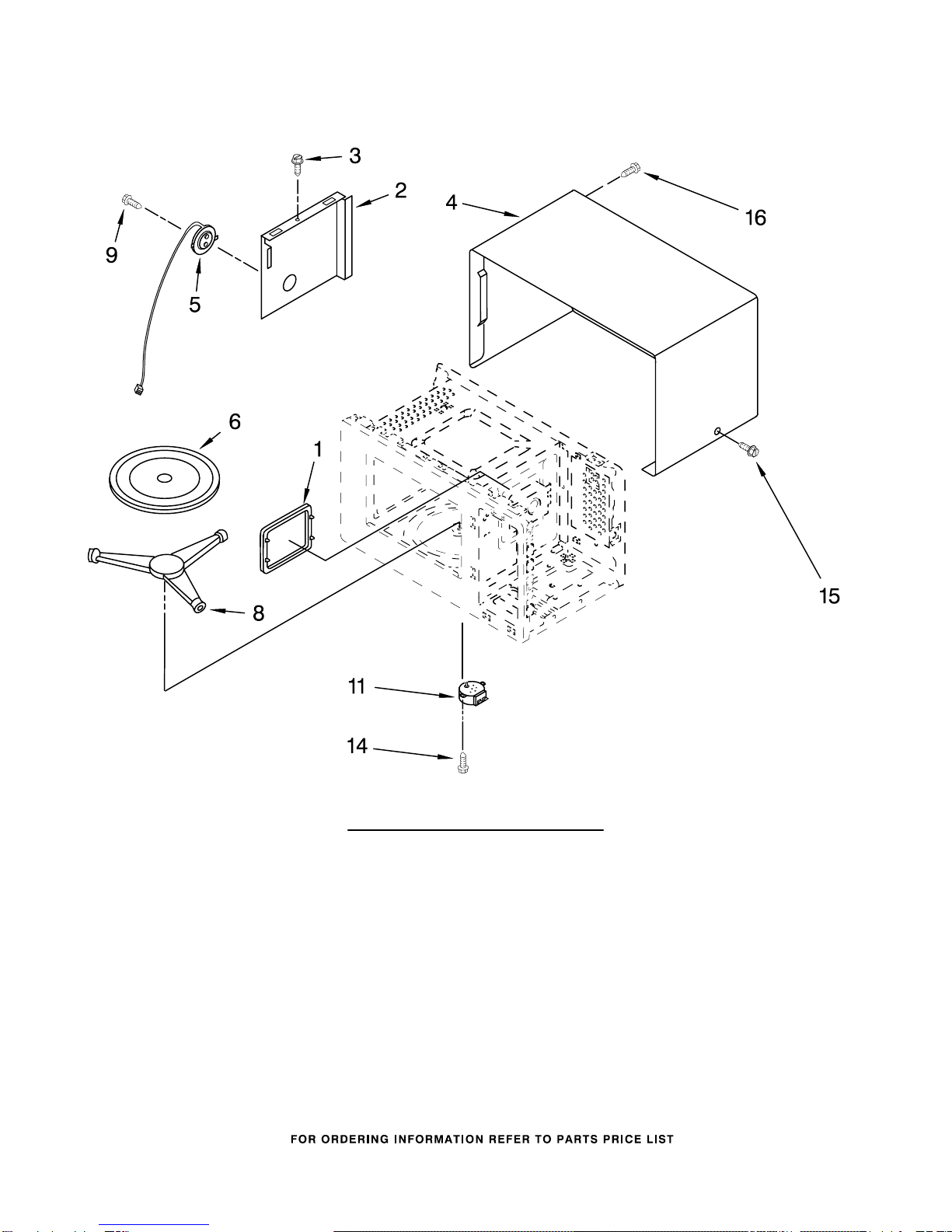

OVEN CAVITY PARTS

For Models: MT4155SPQ1, MT4155SPB1, MT4155SPT1, MT4155SPS1

(White) (Black) (Biscuit) (Stainless Steel)

8206275

Illus. Part

No. No. DESCRIPTION

1 8184278 Canopy

2 8205457 Guide, Sensor

3 4358192 Screw

4 Outer Case

8205454 Black

8205453 White

8205455 Biscuit

5 8183514 Sensor, Humidity

6 4359780 Tray, Glass

8 8205148 Turntable Support

9 4358376 Screw

11 8184283 Motor, Synchronous

14 4358188 Screw

15 Screw

4358829 Black

4358362 White

16 8171862 Screw

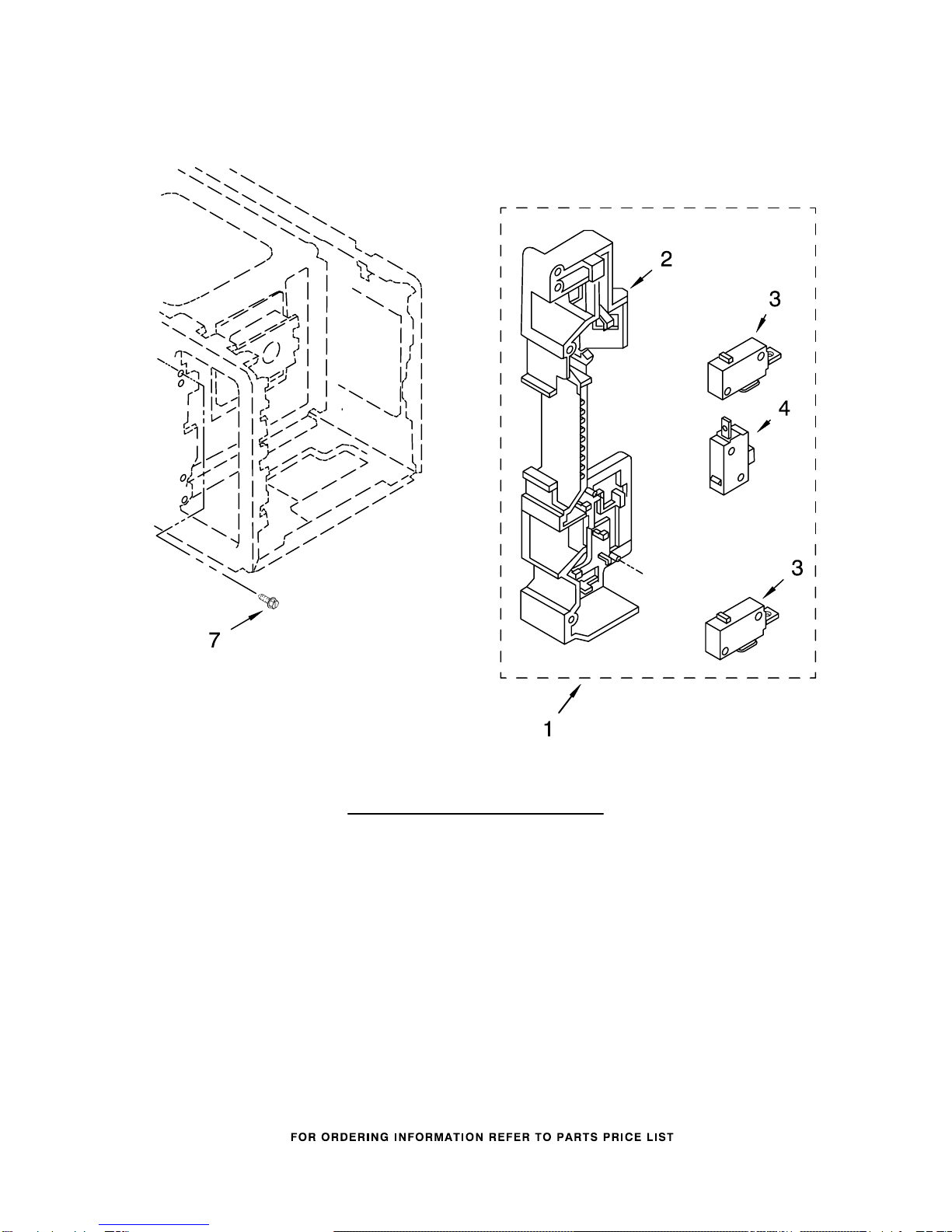

LATCH BOARD PARTS

For Models: MT4155SPQ1, MT4155SPB1, MT4155SPT1, MT4155SPS1

(White) (Black) (Biscuit) (Stainless Steel)

8206275

Illus. Part

No. No. DESCRIPTION

1 Latch Board Assembly

(Non−Serviceable)

2 8185271 Latch Board

3 8183561 Switch Micro

Primary/Secondary

4 8183562 Switch, Micro

Monitor

7 4358271 Screw

OVEN INTERIOR PARTS

For Models: MT4155SPQ1, MT4155SPB1, MT4155SPT1, MT4155SPS1

(White) (Black) (Biscuit) (Stainless Steel)

8206275

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8205458 Blade, Fan

2 8205456 Guide, Suction

3 8205462 Motor, Fan

4 8185272 H.V. Capacitor

5 8184288 H.V.C Bracket

6 8206282 Leadwire Assembly

7 8184290 Bracket, Support

8 8184295 H.V. Diode Cable

9 8206281 Power Cord

10 4359164 Thermostat

11 8171810 Lamp, Baseless

12 8204900 Duct, Air

13 8205460 Magnetron

14 4359794 Holder

15 8206270 Filter, Noise

17 8183507 Fuse

18 8204902 Screw, Ground

19 4358659 Cap

21 4358190 Screw

22 4358489 Screw

24 4358381 Screw

BASE PLATE PARTS

For Models: MT4155SPQ1, MT4155SPB1, MT4155SPT1, MT4155SPS1

(White) (Black) (Biscuit) (Stainless Steel)

8206275

Illus. Part

No. No. DESCRIPTION

1 8205464 Base Plate

3 8184385 Leg

4 8205459 Transformer

6 4358489 Screw

Following Parts Not Illustrated

Trim Kits

MK1154XPB

24" Black

MK1154XPQ

24" White

MK1154XPT

24" Biscuit

MK1154XPS

24" S. Steel

MK1157XPB

27" Black

MK1157XPQ

27" White

MK1157XPT

27" Biscuit

MK1157XPS

27" S. Steel

MK1150XPB

30" Black

MK1150XPQ

30" White

MK1150XPT

30" Biscuit

MK1150XPS

30" S. Steel
