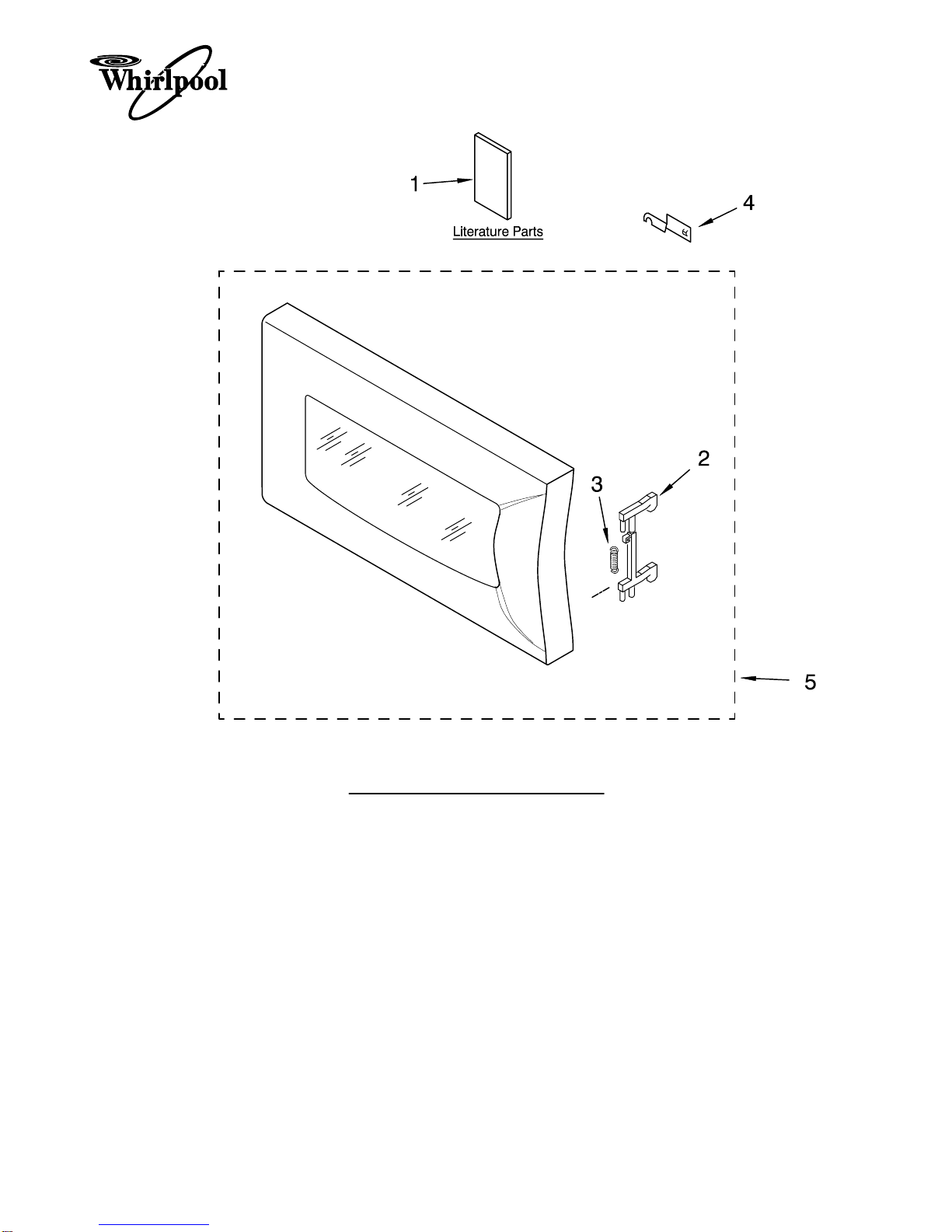

DOOR PARTS

For Models: MT4155SPQ3, MT4155SPB3, MT4155SPT3, MT4155SPS3

(White) (Black) (Biscuit) (Stainless Steel)

12−07 Litho in U.S.A. (rek) Part No. W10179144 Rev A

MICROWAVE OVEN

1.5 CUBIC FOOT

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10158719

Use & Care Guide

W10178208

Tech Sheet

8204843 Installation

Instructions

8205086 Cook Guide Label

2 8184263 Latch

3 8171918 Spring, Latch

4 8184265 Cap

5 Door Assembly

8205446 Black

8205445 White

8205447 Biscuit

8205569 Stainless Steel

CONTROL PANEL PARTS

For Models: MT4155SPQ3, MT4155SPB3, MT4155SPT3, MT4155SPS3

(White) (Black) (Biscuit) (Stainless Steel)

W10179144

Illus. Part

No. No. DESCRIPTION

1 Button

8184427 Black

8184336 White

8184441 Biscuit

8205571 Stainless Steel

2 Switch, Membrane

8205449 Black

8205448 White

8205450 Biscuit

3 8205451 Lever, Release

4 Control Panel

8184541 Black

8184533 White

8184543 Biscuit

8205570 Stainless Steel

(Includes #3)

W10178210

Microcomputer

6 8184272 Spring

7 4358381 Screw

OVEN CAVITY PARTS

For Models: MT4155SPQ3, MT4155SPB3, MT4155SPT3, MT4155SPS3

(White) (Black) (Biscuit) (Stainless Steel)

W10179144

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8184278 Canopy

2 8205457 Guide, Sensor

3 4358192 Screw

4 Outer Case

W10178211

Black

W10178212

White

W10178213

Biscuit

5 8183514 Sensor, Humidity

W10143945

Tray, Glass

W10143947

Shaft, Turntable

W10143946

Ring, Turntable

9 4358376 Screw

W10169273

Motor, Synchronous

11 4358188 Screw

12 Screw

4358829 Black

4358362 White

13 8171862 Screw

LATCH BOARD PARTS

For Models: MT4155SPQ3, MT4155SPB3, MT4155SPT3, MT4155SPS3

(White) (Black) (Biscuit) (Stainless Steel)

W10179144

Illus. Part

No. No. DESCRIPTION

1 Latch Board Assembly

(Non−Serviceable)

2 8185271 Latch Board

3 8183561 Switch Micro

Primary/Secondary

4 8183562 Switch, Micro

Monitor

5 4358271 Screw

OVEN INTERIOR PARTS

For Models: MT4155SPQ3, MT4155SPB3, MT4155SPT3, MT4155SPS3

(White) (Black) (Biscuit) (Stainless Steel)

W10179144

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8205458 Blade, Fan

W10169274

Guide, Suction

3 8205462 Motor, Fan

4 8184813 H.V. Capacitor

5 8184288 H.V.C Bracket

6 8206282 Leadwire Assembly

7 8184290 Bracket, Support

8 8184295 H.V. Diode Cable

9 8206281 Power Cord

10 8184383 Thermostat

11 8171810 Lamp, Baseless

12 8204900 Duct, Air

13 8205460 Magnetron

14 4359794 Holder

15 8206270 Filter, Noise

16 8183507 Fuse

17 8204902 Screw, Ground

W10160553

Screw

19 4358190 Screw

20 4358489 Screw

21 4358381 Screw

22 8205509 Bracket, Support

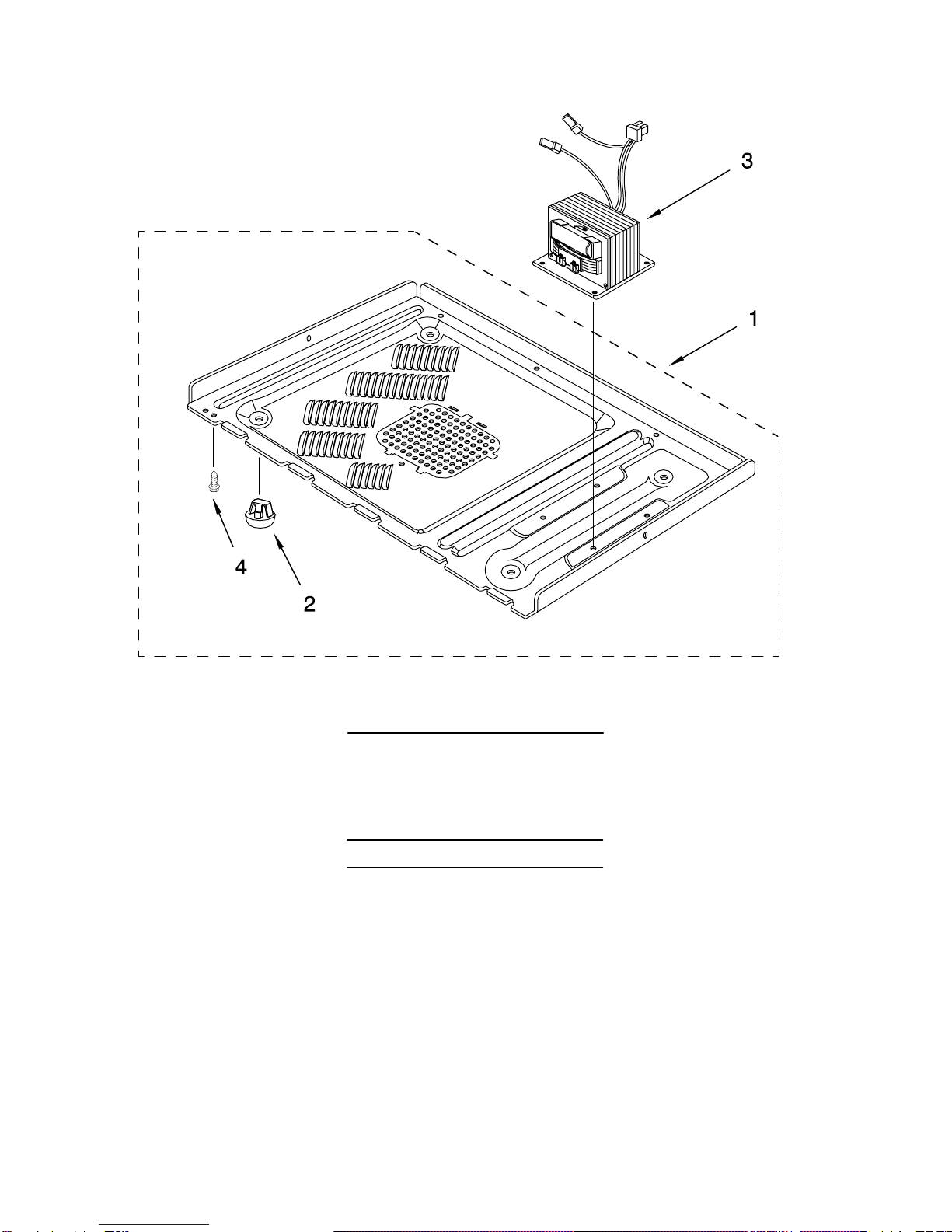

BASE PLATE PARTS

For Models: MT4155SPQ3, MT4155SPB3, MT4155SPT3, MT4155SPS3

(White) (Black) (Biscuit) (Stainless Steel)

W10179144

Illus. Part

No. No. DESCRIPTION

1 8205464 Base Plate

2 8184385 Leg

W10169275

Transformer

4 4358489 Screw

Following Parts Not Illustrated

Trim Kits

MK1154XPB

24" Black

MK1154XPQ

24" White

MK1154XPT

24" Biscuit

MK1154XPS

24" S. Steel

MK1157XPB

27" Black

MK1157XPQ

27" White

MK1157XPT

27" Biscuit

MK1157XPS

27" S. Steel

MK1150XPB

30" Black

MK1150XPQ

30" White

MK1150XPT

30" Biscuit

MK1150XPS

30" S. Steel
