Whirlpool AKP 616/WH Manuale utente

SERVICE Whirlpool Europe

Customer Services

Model AKP 616/WH

Version 8577 616 29001 Page

Technical data 2

Spare part list 3

Exploded view 4

Wiring diagram 5 - 6

Service Manual

Built-in oven

AKP 616/WH

This documentation is only intended for qualiﬁed technicians who are aware of the respec-

tive safety regulations.

Date: 31.05.2005 Subject to modiﬁcation

Document-No.: 4812 725 19951

SERVICE

31.05.2005 / Page 2 AKP 616/WH Whirlpool Europe

Doc. No: 4812 725 19951 8577 616 29001 Customer Service

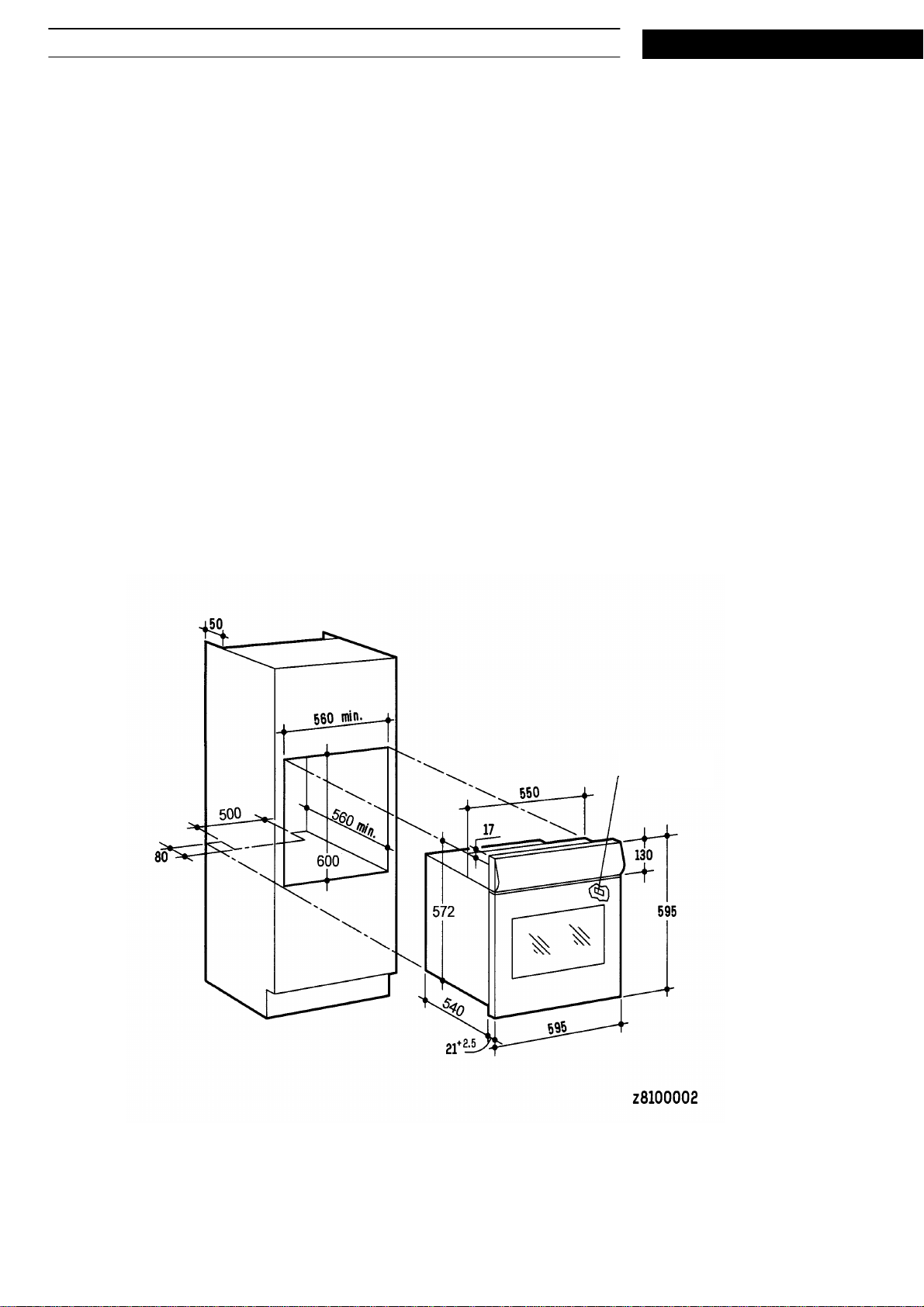

Technical data

Electrical connection

Rated voltage 230 V ~

Main connection 230 V 1N~ 50 Hz

Total connected load 2500 W

Upper heating element / Grill element 900/2500 W

Lower heating element 1150 W

Electrical components

Auto timer Analog PCA 428

Accessories

Baking tray enameled 375 x 445.5 mm

Fat pan enameled 375 x 445.5 mm

Grid chrome 446.5 x 340 mm

Service sticker

SERVICE Whirlpool Europe AKP 616/WH 31.05.2005 / Page 3

Customer Service 8577 616 29001 Doc. No: 4812 725 19951

Spare part list

Model AKP 616/WH

Service No. 857761629001

Version 857761629001

Pos. No. 12NC Code Description

022 1 4819 460 78449 Trim, side left

022 2 4819 460 78448 Trim, side right

025 1 4819 460 78628 Trim, lower

025 2 4819 460 78849 Trim, lower

040 0 4812 417 19153 Hinge, 2V HQ

047 0 4812 417 18837 Hinge run. mech.

110 0 4819 498 78086 Handle, door

110 1 4819 462 48456 Rubber ring

121 0 4819 442 39501 Inner door, oven

121 3 4819 460 89431 Trim

141 0 4819 450 58241 Oven glass

191 0 4819 468 18109 Gasket 1045 mm

201 0 4812 442 69022 Panel, rear

204 0 4819 442 38201 Side panel

245 0 4819 458 19991 Oven shelf

246 0 4812 418 38128 Baking sheet

247 0 4812 418 38138 Fat pan

248 0 4819 535 98409 Rotary spit

248 1 4812 458 38092 Grille

261 0 4819 458 68266 Inset grid left

261 1 4819 458 68265 Inset grid right

301 0 4819 453 58974 Panel, control

332 0 4819 411 29136 Button, push timer

334 0 4812 412 78797 Knob, GOLDEN

351 0 4812 310 28093 Pilot lamp, 230/240 KIT

354 0 4819 462 79749 Lens red

400 0 4819 361 58289 Motor

440 0 4812 361 18314 Motor, fan

441 0 4819 361 18475 Motor 230 V 22W

443 0 4819 515 48065 Fan wheel

452 0 4812 259 98474 Heating element upper/grill

456 0 4819 259 28948 Heating element lower 1150 W

491 0 4812 290 68168 Connection block

500 0 4819 282 18686 Autotimer

554 0 4812 282 28227 Thermostat

562 0 4819 252 28078 Thermal fuse

620 0 4812 273 28151 Switch, oven

651 0 4819 134 88153 Lamp, oven

652 0 4819 255 18237 Holder, lamp rear

656 0 4819 450 69844 Lamp screen rear

694 2 4819 466 69505 Stopper

904 1 4819 466 99137 Spacer

914 0 4819 505 18323 Nut

915 0 4819 505 18145 Nut

932 0 4819 492 68714 Spring

993 0 4819 310 39036 Accessory ﬁtting

SERVICE

31.05.2005 / Page 4 AKP 616/WH Whirlpool Europe

Doc. No: 4812 725 19951 8577 616 29001 Customer Service

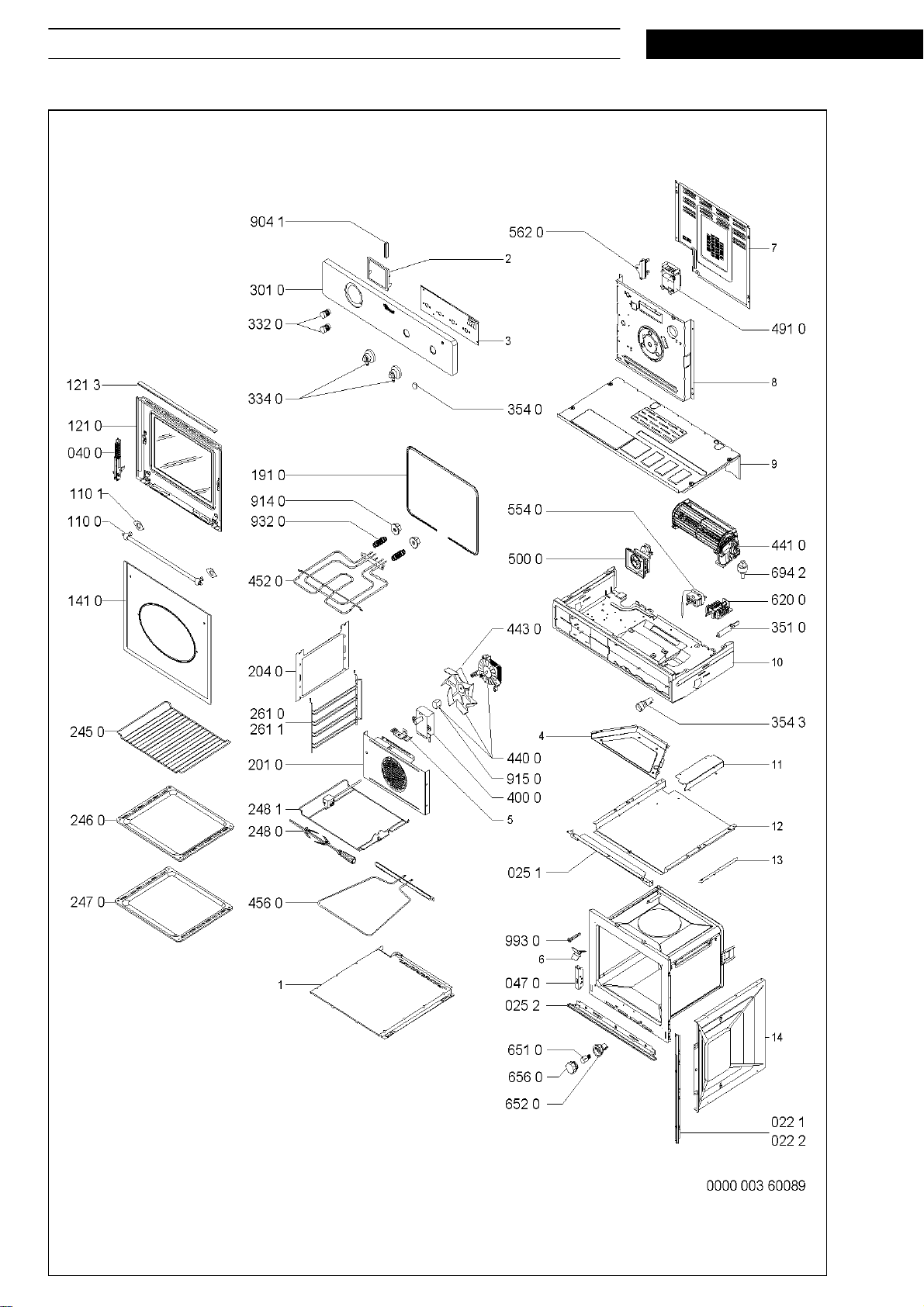

Exploded view

SERVICE Whirlpool Europe AKP 616/WH 31.05.2005 / Page 5

Customer Service 8577 616 29001 Doc. No: 4812 725 19951

Wiring diagram

SERVICE

31.05.2005 / Page 6 AKP 616/WH Whirlpool Europe

Doc. No: 4812 725 19951 8577 616 29001 Customer Service

Wiring diagram
