LOWER OVEN PARTS

For Models:RBD245PRB00, RBD245PRQ00, RBD245PRT00,RBD245PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8−07 Litho in U.S.A. (dmm) Part No. 8186427

24" BUILT−IN ELECTRIC

DOUBLE OVEN

STD−CLEAN LOWER

SELF−CLEAN UPPER

LOWER OVEN PARTS

For Models:RBD245PRB00, RBD245PRQ00, RBD245PRT00,RBD245PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186427

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8303871 Installation

Instructions

8303870 Use & Care Guide

(Oven)

8302068 Tech Sheet

3191638 Safer Cooking Tips

2 Trim, Side

8302917 RH Black

8302919 RH White

8302921 RH Biscuit

8302918 LH Black

8302920 LH White

8302922 LH Biscuit

4 4448520 Bumper, Door

5 Screw

3400832 Black

3400805 Zinc

6 Receiver, Hinge

4455605 Left Hand

4455606 Right Hand

7 4455863 Top Chassis

8 4452490 Spacer, Foam

9 4452159 Tube, Vent

10 4452165 Lens, Light

11 4452368 Oven Light Assy

12 4452166 Bulb, Light

13 8300825 Insulation,

Bottom Vent

14 4455610 Frame, Front

15 4450491 Gasket, Door

16 4449809 Screw

17 4449040 Screw

18 4452152 Bracket, Mounting

(Bottom Vent)

19 4451476 Support, Insulation

20 4450935 Plug, Door

W10016550

Fan & Bracket Assy

23 4449154 Screw

24 4449743 Screw

25 4455641 Side, Chassis

(R.H. & L.H.)

26 4452232 Back, Chassis

27 Liner, Oven

(Not serviceable)

28 3196176 Screw

29 4455636 Sensor

33 9760675 Deflector, Vent

37 4451354 Fuse−Thermal

43 4450525 Base, Chassis

49 4448933 Retainer, Gasket

50 4451747 Cover, Back

51 Trim, Bottom

8302942 Black

8302943 White Model

8302944 Biscuit Model

53 4449845 Support, Bracket

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449314 Insulation, Wrap

4450363 Insulation, Back

UPPER OVEN PARTS

For Models:RBD245PRB00, RBD245PRQ00, RBD245PRT00,RBD245PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186427

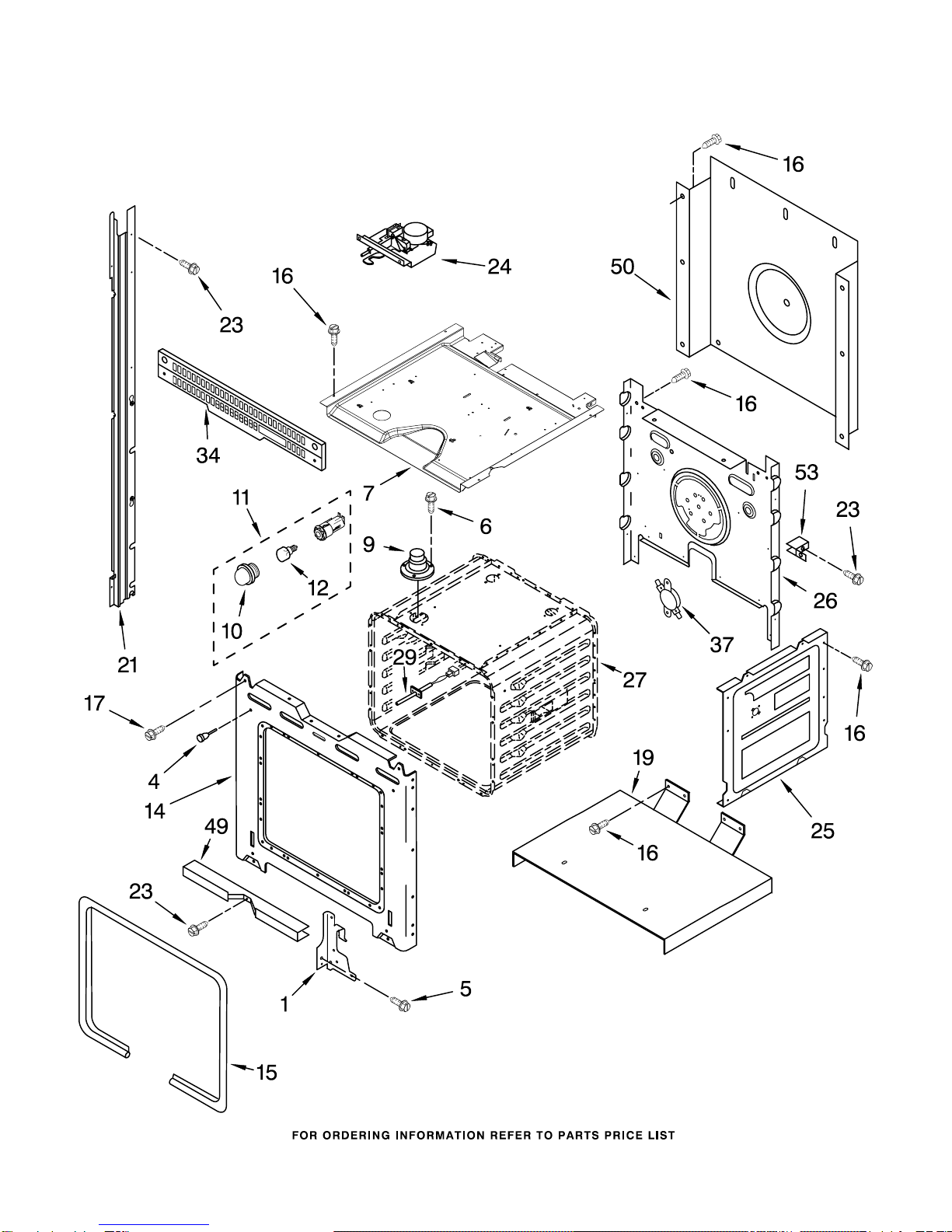

UPPER OVEN PARTS

For Models:RBD245PRB00, RBD245PRQ00, RBD245PRT00,RBD245PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186427

Illus. Part

No. No. DESCRIPTION

1 Receiver, Hinge

4455605 Left Hand

4455606 Right Hand

4 4448520 Bumper, Door

5 4449743 Screw

6 3196176 Screw

7 4455863 Top Chassis

9 4452158 Tube, Vent

10 4452165 Lens, Light

11 4452368 Oven Light Assy

12 4452166 Bulb, Light

14 4455610 Frame, Front

15 4455380 Gasket, Door

16 4449809 Screw

17 4449040 Screw

19 4451476 Support, Insulation

4449809 Screw

21 Rail, Side

8302793 Right Side

8302794 Left Side

4448444 Grommet

23 4449154 Screw

24 9759525 Latch Assy

25 4455641 Side, Chassis

(R.H. & L.H.)

26 4452232 Back, Chassis

27 Liner, Oven

(Not serviceable)

29 4455636 Sensor

34 4452265 Vent, Center

37 9759243 Thermostat (TOD)

(Temp.) SPST

49 4448933 Retainer, Gasket

50 4451747 Cover, Back

53 4449845 Support, Bracket

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449314 Insulation, Wrap

4450363 Insulation, Back

LOWER OVEN DOOR PARTS

For Models:RBD245PRB00, RBD245PRQ00, RBD245PRT00,RBD245PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186427

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8303698 Liner, Door

3 4449247 Glass, Inner

5 4457130 Retainer, Glass

6 Hinge, Door

9760563 Right Side

9760564 Left Side

12 Door Glass, Assy

8303328 Black

8303337 White

8303340 Biscuit

8303312 Stainless

13 Door Handle

8302807 Black

8302808 White

8302809 Biscuit

14 8303165 Bracket, Handle

18 Retainer, Door

8303387BL

Black

8303387WH

White

8303387BT

Biscuit

20 4451040 Screw

21 8303876 Seal, Door

23 4451432 Retainer, Clip

UPPER OVEN DOOR PARTS

For Models:RBD245PRB00, RBD245PRQ00, RBD245PRT00,RBD245PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186427

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8303698 Liner, Door

2 Hinge, Door

9760567 Right Side

9760568 Left Side

3 4449247 Glass, Inner

4 4451720 Insulation, Door

5 4457130 Retainer, Glass

4449809 Screw

7 9759223 Glass, Inner

11 3400832 Screw

12 Door Glass, Assy

8303328 Black

8303337 White

8303340 Biscuit

8303312 Stainless

13 Door Handle

8302807 Black

8302808 White

8302809 Biscuit

14 8303165 Bracket, Handle

15 9759229 Bracket(2nd Glass)

16 9759230 Bracket(3rd Glass)

17 8303811 Nameplate

18 Retainer, Door

8303387BL

Black

8303387WH

White

8303387BT

Biscuit

19 4457101 Shield, Heat

20 4451040 Screw

21 8303876 Seal, Door

22 4457112 Shield, Heat (Btm)

23 4451432 Retainer, Clip

24 9759226 Glass, Inner

INTERNAL OVEN PARTS

For Models:RBD245PRB00, RBD245PRQ00, RBD245PRT00,RBD245PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186427

Illus. Part

No. No. DESCRIPTION

2 4456103 Element, Broil

4449154 Screw

6 4448716 Rack, Oven

7 4452153 Element, Bake

4449154 Screw

CONTROL PANEL PARTS

For Models:RBD245PRB00, RBD245PRQ00, RBD245PRT00,RBD245PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186427

Illus. Part

No. No. DESCRIPTION

1 Control Panel Assy.

8302840 Black

8302841 White

8302842 Biscuit

2 Membrane Switch

8304245 Black

8304246 White

8304247 Biscuit

3 8303883 Microcomputer

4 8304163 Bracket, Control

5 8301848 Board, Mtrzd Latch

TOP VENTING PARTS

For Models:RBD245PRB00, RBD245PRQ00, RBD245PRT00,RBD245PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186427

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4451759 Vent, Exhaust

2 4457289 Blower

3 4451758 Foam, Block

4 4455178 Elbow, Vent−Top

5 4455177 Elbow, Vent−Bottom

6 4449809 Screw

7 4449040 Screw

8 3400080 Screw

9 4450038 Screw

11 4449868 Block, Terminal

13 8303499 Vent,

(Control Panel)

14 Side, Control Top

4451597 Right

4451598 Left

15 9759135 Back, Control

16 4450549 Cover, Top Rear

17 4448664 Clamp

18 4452365 Cover, Top Front

19 4454943 Plate, Fan

20 8302143 Suppressor

21 8300642 Transformer,

Single Control

OPTIONAL PARTS

For Models:RBD245PRB00, RBD245PRQ00, RBD245PRT00,RBD245PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186427

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242827 Wire (14 Ga.

150 c Yellow)

WIRING HARNESS PARTS

8302154 Harness, Wire STD

(Main)

8301878 Stainless Model

4450953 Conduit, Double

4450800 Screw

4448664 Clamp

4449809 Screw

112432 Nut

4454835 Tie, Cable

4451761 Support, Wiring

4454842 Tie, Cable

Miscellaneous

4448950 Screw, Install.

8−14 x 1" (4)

814381 Pin Hinge Kit

4396923 Broiler Pan Assy
