Whirlpool RF262LXSB3 Manuale utente

COOKTOP PARTS

For Models: RF262LXSQ3, RF262LXST3, RF262LXSB3

(Designer White)(Designer Biscuit)(Black)

07−07 Litho in U.S.A. (rek) Part No. W10143263 Rev. A

30" ELECTRIC FREESTANDING

SELF CLEAN RANGE

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature

9762996 Instructions

Installations

Template, Anti−Tip

9757142 English/Spanish

9757143 English/French

9763001 Owners Manual

W10133890

Tech Sheet

9762761 Safer Cooking Tips

2 Cooktop

9763324 White

9763325 Biscuit

9763326 Black

3 Element, Surface

8273992 2500 W − LF/RF

8273994 1200 W − LR/RR

4 3196169 Screw

5 8272791 Bracket, Element

W10035930

Spring, Locator

7 3196170 Screw

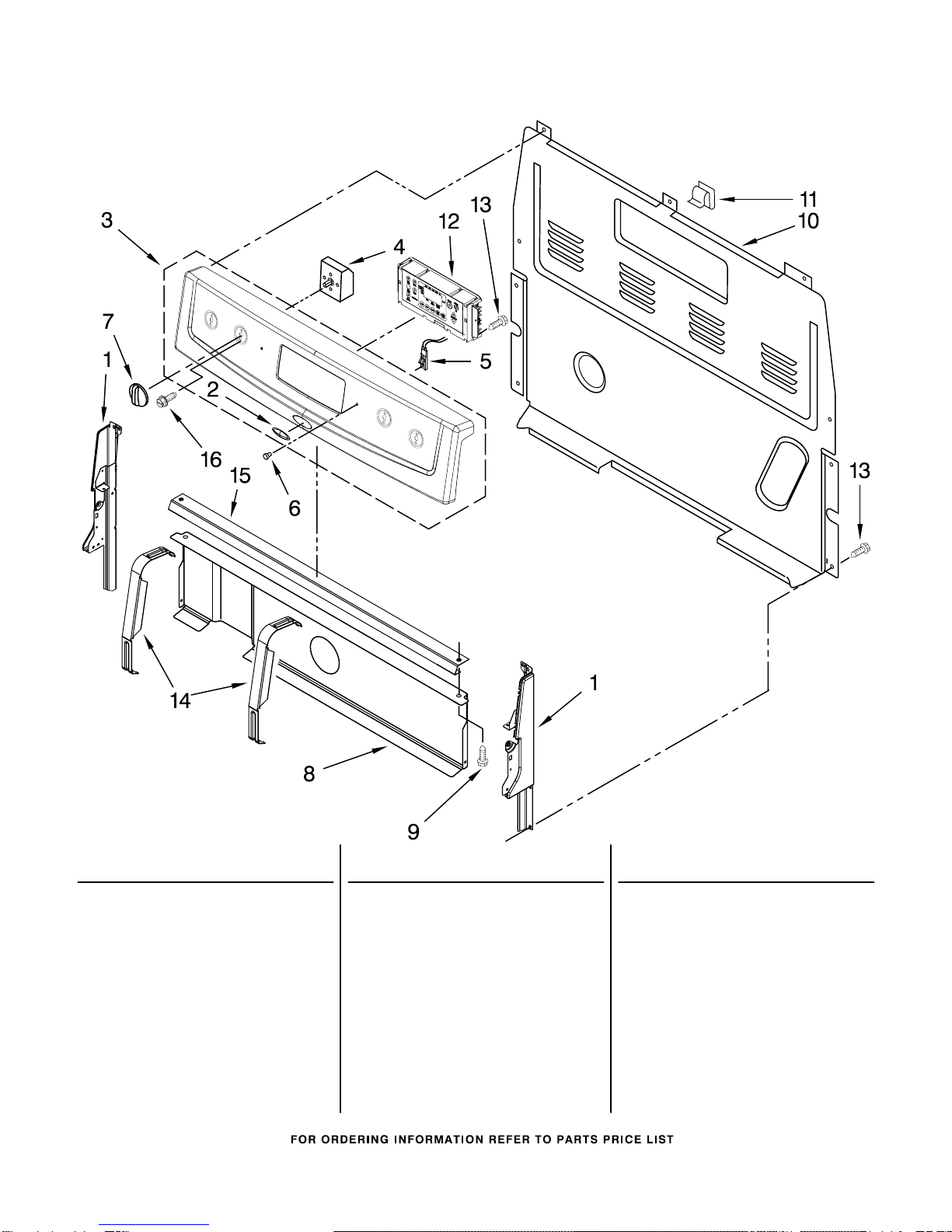

CONTROL PANEL PARTS

For Models: RF262LXSQ3, RF262LXST3, RF262LXSB3

(Designer White)(Designer Biscuit)(Black)

W10143263

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Endcap

W10009040

White Left Hand

W10009050

White Right Hand

W10009060

Biscuit Left Hand

W10009070

Biscuit Right Hand

W10009080

Black Left Hand

W10009090

Black Right Hand

2 9757609 Nameplate

3 Panel, Control

9762018 White

9762028 Biscuit

9762029 Black

4 Switch, Infinite

3148954 LF/RF (Orange)

3148951 LR/RR (Silver)

5 Light, Indicator

8523265 Surface Unit (2)

6 3196068 Lens, Light (3)

7 Knob, Infinite (4)

9761962 White

9761963 Biscuit

9761964 Black

W10134247

Shield, Heat

9 Screw

3196166 White

8281194 Biscuit

3196168 Black

10 8272473 Cover, Upper

11 8273564 Clip

12 Control, Range

W10108220

White

W10108240

Biscuit

W10108230

Black

13 3196178 Screw

14 9762078 Brkt−Mntg., EOC

15 9762095 Brkt−Mntg, Console

16 3400882 Screw

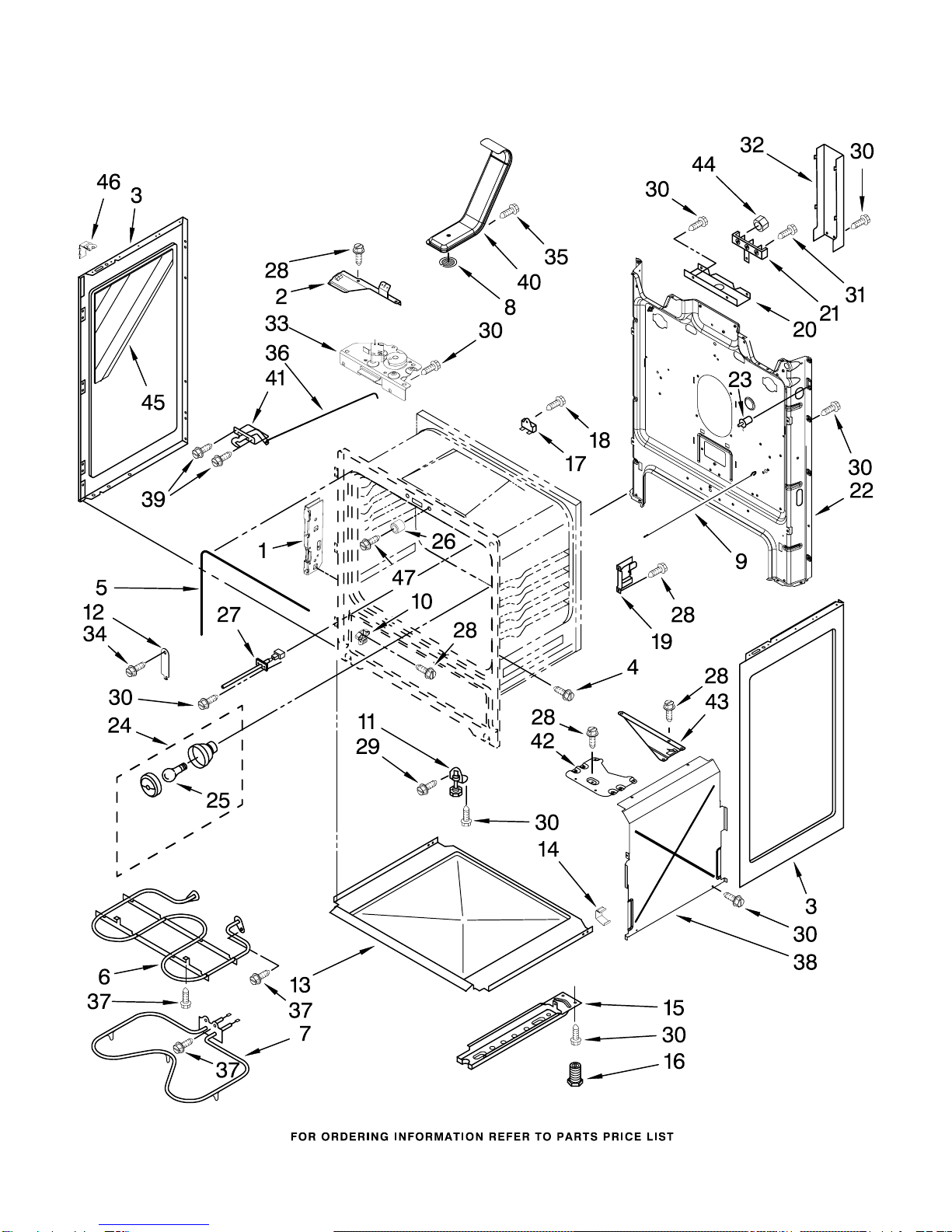

CHASSIS PARTS

For Models: RF262LXSQ3, RF262LXST3, RF262LXSB3

(Designer White)(Designer Biscuit)(Black)

W10143263

CHASSIS PARTS

For Models: RF262LXSQ3, RF262LXST3, RF262LXSB3

(Designer White)(Designer Biscuit)(Black)

W10143263

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 9760407 Brkt − Mounting

2 8273905 Support, Corner LR

3 Panel, Side (2)

8053830 White

8272519 Biscuit

8053832 Black

W10067840

Screw

5 8522416 Seal, Oven Door

6 9757340 Element, Broil

7 9758541 Element, Bake

8 9761301 Screen−Catalyst

9 9757239 Rod − Dr Switch

W10114344

Glide, Drawer Frnt

11 3196037 Foot, Front (2)

12 9761517 Clip,Door Mntg(2)

13 8054068 Tray, Insulation

14 3196576 Clip, Panel (6)

15 9760314 Rail, Base (2)

W10058460

Foot, Rear (2)

17 3196548 Thermal, Fuse

18 3196172 Screw

19 3186116 Support, Oven (2)

20 3186034 Bracket, Service

21 9761958 Block, Terminal

22 8274034 Back, Main

23 9757262 Switch, Door

24 3196701 Light Socket Assy

25 311255 Bulb, Oven Light

26 9758701 Spacer − Door

27 8273902 Sensor, Oven

28 3196169 Screw

29 3196179 Screw

30 3196178 Screw

31 3400016 Screw

32 9758283 Cover, Box

W10107820

Latch Asy, Rear

W10031780

Screw

35 3196566 Screw

W10078380

Rod, Latch

37 3196174 Screw

38 9758238 Retainer, Insul(2)

39 3196560 Screw (2)

40 9761299 Flue

41 9761013 Latch, Door

42 3195736 Support, Front (2)

43 3195987 Support, Corner RR

44 112432 Nut

45 9761490 Insulation, Foil

46 9761512 Clip, Mounting

47 3196168 Screw

INSULATION

8272616 Insulation, Wrap

8272612 Insulation, Back

8272613 Insulation, Vent

DRAWER & BROILER PARTS

For Models: RF262LXSQ3, RF262LXST3, RF262LXSB3

(Designer White)(Designer Biscuit)(Black)

W10143263

Illus. Part

No. No. DESCRIPTION

1 3195710 Rack, Oven (2)

2 9761031 Drawer, Storage

3 9758200 Bracket, Drawer(2)

4 Rivet, Push (2)

3196813 Black

3196814 White

3196815 Almond

5 Panel, Drawer Frnt

8053341 Black

8053339 White

8272501 Biscuit

6 8053334 Glide, Drawer (2)

7 3196168 Screw

DOOR PARTS

For Models: RF262LXSQ3, RF262LXST3, RF262LXSB3

(Designer White)(Designer Biscuit)(Black)

W10143263

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Top

9762391 Black

9761975 White

9761976 Biscuit

2 3196164 Screw

3 Handle, Door

9761983 Black

9761982 White

9761984 Biscuit

4 9761344 Liner, Door

5 9758162 Glass, Inner (2)

6 3186289 Frame, Glass

W10031790

Screw

8 8272618 Insulation, Door

9 9761357 Retainer, Insul.

10 9761493 Hinge, Door

11 Glass, Outer Door

W10075990

Black

W10075980

White

W10076000

Biscuit

12 Trim, Door Side

W10128571

Black L.H.

W10128562

Black R.H.

W10128572

White L.H.

W10128563

White R.H.

W10128573

Biscuit L.H.

W10131044

Biscuit R.H.

13 3196160 Screw

14 Trim, Lower Door

8523177 Black

8523175 White

8523178 Biscuit

W10031780

Screw

16 8522414 Seal, Window

17 3196794 Bracket, Window(2)

18 3196165 Screw

W10113759

Strap, Door

OPTIONAL PARTS (NOT INCLUDED)

For Models: RF262LXSQ3, RF262LXST3, RF262LXSB3

(Designer White)(Designer Biscuit)(Black)

W10143263

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 c

242821 Wire, Blue

14 Ga. 150 c

242822 Wire, Brown

14 Ga. 150 c

242830 Wire, Brown

14 Ga. 200 c

242823 Wire, Green

14 Ga. 150 c

242824 Wire, Orange

14 Ga. 150 c

242825 Wire, Red

14 Ga. 150 c

242831 Wire, Red

14 Ga. 200 c

242827 Wire, Yellow

14 Ga. 150 c

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350956 Almond

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

3191048 Cleaner, Glass

4396923 Pan, Broiler

ANTI−TIP KIT

W10017440

Anti−Tip Kit

WIRING HARNESS PARTS

W10111790

Harness, Wire

(Cooktop Left)

W10111766

Harness, Wire

(Cooktop Right)

W10084660

Harness, Wire

(Sensor/Dr Switch)

8523279 Wire, Ground

3196154 Screw

W10111771

Harness, Wire

(Main)

313660 Clip, Wire Ground

3196173 Screw

3196174 Screw

(Grnd Wire / Back)
