Whirlpool RF264LXSQ0 Manuale utente

COOKTOP PARTS

2−06 Litho in U.S.A. (lwp) Part No. 8188347 Rev. A

30" ELECTRIC FREESTANDING

SELF CLEAN RANGE

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

9763001 Owners Manual

9762976 Tech Sheet

9762996 Instructions,

Installation

Template, Anti−Tip

9757142 English/Spanish

9757143 English/French

9762761 Safer Cooking Tips

2 Bowl, Drip

3196206 6" Gray

3196207 8" Gray

3196202 6" Black

3196203 8" Black

8522881 6" Espresso

8522882 8" Espresso

3 Cooktop

3186231 White

8272527 Biscuit

3186233 Black

4 3195060 Hinge, Cooktop (2)

5 3196178 Screw

6 308605 Strain Relief

7 3195812 Rod, Support (2)

9 814399 Receptacle, Elmnt

10 3196154 Screw

11 Element, Surface

9761347 6" (2)

9761345 8" (2)

For Models: RF264LXSQ0, RF264LXST0, RF264LXSB0

(Designer White)(Designer Biscuit)(Black)

CONTROL PANEL PARTS

28188347

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Endcap

W10009080

Black Left Hand

W10009090

Black Right Hand

W10009040

White Left Hand

W10009050

White Right Hand

W10009060

Biscuit Left Hand

W10009070

Biscuit Right Hand

2 9757609 Nameplate

3 Panel, Control

9762083 Black

9762081 White

9762082 Biscuit

4 Switch, Infinite

3148954 Left Front

3148952 Left Rear

3148954 Right Rear

3148952 Right Front

5 8523265 Light, Indicator

6 3196068 Lens, Light

7 Knob, Infinite (4)

9761964 Black

9761962 White

9761963 Biscuit

8 8053912 Shield, Heat

9 3196166 Screw

10 8272473 Cover, Upper

11 9762095 Brkt−Mntg,Console

12 Control, Range

9762185 Black

9762184 White

9762186 Biscuit

13 3196178 Screw

15 3196169 Screw

16 3400882 Screw

19 3196200 Clip

For Models: RF264LXSQ0, RF264LXST0, RF264LXSB0

(Designer White)(Designer Biscuit)(Black)

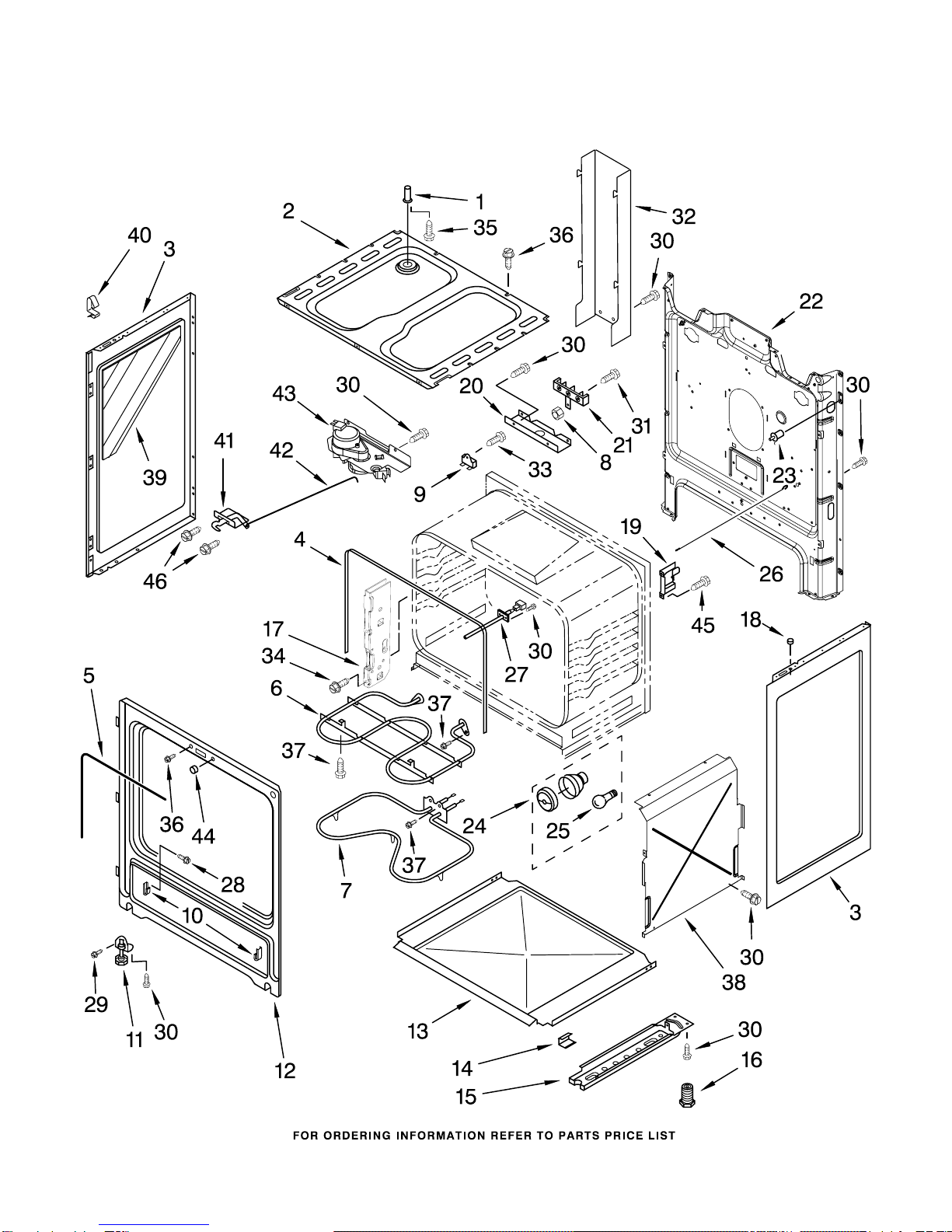

CHASSIS PARTS

8188347

For Models: RF264LXSQ0, RF264LXST0, RF264LXSB0

(Designer White)(Designer Biscuit)(Black)

CHASSIS PARTS

48188347

Illus. Part

No. No. DESCRIPTION

1 9755804 Vent Tube

2 3186144 Box, Burner

3 Panel, Side (2)

8053830 White−Textured

8272519 Biscuit−Textured

8053832 Black

W10010350

Seal, Oven Flange

5 8522416 Seal, Oven Door

6 9757340 Element, Broil

7 9758541 Element, Bake

8 112432 Nut (3)

9 3196548 Fuse, Thermal

10 9759785 Glide, Drawer Frnt

11 3196037 Foot, Front (2)

12 Frame, Front

(Not Serviced)

13 8054068 Tray, Insulation

14 3196576 Clip, Panel (6)

15 9760314 Rail, Base (2)

16 9761935 Foot, Rear (2)

17 9760407 Brkt−Mntg,Dr Hinge

18 3195809 Bumper, Side (2)

19 3186116 Support, Oven (2)

20 3186034 Bracket, Service

21 9761958 Block, Terminal

22 8274034 Back, Main

23 9757262 Switch, Door

24 3196701 Light Socket Assy

25 311255 Bulb, Oven Light

26 9757239 Rod, Door Switch

Rear Mount

27 8273902 Sensor, Oven

28 3196165 Screw

29 3196179 Screw

30 3196178 Screw

31 3400016 Screw

32 9758283 Cover, Box

33 3196172 Screw

W10031780

Screw

35 3196567 Screw

36 3196168 Screw

37 3196174 Screw

38 9758238 Retainer, Side (2)

39 9761490 Insulation

40 3195813 Clip, Mounting

41 9761013 Latch, Door

42 3196961 Rod, Latch

43 9757241 Latch Asy, Rear

44 9758701 Spacer, Door

45 3196169 Screw

46 3196560 Screw (2)

INSULATION

8272616 Insulation, Wrap

8272612 Insulation, Back

For Models: RF264LXSQ0, RF264LXST0, RF264LXSB0

(Designer White)(Designer Biscuit)(Black)

DRAWER & BROILER PARTS

8188347

Illus. Part

No. No. DESCRIPTION

1 3195710 Rack, Oven (2)

4 9761030 Drawer, Storage

5 9758200 Bracket, Drawer(2)

6 Rivet, Push (2)

3196814 White

7 Panel, Drawer Frnt

8053339 White

8272501 Biscuit

8053341 Black

9 8053334 Glide, Drawer (2)

10 3196168 Screw

For Models: RF264LXSQ0, RF264LXST0, RF264LXSB0

(Designer White)(Designer Biscuit)(Black)

DOOR PARTS

68188347

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Top

9762391 Black

9761975 White

9761976 Biscuit

2 3196164 Screw

3 Handle, Door

9761983 Black

9761982 White

9761984 Biscuit

4 9761344 Liner, Door

5 8522414 Seal, Window

6 9758162 Glass, Inner (2)

7 3186289 Frame, Glass

8 8272618 Insulation, Door

9 9761357 Retainer, Insul.

10 9761493 Hinge, Door (2)

11 Glass, Outer

9762480 Black

9762479 White

9762481 Biscuit

12 Trim, Side

8523171 Black Left Hand

8523165 Black Right Hand

8523166 White Left Hand

8523172 White Right Hand

8523167 Biscuit Left Hand

8523173 Biscuit Right Hand

13 3196160 Screw

14 Trim, Lower

8523177 Black

8523175 White

8523178 Biscuit

15 3196025 Clip, Glass (4)

W10031790

Screw

W10031780

Screw

19 9761517 Clip, Dr Mntg (2)

20 3196165 Screw

21 3195809 Bumper, Door (2)

22 3196794 Bracket, Window(2)

For Models: RF264LXSQ0, RF264LXST0, RF264LXSB0

(Designer White)(Designer Biscuit)(Black)

OPTIONAL PARTS

8188347

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 c

242821 Wire, Blue

14 Ga. 150 c

242822 Wire, Brown

14 Ga. 150 c

242830 Wire, Brown

14 Ga. 200 c

242823 Wire, Green

14 Ga. 150 c

242824 Wire, Orange

14 Ga. 150 c

242825 Wire, Red

14 Ga. 150 c

242831 Wire, Red

14 Ga. 200 c

242827 Wire, Yellow

14 Ga. 150 c

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit (Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

3184478 Cleaner, Glass

4396923 Broiler Pan Assy

ANTI−TIP KIT

W10017440

Anti−Tip Kit

WIRING HARNESS PARTS

9762952 Harness, Wire

(Main)

9762428 Harness,Wire

Door Switch/Sensor

311227 Wire, Ground

3196154 Screw

313660 Clip, Wire Ground

3196173 Screw

Miscellaneous

3196897 Pin Kit−Dr Removal

For Models: RF264LXSQ0, RF264LXST0, RF264LXSB0

(Designer White)(Designer Biscuit)(Black)
