Whirlpool RF354BXB Manuale utente

UseAndCare

SELF-CLEANING

A Note to You 2

Important Safety

Instructions 3

&Kin61 6

Using Your Range

Using the Self-

Cleaning Cycle 21

Carin for

Your ange

w 24

If You Need

Assistance

or Service 29

Warranty 32

1-800-253-I 30 1

Call us with questions or comments.

ELECTRIC RANGE

MODELS RF364PXY

RF364BXB

RF354BXB

A Note to You

Thank you for buying a Whirlpool@ appliance.

Because your life is getting busier and more complicated, Whirlpool ranges are easy to use,

save time, and help you manage your home better. To ensure that you will enjoy years of

trouble-free operation, we developed this Use and Care Guide. It is full of valuable information

on how to operate and maintain your appliance properly and safely. Please read it carefully.

Also, please complete and mail the Ownership Registration Card provided with your appli-

ance. This will help us notify you about any new information on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these

symbols and follow any instructions given. Here is a brief explanation of the use of each

symbol.

This symbol will help alert you to such

dangers as personal injury, burns, fire and

electrical shock.

This symbol will help you avoid actions

which could cause product damage

(scratches, dents, etc.) and damage to

your personal property.

Our Consumer Assistance Center number, l-800-253-1301,

is toll-free, 24 hours a day.

If you ever have a question concerning your appliance’s operation, or if you need service, first

see “If You Need Assistance or Service” on page 29. If you need further help, feel free to call

our Consumer Assistance Center. When calling, you will need to know your appliance’s

complete model number and serial number. You can find this information on the model and

serial number plate (see diagram on page 6). For your convenience, we have included a

handy place below for you to record these numbers, the purchase date from the sales slip and

your dealer’s name and telephone number. Keep this book and the sales slip together in a

safe place for future reference.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

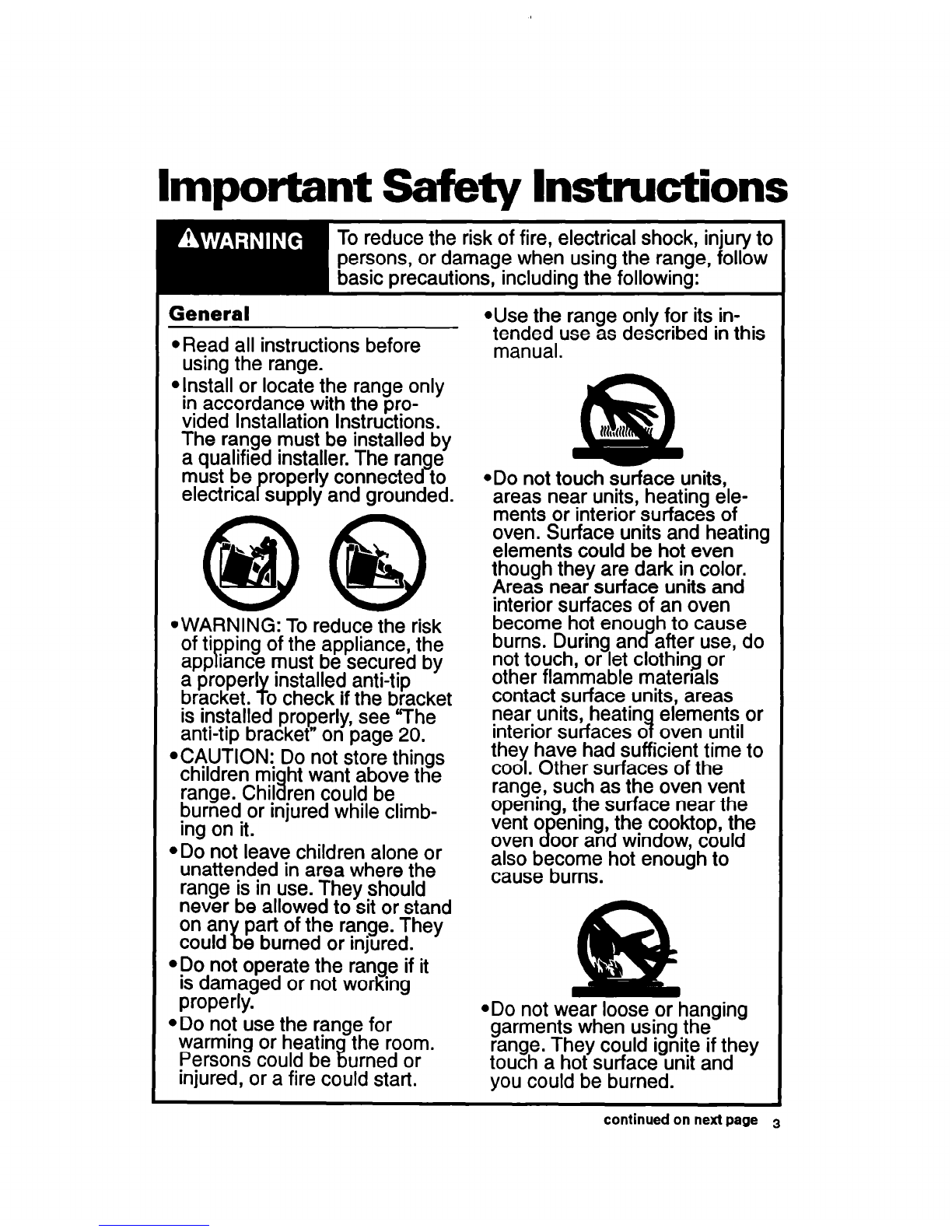

Important Safety Instructions

To reduce the risk of fire, electrical shock, injury to

persons, or damage when using the range, follow

basic precautions, including the following:

General

oRead all instructions before

using the range.

4nstall or locate the range only

in accordance with the pro-

vided Installation Instructions.

The range must be installed by

a qualified installer. The ran

must be roperly connecte

P 2 e

electrica supply and grounded.

@WARNING:To reduce the risk

of ti ping of the appliance, the

app iance must be secured byP

a proper1 installed anti-tip

bracket. f!o check if the bracket

is installed properly, see “The

anti-tip bracket” on page 20.

CAUTION: Do not store things

children mi ht want above the

range. Chil%ren could be

burned or injured while climb-

ing on it.

Do not leave children alone or

unattended in area where the

range is in use. They should

never be allowed to sit or stand

on an

could i part of the range. They

e burned or injured.

*Do not operate the range if it

is damaged or not working

properly.

*Do not use the range for

warming or heatin the room.

Persons could be urned or

injured, or a fire could start.

*Use the range only for itsin-

t;;;;t,use as described In this

ADOnot touch surface units,

areas near units, heating ele-

ments or interior surfaces of

oven. Surface units and heating

elements could be hot even

though they are dark in color.

Areas near surface units and

interior surfaces of an oven

become hot enou h to cause

burns. During anCPafter use, do

not touch, or let clothing or

other flammable materials

contact surface units, areas

near units, heatin elements or

interior surfaces 0 oven until

they have had sufficient time to

cool. Other surfaces of the

range, such as the oven vent

opening, the surface near the

vent o ening, the cooktop, the

oven oor and window, could

also become hot enough to

cause burns.

@Donot wear loose or hanging

garments when using the

range. They could ignite if they

touch a hot surface unit and

you could be burned.

continued on next page 3

@Useonly d potholders. Moist

or damp po holders on hot

surfaces could result in burns

from steam. Do not let pot-

holder touch hot heating

elements. Do not use a towel

or bulk cloth for a potholder.

It coulJ catch on fire.

.Keep range vents unobstructed.

*Do not heat unopened contain-

ers. They could explode. The

hot contents could cause burns

and container particles could

cause injury.

.Do not store flammable materi-

als on or near the range. The

fumes could create an explo-

sion and/or fire hazard.

When usinn the cooktor,

.Do not cook on a broken

cooktop. If cooktop should

break, cleaning solutions and

spillovers could penetrate the

broken cooktop and create a

risk of electrical shock. Contact

a qualified technician imme-

diately.

*Select a pan with a flat bottom

that is about the same size as

the surface unit. If pan is

smaller than the surface unit,

some of the heatin

will be exppsed an%

element

could result

~~~~l~~~.n~~~~~t~~~~~e

also improves cooking

efficiency.

@Checkto be sure lass cook-

ing utensils are sa e for use

on the range. Only certain

types of glass, glass-ceramic,

ceramic, earthenware or other

glazed utensils are suitable for

cooktops without breaking due

to the sudden change in

temperature.

eNever leave surface units

unattended at high heat set-

tings. A boilover could result

and cause smokin and

greasy spillovers t

at could

ignite.

@Turnpan handles inward, but

not over other surface units.

This will help reduce the

chance of burns, i

flammable materia s, and

9niting of

spills due to bumping of the

pan.

When using the oven

*Always position oven rack(s)

in desired location while oven

is cool. If a rack must be re-

moved while oven is hot, do

not let potholder contact hot

heating element in oven.

*Use care when opening oven

door. Let hot air or steam

escape before removing or

replacing food.

Grease

*Grease is flammable. Do not

allow grease to collect around

cooktop or in vents. Wipe spill-

overs immediately.

*Do not use water on grease

fires. Never pick up a flaming

pan. Smother flamin pan on

range by coverin!l

h a well-9

fitted lid, cookie s eet or flat

tray. Flaming grease outside of

Iian can be extin3uished with

aking soda or, i available, a

multipurpose dry chemical or

foam-type extinguisher.

Care and cleaning

@Cleancooktop with care. Some

cleaners coulds reduce noxious

fumes if applie to a hot sur-

face. If a wet paper towel is

used to wipe

s ills

on a hot

cookin 9 area, I!

e careful to

avoid s earn burns.

@Smallamounts of formaldehyde

and carbon monoxide are iven

off in the Self-Cleaning cyc e

from fiberglass insulation and

food decomposition. Si

exposure to these subs

nificant

antes

could cause cancer or repro-

ductive harm. Exposure can be

minimized by venting with a

hood or open window and wip-

ing out excess food spills prior

to self-cleaning.

@Donot use oven cleaners. No

commercial oven cleaner or

oven liner

any kind sR

rotective coating of

ould be used in or

around any part of the oven.

@Beforeself-cleaning the oven.,

remove broiler an, broiler rid,

oven racks anB 9

other utensr s.

Do not use your oven to clean

miscellaneous parts unless you

are instructed to do so in this

Use and Care Guide.

*Do not clean door heat seal. It

is essential for a ood seal.

Care should be ta

R en not to

rub, damage or move the seal.

Clean only parts recommended

in this Use and Care Guide.

@Donot repair or replace any

part of the range unless specifi-

cally recommended in this

manual. All other servicing

should be referred to a qualified

technician.

@Disconnectthe electrical supply

before servicing the range.

- SAVE THESE INSTRUCTIONS -

Parts and Features

This section contains captioned illustrations of your range. Use them to become familiar with

the location and appearance of all parts and features.

Control panel

Surface unit

Model and

aerial number

plate

Lock lever

;;4tt floor

(for information

on optional

wall~mounted

anti-tip bracket

kit, see page 20)

or - /

Removable anel

(Model RF&BXB)

I e Oven vent

CleanTopTY

ceramic

cooktop

Automatic

-oven

Iwitch Ik

FiF36‘4PXY)

Broil element

Bake element

NOTE:

Window not included on

Models RF364BXB and RF354BXB.

Control panel

Manual oven

control

knob

control

knob indicator indicator indicator knob

light light light

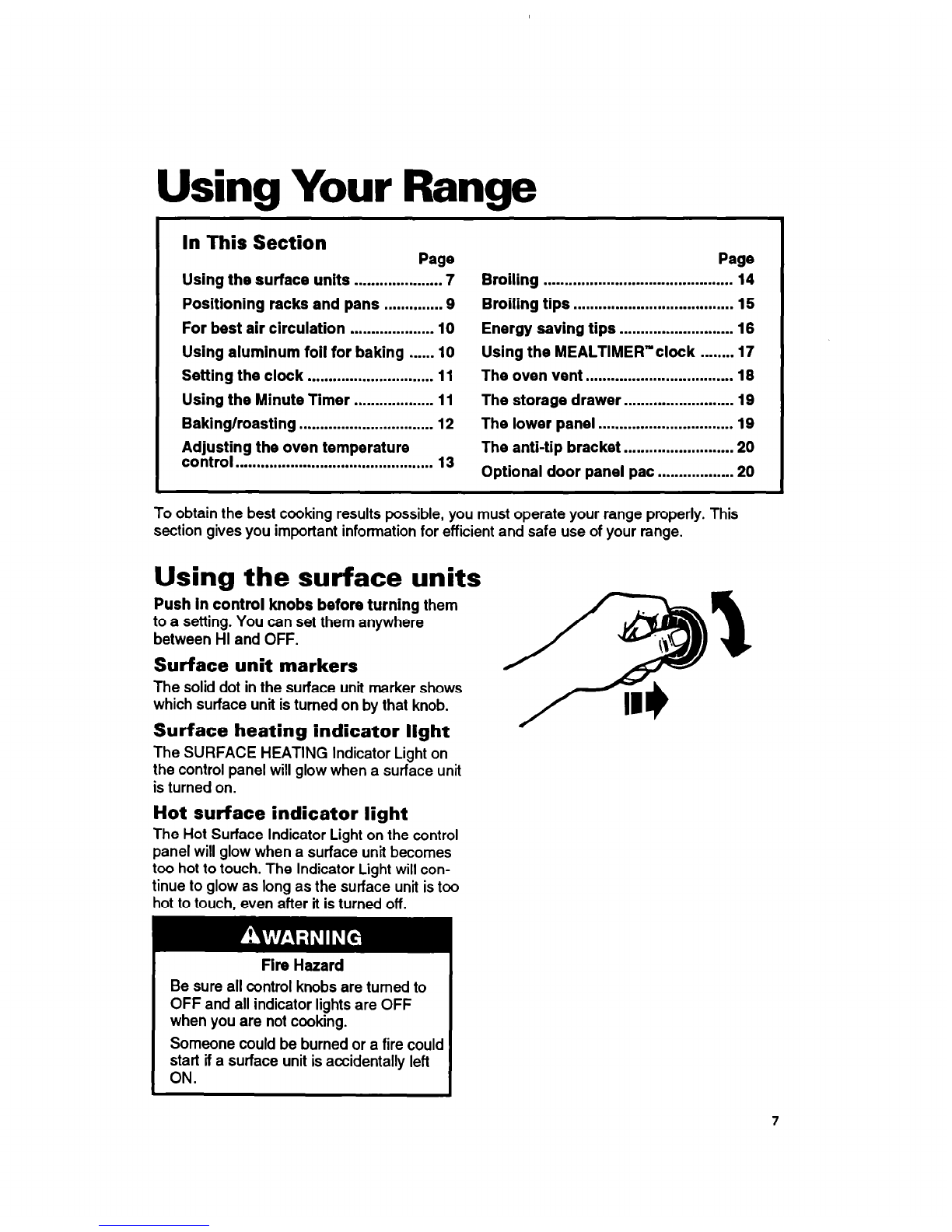

Using Your Range

In This Section

Page

Using the surface units ..................... 7

Positioning racks and pans ..............9

For best air circulation .................... IO

Using aluminum foil for baking ...... IO

Setting the clock .............................. 11

Using the Minute Timer ................... 11

Baking/roasting ................................ 12

;t$;Jing the oven temperature

............................................... 13

Page

Broiling ............................................. 14

Broiling tips ...................................... 15

Energy saving tips ........................... 16

Using the MEALTIMER”‘clock ........I7

The oven vent ................................... 16

The storage drawer .......................... 19

The lower panel ................................ 19

The anti-tip bracket .......................... 20

Optional door panel pat .................. 20

To obtain the best cooking results possible, you must operate your range properly. This

section gives you important information for efficient and safe use of your range.

Using the surface units

Push in control knobs before turning

them

to a setting. You can set them anywhere

between HI and OFF.

Surface unit markers

The solid dot in the surface unit marker shows

which surface unit is turned on by that knob.

Surface heating indicator light

The SURFACE HEATING Indicator Light on

the control panel will glow when a surface unit

is turned on.

Hot surface indicator light

The Hot Surface Indicator Light on the control

panel will glow when a surface unit becomes

too hot to touch. The Indicator Light will con-

tinue to glow as long as the surface unit is too

hot to touch, even after it is turned off.

Fire Hazard

Be sure all control knobs are turned to

OFF and all indicator lights are OFF

when you are not cooking.

Someone could be burned or a fire could

start if a surface unit is accidentally left

ON.

Until you get used to the settings, use the

following as a guide.

For best results, start

cooking at the high setting; then turn the

control knob down to continue cooking.

SETTING RECOMMENDED USE

@Tostart foods cooking.

To bring liquids to a boil.

Medium-high

*To hold a rapid boil.

*To fry chickenor pancakes

Medium

For gravy, pudding and

hvsfie OFF)

icing.

.To cook large amounts of

vegetables.

Medium-low

*To keep food cooking after

starting it on a higher

setting.

*To keep food warm until

ready to serve.

Using the ceramic glass

cooktop

Cooking on the ceramic glass cooktop is

almost the same as cooking on coil surface

units. There are, however,

few differences:

The surface unit will glow red

when if is

turned on. You will see the element cycling

on (glowing red) and off - even on HIGH

setting - to maintain the proper tempera-

ture setting you have selected.

. Sliding metal pans

on ceramic glass

cooktop surface could leave marks. Wiping

off the cooktop before and after each use

will help keep the surface free from stains

and provide the most even heating. See

pages 25 and 26 for care and cleaning

suggestions.

Cookware tips

Select a pan

that is about the same size

as the surface unit.

NOTE: For best results and greater

energy efficiency,

use only flat-bottomed

cookware that makes good contact with

the surface units. Cookware with rounded,

warped, ribbed (such as some porcelain

enamelware) or dented bottoms could

cause uneven heating and poor cooking

results.

You can, however, use the newer

cookware available with slightly indented

bottoms or very small expansion channels.

This cookware is specially designed to

provide the good contact needed for best

cooking results.

Also, woks, canners and teakettles with

flat bottoms suitable for use on your

cooktop are now available in most stores

that sell housewares.

The pan

should have straight sides and a

tight-fitting lid.

Choose medium to heavy gauge

(thick-

ness) pans that are fairly lightweight.

The pan material

(metal or glass) affects

how fast heat transfers from the surface

unit through the pan material and how

evenly heat spreads over the pan bottom.

Choose pans that provide the best cooking

results.

Handles

should be made of sturdy, heat-

resistant material and be securely at-

tached to the pan.

With

your hand,

feel the bottom of your

pans while they are cool for nicks and

scratches. Nicks and scratches on pan

bottoms will scratch the ceramic glass

cooktop.

Make sure bottoms

of pans are clean and

dry before using on cooktop.

Avoid spillovers

on cooklop. Use pans

with tall sides.

not

cook food directly on cooktop.

Product Damage Hazard

Do not leave an empty utensil, or one

which has boiled dry, on a hot surface

unit.

The utensil could overheat and could

damage the utensil or surface unit.

Home canning information

Use the largest surface unit

for best

results.

Start with hot water.

This reduces the

time the control is set on high. Reduce

heat setting to lowest position needed to

keep water boiling.

Refer

to your canner manual for specific

instructions.

Positioning racks and pans

For baking/roasting with one

rack, place

the rack so the

top

of the food will be

centered in the oven.

Rack placement for specific foods:

FOOD RACK POSITION

Frozen pies, large Lowest level or

roasts, turkeys, angel 2nd level from

food cakes bottom

Bundl cakes, most 2nd level from

quick breads, yeast bottom

breads, casseroles,

meats

Burn Hazard

Always position oven rack(s) in

desired location before turning oven

on. Be sure the rack(s) is level.

If rack(s) must be moved while oven

is hot, use potholders or oven mitts to

protect hands.

Failure to follow the above precautions

could result in burns.

Cookies, biscuits,

muffins, cakes,

nonfrozen pies

2nd or 3rd level

from bottom

When baking on two racks,

arrange racks

on bottom and third level from bottom.

NOTE:

For recommended rack placement

when broiling, see “Broiling rack position

chart” on page 15.

For best air circulation

Hot air must circulate around the pans in the

oven for even heat to reach all parts of the

oven. This results in better baking.

Place

the pans so that one is not directly

over the other.

For best results, allow

1l/2 to 2 inches

(4-5 cm) of space around each pan and

between pans and oven walls. There must

be a minimum space of 1 inch (2.5 cm).

Use

only one cookie sheet in the oven at

one time.

Use the following as a guide to determine

where to place the pans:

One pan

Place in the center of the oven rack.

Two pans

Place in opposite corners of the oven rack.

Three or four pans

Place in opposite corners on each oven

rack. Stagger pans so no pan is directly over

another.

Using aluminum foil for baking

Use aluminum foil to catch splllovers

from pies or casseroles:

Place

the foil on the oven rack below the

rack with the food.

Turn up

foil edges and

make

sure foil is about 1 inch (3 cm)

larger all around than the dish holding the

food.

Do not cover

the entire rack with alumi-

num foil. It will reduce air circulation and

cause poor cooking results.

Do not line

oven bottom or entire oven

rack with foil

other liners. Poor baking

will result.

Electrical Shock and Fire Hazard

Do not allow foil to touch the heating

elements.

Failure to follow this precaution could

result in electrical shock or fire hazard

and damage to the elements.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Whirlpool Allineare

Whirlpool

Whirlpool 9753313B Manuale utente

Whirlpool

Whirlpool W10196159C Manuale utente

Whirlpool

Whirlpool SF3004SR Manuale utente

Whirlpool

Whirlpool RF398PXP Manuale utente

Whirlpool

Whirlpool YGFE461LVQ Manuale utente

Whirlpool

Whirlpool Admiral mf12120 Manuale di istruzioni e di sicurezza

Whirlpool

Whirlpool WEGA25H0HN Manuale utente

Whirlpool

Whirlpool RS6700XK Manuale utente

Whirlpool

Whirlpool FGP300JN0 Manuale utente

Whirlpool

Whirlpool SF3000EY Manuale utente

Whirlpool

Whirlpool RS696PXGB16 Manuale utente

Whirlpool

Whirlpool RF360EXP Manuale utente

Whirlpool

Whirlpool TER50W0D Istruzioni per l'installazione

Whirlpool

Whirlpool WDE350LVQ - 30" - Slide-In Electric Range Manuale utente

Whirlpool

Whirlpool WFG371LVS Manuale utente

Whirlpool

Whirlpool 66311142-W Manuale elenco delle parti

Whirlpool

Whirlpool SF367LXS Manuale utente

Whirlpool

Whirlpool 9758660 Manuale utente

Whirlpool

Whirlpool RF3020XKQ4 Manuale utente

Whirlpool

Whirlpool FEP310B Istruzioni per l'installazione

Whirlpool

Whirlpool SF216LXS Guida utente

Whirlpool

Whirlpool SF385PEY Manuale utente

Whirlpool

Whirlpool TGR61W2B Istruzioni per l'installazione

Whirlpool

Whirlpool W10477533B Manuale utente

Manuali Allineare popolari di altre marche

Samsung

Samsung FCQ321HTUW Manuale utente

Kenmore

Kenmore 790.45712 Manuale utente

Wolf

Wolf CHR CHSSR Manuale utente

Smeg

Smeg Built-in Microwave Oven Manuale di istruzioni

Zanussi

Zanussi ZCG054G Manuale utente

Frigidaire

Frigidaire 316000635 Manuale utente

GE JCSS630 Manuale utente

Samsung

Samsung NX58M9960P series Manuale utente

Hotpoint

Hotpoint RB524R Guida all'installazione

Amana

Amana ART6610 SERIES Manuale utente

Maytag

Maytag MERH770WB Manuale utente

Fulgor Milano

Fulgor Milano SOFIA Manuale utente

Premier

Premier EF-4358GH Manuale utente

Kenmore

Kenmore 790.9010 Series Manuale utente

KitchenAid

KitchenAid KESC300 Manuale utente

Frigidaire

Frigidaire FFEF3012LS Guida utente

Diamond

Diamond G65/2F4T Manuale utente

Samsung

Samsung NX58*565 Series Manuale utente
