Whirlpool RF367LXSB1 Manuale utente

COOKTOP PARTS

1−07 Litho in U.S.A. (lwp) Part No. 8188461

30" ELECTRIC CERAN

FREESTANDING RANGE

SELF CLEAN OVEN

Illus. Part

No. No. DESCRIPTION

1 Literature

9762996 Instructions,

Installation

Template, Anti−Tip

9757142 English/Spanish

9757143 English/French

9763001 Owners Manual

9762979 Tech Sheet

9762761 Safer Cooking Tips

W10035930

Spring, Locator

3 3196170 Screw

4 Cooktop

9763330 White

9763332 Black

5 Element, Surface

8523047 2400/1000W − LF,RF

8273994 1200 W − LR,RR

6 8272791 Bracket, Element

7 3196169 Screw

For Models: RF367LXSQ1,RF367LXSB1, RF367LXSS1, RF367LXSY1

(Designer White) (Black) (Stainless Steel)(Universal Silver)

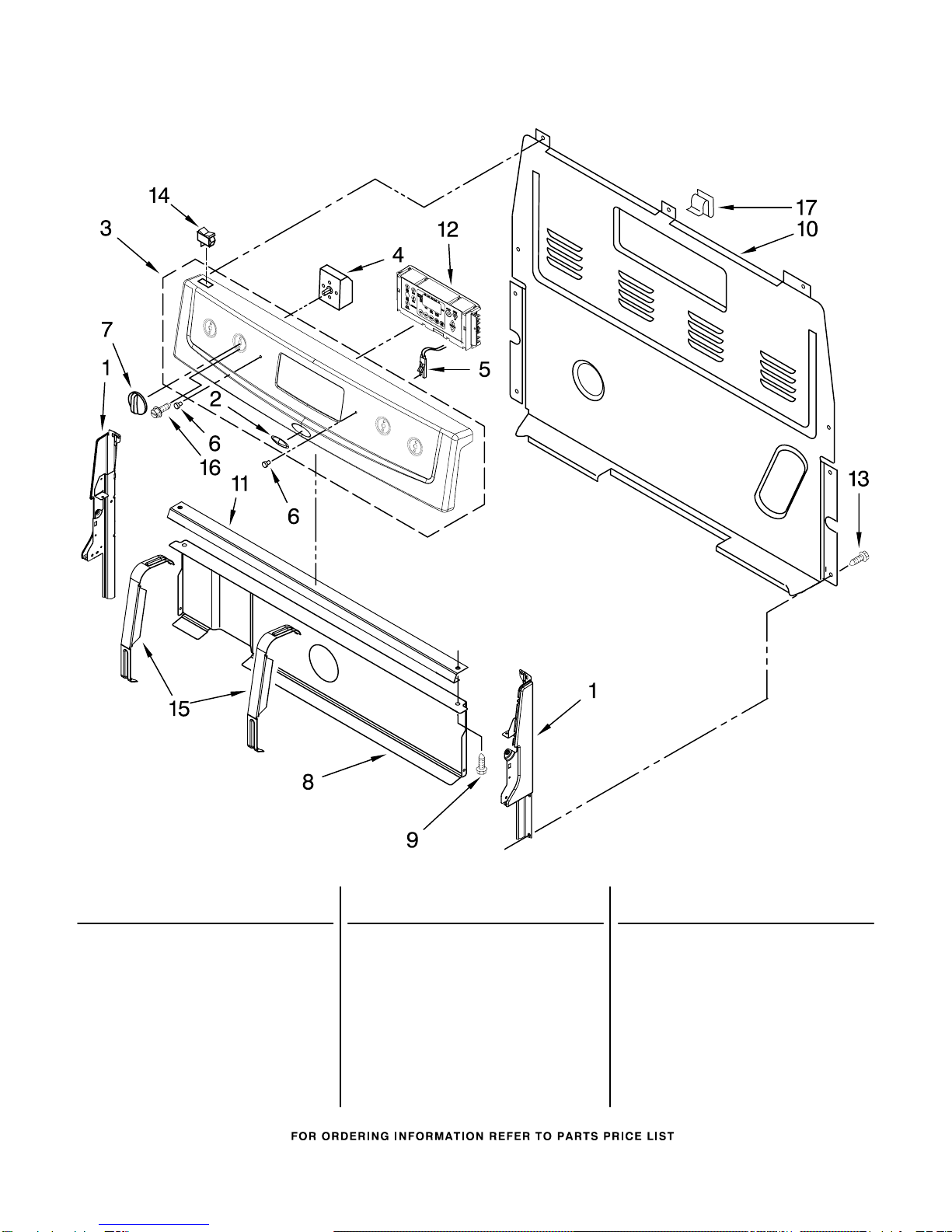

CONTROL PANEL PARTS

28188461

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Endcap

W10009080

Black Left

W10009090

Black Right

W10009040

White Left

W10009050

White Right

2 9757609 Nameplate

3 Panel, Control

9762021 Black

9762019 White

9762022 Stainless

4 Switch, Infinite

9758060 LF,RF

3148951 LR,RR

5 8523265 Light, Ind. (2)

6 3196068 Lens, Light (2)

7 Knob, Infinite (4)

9761964 Black

9761962 White

8 8523280 Shield, Heat

9 3196166 Screw

10 8272473 Cover, Upper

11 9762095 Brkt−Mntg, Console

12 Control, Range

W10114381

Black

W10114380

White

13 3196178 Screw

14 Switch, Rocker

3149360 White

3148564 Black

15 9762078 Brkt−Mntg, EOC

16 3400882 Screw

17 8273564 Clip

For Models: RF367LXSQ1,RF367LXSB1, RF367LXSS1, RF367LXSY1

(Designer White) (Black) (Stainless Steel)(Universal Silver)

CHASSIS PARTS

8188461

For Models: RF367LXSQ1,RF367LXSB1, RF367LXSS1, RF367LXSY1

(Designer White) (Black) (Stainless Steel)(Universal Silver)

CHASSIS PARTS

48188461

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 9760407 Brkt−Mntg,Dr Hnge

2 8273905 Support, Corner LR

3 Panel, Side (2)

8053830 White−Textured

8053832 Black−Textured

4 9761013 Latch, Door

W10078380

Rod, Latch

W10107830

Latch Asy, Rear

W10010350

Seal, Oven Flange

8 9757340 Element, Broil

9 9758541 Element, Bake

10 8522416 Seal, Oven Door

11 9758701 Spacer, Door

12 3196560 Screw

13 9759785 Glide, Drawer (2)

14 3196037 Foot, Front (2)

15 Frame, Front

(Not Serviced)

16 8054068 Tray, Insulation

17 3196576 Clip, Panel (6)

18 9760314 Rail, Base (2)

19 9761935 Foot, Rear (2)

20 9761490 Insulation

21 9761512 Clip− Mounting

22 9758238 Retainer, Side (2)

23 8273902 Sensor, Oven

24 3195736 Support, Front (2)

25 3195987 Support, Corner RR

26 3196548 Fuse, Thermal

27 3196172 Screw

28 3186116 Support, Oven (2)

29 3186034 Bracket, Service

30 9761958 Block, Terminal

31 9757029 Back, Main

32 112432 Nut (3)

33 9761300 Vent Tube Asm

34 3196701 Light Socket Assy

35 311255 Bulb, Oven Light

36 9758283 Cover, Box

37 3196165 Screw

38 3196168 Screw

39 3196178 Screw

40 3196174 Screw

41 3196179 Screw

W10031780

Screw

43 3400016 Screw

44 3196566 Screw

45 9757238 Switch − Door

46 9757239 Rod − Door Switch

Rear Mount

47 9761301 Screen − Catalyst

48 9758925 Fan, Motor Cnvctn

49 4452226 Blade, Fan

50 4452227 Nut

51 9755776 Bracket, Fan

52 9755775 Cover, Fan

INSULATION

8272616 Insulation, Wrap

9755772 Insulation, Back

8272613 Insulation, Vent

For Models: RF367LXSQ1,RF367LXSB1, RF367LXSS1, RF367LXSY1

(Designer White) (Black) (Stainless Steel)(Universal Silver)

DRAWER & BROILER PARTS

8188461

Illus. Part

No. No. DESCRIPTION

1 3195710 Rack, Oven (2)

2 9761030 Drawer, Storage

3 9758200 Bracket, Drawer(2)

4 Rivet, Push (2)

3196814 White

3196813 Black

5 Drawer Front

8053339 White

8053341 Black

6 8053334 Glide, Drawer (2)

7 3196168 Screw

8 9755798 Panel, Stls Model

9 Handle

9757219 Stainless Steel

9762251 Universal Silver

10 9781235 Clip, Stls Model

For Models: RF367LXSQ1,RF367LXSB1, RF367LXSS1, RF367LXSY1

(Designer White) (Black) (Stainless Steel)(Universal Silver)

DOOR PARTS

68188461

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Top

9762391 Black

9761975 White

9762394 Black Stainless

W10067560

Universal Silver

2 3196164 Screw

3 Handle, Door

9761983 Black

9761982 White

9761985 SS for Unvrsl Slvr

4 9761344 Liner, Door

5 8522414 Seal, Window

6 9758162 Glass, Inner (2)

7 3186289 Frame, Glass

8 8272618 Insulation, Door

9 9761357 Retainer, Insltn

10 9761493 Hinge, Door (2)

11 Glass, Outer Door

W10075990

Black

W10075980

White

9756435 Black Stainless

12 Trim, Side

8523171 Black Left

8523165 Black Right

8523172 White Left

8523166 White Right

W10113926

Unvrsl Slvr LH

W10113925

Unvrsl Slvr RH

13 3196160 Screw

14 Trim, Bottom

8523177 Black

8523175 White

8523180 Black Stainless

W10067550

Universal Silver

W10031790

Screw

16 3196025 Clip, Door Glass

17 3196794 Bracket, Window(2)

18 3196165 Screw

19 9761517 Clip, Dr Mntg (2)

W10031780

Screw

For Models: RF367LXSQ1,RF367LXSB1, RF367LXSS1, RF367LXSY1

(Designer White) (Black) (Stainless Steel)(Universal Silver)

OPTIONAL PARTS

8188461

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 c

242821 Wire, Blue

14 Ga. 150 c

242822 Wire, Brown

14 Ga. 150 c

242830 Wire, Brown

14 Ga. 200 c

242823 Wire, Green

14 Ga. 150 c

242824 Wire, Orange

14 Ga. 150 c

242825 Wire, Red

14 Ga. 150 c

242831 Wire, Red

14 Ga. 200 c

242827 Wire, Yellow

14 Ga. 150 c

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit(Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

3191048 Cleaner, Glass

ANTI−TIP KIT

W10017440

Anti−Tip Kit

WIRING HARNESS PARTS

w10115055

Harness, Wire

(Cooktop Left)

w10115056

Harness, Wire

(Cooktop Right)

9762955 Harness, Wire

(Sensor/Dr Switch)

9762429 Harness, Wire

(Main)

8523279 Wire, Ground

8524132 Shield, Wiring

313660 Clip, Ground Wire

3196173 Screw

3196154 Screw, Ground

HEADINGS

COOKTOP PARTS

CONTROL PANEL PARTS

CHASSIS PARTS

DRAWER & BROILER PARTS

DOOR PARTS

OPTIONAL PARTS

For Models: RF367LXSQ1,RF367LXSB1, RF367LXSS1, RF367LXSY1

(Designer White) (Black) (Stainless Steel)(Universal Silver)
