Whirlpool SF367LSXQ0 Manuale utente

COOKTOP PARTS

For Models: SF367LSXQ0, SF367LXSB0, SF367LXSS0

(Designer White) (Black) (Stainless Steel)

04−06 Litho in U.S.A. (lwp) Part No. 8188295 Rev A

30" GAS FREESTANDING

SELF CLEAN RANGE

SEALED BURNER

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

9763002 Use & Care Guide

Tech Sheet

9762973 English

W10041640

French

9762997 Installation

Instructions

Anti−Tip Template

9757142 English/Spanish

9757143 English/French

Safer Cooking Tips

9762761 English

9759133 French

2 Cap, Burner

LF & RF

3191905 Grey

3191904 Black

3191903 Grey

3191901 Black

3191899 Grey

3191898 Black

4 Burner

4455981 LF & RF (12K)

4455980 LR − RF(9K)

4455979 RR(6K)

5 Cooktop

8272251 White

8272253 Black

6 Panel, Manifold

8523854 White

8523855 Black

7 Knob, Control (2)

8273104 White

8273107 Black

8 Knob, AccuSimmer

8273108 White

8273103 Black

9 Knob,

Powerburner (2)

8273112 White

8273111 Black

11 Grate, Burner (4)

8522850 Grey

8522851 Black

12 Grate, Center

8522847 Gray

8522846 Black

14 3400701 Screw

15 3196557 Screw

CONTROL PANEL PARTS

28188295

For Models: SF367LSXQ0, SF367LXSB0, SF367LXSS0

(Designer White) (Black) (Stainless Steel)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Endcap, Left Hand

W10009040

White

W10009080

Black

Endcap, Right Hand

W10009050

White

W10009090

Black

3 Panel, Control

9762091 White

9762093 Black

9762094 Stainless Model

5 9758080 Module, Spark

8 9756301 Cover, Upper

9 8053910 Shield, Heat

10 8273132 Cover, Lower

11 8523412 Bracket, Support

12 Control, Range

9762193 White

9762194 Black

13 3196178 Screw

14 9757609 Nameplate

15 9762726 Brkt−Mntg, DSI

16 9762095 Brkt−Mntg,Console

19 8273564 Clip

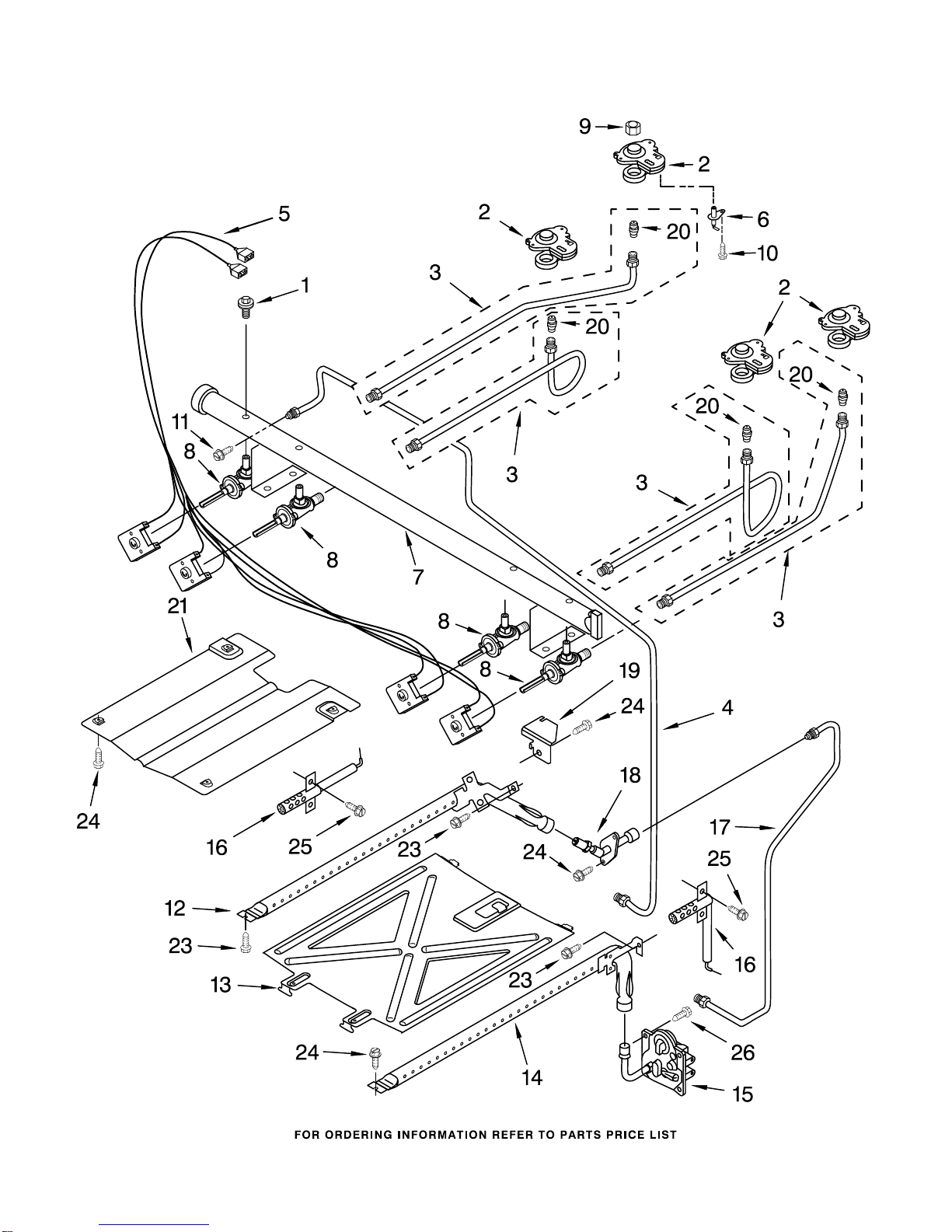

MANIFOLD PARTS

8188295

For Models: SF367LSXQ0, SF367LXSB0, SF367LXSS0

(Designer White) (Black) (Stainless Steel)

MANIFOLD PARTS

48188295

For Models: SF367LSXQ0, SF367LXSB0, SF367LXSS0

(Designer White) (Black) (Stainless Steel)

Illus. Part

No. No. DESCRIPTION

1 8273096 Screw, Valve

2 Burner Base

8273700 Large (3)

8273701 Small (1)

3 Tubing, Burner

W/Orifice

8273693 Left Front

8273694 Left Rear

8273696 Right Front

8273697 Right Rear

4 8523402 Tubing (Manifold

to Regulator)

5 8523406 Harness, Igniter

(W/Switches)

6 8523793 Electrode (4)

7 8523407 Pipe, Manifold

8 Valve

9757218 LF − RF − LR

8273004 Right Rear

9 8273060 Nut (4)

10 8273062 Screw (4)

11 3400228 Bolt

12 8054078 Burner, Broiler

13 8053970 Spreader, Flame

(Oven)

14 9758078 Burner, Bake

15 9761959 Valve/Regulator

16 Igniter

8054129 Broil

9758079 Bake

17 8272222 Tubing (Broiler

Fitting To Valve)

18 3186489 Fitting, Broiler

19 8272403 Cover, Igniter

20 Orifice, Burner

8273064 Left Front

8273064 Right Front

8273065 Left Rear

8273067 Right Rear

21 8053262 Spreader, Flame

(Broiler)

23 3196265 Screw

24 3196176 Screw

25 3196385 Screw

26 3400016 Screw

Following Parts Not Illustrated

8523420 Spuds, LP Gas

(Kit of 4)

CHASSIS PARTS

8188295

For Models: SF367LSXQ0, SF367LXSB0, SF367LXSS0

(Designer White) (Black) (Stainless Steel)

CHASSIS PARTS

68188295

For Models: SF367LSXQ0, SF367LXSB0, SF367LXSS0

(Designer White) (Black) (Stainless Steel)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10012240

Flue Box

2 8272747 Shield, Flue

3 8273036 Burner Box

4 Panel, Side (2)

8053830 White−Textured

8053832 Black

5 9761490 Insulation

6 8523249 Brkt, Manifold Mtg

7 9761512 Clip, Mounting

8 Frame, Front

(Not Serviced)

9 3196037 Foot, Front (2)

10 9761935 Foot, Rear (2)

11 3195097 Bottom, Oven

12 8273902 Sensor, Oven

13 8053967 Baffle, Burner

14 8053969 Shield, Heat

15 8053968 Shield, Lower

16 9760314 Rail, Base (2)

17 9760407 Brkt − Mounting

W10008830

Seal, Oven Flange

19 9758701 Spacer, Door

20 9757098 Back, Main

21 8522416 Seal, Oven

22 8053971 Brace, Main Back

23 Retainer, Insul.

9761449 Left Hand

9761448 Right Hand

24 3196576 Clip, Panel (6)

25 9757891 Cord, Power

26 9757239 Rod − Dr Switch

27 9757262 Switch, Door

28 3196701 Light Socket Assy

29 311255 Bulb, Oven Light

30 9761013 Latch, Door

31 3196960 Rod, Latch

32 9757241 Latch−Mtr

33 9759785 Glide, Drawer

W10031780

Screw

36 3196439 Button, Plug

37 3196178 Screw

38 3196152 Screw

39 Screw

3196166 White

3196168 Black

40 3196176 Screw

42 3196179 Screw

44 3196177 Screw

45 3196168 Screw

46 3196560 Screw

47 3196160 Screw

INSULATION

8524099 Insulation, Wrap

8272613 Insulation, Vent

8272614 Insulation, Back

DRAWER & BROILER PARTS

8188295

For Models: SF367LSXQ0, SF367LXSB0, SF367LXSS0

(Designer White) (Black) (Stainless Steel)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3195710 Rack, Oven (2)

4 9761031 Drawer, Storage

5 3196817 Bracket, Drawer(2)

6 Rivet, Push (2)

3196814 White

3196813 Black

7 Panel, Drawer Frnt

8053336 White

8053338 Black

10 3196168 Screw

13 9761033 Liner, Drawer

14 8053334 Spacer, Glide

15 9755797 Panel, Stainless

16 9757219 Handle, Stainless

17 9781235 Clip

DOOR PARTS

88188295

For Models: SF367LSXQ0, SF367LXSB0, SF367LXSS0

(Designer White) (Black) (Stainless Steel)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Top

9761975 White

9762391 Black

9762394 Stainless Model

2 3196164 Screw

3 Handle, Door

9761982 White

9761983 Black

4 9761344 Liner, Door

W10031790

Screw

6 9758162 Glass, Inner (2)

7 3186289 Frame, Glass

9 8272618 Insulation, Door

10 9761493 Hinge, Door

9761496 Stainless Model

11 9761357 Retainer, Insul.

12 Trim, Door Side

Left Hand

8523172 White

8523171 Black

Right Hand

8523166 White

8523165 Black

13 Glass, Outer Door

9762479 White

9762480 Black

9756435 Stainless Model

14 3196160 Screw

15 3196025 Clip, Door Glass

W10031780

Screw

19 Trim, Bottom

8523175 White

8523177 Black

8523180 Stainless Model

21 3196794 Bracket, Window

22 3196165 Screw

23 9761517 Clip, Door Mntg(2)

OPTIONAL PARTS (NOT INCLUDED)

8188295

For Models: SF367LSXQ0, SF367LXSB0, SF367LXSS0

(Designer White) (Black) (Stainless Steel)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 c

242821 Wire, Blue

14 Ga. 150 c

242822 Wire, Brown

14 Ga. 150 c

242830 Wire, Brown

14 Ga. 200 c

242823 Wire, Green

14 Ga. 150 c

242824 Wire, Orange

14 Ga. 150 c

242825 Wire, Red

14 Ga. 150 c

242831 Wire, Red

14 Ga. 200 c

242827 Wire, Yellow

14 Ga. 150 c

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit (Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

4396923 Pan − Broiler

ANTI−TIP KIT

W10017440

Anti−Tip Kit

WIRING HARNESS PARTS

9762433 Harness, Main

8524207 Harness, Bake &

Broil Ignitor

8523599 Harness, Wire

(Cooktop Spark)

W10045060

Harness, Grnd DSI

3196174 Screw, Ground

3196520 Clip, Wire

3196896 Clip, Wire

313438 Clip, Harness

3196173 Screw

3195927 Wire, Tie

3196696 Clip, Harness
