Whirlpool GX900QPPB Istruzioni utente

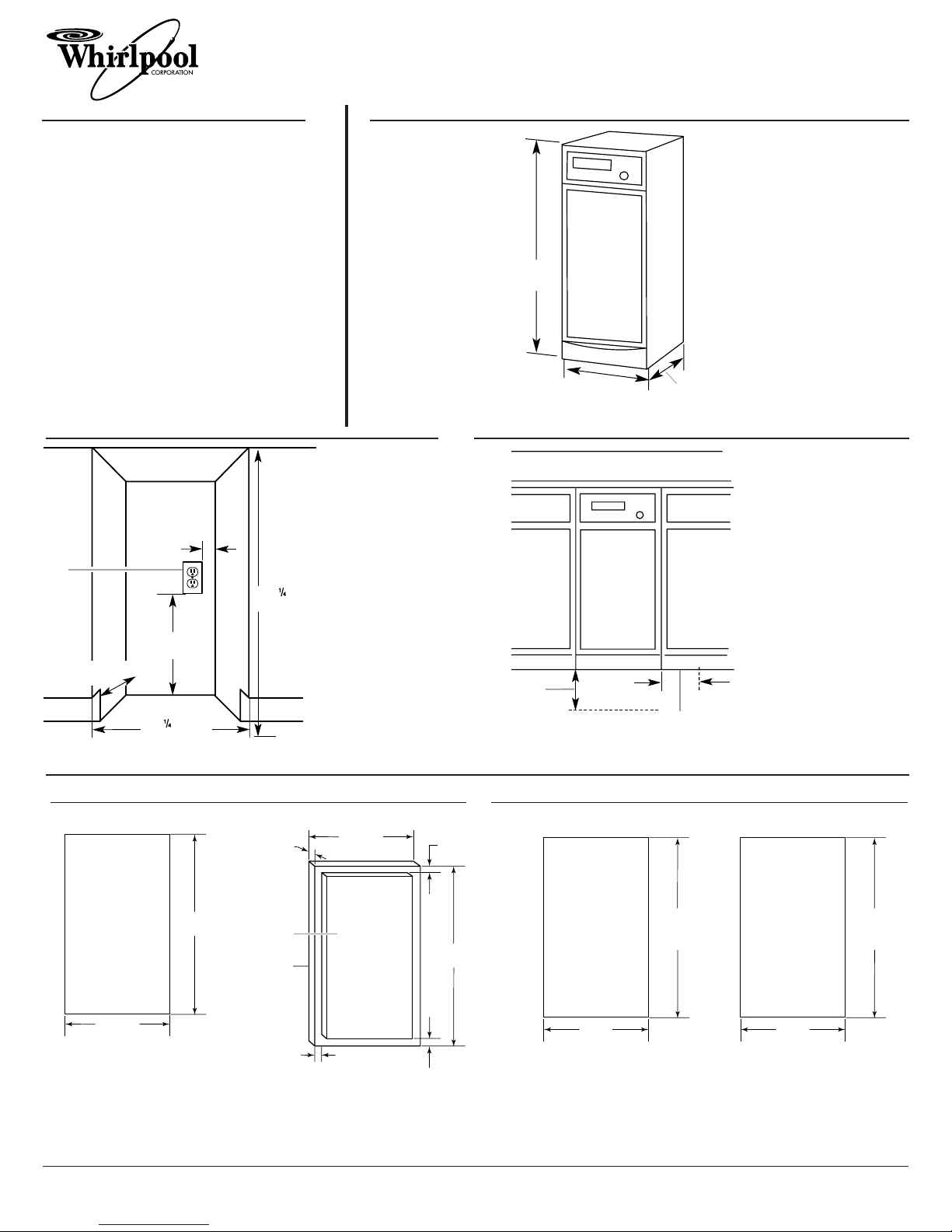

With Trim Kit Without Trim Kit

Compactor

PRODUCT MODEL NUMBERS OVERALL DIMENSIONS

CABINET OPENING DIMENSIONS

CUSTOM PANELS

CLEARANCE DIMENSIONS

GC900QPK

GC900QPL

GC900QPP

GX900QPL

GX900QPP

TC800SPK

TU800SPK

TU800SPP

Electrical: 115-volt, 60-Hz, AC-only, 15- or

20-amp. grounded circuit is required. A time-delay

fuse or circuit breaker and separate circuit is

recommended.

18" min.

(45.7 cm)

24" min.

(61 cm)

15 min.

(38.7 cm)

34 " min.

(87 cm)

(7.6 cm)

" A

341⁄8"

(86.7 cm)

24"

(61 cm)

15"

(38.1 cm)

¹³⁄₁₆"

(60.5 cm)

⁵⁄₈"

(37.2 cm)

¹³⁄₁₆"

(60.5 cm)

15"

(38.1 cm)

25"

(63.5 cm)

15"

(38.1 cm)

A. Raised panel or decorative trim

B. Outer section of panel

¹³⁄₁₆"

(60.5 cm)

1¹⁄₄"

(32 mm)

14⁵⁄₈"

(37.2 cm)

⁷⁄₃₂"

(5.6 mm)

⁵⁄₁₆"⁵⁄₁₆"

(8 mm)

both sides

(8 mm)

A. Grounded electrical outlet

must be a minimum of 3 in.

(7.6 cm) away from

surrounding cabinets or

nearby walls as shown. It

can be placed either to the

left or the right side of the

product.

Panel should be 1/2 in.

(13 mm) min. thickness

A. Leave 6 in. (15.2 cm) of clearance

space to the right side of the

compactor in order to remove the

compactor bags.

B. Leave 23 in. (58.4 cm) of clearance

in front of the compactor in order to

fully open or remove the compactor

drawer.

Flat panel Raised panel Models with handles Models without handles

Panel should be 1/2 to 5/8 in.

(13 to 16 mm) thick. NOTE: A

thicker panel may need rounded

front corners and a cutout for

access to the handle.

A 7/32 in. (5.6 mm) thick panel

is required.This is the same

thickness as a standard 1/4 in.

plywood or paneling. The outer section of panel must be 7/32 in.

(5.6 mm) thick to fit into trim. Design raised

panel sections using dimensions shown above.

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Ref. 9871676 Rev. C

11-16-04
