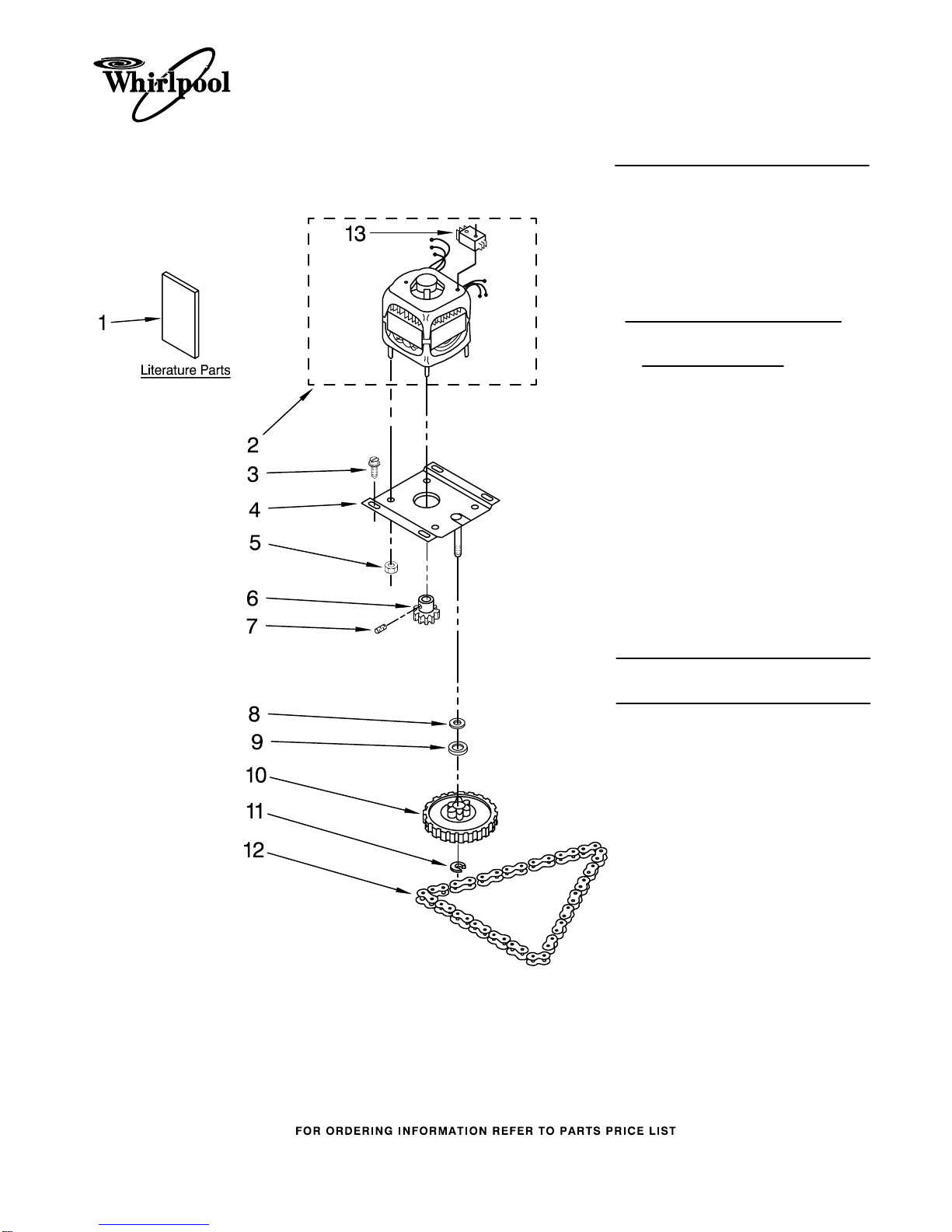

MOTOR AND DRIVE PARTS

For Models: TU800SPPB0, TU800SPPQ0

(Black) (White)

2−05 LITHO IN U.S.A. (ebk) Part No. 882767

TRASH

COMPACTOR

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

9871676 Guide, Use & Care

9871607 Instructions,

Installation

9871765 Tech Sheet

8052029 Label, 1−800

Number

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677821 Do−It−Yourself

Manual

2 9870343 Motor, Drive

(Includes Item 13)

3 9871067 Screw,

4 776327 Plate, Motor

5 776338 Locknut, 10−32 (4)

6 4149667 Gear, Drive

7 454512 Pin, Slotted

Spring

8 776035 Washer, Wave

9 297462 Washer, Thrust

10 777124 Gear, Driven

11 776036 Clip, Ring

12 780477 Chain, Drive

13 777971 Switch, Motor

Parts Not Illustrated and

Optional Parts (Not Included)

9870118 Undercounter

Conversion Kit

FRAME PARTS

For Models: TU800SPPB0, TU800SPPQ0

(Black) (White)

882767

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Frame (Not A

Serviceable Part)

2 777070 Screw, 8−32 x 5/16

3 9871896 Harness−Cord,

Power

4 777035 Clamp, Wire

5 780034 Screw,

10−24 x 3/8

6 777180 Spring,

Container

7 4149377 Switch, Drawer

Safety

8 780437 Pan, Bottom

9 4153788 Bearing, Roller (2)

10 775526 Bolt, Leveler

11 776356 Locknut, 3/8−24

12 9870867 Shield, Slide

Track(2)

13 9870585 Wheel,

Leveler (2)

15 489478 Screw,

8 x 1/2 AB

16 9870444 Panel, Inner

17 777458 Screw, 6−32 x 3/8

18 9870976 Frame, Slide

(R.H.)

9870975 Frame, Slide

(L.H.)

19 780434 Cover, Motor

20 4149659 Shield, Harness

21 777850 Nut, Plate

22 489399 Screw, 8−32 x 5/16

23 777811 Switch, Top Limit

& Directional

24 776118 Grommet,

Motor Cover

25 608009 Plate, Cover

27 775668 Angle, Top Bracket

PANEL AND CONTROL PARTS

For Models: TU800SPPB0, TU800SPPQ0

(Black) (White)

882767

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Panel,

9871072 Black

9871073 White

Front

2 489478 Screw, 8 x 1/2AB

8 Knob, Switch

9870487 Black

9870486 White

9 Plate, Cover

9871160 Black

9870473 White

11 9871825 Cover, Top

(Recessed)

13 9871829 Switch,

Drawer Tilt

14 608824 Switch,

Rotary

15 777849 Screw,

6−20 x 1

16 Escutcheon, Control

9871839B Black

9871839W White

19 Insert,

9872078B Black

9872078W White

Decorative

21 9871993 Bracket, Retainer

24 777383 Nut, Rotary Switch

28 780239 Bracket,

Mounting (2)

(Alternate)

POWERSCREW AND RAM PARTS

For Models: TU800SPPB0, TU800SPPQ0

(Black) (White)

882767

Illus. Part

No. No. DESCRIPTION

1 9870500 Screw, Power

Complete

Assembly (2)

2 Screw, Power

(Available Only

As Complete

Assembly)

3 779121 Plate, Bearing (2)

4 775482 Bearing, Needle (2)

5 776941 Hub, Power

Screw (2)

6 775481 Race, Thrust (4)

7 777385 Sprocket,

Washer (2)

8 4154842 Nut, Power

Screw (2)

9 777332 Washer, Cone (2)

10 9871067 Screw,

11 9871251 Ram Assembly

12 9870163 Nut, Power

13 90296 Clip

14 9870187 Stud

16 9870037 Stop, Ram

Powerscrew (2)

17 9870498 Bracket, Top Limit

Switch

18 780034 Screw, (2)

10−24 x 3/8

19 9870775 Cap, Stop

20 9870169 Slide, Ram (4)

CONTAINER PARTS

For Models: TU800SPPB0, TU800SPPQ0

(Black) (White)

882767

CONTAINER PARTS

For Models: TU800SPPB0, TU800SPPQ0

(Black) (White)

882767

Illus. Part

No. No. DESCRIPTION

2 Handle, Container

9871267 Black

9871235 White

3 Panel, Container

9871311 Black

9871309 White

Front

5 884573 Container

Assembly

7 3196175 Screw

9 776395 Guide, Rear

Latch

10 9870066 Latch Assembly

14 Pedal, Foot

4149672 Black

9871031 White

15 9871125 Actuator,

Safety Switch

16 9871602 Bearing Roller

Container (2)

17 776356 Locknut,

3/8−24 (2)

18 4147703 Retainer, Bag

(Contains 4 Each)

19 780263 Screw, Shoulder

8−16 x 7/16 (2)

20 776654 Pin

21 775736 Spring

22 775735 ‘‘E’’ Ring

23 3400888 Screw, 8−18 x 1/2

26 775665 Plate, Latch

27 Guard, Toeplate

777328 Black

9871030 White

28 489478 Screw, 8 x 1/2AB

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

The Accessory Parts Listed Below

May or May Not Be Included With

Your Compactor.

1 Panel, Container

Front

777762 Almond &

Harvest Gold

777941 Black & White

675378 Brushed Chrome

780334 Almond & Black

2 Bag, Trash

675186 12 Pack

882652 48 Pack

3 777635 Deodorizer,

Solid Stick−Ups

(2−Pack)

5 13030 Carrier, Bag

(Includes No. 6)

6 777108 Handle, Bag

Carrier

7 675351 Grease, 4 Oz.

(Use on Power

Screw & Ram

Pressure Pads

8 Wire, 25’ Roll

10875 Blue 16 Ga.

242820 Black 14 Ga.

242825 Red 14 Ga.

242826 White 14 Ga.

47261 Black 12 Ga.

299885 Red 12 Ga.

47263 White 12 Ga.

9 279368 Adhesive,

Insulation

(2oz Tube)

10 Paint,

Touch−Up 1/2 Oz.

72107 Almond

72109 Avocado

72032 Black

72108 Coffee

72110 Harvest Gold

72113 Platinum

72112 Toast

72017 White

11 Paint,

Spray 13 Oz.

350956 Almond

261888 Avocado

285006 Black

261886 Coffee

261890 Harvest Gold

285366 Platinum

978726 Stanford Brown

285365 Toast

350930 White

CPW−3−D

For Models: TU800SPPB0, TU800SPPQ0

(Black) (White)

882767
