WARNING

For safety purpose, you should read the instructions carefully before using

the appliance for the first time. Save the instruction for future reference.

The appliance is designed for domestic use and may only be installed and

operated in accordance with these instructions for use.

Important:

**Remove the protection film outside the hood before installation.

1. Please follow the instruction in this user manual.

2. Unplug the power before doing maintenance job on the hood.

3. Wear rubber gloves when doing maintenance job on the hood.

4. Do not spray the hood with water directly.

5. When using the hood with flammable gas, please keep a good air flow in

the kitchen to avoid hazard.

6. Do not burn directly under the range hood.

7. Do not share duct with other flammable gas pipes.

8. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without

supervision.

9. There is a fire risk if cleaning is not carried out in accordance with the

instructions.

10. Do not flambe under the range hood.

11. CAUTION: Accessible parts may become hot when using with cooking

appliances.

12. The air must not be discharged into a flue that is used for exhausting

fumes from appliances burning gas or other fuels.

13. Regulations concerning the discharged of air have to be fulfilled.

14. If the supply cord is damaged, do not operate the appliance, it must be

replaced by the manufacturer, its service agent or similarly qualified

persons in order to avoid a hazard.

15. This appliance is not intended for use by persons (including children),

with reduced physical, sensory or mental capabilities, or lack of experience

and knowledge, unless they have been given supervision or instruction

16.

Children should be supervised to ensure that they do not play with the appliance.

17. Disconnect the power supply before cleaning, repairing, replacing light

bulb or dismantling the range hood.

18. The appliance should be positioned 65 – 75 cm above the cooking range.

19. The range hood must be earthed.

20. There shall be adequate ventilation of the room when the range hood is used

at the same time as appliances burning gas or other fuels.

21. To prevent fire hazard in case of oil build-up, the turbine impellers and

other easily-soiled parts must be cleaned at least twice a month.

a. Exhaust duct adapter ( 6" to 6" x 1 pc, 6" to 5" x 1 pc)

oil dish 2 pcs

c. water jug x 1 pc

d. Warranty card 1 pc and Instruction manual 1 pc

e. Hardware package x 1 set

(6#*1½” wooden screw x 6 pcs + washer x 6 pcs + 3/16”*1/4” screw x 4

pcs + round rubber stand x 2 pcs)

Exhaust duct

•Packing materials (plastic bags, polystyrene, etc.) must be kept out of children’s

reach, as they are potentially dangerous.

• Installation must be carried out by a qualified technician.

• Check the voltage on the rating plate which should correspond to the voltage

in your home.

• Connect the power and switch on the motors and lighting system to check the

operation.

• Check the following accessories before installation:

BEFORE USING THE HOOD

1. Location:

• Air turbulence from window/door may reduce the

effectiveness of hood. Suggest to close window/

door before using hood.

• The smoke has to rise up to 25 cm to be within the

range of suction efficiency.

2. Position:

• The installation height is measured vertically from

center of fan grille of hood to the top of the stove.

• The minimum installation height should not be less than

650 mm and the recommended height is 700±50 mm.

• Avoid left-right or front-dropped inclination.

3. Exhaust duct:

• 6-inch diameter exhaust duct is recommended to use

in order to maximize suction efficiency.In case of 5-inch

exhaust duct, an adapter as enclosed in the packaging

can be used.

• Before installing the hood,please apply fast drying glue to

the collar and securely attach it to the top of the cooker

hood’s vent lid. Install the cooker hood and exhaust duct

to the plastic collar and seal with fast drying glue.

700±50mm

INSTALLATION

PROCEDURE

1. Find a suitable installation position of hood which

should be next to a window and can be cut to let

the exhaust duct pass through.

2. If the exhaust duct has to pass through the wall,

particular attention must be paid to the structure of

the wall as steel reinforcement may be embedded.

3. Mark the location of exhaust outlet hole, then cut/

drill the hole with care.

4. Fix the position of hood and mark the position of

the two hanging hooks.

5. Drive 2 steel nails into the selected wall with 3 mm

(maximum)space leave behind for hanging the hood.

6. Adjust the hanging hooks on both sides of the hood

and hang the hood on the steel nails, and then

adjust the hood from side to side and from front

and back to a horizontal position.

7. Follow the instruction print on the enclosed exhaust

duct adapter and connect the exhaust duct adapter

to the hood and window/wall. 5-inch or 6-inch duct

can be used.

8. Fasten the hanging bracket to the wall by screws

from the fixed holes to avoid of being hanged up

by accident.

9. To ensure drainage performance, hood shall be

installed with slope (2 - 4 mm) as shown in figure.

And rubber cushion(at rear housing) MUST

NOT be removed, otherwise appliance will be

operated unstable/noisy and water leakage.

3mm(maximum limit)

Level

Tilted

Adjust the hang hood and

prepare to install

Drill a hole for the air tube Drive 2

steel nails in, on the upper corner

of the both side of the hood.

Keeps the hood in level to avoid

the oil leaking from oil cup.

2-4mm

screw

Wall

Exhaust

duct

Plywood

1. Rear mounting (2 brackets are pre-installed)

Use 2 screws (If it is not wooden wall, please use anchor.) and 2 washers

to secure the hood to the wall.

FIG.1

FIG.2 FIG.3

2. Top mounting

Use 4 wooden screws and 4 washers to secure the hood to the bottom of the

cabinet. Lift hood onto screws located on cabinet bottom and lock into place.

Make sure all 4 key-holes cover the screws. Tighten each screw to secure

hood to cabinet. (see FIG.2)

Stick the two round rubber stands on the sides of hood’s top(see FIG.3).

(Note: Make sure all 4 key-holes cover the screws and each screw was

tightened. Otherwise, there will be potential risk of machine falling down.)

MOUNTING METHOD

696mm

664mm

228mm

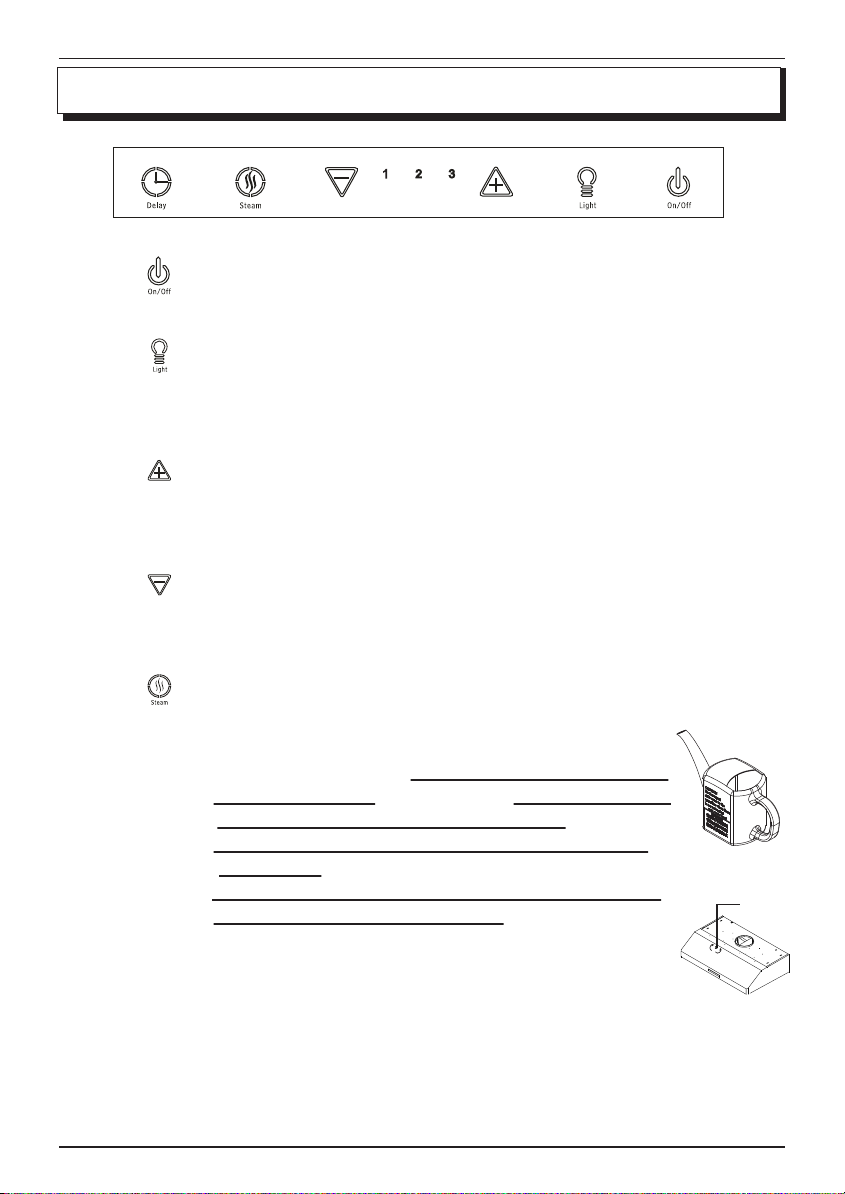

HOOD OPERATION

(1) Press to power on the fan and press again to turn off.

1. On/Off

2. Light Switch

3. Fan Speed Up

4. Fan Speed Down

5. Steam Clean

LW CR

(1) Press this button to turn on and off the light.

(2) The light is operated independently and not controlled by

On/Off button.

(1) Press this button to increase the fan speed from 1→2→3.

(2) Every time when turn on the machine, the hood is operated at

the fan speed chosen at the last time.

(1) Press this button to decrease the fan speed from 3→2→1.

(2) Every time when turn on the machine, the hood is operated at

the fan speed chosen at the last time.

(1) Cleaning Steps:

(a) Add water to the provided water jar as shown

in the picture (Fig. A). Never put detergent as it can

damage the hood. For each refill, please add water

to the waterline marked in the water jar.

Otherwise, excessive water will be spillover from

the oil cup.

(b) Open the water inlet hole by moving the water inlet

cap leftward or rightward (Fig. B), then pour the

water from the water jar into the hole as shown in

the picture.

The button light keeps on throughout the cleaning

process which lasts for around 6-8 minutes.

The “Steam Clean” button light is off after the process is ended.

Fig. B

Fig. A

Water inlet

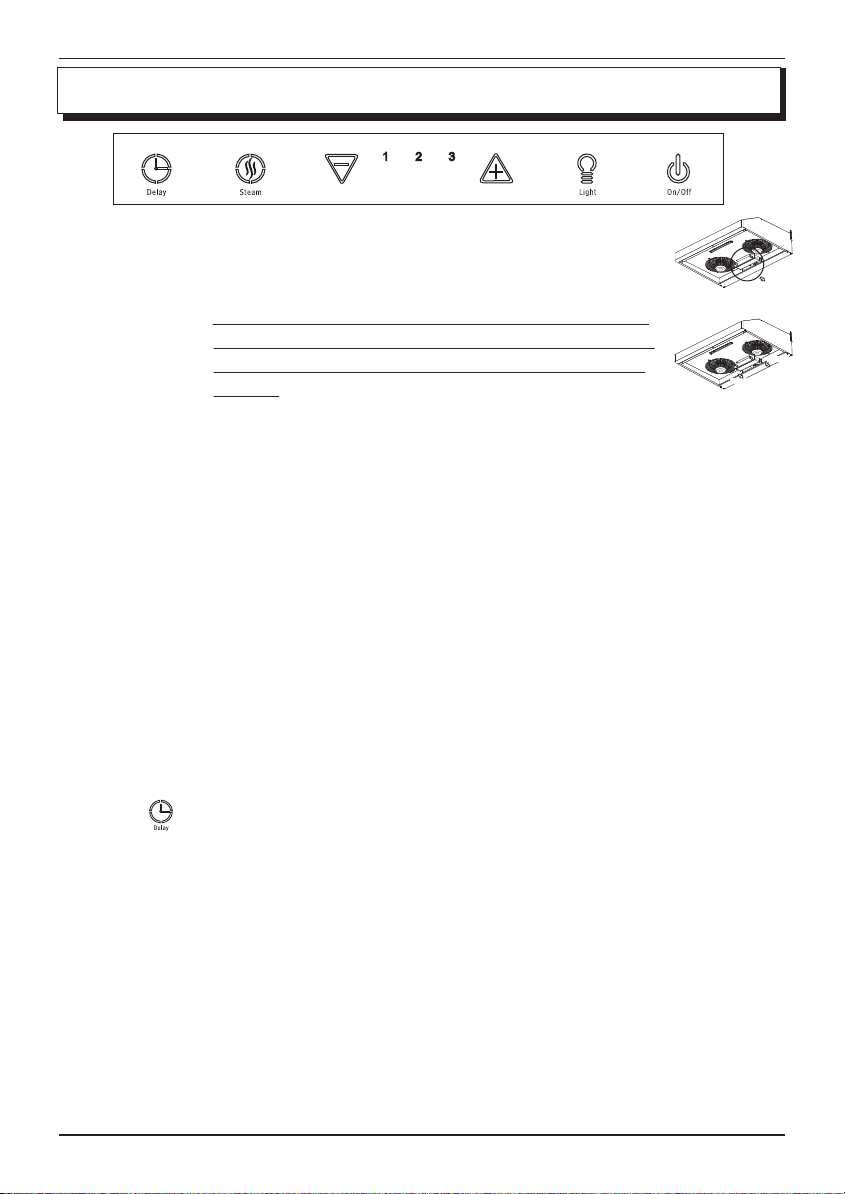

HOOD OPERATION

6. Delay-Off

LW CR

(e) To avoid excessive water to spillover from the oil

cup, please take down the oil cup and clean up the

water inside after every cleaning as shown in the

picture (Fig. D).

(2) When there is low water level, “LW” light is blinking to alert to add

water to continue the cleaning process. “LW” light is off after water

is added. IF no water is added, “LW” light keeps on even after turn off

the machine. Customer can unplug it to eliminate “LW” light.

(3) The machine has a clean reminder to remind regular cleaning of the

hood. After 15 hours’ operation, “CR” light is blinking to alert

cleaning. “CR” light is off after steam clean function is activated.

IF steam clean has not done, “CR” light keeps on even after turn off

the machine. Customer can unplug it to eliminate “CR” light.

Customer can also increase the frequency of steam cleaning

according to individual cooking habits for the durability of the

machine.

(4) Customer can stop the steam clean process anytime by pressing

On/OFF button.

(1) Press once to start the Delay-Off, hood maintain the current fan

speed. It will turn off after 5 minutes.

(2) When Delay-Off function is activated, speed can still be adjusted.

(3) When Delay-Off function is activated, press On/Off button to stop

the Delay-off function anytime.

(d) Dirty oil water flows into the built-in oil cup as

shown in the picture (Fig. C).

Fig. D

Oil Cup

Assembly

Remove

Fig. C

Oil Cup

Notes: (1) For the first time of steam cleaning, there is water pump sound

because no water in the water pump and pipe. It is normal.

(2) The actual cleaning time sometimes will be affected by the

environmental temperature.

(3) Customers please do not touch the steam and the hood body

to avoid getting burnt.

1. Always disconnect from power supply before

cleaning.

2. Regularly to clean the hood for long lasting.

3. Fan protection grille can be detached for cleaning

by removing the screws with a screwdriver.

lt must be reinstalled after cleaned.

4. Oil dish on the grille can also be detached for

cleaning by turning the dish anti-clockwise.

5. The oil cup in the centre of the hood for holding

grease can be detached and cleaned regularly.

6. Make a habit to turn on the hood before using

stove to avoid high heat in the kitchen.

MAINTENANCE &CLEANING

Clockwise to install

Anti-clockwise to detach

Assembly

Remove

Indice

Altri manuali Whirlpool Cappa di ventilazione

Whirlpool

Whirlpool RH3730XLB1 Manuale utente

Whirlpool

Whirlpool WVU37UC4F Manuale utente

Whirlpool

Whirlpool 30" AND 36" (76.2 AND 91.4 CM) WALL-MOUNTCANOPY RANGE... Scheda informativa del prodotto

Whirlpool

Whirlpool UXT4130AD Scheda informativa del prodotto

Whirlpool

Whirlpool MMV4205 Manuale utente

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuale utente

Whirlpool

Whirlpool RCH3660 Manuale utente

Whirlpool

Whirlpool UXT5230AYB0 Scheda informativa del prodotto

Whirlpool

Whirlpool IN600S Manuale utente

Whirlpool

Whirlpool YUMV4084 Manuale utente

Whirlpool

Whirlpool RH3730XLB0 Manuale utente

Whirlpool

Whirlpool UXG7480VDS0 Manuale utente

Whirlpool

Whirlpool WVW51UC0LS Manuale utente

Whirlpool

Whirlpool UXL6036Y Manuale elenco delle parti

Whirlpool

Whirlpool WVU57UC6 Scheda informativa del prodotto

Whirlpool

Whirlpool GXU7130DXB1 Manuale utente

Whirlpool

Whirlpool WVU17UC0JS Scheda informativa del prodotto

Whirlpool

Whirlpool AKR 767 IX Istruzioni operative

Whirlpool

Whirlpool 30 " Eye-Level Gas Range Scheda informativa del prodotto

Whirlpool

Whirlpool GXW6530DX Manuale elenco delle parti

Whirlpool

Whirlpool 9763375 Manuale

Whirlpool

Whirlpool AKR601UMIX Manuale utente

Whirlpool

Whirlpool HGF 9.5S AB X/HA Manuale utente

Whirlpool

Whirlpool AKR 641 Istruzioni per il montaggio

Manuali Cappa di ventilazione popolari di altre marche

emmeti

emmeti RECUPA MED A-140 Guida

Nibe

Nibe F135 Manuale utente

Kuppersberg

Kuppersberg INTRO 60 Istruzioni di installazione e manutenzione

Zephyr

Zephyr Spruce AK9834BS Guida all'installazione

Hisense

Hisense MH6INBG Manuale utente

Miele

Miele DA 1255 Manuale utente

Broan

Broan 46000 Manuale utente

GE Profile PV977 Istruzioni originali

FALMEC

FALMEC FFRIA24W5FS Manuale utente

Küppersbusch

Küppersbusch DX ISLA Manuale utente

ETNA

ETNA AV360RVS Manuale utente

JUNO

JUNO JDF603E6 Manuale utente

Miele

Miele DA 6708 D Manuale utente

Tricity Bendix

Tricity Bendix LE 150 Manuale

AEG

AEG X68163BV1 Manuale utente

AEG

AEG 125 D Manuale utente

Smeg

Smeg KSEV97X Manuale utente

Nibe

Nibe S Series Guida utente
