Whirlpool 7MWT9601WW0 Manuale utente

EXPLOSIONADO DE PARTES

Modelo:

7MWT9601WW0

LAVADORAS DE IMPORTACIÓN

7MWT9601WW0

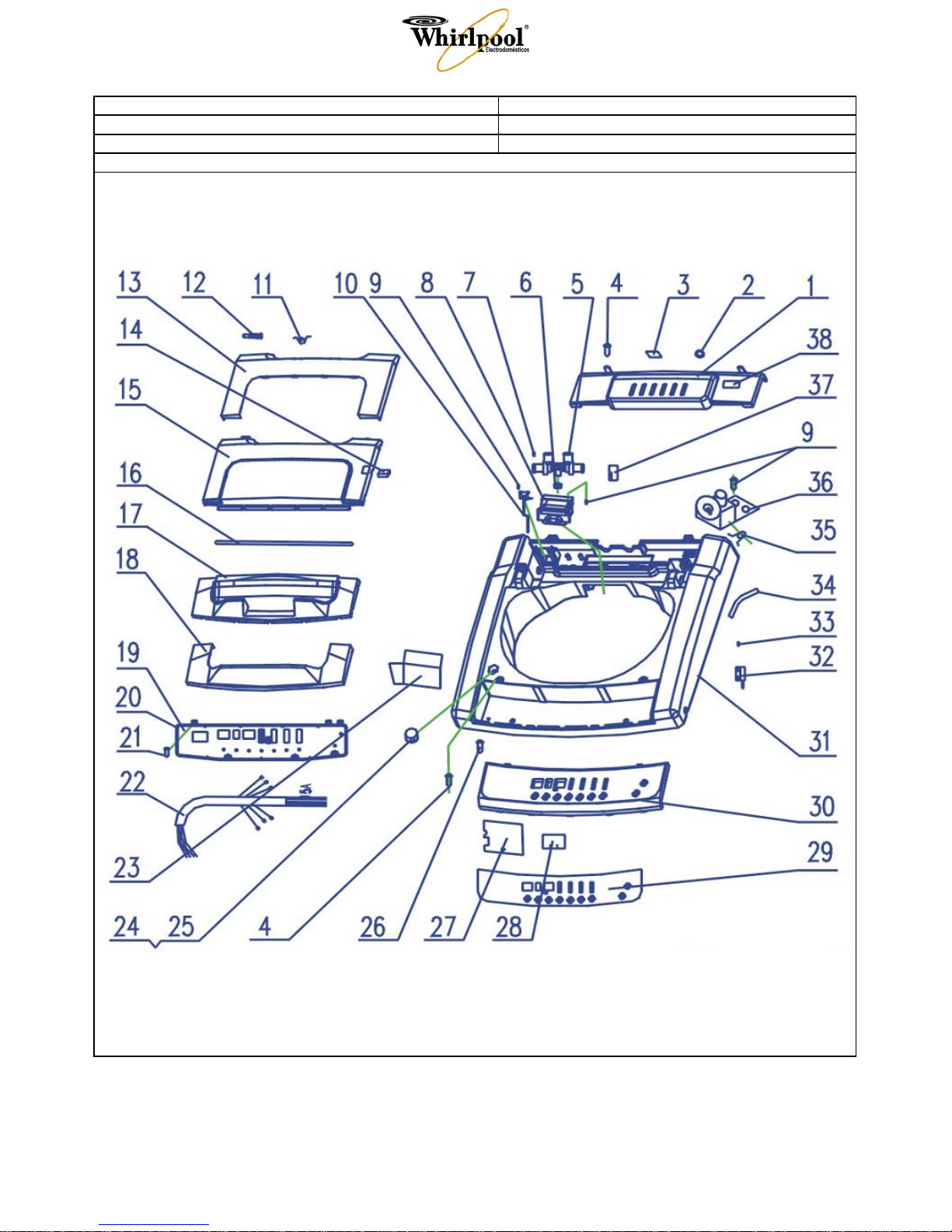

TOP FRAME ASSEMBLY White

12 Kgs.

WhirlpoolMarca

Capacidad

Color

Whirlpool Mexico S.A de C.V. 1/10 CJG

7MWT9601WW0

White

12 Kgs.

WhirlpoolMarca

Capacidad

Color

fDescripción

Numero de Parte

1 Back board 1 301114800221

2 Seal for water inlet valve 2 301114800003

3 Cold and hot water marker 1 302000200892

4 Tapping screw M4×14 (Ni) * ***

5 Double water inlet valve B 1 302411200038

6 Rubber sealed washer 1 302700300040

7 Tapping screw 4×16 * ***

8 Water inlet subassembly 1 301112002005

9 Tapping screw 4×12 * ***

10 Safety switch 1 302420800004

11 Hinge spring 1 302911200090

12 Pin 2 301115100009

13 Setting of back top lid 1 301114402158

14 Magnet 1 302411700002

15 Back top lid 1 301114402159

16 Lid steel wire 1 302911000019

17 Front top lid 1 301114402159

18 Setting of front top lid 1 301114402158

19 PCB board 1 301311001077

20 PCB tray 1 302311800052

21 Screw 3.5×11 * ***

22 Wiring harness 1 3024021B0002

23 Paper shield for top frame 1 300500390001

24 Gradienter 1 301114300013

25 Insert of gradienter 1 301114300115

26 Tapping screw 4×12 * ***

27 Paper shield for bolt pole 1 300500390000

28 Paper shield for control panel 1 300500390002

29 Decorative sticker 1 302000201184

30 Control panel 1 301114502049

31 Top frame 1 301114300114

32 Magnet switch 1 302411500025

33 Tapping screw 3.5×9 * ***

34 Air trap hose 1 301611000441

35 Small hose band 3 302911200015

36 Water level sensor 1 302411600009

37 Baffle for water inlet 2 301120990021

38 Safety label 1 302000200950

TOP FRAME ASSEMBLY

Whirlpool Mexico S.A de C.V. 2/10 CJG

7MWT9601WW0

White

12 Kgs.

WhirlpoolMarca

Capacidad

Color INNER TUB ASSEMBLY

Whirlpool Mexico S.A de C.V. 3/10 CJG

7MWT9601WW0

White

12 Kgs.

WhirlpoolMarca

Capacidad

Color

fDescripción

Numero de Parte

39 Filter frame 1 301101400093

40 Water cycle 1 301115500065

41 Screw 4×12 * ***

42 Flange for inner-tub 1 301200500026

43 Screw for flange M6×20 6 302500300056

44 Screw for bottom of spin tub * ***

45 Bottom of spin tub 1 301115400455

46 Spin tub 1 301214900021

47 Screw 4×16 * ***

48 Balancing ring 1 301115300466

INNER TUB ASSEMBLY

Whirlpool Mexico S.A de C.V. 4/10 CJG

7MWT9601WW0

White

12 Kgs.

WhirlpoolMarca

Capacidad

Color OUTER TUB ASSEMBLY

Whirlpool Mexico S.A de C.V. 5/10 CJG

7MWT9601WW0

White

12 Kgs.

WhirlpoolMarca

Capacidad

Color

fDescripción

Numero de Parte

49 Overflow hose of up drain water 1 301120990018

50 Support for overflow hose of up drain 1 301120990017

51 Metal wire A 1 301102000070

52 Nut M4 * ***

53 Inner ground wire * ***

54 Washer Ø4 * ***

55 Screw M4×10 * ***

56 Drain valve subassembly 1 301611100021

57 Pin 4×40 1 302501200009

58 Torque moter subassembly 1 302411100121

59 Washer Ø6 * ***

60 Spring washer Ø6 * ***

61 Inner hex screw M6×16 * ***

62 Motor support 1 301215000014

63 Screw for motor support * ***

64 V-belt 1 302701000024

65 Motor pulley 1 303400500020

66 Screw for motor pulley * ***

67 Nut for motor pulley * ***

68 Bolt M8×30 * ***

69 Spring washer Ø8 * ***

70 Big washer * ***

71 Up vibration-damp washer B 2 301115600002

72 Motor ground wire 1 302402100480

73 Motor complete 1 302411300241

74 Down vibration-damp washer 2 301115600007

75 Big screw 6×30 * ***

76 Clutch subassembly 1 301201090008

77 Stopper 1 301114600024

78 Vent-pipe 1 301611000448

79 Special screw (H62) 1 302500300050

80 Outer tub 1 301115400454

OUTER TUB ASSEMBLY

Whirlpool Mexico S.A de C.V. 6/10 CJG

7MWT9601WW0

White

12 Kgs.

WhirlpoolMarca

Capacidad

Color TOTAL ASSEMBLY

Whirlpool Mexico S.A de C.V. 7/10 CJG

7MWT9601WW0

White

12 Kgs.

WhirlpoolMarca

Capacidad

Color

fDescripción

Numero de Parte

81 Pulsator cover 1 301113500098

82 Pulsator screw 1 302500300230

83 Anti-recession washer 1 302502100001

84 Pulsator complete 1 301113500097

85 Pulsator shaft washer 1 302502100071

86 Outer tub cover 1 301115400453

87 Hex screw M6×22 * ***

88 Spring washer Ø6 * ***

89 Washer 6 * ***

90 Suspension rod pin 4 302911300020

91 Ball-shape pedestal 4 301102000066

92 Cushion washer 4 302211100017

93 Cabinet complete 1 301214500208

94 Suspension rod complete 1 302911300020

95 Base 1 301114000073

96 Idler wheel 2 301113500099

97 Idler wheel shaft B8×39 2 301111902000

98 Drain hose cap 2 301114000076

99 Overflow funnel 1 301120990019

100 leg adjuster-A 1 301114100050

101 leg adjuster-B 1 301114100050

102 leg adjuster-C 1 301114100050

103 Leg washer 1 301114100050

104 Tapping screw 4×12 1 301114100050

105 Leg washer 3 302700300033

106 Tie wrap 8 301102000009

107 Power cord subassembly 1 302402100208

108 Wire nip 1 301102000001

109 Nut wire 7 301102000002

110 Nut M4 2 302500300076

111 Toothed Lock Washer 2 302502100006

112 Screw M4×10 2 302500300076

113 Anti-abrasion washer 2 302211100022

114 Tapping screw 1 302500300046

115 Capacitor cover 1 301113700026

116 Capacitor and inductance subassembly 1 302411400046

117 Protection washer for inner hose 1 302100490000

118 Connecting hose 1 301611000440

119 Hose band A 2 302911200020

120 Drain pump with filter 1 302400600105

121 Grip handle 2 301113400093

122 Drain hose rest 3 301113900023

123 Screw M4×10 * ***

124 Back cover 1 301113700204

125 Name plate 1 302000201183

126 Name plate 1 302000201183

TOTAL ASSEMBLY

Whirlpool Mexico S.A de C.V. 8/10 CJG

7MWT9601WW0

White

12 Kgs.

WhirlpoolMarca

Capacidad

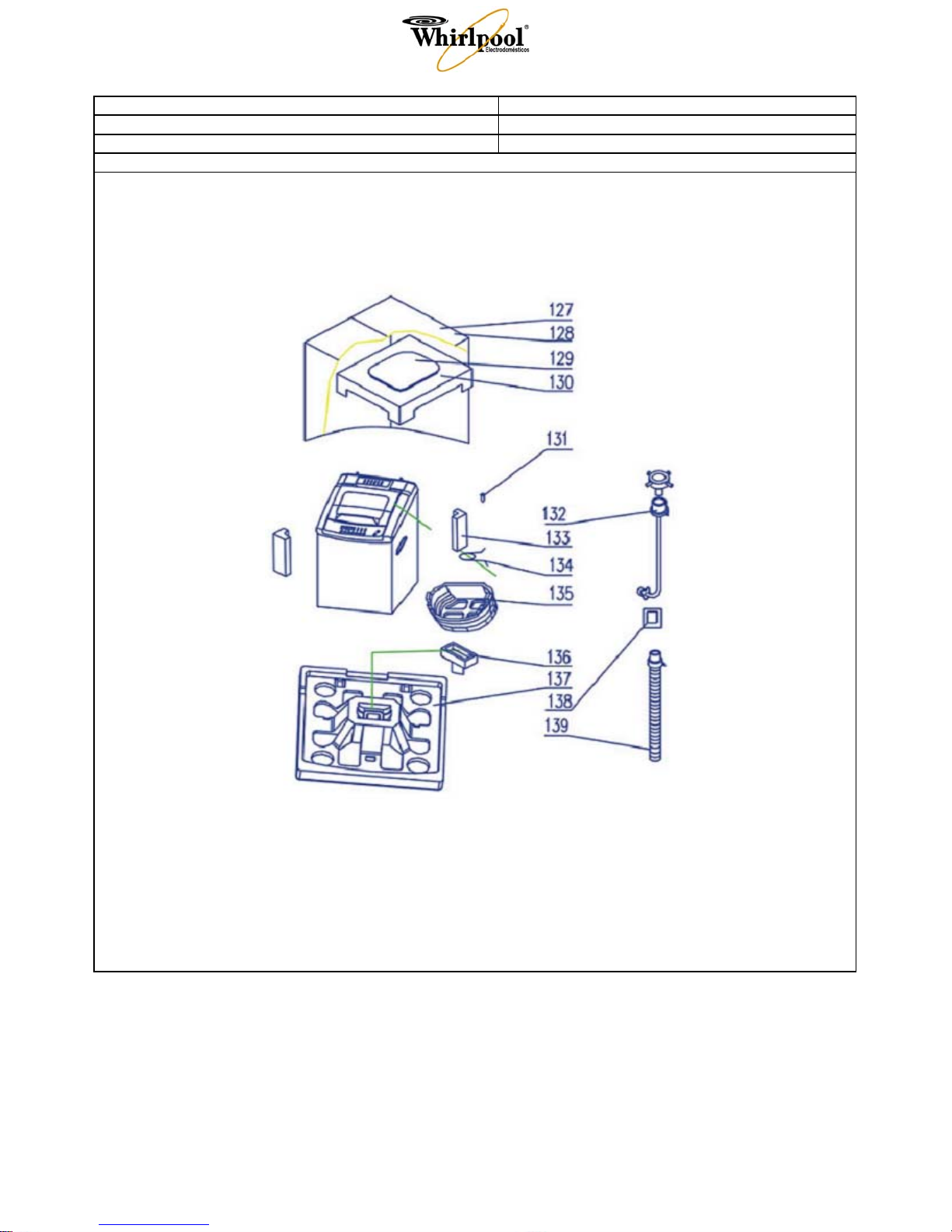

Color PACKING ASSEMBLY

Whirlpool Mexico S.A de C.V. 9/10 CJG
