Whirlpool 8LSR5132BW1 Manuale utente

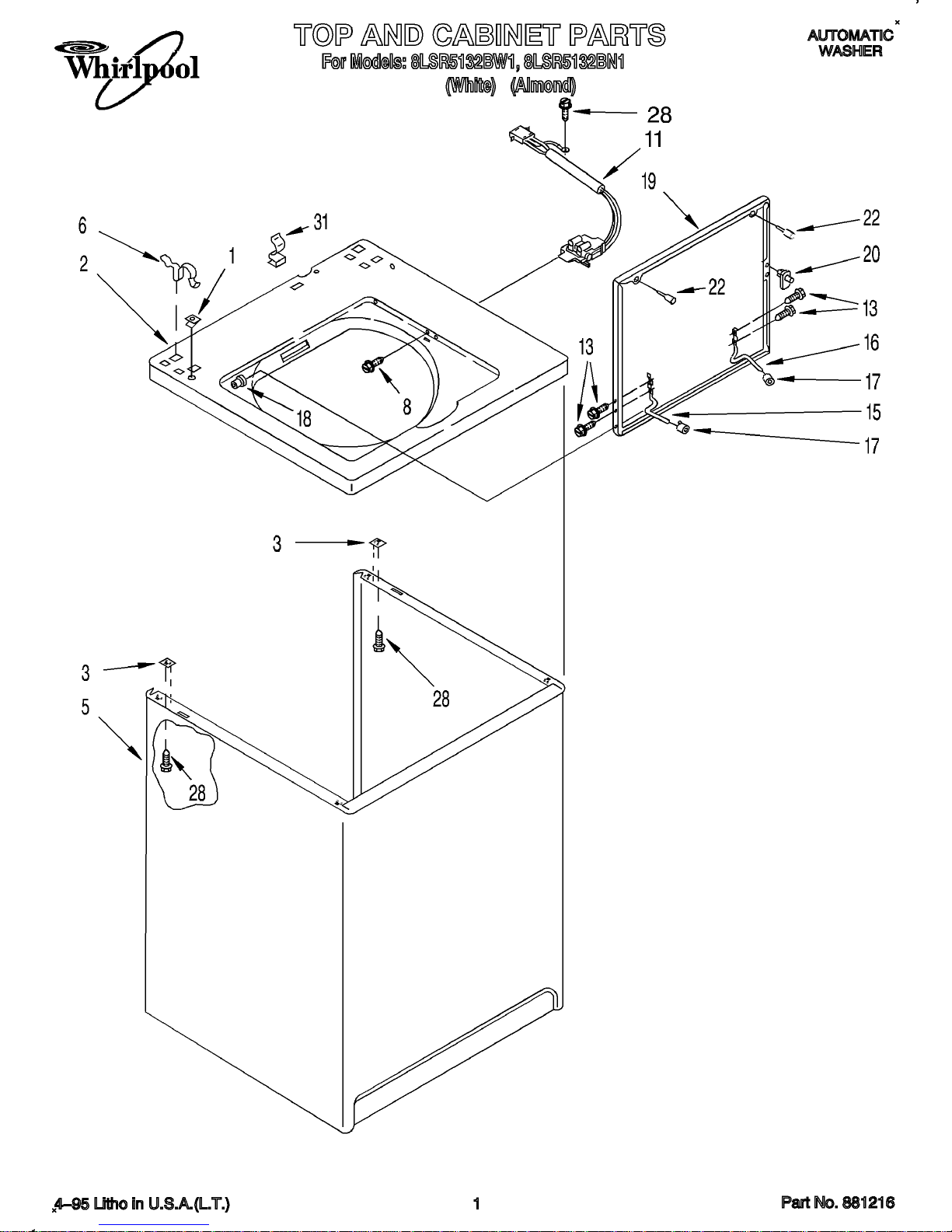

1 357213 Nut, Push-In (2)

2 Top

3358213 For White Model

3358214 For Almond Model

3358215 For Gold Model

3 62750 Spacer, Cabinet To Top (4)

5 Cabinet

63424 For White Model

63425 For Almond Model

63428 For Gold Model

6 62780 Clip, Top & Cabinet & Rear Panel (2)

8 3356311 Screw & Washer, Lid Switch (2)

11 3352629 Switch, Lid

13 3351355 Screw, Lid Hinge Mounting (4)

15 54584 Hinge, Lid (L.H.)

16 54583 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid Hinge (2)

19 Lid

3947509 For White Model

3947510 For Almond Model

3947511 For Gold Model

20 358684 Strike, Lid Switch

22 93770 Bumper, Lid (2)

28 384435 Screw, 10-16 x 1/2 (5)

31 90016 Clip, Harness

LITERATURE PARTS

LIT3358977 Sheet, Installation Instructions

LIT3360466 Guide, Use and Care

LIT3351736 Label, Wiring Diagram

LIT881216 List, Repair Parts

Following May Be Purchased

DO-IT-YOURSELF REPAIR MANUALS

LIT4313896 Manual, (Washer) Do-It-Yourself

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH-UP (1/2 oz.)

72017 White

72107 Almond

72110 Golden Harvest

PAINT, PRESSURIZED SPRAY (13 oz.)

350938 Primer, Gray

350930 White

350956 Almond

261890 Golden Harvest

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

261891 Golden Harvest (Uncut)

OIL

350572 Oil, Gearcase (16 Oz.)

LUBRICANT

285208 Lubricant (Use Only in Brake Shoe Assembly On Roller and Pin)

SEALER285195 Sealer, Gasket (.20 Fl. Oz.) (6 ml)

SHIPPING KIT

3348675 Shipping Kit

ACCESSORY PARTS

63580 Fabric Dispenser

89121 Stand-Pipe Kit

367031 Drain Protector

285320 Siphon Break Kit

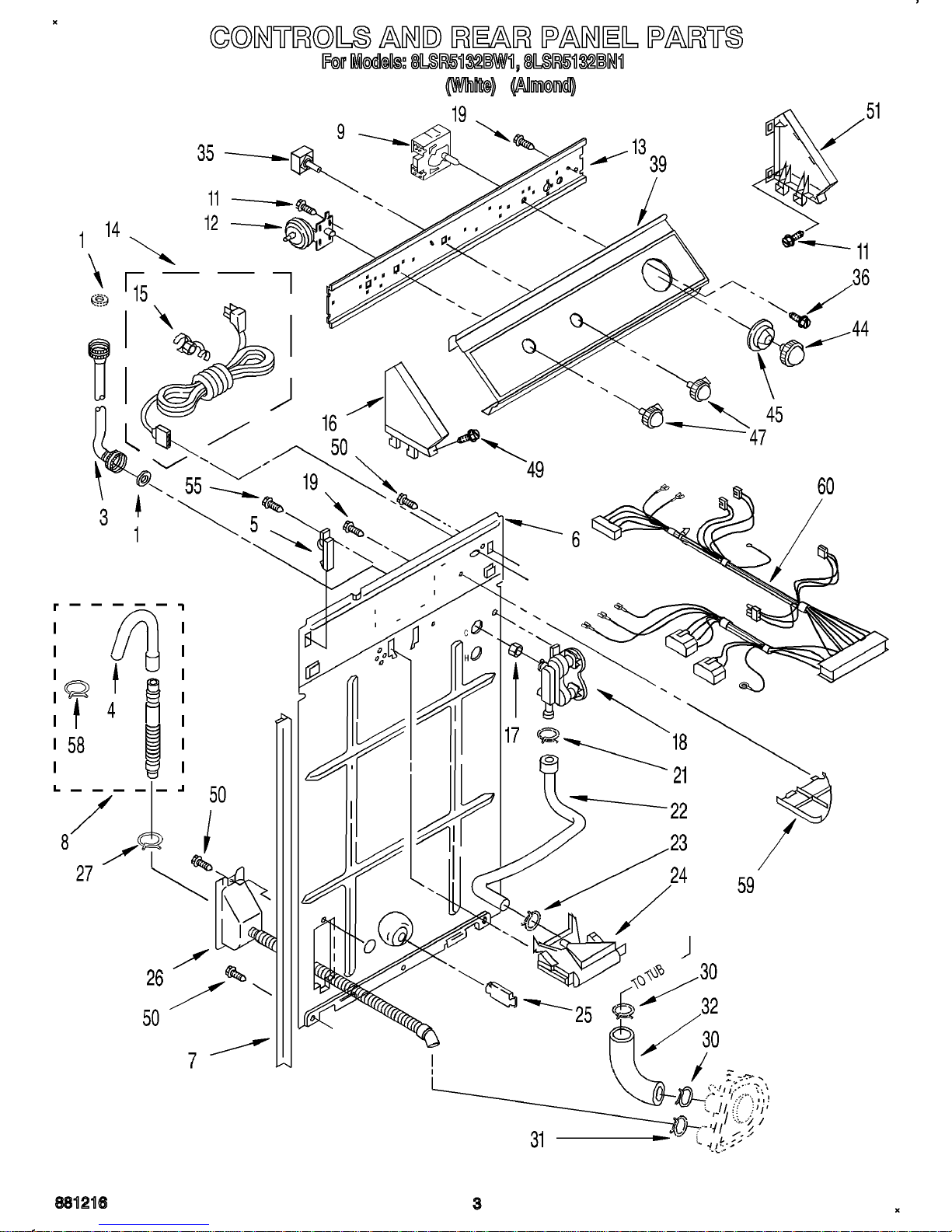

1 16123 Washer, Water Inlet Hose (4) (1-1/16 x 5/8)

3 3354858 Hose, Water Inlet (2)

4 3357027 Nozzle-Drain Hose

5 387402 Hinge, Console (2)

6 3357978 Panel, Rear

7 62747 Pad, Rear Panel

8 661575 Hose, Drain (4'- 8")

661577 Hose, Drain (9'- 9") (Not Included)

3357090 Extension, Drain Hose (21 Inches.) (Not Included.)

9 3946466 Timer, Control (60 Hz.) (Motor Not A Service Part)

11 90767 Screw, 8A x 3/8

12 3356468 Switch, Water Level

13 3360936 Bracket, Control

14 3360514 Cord, Power

15 63848 Strain Relief, Power Cord

16 Cap, End (L.H.)

3358531 White/Chrome

3358532 Almond/Chrome

3358533 Black/Chrome

17 96160 Screen, Filter (2)

18 3360392 Valve, Water Mixing

19 90864 Screw, 10-24 x 3/8 (2)

21 370451 Clamp, Hose

272846 (Alt.)

353367 (Alt.)

22 3357328 Hose, Vacuum Break

23 371503 Clamp, Hose

24 387606 Break, Vacuum

25 63290 Support, Rear Panel

26 3361805 Hose-Corrugated Assy.

27 356138 Clamp, Hose

30 371502 Clamp, Hose

31 660628 Clamp, Hose

272858 (Alt.)

370447 (Alt.)

353097 (Alt.)

32 62731 Hose, Pump To Tub

35 661538 Switch, Water Temperature

334711 (Alt.)

334835 (Alt.)

36 96435 Screw, Timer Mounting (10-32 x 1) (2)

39 Panel, Console

3359236 For White Model

3359237 For Almond Model

3362532 For Gold Model

44 3364290 Knob, Timer

45 3946260 Dial, Timer

47 3358431 Knob, Control

49 3353145 Screw, 8-18 (2) (Panel to Top)

50 62863 Screw, 10-16 x 3/8

51 Cap , End (R.H.)

3358516 White/Chrome

3358517 Almond/Chrome

3358518 Black/Chrome

55 3357011 Screw, 10-16 x 1/2

58 3357331 Clamp, Drain Hose

59 3348424 Shield, Suds

60 3359830 Harness, Wiring (For Detail See Wiring Harness Parts Page)

Also See Clips.

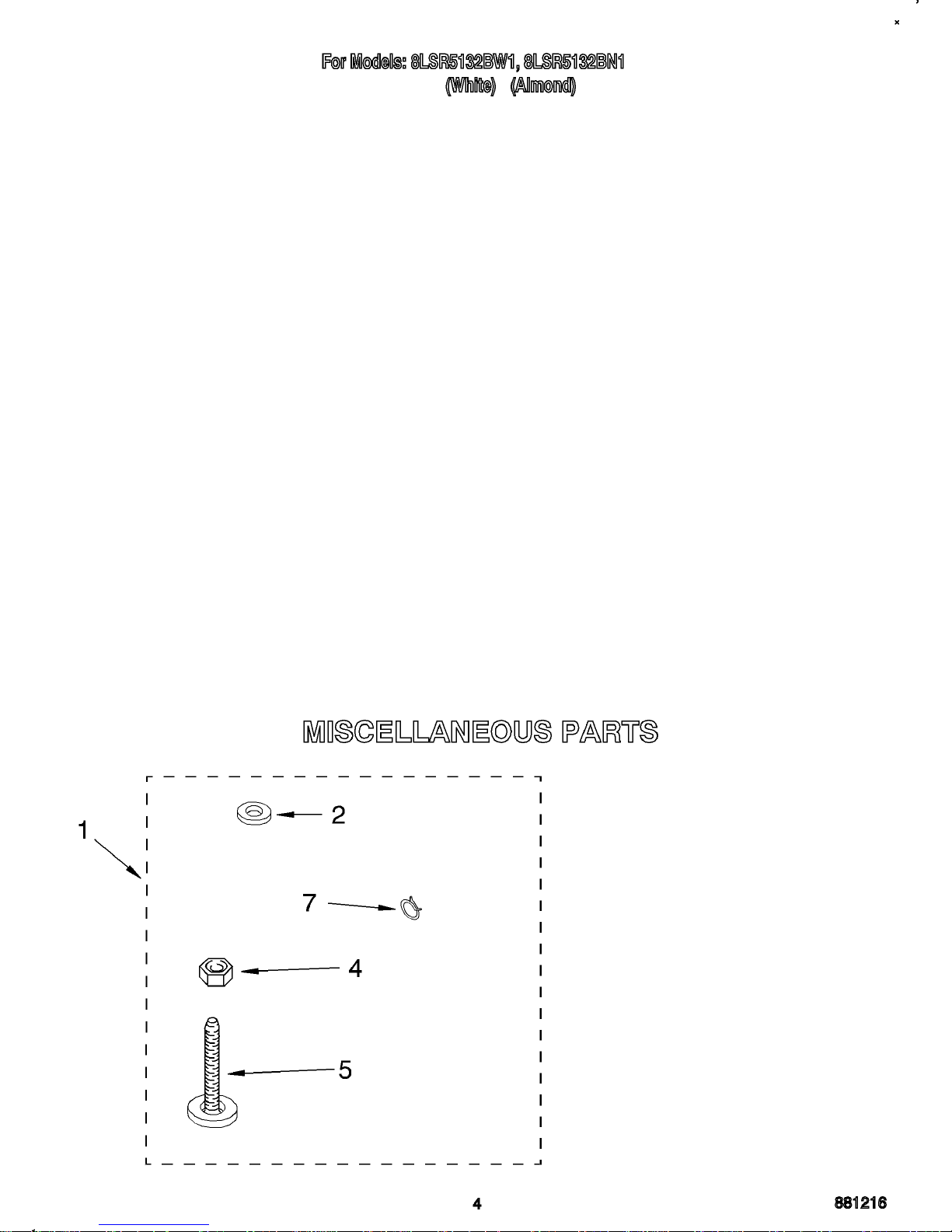

1 3359460 Miscellaneous Parts Bag

2 16123 Washer, Inlet Hose (1-1/16 x 5/8) (4)

4 3359452 Nut, Lock (3/8-16)

5 389102 Foot, Front (2)

7 356138 Clamp, Hose

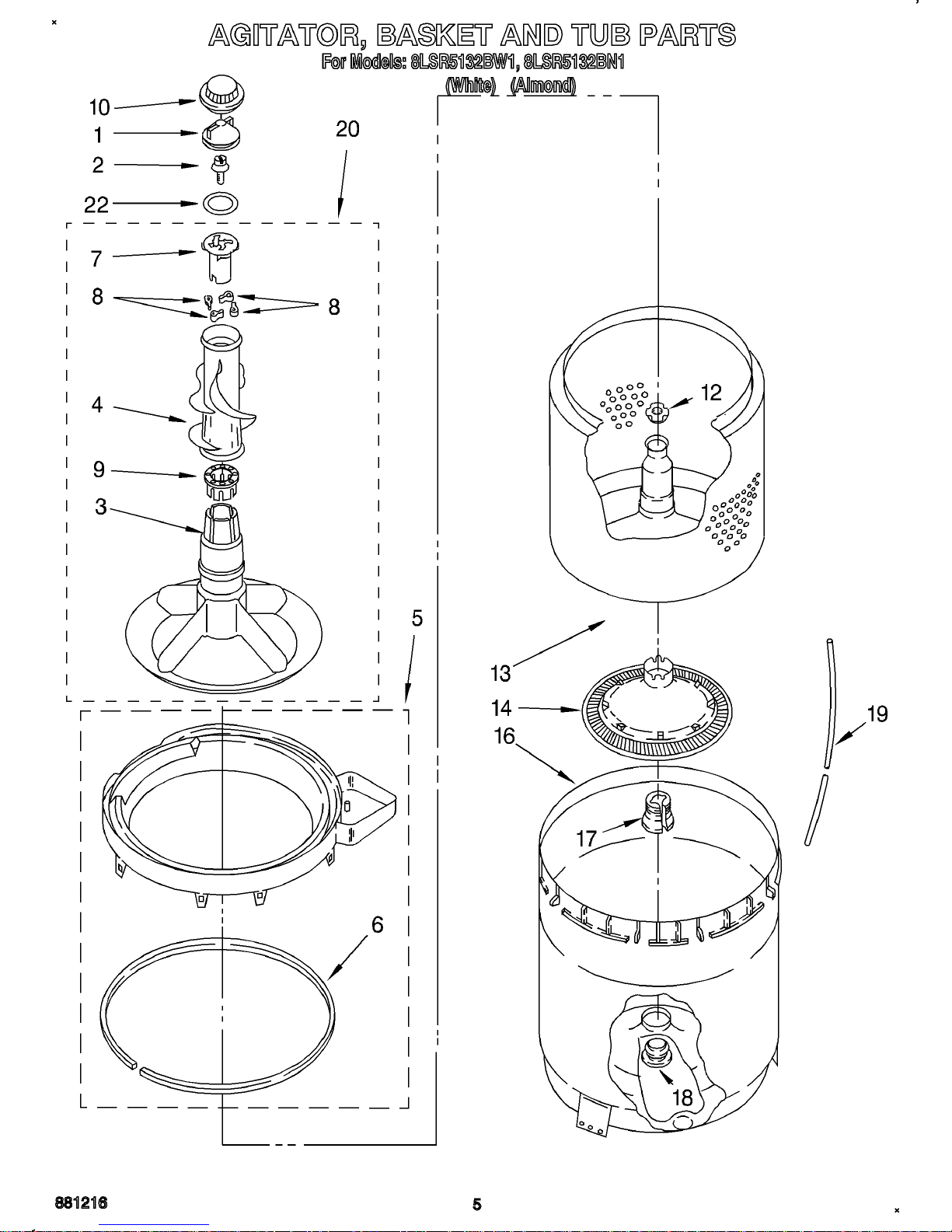

1 3347290 Cap, Barrier

2 358237 Screw & Washer (5-16-24 x 1)

3 3347288 Agitator

4 3348752 Clothes Mover

5 63851 Tub Ring & Gasket

6 3359585 Gasket, Tub Ring

7 3351001 Cam-Driven

8 387091 Dog-Agitator Clutch

9 3350389 Spacer-Thrust

10 3355758 Cap, Agitator

12 21366 Nut, Spanner

13 64217 Basket & Balance Ring

14 3361948 Filter, Plate

16 63849 Tub

17 389140 Block, Basket Drive

18 383727 Gasket, Centerpost

19 3347780 Hose, Pressure Switch

20 3348117 Agitator Asy. (Complete)

22 3348855 Seal-Inner Cap
