Whirlpool CAM2762TQ0 Manuale utente
c2008 WHIRLPOOL CORPORATION
MODELS
COMMERCIAL
AUTOMATIC WASHER
6−08 Litho In U.S.A. (slc) (eeb) Part No. W10114745 Rev. C
CAM2762TQ0
CAM2762TQ2
TOP AND CABINET PARTS
2
For Models: CAM2762TQ0, CAM2762TQ2
(White) (White)
W10114745

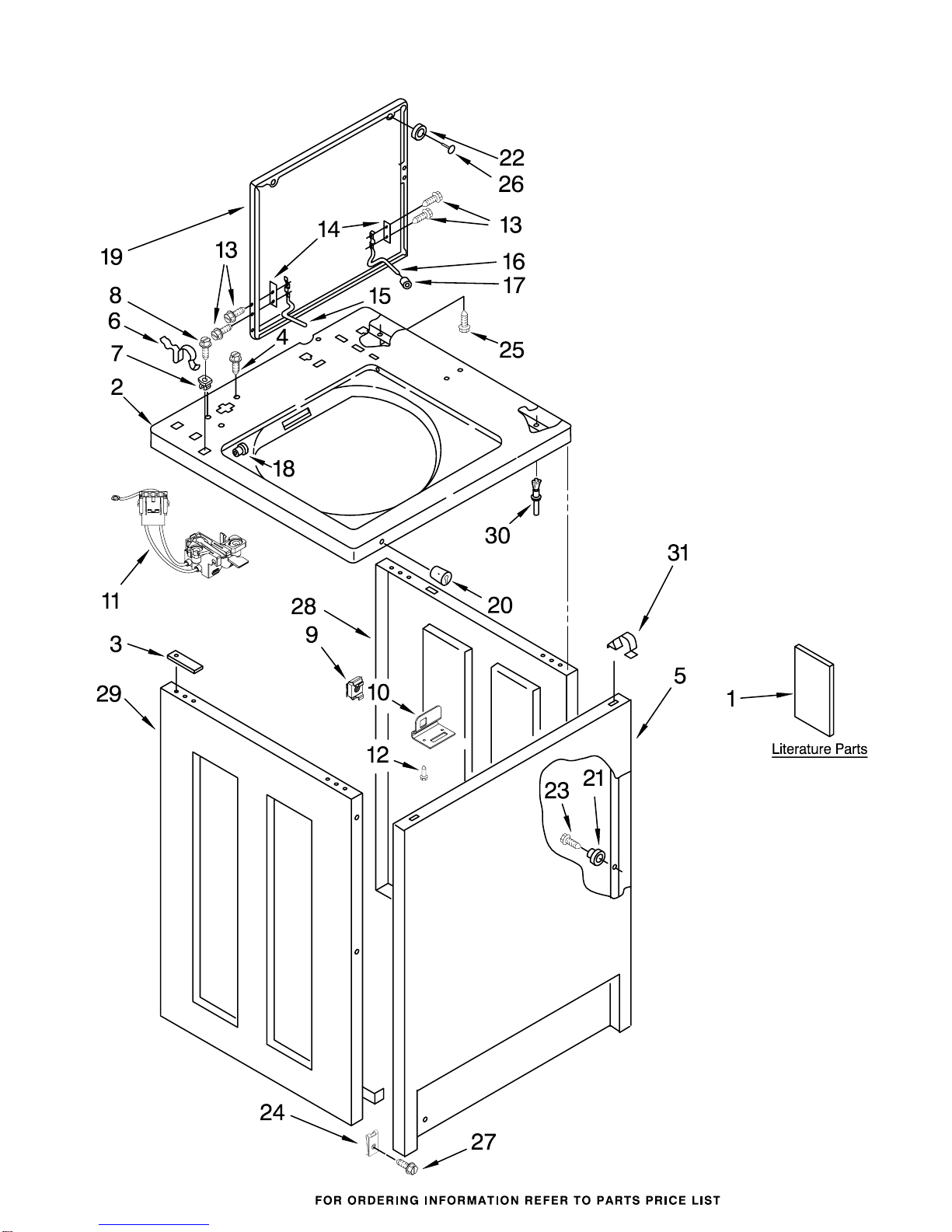

TOP AND CABINET PARTS
3
For Models: CAM2762TQ0, CAM2762TQ2
(White) (White)
W10114745
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8524739 Installation
Instructions
W10135801
Wiring Diagram
W10172196
Energy Guide
W10114745
Repair Parts List
2 8524688 Top
3 3353950 Spacer, Cabinet To
Top (4)
4 3351614 Screw, Ground
5 3358500 Panel, Front
6 62780 Clip, Top & Cabinet
& Rear Panel (2)
7 358473 Nut, Push−In (2)
8 3400611 Screw,
Lid Switch
9 90406 Cage Nut
10 3353948 Bracket, Lock
11 8054980 Switch, Lid
12 63554 Rivet (2)
13
W10119828
Screw, Lid Hinge
Mounting (4)
14 21097 Pad, Lid Hinge (2)
15 8524784 Hinge, Lid (L.H.)
16 54583 Hinge, Lid (R.H.)
17 19119 Bumper, Lid Hinge
18 21258 Bearing, Lid
Hinge (2)
19
W10171146
Lid
20 387371 Plug Lock
21 3353812 Locator (4)
22 356908 Bumper, Lid
23 718258 Screw (4)
24 98234 Clip, U−Bend (2)
25 3353993 Screw (2)
26 356907 Rivet, Plastic
27 3393258 Screw, Panel
Mtg. (2)
28 3976380 Side Panel (RH)
29 3976382 Side Panel (LH)
30 3353949 Pin, Locator (2)
31 18776 Lock (2)

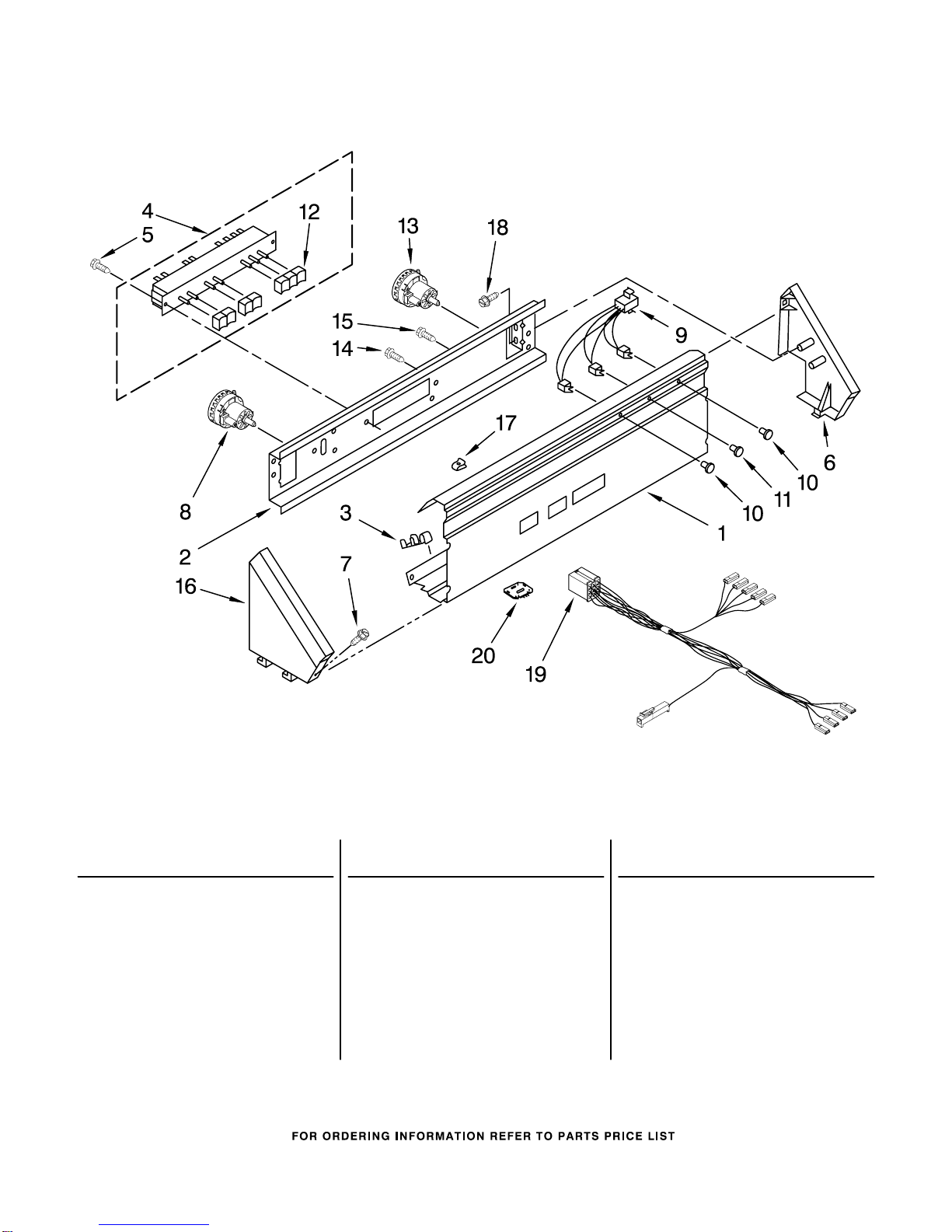

CONTROL PANEL PARTS
4
For Models: CAM2762TQ0, CAM2762TQ2
(White) (White)
W10114745
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8577883 Panel, Console
2 3978858 Bracket, Control
3 357572 Clip, Grounding
4 8577359 Switch, Cycle
Selector
(Includes Item 12)
5 3390646 Screw, 8−18 X 5/16
6 3949740 End Cap (R.H.)
7 8281182 Screw (2)
8 8573825 Pressure Switch,
High Water Level
(Includes "T"
Fitting−Not Shown)
9 3352457 Lights, Indicator
10 3348109 Lens, Amber (2)
11 3348110 Lens, Yellow (1)
12 8316433 Pushbutton (7)
13 8524802 Pressure Switch,
Low Water Level
14 3400073 Screw, 10−24 x 3/8
15 90767 Screw,
8−18 x 3/8 (2)
16 3949734 End Cap (L.H.)
17 689559 Nut, Push−In (2)
18 97787 Screw, End Cap
To Bracket (4)
19
W10138030
Harness, Wiring
20 8578168 Control,
Automatic Temp.
(ATC)

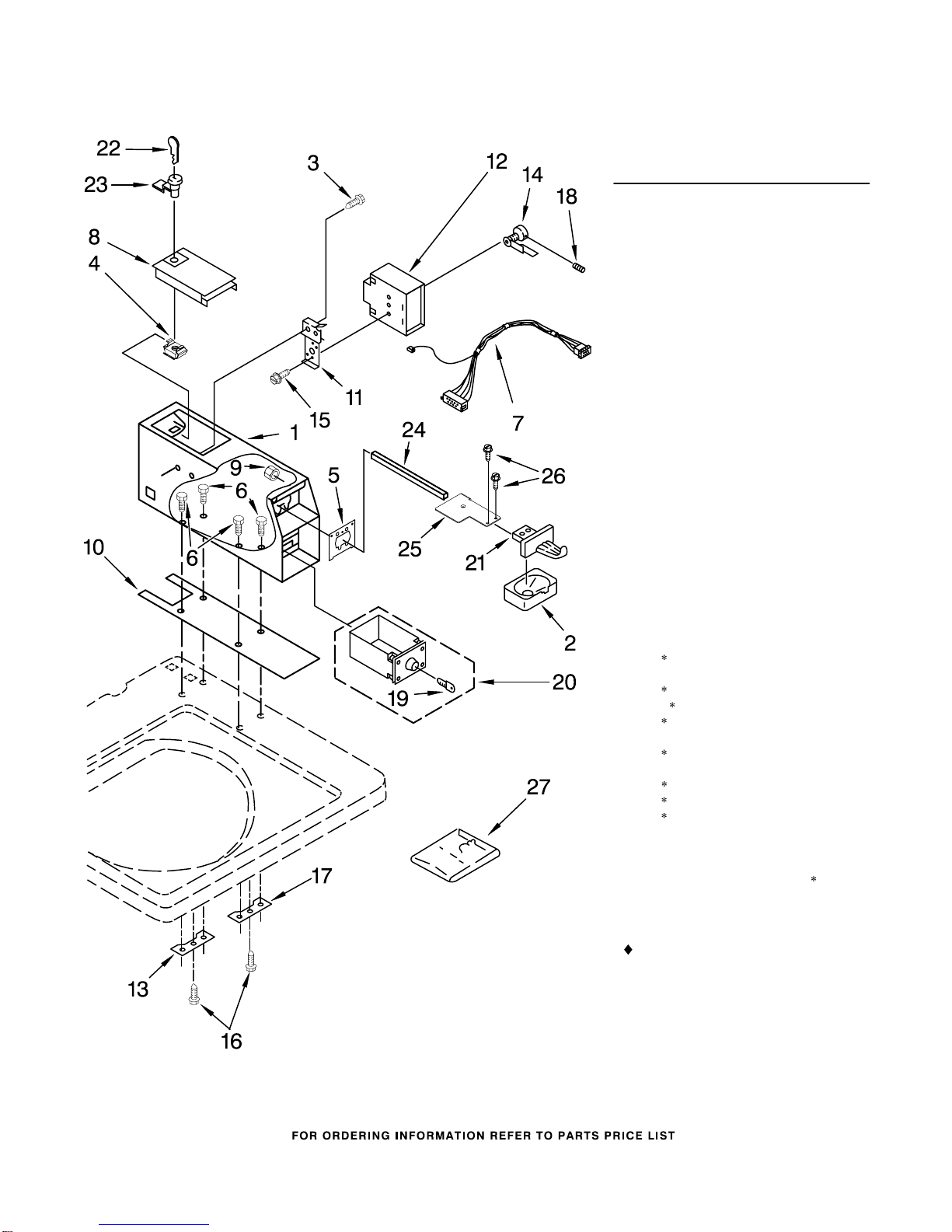

METER CASE PARTS
5
For Models: CAM2762TQ0, CAM2762TQ2
(White) (White)
W10114745
Illus. Part
No. No. DESCRIPTION
1 3406994 Meter Case
2 385421 Funnel, Coin
3 339805 Screw,
10−32 X 3/16
4 90406 Nut, Cage
5 3954761 Plate, Adapter
(Includes Item 2)
6 Bolt, Meter Case
3353994 5/16−18 x 2.5 (1)
3349065 5/16−24 x 1 (3)
7
W10138351
Harness,
Timer Wire
8 3351136 Door, Service
9 3400029 Nut, Adapter
Plate (3)
10 3954812 Cushion, Case
11 385575 Bracket, Timer
12
W10112081
Timer, 60 Hz.
13 3353813 Plate, Mounting
14 385571 Clutch, Timer
354987 E−Ring
15 3400064 Screw, Timer
16 98445 Screw, 10−16 x 3/4
17 3347825 Plate, Mounting
18 98654 Screw, Set
Following Parts Supplied
on Whirlpool Coin
Equipped Models Only.
19 Key, Money Box
20 8316525 Money Box
(Includes Item 19)
21 8316520 Coin Chute
22 358288 Key, Service Door
23 8316526 Security Lock &
Cam Assembly
24 8318517 Bolt,
Coin Chute
25 8316522 Extension
26 3400086 Screw, 10−32 x 3/8
27 8316524 Kit,
Chute Decal
Coin Mechanism Parts May Be
Ordered From Whirlpool ( )
Or Vendor Listed Below.
ESD
270 New Jersey Dr.
Fort Washington, PA
19034
1−800−523−1510
@
info esdcoin.com
REAR PANEL PARTS
6
For Models: CAM2762TQ0, CAM2762TQ2
(White) (White)
W10114745

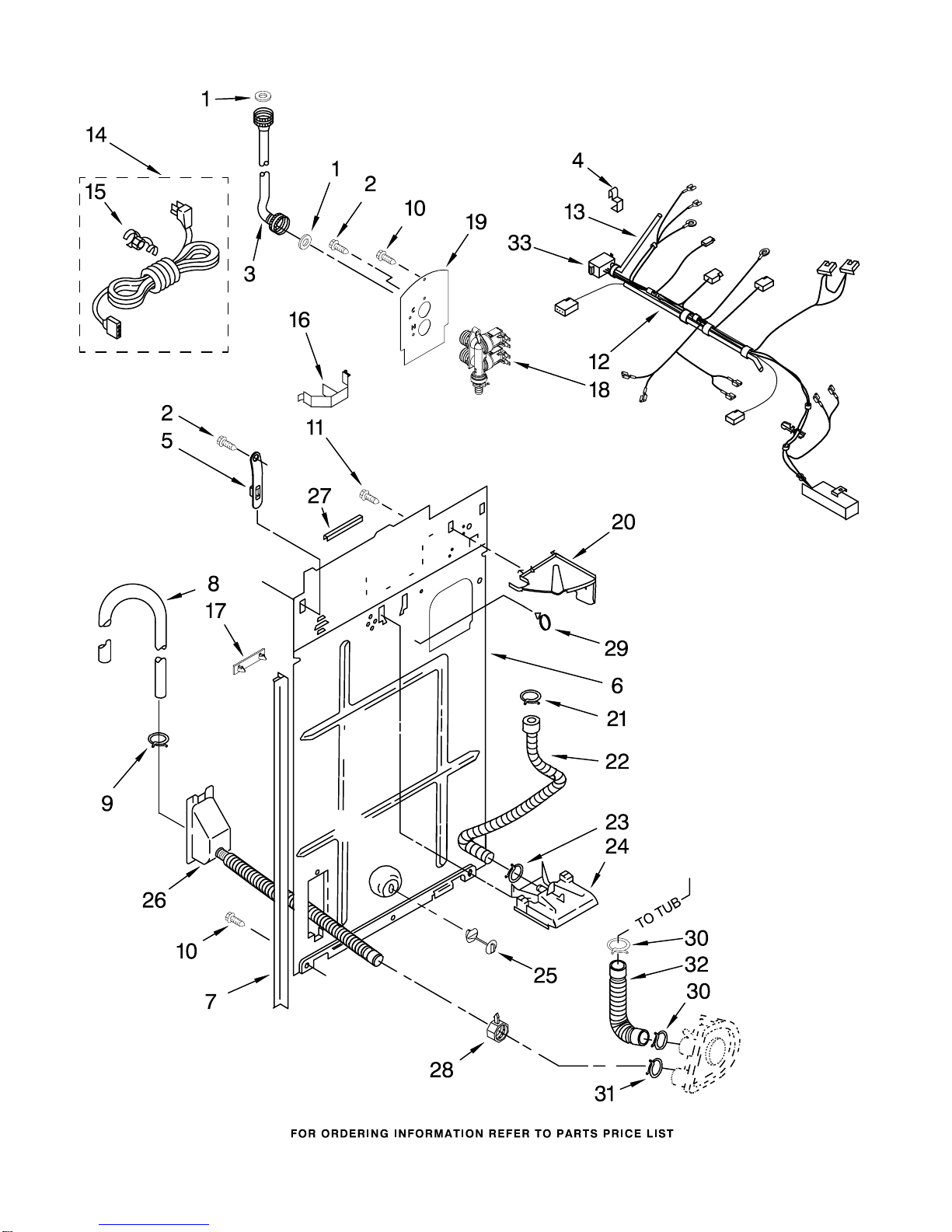

REAR PANEL PARTS
7
For Models: CAM2762TQ0, CAM2762TQ2
(White) (White)
W10114745
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3976300 Washer, Water
Inlet Hose (4)
(1−1/16 x 5/8)
2 9740848 Screw, 8−18 x 1/2
3 Hose, Water
Inlet
3949380 Blue Coupler
3949381 Red Coupler
4 8282518 Clip, Harness
5 8568314 Strap, Console (2)
6 8541649 Panel, Rear
(Includes
Items 5, 15 & 16)
7 3354204 Pad,
Rear Panel (2)
8 96743 Hose, Drain
(4’)
9 8317496 Clamp, Hose
10 62863 Screw, 10−16 x 3/8
11 3351614 Screw, 10−24 X 3/8
12 8524801 Hose, Pressure
Switch To Air Dome
13 8524791 Hose, Pressure
Switch Link
14 3976231 Cord, Power
15 3952821 Strain Relief,
Power Cord
To Rear Panel
16 8055003 Clip, Harness
& Pressure Hose
17 389379 Retainer, (2)
Side/Feature Panel
18 3979347 Valve, Water Inlet
& Thermistor Assy.
19 8541624 Plate, Mixing
Valve
20 8539874 Shield, Suds
21 301958 Clamp, Hose
22 8317974 Hose, Vacuum
Break
23 370450 Clamp, Hose
24 387606 Break, Vacuum
25 8519200 Support, Rear
Panel
26 8317940 Drain Hose
Assembly
(Includes Item 28)
27
W10096784
Edge Protector
28 3976395 Restraint, Hose
29 8559320 Restraint, Hose
30 3363366 Clamp, Hose
31 3366912 Clamp, Hose
32 3951449 Hose, Pump To Tub
(Includes Item 30)
33
W10114216
Harness, Wiring
(Includes
Items 12 & 13)
(For Detail See
Pages 12 & 13)
FOLLOWING PARTS
NOT ILLUSTRATED
3954579 Miscellaneous
Parts Bag
AGITATOR, BASKET AND TUB PARTS
8
For Models: CAM2762TQ0, CAM2762TQ2
(White) (White)
W10114745
AGITATOR, BASKET AND TUB PARTS
9
For Models: CAM2762TQ0, CAM2762TQ2
(White) (White)
W10114745
Illus. Part
No. No. DESCRIPTION
1 3352483 Cap, Agitator
2 358237 Screw & Washer
(5/16−24 X 1)
3 3949550 Washer
4 63377 Agitator
5 8528150 Tub Ring & Gasket
6 3976308 Gasket, Tub Ring
7 21366 Nut, Spanner
8 387240 Balance Ring
9 8526017 Basket & Balance
Ring
10 389140 Block, Basket
Drive
11
W10135425
Tub
12 383727 Gasket, Centerpost

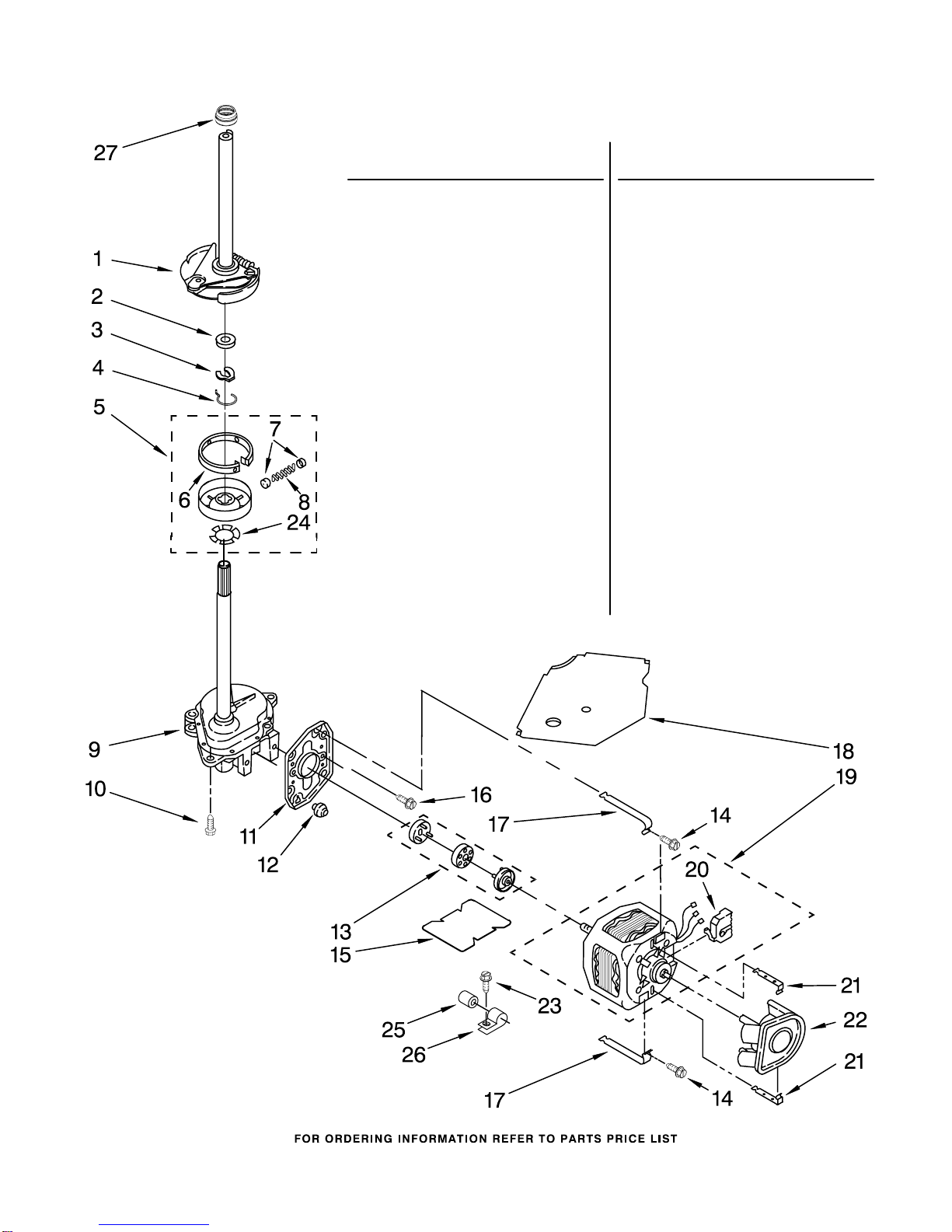

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS
10
For Models: CAM2762TQ0, CAM2762TQ2
(White) (White)
W10114745
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 388952 Brake & Drive
Tube (Complete)
(Refer to Page 14
For Further
Breakdown)
2 63292 Washer, Spin
Tube Thrust
3 62697 Ring, Spin
Tube Support
4 63283 E−Clip,
Clutch Retainer
5 8299642 Clutch (Complete)
6 3951993 Band & Lining,
Clutch (Includes
Items 7 & 8)
7 62646 Cap, Clutch
Spring (2)
8 8559387 Spring & Damper
Assembly
9 3360630 Gearcase
(Complete)
(Refer To Page
15 For Further
Breakdown)
10 3357334 Screw, Gearcase
To Base (3)
11 62611 Plate, Motor
Mount To
Gearcase
12 62691 Grommet, Motor (4)
13 3978849 Coupling, Motor
And Isolation
14 3387485 Screw (2)
#10−16 x 5/8
15 3946532 Shield, Motor
16 3400516 Bolt,
Motor Plate
17
W10086010
Retainer, Motor (2)
18 3362089 Shield, Tub
To Motor
19 661600 Motor, Main
Drive
20 62850 Switch, Main
Drive Motor
21 8546127 Retainer, Pump (2)
22 3363394 Pump (Complete)
23 62863 Screw,
10−16 x 3/8
24 3355454 Clip, Anti−
Rattle
25 8572717 Capacitor
26 3949496 Clamp, Capacitor
27 8577374 Seal, Shaft
