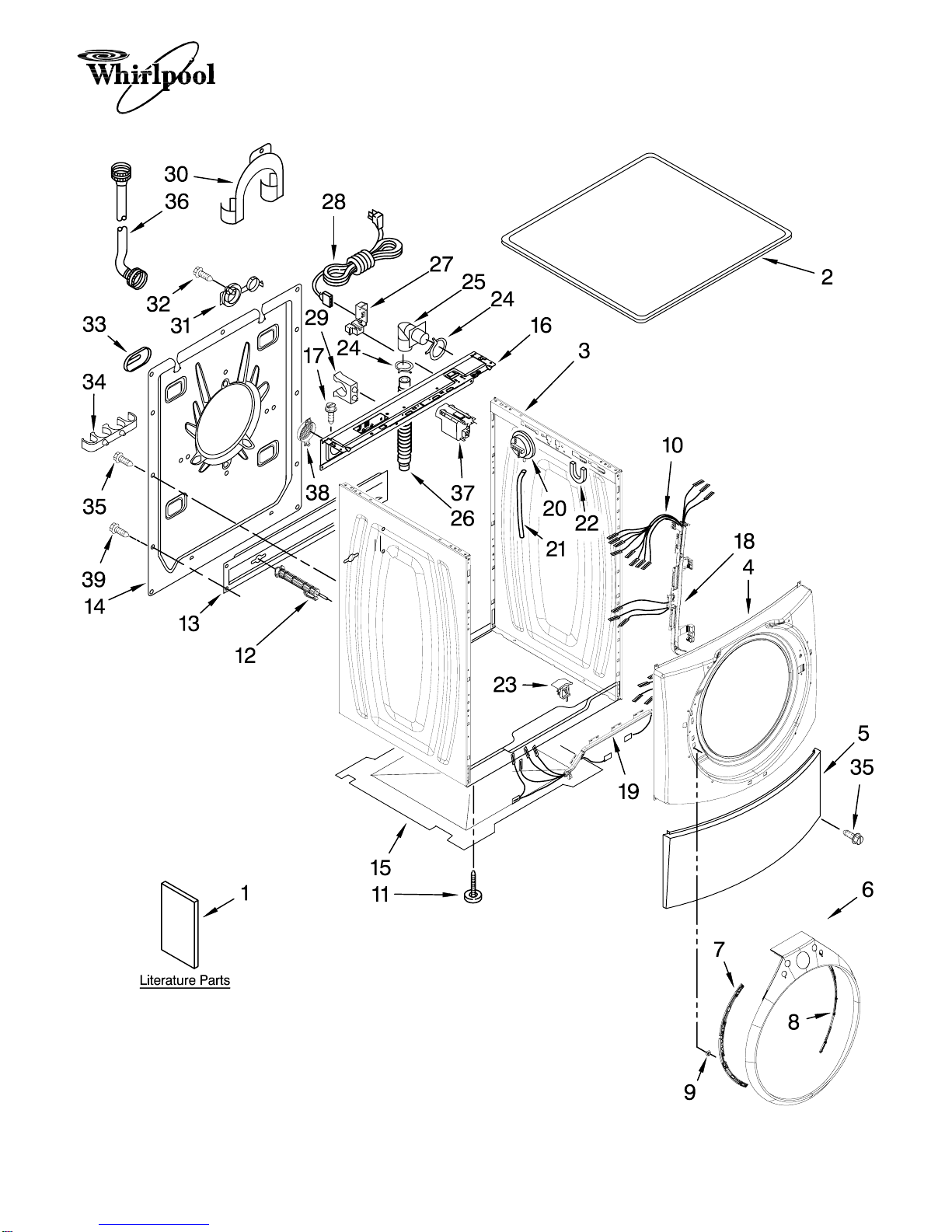

TOP AND CABINET PARTS

For Model: WFW9200SQ02

(White)

1−08 Printed in U.S.A. (drd) Part No. W10169532 Rev. A

AUTOMATIC

WASHER

TOP AND CABINET PARTS

For Model: WFW9200SQ02

(White)

W10169532

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8183011 Use & Care Guide

W10168566

Tech Sheet

8183017 Quick Start Guide

W10140715

Energy Guide

2 8181799 Top

3 8183144 Cabinet

4 8183151 Panel, Front

5 8181643 Toe Panel

6 8183222 Trim Ring,

Teardrop Assembly

7 8183208 Bracket, Trim

Fixation (Left)

8 8183209 Bracket, Trim

Fixation (Right)

9 8183210 Clip, Trim

10 8183189 Harness, Wiring

(Lower Main)

(Includes Items

18 & 19)

11 8181636 Foot, Leveling

12 Bolt, Shipping

8182797 Upper

8182798 Lower

13 8182661 Brace, Transport

14 8182698 Panel, Rear

15 8181635 Pan, Bottom

W10138248

Brace, Rear

17 8181756 Screw

W10121609

Channel, Harness

(Side)

W10121610

Channel, Harness

(Bottom)

20 8181695 Switch, Pressure

21 8181739 Hose, Pressure

Switch

22 8181763 Bracket, Spring

23 8183086 Microswitch (2)

24 8181752 Clamp, Hose

25 8181738 Connector,

Drain Hose

26 8181737 Hose, Drain

(Outer)

27 8181690 Strain Relief

28 8183009 Cord, Power

29 8182702 Clip, Outer

Hose Holder

30 8181768 Storage, Hose

31 8182699 Sleeve,

Cord Support (2)

32 8182201 Screw, 3 x 8 mm

33 8182700 Cover, Transport

34 8182701 Clip, Outer

Hose Holder

35 8181828 Screw

36 Hose, Water Inlet

8182795 Blue Coupler

8182792 Red Coupler

37 8183019 Filter,

Interference

38 8183030 Grid, Ventilation

W10157885

Screw, 4.2 x 14

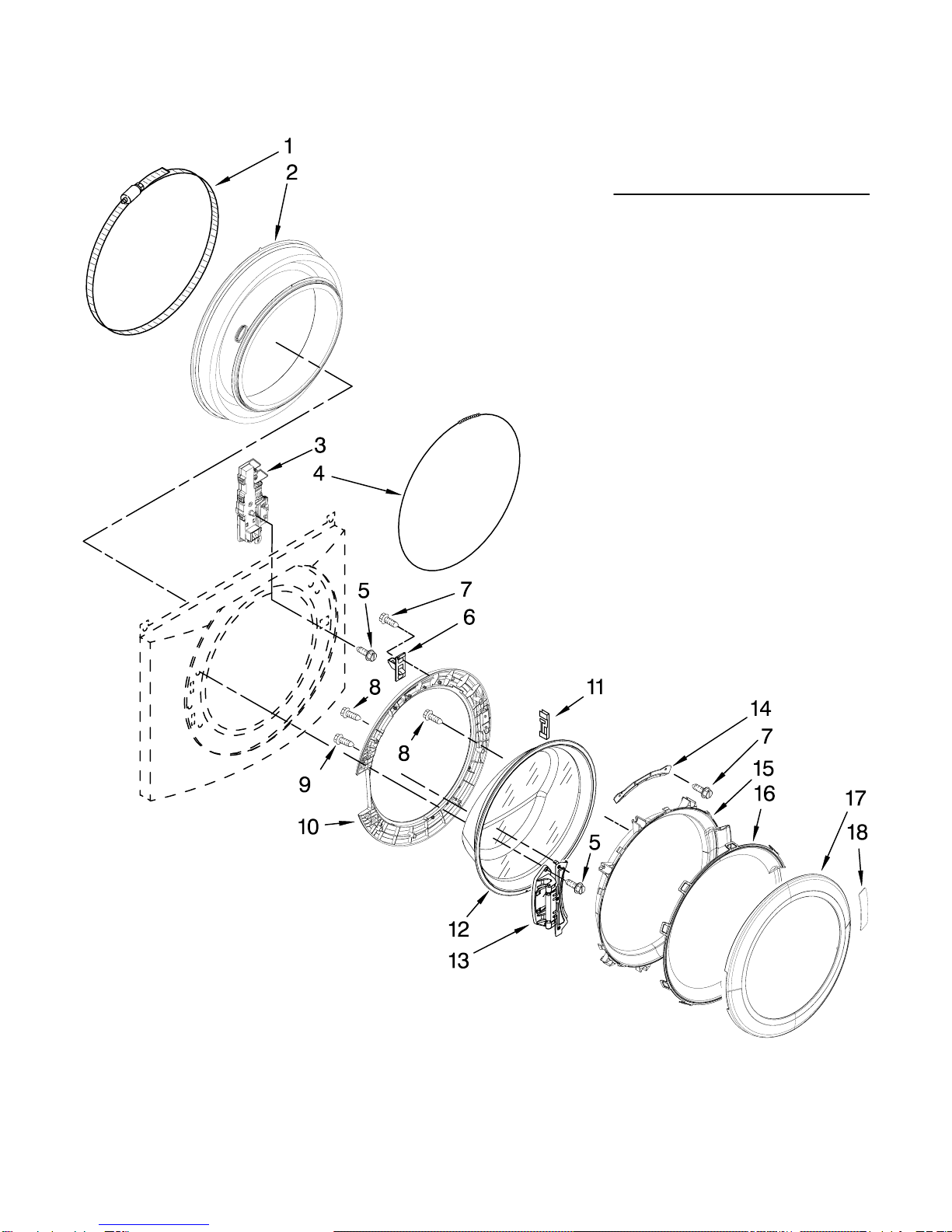

DOOR AND LATCH PARTS

For Model: WFW9200SQ02

(White)

W10169532

Illus. Part

No. No. DESCRIPTION

1 8182210 Clamp, Bellow

To Tub

2 8182119 Bellow

3 8183270 Lock, Door

4 8182211 Clamp, Bellow

To Front Panel

5 8181760 Screw

6 8183198 Hook, Door

7 8181758 Screw

8 8181661 Screw

9 8181660 Screw

10 8183195 Frame, Door

Back Support

11 8181659 Clamp, Glass

Support

12 8181655 Glass, Door

13 8183202 Hinge, Door

14 8183199 Clamp, Glass

15 8183256 Frame, Door

Front Support

16 8183255 Screen, Door

17 8183218 Trim Ring,

Outer Door

(Includes Item 18)

W10121607

Pad, Door Handle

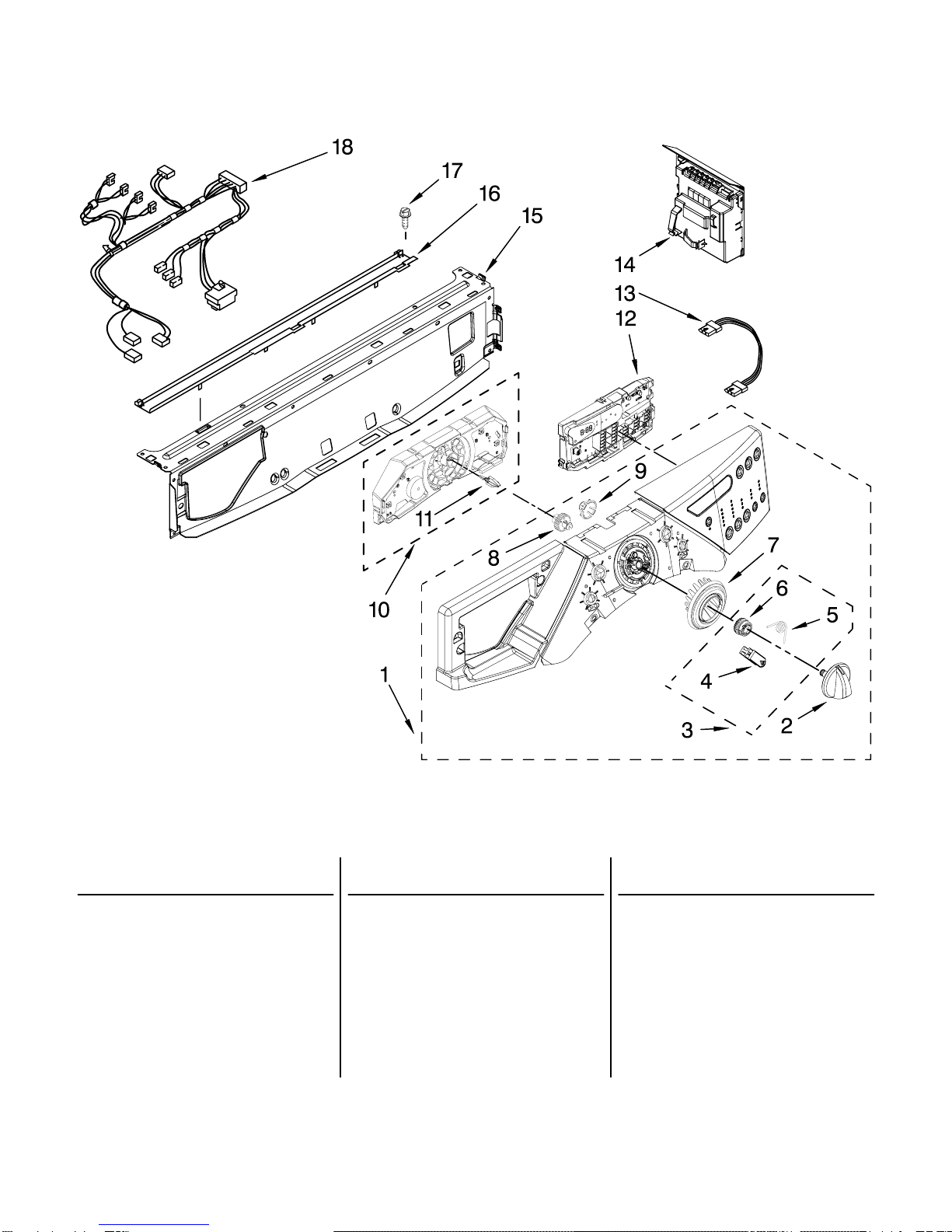

CONTROL PANEL PARTS

For Model: WFW9200SQ02

(White)

W10169532

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8183228 Panel−Control

W10131368

Knob, Control

(Includes Item 9)

W10133927

Wheel, Detent Kit

(Includes Item 9)

W10131661

Wheel, Rast (2)

(Service In

Kit Only)

W10131377

Spring, Knob (2)

(Service In

Kit Only)

W10131378

Wheel, Detent

(Service In

Kit Only)

W10131376

Ring, Knob Light

(Includes Item 9)

W10131381

Wheel, Encoder

W10131382

Retainer, Snap

W10168596

User Interface,

Center

11 8183250 Adapter,

Encoder Wheel

W10168597

User Interface,

Right

W10168511

Harness, Wiring

(User Interface)

W10169230

Microcomputer,

Machine Control

15 8183203 Brace, Front Top

16 8183204 Channel, Water

17 8181756 Screw

W10168479

Harness, Wiring

(Upper Main)

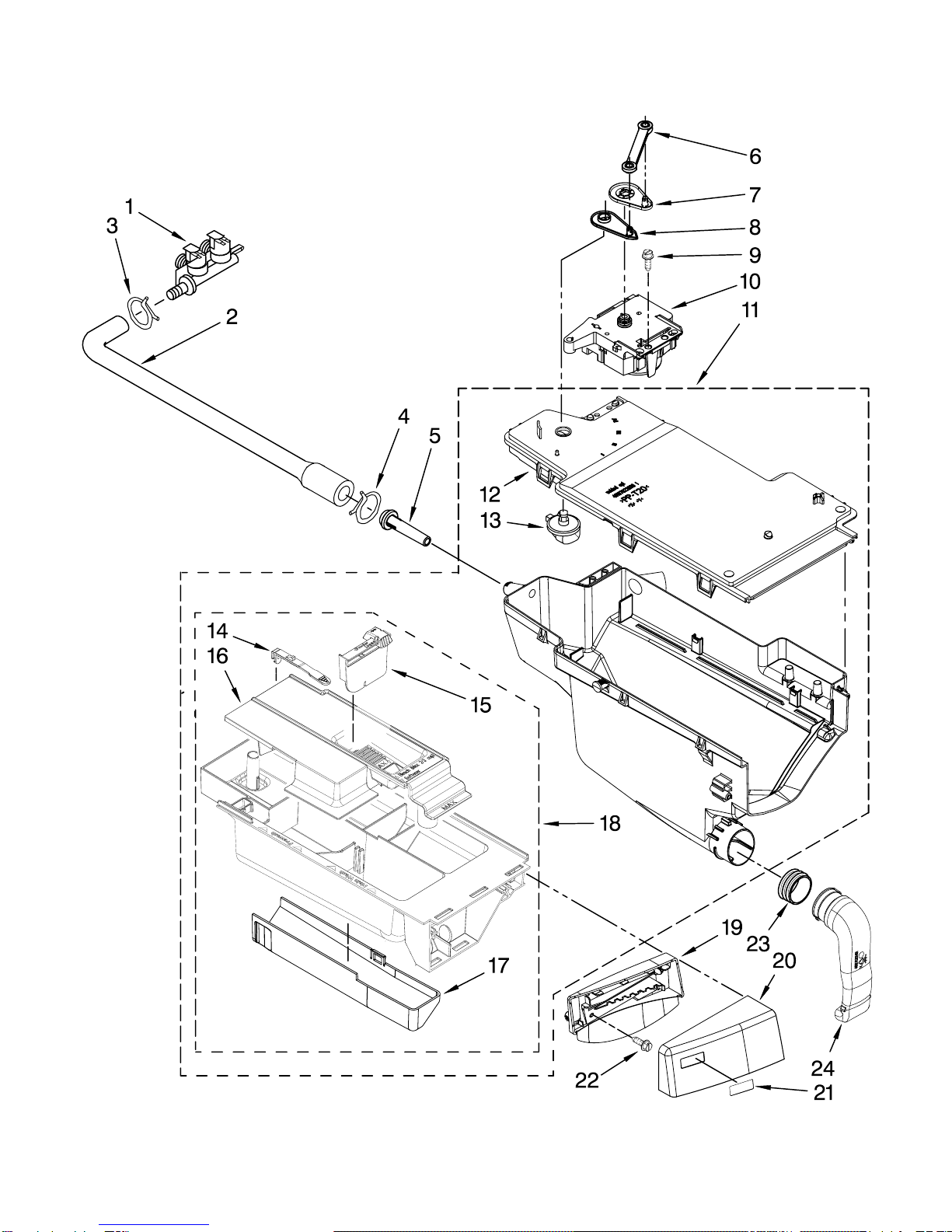

DISPENSER PARTS

For Model: WFW9200SQ02

(White)

W10169532

DISPENSER PARTS

For Model: WFW9200SQ02

(White)

W10169532

Illus. Part

No. No. DESCRIPTION

1 8182862 Valve, Inlet

W10168480

Hose, Inlet Valve

To Dispenser

3 8181754 Clamp, Hose

4 8181751 Clamp, Hose

5 8183181 Nozzle, Inlet

6 8183183 Lever, Water

Distribution

7 8183184 Cam, Actuator

8 8183185 Lever, Connection

9 8181661 Screw, Actuator

10 8183186 Actuator

W10157886

Dispenser,

Complete

(Includes Item 8)

W10164400

Plate,

Distribution

13 8181712 Nozzle,

Distribution

14 8181721 Hook, Drawer

W10121596

Separator, With

Selection Slider

W10121598

Syphon,

Bleach/Softener

17 8183179 Cover,

Detergent Drawer

18 8183173 Drawer, Detergent

(Complete)

W10156617

Bracket, Handle

Fixation

20 8183234 Handle, Drawer

(Includes Items

19 & 21)

21 8183253 Medallion

22 8182214 Screw

23 8181747 Seal

24 8181718 Tube, Dispenser

To Bellow

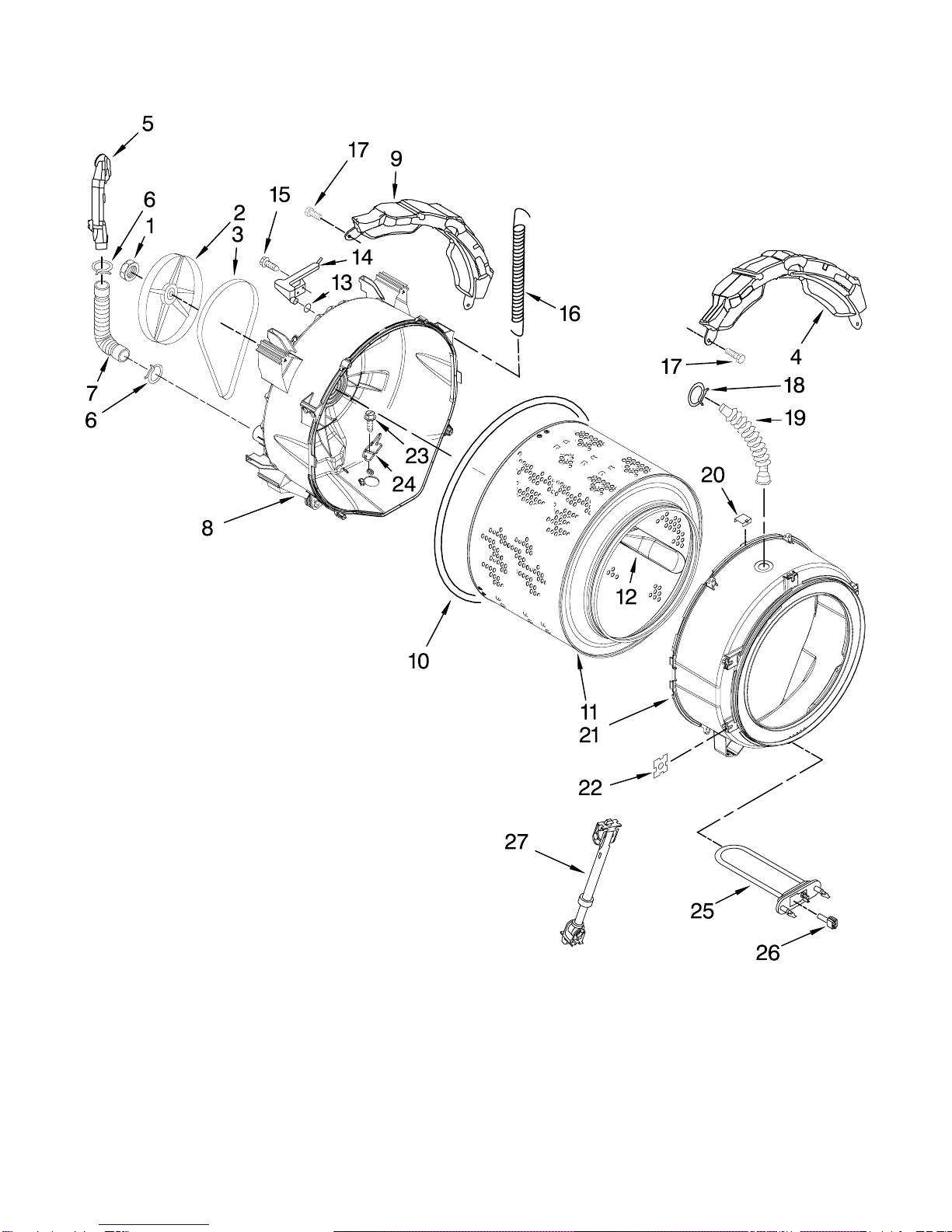

TUB AND BASKET PARTS

For Model: WFW9200SQ02

(White)

W10169532

TUB AND BASKET PARTS

For Model: WFW9200SQ02

(White)

W10169532

Illus. Part

No. No. DESCRIPTION

1 8182132 Nut, Pulley

2 8182650 Pulley

3 8183269 Belt

4 8181645 Counterweight,

Front (2)

5 8181744 Pipe, Ventilation

6 8181746 Clamp

7 8181743 Hose, Exhaust

8 8182284 Tub, Rear

(Includes Items

10, 22, 23 & 24)

9 8181913 Counterweight,

Rear

10 8181673 Gasket, Tub

11 8182232 Basket

12 8182233 Baffle, Tub

13 8181748 O−Ring

14 8181731 Airtrap

15 8181785 Screw

16 8182814 Spring,

Suspension

17 8181647 Bolt

18 8181742 Clamp, Hose

19 8183187 Hose, Exhaust

20 8181667 Clamp, Tub

21 8182312 Tub, Front

(Includes Items

10 & 22)

22 8182512 Nut, Push−In

23 8182214 Screw

24 8181686 Clamp,

Heating Element

25 8182666 Element, Heating

26 8181705 NTC

27 8182812 Shock Absorber

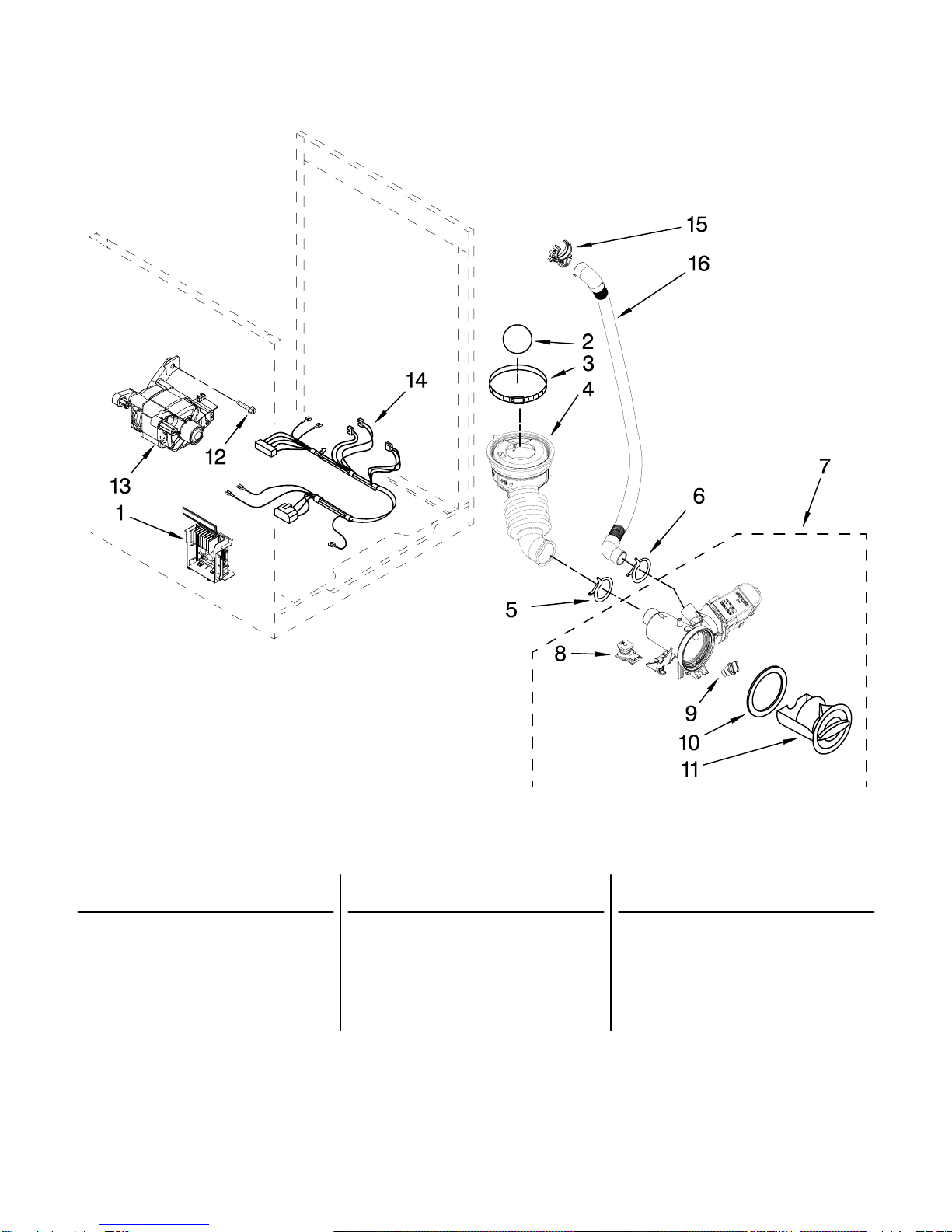

PUMP AND MOTOR PARTS

For Model: WFW9200SQ02

(White)

W10169532

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8183196 Motor Control Unit

W10121657

Ball

3 8181734 Clamp

4 8181732 Hose,

Tub to Pump

5 8181753 Clamp

6 8181752 Clamp

7 8182821 Pump (Complete)

8 8182820 Grommet, Damper

(Rear)

9 8182816 Grommet, Damper

(Front)

10 8181736 Seal, Filter Cap

11 8183027 Cap, Filter

W10128585

Bolt, Motor

13 8182793 Motor

14 8183188 Harness, Motor

15 8182209 Retainer,

Drain Hose

16 8181740 Drain Hose

(Inner)

OPTIONAL PARTS (NOT INCLUDED)

For Model: WFW9200SQ02

(White)

W10169532

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350938 Primer, Gray

350930 White

PAINT, BULK (1 qt.)

799344 White (Uncut)

ACCESSORY PARTS

285863 Drain Extension

4396899 Rear Guard

38005 Stack Kit
