TOP AND CABINET PARTS

For Model: ETW4300SQ1

(White)

9−06 Litho in U.S.A. (drd) Part No. W10114237

AUTOMATIC

WASHER

TOP AND CABINET PARTS

For Model: ETW4300SQ1

(White)

W10114237

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10112488

Installation

Instructions

3957878 Feature Sheet

3955886 Use & Care Guide

W10023560

Energy Guide

8578912 Wiring Diagram

2 8318064 Top

3 62750 Spacer, Cabinet To

Top (4)

4 357213 Nut, Push−In (2)

5 63424 Cabinet

6 62780 Clip, Top & Cabinet

& Rear Panel (2)

7 3357011 Screw, 10−16 x 1/2

8 3351614 Screw, Ground

9 3362952 Dispenser, Bleach

11 8318084 Switch, Lid

13 3351355 Screw, Lid Hinge

Mounting (4)

15 8318088 Hinge, Lid (L.H.)

16 54583 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid

Hinge (2)

19 8580061 Lid

22 9724509 Bumper, Lid (2)

23 3390631 Screw

10−16 X 3/8 (4)

CONTROLS AND REAR PANEL PARTS

For Model: ETW4300SQ1

(White)

W10114237

CONTROLS AND REAR PANEL PARTS

For Model: ETW4300SQ1

(White)

W10114237

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3958082 Harness, Wiring

(For Detail See

Pages 9 & 10)

2 9740848 Screw, 8−18 x 1/2

3 388326 Screw, 8−18 x 1.25

(Panel To Top)

4 8577378 U−Bend,

Drain Hose

5 8568314 Strap, Console (2)

6 8318015 Panel, Rear

7 62747 Pad, Rear Panel

8 8559373 Drain Hose

Assembly (Includes

Items 19 & 27)

9 8572976 Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

10 3351614 Screw, Ground

11 90767 Screw, 8−18 x 3/8

12 8577844 Switch, Water Level

13 3948608 Bracket, Control

14 8578842 Cord, Power

(Includes Item 15)

15 3952821 Strain Relief,

Power Cord

16 8274437 Cap, End (L.H.)

17 8318046 Clip, Capacitor

18 8578340 Valve, Water Inlet

W/Bi−Metal

19 8541668 Clamp, Hose

20 62863 Screw, 10−16 x 3/8

21 301958 Clamp, Hose

22 8317974 Hose, Vacuum

Break

23 370450 Clamp, Hose

24 387606 Break, Vacuum

25 303294 Edge Protector

26 8519200 Support, Rear

Panel

27 8541667 Clamp, Hose

28 8055003 Clip, Harness

& Pressure Hose

29 8572717 Capacitor,

Motor Start

30 3363366 Clamp, Hose

31 8317496 Clamp, Hose

32 3951449 Hose, Pump To Tub

(Includes Item 30)

33 3400073 Screw, Ground

34 8274434 Cap, End (R.H.)

35 8578337 Switch, Water

Temperature

36 3400818 Screw, Timer

Mounting

37 8541669 Bucket, Drain Hose

(Left Half)

38 8541658 Bucket, Drain Hose

(Right Half)

39 3956998 Panel, Console

40 8538949 Knob, Timer

41 8538955 Dial, Timer

42 8538957 Knob, Control

43 8536939 Clip, Knob

44 3347868 Cable Tie

45 8539874 Shield, Suds

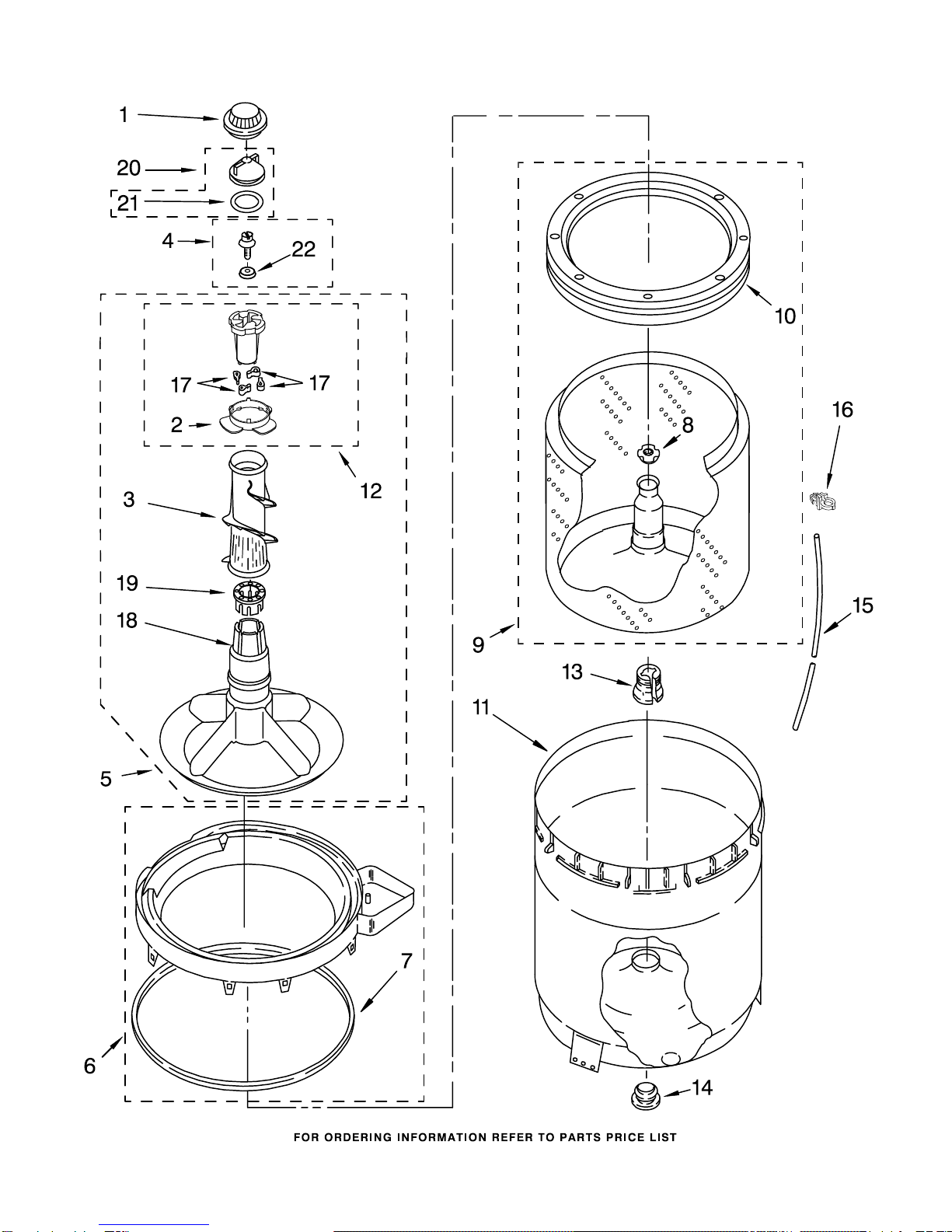

AGITATOR, BASKET AND TUB PARTS

For Model: ETW4300SQ1

(White)

W10114237

AGITATOR, BASKET AND TUB PARTS

For Model: ETW4300SQ1

(White)

W10114237

Illus. Part

No. No. DESCRIPTION

1 3355758 Cap, Agitator

2 3363661 Bearing−Driven Cam

3 3348752 Clothes Mover

4 358237 Screw & Washer

5 3348117 Agitator(Complete)

6 8528150 Tub Ring

7 3976308 Gasket, Tub Ring

8 21366 Nut, Spanner

9 8526017 Basket & Balance

Ring

10 8519788 Balance Ring

11 63849 Tub

12 3363663 Cam Driven

13 389140 Block, Drive

14 383727 Gasket, Centerpost

15 3347780 Hose, Pressure

Switch

16 2219077 Clip, Pressure

Switch Hose

17 3366877 Dog,Agitator Cltch

18 3347288 Agitator

19 3350389 Spacer, Thrust

20 3354733 Cap, Barrier

21 3348855 Seal, Inner Cap

22 3949550 Washer

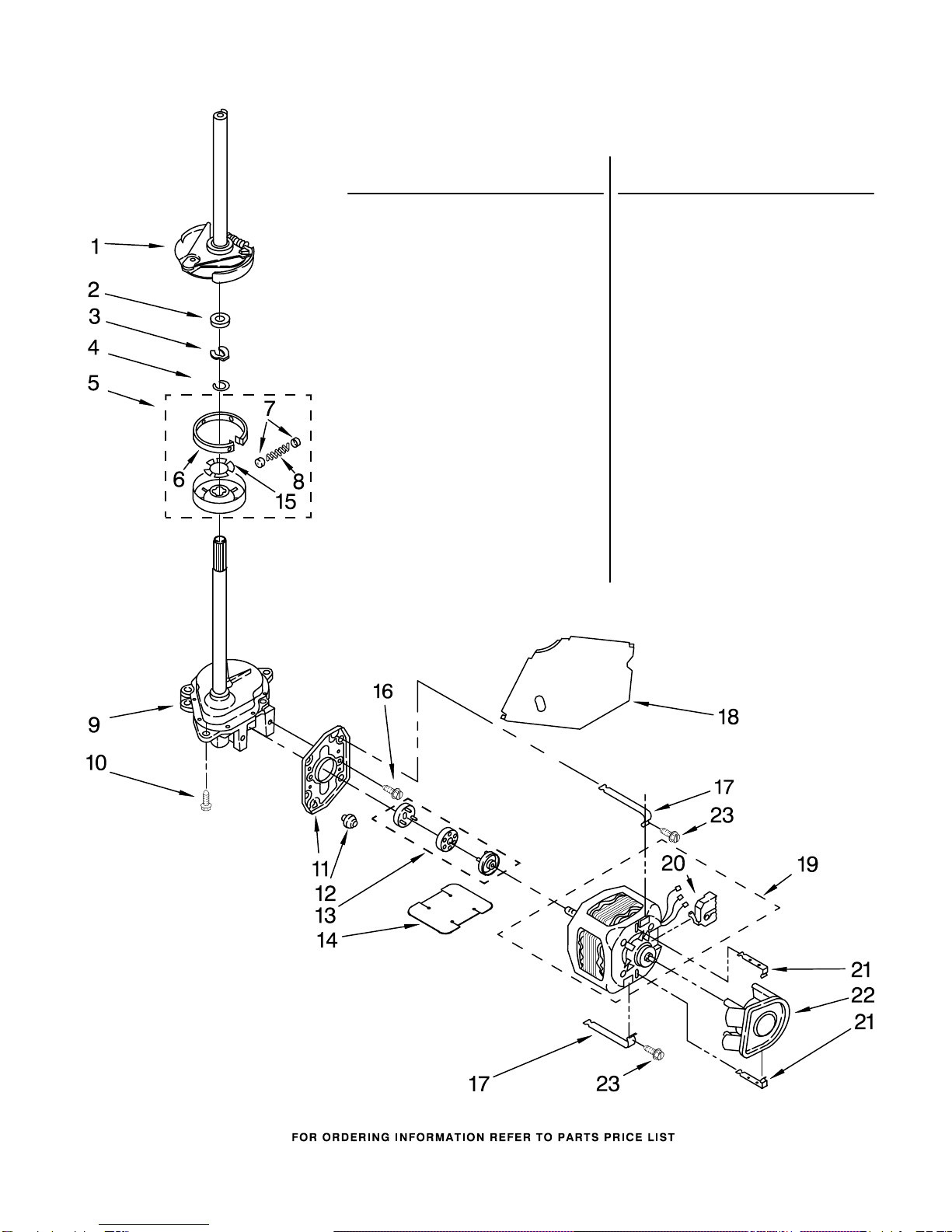

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Model: ETW4300SQ1

(White)

W10114237

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 388952 Brake & Drive

Tube (Complete)

(Refer to Page 11

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3951311 Clutch (Complete)

6 3951308 Band & Lining,

Clutch (Includes

Items 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3946792 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page

12 For Further

Breakdown)

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 8559748 Coupling, Motor

And Isolation

14 3946532 Shield, Motor

15 3355454 Clip,

Anti−Rattle

16 3400516 Screw

17 3349637 Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 8528158 Motor, Main

Drive (Spring

P/N 388492 Must

Be Ordered When

Replacing Motor

20 3952056 Switch, Main

Drive Motor

21 8546127 Retainer, Pump (2)

22 3363394 Pump (Complete)

23 3387485 Screw,

10−16 x 5/8

MACHINE BASE PARTS

For Model: ETW4300SQ1

(White)

W10114237

Illus. Part

No. No. DESCRIPTION

1 3400076 Screw, Bracket

Mounting

(10−32 x 5/8)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring, Suspension (3)

4 8575214 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 63466 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

10 8546455 Bearing,

Centerpost (2)

11 357409 Seal, Centerpost (3)

12 8534035 Spring,

Counterweight

(Must Be Ordered

When Replacing

Drive Motor)

13 62568 Pad, Plate

14 3946509 Plate, Suspension

(Includes Item 13)

15 3363660 Pad, Base

16 3946512 Base Assembly

(Includes Items 6,

7, 8, 9, 13, 14

15 & 22)

17 3359452 Nut, Lock (2)

(3/8−16)

W10001130

Foot, Front (2)

19 8577376 Seal, Centerpost

20 285203 Centerpost

Bearing Kit

(Includes Items

10, 11 & 19)

21 63134 Ring, Sound

Deadening

22 63806 Retainer,

Suspension Spring

WIRING HARNESS PARTS

For Model: ETW4300SQ1

(White)

W10114237

WIRING HARNESS PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3349557 Retainer, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

(Push−In)

5 90016 Clip, Harness

(Half−Harness)

6 3390496 Clip, Harness

7 389379 Retainer, Harness

8 Timer, Block

Disconnect

3948614 Natural

352089 Black

9 62889 Receptacle,

Terminal

(3−Way)

10 353424 Plug, Terminal

(3−Way)

11 62505 Block, Disconnect

(Motor 2 Speed)

12 3347243 Block, Disconnect

13 63523 Protector

14 717252 Connector

(2−Way)

15 3352944 Clip, Harness

16 3390423 Block, Disconnect

(12−Way)

17 3347730 Receptacle

(6−Way)

18 3948617 Connector (T.P.A.)

(3−Circuit)

19 3360056 Plug (T.P.A)

(3−Circuit)

(Pressure Switch)

20 Block, Connector

3354925 Natural

3354926 Red

FOR COMPLETE WIRING HARNESS REFER TO

CONTROL AND REAR PANEL PARTS PAGE

For Model: ETW4300SQ1

(White)

W10114237
