Whirlpool GHW9100LQ2 Manuale utente

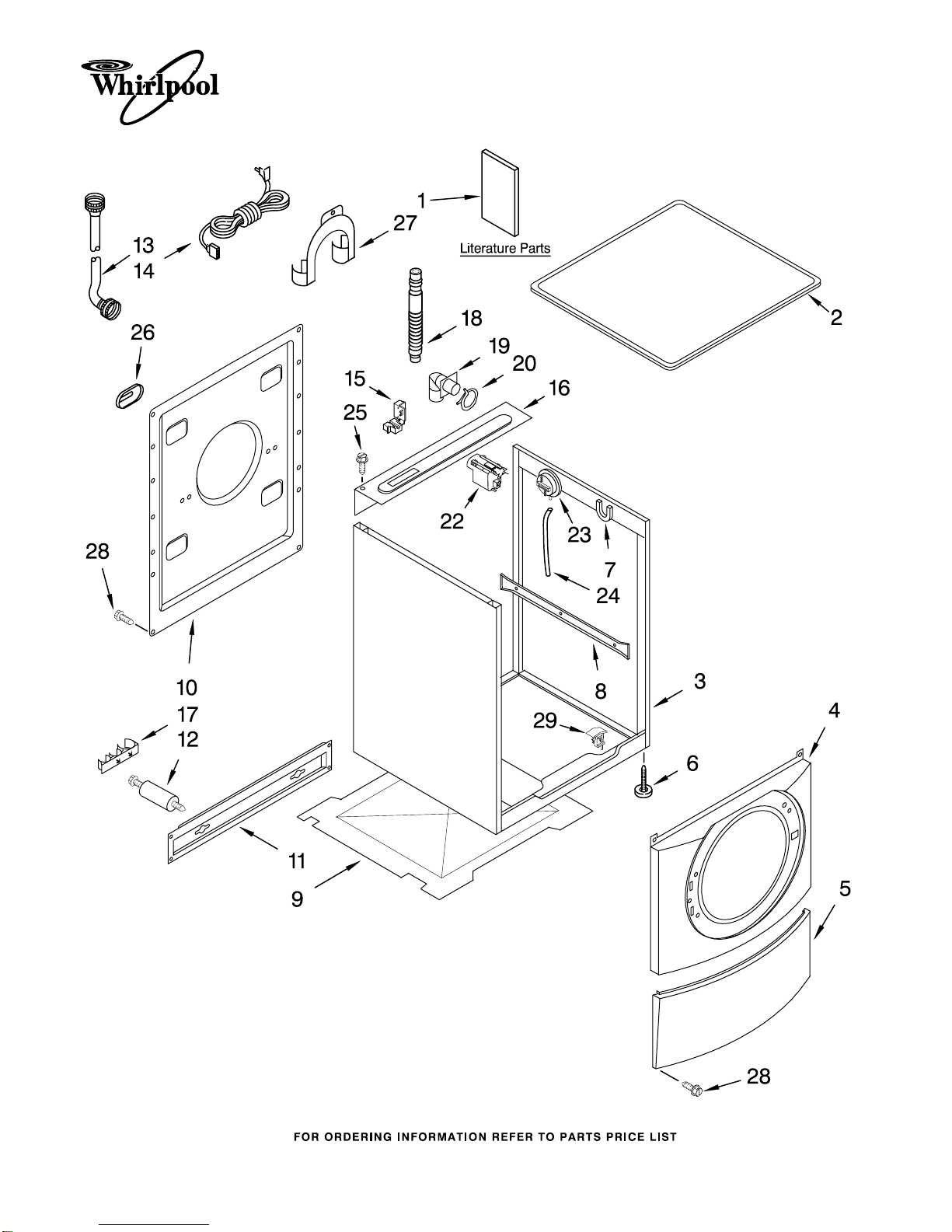

TOP AND CABINET PARTS

1−04 Printed In U.S.A. (awm) Part No. 8180206

AUTOMATIC

WASHER

For Models: GHW9100LW2, GHW9100LQ2

(White/Platinum) (White/Blue)

TOP AND CABINET PARTS

28180206

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT8182199

Use & Care Guide

LIT8181790

Tech Sheet

LIT8182197

Energy Guide

LIT8182196

Quick Start Guide

LIT8182198

Dispenser Guide

LIT8182193

DVD−Instruction

2 8181799 Top

3 8181630 Cabinet

4 8181838 Panel, Front

5 8181643 Toe Panel

6 8181636 Foot, Leveling

7 8181763 Bracket, Spring

8 8181634 Brace, Side Panel

9 8181635 Pan, Bottom

10 8182118 Panel, Rear

11 8182117 Brace, Transport

12 Bolt, Shipping

8182124 Upper

8182125 Lower

13 Hose, Water Inlet

8181706 Blue Coupler

8181707 Red Coupler

14 8182120 Cord, Power

15 8181690 Strain Relief

16 8182116 Brace, Rear

17 8181749 Clamp, Tube

Transportation

18 8181737 Outer Drain Hose

19 8181738 Connector,

Hose Outlet

20 8181752 Clamp, Hose

22 8181683 Filter,

Interference

23 8181695 Switch, Pressure

24 8181739 Hose, Pressure

Switch

25 8181691 Screw

26 8181767 Cover, Transport

27 8181768 Storage, Hose

28 8181828 Screw

29 8181930 Microswitch (2)

Following Parts Not Illustrated

8182109 Harness Channel

For Models: GHW9100LW2, GHW9100LQ2

(White/Platinum) (White/Blue)

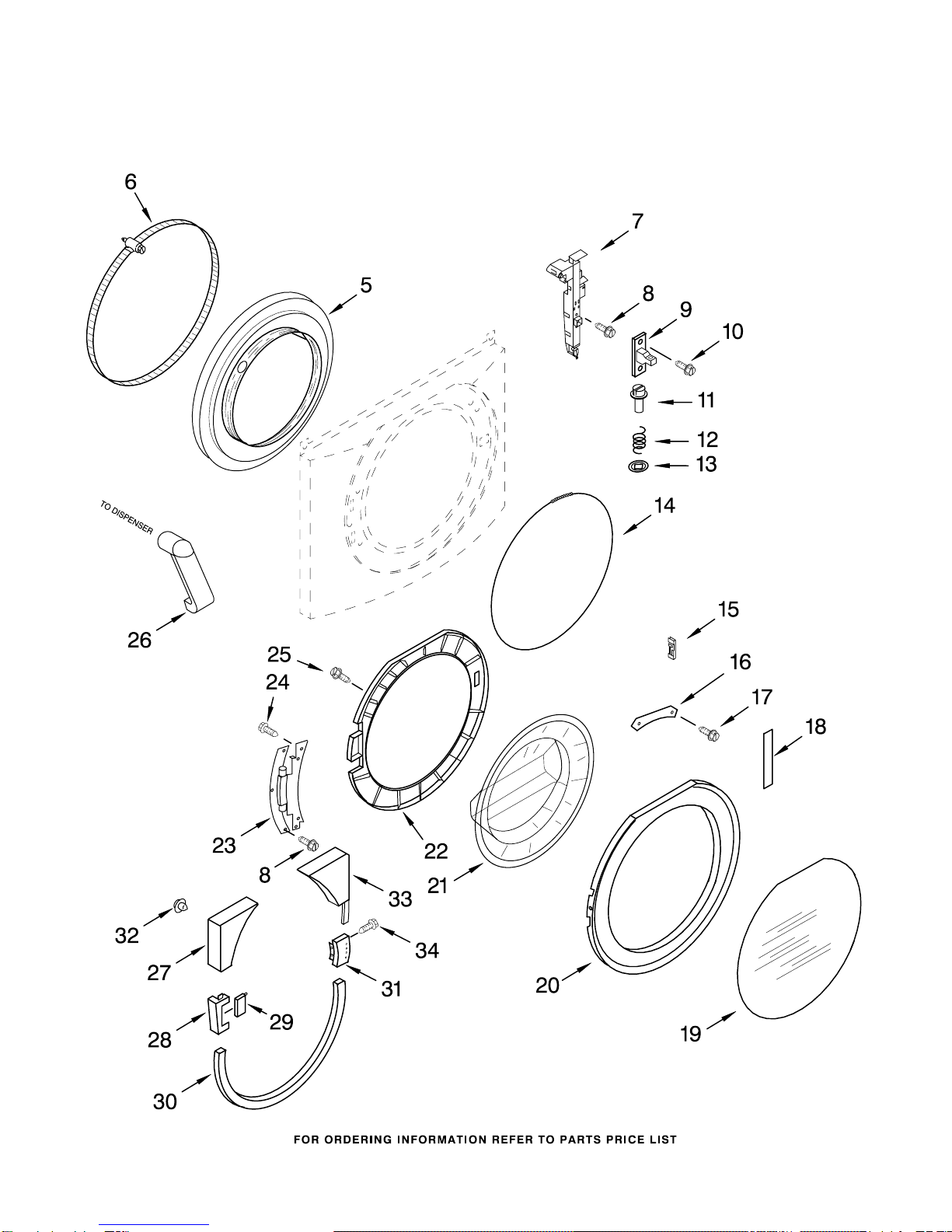

DOOR AND LATCH PARTS

8180206

For Models: GHW9100LW2, GHW9100LQ2

(White/Platinum) (White/Blue)

DOOR AND LATCH PARTS

48180206

Illus. Part

No. No. DESCRIPTION

5 8182119 Bellow

6 8181663 Clamp, Bellow

7 8181700 Lock, Door

8 8181760 Screw

9 8181651 Hook, Door

10 8181758 Screw

11 8181652 Pin, Safety

12 8181653 Spring

13 8181654 Washer

14 8181664 Clamp,

Bellow Front

15 8181659 Clamp, Support

16 8181650 Clamp, Glass

17 8181785 Screw

18 8181845 Foam, Door Handle

19 8181847 Screen, Door

20 Door Frame

8181848 Platinum

8181878 Blue

21 8181655 Glass, Door

22 8181849 Door,

Back Support

23 8181843 Hinge, Door

24 8181660 Screw

25 8181661 Screw

26 8181718 Tube, Dispenser

to Bellow

27 Trim, Upper Left

8181842 Platinum

8181875 Blue

28 Cover, Hinge

(Outer)

8181841 Platinum

8181874 Blue

29 Cover, Hinge

(Inner)

8181844 Platinum

8181876 Blue

30 Trim, Lower

8181840 Platinum

8181873 Blue

31 Handle, Door

8181846 Platinum

8181877 Blue

32 8181929 Clip, Trim

33 Trim, Upper Right

8181839 Platinum

8181872 Blue

34 8181759 Screw

For Models: GHW9100LW2, GHW9100LQ2

(White/Platinum) (White/Blue)

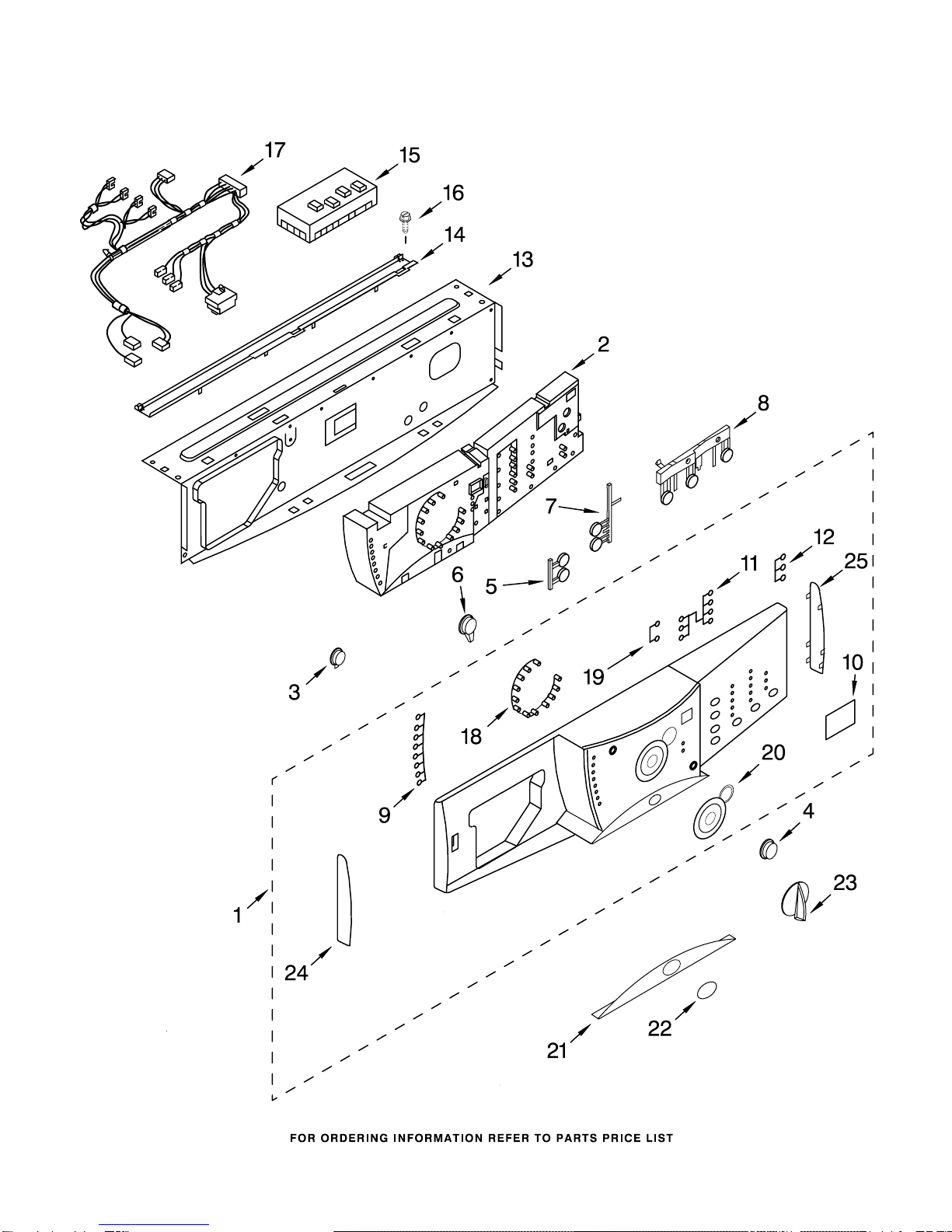

CONTROL PANEL PARTS

8180206

For Models: GHW9100LW2, GHW9100LQ2

(White/Platinum) (White/Blue)

CONTROL PANEL PARTS

68180206

Illus. Part

No. No. DESCRIPTION

1 Panel, Control

8181885 Platinum

8181886 Blue

2 8181905 User Interface

3 8181860 Button, Power

4 8181861 Button, Start

5 Button Set,

Soil Level

8181863 Platinum

8181882 Blue

6 8181862 Button,

Pause/Cancel

7 Button Set,

Options

8181889 Platinum

8181892 Blue

8 Button Set,

Spin/Temperature

8181865 Platinum

8181884 Blue

9 8181868 Light, Indicator

(Status)

10 8181856 Window, Display

11 8181908 Light, Indicator

(7 Lights)

12 8181871 Light, Indicator

(3 Lights)

13 8181639 Brace, Front Top

14 8181640 Channel, Water

15 8181923 Microcomputer,

Machine Control

16 8181756 Screw

17 8181783 Harness, Wire

18 8181906 Light, Indicator

(Program)

19 8181907 Light, Indicator

(2 Lights)

20 8181855 Bezel, Knob

21 8181857 Overlay, Door

22 8181858 Medallion

23 Knob, Control

8181859 Platinum

8181881 Blue

24 8181852 Endcap, Left

25 8181853 Endcap, Right

For Models: GHW9100LW2, GHW9100LQ2

(White/Platinum) (White/Blue)

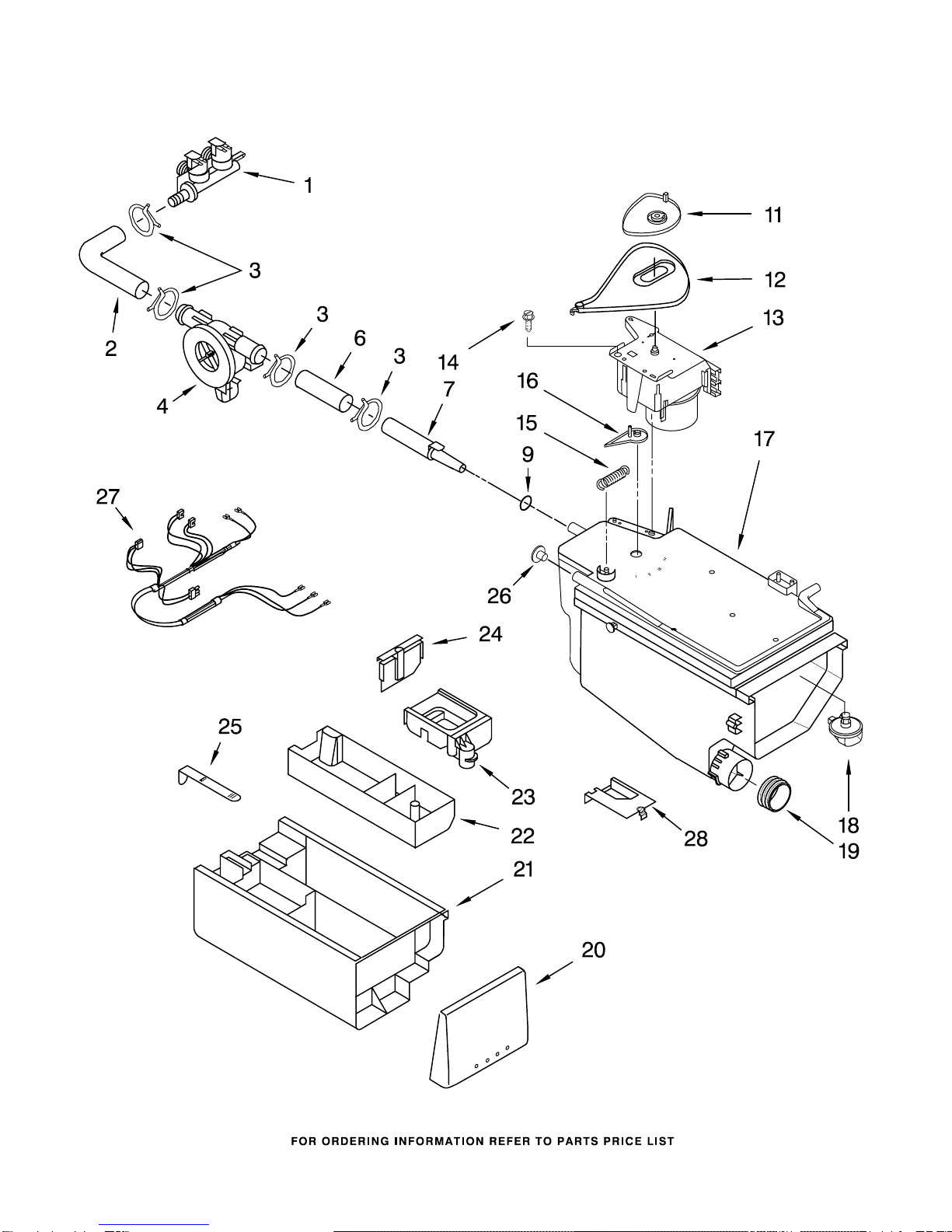

DISPENSER PARTS

8180206

For Models: GHW9100LW2, GHW9100LQ2

(White/Platinum) (White/Blue)

DISPENSER PARTS

88180206

Illus. Part

No. No. DESCRIPTION

1 8181694 Valve, Inlet

2 8181710 Hose, Flowmeter

(L−Shaped)

3 8181751 Clamp

4 8181696 Flowmeter

6 8181708 Hose, Flowmeter

7 8181713 Nozzle, Inlet

9 8181714 O−Ring

11 8181726 Cam, Actuator

12 8181725 Lever, Water

Distribution

13 8181723 Actuator

14 8181759 Screw,

Self−Cutting

15 8181727 Spring, Lever

16 8181724 Connection, Lever

17 8182122 Dispenser

18 8181712 Nozzle,

Distribution

19 8181747 Seal

20 Handle, Drawer

8181887 Platinum

8181888 Blue

21 8181720 Drawer,

Detergent

22 8181722 Container,

Detergent

23 8181729 Siphon,

Bleach/Softener

24 8182131 Separator

25 8181721 Hook, Drawer

26 8182123 Cap

27 8181781 Harness, Wiring

(Inlet Valve)

28 8181898 Cover, Pre−Wash

For Models: GHW9100LW2, GHW9100LQ2

(White/Platinum) (White/Blue)

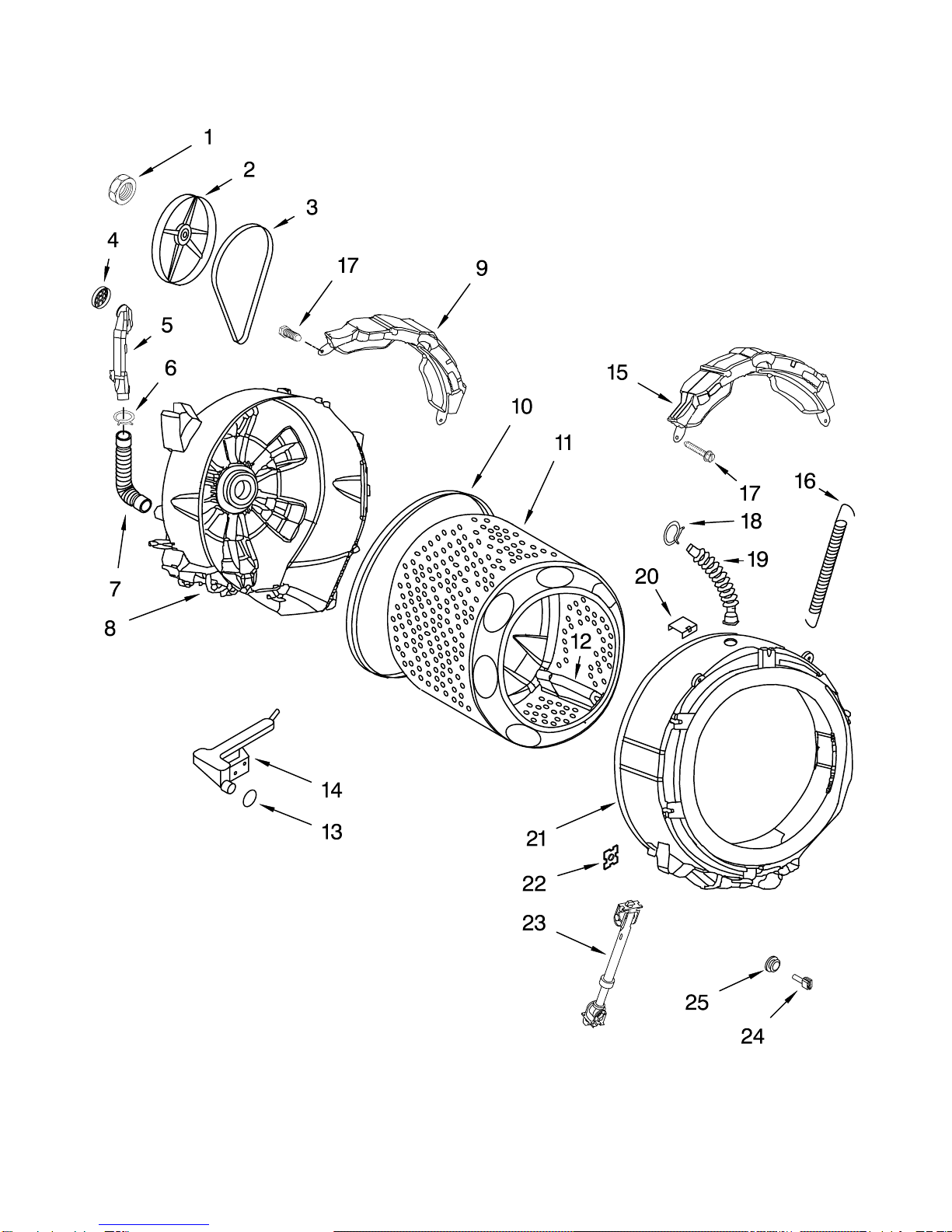

TUB AND BASKET PARTS

8180206

For Models: GHW9100LW2, GHW9100LQ2

(White/Platinum) (White/Blue)

TUB AND BASKET PARTS

10 8180206

Illus. Part

No. No. DESCRIPTION

1 8182132 Nut, Pulley

2 8181671 Pulley

3 8181670 Belt

4 8181745 Grid, Ventilation

5 8181744 Pipe, Ventilation

6 8181746 Clamp

7 8181743 Hose, Exhaust

8 8181912 Tub, Rear

9 8181913 Counterweight,

Rear

10 8181673 Gasket, Tub

11 8181914 Basket

12 8181669 Baffle, Tub

13 8181748 O−Ring

14 8181731 Airtrap

15 8181645 Counterweight,

Front

16 8181762 Spring,

Suspension

17 8181647 Bolt

18 8181742 Clamp

19 8181794 Hose, Tub to

Dispenser

20 8181667 Clamp

21 8181825 Tub, Front

22 8181648 Nut, Push−In

23 8181646 Shock Absorber

24 8181705 NTC

25 8181829 Seal, Rubber

Following Parts Not Illustrated

8182126 Screw, Baffle

For Models: GHW9100LW2, GHW9100LQ2

(White/Platinum) (White/Blue)
