Parts andfeatures
r
,
When you need service or call with a
question, have this information ready:
1. ComPlete Model and Serial Numbers
(from
hinge). plate Model Number
under the lid near the Serial
Number
2. Purchase date from sates slip.
- ^---
COPY this information in the;
Keep this book, your “Laundry G~i~~‘~~~ . “lLII”~O UC
sales slip
Center. in the Laundry Information Service Company
Phone &I..--*-
Please complete and mail the
Owner RegCstrution
this product.
d&d furnished with
Your responsib lilitie
!S
Read this “Use and Care Guide”
and your “Laundry Guide” carefully
for important use and safety
information.
You are personally responsible
for maklng sure that your washer:
l
is installed by a qualified installer.
l
is properly installed and leveled on
a floor that can support the weight?
l
is connected to the right kind of
outlet, electric supply, water supply
and drain.’
l
is properly grounded:
l
is used only for jobs normally
expected of home automatic
washers.
l
is properly maintained.
l
is protected from the weather and
kept where the temperature will not
fall below freezing.
l
is not run by children or anyone
unable to operate it properly.
‘See the “Installation Instructions”
for complete information.

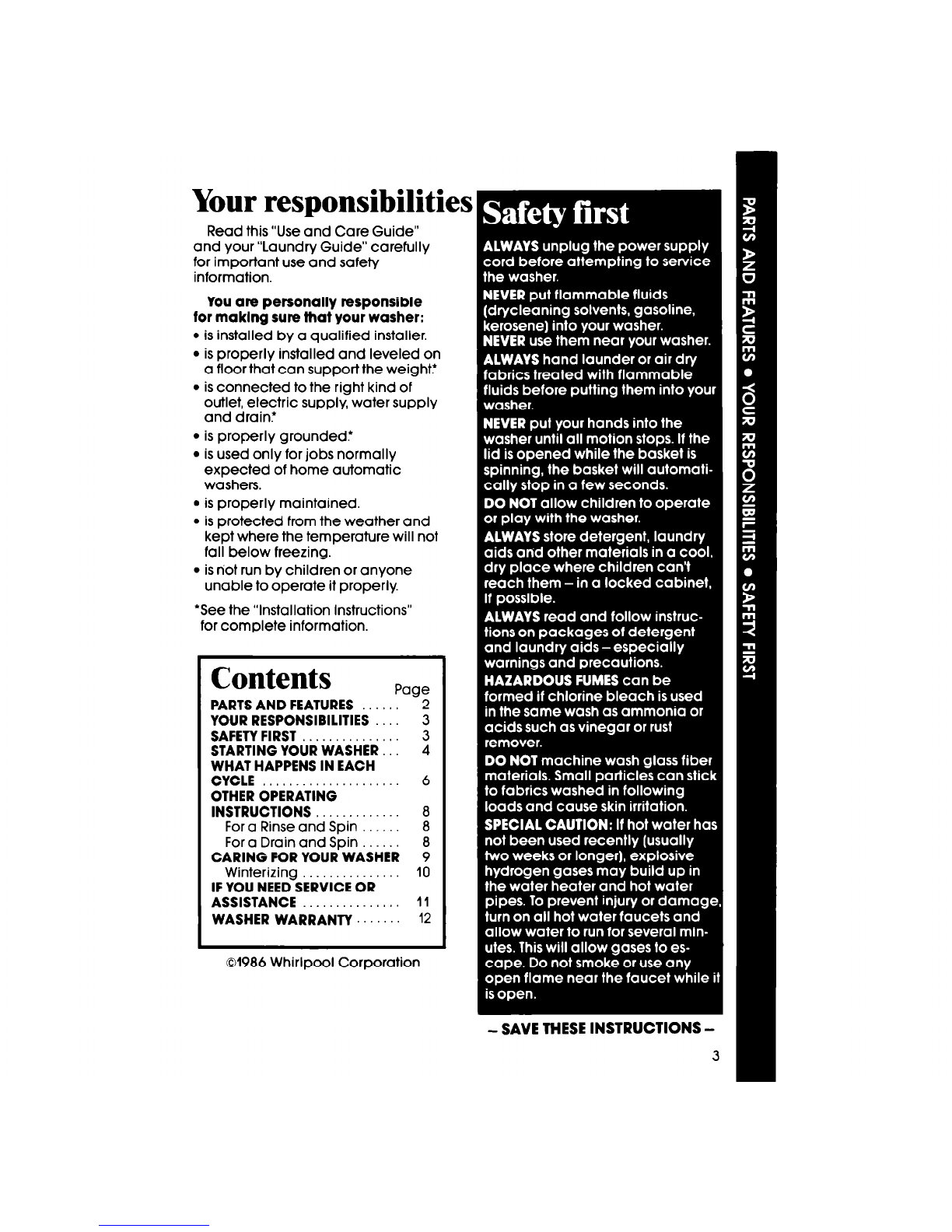

Contents
Page
PARTS AND FEATURES 2
YOUR RESPONSIBILITIES 3
SAFETY FIRST 3
STARTING YOUR WASHER 4
WHAT HAPPENS IN EACH
CYCLE 6
OTHER OPERATING
INSTRUCTIONS 8
ForaRinseandSpin 8
ForaDrainandSpin...... 8
CARING FOR YOUR WASHER 9
Winterizing 10
IF YOU NEED SERVICE OR
ASSISTANCE
11
WASHER WARRANTY 12
01986 Whirlpool Corporation
- SAVE THESE INSTRUCTIONS -
3

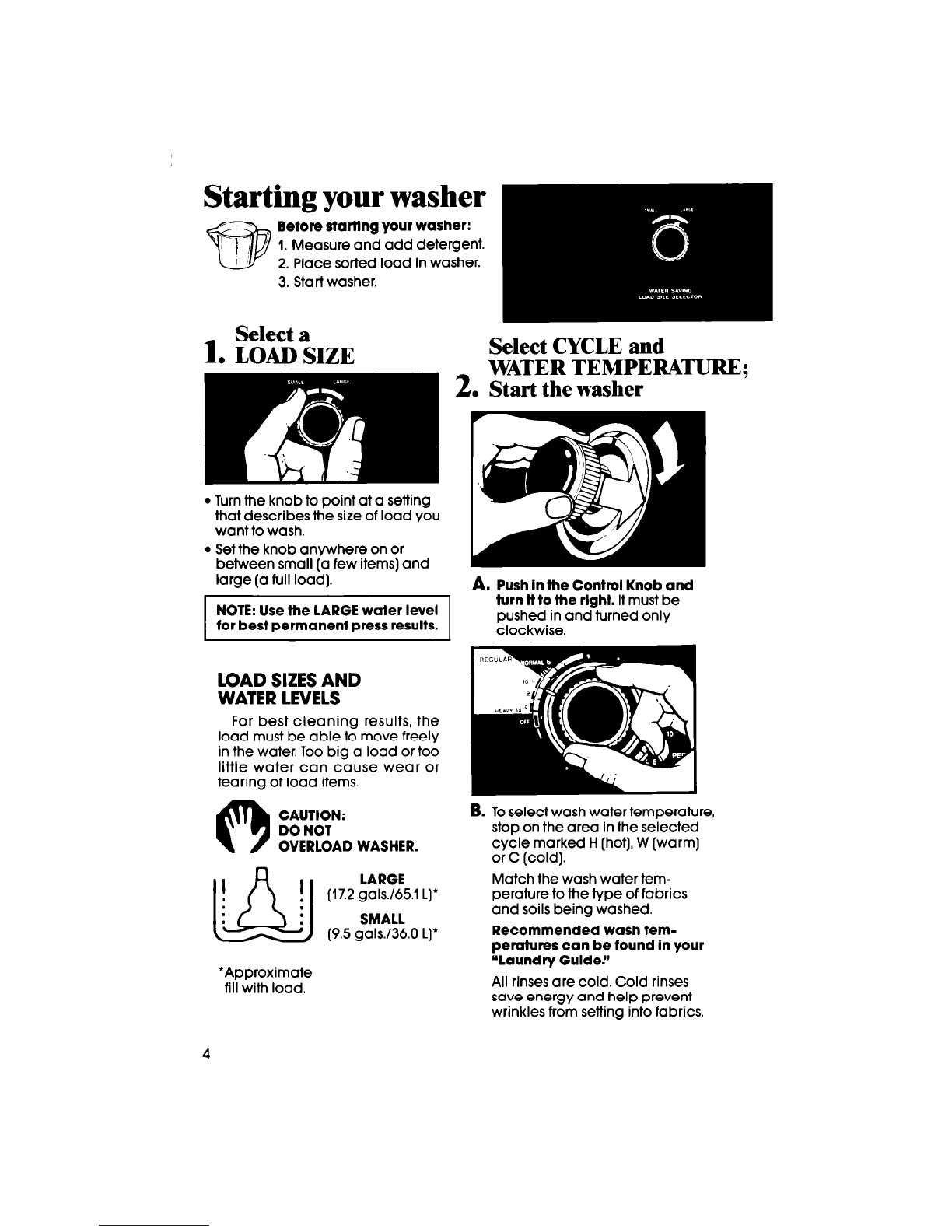

Starting your washer
Betore starting your washer:
1. Measure and add detergent.
2. Place sorted load in washer.
3. Start washer.
Select a
1. LOAD SIZE Select CYCLE and
WATER TEMPERATURE;
2. Start the washer
l
Turn the knob to point at a setting
that describes the size of load you
want to wash.
l
Set the knob anywhere on or
between small (a few items) and
large (a full load].
NOTE: Use the LARGE water level
for best permanent press results.
LOAD SIZES AND
WATER LEVELS
For best cleaning results, the
load must be able to move freely
in the water. Too big a load or too
little water can cause wear or
tearing of load items.
CAUTION:
DO NOT
OVERLOAD WASHER.
(17.2 ;%%I L)’
SMALL
(9.5 gals./36.0 L)’
*Approximate
fill with load.
A.
Push In the Control Knob and
turn It to the right. It must be
pushed in and turned only
clockwise.
B.
To select wash water temperature,
stop on the area in the selected
cycle marked H (hot], W (warm)
or C (cold].
Match the wash water tem-
perature to the type of fabrics
and soils being washed.
Recommended wash tem-
peratures can be found in your
“Laundry Guide!’
All rinses are cold. Cold rinses
save energy and help prevent
wrinkles from setting into fabrics.
4
C.

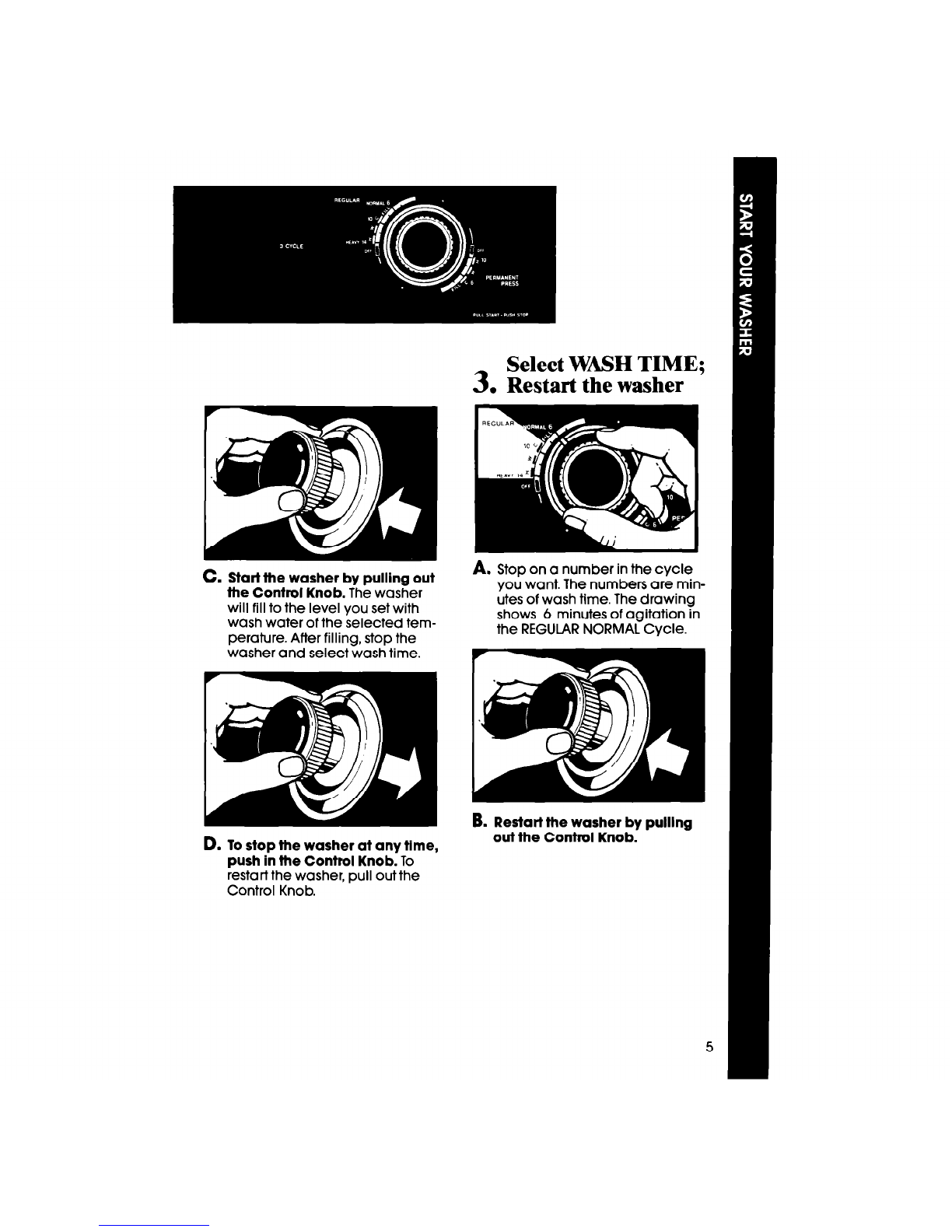

Start the washer by pulling out
the Control Knob. The washer
will fill to the level you set with
wash water of the selected tem-
perature. After filling, stop the
washer and select wash time.
D.
To stop the washer at any time,
push in the Control Knob. To
restart the washer, pull out the
Control Knob.
Select WASH TIME;
3. Restart the washer
A.
Stop on a number in the cycle
you want. The numbers are min-
utes of wash time. The drawing
shows 6 minutes of agitation in
the REGULAR NORMAL Cycle.
B.
Restart the washer by pulling
oui the Control Knob.
What happens in each cycle*
Each cycle has been designed for different kinds of fabrics. Numbers on
the dial in each cycle are the minutes of WASH time.
When the Cycle Control Knob is set to a number and pulled out, the washer
fills before agitation and timing starts. After agitation starts, the knob turns
clockwise until it points to OFF and cycle ends.
REGUIAR HEAVY Cycle
/d
1
A cycle for sturdily con-
strutted fabrics that ore
h heavily soiled. FILL
to
Selected
Level
WASH
14-8
Minutes
High
Speed
LEGUIAR NORMAL Cycle
A cycle for regular loads
of fabrics that ore moder-
ately soiled.
PERMANENT
A cycle designed for
permanent press and
some synthetic fabrics. The
cool-down rinse helps
keep wrinkles from setting
p
PERMANENT
I
intothese items.
66 PRESS
I
m
DO NOT
WASH
10
Minutes
High
Speed
Be careful to use enough water
for the load. Too big a load or
too little water can cause poor
cleaning and wear or tear load
1~
1
\ ;, OVERLOAD WASHER 1
_
Overloading or packing can...
l
cause poor cleaning;
l
increase wrinkling;
l
cause excessive lint; items. -
6
l
wear out or tear items.

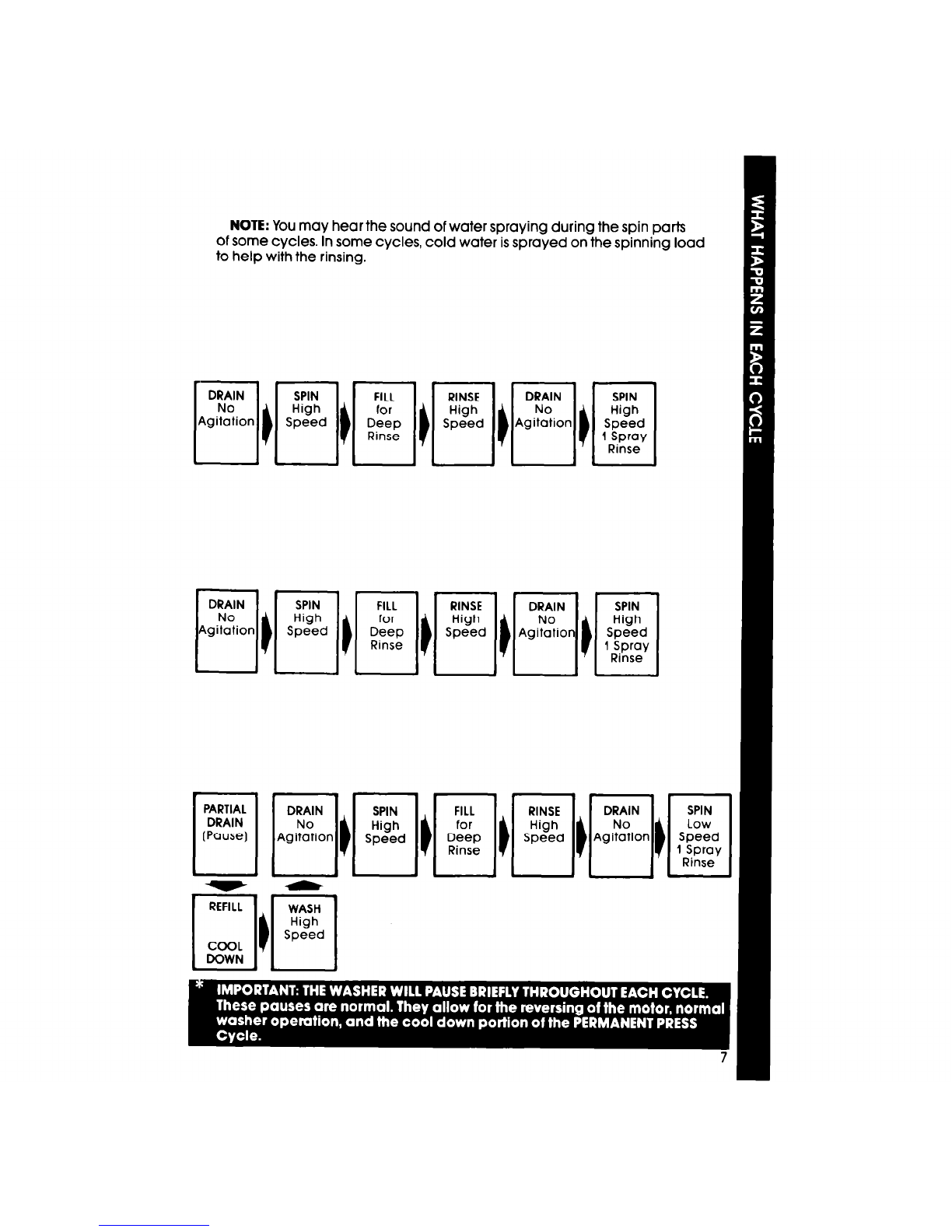

NOTE: You may hear the sound of water spraying during the spin parts
of some cycles. In some cycles, cold water is sprayed on the spinning load
to help with the rinsing.
Other operating instructions
For a rinse and spin
You may need an extra rinse and
spin for heavily soiled loads which
need more detergent. (Extra detergent
can require an extra rinse.)
1. Push Control Knob in.
2. Turn clockwise to any
l
on the dial.
See above drawing.
3. Pull Control Knob out. The washer
will fill to selected level; agitate 2
minutes; drain and spin.
>,
For a
drain and spin
Your washer can be set to drain and
spin out water.
1. Push Control Knob in.
2. Turn clockwise to the bar just before
the OFF area in any cycle. See
above drawing.
3. Pull Control Knob out. The washer
will drain and spin.
1 Caring for your washer
WHEN NOT WASHING, keep both
water faucets turned off, this takes the
pressure off the water inlet valve and
hoses.
REMOVE SHARP OBJECTS such as
pins, buckles, etc., from clothes before
washing. Close metal zippers.
AFTER WASHING, use a soft dry cloth to
wipe the outside and inside dry. Leave
the lid up until the basket is dry. Wipe
up spills right away. Spills can dull or
damage the finish.
SHARP OR HEAVY OBJECTS should
never be put on or in the washer.
Check pocket for bolts, nuts, tools, etc.
SOME PRETREATMENT PRODUCTS can
damage washer and dryer dials, con-
soles and finishes. Do not use these
products on or near your washer or
dryer.
9
Winterizing
Because some water stays in the washer, freezing
can cause a lot of damage. If your washer is
stored or moved during the cold weather...
1. Shut off both water 2. Put a quart of 3. Set the washer for a
faucets. Disconnect automotive-type DRAIN and SPIN
and drain water antifreeze in the (see page 8). Let it
inlet hoses. basket. run for about 30
seconds to mix the
antifreeze and
water.
4. Run the washer
through a com-
To use the washer again...
plete cycle with
one cup of deter-
1. Flush water pipes and hoses. gent to clean out
2. Connect hoses to the washer the antifreeze.
3. Turn on the water faucets.
