Whirlpool LA5805XM Manuale utente

AUTOMATIC

WASHER

~o~e;sCaPacity

~5800XM

Model

LA5805XM

ave Ovens. Trash Compactors, Room Au Condilloners. Dehumidifiers. Automatic Washers, Clothes Oryers. bX2erS. Retrineralor-Freeze

Parts and features

LAUNDRY

‘ssz^p INFORMATION TEMPERATURE

MAGIC CLEAN

LINT FILTER

(not shown)

LIGUID BLEACH

/ DISPENSER

. MODEL AND SERIAL

-NUMBER PLATE

(not shown)

- AGITATOR

- BASKET

/ TUB

Remove the Consumer

Buy Guide label. It will be

easier to remove before

the washer is used.

You should wipe out the

basket with a damp cloth

before using to remove

dust from storing or

shipping.

Copy your Model and Serial Numbers here

When you need service or call with a

questlon, have this informatlon ready: Model Number

1. Complete Model and Serial Num-

bers (from plate under the lid near the

hinge). Serial Number

2. Purchase date from sales slip.

Copy this information in these spaces. Purchose Da’e

Keep this book in me Laundry Informa-

tlon Center with your”Laundry Guide,”

sales slip and warranty Service Company/

Phone Number

There is no warranty registration to return. Proof-of-purchase is all

that is required for in-warranty service.

sponsibilities

Read this ‘IIs& and Care Guide”

and your “Laundry Guide” care-

fully for important use and safety

information.

You are personally responsible

for maklng sure that your

washer...

is installed by a qualifiedinstaller.

is properly installed and

leveled on a floor that can

support the weight.*

is connected to the right kind

of outlet, electric supply, water

supply and drain.-

* is properly grounded.-

. is used only for jobs normally

expected of home automatic

washers.

is properly maintained.

is protected from the weather

and kept where the tempera-

ture will not fall below freezing.

is not run by children or anyone

unable to operate if properly,

*See the “Installation Instructions”

for complete information.

Contents

Page

PARTSANDFEATURES . . . . . . 2

YOUR RESPONSIBILITIES 3

SAFETY FIRST . 3

STARTING YOUR WASHER . 4

WHAT HAPPENS IN

EACH CYCLE . 6

OTHER OPERATING

INSTRUCTIONS . 8

For a Rinse and Spin 8

For a Drain and Spin 8

For a Soak or Pre-Wash 8

Liquid Bleach Dispenser 9

Magic Clean’ Filter 9

Suds-Miser’ System

(Model LA5805XM only) 10

CARING FOR YOUR

WASHER _. _. _, 11

IF YOU NEED SERVICE OR

ASSISTANCE _. 13

61983 Whirlpool Corporation -SAVE THESE INSTRUCTIONS - 3

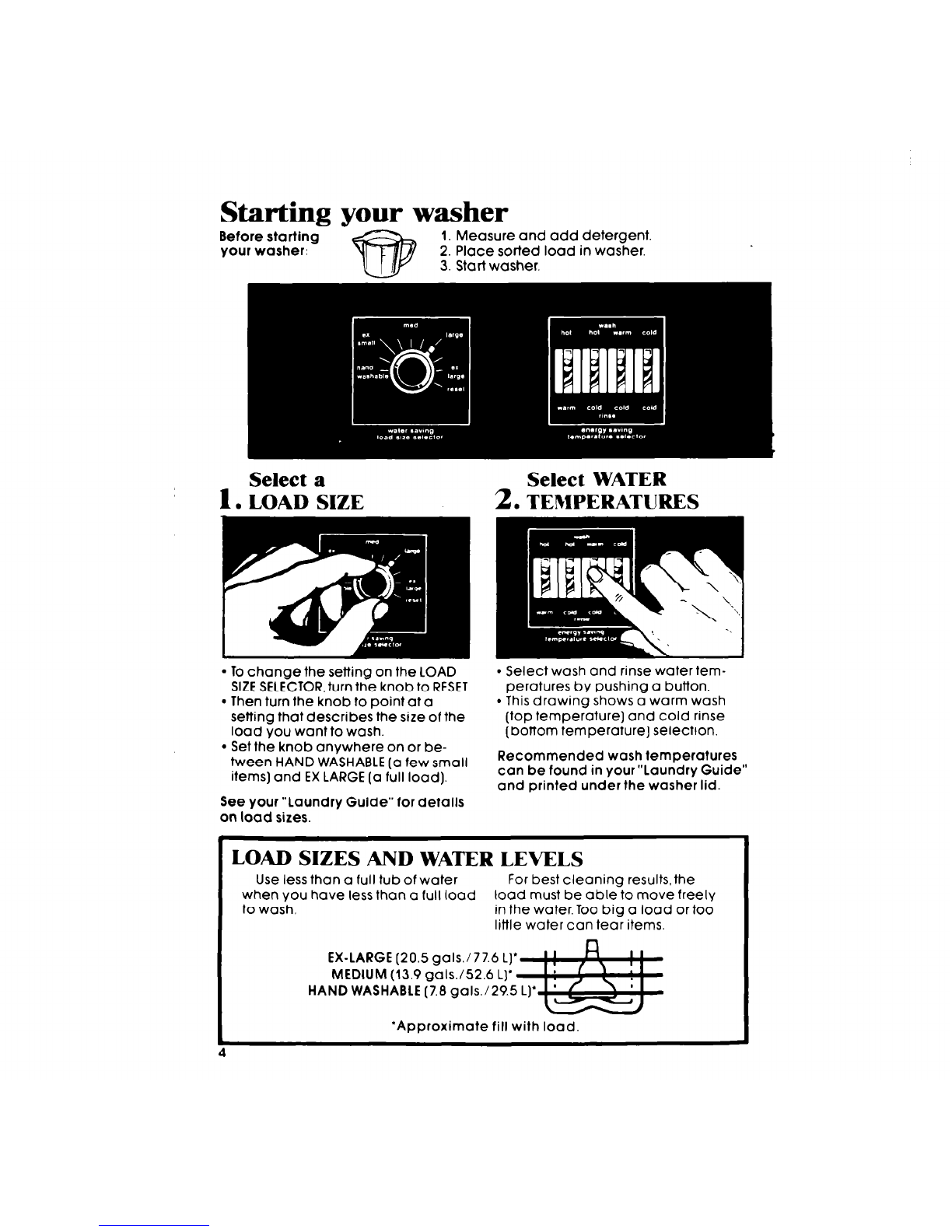

Starting your washer

Before starting

your washer: 1. Measure and add detergent.

2. Place sorted load in washer.

3. Start washer.

Select a Select WATER

1. LOAD SIZE

TEMPERATURES

To change the setting on the LOAD

SIZE SELECTOR, turn the knob to RESET.

Then turn the knob to point at a

setting that describes the size of the

load you want to wash.

Set the knob anywhere on or be-

tween HAND WASHABLE (a few small

items) and EX LARGE (a full load).

See your “Laundry Guide” for details

on load sizes.

Select wash and rinse water tem-

peratures by pushing a button.

This drawing shows a warm wash

(top temperature) and cold rinse

(bottom temperature) selection.

Recommended wash temperatures

can be found in your “Laundry Guide”

and printed under the washer lid.

/ LOAD SIZES AND WATER LEVELS

Use less than a full tub of water for best cleaning results. the

when you have less than a full load load must be able to move freely

to wash. in the water. Too big a load or too

little water can tear items.

EX-LARGE (20.5 gals./77.6 L]’

MEDIUM (13.9 gals.152.6 L)’ ’

HAND WASHABLE (7.8 gals./29.5 L)’ ’

‘Approximate fill with load.

3. Start the washer

Push in the Control Knob and

turn it to the right. It must be

pushed in and turned only

clockwise.

Stop on a number in the cycle

you want. The numbers are

minutes of wash time. The

drawing shows 8 minutes of

agitation in the REGULAR HEAVY

Cycle.

Start the washer by pulling out

the Control Knob. The washer

will fill to the level you set with

wash water of the selected

temperature. Atter filling, the

washer will agitate for the

selected number of minutes.

To stop the washer at any time

push in the Control Knob. To

restart the washer, pull out the

Control Knob.

To set the controls for a rinse and

spin, a drain and spin, or a soak

or pre-wash. see page 8.

What happens in each cycle

Each cycle has different agitation and spin speeds designed for different

kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH

agitation time.

When the Cycle Control Knob is set to a number and pulled out,the washer

fills before agitation and timing start After agitation starts, the knob turns

REGULAR HEAVY Cycle

High agitation and

spin speeds help remove

heavy soils and spin

water from heavy or

sturdy cotton fabrics.

PERMANENT PRESS Cycle

High-speed agitation,

low-speed spin and cool-

ing of the wash water be-

fore the spin help clean

clothing and keep

wrinkles from setting into

permanent press fabrics.

KNITS/GENTLE Cycle

Low agitation and spin

speeds and shorter wash

time gently wash delicate

items and washable

synthetic knits.

SOAK AND PRE-WASH Cycles

Periods of agitation and

soaking time clean

stained, yellowed, gray or

heavily soiled laundry

with no rinsing. Use recom-

mended amount of

detergent.

WASH

I Minutes

Low

Speed

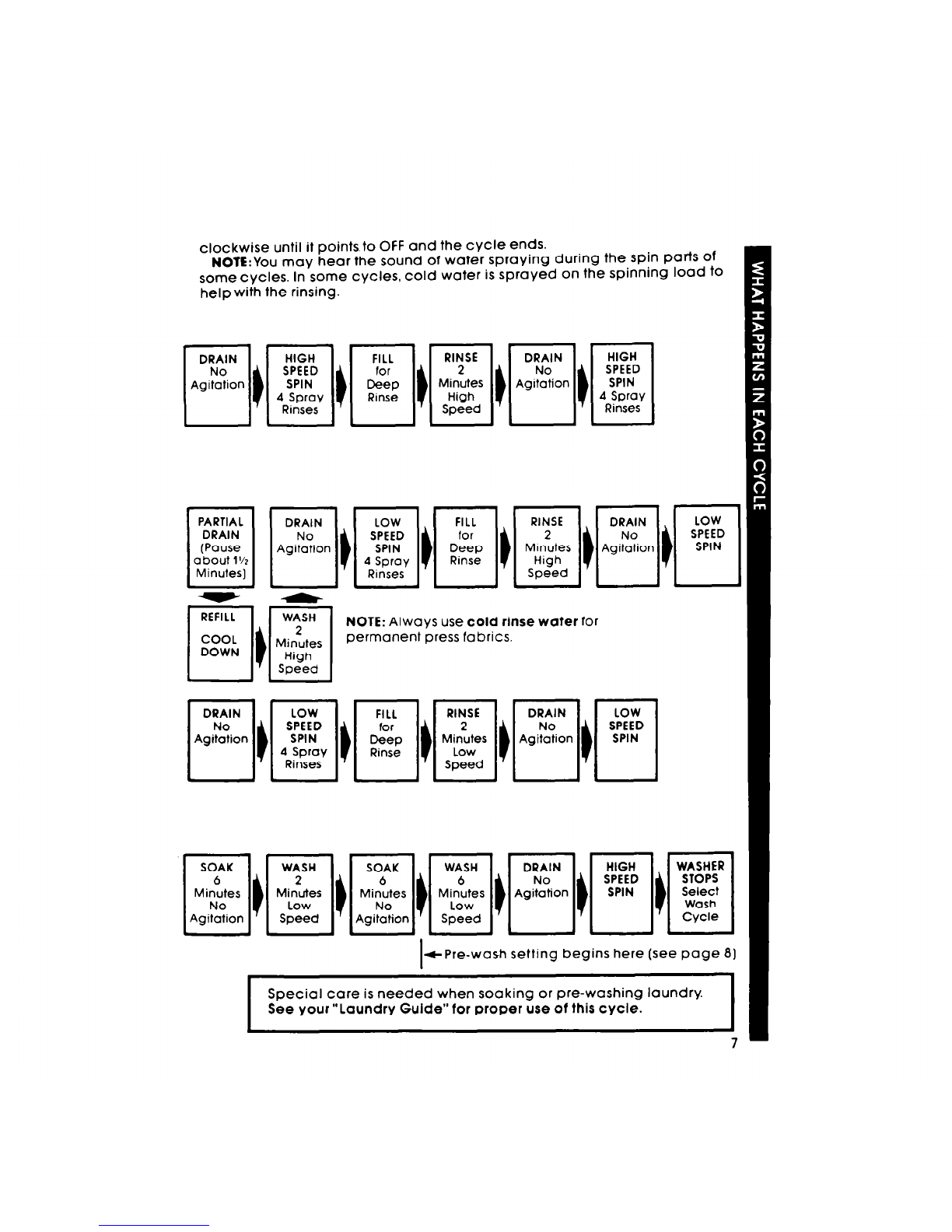

clockwise until it points to OFF and the cycle ends.

NOTE:You may hear the sound of water spraying during the spin parts of

some cycles. In some cycles, cold water is sprayed on the spinning load to

help with the rinsing.

DRAIN

Agitation

PARTIAL

DRAIN

(Pause

about 1%

Minutes]

SPEED

SPYN- ) Cj& 1 rWl1 ) A$%ion ) 4gY

4 Spray

Rinses

NOTE: Always use cold rinse water for

permanent press fabrics.

I IAIR’YEI,I IAI I

SOAK

Minutes

igitation

WASH

Minutes

Low

Speed

+Pre-wash setting begins here (see page 8)

I 1

Special care is needed when soaking or pre-washing laundry.

See your “Laundry Guide” for proper use of this cycle. I

Other operating instructions

For a rinse and spin

You may need an extra rinse and

spin for heavrly soiled loads which

need more detergent. (Extra de-

tergent can require an extra rinse.)

Push Control Knob in.

Turn clockwrse to anyoon the dial.

See above drawing.

Pull Control Knob out.

The washer will fill to selected level

with cold water, agitate 2 minutes,

drain and spin

For a drain and spin

Your washer can be set to drain

and spin out water.

Push Control Knob in.

Turn clockwise to the bar just before

OFF in any cycle. See above

drawing.

Pull Control Knob out.

The washer will drain and spin.

For agitation and spin speeds in each cycle, see pages 6 and 7.

For a soak or pre-wash

For best results, soak or pre-wash

heavily soiled or stained laundry

Use enough detergent or pre-soak

product for a single load.

Push Control Knob in.

Turn clockwise to point at a number

in the SOAK Cycle...use the 6 -

minute mark for a pre-wash.

Pull Control Knob out.(After filling.

the washer may pause before

starting to agitate.]

When the cycle is over, add de-

tergent for the next selected wash

cycle. Important: See additional

care information on page 7 of your

“Laundry Guide.”

Set the washer and start the next

selected wash cycle.

To start the soak or pre-wash with agitation, the Cycle Control

Knob must point to a number in the SOAK Cycle.

Liquid bleach dispenser

Always measure bleach. Do not

guess. Follow directions on the bottle

for the amount to use. Never use

more than 1 cup (250 mL) for a full

load. Use less with lower water level

settings. Use a cup with a pouring

spout to avoid spilling.

1. Load the washer first

2. Pour measured bleach carefully

into dispenser. DO NOT.let bleach

splash, dnp or run down into the

washer basket. Undiluted bleach

will damage any fabric it touches.

3. Start the tiasher. Bleach will be

diluted automatically during the

wash part of the cycle.

For more information on bleaching, see”Laundry Guide” page II.

MAGIC CLEAN@ lint filter

The lint filter in your washer cleans itself. Collected

lint is drained away with the wash and rinse Water.

If your washer drains into a tub, remove any lint

collected in the drain or strainer.

For Model LA5805XM

The SUDS-MISER@System

Your washer has the SUDS-MISER” System. It has two drain hoses.

One hose moves a portion of used wash water into a storage tub

and moves it back into the washer for use during the next wash.

The other hose carries water to another tub with an open drain, or

to a standpipe drain.

If you do not want to re-use wash water for a load, leave the

stopper out of the storage tub so the water drains away.

The SUDS-MISER@ System stores a portion of the wash water.

If you have a storage tub big enough to hold 25 gallons (95

liters] of water, you can have a qualified installer convert your

washer to save more of the water.

To save wash water

Be sure the stopper is In the storage tub. The SUDS-MISER System

does not save rinse water from any cycle, nor does it save wash

water from the PERMANENT PRESSCycle.

To re-use wash water 4. Add about ‘/2 the recom-

1. Set Cycle Control Knob on mended amount of detergent.

SUDS (see illustration). 5. Put in the clothes.

2. Pull the Control Knob out. The 6. Pull out the Cycle Control Knob

washer will pump most of the to start the washer.

water from the storage tub 7. Drain the storage tub. Water

back into the washer basket.

Do not add clothes at this

time. The washer will finish fill-

ing with fresh water.

3. When the water has pumped

back into the washer, push in

the Cycle Control Knob.

still in the tub witi have any soil

that has settled out. The hose

is cut on an angle to leave be-

hind about an inch of water

and any soil from previous

wash.

Off

suds14

If you want a cycle other than

REGULAR HEAVY to follow SUDS,

push in the Cycle Control Knob

after the water has been

pumped back into the washer.

Turn the knob right [clockwise)

to the cycle and wash time

you want.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Whirlpool Rondella

Whirlpool

Whirlpool WFW9550WL Manuale utente

Whirlpool

Whirlpool WFW9300VU - Duet Diamond Dust Washer Manuale utente

Whirlpool

Whirlpool LA78OOXS Manuale utente

Whirlpool

Whirlpool W10298850 Manuale di istruzioni

Whirlpool

Whirlpool WFL98HEBU Manuale utente

Whirlpool

Whirlpool WFW8400TW - Front Load Washer Manuale utente

Whirlpool

Whirlpool AUTOMATIC WASHER Manuale utente

Whirlpool

Whirlpool WFW9151Y Series Manuale

Whirlpool

Whirlpool LLR9245BQ1 Manuale utente

Whirlpool

Whirlpool WFW75HEF Manuale utente

Whirlpool

Whirlpool LSA 1300 Manuale utente

Whirlpool

Whirlpool AWG 860 Manuale utente

Whirlpool

Whirlpool LA5550XP Manuale utente

Whirlpool

Whirlpool 3955155A Manuale utente

Whirlpool

Whirlpool FRONT-LOADING AUTOMATIC WASHER Manuale utente

Whirlpool

Whirlpool AWT 5109 Manuale utente

Whirlpool

Whirlpool Cabrio WTW8200YW Istruzioni per il montaggio

Whirlpool

Whirlpool WTW8000BW Istruzioni per il montaggio

Whirlpool

Whirlpool AWH 912/PRO Manuale utente

Whirlpool

Whirlpool Michigan 49022 Manuale utente

Whirlpool

Whirlpool AWM276 Manuale utente

Whirlpool

Whirlpool LA6OOOXS Manuale utente

Whirlpool

Whirlpool ADVANTECH CAE2761K Manuale

Whirlpool

Whirlpool AWO 12363 Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Beko

Beko WKB 51231 PTMA Manuale utente
