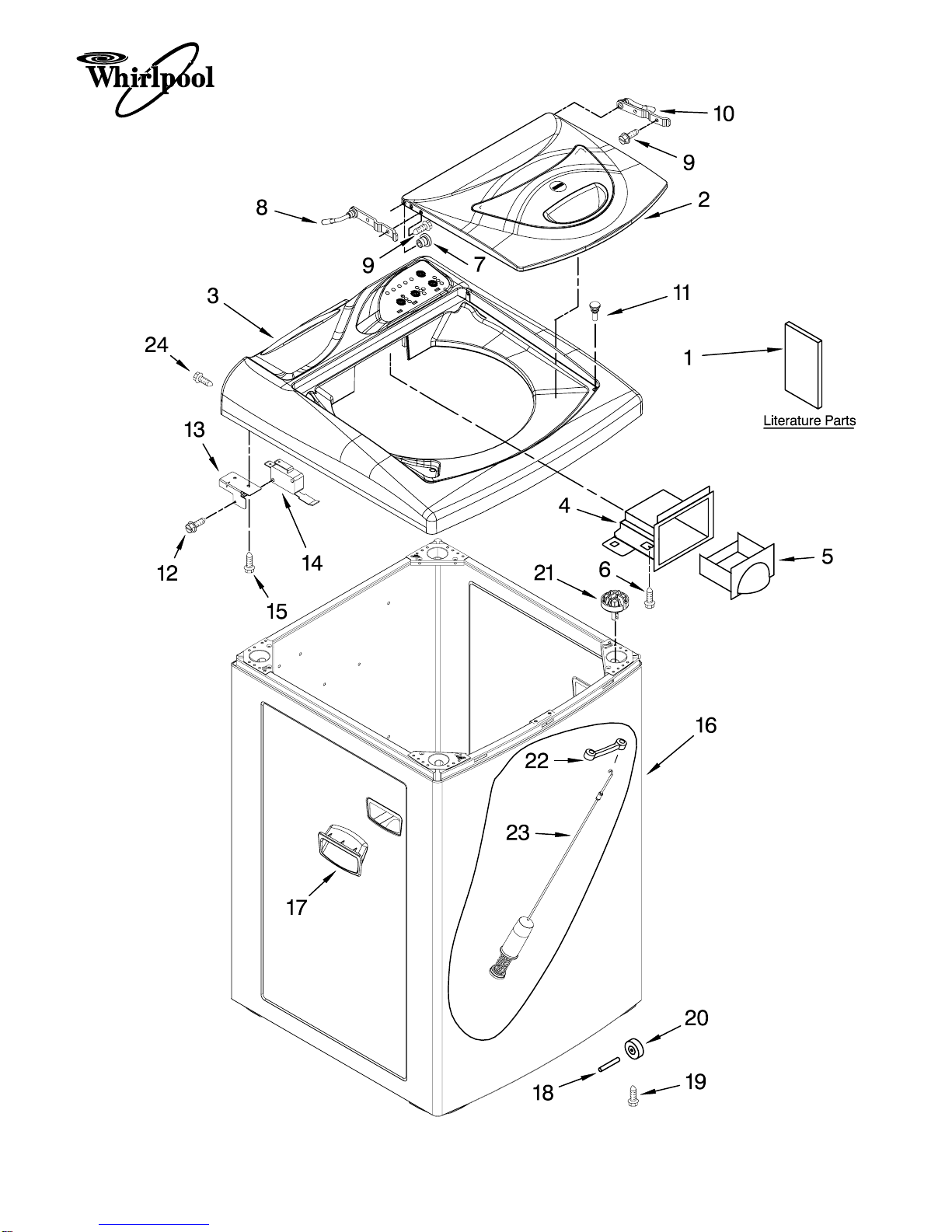

TOP AND CABINET PARTS

For Model: LCE4332PQ1

(White)

COMPACT AUTOMATIC

WASHER

Part No. 8180597 Rev. A

6−05 Litho in U.S.A. (drd)

TOP AND CABINET PARTS

For Model: LCE4332PQ1

(White)

8180597

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

326035915

Use & Care Guide

326035893

Wiring Diagram &

Tech Sheet Asm

326040947

Lid

326040944

Top

326033918

Housing, Dispenser

326040949

Drawer, Dispenser

6 8182293 Screw (2)

326034817

Bearing, Hinge

326038394

Hinge, Lid (LH)

326035414

Screw,

Lid Hinge (4)

326037103

Hinge, Lid (RH)

326034790

Bumper

12 8182294 Screw

326036494

Bracket,

Lid Switch

326033879

Switch, Lid

326041720

Screw (2)

326040942

Cabinet

(Includes # 17)

326033911

Handle, Cabinet

326033978

Shaft, Wheel (4)

19 8182295 Screw (4)

326033979

Wheel (4)

326021005

Ball, Suspension

326000047

Strap, Snubber

326025313

Rod,

Suspension (4)

326016638

Screw,

Top to Cabinet (2)

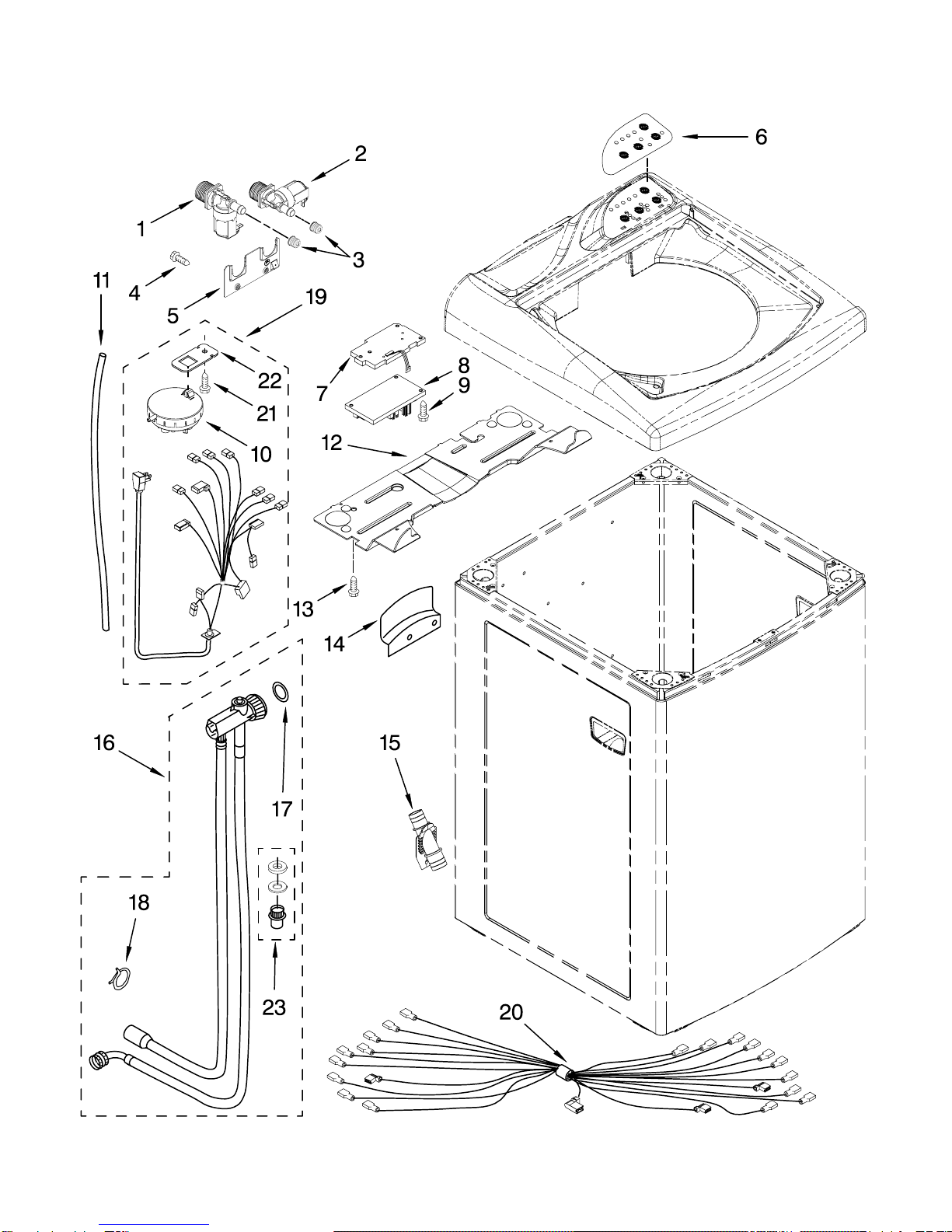

CONTROLS AND REAR PANEL PARTS

For Model: LCE4332PQ1

(White)

8180597

CONTROLS AND REAR PANEL PARTS

For Model: LCE4332PQ1

(White)

8180597

Illus. Part

No. No. DESCRIPTION

326032994

Inlet Valve (Hot)

326032997

Inlet Valve (Cold)

326033919

Seal,

Inlet Valve (2)

326018823

Screw (2)

326027101

Bracket,

Inlet Valve

326033923

Overlay

326048437

Interface Board

326048436

Control,

Electronic

326041720

Screw (6)

326034589

Switch,

Water Level

326046803

Hose,

Pressure Switch

326034866

Shield, Controls

13 8182293 Screw (2)

326034862

Bracket,

Hose Storage

326034647

Connector,

Drain Hose

326048456

Hose Coupler

Assembly

326037688

Washer

326038497

Clamp, Hose

326048253

Power Cord Asm

326032995

Harness, Wiring

(Main)

326041720

Screw

326044485

Bracket, Pressure

Switch Mounting

326039784

Adapter, Faucet

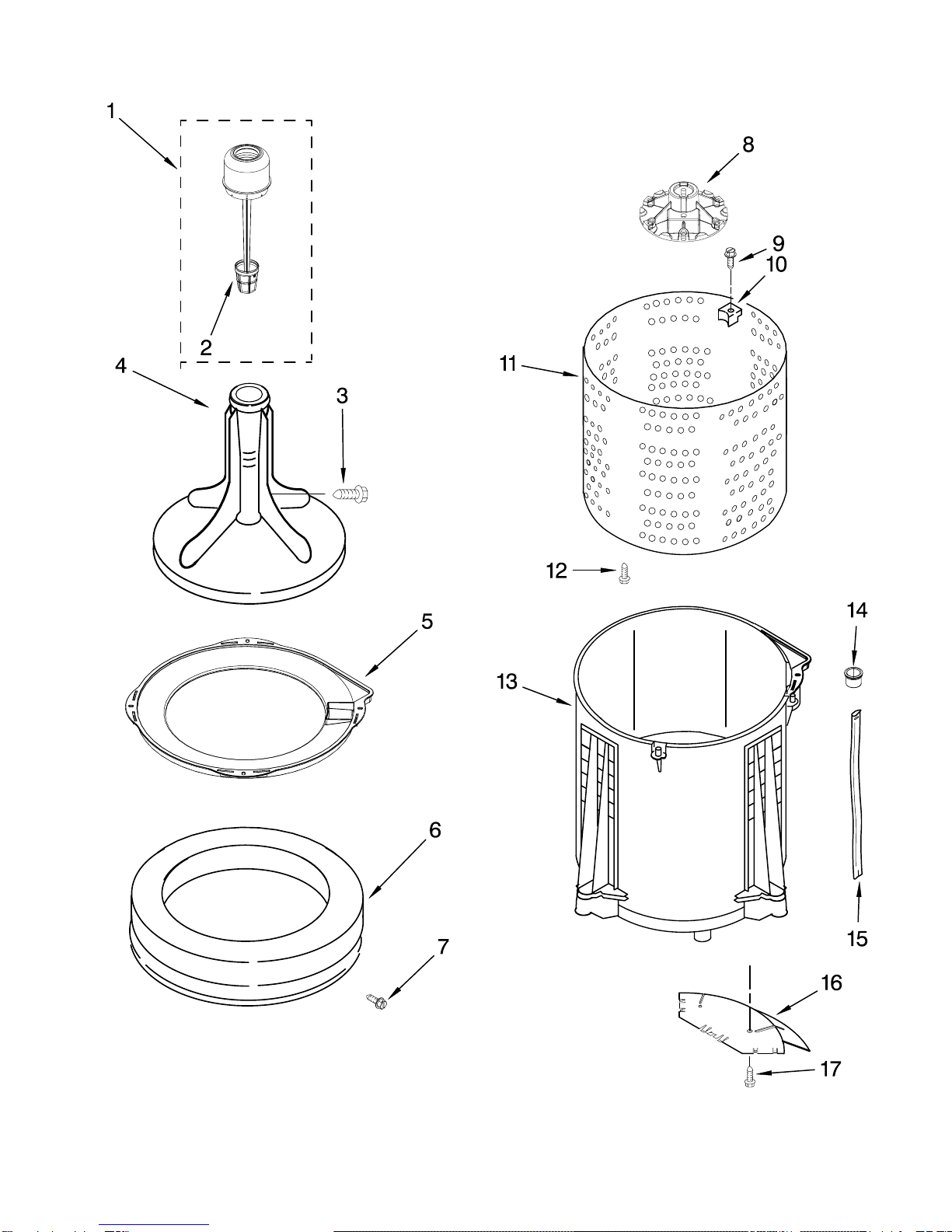

AGITATOR, BASKET AND TUB PARTS

For Model: LCE4332PQ1

(White)

8180597

AGITATOR, BASKET AND TUB PARTS

For Model: LCE4332PQ1

(White)

8180597

Illus. Part

No. No. DESCRIPTION

326018423

Fabric Softener

Dispenser Assembly

2 8182228 Filter, Lint

3 8182296 Screw, Agitator

4 8182227 Agitator

326000116

Tub Ring

6 8182229 Balance Ring

7 8182298 Screw (4)

8 8182302 Hub, Drive

9 8182301 Screw

10 8182303 Saddle Block

11 8182230 Basket

12 8182300 Screw (6)

326033908

Tub

326036378

Sleeve,

Tub Overflow

326036377

Bag, Tub Overflow

326033906

Shield, Tub/Motor

326010229

Screw (3)

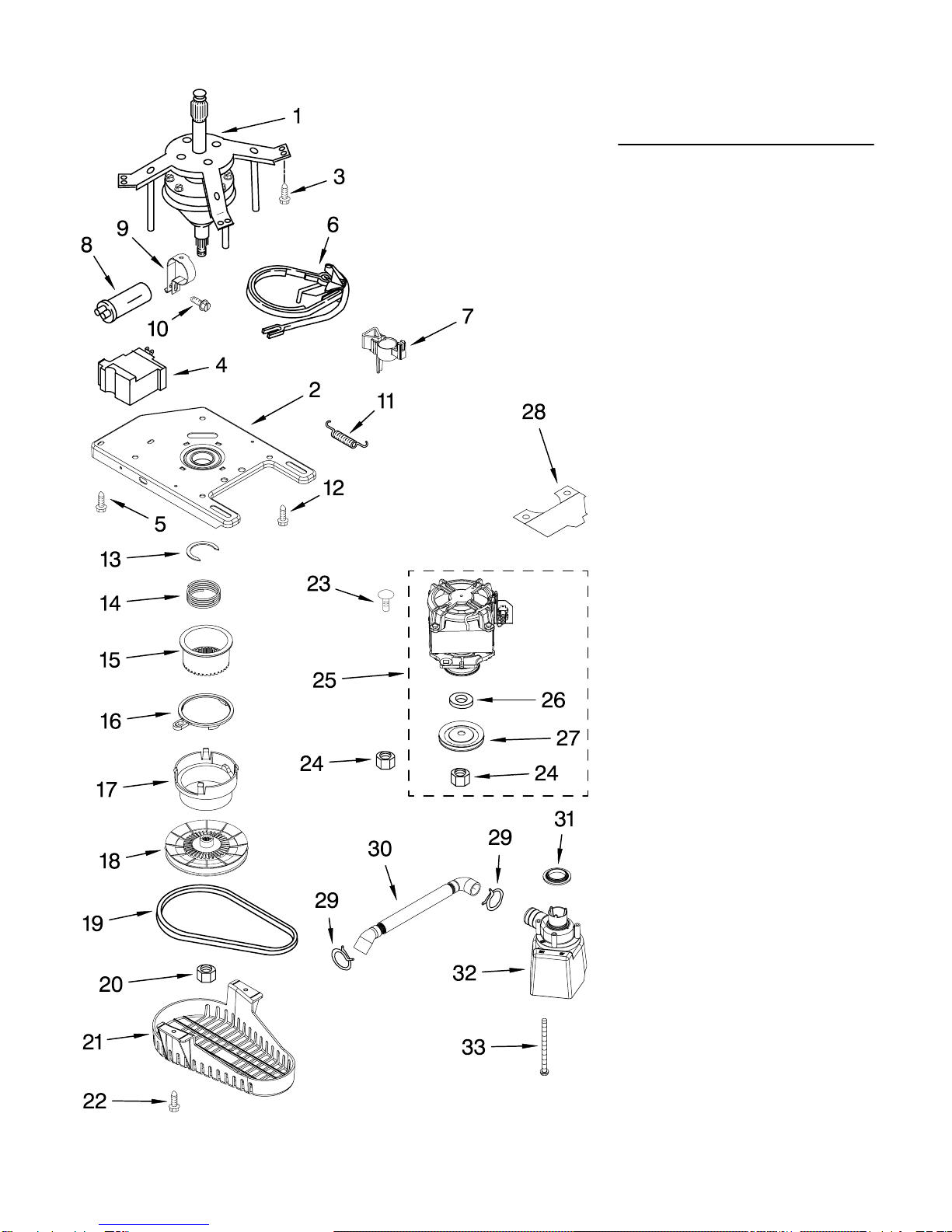

TRANSMISSION, MOTOR AND PUMP PARTS

For Model: LCE4332PQ1

(White)

8180597

Illus. Part

No. No. DESCRIPTION

326042225

Gearcase &

Tub Support Asm

326042919

Motor Plate &

Bearing Assembly

326016091

Screw,

Tub Support (5)

326042226

Brake Actuator

326010229

Screw,

Brake Actuator (2)

326038821

Brake Band Asm

326016785

Support,

Brake Band

326032990

Capacitor

326036955

Clamp, Capacitor

10 8182295 Screw

326044509

Spring, Brake

12 8182299 Screw, Gearcase to

Motor Plate (4)

13 8182268 Clip

14 8182269 Spring, Splutch

15 8182263 Slider, Splutch

16 8182265 Cam Ring, Splutch

17 8182266 Cam, Splutch

18 8182264 Pulley, Splutch

19 8182226 Drive Belt

20 8182297 Nut

326044746

Shield, Pulley

22 8182295 Screw (2)

23 8182304 Bolt, Motor

Mounting (2)

326020253

Nut

326032993

Motor, Main Drive

26 8182305 Washer

27 8182281 Pulley, Motor

326033905

Shield, Motor

326031815

Clamp, Hose

326036549

Hose, Pump to Tub

326031821

Seal, Pump to Tub

326032991

Pump (Complete)

326029005

Screw, Pump (3)

WATER SYSTEM PARTS

1 285442 Connector Kit,

Plastic Drain

Hose

2 285321 Sleeve Kit,

(Contains 2

Sleeves)

3 370447 Clamp, Hose

4 16272 Connector,

Straight

5 285320 Siphon Break

Kit

(Not Included)

6 65349 Clamp, Hose

7 367031 Drain Protector

(Not Included)

Illus. Part

No. No. DESCRIPTION

For Model: LCE4332PQ1

(White)

8180597

MISCELLANEOUS PARTS

For Model: LCE4332PQ1

(White)

8180597

Illus. Part

No. No. DESCRIPTION

326039784

Adapter, Faucet

2 356138 Clamp, Hose

3 16123 Washer

4 3429563 Cable Tie

5 661581 Clamp, Hose

6 3428855 Miscellaneous

Parts Bag

Miscellaneous parts must be

ordered separately.

OPTIONAL PARTS (NOT INCLUDED)

For Model: LCE4332PQ1

(White)

8180597

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350938 Primer, Gray

350930 White

PAINT, BULK (1 qt.)

799344 White (Uncut)

COUPLING

384496 Coupling, Hose

CONVERSION KIT

4396746 Portable To Fixed

285768 Stationary To

Portable

DRYER STACK STAND

49971 White
