Whirlpool LLT7144AN0 Manuale utente

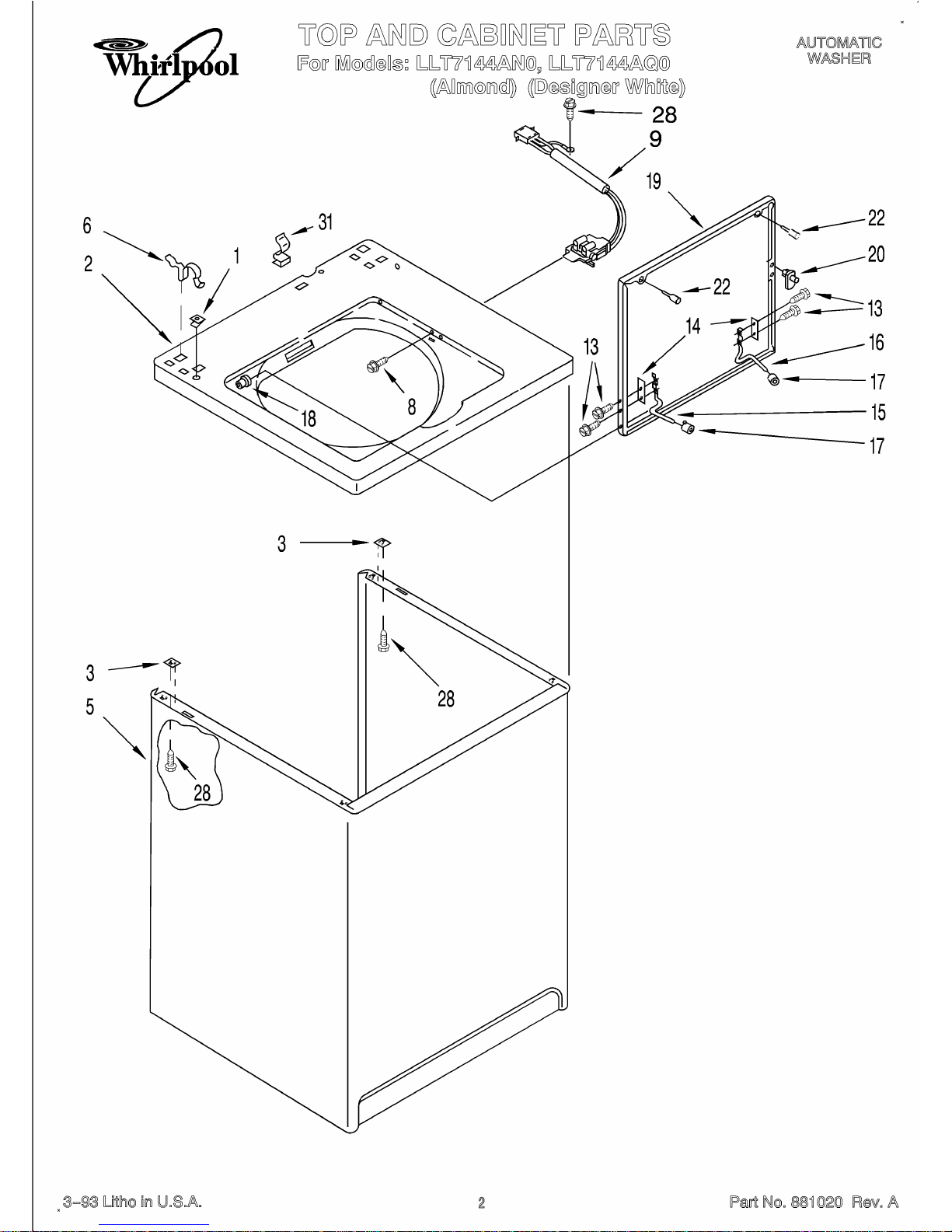

1 357213 Nut, Push-In (2)

2 Top

3358214 For Almond Model

3358213 For Designer White Model

3 62750 Spacer, Cabinet To Top (4)

5 Cabinet

63425 For Almond Model

63424 For Designer White Model

6 62780 Clip, Top & Cabinet & Rear Panel (2)

8 3356311 Screw & Washer, Lid Switch (2)

9 3352629 Switch, Lid

13 3351355 Screw, Lid Hinge Mounting (4)

14 21097 Pad, Lid Hinge (2)

15 54584 Hinge, Lid (L.H.)

16 54583 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid Hinge (2)

19 Lid

3354576 For Almond Model

3354575 For Designer White Model

20 358684 Strike, Lid Switch

22 93770 Bumper, Lid (2)

28 384435 Screw, 10-16 x 1/2 (4)

31 90016 Clip, Harness

LITERATURE AND OPTIONAL PARTS

LITERATURE PARTS

LIT3358964 Sheet, Installation Instructions

LIT3357459 Guide, Use and Care

LIT3358648 Energy Guide

LIT3351736 Label, Wiring Diagram

LIT4313896 Manual, (Washer) Do-It-Yourself

LIT881020 List, Repair Parts

PAINT, TOUCH-UP (1/2 OZ.)

72017 White

72107 Almond

72110 Golden Harvest

PAINT, PRESSURIZED SPRAY (13 OZ.)

350941 Leveler (Thinner)

350938 Primer, Gray

350930 White

350956 Almond

261890 Golden Harvest

PAINT, BULK (1 QT.)

799344 White (Uncut)

978883 Almond (Uncut)

261891 Golden Harvest (Uncut)

OIL 350572 Oil, Gearcase (16 Oz.)

LUBRICANT

285208 Lubricant (Use Only in Brake Shoe Assembly On Roller and Pin)

SEALER285195 Sealer, Gasket (.20 Fl. Oz.) (6 ml)

SHIPPING KIT

3348675 Shipping Kit

ACCESSORY PARTS

63580 Fabric Dispenser

89121 Stand-Pipe Kit

367031 Drain Protector

285320 Siphon Break Kit

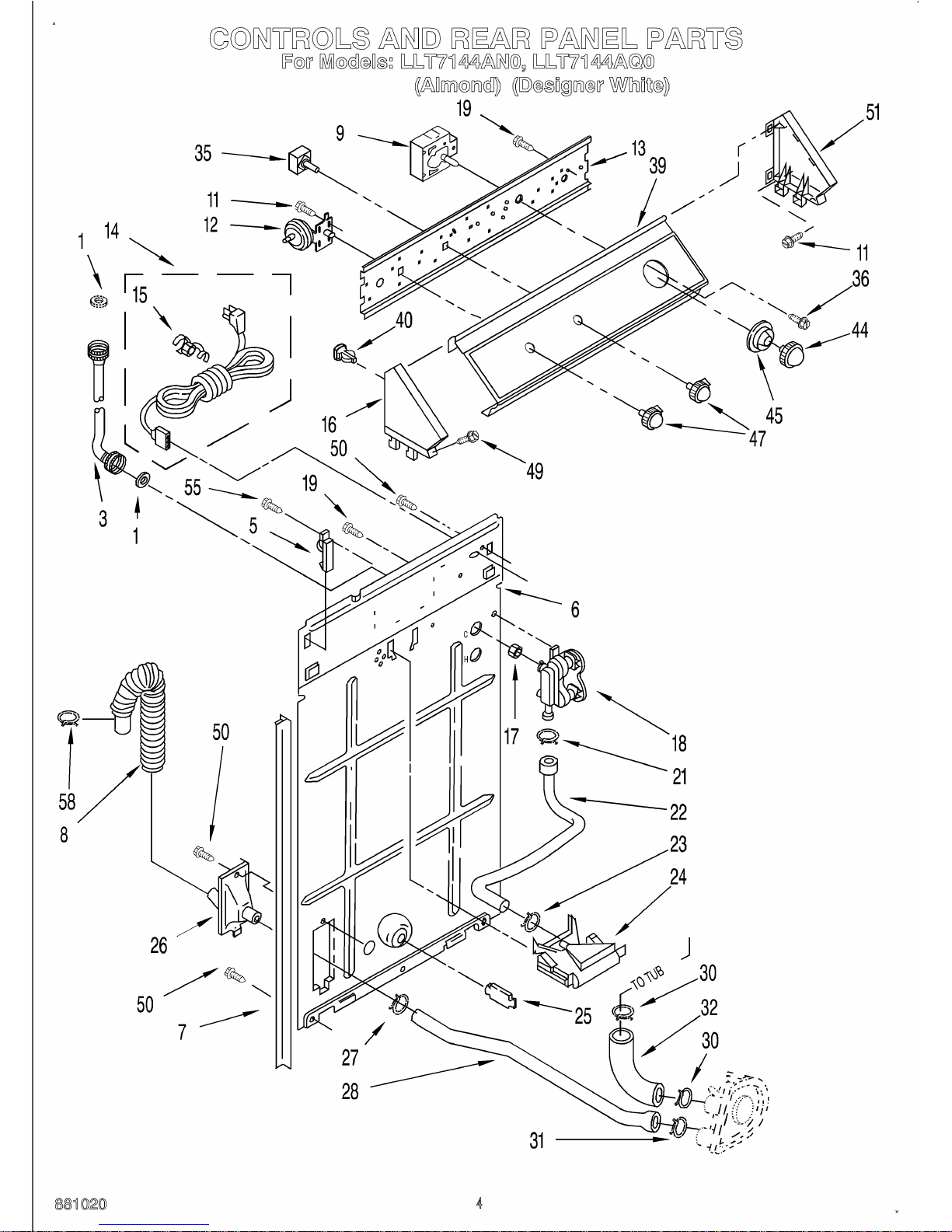

1 16123 Washer, Water Inlet Hose (4) (1-1/16 x 5/8)

3 660028 Hose, Water Inlet (2)

81339 (Alt.)

366108 Alt.)

387057 (Alt.)

5 387402 Hinge, Console (2)

6 3357978 Panel, Rear

7 62747 Pad, Rear Panel

8 661575 Hose, Drain (5-1/2 Ft.)

661577 Hose, Drain (10 Ft.) (Not Included)

9 3351734 Timer, Control (60 Hz.) (Motor Not A Service Part)

11 3390646 Screw, 8-18 x 5/16

12 3356466 Switch, Water Level

13 3358469 Bracket, Control

14 62734 Cord, Power

15 63848 Strain Relief, Power Cord

16 Cap, End (L.H.)

3358532 For Almond Model

3358531 For Designer White Model

17 96160 Screen, Filter (2)

18 358992 Valve, Water Mixing

19 90864 Screw, 10-24 x 3/8 (2)

21 660632 Clamp, Hose

272846 (Alt.)

353367 (Alt.)

22 3357328 Hose, Vacuum Break

23 371503 Clamp, Hose

24 3347034 Break, Vacuum

25 63290 Support, Rear Panel

26 3355497 Connector, Drain Hose

27 356138 Clamp, Hose

28 3359818 Hose, Pump To Drain Connector

30 371502 Clamp, Hose

31 660628 Clamp, Hose

272858 (Alt.)

370447 (Alt.)

353097 (Alt.)

32 62731 Hose, Pump To Tub

35 661535 Switch, Water Temperature

36 96435 Screw, Timer Mounting (10-32 x 1) (2)

39 Panel, Console

3359217 For Almond Model

3359229 For Designer White Model

40 689559 Nut, Push-In (2)

44 Knob, Timer

3358419 For Almond Model

3358417 For Designer White Model

45 Dial, Timer

3358446 For Almond Model

3358447 For Designer White Model

47 Knob, Control

3358434 For Almond Model

3358435 For Designer White Model

49 3353145 Screw, 8-18 (Panel to Top)

50 62863 Screw, 10-16 x 3/8

51 Cap , End (R.H.)

3358517 For Almond Model

3358516 For Designer White Model

55 3357011 Screw, 10-16 x 1/2

58 3357331 Clamp, Drain Hose

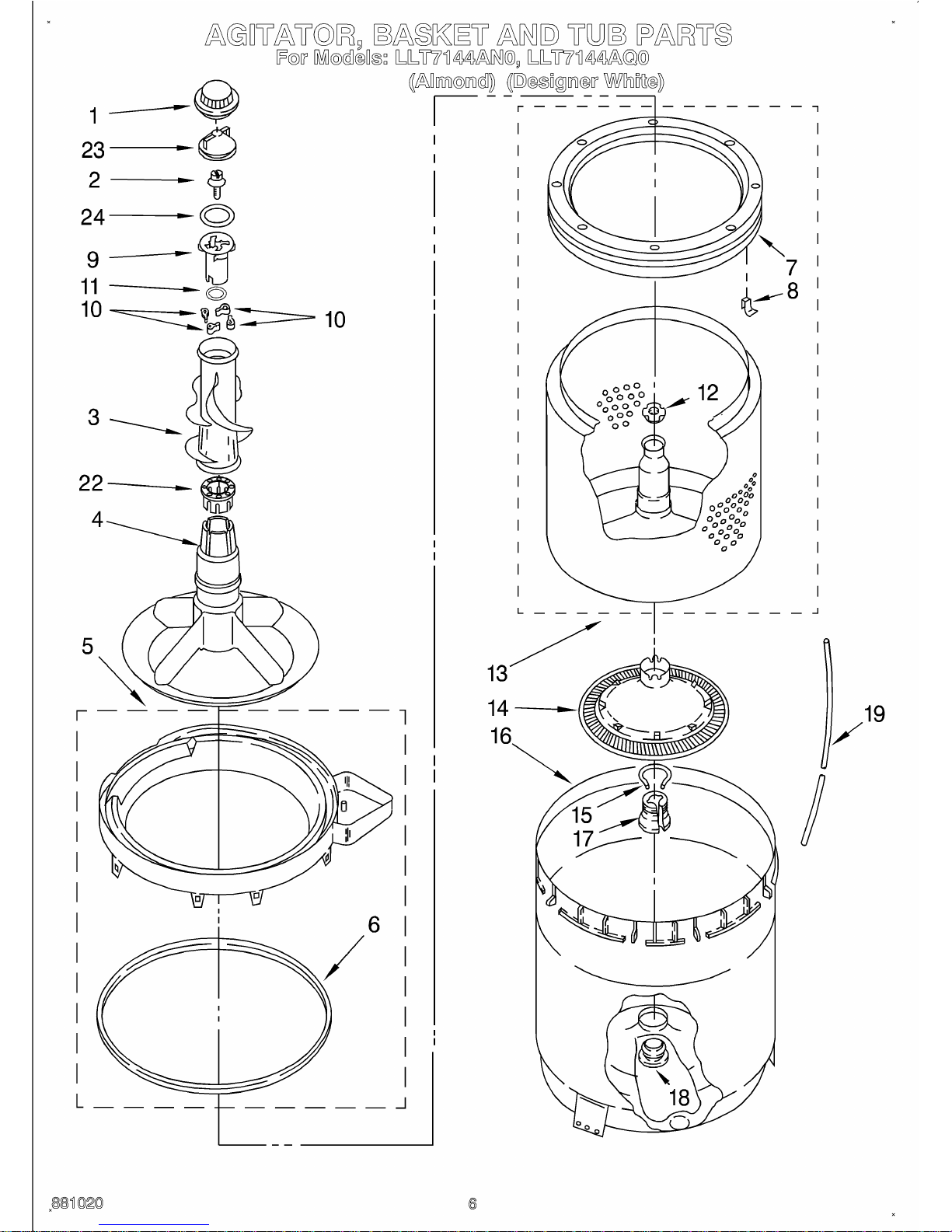

1 3355758 Cap, Agitator

2 358237 Screw & Washer (5-16-24 x 1)

3 3349019 Clothes Mover

4 3350830 Agitator

5 3360611 Tub Ring & Gasket

6 3359586 Gasket, Tub Ring

7 387868 Balance Ring

8 387867 Clip, Balance Ring (8)

9 3351001 Cam Driven

10 387091 Dog, Agitator Clutch

11 357574 Seal, Agitator

12 21366 Nut, Spanner

13 387713 Basket & Balance Ring

14 62941 Filter, Plate (Includes Illus. 15)

15 62942 Lock, Filter

16 63125 Tub

17 389140 Block, Basket Drive

18 383727 Gasket, Centerpost

19 3347780 Hose, Pressure Switch

22 3350389 Spacer, Thrust

23 3347290 Cap, Barrier

24 3348855 Seal, Inner Cap

1 3359460 Miscellaneous Parts Bag

2 16123 Washer, Inlet Hose (1-1/16 x 5/8) (4)

4 3359452 Nut, Lock (3/8-16)

5 389102 Foot, Front (2)

7 356138 Clamp, Hose
