TOP AND CABINET PARTS

1−94 Litho in U.S.A.(L.T.) Part No. 881076

For Models: LLV8233BW0, LLV8233BN0, LLV8233BQ0

(White) (Almond) (Designer White)

AUTOMATIC

WASHER

TOP AND CABINET PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LITERATURE AND OPTIONAL PARTS

For Models: LLV8233BW0, LLV8233BN0, LLV8233BQ0

(White) (Almond) (Designer White)

881076

1 357213 Nut, Push−In (2)

2 Top

3358200 For White &

Designer White

Models

3358201 For Almond Model

3 62750 Spacer, Cabinet To

Top (4)

5 Cabinet

63424 For White &

Designer White

Models

63425 For Almond Model

6 62780 Clip, Top & Cabinet

& Rear Panel (2)

8 3356311 Screw & Washer,

Lid Switch (2)

9 3352629 Switch, Lid

13 3351355 Screw, Lid Hinge

Mounting (4)

14 21097 Pad, Lid Hinge (2)

15 54584 Hinge, Lid (L.H.)

16 54583 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid

Hinge (2)

19 Lid

3361392 For White &

Designer White

Models

3361393 For Almond Model

20 358684 Strike, Lid Switch

22 93770 Bumper, Lid (2)

28 384435 Screw,

10−16 x 1/2 (4)

32 63401 Dispenser, Bleach

LITERATURE PARTS

LIT3360057 Sheet, Installation

Instructions

LIT3357460 Guide, Use and

Care

LIT3361376 Energy Guide

LIT3358743 Label, Wiring

Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT4313896 Manual, (Washer)

Do−It−Yourself

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

72110 Golden Harvest

PAINT, PRESSURIZED SPRAY

(13 oz.)

350941 Leveler (Thinner)

350938 Primer, Gray

350930 White

350956 Almond

261890 Golden Harvest

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

261891 Golden Harvest

(Uncut)

OIL

350572 Oil, Gearcase

(16 Oz.)

LUBRICANT

285208 Lubricant (Use

Only in Brake

Shoe Assembly

On Roller and

Pin)

SEALER

285195 Sealer, Gasket

(.20 Fl. Oz.) (6 ml)

SHIPPING KIT

3348675 Shipping Kit

ACCESSORY PARTS

63580 Fabric Dispenser

89121 Stand−Pipe Kit

367031 Drain Protector

285320 Siphon Break Kit

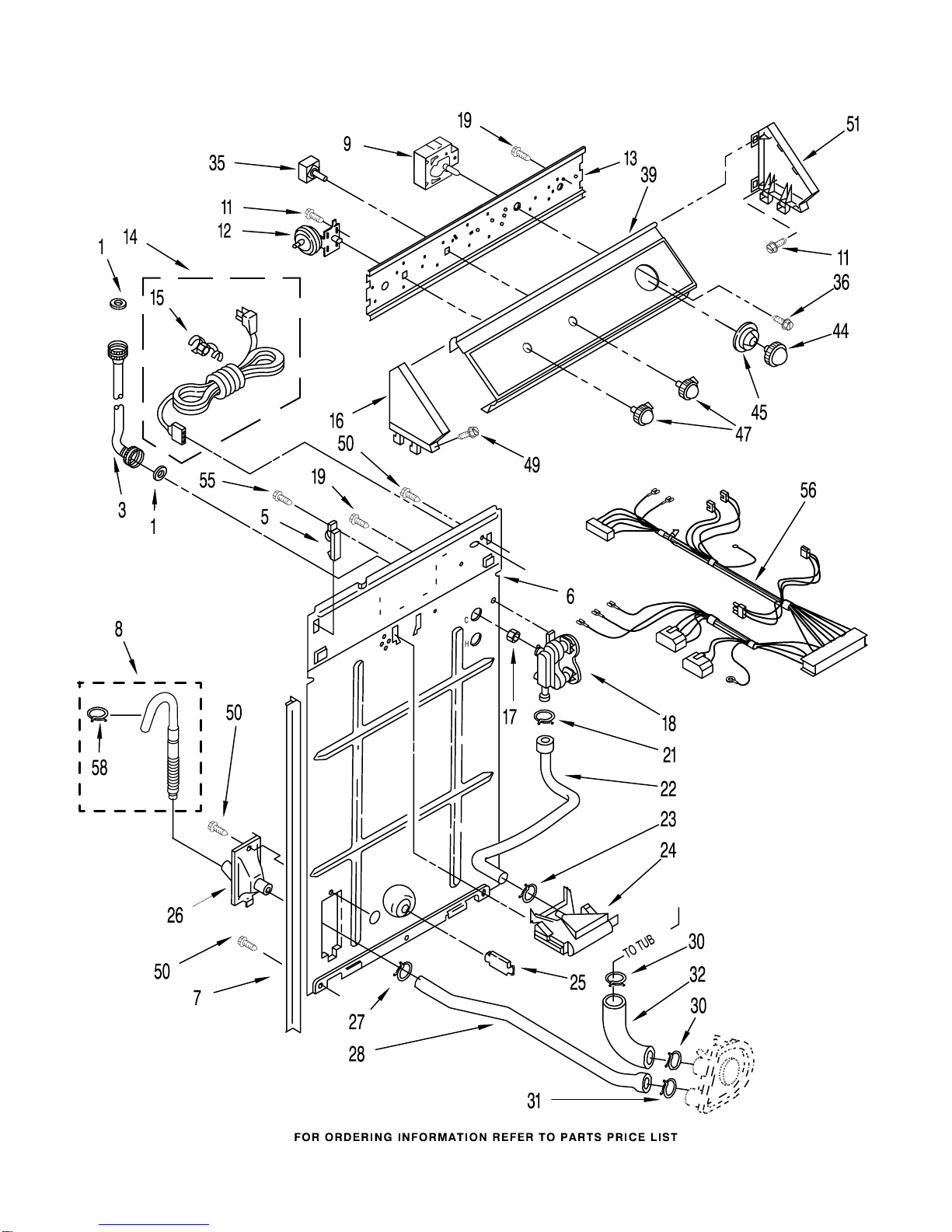

CONTROLS AND REAR PANEL PARTS

For Models: LLV8233BW0, LLV8233BN0, LLV8233BQ0

(White) (Almond) (Designer White)

881076

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

CONTROL AND REAR PANEL PARTS

For Models: LLV8233BW0, LLV8233BN0, LLV8233BQ0

(White) (Almond) (Designer White)

881076

1 16123 Washer, Water

Inlet Hose (4)

(1−1/16 x 5/8)

3 3354858 Hose, Water

Inlet (2)

5 387402 Hinge, Console (2)

6 3357978 Panel, Rear

7 62747 Pad, Rear Panel

8 661575 Hose, Drain

(4’− 8")

661577 Hose, Drain

(9’− 9")

(Not Included)

3357090 Extension

Drain Hose

(21 Inches)

(Not Included)

9 3358741 Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

11 90767 Screw, 8A x 3/8

12 3356467 Switch, Water Level

13 3360936 Bracket, Control

14 3360514 Cord, Power

15 63848 Strain Relief,

Power Cord

16 Cap, End (L.H.)

3358531 For White &

Designer White

Models

3358532 For Almond Model

17 96160 Screen, Filter (2)

18 3360392 Valve, Water

Mixing

19 90864 Screw,

10−24 x 3/8 (2)

21 660632 Clamp, Hose

272846 (Alt.)

353367 (Alt.)

22 3357328 Hose, Vacuum

Break

23 371503 Clamp, Hose

24 3347034 Break, Vacuum

25 63290 Support, Rear

Panel

26 3355497 Connector, Drain

Hose

27 356138 Clamp, Hose

28 3359818 Hose, Pump To

Drain Connector

30 371502 Clamp, Hose

31 660628 Clamp, Hose

272858 (Alt.)

370447 (Alt.)

353097 (Alt.)

32 62731 Hose, Pump To Tub

35 661538 Switch, Water

Temperature

36 96435 Screw, Timer

Mounting

(10−32 x 1) (2)

39 Panel, Console

3363062 For White Model

3363061 For Designer

White Model

3363063 For Almond Model

44 Knob, Timer

3358419 For White &

Almond Models

3358417 For Designer

White Model

45 Dial, Timer

3358446 For White &

Almond Models

3358447 For Designer

White Model

47 Knob, Control

3358434 For White &

Almond Models

3358435 For Designer

White Model

49 3353145 Screw, 8−18

(Panel to Top)

50 62863 Screw, 10−16 x 3/8

51 Cap , End (R.H.)

3358516 For White &

Designer White

Models

3358517 For Almond Model

55 3357011 Screw,

10−16 x 1/2

56 3359831 Harness, Wiring

(For Detail See

Page 9 ) Also

See Clips.

58 3357331 Clamp, Drain

Hose

AGITATOR, BASKET AND TUB PARTS

For Models: LLV8233BW0, LLV8233BN0, LLV8233BQ0

(White) (Almond) (Designer White)

881076

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

AGITATOR, BASKET AND TUB PARTS

MISCELLANEOUS PARTS

For Models: LLV8233BW0, LLV8233BN0, LLV8233BQ0

(White) (Almond) (Designer White)

881076

1 3355758 Cap, Agitator

2 358237 Screw & Washer

(5−16−24 x 1)

3 3349019 Clothes Mover

4 3350830 Agitator

5 3360611 Tub Ring & Gasket

6 3359586 Gasket, Tub Ring

7 387868 Balance Ring

8 387867 Clip, Balance

Ring (8)

9 3351001 Cam Driven

10 387091 Dog, Agitator

Clutch

12 21366 Nut, Spanner

13 387713 Basket & Balance

Ring

14 3361948 Filter, Plate

16 63039 Tub

17 389140 Block, Basket

Drive

18 383727 Gasket, Centerpost

19 3347780 Hose, Pressure

Switch

20 3350829 Agitator

(Complete Asy.)

21 3358198 Hose, Bleach

22 3350389 Spacer, Thrust

23 3347290 Cap, Barrier

24 3348855 Seal, Inner Cap

1 3359460 Miscellaneous

Parts Bag

2 16123 Washer, Inlet

Hose

(1−1/16 x 5/8) (4)

4 3359452 Nut, Lock

(3/8−16)

5 389102 Foot, Front (2)

7 356138 Clamp, Hose

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

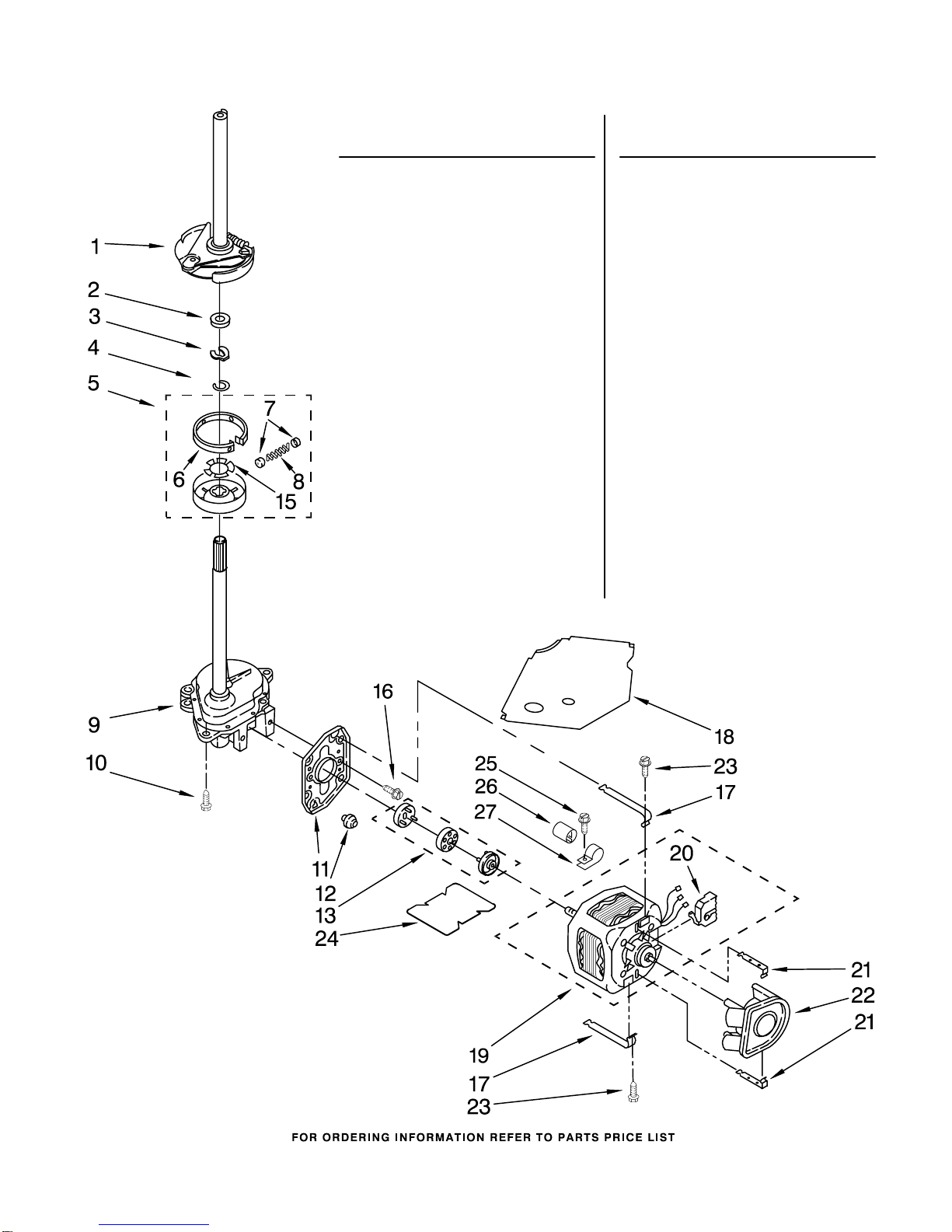

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Models: LLV8233BW0, LLV8233BN0, LLV8233BQ0

(White) (Almond) (Designer White)

1 388951 Brake & Drive

Tube (Complete)

(Refer to Page 11

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3350115 Clutch (Complete)

6 388190 Band & Lining,

Clutch (Includes

Illus. 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3354731 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page 12

For Further

Breakdown)

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 62693 Coupling, Motor

& Isolation

15 3355454 Clip,

Anti−Rattle

16 3357334 Screw (2)

17 3349637 Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 3349644 Motor, Main

Drive

20 62850 Switch, Main

Drive Motor

21 62700 Retainer, Pump (2)

22 3352492 Pump (Complete)

23 3387485 Screw, 10−16 x 5/8

24 3351341 Shield, Motor

25 9420601 Screw,

10−16 x 5/16

26 357021 Capacitor

27 357030 Clamp, Capacitor

881076

Illus. Part

No. No. DESCRIPTION

MACHINE BASE PARTS

1 343641 Screw, Bracket

Mounting

(10−16 x 5/8) (6)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring

Suspension,(3)

4 3362087 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 3348727 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

13 3347047 Bearing,

Centerpost (2)

14 357409 Seal, Centerpost (3)

15 388492 Spring,

Counterweight

16 62568 Pad, Plate

17 389299 Plate, Suspension

(Includes Illus. 16)

18 62602 Pad, Base

19 3359886 Base Assembly

(Includes Illus, 6,

7, 8, 9, 18 & 26)

21 3359452 Nut, Lock

(3/8−16)

22 389102 Foot, Front (2)

23 356934 Seal, Centerpost (2)

24 285203 Centerpost

Bearing Kit

(Includes Illus.

13, 14 & 23)

25 63134 Ring, Sound

Deadening

26 63806 Retainer,

Suspension Spring

For Models: LLV8233BW0, LLV8233BN0, LLV8233BQ0

(White) (Almond) (Designer White)

881076

WIRING HARNESS PARTS

WH2B

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3349557 Clip, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

5 90016 Clip, Harness

6 3390496 Clip, Harness

7 389379 Retainer,

(Suds Models)

8 352090 Timer, Block

Disconnect

(White)

9 352089 Timer, Block

Disconnect

(Black)

10 62889 Receptacle,

Terminal

(3−Way)

(Lid Switch)

(Use Term. 94613

or 94614 )

11 353424 Plug, Terminal

(3−Way)

(Power Cord)

(Use Term. 94613)

12 62505 Block, Disconnect

(Motor 2 Speed)

(Use Term. 352088)

13 3348075 Block, Disconnect

(Motor 3 Speed)

(Use Term. 94613

or 94614)

14 3347243 Block, Disconnect

(Use Term. 352088)

15 63523 Protector

16 717252 Connector

(2−Way)

(Suds Valve)

(Use Term. 94614)

17 387566 Plug, Terminal

(4−Way)

(Power Cord)

(Use M3 Screws)

18 3352944 Clip, Harness

19 3390423 Block, Disconnect

(12−Way)

(Timer)

(Use Term. 94613)

20 3347730 Receptacle,

(6−Way)

(Use Term. 94613)

21 388818 Plug, Terminal

(12−Way)

(Use Term. 94613

or 94614)

22 3369366 Timer, Block

Disconnect

(Black) (Amp)

(Use Term. 3369365)

23 3349494 Connector, ETC

(Use Term. 340795)

FOR COMPLETE WIRING HARNESS REFER TO

CONTROL AND REAR PANEL PARTS PAGE

For Models: LLV8233BW0, LLV8233BN0, LLV8233BQ0

(White) (Almond) (Designer White)

881076

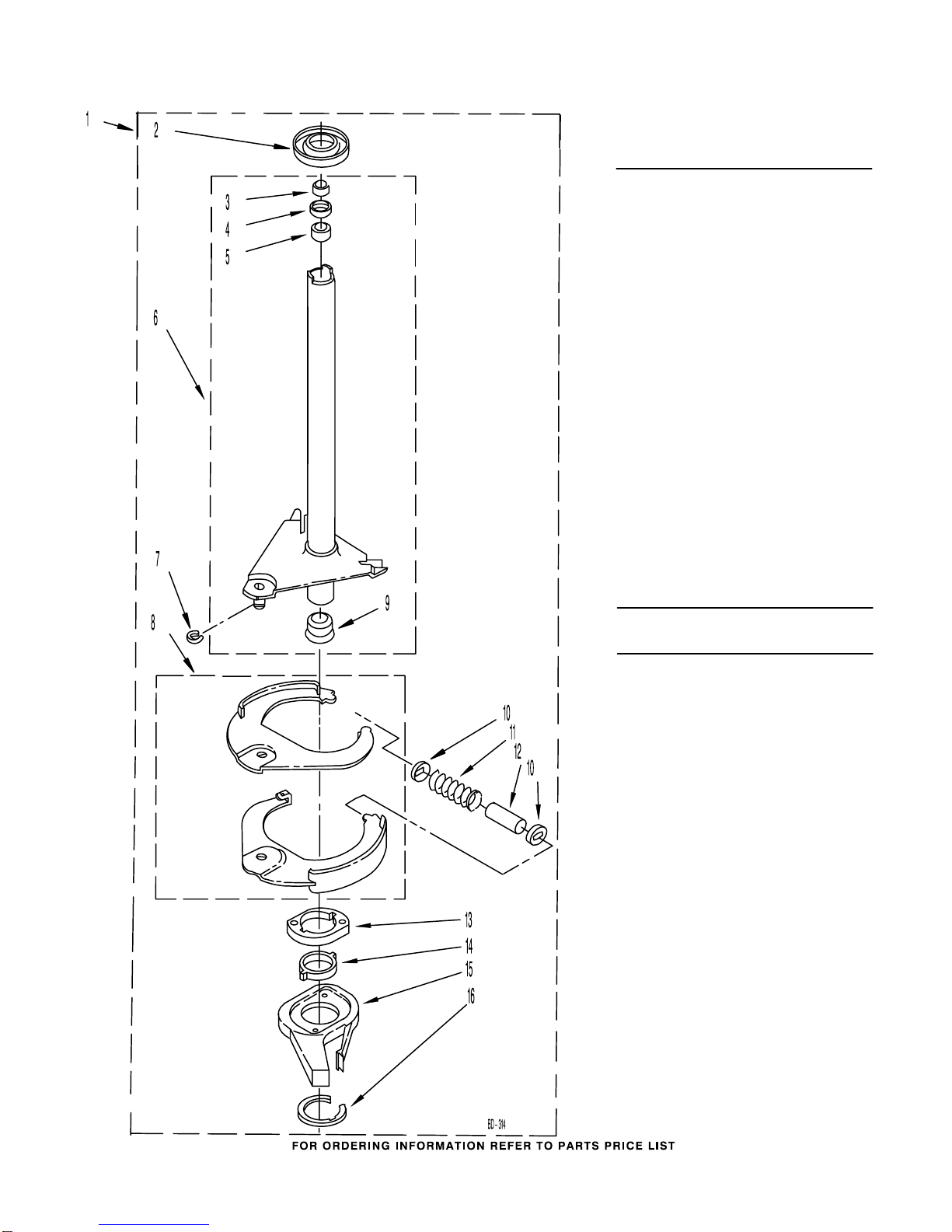

BRAKE AND DRIVE TUBE PARTS

Illus. Part

No. No. DESCRIPTION

1 388951 Brake And Drive

Tube (Complete)

2 62658 Ring, Thrust

3 91939 Seal, Oil

4 356427 Seal, Drive Tube

5 356937 Spacer, Drive

Tube

6 64027 Tube, Basket

Drive (Includes

Illus. 3, 4, 5 & 9)

7 64035 Ring, Retaining

8 64232 Brake Shoe

9 62703 ‘‘T’’ Bearing,

Spin Tube

10 62648 Cap, Brake

Spring (2)

11 62647 Spring, Brake

12 62909 Sleeve, Brake

Spring

13 63023 Cam, Brake

Release

14 63022 Sleeve, Cam

15 64194 Driver, Brake

Cam

16 90368 Ring, Retaining

FOLLOWING PARTS

NOT ILLUSTRATED

285208 Lubricant

(Use Only In

Brake Shoe

Assembly On

Roller & Pin)

For Models: LLV8233BW0, LLV8233BN0, LLV8233BQ0

(White) (Almond) (Designer White)

881076

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Whirlpool Rondella

Whirlpool

Whirlpool WVED900AHG Manuale utente

Whirlpool

Whirlpool Cabrio WTW6400S Manuale utente

Whirlpool

Whirlpool Duet WFW9450W Manuale

Whirlpool

Whirlpool WWBCM58E0A Guida rapida

Whirlpool

Whirlpool FSCR80214 Manuale di installazione e funzionamento

Whirlpool

Whirlpool Duet WFW9200SQ02 Guida alla risoluzione dei problemi

Whirlpool

Whirlpool GHW9400P Istruzioni utente

Whirlpool

Whirlpool WPL-2727 Manuale operativo

Whirlpool

Whirlpool GSW9650LW0 Istruzioni per l'uso e l'installazione

Whirlpool

Whirlpool AWO 7120 Manuale utente

Whirlpool

Whirlpool FSCR12430 Manuale di installazione e funzionamento

Whirlpool

Whirlpool 3360462 Manuale utente

Whirlpool

Whirlpool LSR8433KQ1 Manuale di istruzioni

Whirlpool

Whirlpool 3363560 Istruzioni per l'installazione

Whirlpool

Whirlpool FWMD10502G Series Guida all'installazione

Whirlpool

Whirlpool LBR6133DQ0 Manuale utente

Whirlpool

Whirlpool LA56OOXP Manuale utente

Whirlpool

Whirlpool W10783949A Manuale utente

Whirlpool

Whirlpool WTW5790SQ2 Manuale utente

Whirlpool

Whirlpool WFW96HEAC Manuale d'uso e manutenzione

Whirlpool

Whirlpool WFC 3C26 P X Manuale utente

Whirlpool

Whirlpool GHW9300P Manuale utente

Whirlpool

Whirlpool Cabrio WTW6200S Manuale utente

Whirlpool

Whirlpool AWOC 0714 Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Beko

Beko WKB 51231 PTMA Manuale utente
