Whirlpool WFW8300SW0 Guida alla risoluzione dei problemi

TOP AND CABINET PARTS

For Model: WFW8300SW0

(White)

4−06 Printed in U.S.A. (drd) Part No. 8181055

AUTOMATIC WASHER

TOP AND CABINET PARTS

For Model: WFW8300SW0

(White)

8181055

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8540910 Use & Care Guide

8540259 Tech Sheet

8540904 Energy Guide

8540913 Quick Start Guide

2 8540716 Top

3 8540548 Cabinet

4 8540572 Panel, Front

5 8540813 Toe Panel

6 389102 Foot, Leveling (4)

7 8540643 Bracket, Spring

8 3359452 Nut, Lock (4)

9 8518891 Rivet (2)

10 8540582 Panel, Rear

11 8540583 Brace, Transport

12 8540199 Bolt, Shipping (4)

13 Hose, Water Inlet

8571377 Blue Coupler

8571378 Red Coupler

14 8540752 Cord, Power

15 8540135 Motor Control Unit

16 8540557 Brace, Rear

17 8540093 Clamp, Tube

Transportation

18 8540011 Hose, Drain

19 8540607 Retainer,

Hose Outlet

20 8540977 Bumper (2)

W10015090

Screw, 8−18 x 5/8

22 8540230 Filter,

Interference

23 8540224 Switch, Pressure

24 8540294 Hose, Pressure

Switch

25 8540479 Screw, Grounding

26 8540268 Cover, Transport

27 8540021 U−Bend,

Drain Hose

28 8540210 Microswitch (2)

29 8540728 Sleeve,

Cord Support (2)

30 8540727 Screw, 3 x 8 mm

31 8540329 Screw

32 8540720 Brace, Top

(Includes Item 33)

33 8283273 Damper, Brace

34 2161302 Sleeve, Pressure

Switch Hose

35 8540947 Cable Tie

36 16123 Washer, Water

Inlet Hose (4)

1−1/16 x 5/8

37 8540290 Harness Channel,

Top Rear

38 8540288 Harness Channel,

Side Front

39 8540289 Harness Channel,

Side Rear

40 3390647 Screw, 8−18 x 1/2

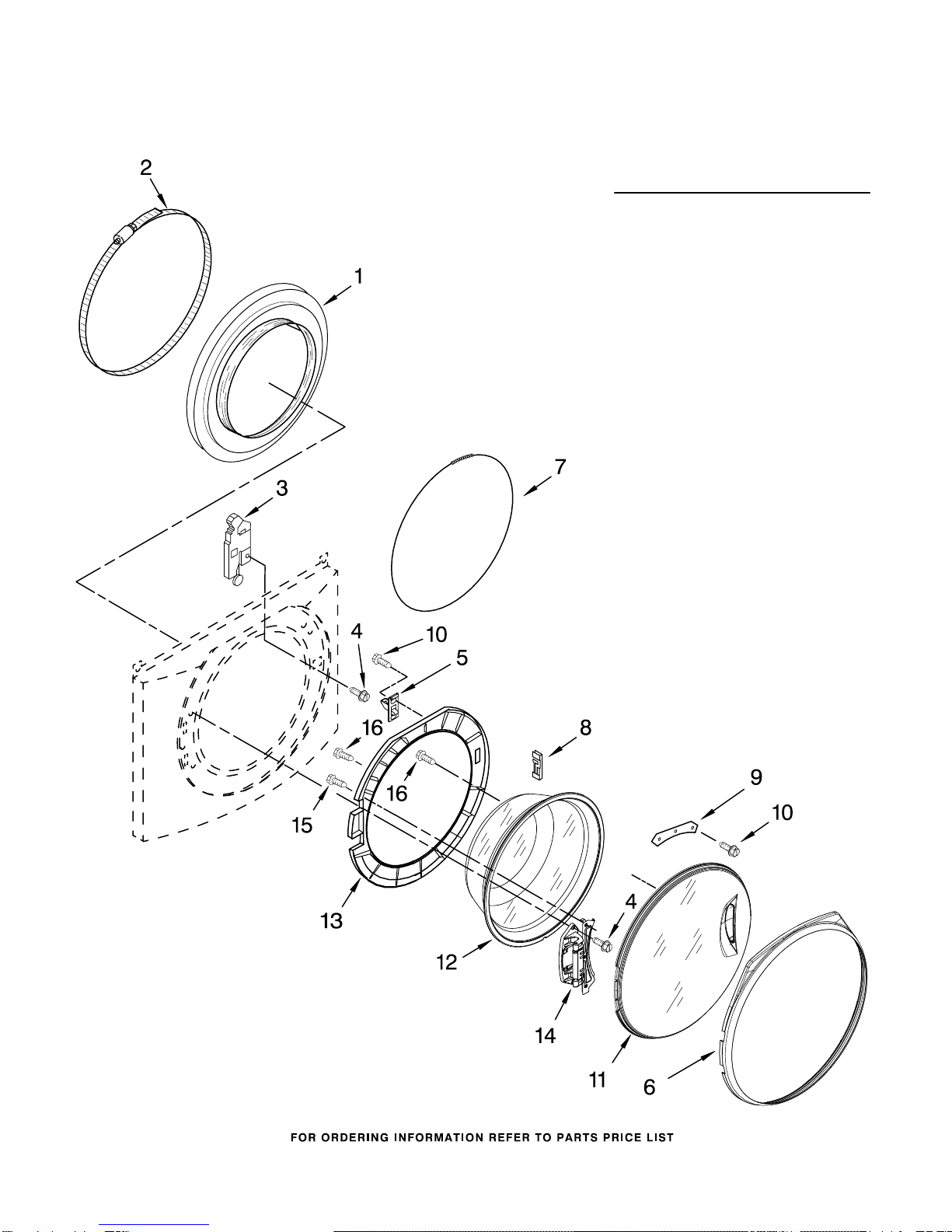

DOOR AND LATCH PARTS

For Model: WFW8300SW0

(White)

8181055

Illus. Part

No. No. DESCRIPTION

1 8540952 Bellow

2 8540108 Clamp, Bellow

3 8540772 Lock, Door

4 8540725 Screw

5 8540221 Hook, Door

6 8540533 Trim Ring,

Outer Door

7 8540107 Clamp, Bellow

(Front)

8 8540115 Clamp, Support

9 8540114 Clamp, Glass (2)

10 8540513 Screw

11 8540588 Frame, Door

Front Assembly

12 8540428 Glass, Door

13 8540891 Door,

Back Support

14 8540416 Hinge, Door

15 8540284 Screw

16 8540282 Screw

CONTROL PANEL PARTS

For Model: WFW8300SW0

(White)

8181055

Illus. Part

No. No. DESCRIPTION

1 8574927 Panel, Control

2 8571944 Knob, Control

3 8571903 User Interface

4 8540558 Brace, Top Front

5 8540839 Channel, Water

6 8541000 Microcomputer,

Machine Control

7 3390647 Screw, 8−18 x 1/2

8 8540703 Harness, Wiring

(Main)

9 8540282 Screw

W10015090

Screw, 8−18 x 5/8

DISPENSER PARTS

For Model: WFW8300SW0

(White)

8181055

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8540751 Valve, Inlet

2 8540065 Hose, Valve

To Dispenser

3 370450 Clamp, Hose

4 8540282 Screw, Valve Mtg.

5 8540042 Nozzle, Inlet

6 8540393 Cam, Actuator

7 8540394 Lever, Water

Distribution

8 8540041 Actuator

9 8540282 Screw

10 8281276 Clamp, Hose

11 8540395 Connection, Lever

12 8540058 Dispenser

13 8540053 Nozzle,

Distribution

14 8540063 Hose, Dispenser

To Tub

15 8571947 Handle, Drawer

16 8529540 Medallion

17 8540402 Drawer,

Detergent

18 8540399 Cover,

Detergent Drawer

19 8540429 Siphon,

Bleach/Softener

20 8540400 Hook, Drawer

PUMP AND MOTOR PARTS

For Model: WFW8300SW0

(White)

8181055

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8540704 Harness, Motor

2 8540033 Cap, Right Foot

3 8540180 Air Trap

4 8540013 Ball

5 8540008 Clamp

6 8540012 Hose,

Tub to Pump

7 370448 Clamp

8 8540032 Damper, Rubber

(Left Foot)

9 356138 Clamp, Hose

10 8540024 Pump (Complete)

11 8540031 Damper, Rubber

(Right Foot)

12 8533964 Screw,

10−16 x 1.25 (2)

13 8540025 Seal, Filter Cap

14 8540996 Filter Assembly

(Includes Item 13)

15 8540133 Motor, Drive

16 8540134 Bolt, Motor

TUB AND BASKET PARTS

For Model: WFW8300SW0

(White)

8181055

TUB AND BASKET PARTS

For Model: WFW8300SW0

(White)

8181055

Illus. Part

No. No. DESCRIPTION

1 8533999 Nut, Pulley

2 8540088C Pulley

3 8540101 Belt, Drive

4 8540600 Counterweight,

Front Lower

5 8540737 Pipe, Ventilation

6 8540010 Clamp, Vent Hose

7 8540019 Hose, Exhaust

8 8540446 Tub, Rear

9 8540602 Counterweight,

Rear

10 8540090 Gasket, Tub

11 8540451 Basket, Complete

12 8540456 Baffle, Tub

14 8534084 Nut, Shock

Absorber Mounting

15 8540598 Counterweight,

Front Upper

W10010360

Spring,

Suspension

(Set Of 2)

17 8540292 Bolt,

Counterweight Mtg.

18 3363365 Clamp

19 8540015 Hose, Exhaust

20 8540092 Clamp, Tub

21 8540449 Tub, Front

(Includes Item 22)

22 8540072 Nut, Push−In

23 8540852 Shock Absorber

24 8540226 Negative

Thermistor Control

25 8540766 Seal, Rubber

26 8540382 Screw

27 8540457 Crosspiece Asm

28 8540940 Bracket, Shock

Absorber Mounting

29 8540841 Bolt, Shock Brkt.

30 8540842 Nut, Shock Brkt.

OPTIONAL PARTS (NOT INCLUDED)

For Model: WFW8300SW0

(White)

8181055

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350938 Primer, Gray

350930 White

PAINT, BULK (1 qt.)

799344 White (Uncut)

ACCESSORY PARTS

285863 Drain Extension
