Whirlpool WTW5200SQ0 Manuale utente

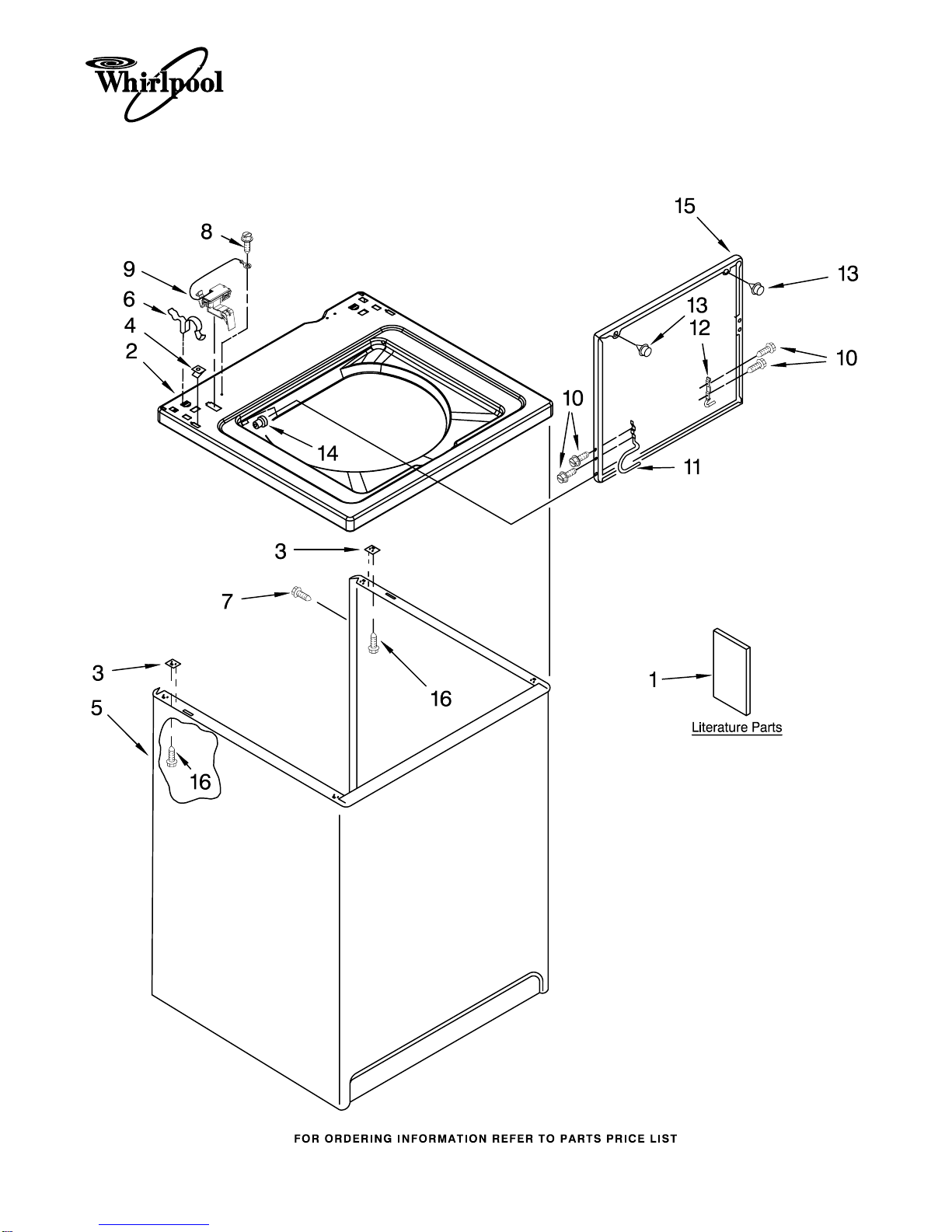

TOP AND CABINET PARTS

For Model: WTW5200SQ0

(White)

6−06 Litho in U.S.A. (drd) Part No. 8181382

AUTOMATIC

WASHER

TOP AND CABINET PARTS

For Model: WTW5200SQ0

(White)

8181382

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10044800

Installation

Instructions

3957874 Feature Sheet

3955884 Use & Care Guide

W10023690

Energy Guide

8578871 Wiring Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

4313896 Manual, Washer

2 8318068 Top

3 62750 Spacer, Cabinet To

Top (4)

4 357213 Nut, Push−In (2)

5 63424 Cabinet

6 62780 Clip, Top & Cabinet

& Rear Panel (2)

7 3357011 Screw, 10−16 x 1/2

8 3351614 Screw, Ground

9 8318084 Switch, Lid

10 3351355 Screw, Lid Hinge

Mounting (4)

11 8318088 Hinge, Lid (L.H.)

12 91770 Hinge, Lid (R.H.)

13 9724509 Bumper, Lid (2)

14 21258 Bearing, Lid

Hinge (2)

15 8580061 Lid

16 3390631 Screw

10−16 X 3/8 (4)

CONTROLS AND REAR PANEL PARTS

For Model: WTW5200SQ0

(White)

8181382

CONTROLS AND REAR PANEL PARTS

For Model: WTW5200SQ0

(White)

8181382

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3976300 Washer, Water

Inlet Hose (4)

(1−1/16 x 5/8)

2 9740848 Screw, 8/18 x 1/2

3 Hose, Water

Inlet (2)

8571377 Blue Coupler

8571378 Red Coupler

4 8577378 U−Bend,

Drain Hose

5 8568314 Strap, Console (2)

6 8318015 Panel, Rear

7 62747 Pad, Rear Panel

8 8559373 Drain Hose

Assembly

(Includes Illus.

Nos. 19 & 27)

9 8578869 Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

10 3351614 Screw, Ground

11 90767 Screw, 8/18 x 3/8

12 8577845 Switch, Water Level

13 8544893 Bracket, Control

14 3956162 Cord, Power

(Includes Item 15)

15 3952821 Strain Relief,

Power Cord

16 8271365 Cap, End (L.H.)

17 8318046 Clip, Capacitor

18 8578340 Valve, Water Inlet

W/Bi−Metal

19 8541668 Clamp, Hose

20 62863 Screw, 10−16 x 3/8

21 301958 Clamp, Hose

22 8317974 Hose, Vacuum

Break

23 370450 Clamp, Hose

24 387606 Break, Vacuum

25 303294 Edge Protector

26 8519200 Support, Rear

Panel

27 8541667 Clamp, Hose

28 8055003 Clip, Harness

& Pressure Hose

29 8572717 Capacitor,

Motor Start

30 3363366 Clamp, Hose

31 8317496 Clamp, Hose

32 3951449 Hose, Pump To Tub

(Includes Item 30)

33 3400073 Screw, Ground

36 3400818 Screw, Timer

Mounting

37 8541669 Bucket, Drain Hose

(Left Half)

38 8541658 Bucket, Drain Hose

(Right Half)

39 8578799 Panel, Console

44 8566022 Knob, Timer

45 8566018 Dial, Timer

46 8565944 Knob, Control

47 8536939 Clip, Knob

49 388326 Screw, Console

(Panel to Top)

51 8271359 Cap, End (R.H.)

55 8317975 Retainer, Harness

56 3347868 Cable Tie

59 8539874 Shield, Suds

60 3958089 Harness, Wiring

(For Detail See

Page 9 & 10)

AGITATOR, BASKET AND TUB PARTS

For Model: WTW5200SQ0

(White)

8181382

AGITATOR, BASKET AND TUB PARTS

For Model: WTW5200SQ0

(White)

8181382

Illus. Part

No. No. DESCRIPTION

1 3355758 Cap, Agitator

2 358237 Screw & Washer

3 3949550 Washer

4 3350389 Spacer, Thrust

5 3347288 Agitator

6 8528150 Tub Ring

7 3976308 Gasket, Tub Ring

8 21366 Nut, Spanner

9 8526017 Basket & Balance

Ring

10 8519788 Balance Ring

11 63849 Tub

12 389140 Block, Drive

13 383727 Gasket, Centerpost

14 3347780 Hose, Pressure

Switch

15 2219077 Clip, Pressure

Switch Hose

16 3354733 Cap, Barrier

17 3348855 Seal, Inner Cap

18 3366877 Dog, Agitator (4)

19 3363661 Bearing, Driven

Cam

20 3363663 Cam, Driven

21 3348752 Clothes Mover

22 3348117 Agitator

(Complete)

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Model: WTW5200SQ0

(White)

8181382

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 388952 Brake & Drive

Tube (Complete)

(Refer to Page 11

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3951311 Clutch (Complete)

6 3951308 Band & Lining,

Clutch (Includes

Items 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3946792 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page

12 For Further

Breakdown)

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 285753 Coupling, Motor

And Isolation

14 3946532 Shield, Motor

15 3355454 Clip,

Anti−Rattle

16 3400516 Screw

17 3349637 Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 8528158 Motor, Main

Drive (Spring

P/N 388492 Must

Be Ordered When

Replacing Motor)

20 3952056 Switch, Main

Drive Motor

21 8546127 Retainer, Pump (2)

22 3363394 Pump (Complete)

23 3387485 Screw,

10−16 x 5/8

MACHINE BASE PARTS

For Model: WTW5200SQ0

(White)

8181382

Illus. Part

No. No. DESCRIPTION

1 3400076 Screw, Bracket

Mounting

(10−32 x 5/8)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring, Suspension (3)

4 8575214 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 63466 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

10 8546455 Bearing,

Centerpost (2)

11 357409 Seal, Centerpost (3)

12 8534035 Spring,

Counterweight

(Must Be Ordered

When Replacing

Drive Motor)

13 62568 Pad, Plate

14 3946509 Plate, Suspension

(Includes Item 13)

15 3363660 Pad, Base

16 3946512 Base Assembly

(Includes Items 6,

7, 8, 9, 13, 14,

15 & 22)

17 3359452 Nut, Lock (2)

(3/8−16)

W10001130

Foot, Front (2)

19 356934 Seal, Centerpost

20 285203 Centerpost

Bearing Kit

(Includes Items

10, 11 & 19)

21 63134 Ring, Sound

Deadening

22 63806 Retainer,

Suspension Spring

WIRING HARNESS PARTS

For Model: WTW5200SQ0

(White)

8181382

WIRING HARNESS PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3349557 Retainer, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

(Push−In)

5 90016 Clip, Harness

(Half−Harness)

6 3390496 Clip, Harness

7 389379 Retainer, Harness

8 Timer, Block

Disconnect

3948614 Natural

352089 Black

9 62889 Receptacle,

Terminal

(3−Way)

10 353424 Plug, Terminal

(3−Way)

11 62505 Block, Disconnect

(Motor 2 Speed)

12 3347243 Block, Disconnect

13 63523 Protector

14 717252 Connector

(2−Way)

15 3352944 Clip, Harness

16 3390423 Block, Disconnect

(12−Way)

17 3347730 Receptacle

(6−Way)

18 3948617 Connector (T.P.A.)

(3−Circuit)

19 3360056 Plug (T.P.A)

(3−Circuit)

(Pressure Switch)

20 Block, Connector

3354925 Natural

3354926 Red

FOR COMPLETE WIRING HARNESS REFER TO

CONTROL AND REAR PANEL PARTS PAGE

For Model: WTW5200SQ0

(White)

8181382
