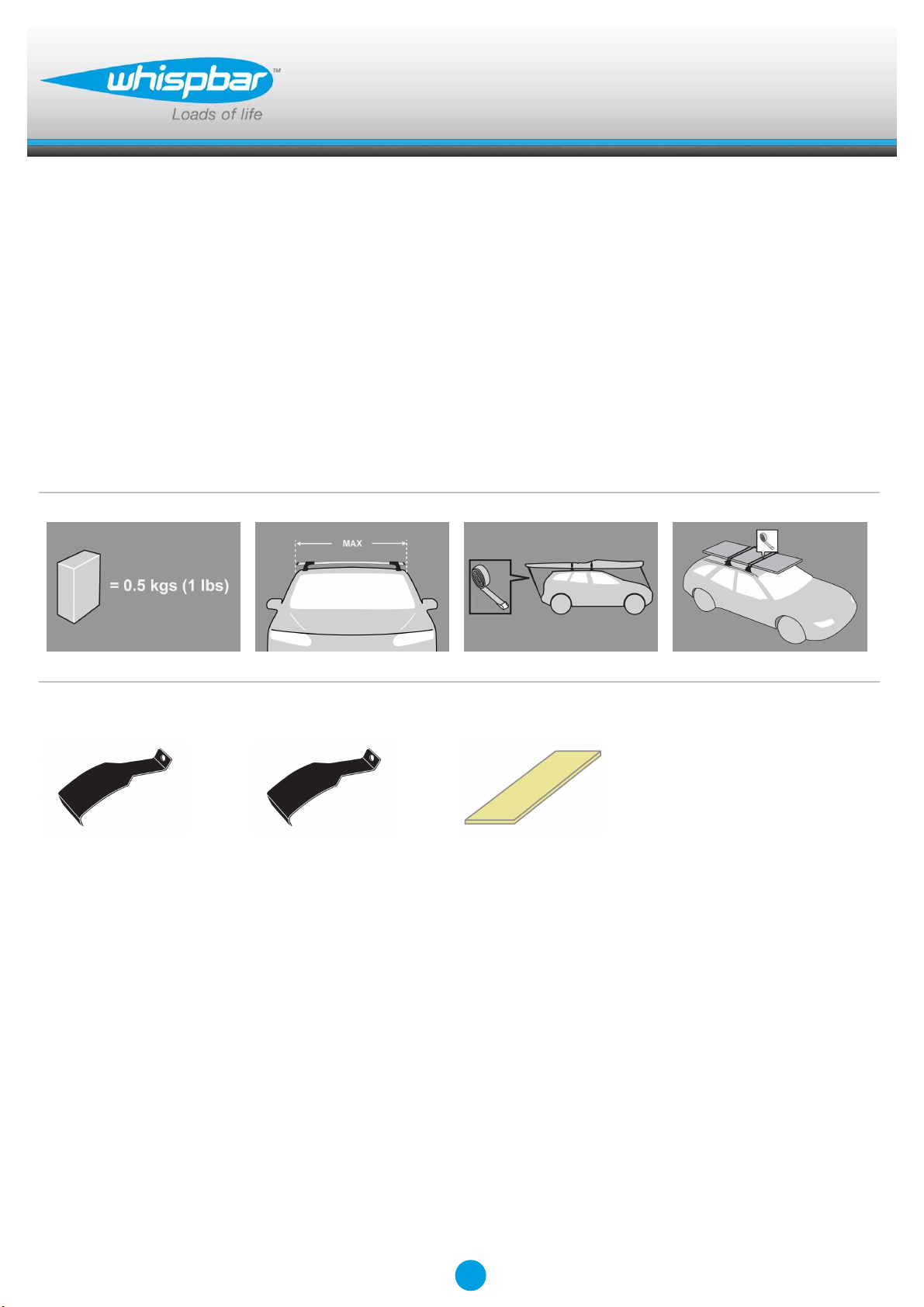

K311W

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 2 x 2 x 4

Revision No: 6F 1

Fitting Kit K311W

MAX kgs (lbs)

W/P WHD

Mazda

2, 5dr Hatch 07-+ ZA 50 kgs (110 lbs) 50 kgs (110 lbs)

2, 5dr Hatch 07-+ CN 50 kgs (110 lbs) 50 kgs (110 lbs)

2, 5dr Hatch 07-14 EU 50 kgs (110 lbs) 50 kgs (110 lbs)

2, 5dr Hatch 10-+ US 50 kgs (110 lbs) 50 kgs (110 lbs)

2, 5dr Hatch Sep 07-14 AU 50 kgs (110 lbs) 50 kgs (110 lbs)

2, 5dr Hatch Sep 07-14 NZ 50 kgs (110 lbs) 50 kgs (110 lbs)

Demio, 5dr Hatch Sep 07-14 NZ 50 kgs (110 lbs) 50 kgs (110 lbs)

2

Fitting Kit K311W

X

A B C 1 2 3

2, 5dr Hatch 07-+ (ZA) -150mm 500mm - 760mm 693mm -

-5 -7/8ths" 19 11/16ths" - 29 15/16ths" 27 5/16ths" -

2, 5dr Hatch 07-+ (CN) -150mm 500mm - 760mm 693mm -

-5 -7/8ths" 19 11/16ths" - 29 15/16ths" 27 5/16ths" -

2, 5dr Hatch 07-14 (EU) -150mm 500mm - 760mm 693mm -

-5 -7/8ths" 19 11/16ths" - 29 15/16ths" 27 5/16ths" -

2, 5dr Hatch 10-+ (US) -150mm 500mm - 760mm 693mm -

-5 -7/8ths" 19 11/16ths" - 29 15/16ths" 27 5/16ths" -

2, 5dr Hatch Sep 07-14 (AU) -150mm 500mm - 760mm 693mm -

-5 -7/8ths" 19 11/16ths" - 29 15/16ths" 27 5/16ths" -

2, 5dr Hatch Sep 07-14 (NZ) -150mm 500mm - 760mm 693mm -

-5 -7/8ths" 19 11/16ths" - 29 15/16ths" 27 5/16ths" -

Demio, 5dr Hatch Sep 07-14 (NZ) -150mm 500mm - 760mm 693mm -

-5 -7/8ths" 19 11/16ths" - 29 15/16ths" 27 5/16ths" -

3

Fitting Kit EN

K311W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

4

Fitting Kit EN

K311W

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

5

Fitting Kit EN

K311W

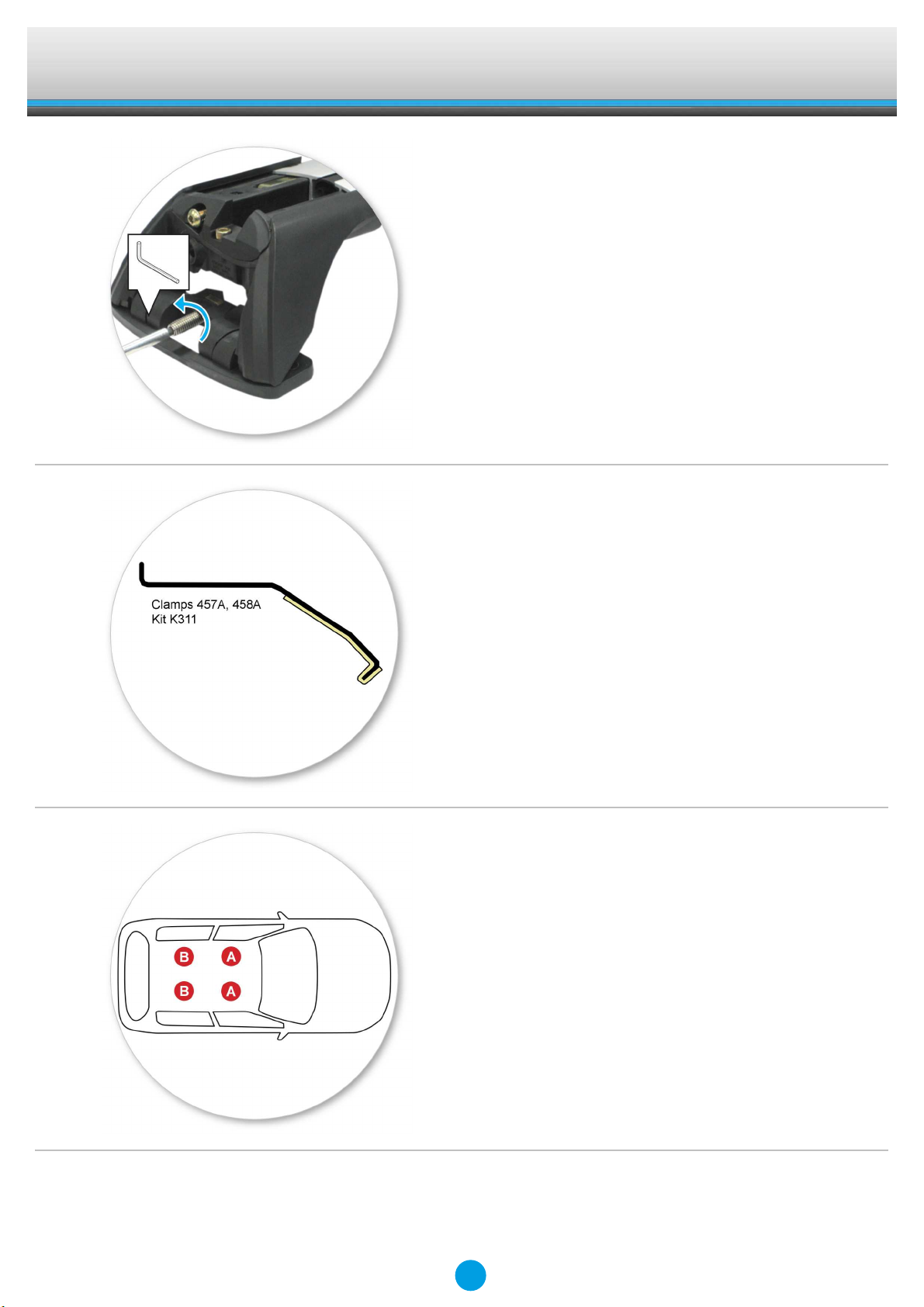

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = 457A

B = 458A

6

Fitting Kit EN

K311W

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

7

Fitting Kit EN

K311W

●Make sure the pad fits into the holes

underneath the foot.

Fitment

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

8

Fitting Kit EN

K311W

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Tighten locking screw on both legs evenly.

●Check crossbar is securely attached to the

vehicle.

9

Fitting Kit EN

K311W

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
