Whispbar K456W Manuale utente
K456W
Fitting Kit

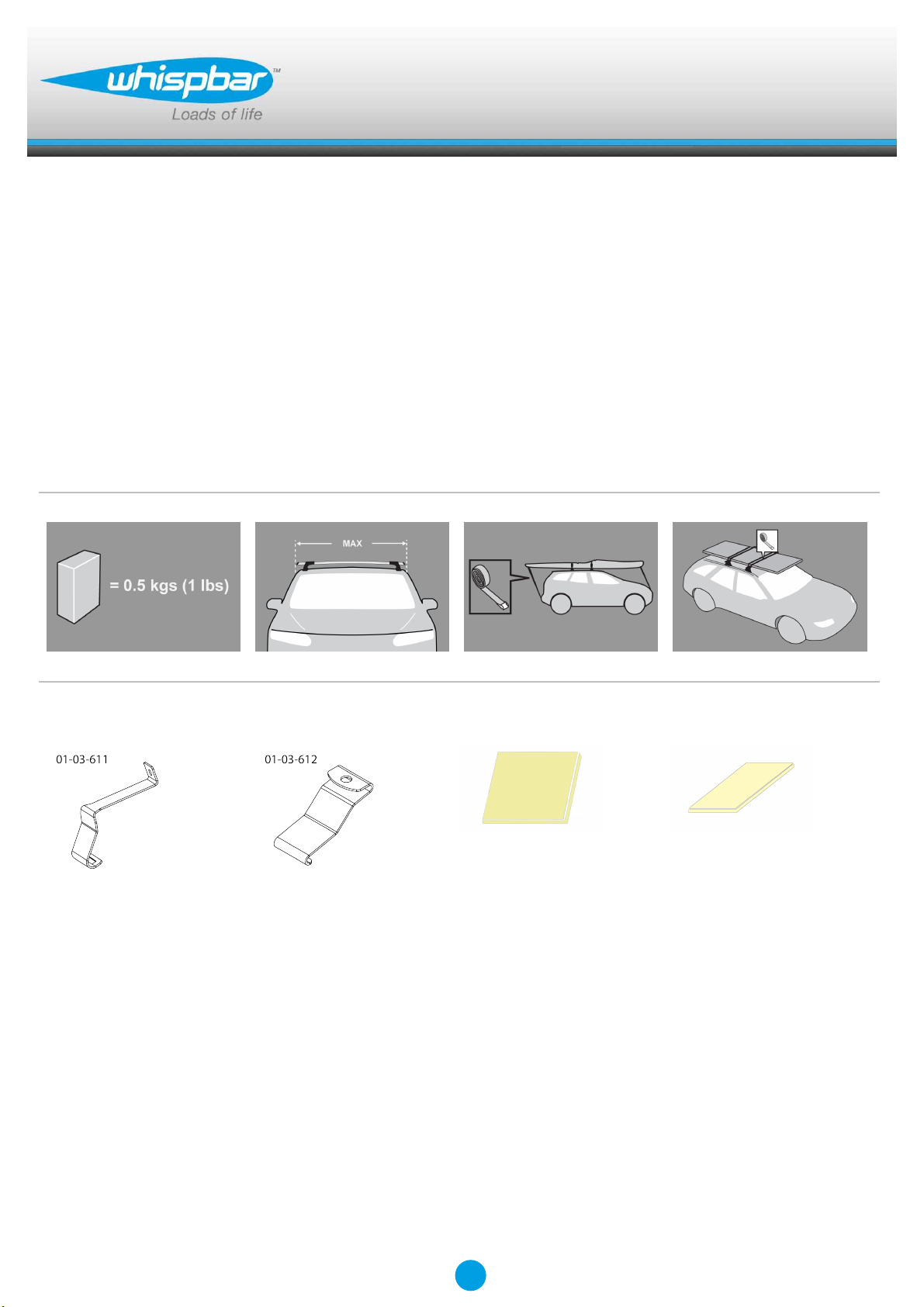

EN Fitting Instructions for Basic Carrier
x 4 x 4 x 8 x 4
Revision No: 8H 1
Fitting Kit K456W
MAX kgs (lbs)
W/P WHD
Great Wall
Steed Double Cab, 4dr Ute 09-16 ZA 50 kgs (110 lbs) 50 kgs (110 lbs)
Steed Double Cab, 4dr Ute 10-+ EU 50 kgs (110 lbs) 50 kgs (110 lbs)
Steed Double Cab, 4dr Ute 10-16 CN 50 kgs (110 lbs) 50 kgs (110 lbs)
Steed Single Cab, 2dr Ute 10-+ EU 30 kgs (66 lbs) 30 kgs (66 lbs)
Steed Single Cab, 2dr Ute 10-+ ZA 30 kgs (66 lbs) 30 kgs (66 lbs)
Steed Single Cab, 2dr Ute 10-+ CN 30 kgs (66 lbs) 30 kgs (66 lbs)
V200 Double Cab, 4dr Ute Jul 11-16 AU 50 kgs (110 lbs) 50 kgs (110 lbs)
V200 Double Cab, 4dr Ute Jul 11-16 NZ 50 kgs (110 lbs) 50 kgs (110 lbs)
V200 Single Cab, 2dr Ute 10-+ AU 30 kgs (66 lbs) 30 kgs (66 lbs)
V200 Single Cab, 2dr Ute 10-+ NZ 30 kgs (66 lbs) 30 kgs (66 lbs)
V240 Double Cab, 4dr Ute Jul 09-+ NZ 50 kgs (110 lbs) 50 kgs (110 lbs)
V240 Double Cab, 4dr Ute Jul 09-+ AU 50 kgs (110 lbs) 50 kgs (110 lbs)
V240 Single Cab, 2dr Ute 10-+ AU 30 kgs (66 lbs) 30 kgs (66 lbs)
V240 Single Cab, 2dr Ute 10-+ NZ 30 kgs (66 lbs) 30 kgs (66 lbs)
2
Fitting Kit K456W
X
A B C 1 2 3
Steed Double Cab, 4dr Ute 09-16 (ZA) -270mm 470mm - 835mm 815mm -
-10 -5/8ths" 18 1/2ths" - 32 7/8ths" 32 1/16ths" -
Steed Double Cab, 4dr Ute 10-+ (EU) -270mm 470mm - 835mm 815mm -
-10 -5/8ths" 18 1/2ths" - 32 7/8ths" 32 1/16ths" -
Steed Double Cab, 4dr Ute 10-16 (CN) -270mm 470mm - 835mm 815mm -
-10 -5/8ths" 18 1/2ths" - 32 7/8ths" 32 1/16ths" -
Steed Single Cab, 2dr Ute 10-+ (EU) -160mm - - 850mm - -
-6 -5/16ths" - - 33 7/16ths" - -
Steed Single Cab, 2dr Ute 10-+ (ZA) -160mm - - 850mm - -
-6 -5/16ths" - - 33 7/16ths" - -
Steed Single Cab, 2dr Ute 10-+ (CN) -160mm - - 850mm - -
-6 -5/16ths" - - 33 7/16ths" - -
V200 Double Cab, 4dr Ute Jul 11-16 (AU) -270mm 470mm - 835mm 815mm -
-10 -5/8ths" 18 1/2ths" - 32 7/8ths" 32 1/16ths" -
V200 Double Cab, 4dr Ute Jul 11-16 (NZ) -270mm 470mm - 835mm 815mm -
-10 -5/8ths" 18 1/2ths" - 32 7/8ths" 32 1/16ths" -
V200 Single Cab, 2dr Ute 10-+ (AU) -160mm - - 850mm - -
-6 -5/16ths" - - 33 7/16ths" - -
V200 Single Cab, 2dr Ute 10-+ (NZ) -160mm - - 850mm - -
-6 -5/16ths" - - 33 7/16ths" - -
V240 Double Cab, 4dr Ute Jul 09-+ (NZ) -270mm 470mm - 835mm 815mm -
-10 -5/8ths" 18 1/2ths" - 32 7/8ths" 32 1/16ths" -
V240 Double Cab, 4dr Ute Jul 09-+ (AU) -270mm 470mm - 835mm 815mm -
-10 -5/8ths" 18 1/2ths" - 32 7/8ths" 32 1/16ths" -
V240 Single Cab, 2dr Ute 10-+ (AU) -160mm - - 850mm - -
-6 -5/16ths" - - 33 7/16ths" - -
V240 Single Cab, 2dr Ute 10-+ (NZ) -160mm - - 850mm - -
-6 -5/16ths" - - 33 7/16ths" - -
3
Fitting Kit EN
K456W
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
NOTE: Clamp images in these instructions may
not be representative of the clamps in this kit
4
Fitting Kit EN
K456W
●Use keys to remove covers.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
5
Fitting Kit EN
K456W

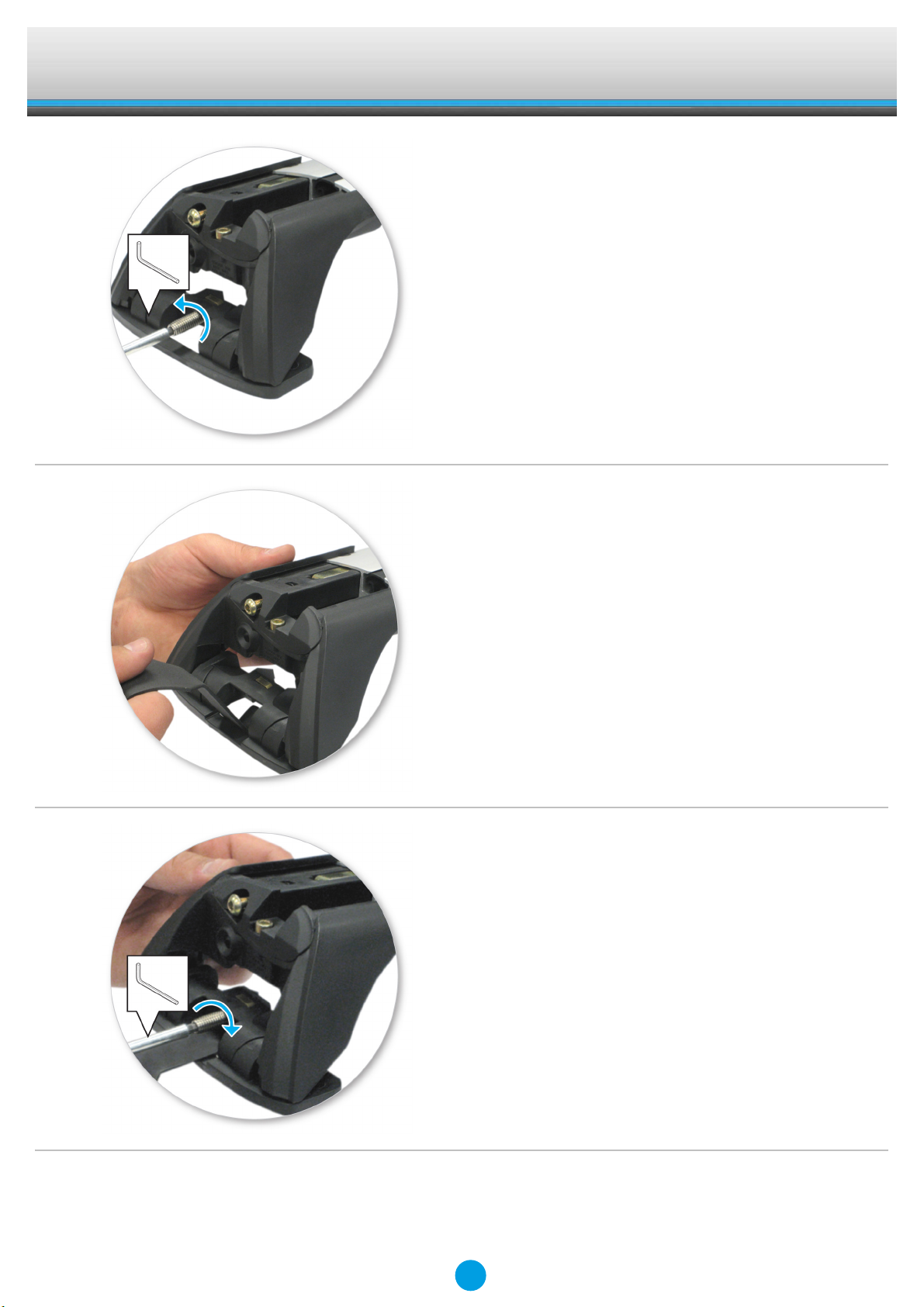

●Remove locking screw.
●Attach clamp to each leg. NOTE; clamps
may have labels showing their positions on
the vehicle (For example; "Front Right").
●Refit locking screw so that it goes through
the hole in the clamp. Do not begin to
tighten the locking screw.
6
Fitting Kit EN
K456W

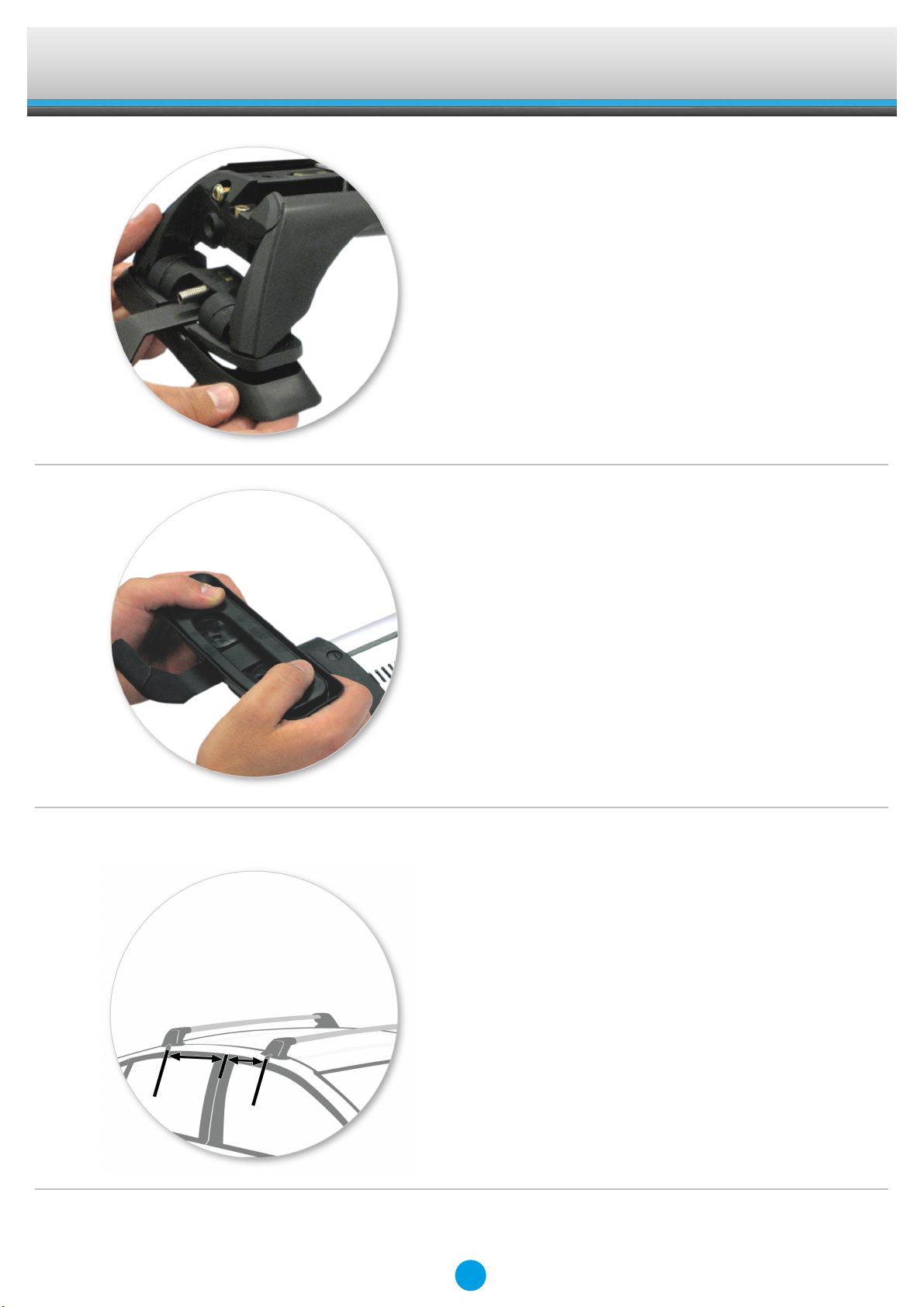

●Fit rubber pad (supplied with crossbar) to
foot.
●Make sure the pad fits into the holes
underneath the foot.
Fitment
●Place crossbar on vehicle. Minimum
recommended spacing between the bars is
700mm (27 1/2") (unless otherwise stated).
●Please check the front of this manual for
information relating specifically to your
vehicle.
7
Fitting Kit EN
K456W

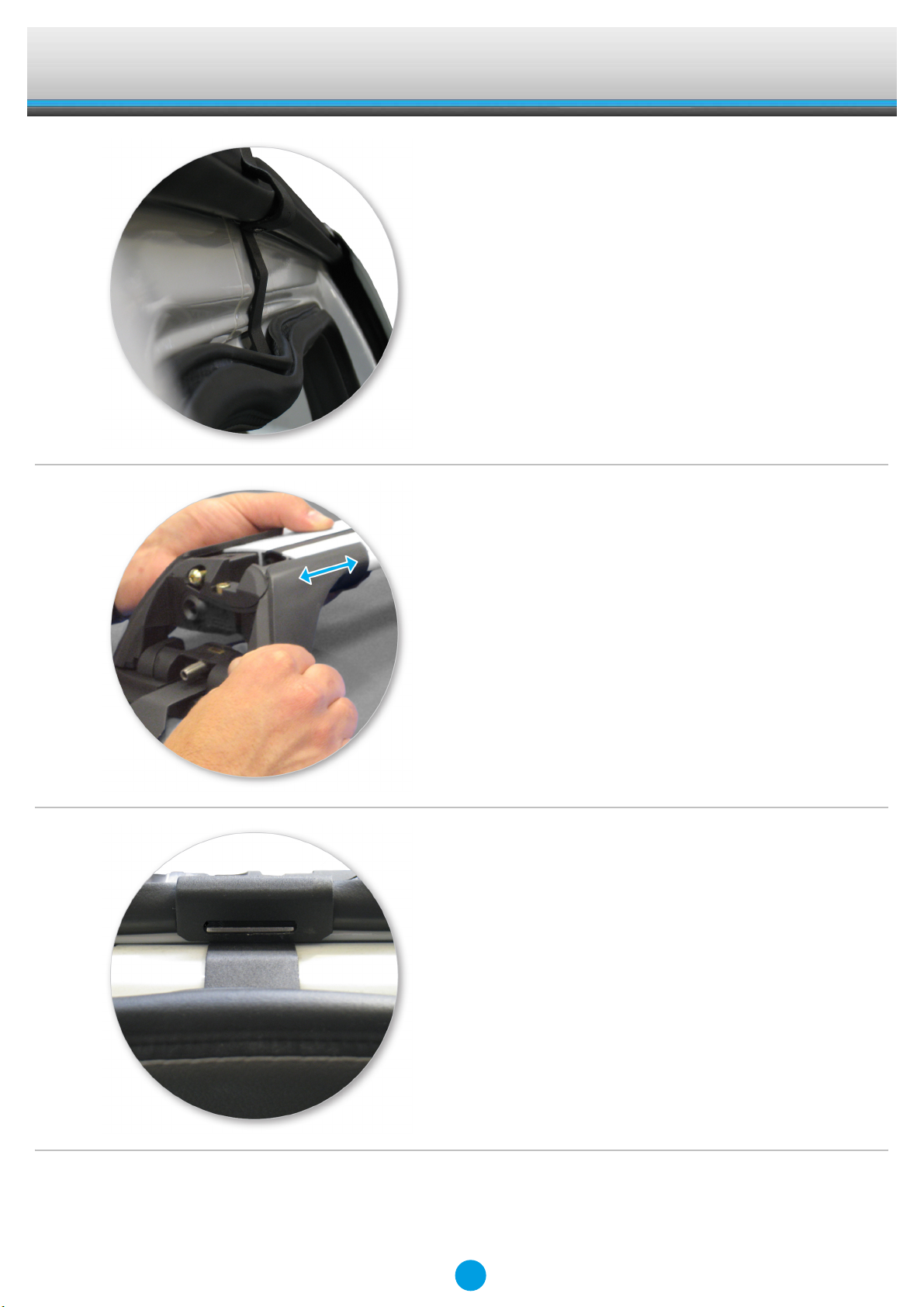

●Pull down rubber and slide body clip up
and over the interior trim. Refit the rubber
over the clip.
●Adjust the legs on the crossbar so that they
are positioned equally from the ends of the
crossbar, and the clamps engage firmly on
the body work of the vehicle.
●Clamp locates onto the body clip as shown.
8
Fitting Kit EN
K456W
●Tighten adjusting screw to 5 Nm (3.7 ft lb)
hand tight.
●Tighten locking screw on both legs evenly.
●Check crossbar is securely attached to the
vehicle.
9
Fitting Kit EN
K456W
●Use keys to fit and lock covers
CAUTION: Recheck all fasteners immediately after
a load is applied to the crossbars.
Regularly check screws are tight.
