Whispbar K677W Manuale utente
K677W
Fitting Kit
EN Fitting Instructions for Basic Carrier
x 4 x 4 x 4 x 4
x 1 x 4
Revision No: 2B 1
Fitting Kit K677W
MAX kgs (lbs)
W/P WHD
Mitsubishi
Outlander Aspire, 5dr SUV 12-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Outlander ES, 5dr SUV 12-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Outlander ES, 5dr SUV 13-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)
Outlander GX1, 5dr SUV 12-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)
Outlander GX2, 5dr SUV 12-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)
Outlander LS 2WD, 5dr SUV 12-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
Outlander LS, 5dr SUV 12-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
2
Fitting Kit K677W
X
A B C 1 2 3
Outlander Aspire, 5dr SUV 12-+ (AU) -300mm 450mm - 960mm 910mm -
-11 -13/16ths" 17 11/16ths" - 37 13/16ths" 35 13/16ths" -
Outlander ES, 5dr SUV 12-+ (AU) -300mm 450mm - 960mm 910mm -
-11 -13/16ths" 17 11/16ths" - 37 13/16ths" 35 13/16ths" -
Outlander ES, 5dr SUV 13-+ (US) -300mm 450mm - 960mm 910mm -
-11 -13/16ths" 17 11/16ths" - 37 13/16ths" 35 13/16ths" -
Outlander GX1, 5dr SUV 12-+ (EU) -300mm 450mm - 960mm 910mm -
-11 -13/16ths" 17 11/16ths" - 37 13/16ths" 35 13/16ths" -
Outlander GX2, 5dr SUV 12-+ (EU) -300mm 450mm - 960mm 910mm -
-11 -13/16ths" 17 11/16ths" - 37 13/16ths" 35 13/16ths" -
Outlander LS 2WD, 5dr SUV 12-+ (NZ) -300mm 450mm - 960mm 910mm -
-11 -13/16ths" 17 11/16ths" - 37 13/16ths" 35 13/16ths" -
Outlander LS, 5dr SUV 12-+ (AU) -300mm 450mm - 960mm 910mm -
-11 -13/16ths" 17 11/16ths" - 37 13/16ths" 35 13/16ths" -
3
Fitting Kit EN
K677W
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
●Use keys to remove covers.
4
Fitting Kit EN
K677W
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
●Attaches to factory-fitted mounting points
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Adjust crossbar in or out to suit vehicle.
Refer to the crossbar instructions for
crossbar adjustment.
5
Fitting Kit EN
K677W
●Tighten adjusting screw to 5 Nm (3.7 ft lb)
hand tight.
●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
●Select plastic internal block (from fitting kit)
and insert into foot.
●Repeat for all legs.
6
Fitting Kit EN
K677W
Drilling not needed for US vehicles.
Fitment
●Pull ditch moulding back towards you.
●(For US vehicles, skip this step.)
●Mark reference point with a pen onto
removed section of ditch mould.
●(For US vehicles, skip this step.)
7
Fitting Kit EN
K677W
●Use drill bit supplied, to drill holes in
marked positions.
●(For US vehicles, skip this step.)
●Re-install rubber ditch mould in roof
channel.
●(For US vehicles, skip this step.)
●(This step is for US vehicles only.)
●Open or remove fixed-point covers.
8
Fitting Kit EN
K677W

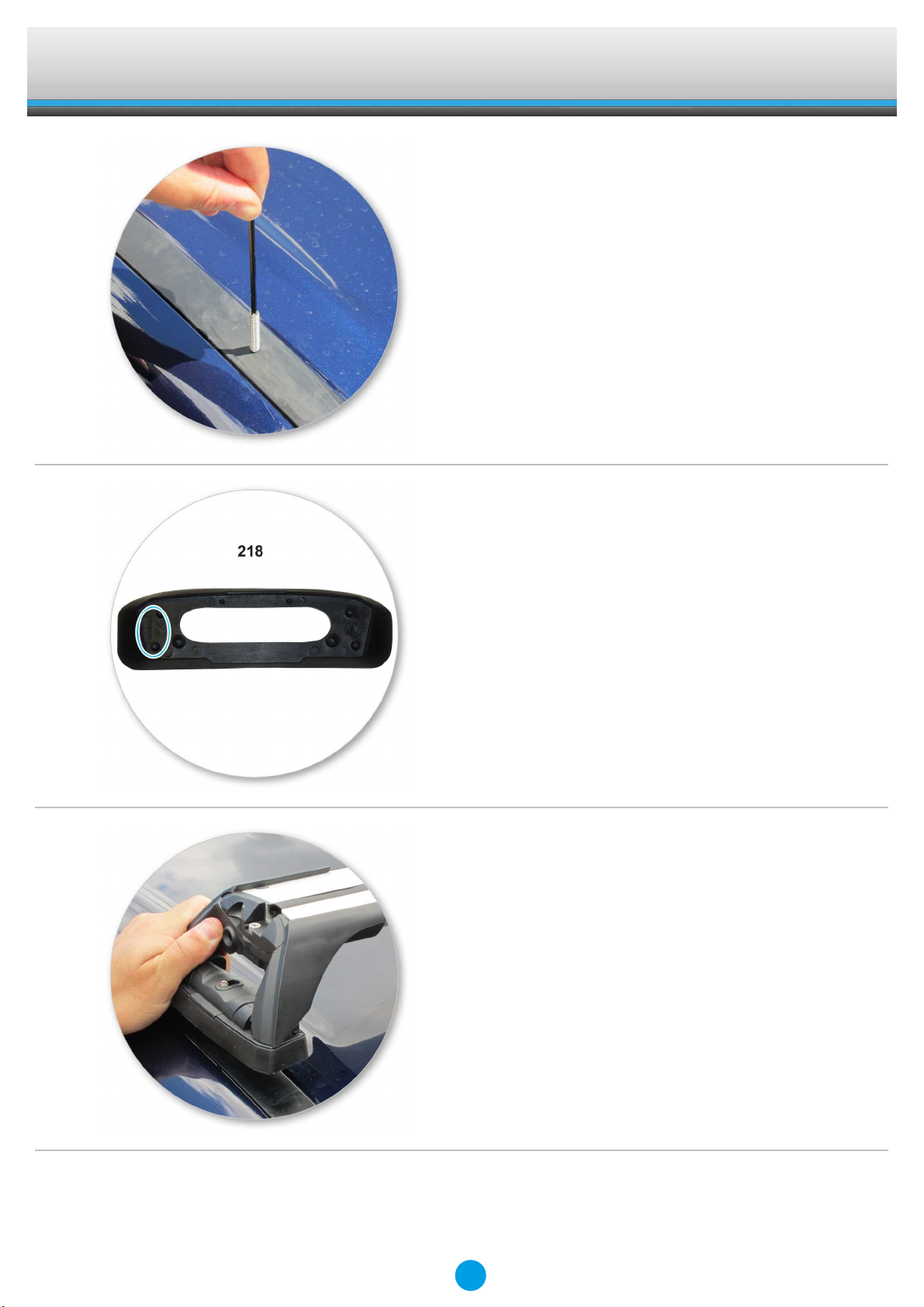

●Select grubscrews and screw into the
vehicle's fixed points.
●Do not over tighten.
●Repeat for all four positions.
●Refer to the underside of the pad for the
part number.
●Place crossbars on pads ensuring the pads
fit into the holes underneath the foot and
the grubscrew passes through the hole in
the foot.
●Repeat for all four positions.
9
Fitting Kit EN
K677W

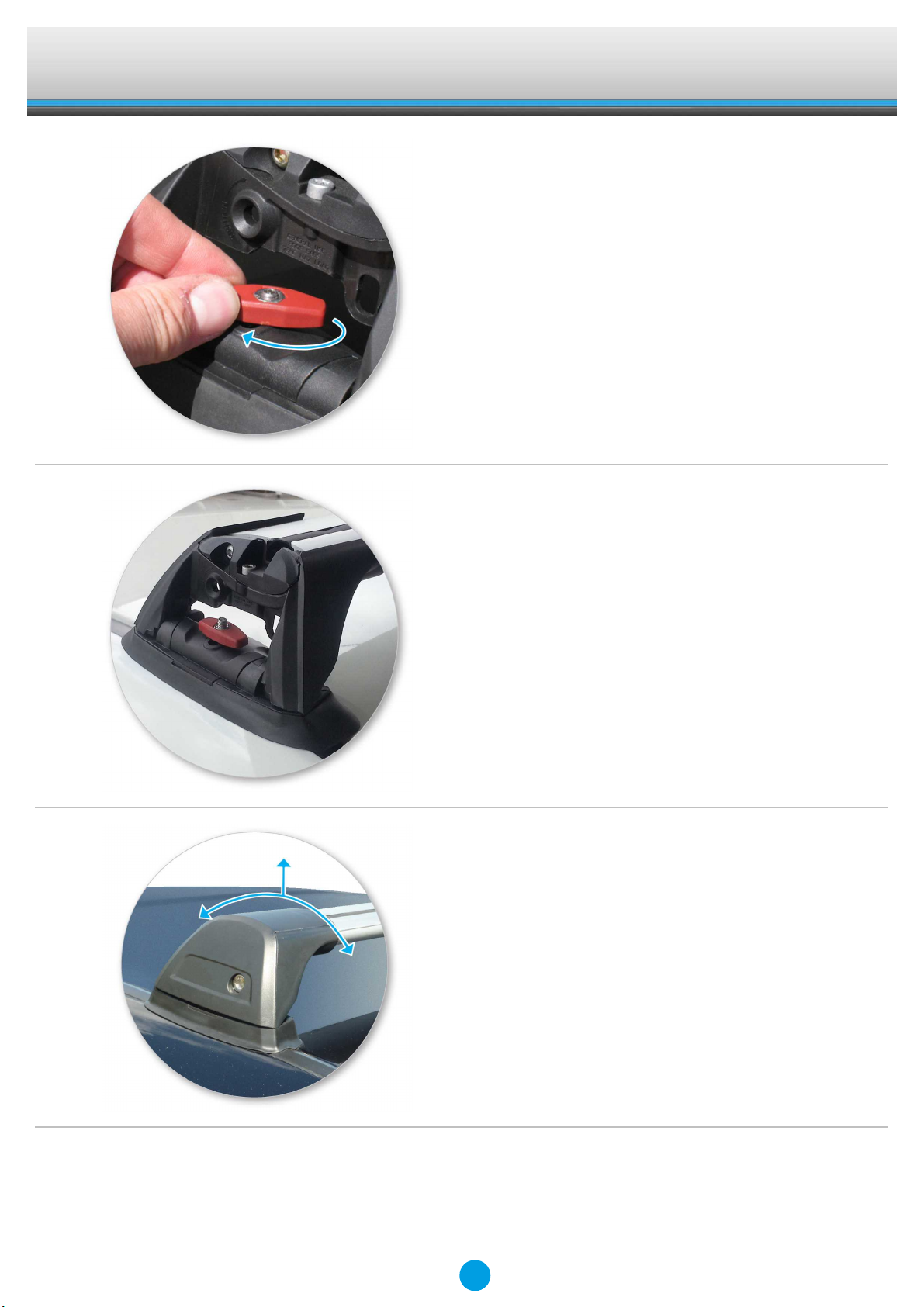

●Tighten the plastic knob. The side with the
nut showing should be facing up.
●Ensure the plastic knob is in the position
shown when fully tightened.
●Repeat for all legs.
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
10
