Whispbar K704W Manuale utente
K704W
Fitting Kit
EN Fitting Instructions for Basic Carrier
DMontageanleitung für Basisträgersystem
ES Instrucciones de montaje para el sistema
de transporte
FInstructions de montage pour Basic Carrier
NO Monteringsanvisning for takstativ
PT Instruções de Montagem para sistema de
transporte.
RU Установочные Инструкции для
Поперечных Балок
x 4 x 2 x 2 x 4
x 4 x 1 x 4 x 4
x 4 x 8
Revision No: 4D 1
Fitting Kit K704W
MAX kgs (lbs)
W/P WHD
Tesla
Model S w/ Pano roof, 5dr Hatch 12-14 US 75 kgs (165 lbs)
Model S, 5dr Hatch 12-+ CN 75 kgs (165 lbs)
Model S, 5dr Hatch 12-May 15 EU 75 kgs (165 lbs)
Model S, 5dr Hatch 15-+ AU 75 kgs (165 lbs)
2
Fitting Kit K704W
X
A B C 1 2 3
Model S w/ Pano roof, 5dr Hatch 12-14 (US) -195mm 685mm - 1023mm 926mm -
-7 -11/16ths" 26 15/16ths" - 40 1/4ths" 36 7/16ths" -
Model S, 5dr Hatch 12-+ (CN) -195mm 685mm - 1023mm 926mm -
-7 -11/16ths" 26 15/16ths" - 40 1/4ths" 36 7/16ths" -
Model S, 5dr Hatch 12-May 15 (EU) -195mm 685mm - 1023mm 926mm -
-7 -11/16ths" 26 15/16ths" - 40 1/4ths" 36 7/16ths" -
Model S, 5dr Hatch 15-+ (AU) -195mm 685mm - 1023mm 926mm -
-7 -11/16ths" 26 15/16ths" - 40 1/4ths" 36 7/16ths" -
3
Fitting Kit EN
K704W
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
●This kit fits type A, B, C and D.
●Use keys to remove covers.
4
Fitting Kit EN
K704W
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
●Attaches to factory-fitted mounting points
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Adjust crossbar in or out to suit vehicle.
Refer to the crossbar instructions for
crossbar adjustment.
5
Fitting Kit EN
K704W

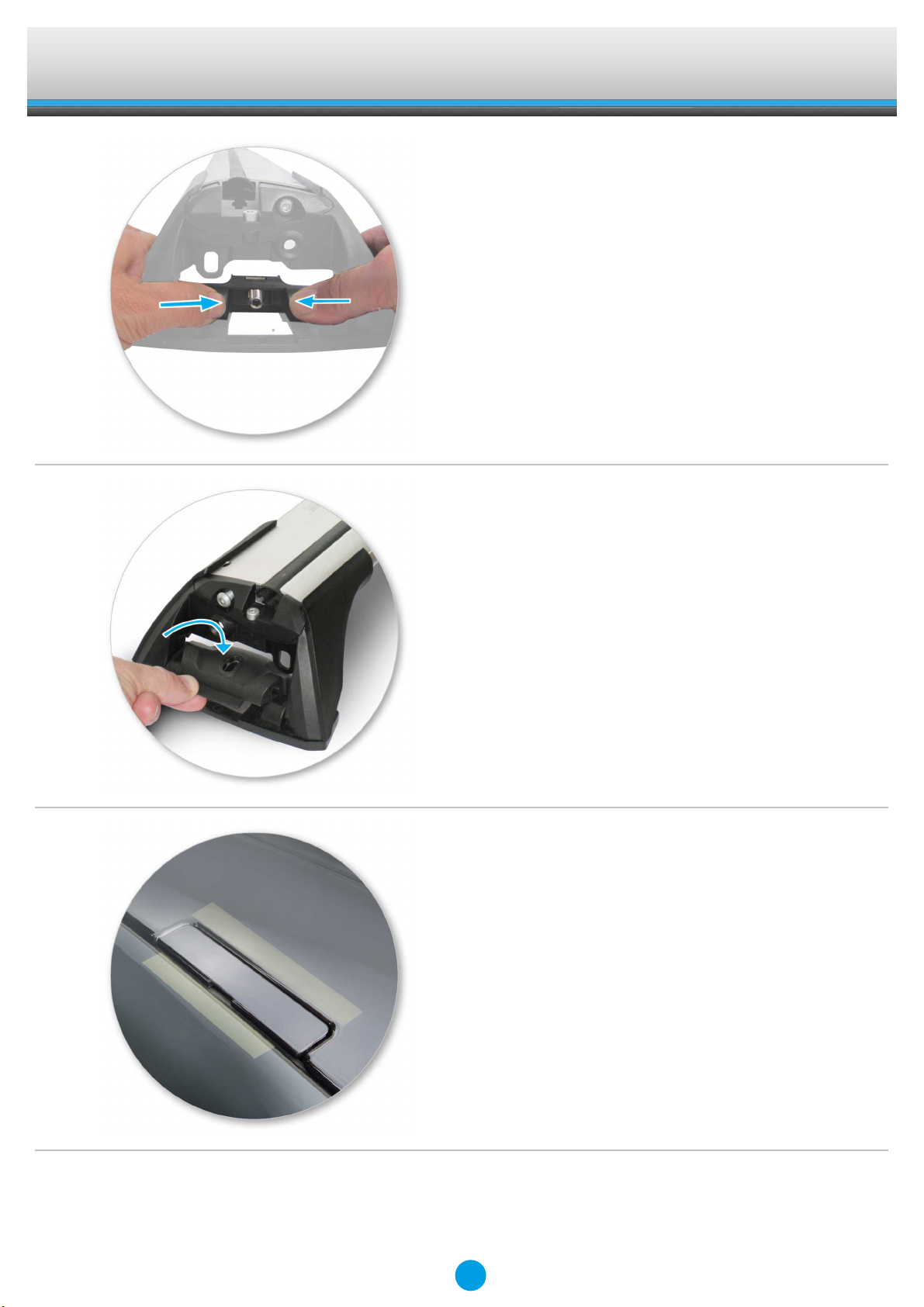

●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
●Select plastic internal block (from fitting kit)
and insert into foot.
●Repeat for all legs.
●Apply protective strip to roof of the vehicle
as shown.
Trim if required.
6
Fitting Kit EN
K704W
Fitment

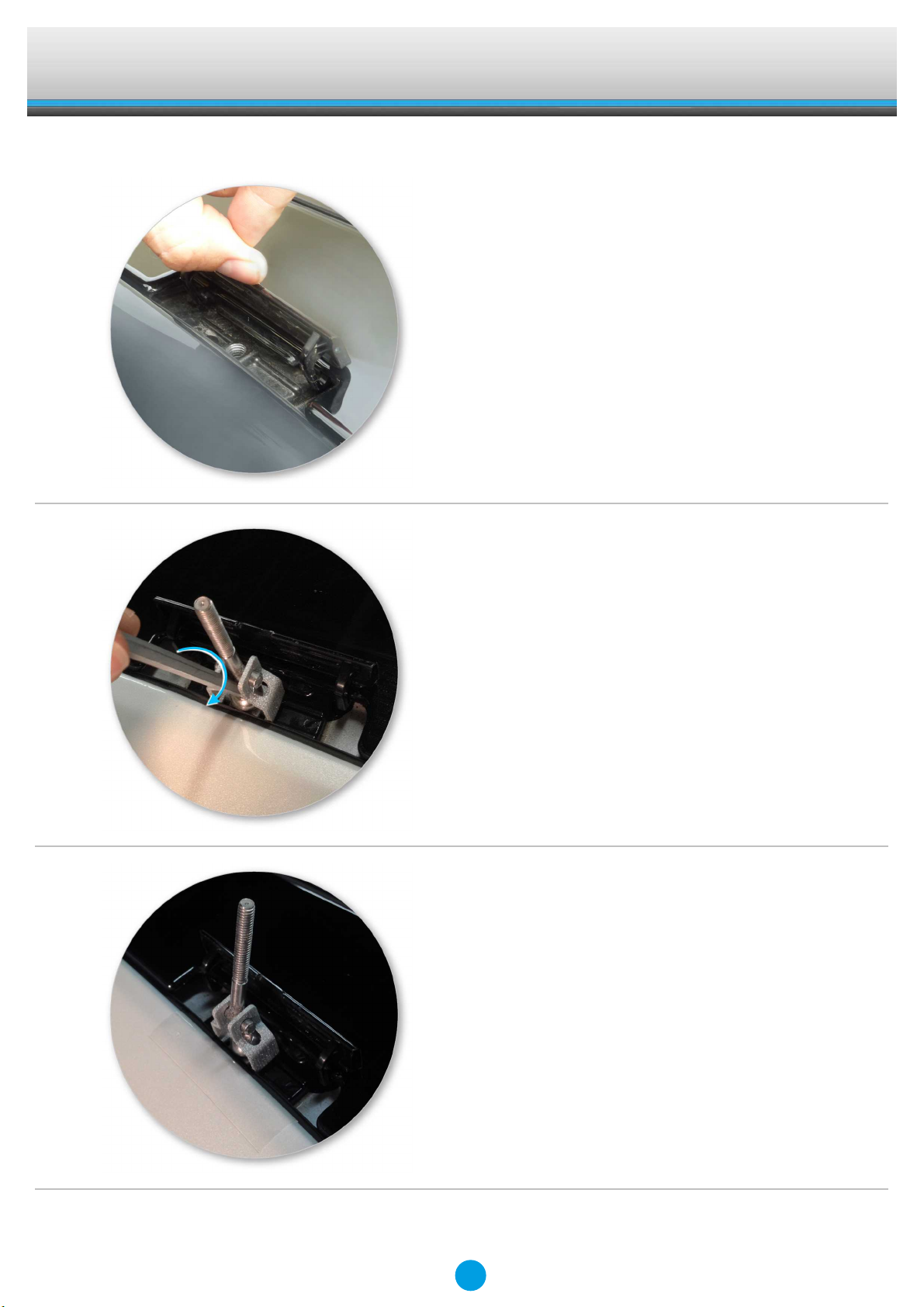

●Open or remove fixed-point covers.
●Ensure rubber gasket is pulled away from
fixed point block when installing clamp.
●Place clamp into position as pictured.
●Ensure spring washer is between clamp
and the head of the screw.
●Using 5mm Hex Key supplied with this kit,
fully tighten to 5Nm (3.7 ft lb) hand tight.
●Repeat for all four positions.
●Assemble as shown.
7
Fitting Kit EN
K704W

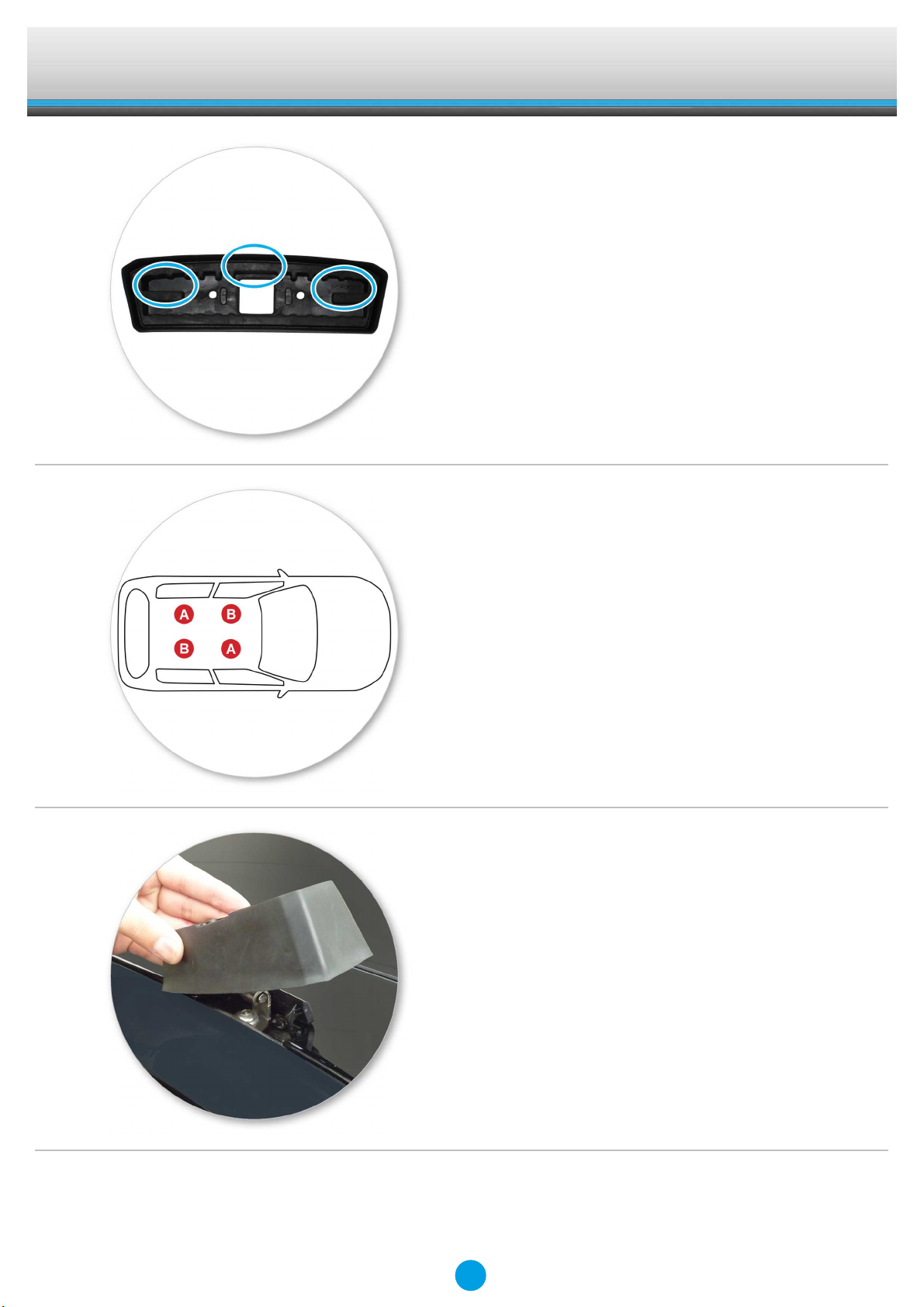

●Refer to the underside of the pad for the
part number.
●Letters refer to the pad part numbers and
position.
●It is important to put the pads in the correct
position on the vehicle.
●Pad Part Number:
A = 235A
B = 236A
●Fit pad carefully over fixed point and clamp
screw.
●Ensure the fixed-point covers sit vertically
in the recess in the pads.
8
Fitting Kit EN
K704W

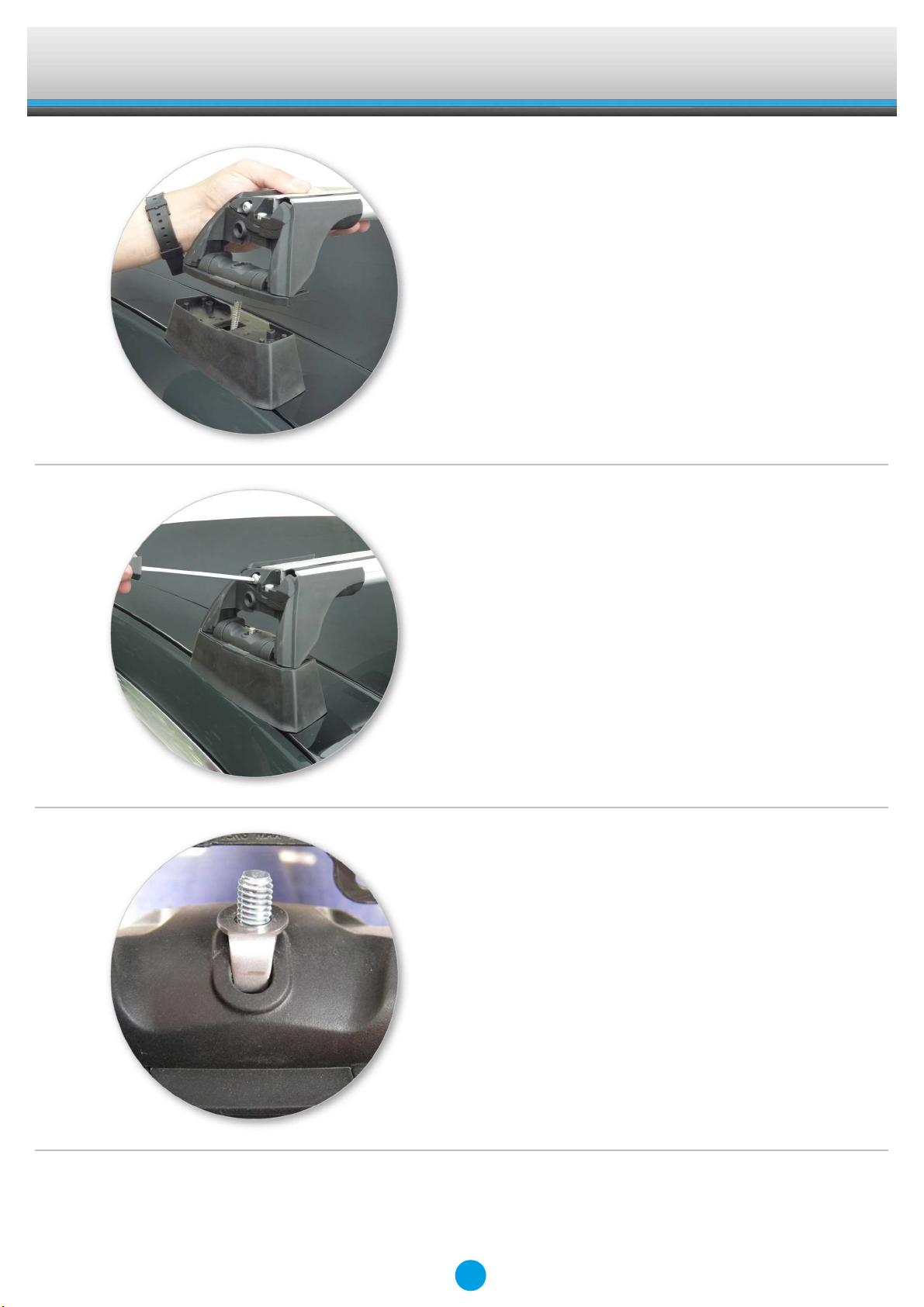

●Place crossbars on pads ensuring the pads
fit into the holes underneath the foot and
the grubscrew passes through the hole in
the foot.
●Repeat for all four positions.
●Tighten adjusting screw to 5 Nm (3.7 ft lb)
hand tight.
●Place washer over clamp thread as shown.
●Ensure that tab is inserted into clamp
block.
9
Fitting Kit EN
K704W

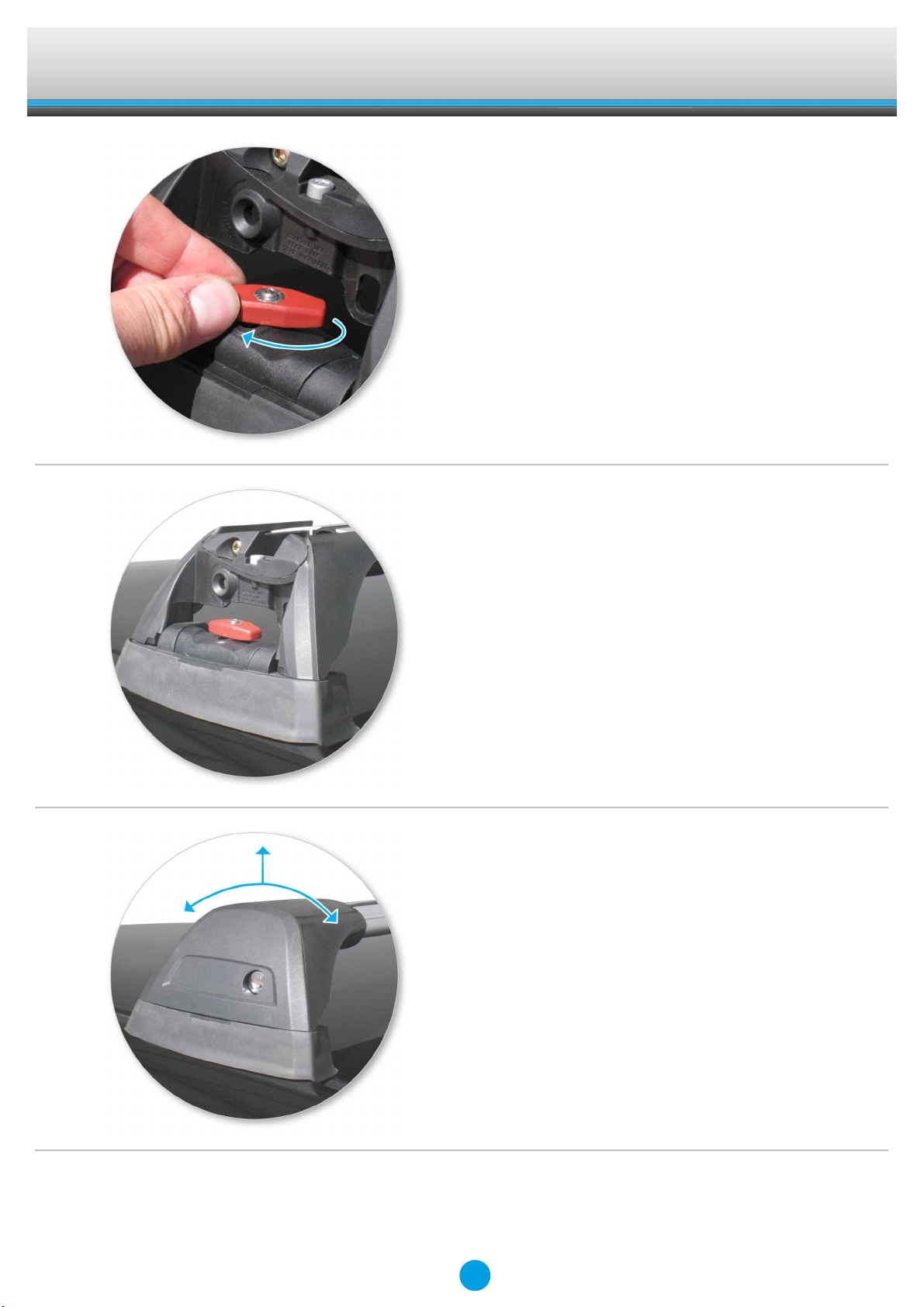

●Tighten the plastic knob. The side with the
nut showing should be facing up.
●Ensure the plastic knob is in the position
shown when fully tightened.
●Repeat for all legs.
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
10
