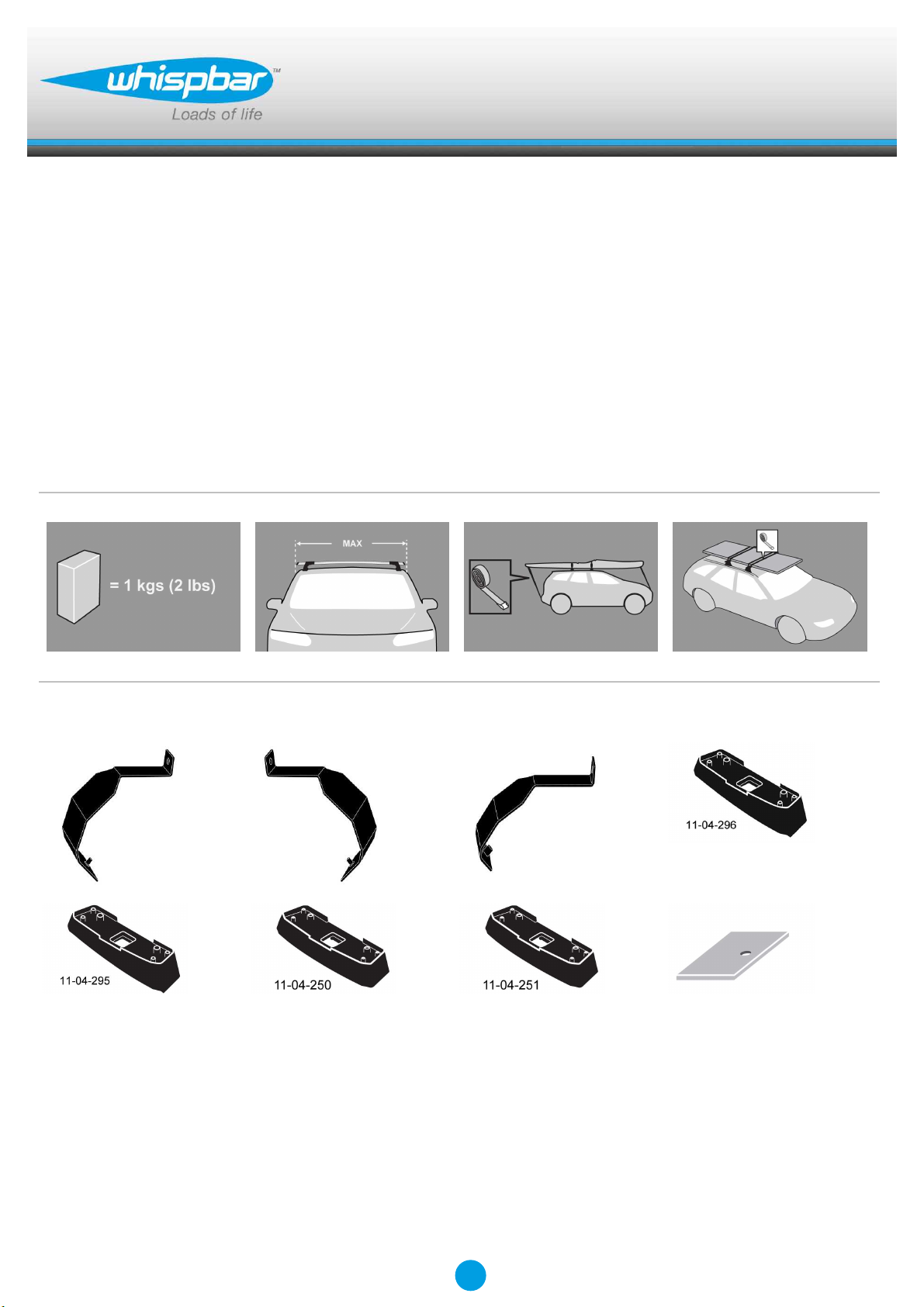

Whispbar K732W Manuale utente

K732W

Fitting Kit

EN Fitting Instructions for Basic Carrier

DMontageanleitung für Basisträgersystem

ES Instrucciones de montaje para el sistema

de transporte

FInstructions de montage pour Basic Carrier

NO Monteringsanvisning for takstativ

PT Instruções de Montagem para sistema de

transporte.

RU Установочные Инструкции для

Поперечных Балок

x 1 x 1 x 2 x 1

x 1 x 1 x 1 x 2

Revision No: 1A 1

Fitting Kit K732W

x 1 x 1 x 4 x 1

x 1 x 1 x 1

Fitting Kit K732W

MAX kgs (lbs)

W/P WHD

Volvo

V60 , 5dr Estate 10-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

V60 , 5dr Estate 10-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

V60 , 5dr Estate 10-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)

V60 , 5dr Wagon 10-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

V60 , 5dr Wagon 10-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

V60 , 5dr Wagon 10-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit EN

K732W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K732W

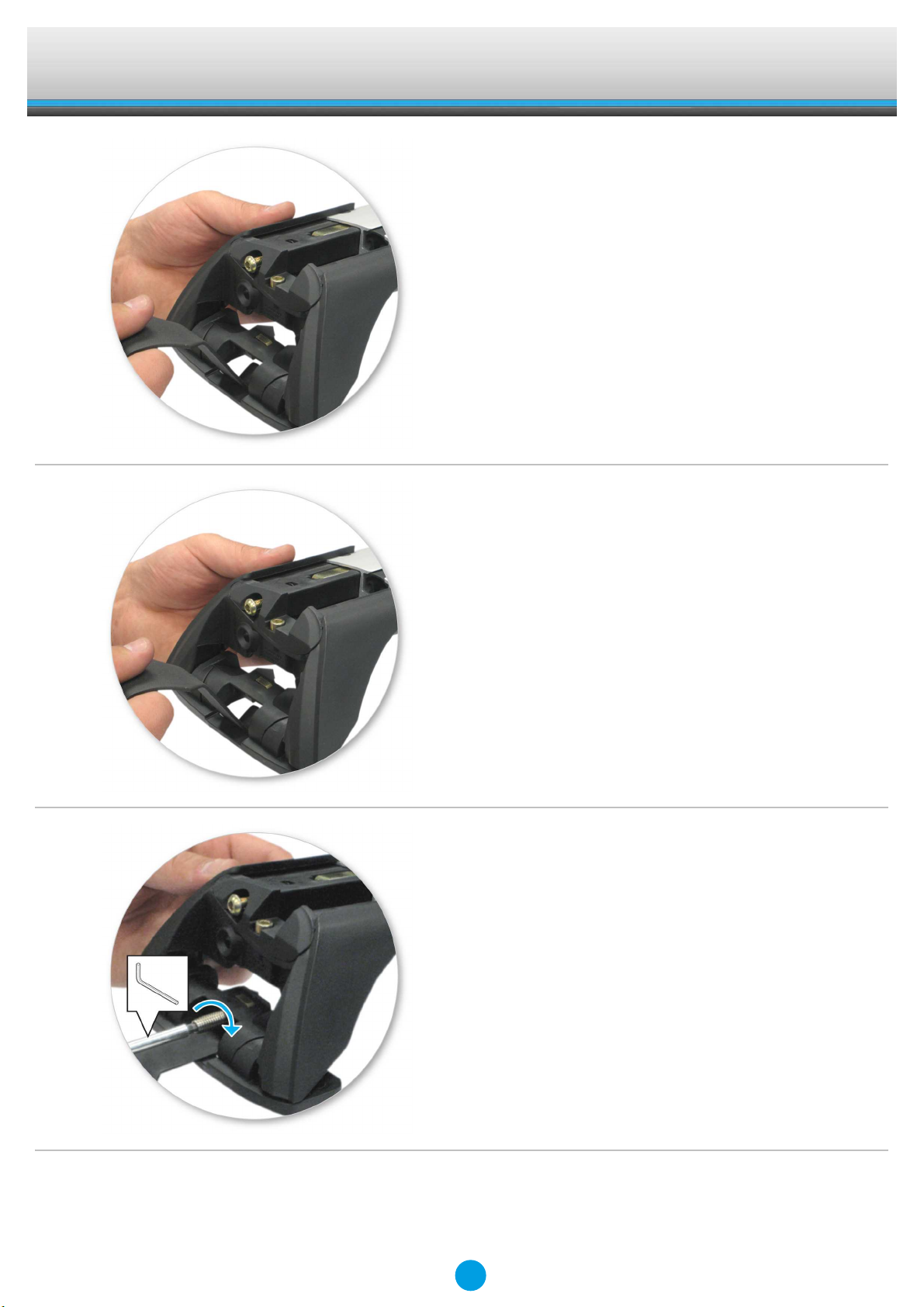

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K732W

●Remove locking screw.

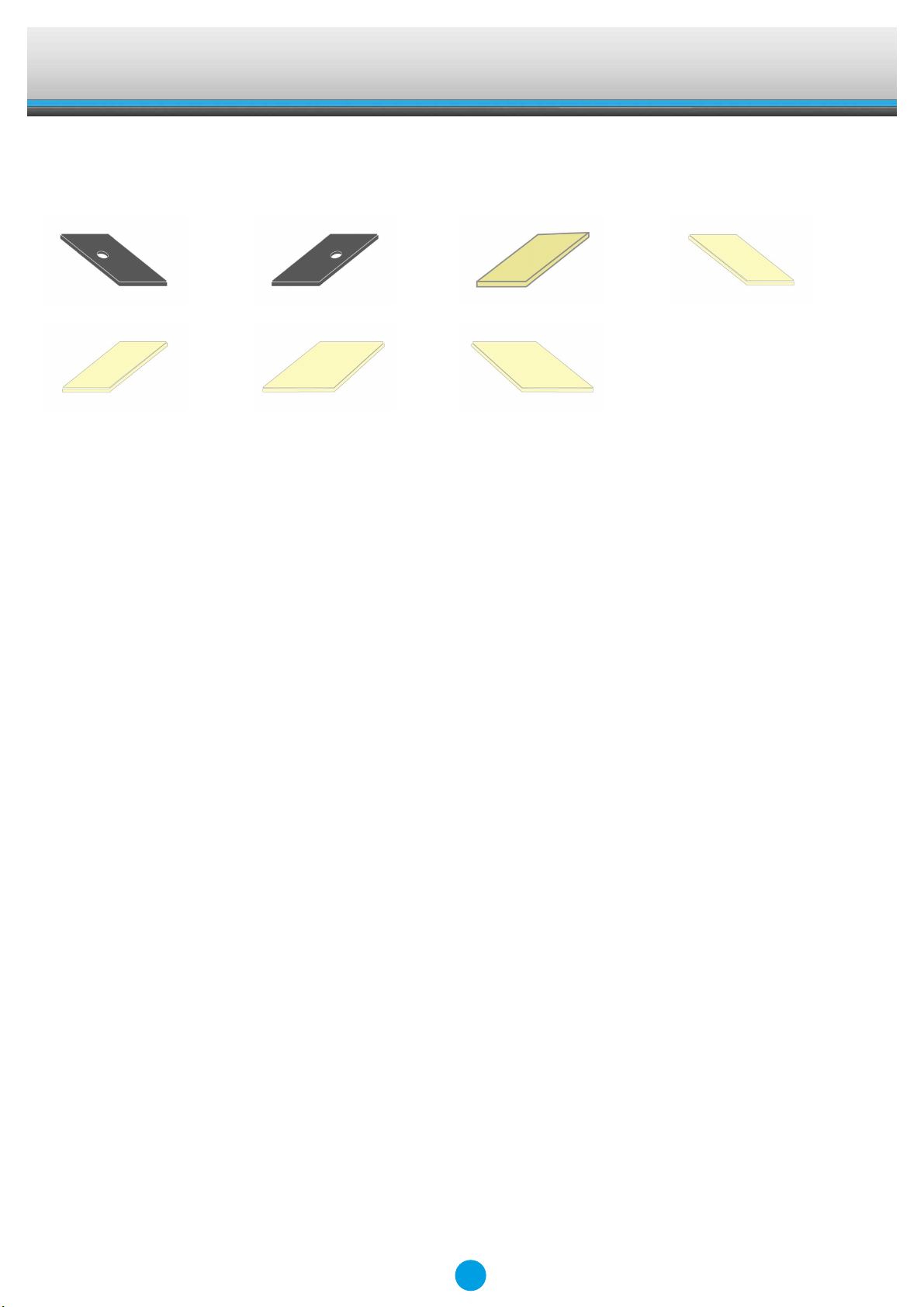

●Apply protective strip as shown.

Trim if required.

●A, B, C, D, E = Clear

F, G, H = Grey

●It is important to put the clamps in the

correct position on the vehicle.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = 104A

B = 105A

C = 106A

Fitting Kit EN

K732W

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

Fitting Kit EN

K732W

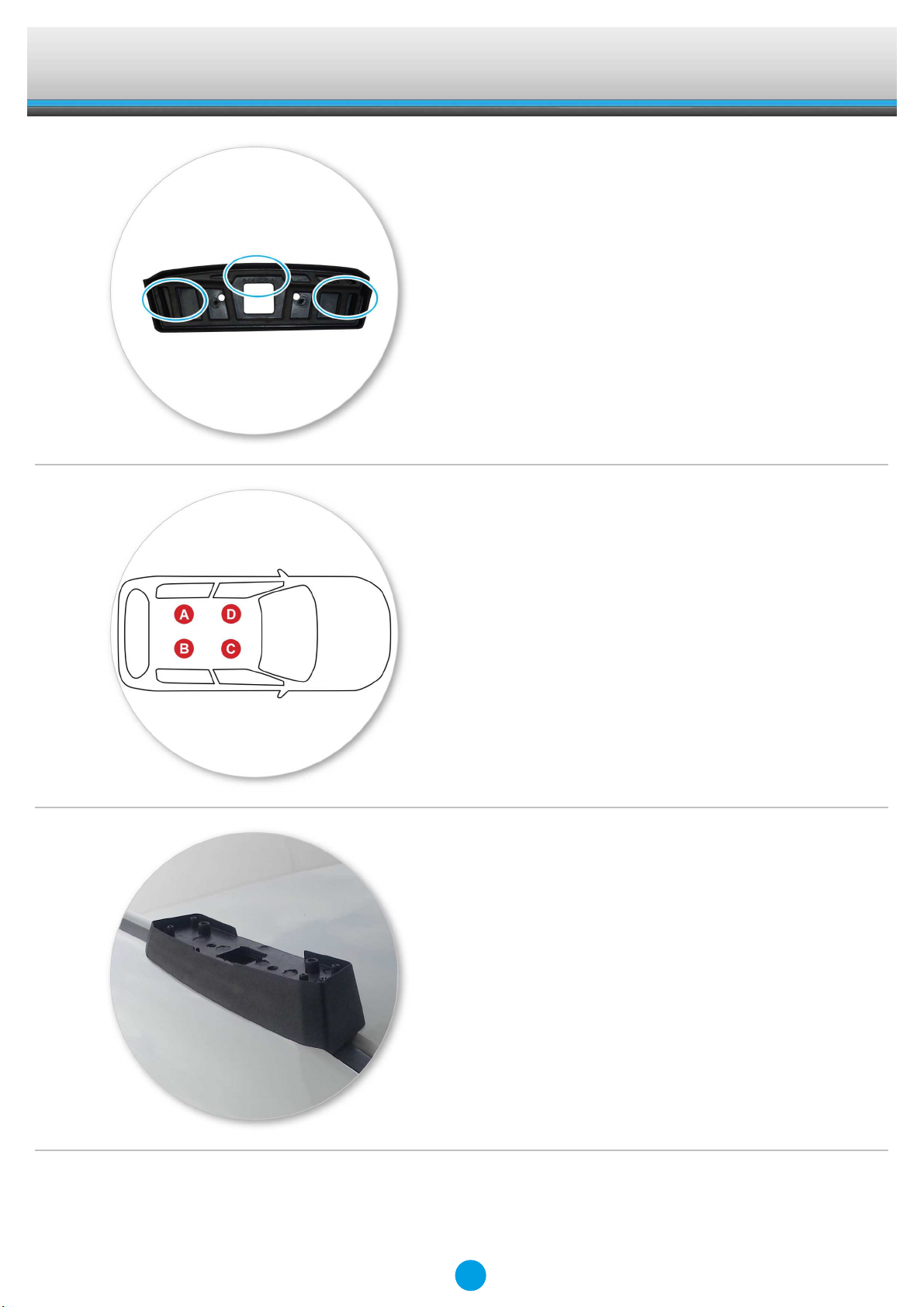

●Refer to the underside of the pad for the

part number.

●It is important to put the pads in the correct

position on the vehicle.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 250

B = 251

C = 295

D = 296

●Place rubber pads (supplied with fitting kit)

on the vehicle roof. Pad may vary in shape

to that shown.

Fitting Kit EN

K732W

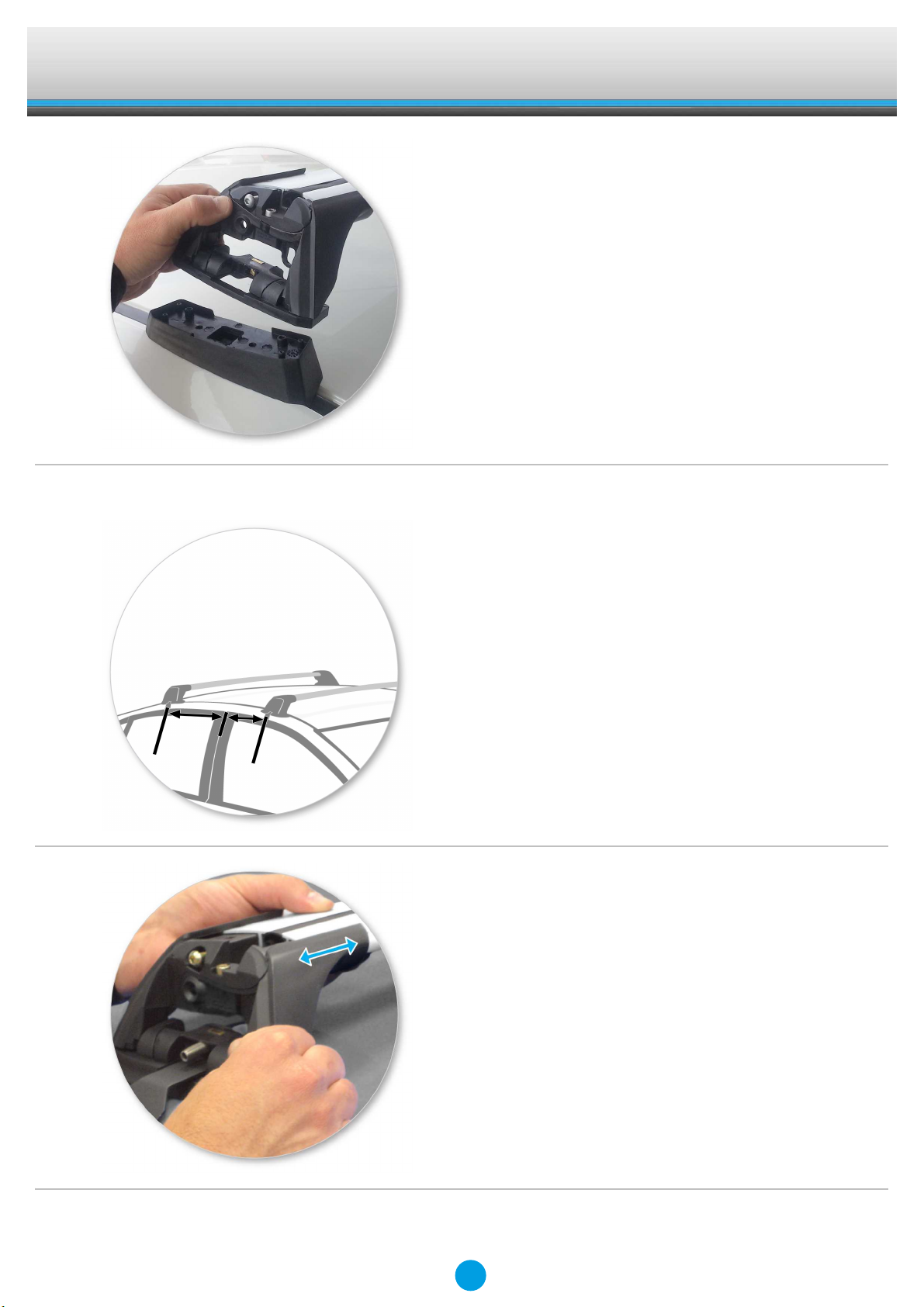

●Make sure the pad fits into the holes

underneath the foot.

Fitment

●Clamps directly to edge of roof under the

doors

●Please check the rear of this manual for

information relating specifically to your

vehicle.

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

Fitting Kit EN

K732W

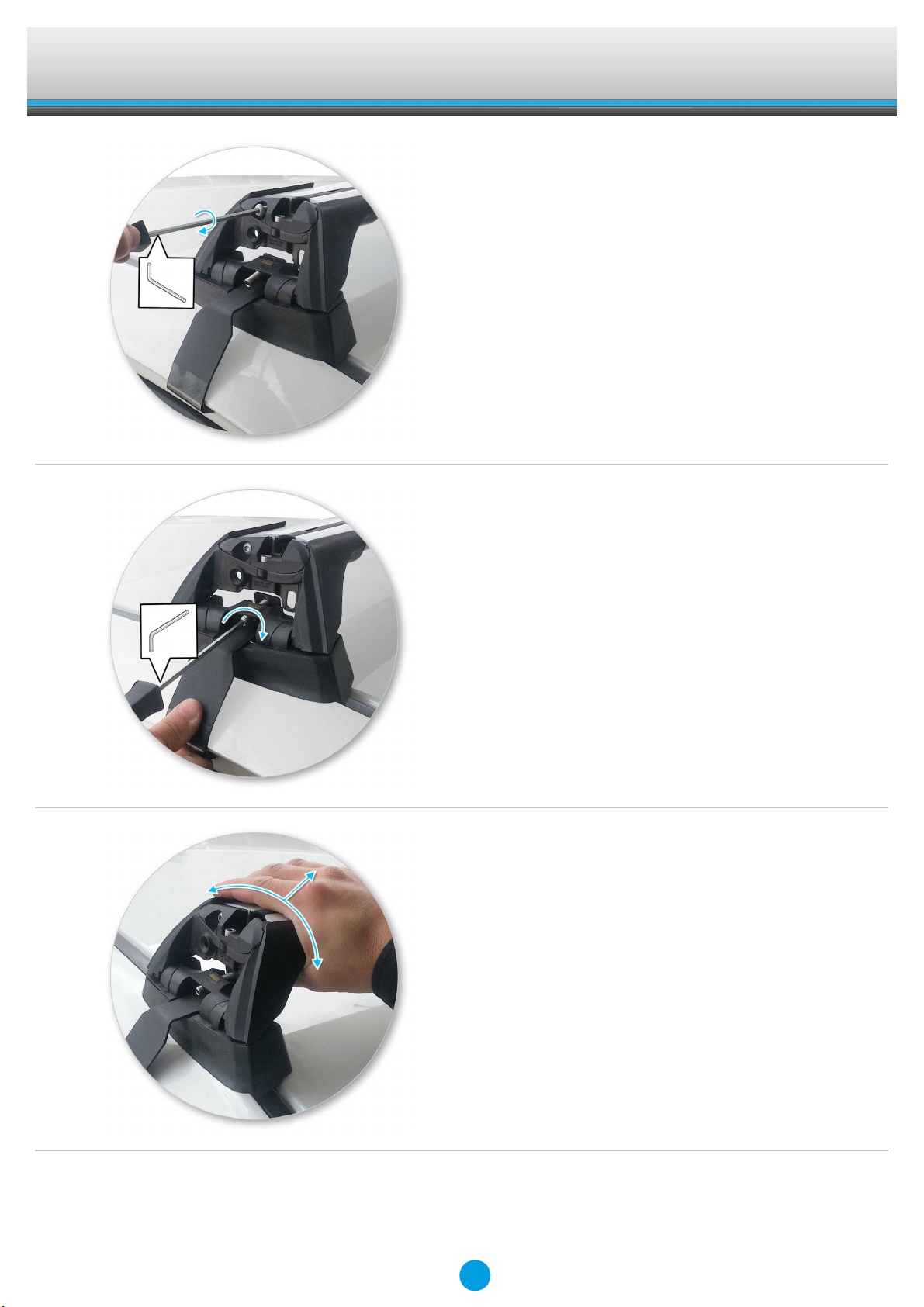

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Tighten locking screw on both legs evenly.

●Check crossbar is securely attached to the

vehicle.
