Whispbar K838W Manuale utente

K838W

Fitting Kit

EN Fitting Instructions for Basic Carrier

DMontageanleitung für Basisträgersystem

FInstructions de montage pour Basic Carrier

NO Monteringsanvisning for takstativ

PT Instruções de Montagem para sistema de

transporte.

RU Установочные Инструкции для

Поперечных Балок

x 4 x 4 x 4 x 4

Revision No: 2B 1

Fitting Kit K838W

MAX kgs (lbs)

W/P WHD

Ford

Transit Connect, 4dr Van 14-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Transit Connect, 4dr Van 14-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit K838W

A B C 1 2 3

Transit Connect, 4dr Van 14-+ (EU) 245mm 915mm 1350mm 945mm 955mm -

9 5/8ths" 36" 53 1/8ths" 37 3/16ths" 37 5/8ths" -

Transit Connect, 4dr Van 14-+ (US) 245mm 915mm 1350mm 945mm 955mm -

9 5/8ths" 36" 53 1/8ths" 37 3/16ths" 37 5/8ths" -

Fitting Kit EN

K838W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

Fitting Kit EN

K838W

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Set bars to length (revert to rear of these

instructions).

●Please check the front of this manual for

information relating specifically to your

vehicle.

Fitting Kit EN

K838W

●Tighten adjusting screw to 3 Nm (2.2 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

Fitting Kit EN

K838W

Fitment

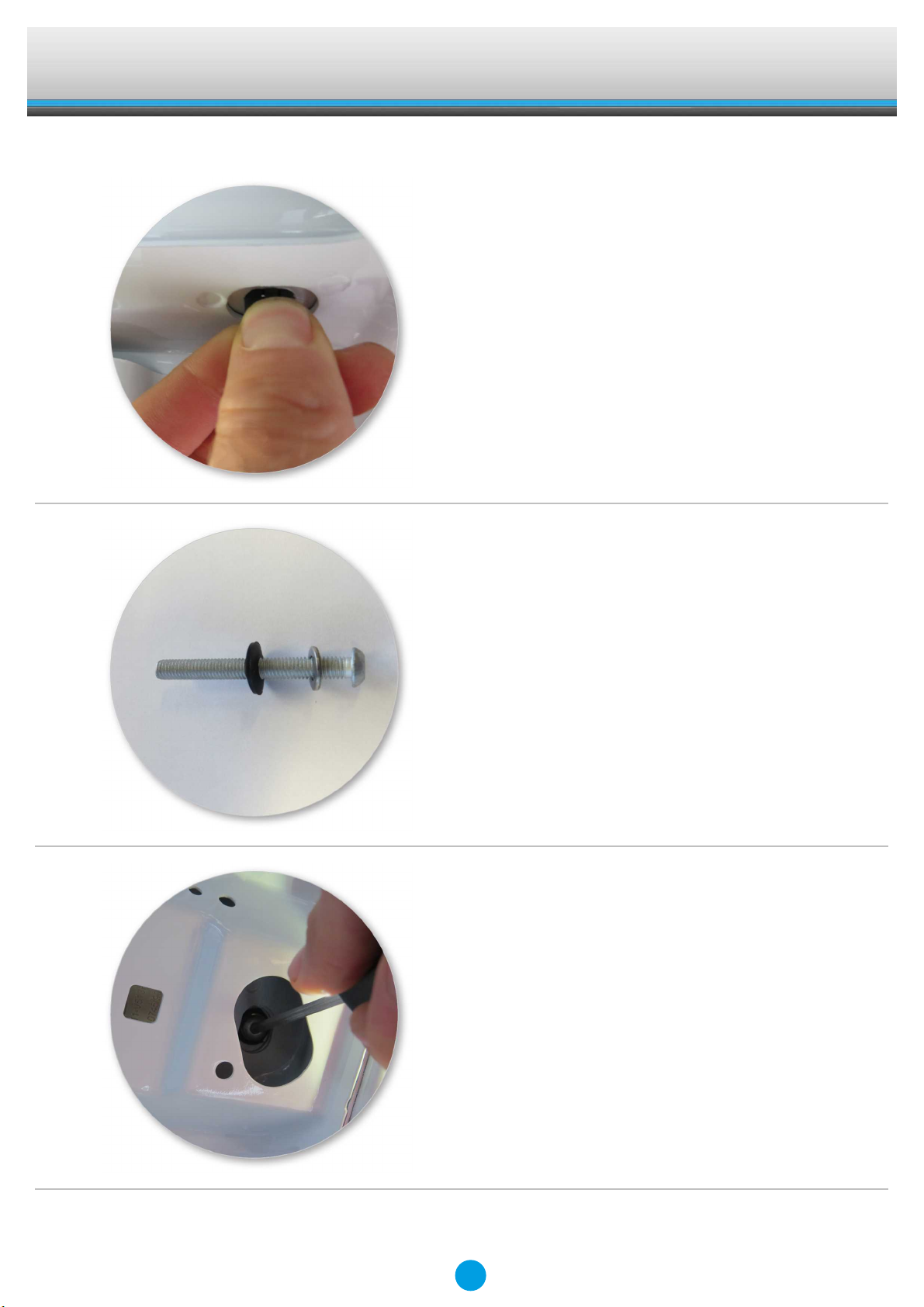

●Open or remove fixed-point covers.

●Place the small metal washer and the small

rubber washer over the bolt.

●Place bolt through the roof. Hold the bolt

with the allen key in place.

Fitting Kit EN

K838W

●Place big rubber washer, big metal washer

and nut over the bolt.

●Do not over tighten.

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

●Place crossbar foot over grubscrews.

●Make sure the pad fits into the holes

underneath the foot.

Fitting Kit EN

K838W

●Tighten the plastic knob. The side with the

nut showing should be facing up.

●Ensure the plastic knob is in the position

shown when fully tightened.

●Repeat for all four positions.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

Fitting Kit EN

K838W

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
