Whispbar K846W Manuale utente
K846W
Fitting Kit
EN Fitting Instructions for Basic Carrier
x 4 x 2 x 2 x 4
x 4 x 4
Revision No: 3C 1
Fitting Kit K846W
MAX kgs (lbs)
W/P WHD
Mercedes
C-Class Glass Roof, 2dr Coupe 12-15 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
C-Class Glass Roof, 2dr Coupe 12-15 AU 75 kgs (165 lbs) 75 kgs (165 lbs)
C-Class Glass Roof, 2dr Coupe 12-15 EU 75 kgs (165 lbs) 75 kgs (165 lbs)
C-Class Glass Roof, 2dr Coupe 12-15 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
C-Class Glass Roof, 2dr Coupe 12-15 US 75 kgs (165 lbs) 75 kgs (165 lbs)
E-Class Glass Roof, 2dr Coupe 09-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
E-Class Glass Roof, 2dr Coupe 09-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
E-Class Glass Roof, 2dr Coupe 09-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)
E-Class Glass Roof, 2dr Coupe 09-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
E-Class Glass Roof, 2dr Coupe 09-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)
2
Fitting Kit K846W
X
A B C 1 2 3
C-Class Glass Roof, 2dr Coupe 12-15 (NZ) -430mm 325mm - 795mm 790mm -
-16 -15/16ths" 12 13/16ths" - 31 5/16ths" 31 1/8ths" -
C-Class Glass Roof, 2dr Coupe 12-15 (AU) -430mm 325mm - 795mm 790mm -
-16 -15/16ths" 12 13/16ths" - 31 5/16ths" 31 1/8ths" -
C-Class Glass Roof, 2dr Coupe 12-15 (EU) -430mm 325mm - 795mm 790mm -
-16 -15/16ths" 12 13/16ths" - 31 5/16ths" 31 1/8ths" -
C-Class Glass Roof, 2dr Coupe 12-15 (ZA) -430mm 325mm - 795mm 790mm -
-16 -15/16ths" 12 13/16ths" - 31 5/16ths" 31 1/8ths" -
C-Class Glass Roof, 2dr Coupe 12-15 (US) -430mm 325mm - 795mm 790mm -
-16 -15/16ths" 12 13/16ths" - 31 5/16ths" 31 1/8ths" -
E-Class Glass Roof, 2dr Coupe 09-+ (NZ) -380mm 370mm - 790mm 790mm -
-14 -15/16ths" 14 9/16ths" - 31 1/8ths" 31 1/8ths" -
E-Class Glass Roof, 2dr Coupe 09-+ (AU) -380mm 370mm - 790mm 790mm -
-14 -15/16ths" 14 9/16ths" - 31 1/8ths" 31 1/8ths" -
E-Class Glass Roof, 2dr Coupe 09-+ (EU) -380mm 370mm - 790mm 790mm -
-14 -15/16ths" 14 9/16ths" - 31 1/8ths" 31 1/8ths" -
E-Class Glass Roof, 2dr Coupe 09-+ (ZA) -380mm 370mm - 790mm 790mm -
-14 -15/16ths" 14 9/16ths" - 31 1/8ths" 31 1/8ths" -
E-Class Glass Roof, 2dr Coupe 09-+ (US) -380mm 370mm - 790mm 790mm -
-14 -15/16ths" 14 9/16ths" - 31 1/8ths" 31 1/8ths" -
3
Fitting Kit EN
K846W
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
●This kit fits type A, B, C and D.

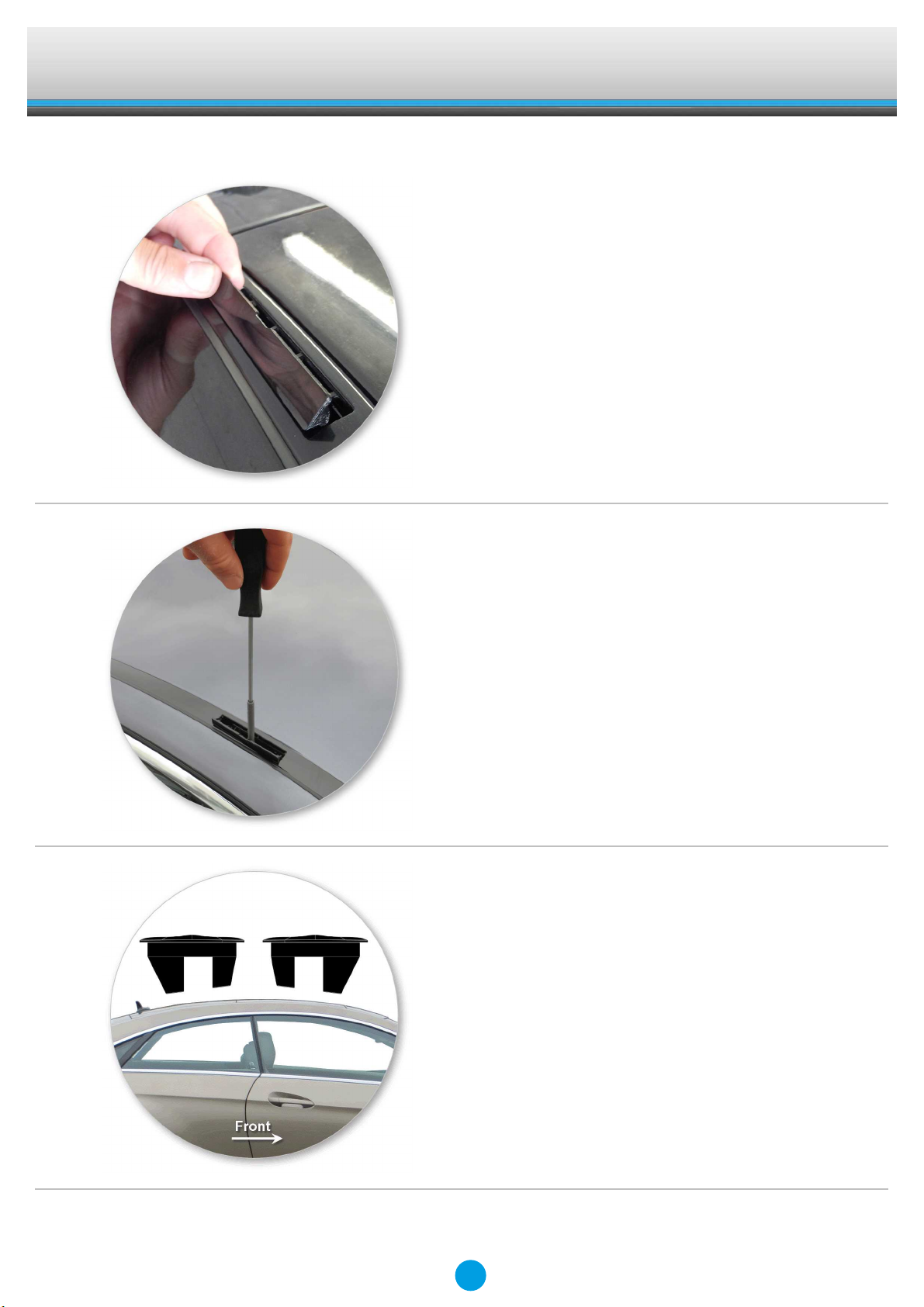

●Use keys to remove covers.
4
Fitting Kit EN
K846W
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
●Attaches to factory-fitted mounting points
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Adjust crossbar in or out to suit vehicle.
Refer to the crossbar instructions for
crossbar adjustment.
5
Fitting Kit EN
K846W
●Tighten adjusting screw to 3 Nm (2.2 ft lb)
hand tight.
●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.

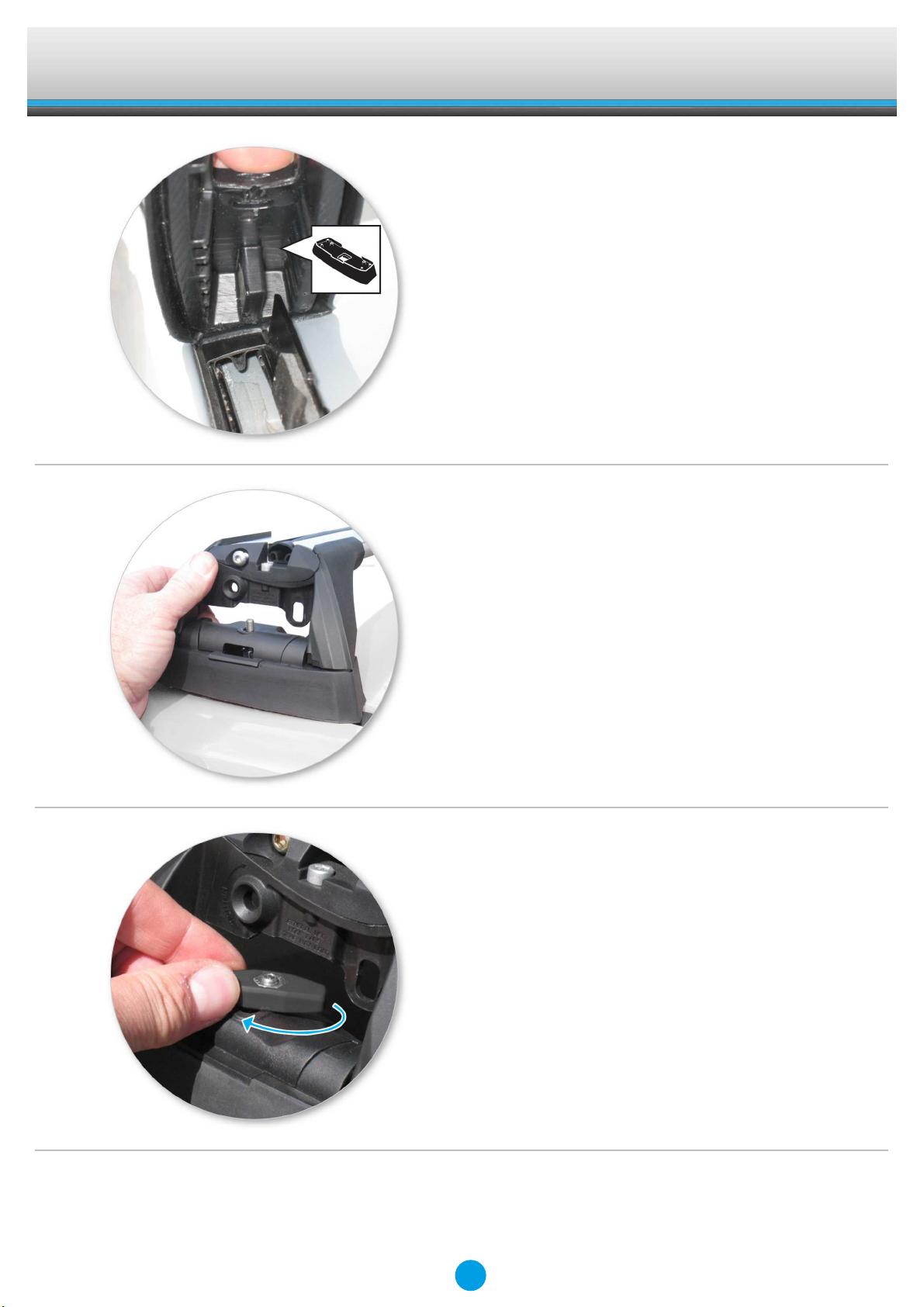

●Select plastic internal block (from fitting kit)
and insert into foot.
●Repeat for all legs.
6
Fitting Kit EN
K846W
Fitment

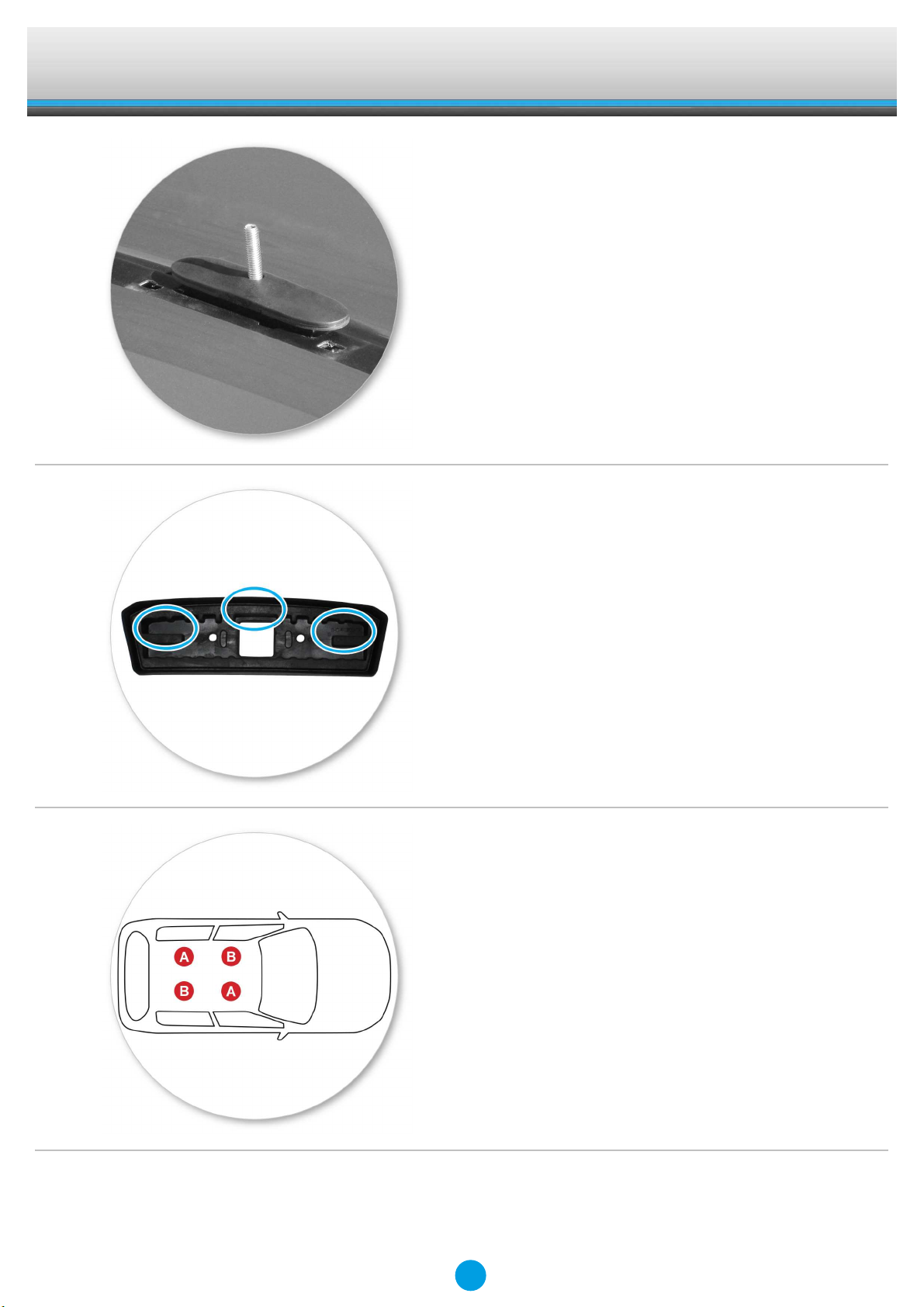

●Open or remove fixed-point covers.
●Select grubscrews and screw into the
vehicle's fixed points.
●Do not over tighten.
●Repeat for all four positions.
7
Fitting Kit EN
K846W
●Place load support over grubscrew as
shown.
●Refer to the underside of the pad for the
part number.
●Letters refer to the pad part numbers and
position.
●It is important to put the pads in the correct
position on the vehicle.
●Pad Part Number:
A = 235 A
B = 236 A
8
Fitting Kit EN
K846W
●Ensure the fixed-point covers sit vertically
in the recess in the pads.
●Place crossbars on pads ensuring the pads
fit into the holes underneath the foot and
the grubscrew passes through the hole in
the foot.
●Repeat for all four positions.
●Tighten the plastic knob. The side with the
nut showing should be facing up.
9
Fitting Kit EN
K846W
●Ensure the plastic knob is in the position
shown when fully tightened.
●Repeat for all legs.
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
CAUTION: Recheck all fasteners immediately after
a load is applied to the crossbars.
Regularly check screws are tight.
10
