White Knight CL677WV Manuale utente

WHITE KNIGHT CL 677

Intellidry Air Dryer

SERVICE MANUAL

Wiring Diagram

Exploded Views

Parts List

March 2005

4213 094 60483

0312 677 15000

0312 677 15500

0312 677 15600

0312 677 15800

CL677WV

CL677BV

CL677YV

CL677OGV Olive Green

Blue

Yellow

White

199

394

196

403

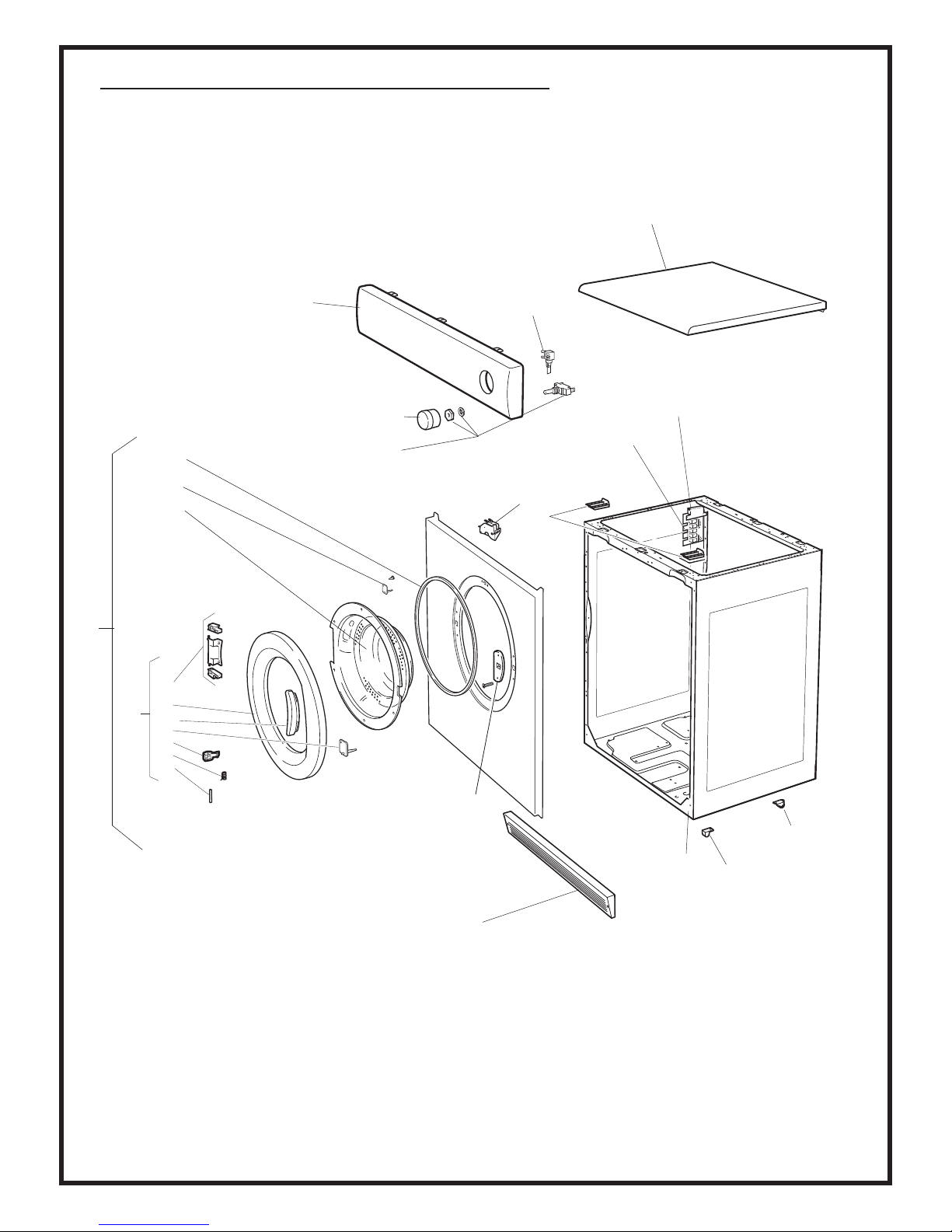

White Knight CL677 Intellidry Air Dryer - Exploded View 1

353

386

385

248

370

287

213

372

352

216

362

367

201

366

365

364

363

359

203a 363a

367

203

446

112

447

432 101 437402

427 399 400

413

230

390

395

227

125

142

408 228 393

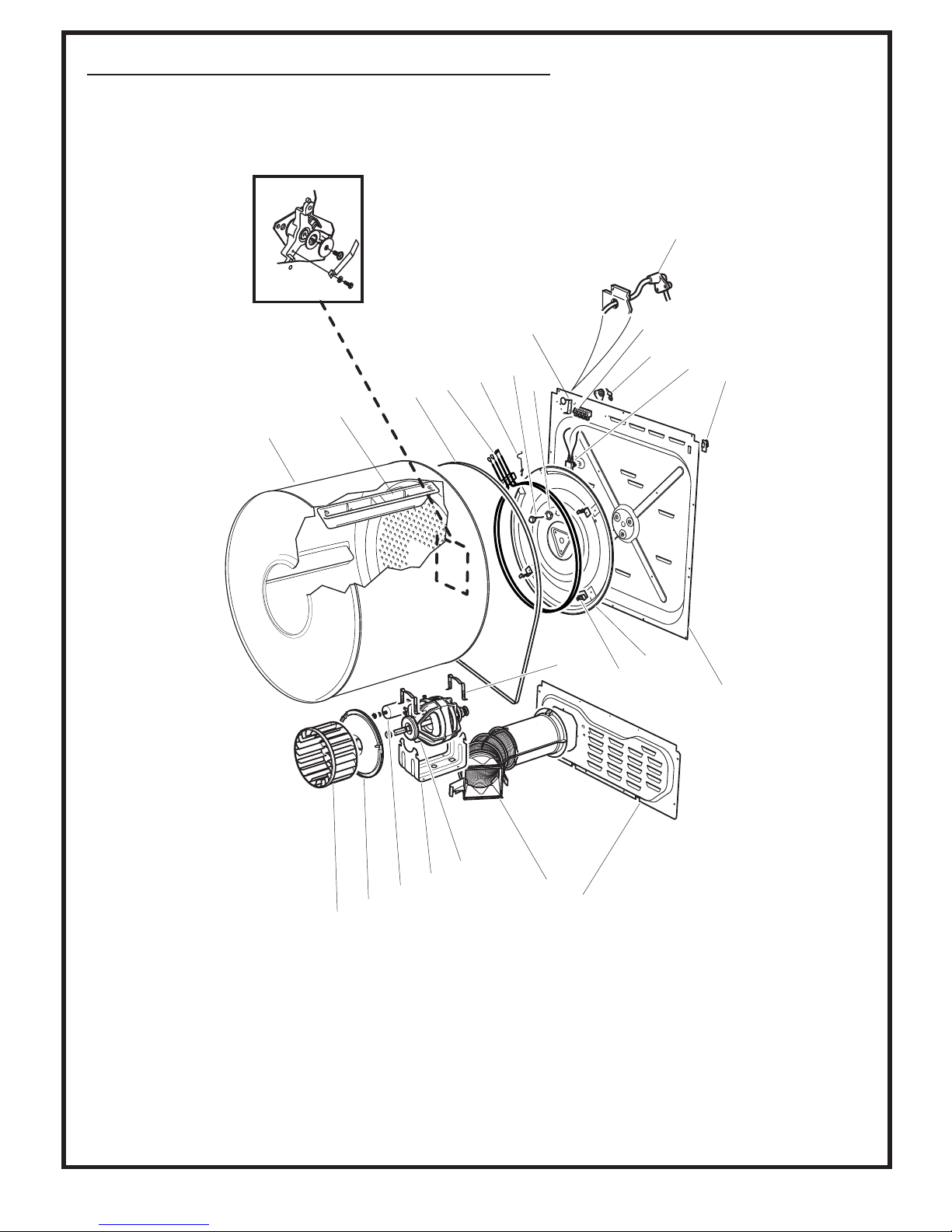

White Knight CL677 Intellidry Air Dryer - Exploded View 2

270

141

444

266

144

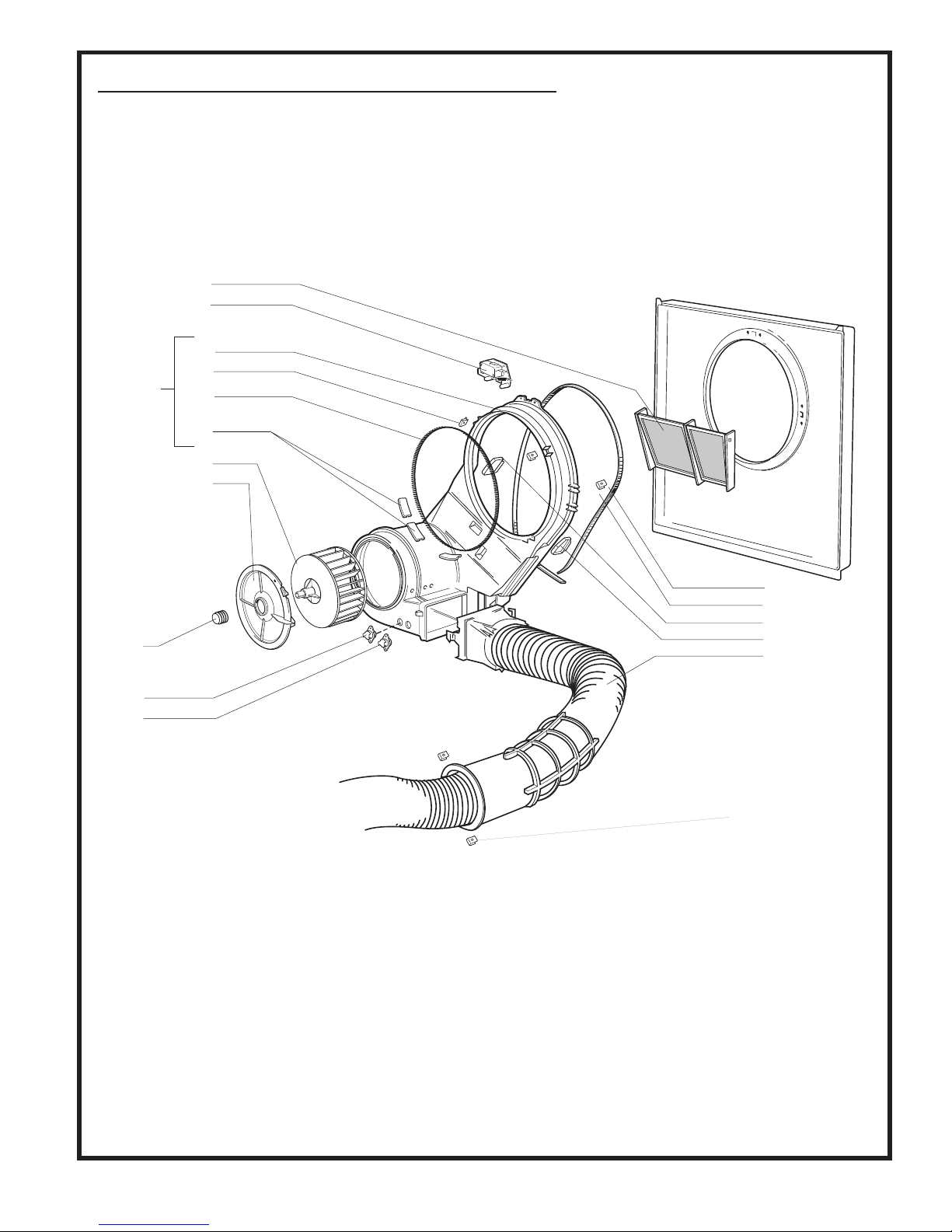

White Knight CL677 Intellidry Air Dryer - Exploded View 3

250

437

471

440

441

442

248

445

446

447

229

445a

456

457

458

459

448

454

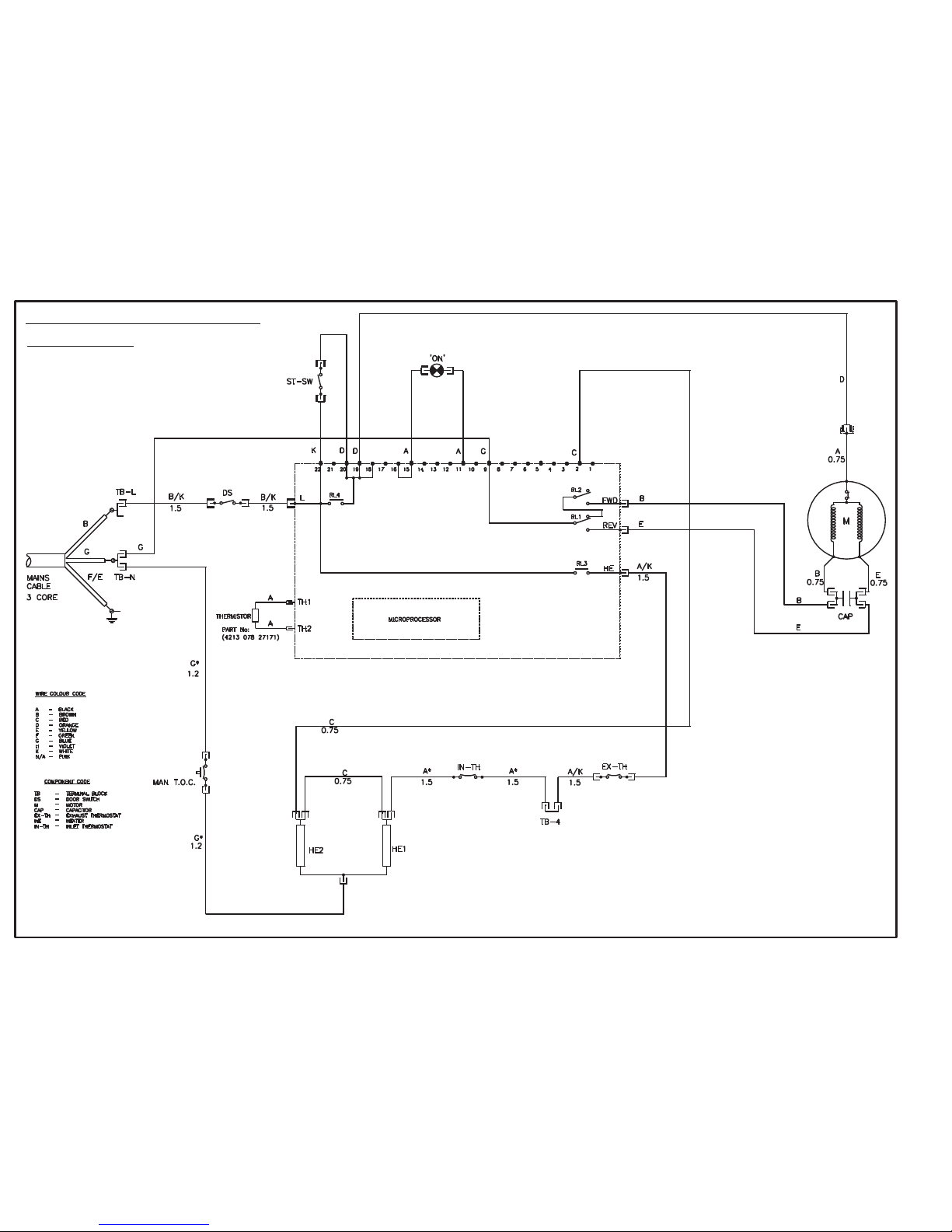

White Knight CL 677 Intellidry Air Dryer

- Wiring Diagram

WHITE KNIGHT CL677 INTELLIDRY AIR DRYER Parts List

Item Description Code Expl.View

101 Motor & 8µf Capacitor Assembly 4213 092 25611 2

112 8µf Capacitor 4213 092 08091 2

125 Drive Belt 4213 092 18601 2

141 Mains Cable & Plug 4213 076 35123 2

142 Terminal Block 4213 078 44613 2

144 Earth Tab Assembly 4213 092 41181 2

196 Cabinet Assembly (White) 4213 092 17761 1

196 Cabinet Assembly (Blue) 4213 092 28161 1

196 Cabinet Assembly (Yellow) 4213 092 28171 1

196 Cabinet Assembly (Olive Green) 4213 092 28181 1

199 Ignis Plinth (White) 4213 077 52714 1

199 Ignis Plinth (Blue) 4213 077 68181 1

199 Ignis Plinth (Yellow) 4213 077 68191 1

199 Ignis Plinth (Olive Green) 4213 077 68171 1

201 Door Seal 4213 077 08344 1

203 Ignis Full Door Assembly (White) 4213 092 28061 1

203 Ignis Full Door Assembly (Blue) 4213 092 28071 1

203 Ignis Full Door Assembly (Yellow) 4213 092 28081 1

203 Ignis Full Door Assembly (Olive Green) 4213 092 28091 1

203a Ignis Door Frame Assembly (White) 4213 092 17771 1

203a Ignis Door Frame Assembly (Blue) 4213 092 26321 1

203a Ignis Door Frame Assembly (Yellow) 4213 092 28201 1

203a Ignis Door Frame Assembly (Olive Green) 4213 092 28211 1

213 Neon & Lens Assembly 4213 092 09901 1

216 Start Switch 4213 078 52891 1

227 Heating Element 4213 092 05521 2

228 Heat Toc 4213 078 50161 2

229 Thermostat 4213 078 48373 3

230 Thermostat (Inlet) 4213 078 48363 2

248 Microswitch/Bracket Assembly 4213 092 05251 1

266 Drum Assembly 4213 092 05531 2

270 Drum Shaft/Bearing Kit 4213 092 05591 2

287 Pcb Mounting Bracket 4213 070 08623 1

250 Thermister 4213 078 27171 3

352 Round Knob Assembly (White) 4213 092 20871 1

352 Round Knob Assembly (Blue) 4213 092 26361 1

352 Round Knob Assembly (Yellow) 4213 092 26391 1

352 Round Knob Assembly (Olive Green) 4213 092 26411 1

353 Control Panel Assembly (White) 4213 092 26681 1

353 Control Panel Assembly (Blue) 4213 092 26691 1

353 Control Panel Assembly (Yellow) 4213 092 26701 1

353 Control Panel Assembly (Olive Green) 4213 092 26711 1

354 Cable Clip 8213 130 26321 1

357 Screw 8 X 25 8213 130 28241 1

359 Door Hinge Assembly 4213 092 26071 1

PLEASE NOTE bold text indicates choice of different coloured parts. 4213 094 60483

WHITE KNIGHT CL677 INTELLIDRY AIR DRYER Parts List

362 Window 4213 077 44093 1

363 Ignis Door Frame (White) 4213 077 52694 1

363 Ignis Door Frame (Blue) 4213 077 68131 1

363 Ignis Door Frame (Yellow) 4213 077 68151 1

363 Ignis Door Frame (Olive Green) 4213 077 68111 1

363a Ignis Door Handle Inner (White) 4213 077 52982 1

363a Ignis Door Handle Inner (Blue) 4213 077 68141 1

363a Ignis Door Handle Inner (Yellow) 4213 092 68161 1

363a Ignis Door Handle Inner (Olive Green) 4213 092 68121 1

364 Latch Pivot 4213 075 13013 1

365 Latch Spring 4213 075 70833 1

366 Door Latch 4213 077 53413 1

367 Switch Strike 4213 077 83571 1

369 Loom Clip 4213 075 70941 1

370 Latch Guide 4213 077 40992 1

372 Programmed Pcb 4213 078 53201 1

376 Front Panel Assembly (White) 4213 092 18271 1

376 Front Panel Assembly (Blue) 4213 092 28471 1

376 Front Panel Assembly (Yellow) 4213 092 28481 1

376 Front Panel Assembly (Olive Green) 4213 092 28491 1

385 Top Cover Bracket 4213 077 40923 1

386 Top Cover Assembly (White) 4213 092 21521 1

386 Top Cover Assembly (Blue) 4213 092 28131 1

386 Top Cover Assembly (Yellow) 4213 092 28141 1

386 Top Cover Assembly (Olive Green) 4213 092 28011 1

387 Cable Tie 4213 078 41772 1

390 Gasket 4213 074 50862 2

393 Flex Support Clip 4213 077 40982 1&2

394 Foot 4213 077 39833 1

395 Heater Wires Clip 4213 075 70971 2

396 Screw 8X5 2513 200 06166 1

399 Heater Support 4213 080 06619 2

400 Heater Plate 4213 080 14551 2

402 Access Panel 4213 080 06555 2

403 Roller Assembly 4213 089 00621 1

408 Cable Clamp 4213 077 47303 2

413 Back Panel 4213 080 0654B 2

427 Motor Spring Clip 4213 078 45362 2

432 Motor Mount Bracket 4213 080 0675A 2

437 Vent Hose Assembly 0312 002 02000 2 & 3

440 Banjo Assembly 4213 092 17811 3

441 Front Bearing (Short) 4213 077 40952 3

442 Front Seal 4213 077 61701 3

444 Lifter 4213 077 41009 2

445 Front Bearing (Long) 4213 077 40962 3

445a Bearing Pads & Brush Seal Kit 4213 092 21171 2

446 Fan 4213 077 40896 2 & 3

447 Access Cover Assembly 4213 092 18081 2 & 3

PLEASE NOTE bold text indicates choice of different coloured parts. 4213 094 60483

WHITE KNIGHT CL677 INTELLIDRY AIR DRYER Parts List

447a Access Cover 4213 077 40888 3

448 Spring Clip (Fan) 4213 075 71162 3

451 Screw 8 X 1/2 2513 152 02001 1

454 Filter 4213 092 17821 3

455 Screw 6 X 1/2 2522 164 26009 3

456 Banjo Seal 4213 077 07991 3

457 J' Clip 2513 482 08002 3

458 Banjo Insert No 2 4213 077 53502 3

459 Banjo Insert No 1 4213 077 53492 3

471 U' Type Captive Nut 2513 483 12036 3

537 W' Button Plug 4213 078 26311 3

Not Shown On Exploded View

Loom Assembly 4213 076 51971

Instructions 4213 094 39309

PLEASE NOTE bold text indicates choice of different coloured parts. 4213 094 60483
