Digital 5/2 Day

Programmable

17 16

356

17 8 9

Easy, Menu-Driven Set-UpEasy, Menu-Driven Set-Up

Easy, Menu-Driven Set-Up

and Programmingand Programming

and Programming

Premium options

to customize the thermostat

to fit your application.

INTRODUCTION

Thank you for purchasing

your new Comfort-Set 90

Series thermostat.Your new

White-Rodgers thermostat

uses solid state micro-

computer technology to

provide precise time/tempera-

ture control. This thermostat

offers the flexibility to design

heating and cooling programs

that fit your needs.

Introduction Orientation Installation Programming Features Index

Configuration

Adaptable to most 24 volt

residential forced air, multi-

stage or heat pump systems

with electric or fossil fuel

auxiliary (1F92-371).

You will find information

about thermostat buttons and

display in the component

section beginning on page 2.

Installation instructions begin

on page 4.

Instructions for optional

thermostat configuration

begin on page 23. Program-

ming information begins on

page 26. Descriptions of the

thermostat’s features begin on

page 30.

We have also added thumb

tabs to help you find sections

of the manual.

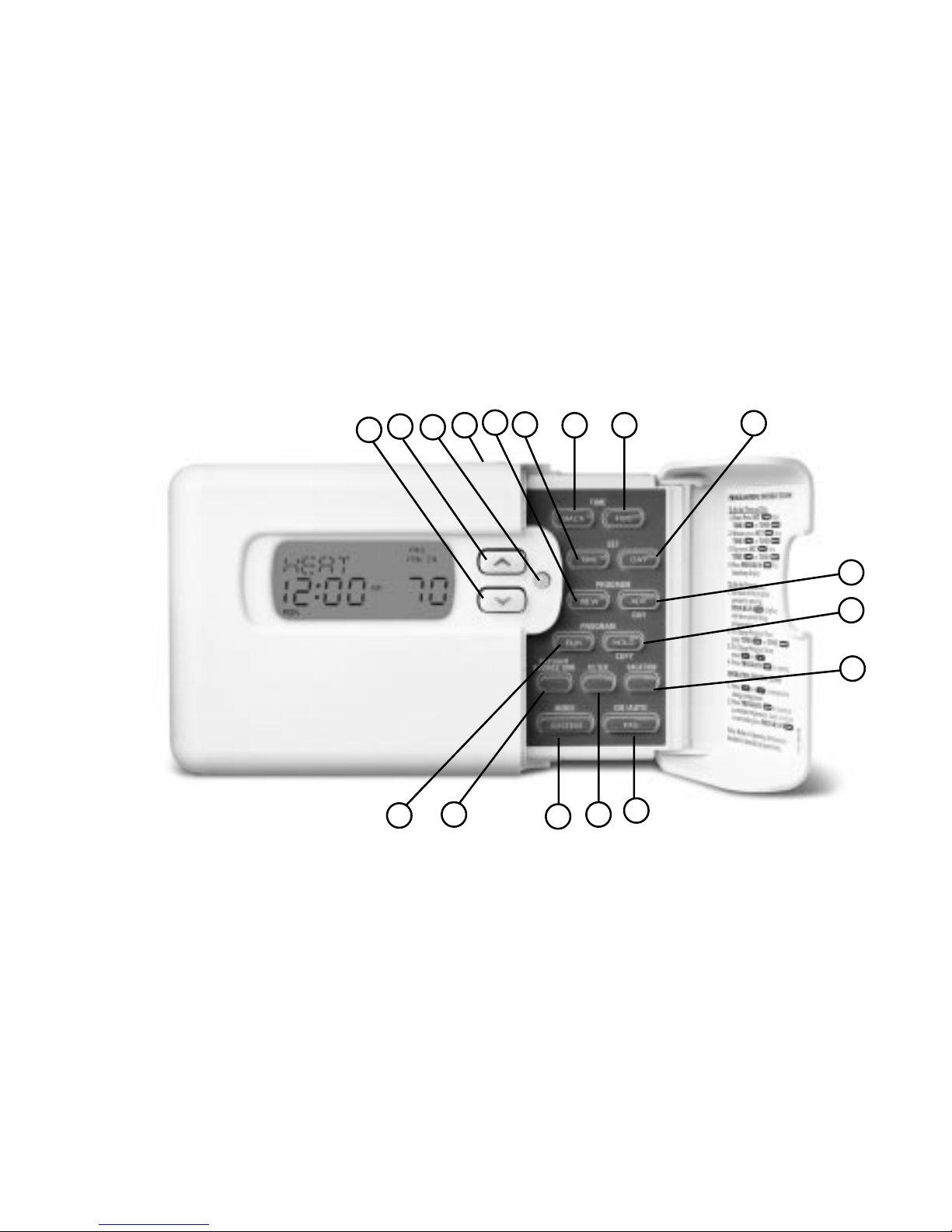

THE THERMOSTAT BUTTONSTHE THERMOSTAT BUTTONS

THE THERMOSTAT BUTTONS

See inside front cover for illustration

showing button locations.

1(Blue arrow) Lowers temperature

setting (45°F or 7°C minimum)

2(Red arrow) Raises temperature

setting (99°F or 37°C maximum)

3The multi-color indicator glows:

green for 1st stage, yellow for 2nd stage,

red for emergency heat and flashing red

for malfunction condition in system.

4This button (on top of the cover)

lights the display.

5Used to initiate or review thermostat

programming or advance to next

program period in programming mode.

6Used with TIME

FWD

/TIME

BACK

to set the clock.

Used to adjust the time backward, or

to select the previous menu item.

Used to adjust the time forward, or

to select the next menu item.

Used with TIME

FWD

/TIME

BACK

to set the current day.

Used to advance operation to the

next program period or advance to the

next day in programming mode.

Used to manually override

programming to hold at a selected

temperature.

Used to enter and configure the

VACATION mode.

Selects fan operation (see The

Display 21 ). This button is also used to

program the fan to run continuously

during a program period.

14 Used to set the filter change-out

time, or to reset the filter change timer.

15 Sets the system mode (HEATing,

EMERgency (Heat Pump models only),

OFF, COOLing, or AUTOmatic

changeover).

Used to adjust the clock one hour

forward or back.

Used to start or return to program

operation.

ORIENTATION

FAN AUTOHRS

CHECK BATTERY STAT SYSTEM

°F

MON

PRG

FAN ON

HEATHEAT

HRS

CHECK BATTERY

°F

MON WED THU FRI SAT SUNTUEWED THU FRI SAT SUNTUE

18 18

19 20 21 21

2324

Figure 1. The Display

Orientation

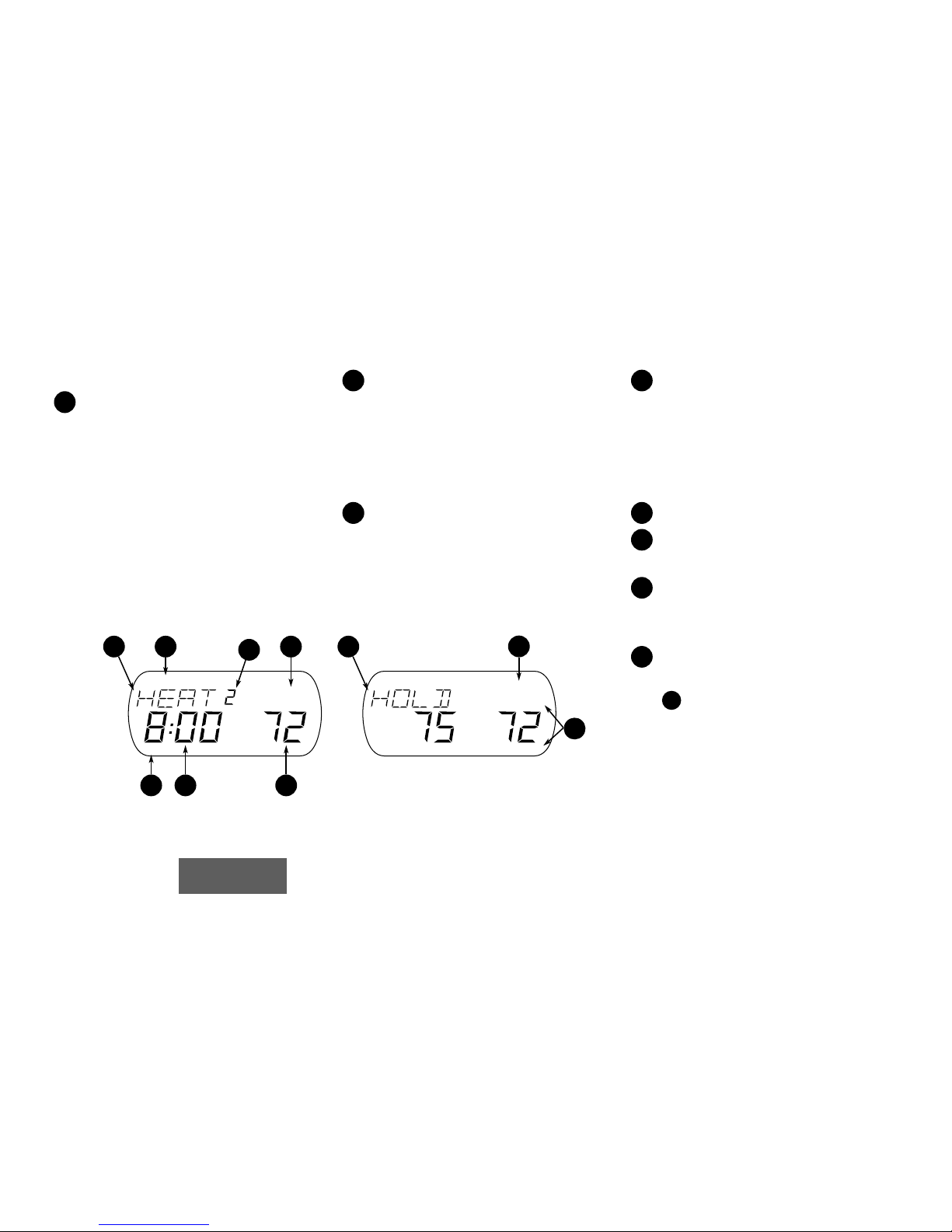

THE DISPLAYTHE DISPLAY

THE DISPLAY

Displays system mode (HEAHEA

HEAHEA

HEATT

EMER,EMER,

EMER, OFFOFF

OFFOFF

OFF, COOLCOOL

COOLCOOL

COOL, AA

AUTUT

UTUT

UTOO

O, HOLDHOLD

HOLDHOLD

HOLD,

or VACAVACA

VACAVACA

VACA). During programming

displays the time period (MOR, DAY,MOR, DAY,

MOR, DAY,MOR, DAY,

MOR, DAY,

EVE, NHTEVE, NHT

EVE, NHT) being programmed.. In the

configuration menu, the menu item

name is shown, one word at a time

(PRGMPRGM

PRGMPRGM

PRGM MODEMODE

MODEMODE

MODE, EMREMR

EMREMR

EMR, COOLCOOL

COOLCOOL

COOL FANFAN

FANFAN

FAN

DELADELA

DELA OFFOFF

OFFOFF

OFF, etc.).

CHECK STATCHECK STAT

CHECK STAT appears when the

thermostat detects certain problems

within itself. CHECK SYSTEMCHECK SYSTEM

CHECK SYSTEMCHECK SYSTEM

CHECK SYSTEM

appears when the thermostat detects

certain problems in heating or cooling

the system.

20 Indicates the length of time

remaining in a temporary hold

condition. Also indicates the length of

time remaining in VACATION mode.

21 Displays FF

FAN ONAN ON

AN ONAN ON

AN ON when the fan is

operating continuously. Displays FF

FANAN

ANAN

AUTUT

UTUT

UTOO

Owhen the fan cycles with the

heating or cooling system. Displays

PRPR

PRG FG F

G FG F

G F

AN ONAN ON

AN ON when fan is pro-

grammed to be on during a period.

Displays the setpoint temperature.

23 Alternately displays room

temperature and time of day.

24 Shows the current day of the week.

When programming, shows the day(s)

being programmed.

25 The word HEAHEA

HEAHEA

HEATT

Tor COOLCOOL

COOLCOOL

COOL will

appear above or below the setpoint if

area 18 is needed to display other

information.

INSTALLATION

1F92-371:

5/2 Day programming;

residential applications

ELECTRICAL DATAELECTRICAL DATA

ELECTRICAL DATA

Electrical Rating:

20 to 30 VAC, 50/60 Hz with

common

0.05 to 1.5 Amps per terminal

2.5 Amps maximum total load (all

terminals combined)

Standard Systems:

Multi-stage gas, oil, electric.

Single-stage or two-stage compres-

sor heat pump.

THERMAL DATATHERMAL DATA

THERMAL DATA

Setpoint Temperature Range:

45° to 99°F (7° to 37°C)

OperatingAmbient Temperature:

32° to 110°F (0° to 43°C)

Operating Humidity Range:

90% non-condensing max.

Shipping Temperature Range:

-4° to 149°F (-20° to 65°C)

SPECIFICATIONSSPECIFICATIONS

SPECIFICATIONS

Installation

PRECAUTIONSPRECAUTIONS

PRECAUTIONS

▲

!WARNINGWARNING

WARNINGWARNING

WARNING

Do not short out terminals

on gas valve or primary

control to test. Short or

incorrect wiring will damage

thermostat and could cause

personal injury and/or

property damage.

Do not use on circuits

exceeding specified voltage.

Higher voltage will damage

thermostat and could cause

shock or fire hazard.

Thermostat installation

and all components of the

system shall conform to

Class II circuits per the NEC

code.

▲

!CAUTIONCAUTION

CAUTIONCAUTION

CAUTION

To prevent electrical shock

and/or equipment damage,

disconnect electric power to

system at main fuse or

circuit breaker box until

installation is complete.

NOTENOTE

NOTE

Read all instructions

thoroughly before beginning

installation.

Do not exceed ratings shown in the

Specifications section, above. If in

doubt about the electrical ratings of

your heating/cooling system, have it

inspected by a qualified heating and

air conditioning contractor or

licensed electrician.

All wiring must conform to local

and national electrical codes and

ordinances.

This control is a precision instru-

ment, and should be handled

carefully. Rough handling or

distorting components could cause

the control to malfunction.This thermostat is intended for use

with a low voltage system. Do not

use on a line voltage system.

ATTENTION!ATTENTION!

ATTENTION!

This product does not contain

mercury. However, this product

may replace a unit which contains

mercury.

Do not open mercury cells. If a

cell becomes damaged, do not touch

any spilled mercury. Wearing non-

absorbent gloves, take up the spilled

mercury with sand or other

absorbent material and place into a

container which can be sealed. If a

cell becomes damaged, the unit

should be discarded.

Mercury must not be discarded in

household trash. When the unit this

product is replacing is to be

discarded, place in a suitable

container and return to White-

Rodgers at 2895 Harrison Street,

Batesville, AR 72501 for proper

disposal.

REMOVEREMOVE

REMOVE

OLD THERMOSTATOLD THERMOSTAT

OLD THERMOSTAT

Shut off electricity at main fuse or

circuit breaker box until installation

is complete AND the new thermo-

stat is configured properly.

Remove the front cover of the old

thermostat. With wires still attached,

remove wall plate from the wall.

Identify each wire attached to the

thermostat using one of the labels

enclosed with the new thermostat.

Disconnect the wires from the old

thermostat one at a time. DO NOT

let the wires fall back into the wall.

Install the new thermostat using the

following procedures.

INSTALLATIONINSTALLATION

INSTALLATION

ATTACH BASE TO WALLATTACH BASE TO WALL

ATTACH BASE TO WALL

Remove packing material from the

thermostat. Place fingers of one

hand on the center top and bottom

portion of the thermostat. Grasp the

base in the other hand on top and

bottom center and gently pull

straight out. Forcing or prying on

the thermostat will cause damage to

the unit.

Place the base over the hole in the

wall where the wires come out and

mark mounting hole locations using

the base as a template. Drill 3/16”

pilot holes, and install screw

anchors in the wall.

Run wires through hole in base and

attach base to wall (see fig. 1).

Installation

Insert the wires into the terminals on

the base using the appropriate

wiring diagram and tighten the

terminal screws.

CONFIGURINGCONFIGURING

CONFIGURING

AND PROGRAMMINGAND PROGRAMMING

AND PROGRAMMING

Before the power is turned on, the

thermostat must be configured to

operate properly with the system.

See the CONFIGURATION section

of this manual.

This thermostat can be programmed

for automatic temperature control.

Refer to Operating Instructions for

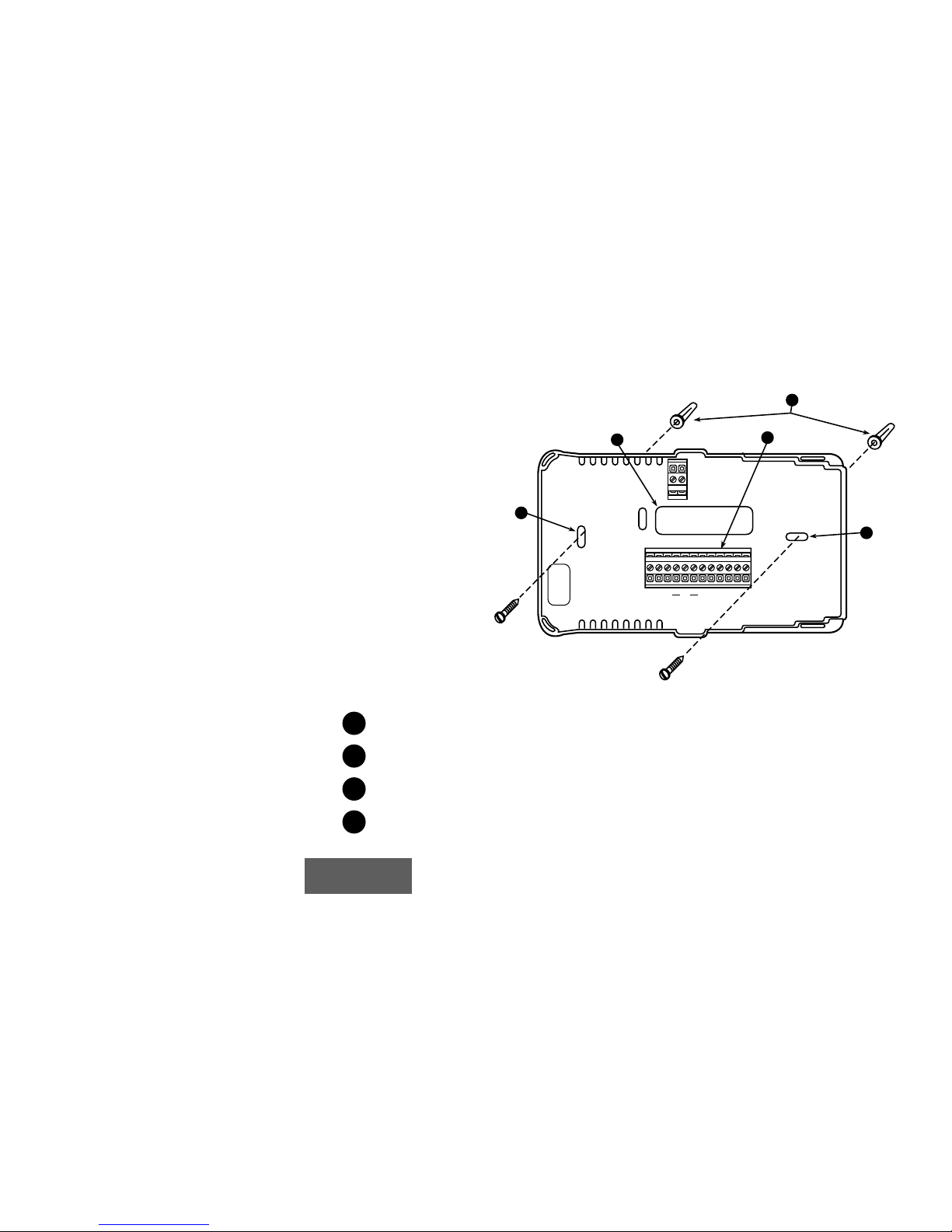

programming. Figure 1. Thermostat base and terminalsFigure 1. Thermostat base and terminals

Figure 1. Thermostat base and terminalsFigure 1. Thermostat base and terminals

Figure 1. Thermostat base and terminals

1Mounting screws

2Pull wires through this opening

3Insert wires into terminal holes, then tighten screws

4Screw anchors

RCEW2W1Y2Y1BOG

PH D SASBSCOTL

A1 E2

MULTI-STAGE TERMINAL OUTPUTSMULTI-STAGE TERMINAL OUTPUTS

MULTI-STAGE TERMINAL OUTPUTS

Refer to equipment manufacturers’

instructions for specific system

wiring information.

You can configure the thermostat for

use with either multi-stage electric

heat systems or multi-stage gas

systems. When configured for

electric heat, the Gterminal

(blower/fan) will be energized on a

call for heat.

This thermostat is designed to

operate a single-transformer system.

If you have a two-transformer

system, cut and tape off one

transformer. If transformer safety

circuits are in only one of the

systems, remove the transformer of

the system with NO safety circuits. If

required, replace remaining trans-

former with a 75VA Class II

transformer. After disconnecting one

transformer, the two commons must

be jumpered together.

Use the terminal output information

below to help you wire the thermo-

stat properly for your multi-stage

system. After wiring, see CON-

FIGURATION section for proper

thermostat configuration.

THERMOSTTHERMOST

THERMOSTAA

ATT

T TERMINTERMIN

TERMINTERMIN

TERMINALS (Upper)ALS (Upper)

ALS (Upper)ALS (Upper)

ALS (Upper)

LPH

Malfunction Light Not Used

THERMOSTAT TERMINALS (Lower)THERMOSTAT TERMINALS (Lower)

THERMOSTAT TERMINALS (Lower)

SYSTEM E C R W3/A1 W2 E2/P W1 Y2 Y1 B O G

Multi-Stage No function 24 Volt 24 Volt Not Used Heat mode No function Heat mode Cool mode Cool mode Energized in Energized in Blower/Fan

(Common) (Hot) 2nd stage 1st stage 2nd stage 1st stage Heat & Off Cool mode Energized on

mode call for Cool*

* (and Heat if configured to Electric Heat)

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali White Rodgers Termostato

White Rodgers

White Rodgers 1F95-1277 Manuale utente

White Rodgers

White Rodgers 70 Series Manuale utente

White Rodgers

White Rodgers 1F80-224 Manuale utente

White Rodgers

White Rodgers 1F83-51 Manuale utente

White Rodgers

White Rodgers 1F95-1277 Manuale utente

White Rodgers

White Rodgers 1F56N-911 Manuale utente

White Rodgers

White Rodgers 1F81-261 Manuale utente

White Rodgers

White Rodgers 875 Manuale utente

White Rodgers

White Rodgers 1F82-0261 Manuale utente

White Rodgers

White Rodgers 1E78 Manuale utente

White Rodgers

White Rodgers 1C26 Manuale utente

White Rodgers

White Rodgers 1F85-277 Manuale utente

White Rodgers

White Rodgers 775 Manuale utente

White Rodgers

White Rodgers UP310 Manuale utente

White Rodgers

White Rodgers 1F80-361 Manuale utente

White Rodgers

White Rodgers 1F56 Series Manuale utente

White Rodgers

White Rodgers BLUE EASY 1F86EZ-0251 Istruzioni per il montaggio

White Rodgers

White Rodgers 37C72U Manuale utente

White Rodgers

White Rodgers 1C21 Manuale utente

White Rodgers

White Rodgers 90 SERIES 1F95-391 Manuale utente

White Rodgers

White Rodgers 1F90-71 Manuale utente

White Rodgers

White Rodgers 1F95W-71 Manuale utente

White Rodgers

White Rodgers 1F80-71 Manuale utente

White Rodgers

White Rodgers 750 Manuale utente

Manuali Termostato popolari di altre marche

EWELLY

EWELLY EW-181 Manuale utente

Prolon

Prolon T1100 Istruzioni per l'installazione

Computherm

Computherm Q20 Manuale utente

Heatmiser

Heatmiser neoStat Manuale utente

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuale utente

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuale utente

Saswell

Saswell SAS920XWHB-7-S-RF Guida

Aircalo

Aircalo TFP1-ET85P2 Manuale utente

Honeywell

Honeywell CM721 Manuale utente

Carrier

Carrier DEBONAIR 33CS Manuale utente

Lennox

Lennox iHarmony Zone Thermostat Istruzioni per il montaggio

Gemtech

Gemtech GT7000 Manuale di istruzioni

Rollei

Rollei Smartes 45000 Manuale utente

Sinope

Sinope TH1300RF Manuale utente

Honeywell

Honeywell RLV4305 Manuale utente

Honeywell

Honeywell Prestige 2.0 THX9421 Manuale utente

NuTone

NuTone NTBZ48 Istruzioni operative originali

Stelpro

Stelpro MAESTRO ASMT402AD Manuale utente
