White Rodgers SuperStat Pro SuperStat Pro Programmable... Manuale utente
SuperStat®
Pro
Programmable
Thermostat
User Guide
Copyright April 2008
Data, drawings, and other material contained herein are proprietary to Comverge, Inc., and may not be reproduced or
duplicated in any form without the prior permission of Comverge, Inc.
SuperStat is a registered trademark of Comverge, Inc.
Thermostat manufactured in partnership with White-Rodgers.
SuperStat Pro User Guide 1
Contents
Getting Started with Your Thermostat...............................................................3
Overview......................................................................................................................3
Thermostat Buttons .....................................................................................................4
Thermostat Display......................................................................................................6
Selecting Heating or Cooling ........................................................................................7
Setting the Current Day and Time ................................................................................9
Replacing the Batteries in Your Thermostat ...............................................................12
Resetting the FLTR Display ........................................................................................14
Programming Your Thermostat ........................................................................15
Planning Your Program...............................................................................................16
Programming Heating and Cooling.............................................................................18
Setting Holds .............................................................................................................22
Setting Temporary Holds............................................................................................23
Setting Permanent Holds ...........................................................................................24
Clearing Holds............................................................................................................25
Critical Event Periods .......................................................................................27
Overriding Critical Events...........................................................................................28
2 SuperStat Pro User Guide
Displaying Energy Price and Usage Information .............................................29
Energy Price, Estimated Bill, and Energy Usage Information......................................29
Viewing Energy Price, Estimated Bill, and Energy Usage Information ........................30
Viewing Energy Price, Estimated Bill, and Energy Usage Information ........................31
Troubleshooting Assistance Guide ..................................................................33
Index .................................................................................................................49
SuperStat Pro User Guide 3
Getting Started with Your Thermostat
Overview

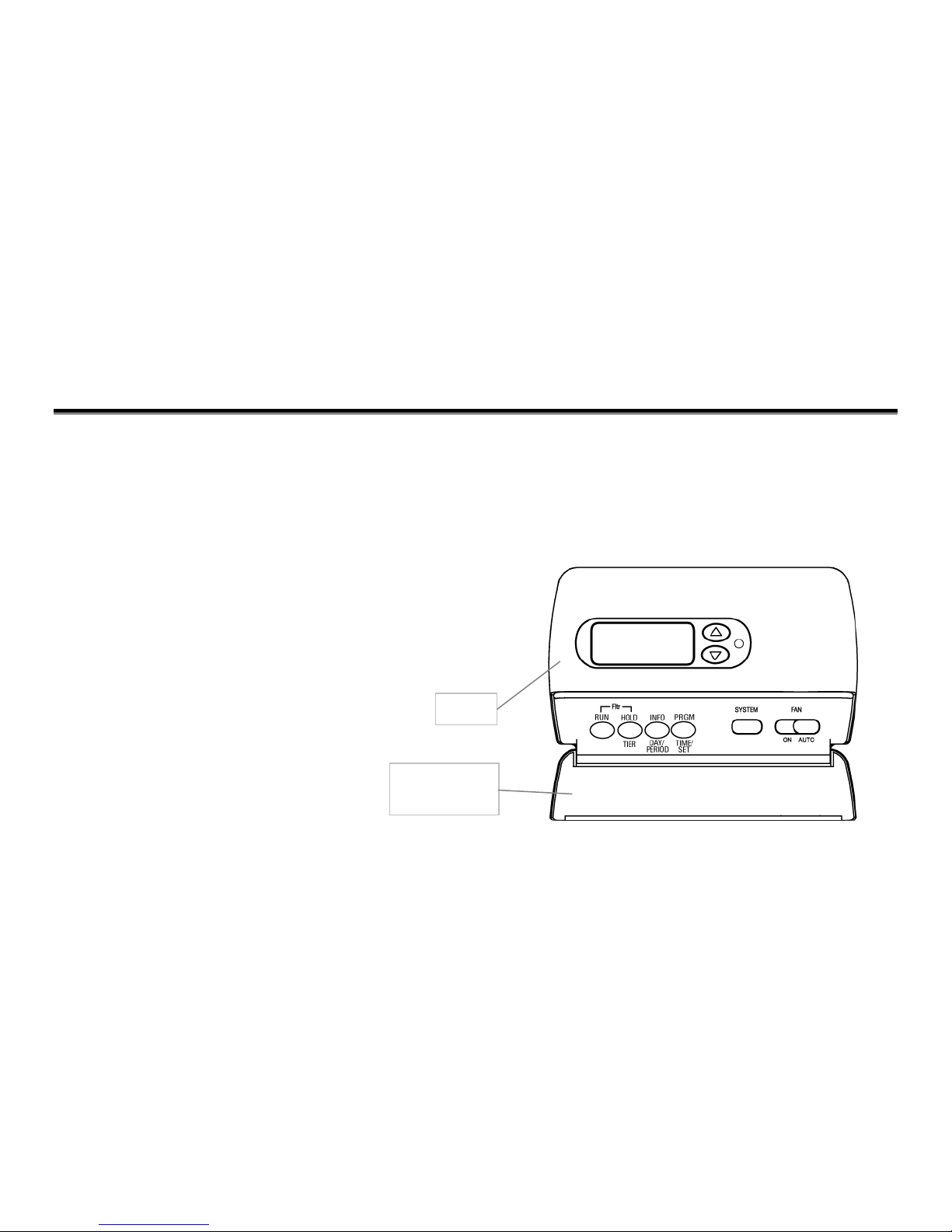

Your SuperStat®Pro thermostat consists of two main parts: the cover and the keypad door (lower portion of thermostat
front as shown below). You open the cover to access the buttons to operate and program the thermostat.
Open the keypad door:
•Flip the keypad door down.
Close the keypad door:
•Push the door up until it lines up with the base.
Press gently until the door snaps into place.
Cover
Keypad door
(
shown o
p
en
)
4 SuperStat Pro User Guide
HOLD
Holds system at current
temperature setting until you
release by pressing RUN.
INFO
Displays energy price,
estimated bill, and energy
usage information.

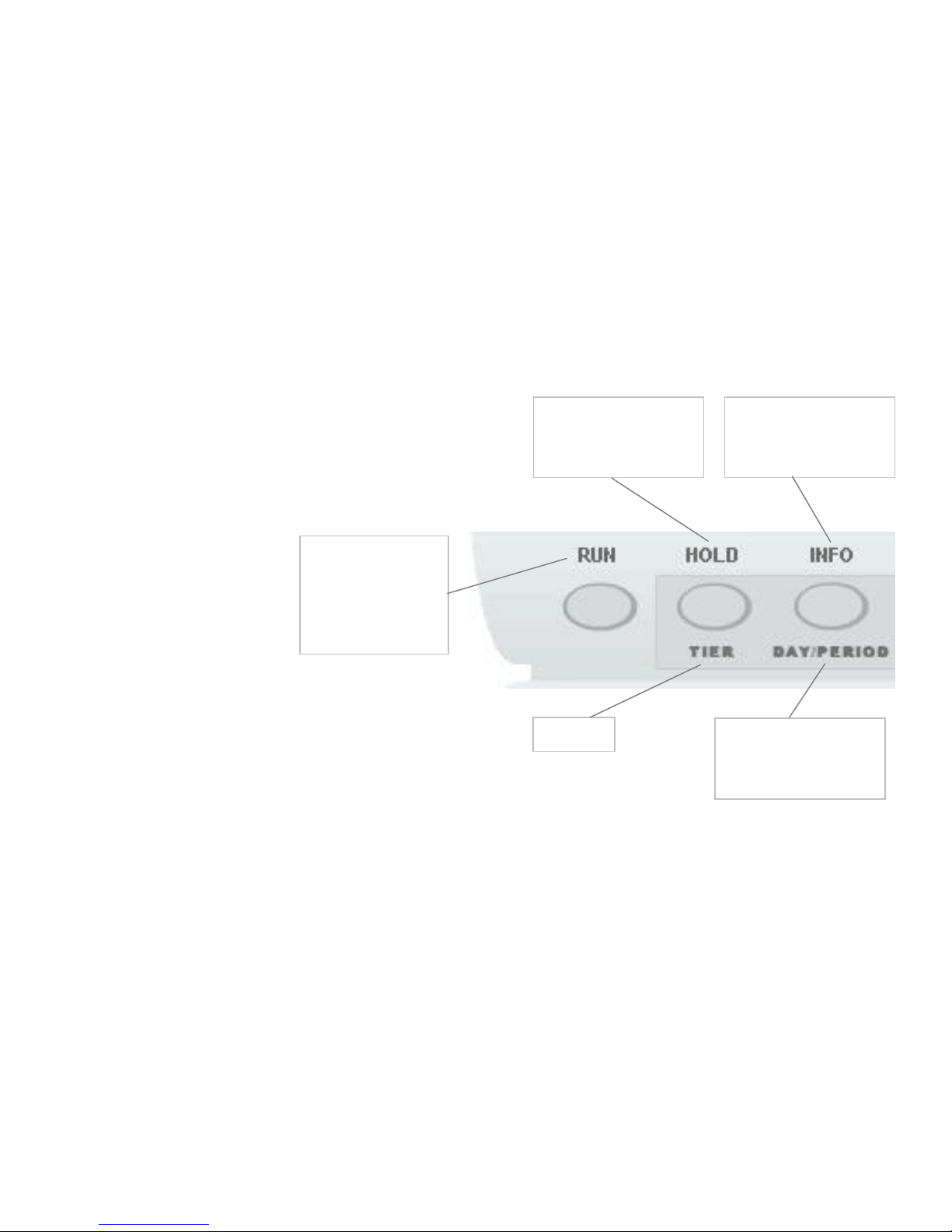

Thermostat Buttons
RUN
•Cancels holds and
returns system to
programmed settings.
•Exits programming
and saves all settings.
DAY/PERIOD
Toggles between day of
week and time period you
want to program.
Not used.
SuperStat Pro User Guide 5

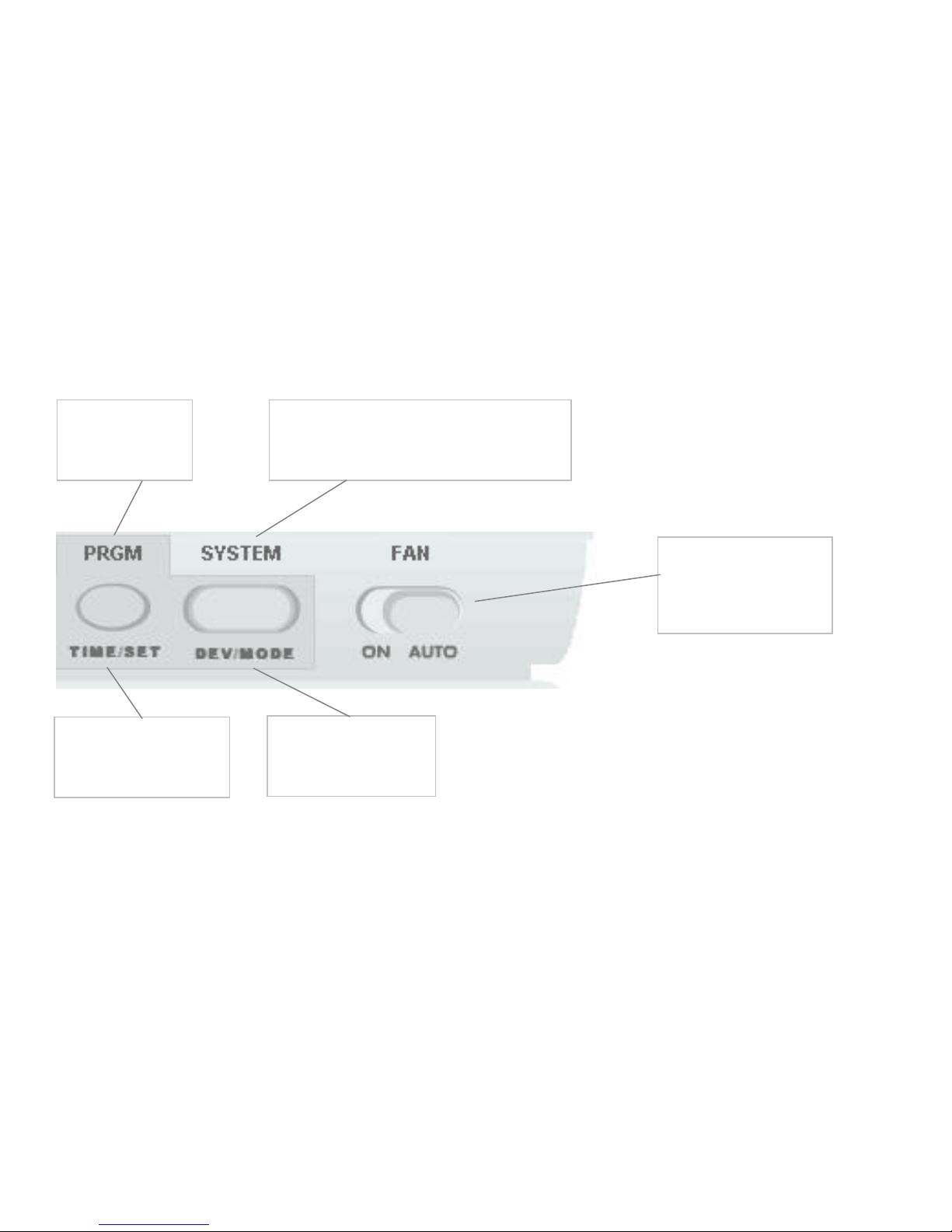

SYSTEM
Selects the mode in which you want the system to
operate: cooling, heating, auto-changeover,
emergency heat (applies to heat pumps only), or OFF.
PRGM
Allows you to program
your thermostat
FAN
Controls your system’s indoor
fan. For energy efficiency, this
is normally set to AUTO but
can be set to ON.
DEVICE/MODE
Toggles between COOL and
HEAT for programming.
TIME/SET
Toggles between the period
start time and temperature
setpoint you want to program.
6 SuperStat Pro User Guide
Thermostat Display

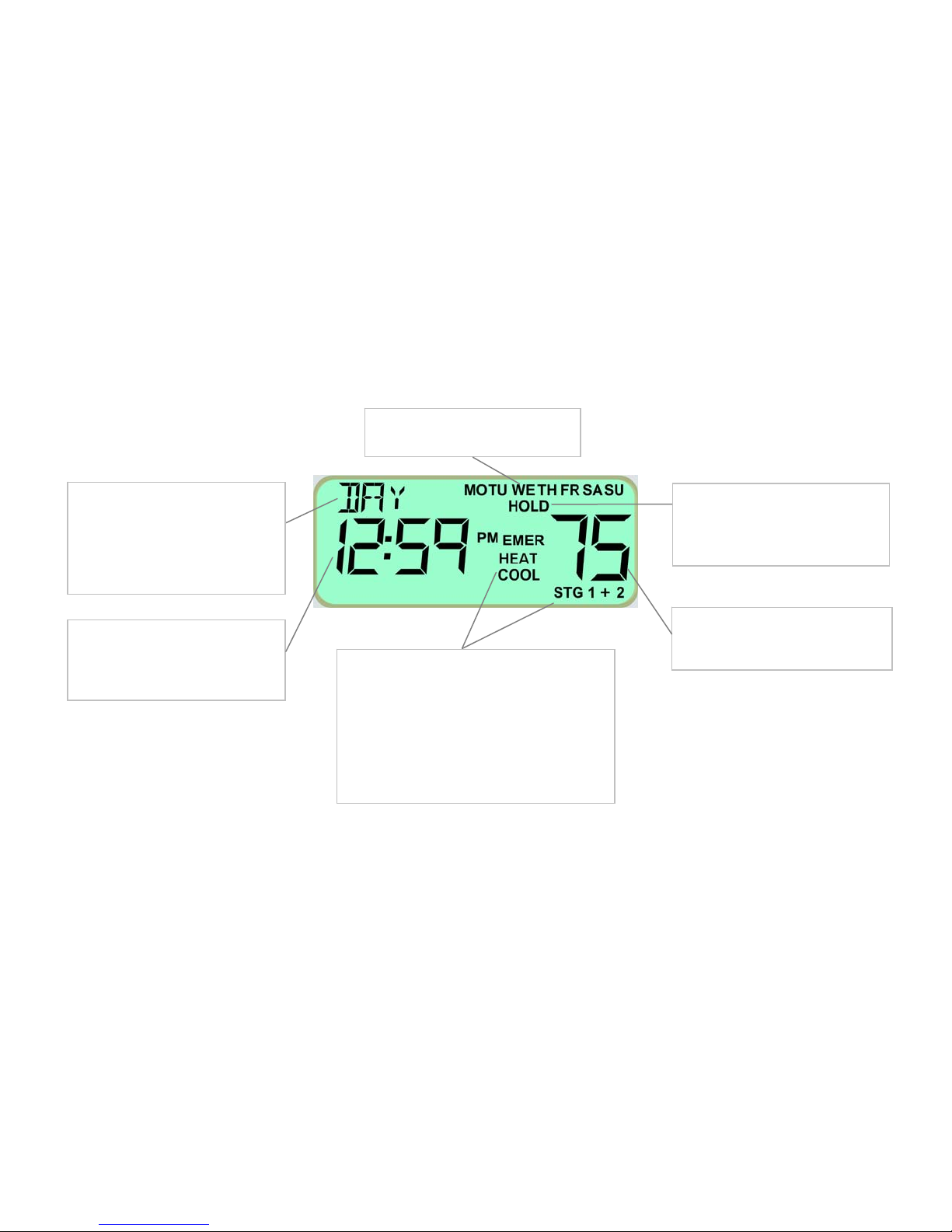

Day of the week
Indicates the current day of the week.
HOLD
Indicates a system temperature hold:
•Flashing HOLD – temporary hold.
•Solid HOLD – permanent hold.
Current Temperature
Displays the current room temperature.
System indicator
Indicates the current system status:
•COOL – Air conditioning
•HEAT – Heat
•HEAT/COOL – Auto-changeover
•EMER – Emergency heat (heat pump only)
•STG 1 – Low speed of 2-stage compressor
•STG 1+2 – High speed of 2-stage compressor
Time / Temperature Setpoint
Display alternates between the current
time and the current temperature
setpoint.
Message Area
Indicates the current period of the day,
AUX (if strip heat in heat-pump
system is called), and displays energy
price, estimated bill, and energy usage
information.
SuperStat Pro User Guide 7
Selecting Heating or Cooling
Use the SYSTEM button to select your thermostat system mode. The possible system modes are:
•Heating – Displays on the thermostat as HEAT.
•Cooling – Displays on the thermostat as COOL.
•Auto-changeover (see below) – Both HEAT and COOL icons are on.
•Emergency heat – Displays EMER (flashing) and HEAT.
•Off – Displays on the thermostat as OFF.
When heating or cooling is On, STG 1 or STG 1+2 will display (depending on how many speeds your heating/cooling
system is capable of using).
Auto-Changeover Mode
When the thermostat is in auto-changeover mode, it automatically switches between your heating and cooling
programmed schedules to maintain your home temperature within your heating and cooling programs. The thermostat will
call for heating or cooling as needed, but never both at the same time. Auto-changeover is convenient during the fall and
spring when days may be cool in the early morning hours and hot in the afternoons.
Important:
•In auto-changeover mode, the programmed heat setpoint must be 2 degrees lower than the cool setpoint.
•Keep the windows in your home closed when auto-changeover mode is in effect, to avoid wasting heating or cooling
energy.
8 SuperStat Pro User Guide
Selecting Heating or Cooling

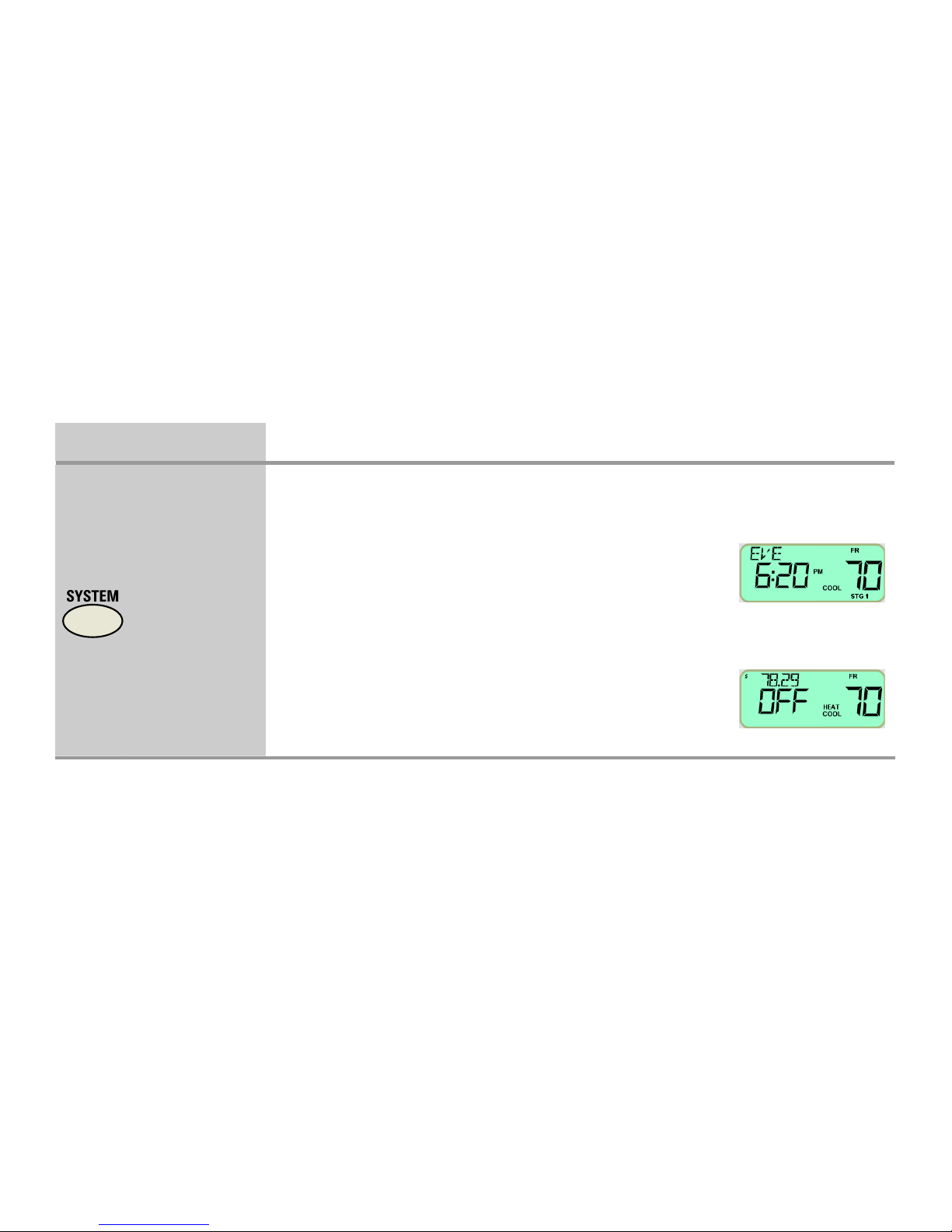

Quick Guide Description Thermostat Display
Press one or more
times to select the
desired mode.
Press the SYSTEM button one or more times to select the desired
mode.
•When heating is selected, HEAT is displayed.
•When cooling is selected, COOL is displayed.
•When auto-changeover mode is selected, HEAT and COOL
are both displayed.
•When emergency heat is selected, EMER HEAT is displayed
(EMER flashes).
•When the system is Off, OFF displays to the left.
When heating or cooling is called (compressor turned On), STG 1
or STG 1+2 will display (depending on how many speeds your
heating/cooling system is capable of using).
Cooling On:
System Off:
