OWNER’S MANUAL

OPERATING INSTRUCTIONS

Pocket Portable Stereo Digital Wireless

Instruments & Audio Monitoring System

TM AudioLink Pro

TM

Thank You For Choosing Wi Digital Systems

Congratulations on your purchase of the Wi AudioLink Pro Pocket Portable Stereo Digital Wireless

Instruments & Audio Monitoring System with 2-Way Wireless USB 2.0 Audio Interface.

Please thoroughly read this User’s Manual for all the feature operation information necessary

to install and operate your new Wi AudioLink Pro system.

Notice: Product specications and package contents are subject to change without notice.

Package contents may vary according to the different regions.

For additional support, please visit www.widigitalsystems.com

CONGRATULATIONS!

3

TABLE OF CONTENTS

TECHNICAL SUPPORT 4

PACKING LIST 5

SYSTEM CHARGING & PAIRING 6

GUITAR SETUP 8

STEREO GUITAR SETUP 10

KEYBOARDS SETUP 12

INSTRUMENTS SETUP 14

RECEIVER CONNECTION 16

AUDIO MONITORING 18

SMART DEVICE WIRELESS GUITAR CONNECTION 20

2-WAY WIRELESS USB AUDIO INTERFACE 22

MAC & PC USB SETUP 24

iPad, Surface & Tablet PC USB SETUP 28

2-WAY WIRELESS USB GUITAR CONNECTION 30

WIRELESS USB AUDIO LISTENING 32

WIRELESS USB VoIP & PODCASTING 34

WI TRANMITTER FEATURES 36

WI RECEIVER FEATURES 40

BUTTON FUNCTIONS & LED INDICATORS 44

SYSTEM SPECIFICATIONS 48

FCC NOTICE & RECYCLING INFO 50

WARRANTY 52

------------------------------------------------------------------------------------------

TECHNICAL SUPPORT

Getting Answers!

We want you to get the most from your new WiAudioLink Pro stereo digital wireless audio system!

Simply logon to www.widigitalsystems.com and access the resources available online including

instructional manuals and more.

Our customer service support staff are ready to assist you with any question you may have.

Your Wi AudioLink Pro comes with 90 days of telephone support and one year of service coverage.

There are several ways to contact Wi Digital Systems customer service support.

E-Mail: [email protected]

Website: www.widigitalsystems.com/support

Technical support: (714) 505-4567

4

PACKING LIST

5

1/4” to 1/8” TRS

Mono Cable

1/8” to 1/8” TRS Stereo Cable &Adapter

1/8” Male to 1/4” Stereo

TRS Male Y-split Cable

Universal USB

AC Charger

USB Y-Split

Power Cable MIC/Headphone

Adapter

Wi Transmitter

USB Data Cable

Hard Shell

Carrying Case

Wi Receiver

6

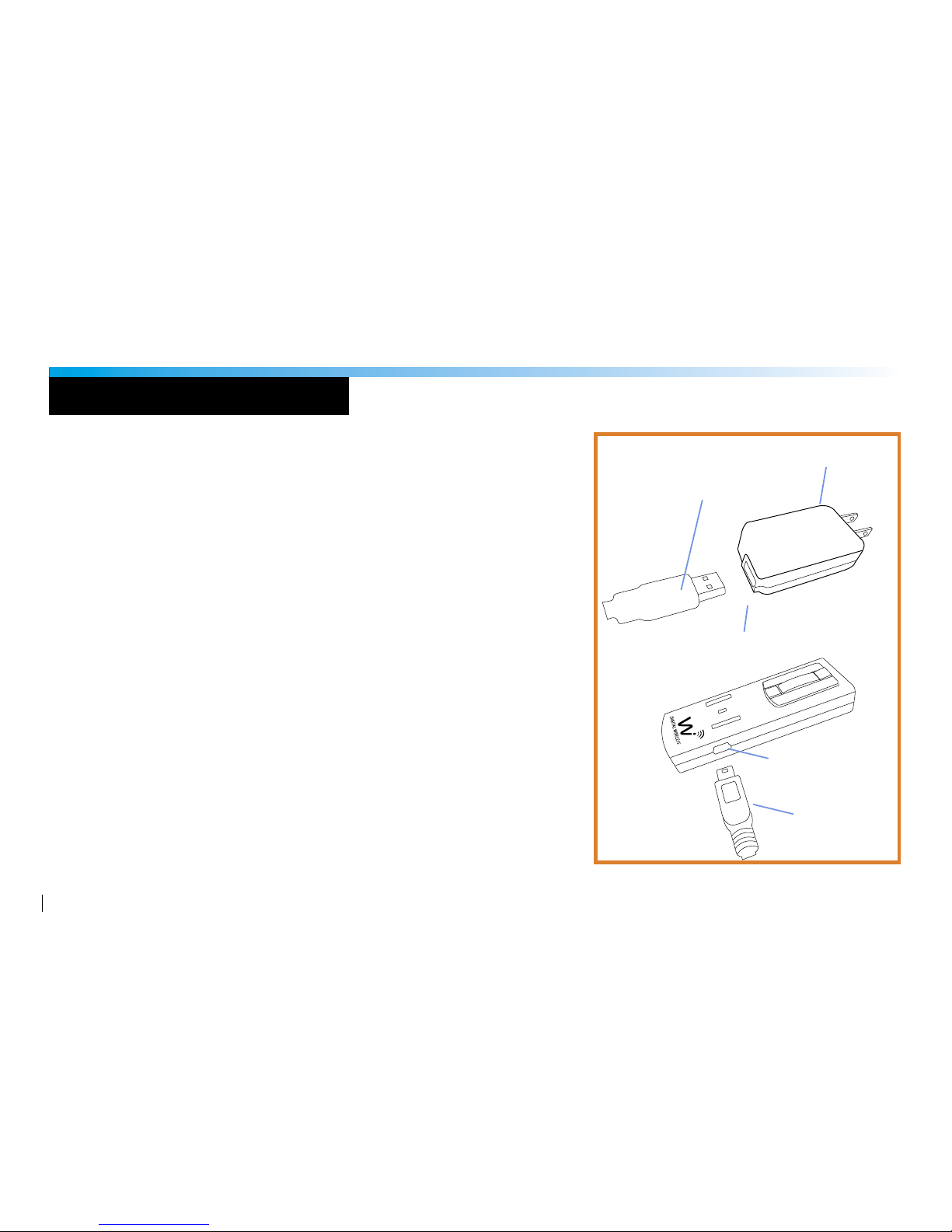

Charging The System

Before using your new Wi AudioLink™ Pro digital wireless system,

you need to fully charge the batteries for approximately 2 hours.

1. Plug the AC Charger into a power socket.

2. Connect the USB power cable to the USB port on the AC charger.

3. Connect one of the two mini USB connectors to the Transmitter

USB port.

4. Connect the second mini USB connector to the Receiver USB port.

5. The Power/Status LED will turn to solid Red ON.

6. When charging is complete the Red LED will turn OFF.

The system’s power source’s exible design boasts 4 power options:

• 4~6 hours internal rechargeable battery use.

• 13 hours with USB AA battery adapter (optional accessory).

• Continuous use with AC power adapter.

• Continuous use with USB port bus power.

POWER

LINK

AC Charger

USB Port

Mini USB

Connector

USB Port

USB Connector

CHARGING

7

PAIRING

Pairing the Wi Transmitter & Receiver

The Wi Transmitter and Receiver are paired at the factory. Perform the

following steps ONLY if you need to reestablish connection between

the Transmitter and the Receiver.

1. First turn ON the Transmitter (Tx) and the Receiver (Rx) by pressing and

holding the POWER button , on each of the units for 2 seconds.

The green LED on Each unit will ash.

2. Press and hold the LINK button on the Transmitter (Tx) for 3 seconds.

The Power/Status green LED on the Transmitter will start ashing faster.

The Transmitter is now in a Pairing mode and ready to search for the Receiver.

3. Press and hold the LINK button on the Receiver (Rx) for 3 seconds.

The Power/Status green LED on the Receiver will ash momentarily.

4. Once the Transmitter links with the Receiver, the Power/Status LED on both

devices will turn to solid green.

5. The Transmitter and Receiver are now ready for use.

(Tx)

pk

zv

(Rx)

p

k

z

v

r

Active, Passive & Acoustic Electric Guitars

The Wi AudioLink Pro Transmitter supports passive and active

guitars including lead, bass and acoustic electric guitars.

1. First locate the 1/4” to 1/8” mono cable

supplied with kit.

2. Connect the 1/8” end of the cable

to the “Audio Input” jack on the

Transmitter.

3. Connect the 1/4” end of the cable

to the electric guitar input.

4. Verify if you are connecting a passive or

active electric guitar to the Transmitter.

If the electric guitar uses a battery to

operate, then it is an active type. If not,

it is a passive type.

8

GUITAR SETUP

j

5

4.1 Passive Guitar Connection

Power up the Transmitter by pressing and holding the POWER button for 2 seconds.

F

The standard factory power up setting is set for Passive Guitars / Mono Preamp Line-In.

This is indicated by the slow ashing Blue LED. The ashing Green LED indicates the

Transmitter is searching for the Receiver .TheTransmitter can remember and power up in

the last power up mode selected . Please refer to the “Tx Button Functions” on page (44)

for more details.

4.2 Active Guitar & Electric Acoustic Instrument Connection

a. Power up the Transmitter by pressing and holding the POWER button for 2 seconds.

b. Press and hold the Mode button for 2 seconds to change to Mono Line-in mode.

F

The fast ashing Blue LED indicatesActive Guitar / Mono Line-in connection mode and

the ashing Green LED indicates the Transmitter is searching for the Receiver . The ashing

Green LED on the Transmitter will turn to solid green once the Receiver is powered up, paired and

linked with the Transmitter. Please refer to the “Tx Button Functions” on page (44) for more details.

5. Attach the Wi AudioLink to the Guitar Strap or to your belt.

6.. Please proceed to the Receiver connection instructions on page 16.

k

r

k

9

GUITAR SETUP

(Tx)

k

r

10

STEREO GUITAR SETUP

Stereo Electric Guitars

The Wi AudioLink Pro Transmitter supports guitars with

stereo/dual pickup outputs.

1. First locate the 1/8” to 1/8” TRS stereo cable with the

1/8” to 1/4” stereo adapter supplied with kit.

2. Connect the 1/8” stereo male end of the cable

into the “Audio Input” jack on the Transmitter.

3. Connect the 1/4” Stereo male end of the

cable/adapter to the electric guitar input.

j
