WIDCOMM Bluetooth USB Adapter Manuale utente

Bluetooth USB Adapter User’s Manual

June 18, 2004 WIDCOMMinc i

Bluetooth USB Adapter

User’s Manual

Version 1.5

Bluetooth USB Adapter User’s Manual

June 18, 2004 WIDCOMMinc ii

REGULATION INFORMATION

The Bluetooth USB Adapter must be installed and used in strict accordance with the

manufacturer’s instructions. This device complies with the following radio frequency and

safety standards.

FCC (Federal Communications Commission)

This device complies with Part 15 of FCC Rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference that may cause undesired operation.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment.

This equipment should be installed and operated with minimum distance 20cm between

the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other antenna

or transmitter.

The equipment has been tested and found to comply with the limits for a Class B Digital

Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instruction, may cause harmful interference to radio

communication. However, there is no grantee that interference will not occur in a particular

installation. If this equipment dose cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

--Consult the dealer or an experienced radio/TV technician for help.

Notice: The Part 15 radio device operates on a non-interference basis with other devices

operating at this frequency. Any changes or modification not expressly approved by the

party responsible could void the user’s authority to operate the device.

R&TTE Directive

This device complies with the specifications listed below:

• ETS 301 489 -1 & -17 General EMC requirements for Radio equipment.

• ETS 300 328 Technical requirements for Radio equipment.

• EN60950 Safety Requirements for Radio equipment

Bluetooth USB Adapter User’s Manual

June 18, 2004 WIDCOMMinc iii

LICENSED SOFTWARE

Warning: This software and accompanying documentation are protected by copyright law and

international treaties. Unauthorized reproduction or distribution of this software, or any portion of it, may

result in severe civil and criminal penalties, and will be prosecuted to the maximum extent possible under the

law.

Use of this software is governed by the terms of the end user license agreement that accompanies or is

included with such software. Unless otherwise noted in the end user license agreement, or herein, no part of

the documentation accompanying this software, whether provided in printed or electronic form may be

reproduced in any form, or stored in a database or retrieval system, or transmitted in any form or by any

means, or used to make any derivative work (such as translation, transformation, or adaptation) without the

express, prior written consent of WIDCOMM.

Trademark(s) ™ and Registered Trademark(s) ®

WIDCOMM and the WIDCOMM logo are trademarks of WIDCOMM, Inc.

Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc., U.S.A. and licensed to

WIDCOMM, Inc.

Microsoft, Windows, Outlook are registered trademarks of Microsoft Corporation.

Other brand and product names may be registered trademarks or trademarks of their respective holders.

Bluetooth USB Adapter User’s Manual

Table of Contents

1INTRODUCTION.................................................................................................................. 1

1.1 Bluetooth Technology ............................................................................................. 1

1.2 Bluetooth USB Adapter.......................................................................................... 1

2SOFTWARE INSTALLATION ........................................................................................... 2

2.1 System Requirements.............................................................................................. 2

2.2 Before Installation .................................................................................................. 2

2.3 Install Widcomm Bluetooth Software....................................................................... 2

2.4 Hardware Installation .............................................................................................. 7

3INTRODUCTION.................................................................................................................. 8

3.1 Bluetooth Tray........................................................................................................ 8

3.2 Access My Bluetooth Places.................................................................................... 8

3.3 Icons Used for Bluetooth Devices and Services......................................................... 9

4BASIC OPERATIONS........................................................................................................ 12

4.1 Start or Stop Bluetooth.......................................................................................... 12

4.2 Create a Connection From the Bluetooth Icon in the System Tray ............................ 12

4.3 Create a Connection Using the Bluetooth Setup Wizard .......................................... 12

4.4 Create a Connection From Entire Bluetooth Neighborhood...................................... 12

5FIND BLUETOOTH DEVICES ........................................................................................ 13

5.1 Periodic Search for Devices................................................................................... 13

5.2 Find A Service...................................................................................................... 14

5.3 Bluetooth Connection Status.................................................................................. 15

5.4 Send to Bluetooth ................................................................................................. 16

6CONFIGURE BLUETOOTH............................................................................................. 17

6.1 Access the Bluetooth Configuration Panel .............................................................. 17

6.2 Bluetooth Services versus Bluetooth Applications................................................... 17

6.3 Bluetooth Exchange Folder.................................................................................... 17

6.4 General Configuration Settings .............................................................................. 18

6.5 Bluetooth Applications.......................................................................................... 18

6.5.1 Overview ................................................................................................................ 18

6.5.2 General Configuration........................................................................................... 18

6.5.3 Human Interface Device ........................................................................................ 19

6.5.4 Audio Gateway....................................................................................................... 20

6.5.5 Bluetooth Serial Port ............................................................................................. 21

6.5.6 Dial-up Networking ............................................................................................... 22

6.5.7 Fax ......................................................................................................................... 23

6.5.8 Headset .................................................................................................................. 24

6.5.9 File Transfer .......................................................................................................... 25

6.5.10 Network Access ...................................................................................................... 26

6.5.11 PIM Synchronization ............................................................................................. 27

6.5.12 PIM Item Transfer.................................................................................................. 29

6.5.13 Printer .................................................................................................................... 31

6.6 Bluetooth Services ................................................................................................ 32

6.6.1 Notifications........................................................................................................... 33

6.6.2 Audio Gateway....................................................................................................... 35

Bluetooth USB Adapter User’s Manual

6.6.3 Bluetooth Serial Port ............................................................................................. 36

6.6.4 Dial-up Networking Service................................................................................... 37

6.6.5 Fax Service............................................................................................................. 37

6.6.6 File Transfer Service.............................................................................................. 38

6.6.7 Headset Service...................................................................................................... 39

6.6.8 Network Access ...................................................................................................... 40

6.6.9 PIM Item Transfer.................................................................................................. 42

6.6.10 PIM Synchronization ............................................................................................. 45

6.7 Hardware Settings................................................................................................. 46

6.7.1 Advanced Settings .................................................................................................. 47

6.8 Accessibility Settings ............................................................................................ 48

6.9 Discovery Settings ................................................................................................ 49

7SECURITY........................................................................................................................... 50

7.1 Authentication ...................................................................................................... 50

7.2 Authorization ....................................................................................................... 50

7.3 Bluetooth Device Identity...................................................................................... 50

7.4 Encryption............................................................................................................ 50

7.5 Link Key.............................................................................................................. 50

7.6 Pairing Devices..................................................................................................... 51

7.7 Passkey ................................................................................................................ 51

7.8 Secure Connection ................................................................................................ 51

7.9 Security Request Dialog Box ................................................................................. 51

8TROUBLESHOOTING ...................................................................................................... 52

8.1 Cannot connect to a paired device .......................................................................... 52

8.2 Cannot discover services on an un-paired remote device.......................................... 52

8.3 Dial-up Networking service does not start .............................................................. 52

8.4 Determine the Bluetooth Device Address (BDA) of my hardware device.................. 52

8.5 Determine the version of the Host Controller Interface (HCI) .................................. 52

8.6 Determine the version of the Link Manager Protocol (LMP).................................... 52

8.7 Find information about the Bluetooth hardware attached to my computer ................. 52

8.8 Internet Connection Sharing Does Not Work .......................................................... 53

8.9 Test a Network Access connection......................................................................... 53

8.10 Unknown Port message when using a Bluetooth Serial Port ................................. 53

8.11 Bluetooth Headset Doesn’t Always Function Under WIN 98 ............................... 53

9PRODUCT SPECIFICATIONS......................................................................................... 54

10 GLOSSARY...................................................................................................................... 55

Bluetooth USB Adapter User’s Manual

Table of Figures

Figure 2-1: Preparing to Install Widcomm Bluetooth Software ........................2

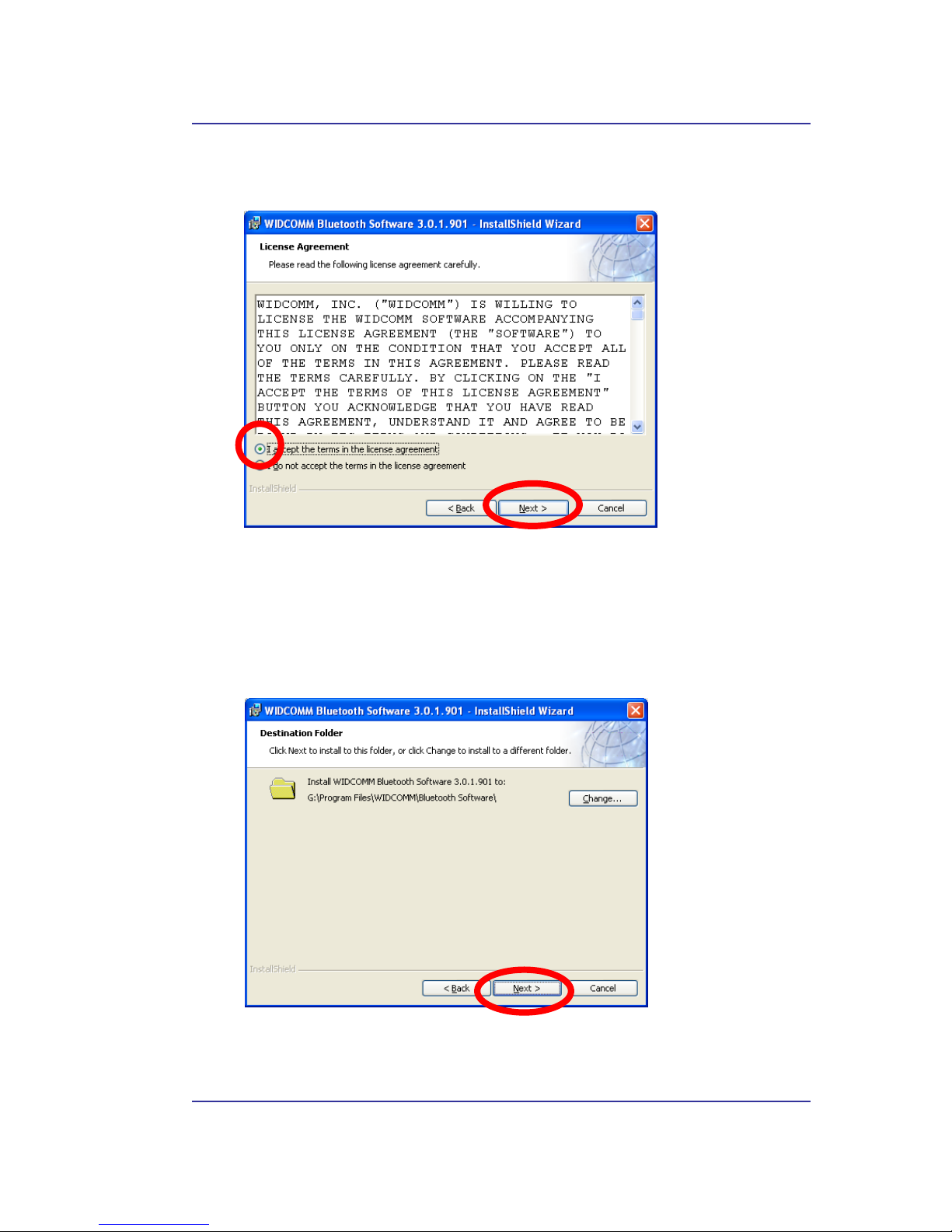

Figure 2-2: License Agreement Window .............................................................3

Figure 2-3: Destination folder selection ..............................................................3

Figure 2-4: Installation running window ............................................................4

Figure 2-5: Digital Signature dialog box.............................................................4

Figure 2-6: Bluetooth Device Insertion dialog box.............................................5

Figure 2-7: Installation finished window ............................................................6

Figure 2-8: Bluetooth icons .................................................................................6

Figure 2-9: Plug the Bluetooth USB Adapter into USB port on desktop PC.....7

Figure 2-10: Plug the Bluetooth USB Adapter into USB port on laptop PC.....7

Figure 3-1: Bluetooth Icon...................................................................................9

Figure 3-2: Device Icons for Windows 9x, Me and 2K.......................................9

Figure 3-3: Service Icons for Windows 9x, Me and 2K ...................................10

Figure 3-4: Device Icons for Windows XP........................................................11

Figure 3-5: Service Icons for Windows XP .......................................................11

Bluetooth USB Adapter User’s Manual

1 Introduction

1.1 BLUETOOTH TECHNOLOGY

Bluetooth Technology eliminates proprietary cables, allowing mobile users to connect to

mobile computing devices effortlessly and without wires. It is intended to be used for both

voice and data communications in local area within a range of 10 to 100 meters. Bluetooth

operates in the 2.4 GHz ISM (Industrial Scientific Medical) frequency band, which is

reserved for license-free operation in most countries. Its key features are robustness, low

complexity, low power and low cost. The technology also offers wireless access to LANs,

PSTN, the mobile phone network and the Internet for a host of home appliances and

portable handheld interfaces.

1.2 BLUETOOTH USB ADAPTER

The Bluetooth USB Adapter allows a computer with a USB port to communicate with

other Bluetooth-enabled devices. When used with the Bluetooth application software it can

perform wireless network applications such as information exchange, file transfer, network

access, dial-up networking, headset, audio gateway, printer application, and so on.

Bluetooth USB Adapter User’s Manual

2 Software Installation

2.1 SYSTEM REQUIREMENTS

It is necessary to install Bluetooth application software before starting to use the Bluetooth

USB Adapter. Therefore, please check your system in advance and ensure it meets the

minimum requirements as described below.

- Processor: Intel Celeron / Pentium III / Pentium IV; AMD Duron / Athlon

- Operating System: Microsoft Windows 98SE / ME / 2000 / XP

- System memory: 32MB at least

- Hard Drive Free Space: 11.5MB

2.2 BEFORE INSTALLATION

Don’t plug the Bluetooth USB Adapter into USB port on your PC before installation .

Please remove any previous version of Widcomm Bluetooth software existing in your

system. The remove procedures are as follows:

1. Click Start/Settings, then select Control Panel.

2. In the Control Panel window, double click Add/Remove programs icon.

3. Find out the item Widcomm Bluetooth Software x.x.x.x then remove it.

2.3 INSTALL WIDCOMM BLUETOOTH SOFTWARE

Insert the Bluetooth Software CD into CD-ROM drive. If the Auto-Run function of

CD-ROM is enabled (in Windows, the default setting of this function is usually enabled),

installation program will start automatically. If not, you can utilize the Windows Explorer

to browse CD content and run Setup.exe manually.

Figure 2-1: Preparing to Install Widcomm Bluetooth Software

When ensuing window appears, please click Next button to continue the software

installation.

Bluetooth USB Adapter User’s Manual

Then in the License Agreement window, check the item I accept the terms in the license

agreement and click Next button to continue.

Figure 2-2: License Agreement Window

The software default destination folder is located at C:\ Program Files \ Widcomm \

Bluetooth Software\. If you want to change the folder, click Change… button then select

one you prefer. If everything is ready and done, please click Next button.

Figure 2-3: Destination folder selection

Then click Next button to begin the installation.

Bluetooth USB Adapter User’s Manual

The software installation is processing now.

Figure 2-4: Installation running window

Note: During the processing of the Bluetooth Software installation under Windows 98SE or

Windows 2000, it is possible to meet Microsoft Digital Signature issues such as Bluetooth

Personal Area Network Driver, Bluetooth Communication Ports, Widcomm Bluetooth

Null Modem, Widcomm Bluetooth Modem, Widcomm Bluetooth Fax Modem, and

Unknown Software package. Please confirm them manually by pressing OK button in

these pop-up windows.

Figure 2-5: Digital Signature dialog box

Indice

Altri manuali WIDCOMM Adattatore

WIDCOMM

WIDCOMM BT-0230 Manuale utente

Manuali Adattatore popolari di altre marche

PCB Piezotronics

PCB Piezotronics 090B274 Manuale utente

Auvidea

Auvidea J20 Manuale del prodotto

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manuale utente

Akribis

Akribis ITF-21-BISS-MIT Manuale utente

Tenda

Tenda W54U Manuale utente

ROHO

ROHO AGILITY Manuale utente

PROLiNK

PROLiNK WN2001 Manuale utente

Hawking

Hawking HUF2 Manuale utente

Airlink101

Airlink101 AWLC4030 Manuale utente

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manuale utente

Philips

Philips SWA4554S/10 Manuale utente

JVC

JVC TS-C9D2B Manuale di istruzioni

NETGEAR

NETGEAR A6100 Manuale utente

D-Link

D-Link DWA-121 Manuale utente

Philips

Philips SWA2037 Manuale utente

Basalte

Basalte 0610-20 Manuale utente

Yealink

Yealink EHS40 Manuale utente

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manuale utente
