DaySaver Quick Installation Guide
DaySaver Quick Installation Guide Page 1 of 15
Sep 08, 2020 20:09
DaySaver Quick Installation Guide
Overview and LED indicators
DaySaver Overview
LED indicators description
Installation and connection
Provisioning and configuration
Data connection backup
Enable VoLTE
Set uplink config
Enable DHCP Server
Set Static IP Address for WAN port
Test the network topology
Use DaySaver as Trunk backup (optional)
How to send/ receive SMS
Time indexes of SMS sending
Factory reset and reboot
Recovery
Step 1
Step 2
Step 3
Step 4
Overview and LED indicators
DaySaver Overview
Front panel:
DaySaver Quick Installation Guide describes how to connect and configure the gateway.
DaySaver Datasheet: Media Gateways Datasheet
Min. supported WMS Version: 4.01.43713.08
SMS Support: starting from firmware version 2.53.4.20
Updated: July 2020
Permalink: https://confluence.wildix.com/x/Z4A2Ag

DaySaver Quick Installation Guide

DaySaver Quick Installation Guide Page 2 of 15

1 - SIM slot: insert and press a SIM card to the slot

2 - SIM LED indicator: shows SIM registration status

3 - LAN LED indicator

4 - Running indicator: indicates network registration status

5 - Power indicator: shows power supply status

6 - WAN LED indicator

7 - 2 antennas: one for data connections; another one - for calls and SMS

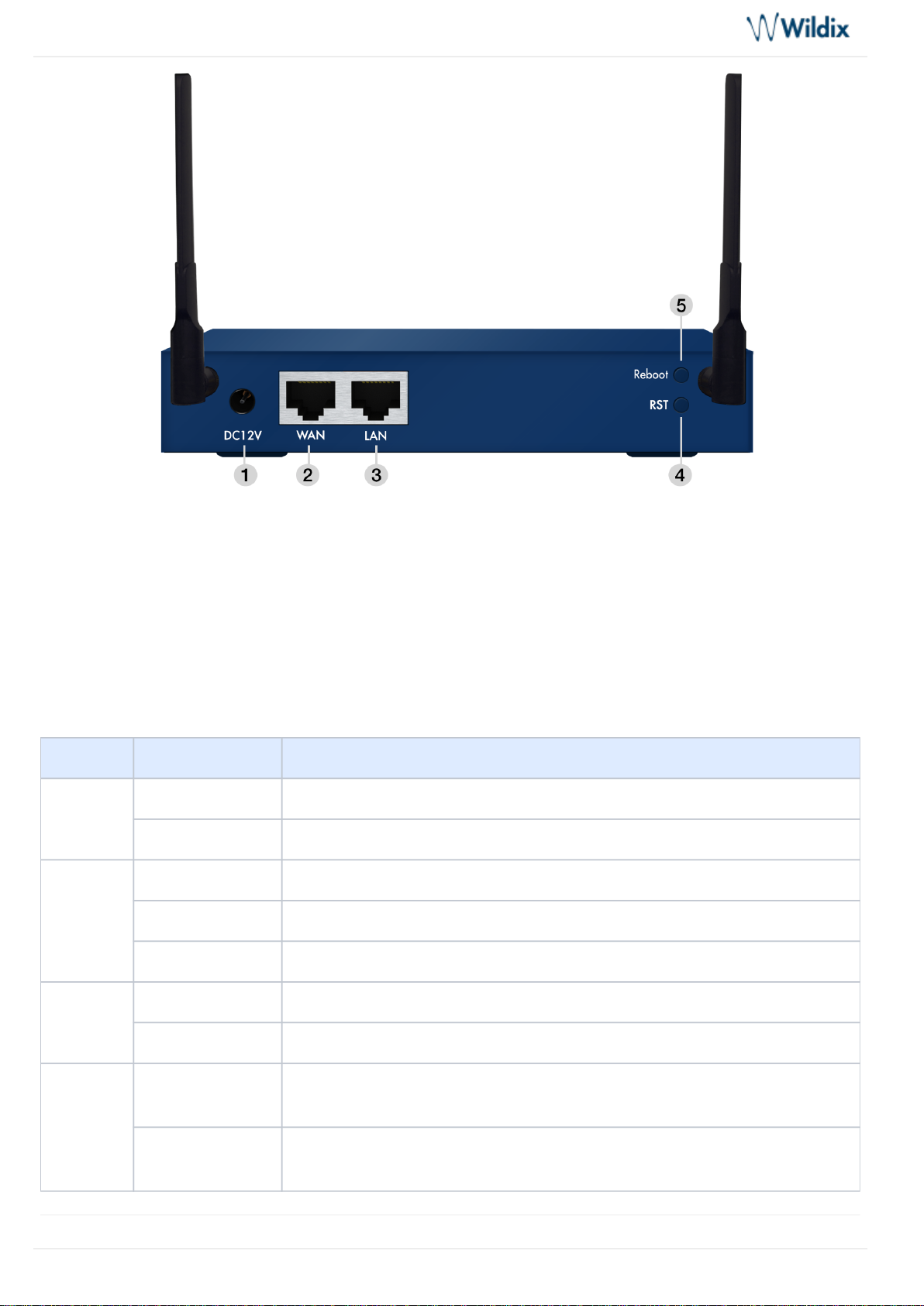

:Rear panel

DaySaver Quick Installation Guide

DaySaver Quick Installation Guide Page 3 of 15

1 - DC 12V power supply (optional, WMP code: PS-12V2A)

2 - WAN/ PoE port

3 - LAN port (static IP address 192.168.11.1)

4 - buttonReset

5 - buttonReboot

LED indicators description

Indicator State Description

PWR Off There is no power supply or it is abnormal

On The device is powered on

RUN Off The device is not running normally

On The device is being initialized

Slow flashing The device is successfully initialized and running normally

WAN/

LAN Off The is no network connection

Fast flashing Network is successfully connected

SIM Slow flashing 4

sec SIM card cannot be detected (flashing ever 4 seconds)

Fast flashing SIM card has been inserted and successfully registered (flashing every 2

seconds)

DaySaver Quick Installation Guide

DaySaver Quick Installation Guide Page 4 of 15

Installation and connection

Make sure the PIN code of the SIM card is disabled.

Connect antennas to the rear panel of the gateway

Connect network cable to WAN/ PoE port

Insert a SIM card to the slot

Provisioning and configuration

For provisioning of DaySaver, consult .Provisioning of Wildix devices Guide

For remote/unreachable media gateways behind NAT/ Firewall, follow Remote Provisioning of Wildix devices

.Manual

After provisioning, the gateway appears in WMS:

WMS -> :Devices

WMS -> Trunks:

The number of supported devices per one system:

For making calls: no limit

For sending SMS: no limit starting from WMS v. 4.03.44914.04

Note for WMS Network: the option "Remote PBX (for SMS sending)" in WMS -> ->Settings System FAX

doesn't work if another DaySaver is registered to one of the PBXs./SMS server

Note: Auto-upgrade process can take up to 5 minutes. During the upgrade, a device downloads a new

firmware, receives a password and SIP registration.

Please DO NOT reset the device during the upgrade procedure:

Important: Status of signal quality is currently not supported!

DaySaver Quick Installation Guide

DaySaver Quick Installation Guide Page 5 of 15

After the device is provisioned, you can configure its settings. Consult Trunk Settings Guide to check all available

parameters.

Data connection backup

How does it work?

DaySaver is your small remote office. It can work as a data connection backup, in case if your Internet goes

down, and as a backup for Cloud PBX. And, same as its predecessor, it provides phone calls and SMS even if

your operator becomes unreachable (since it allows you placing calls via Mobile network).

DaySaver keeps monitoring the PBX and a other hosts and in case they become unreachable, it automatically

switches to mobile data (4G connection). The gateway supports speeds up to 100 Mbit in download and 50 Mbit

in upload.

: DaySaver is placed between the customer’s existing network and a separate VoIPBackup for the voice service

Network (over vlan, for example). If the PBX becomes unreachable over network, DaySaver automatically

switches the connectivity to 4G / LTE.

Without DaySaver:

With DaySaver:

DaySaver Quick Installation Guide

DaySaver Quick Installation Guide Page 6 of 15

: DaySaver is placed between the router and the whole network of the customer. InBackup for an entire office

case the office internet connection goes down, all traffic starts working via DaySaver:

Enable VoLTE

VoLTE Network allows using DaySaver as a backup for Cloud PBXs, as a backup for the cable Internet

connection, or, even as the only Internet access for small offices or during the events.

To activate VoLTE, proceed with the following steps:

Go to ->Network VoLTE

Check off in Status fieldEnable

Click Save

Confirm by clicking Apply

Set uplink config

DaySaver Quick Installation Guide

DaySaver Quick Installation Guide Page 7 of 15

The uplink config should be set to " " with tracking IP addresses set to somethingWAN Master, VoLTE Slave

publicly accessible, in this example we use 8.8.8.8.

Go to ->Network Uplink Config

Set WAN Master,VoLTE Slave

Click Save

If WAN loses 3 pings to 8.8.8.8, it failovers to VoLTE. When WAN becomes available again (Count of up), WAN

becomes the master again.

Enable DHCP Server

Go to -> rNetwork DHCP Serve

Check off Enable

DHCP Server settings must have default gateway as the DaySaver LAN IP address

DNS Servers must be reachable via LAN

Note: Enable DHCP Server to use DaySaver as a backup for an entire office. All other DHCP servers

connected to a network switch should be disabled.

DaySaver Quick Installation Guide

DaySaver Quick Installation Guide Page 8 of 15

If you want to use DaySaver as a backup for a single switch:

Connect WAN into Existing Network / Router (DHCP Client)

Connect LAN into Switch that powers phones

Set Static IP Address for WAN port

Go to Network -> Setting

Plug WAN & LAN port into existing Switch / Router

Allow devices on existing network to get IP addresses from DHCP Server provided from DaySaver:

Important: If you do not connect DaySaver via WAN port to a router, you must assign a static IP to it.

Otherwise the port will be assigned to 0.0.0.0 IP address and DaySaver won't be registered to a PBX

through LTE.

Before setting Static IP, disable DHCP server on existing network.

DaySaver Quick Installation Guide

DaySaver Quick Installation Guide Page 9 of 15

Status Page Example

Go to ->Status Overview

Check the network status:

Test the network topology

To test the network topology, you can use some of the following tools:

1. Tracert

DaySaver Quick Installation Guide

DaySaver Quick Installation Guide Page 10 of 15

Plug into Switch that has DHCP server set from Daysaver

You can run tracert to 8.8.8.8. The first hop should be Daysaver LAN address, Second hop should be the

WAN gateway address

Example:

Traceroute has started…

traceroute to 8.8.8.8 (8.8.8.8), 64 hops max, 72 byte packets

1 192.168.11.1 (192.168.11.1) 1.004 ms 0.613 ms 0.549 ms

2 192.168.1.1 (192.168.1.1) 0.824 ms 0.831 ms 0.742 ms

3 gi12-0-1-451.ptn-ag04.plus.net (84.92.253.87) 9.349 ms 9.591 ms 9.104 ms

Disable the WAN on existing firewall or turn off existing router

Run tracert again

The first hop should be Daysaver and second hop should be VoLTE address

Example:

Traceroute has started…

traceroute to 8.8.8.8 (8.8.8.8), 64 hops max, 72 byte packets

1 192.168.11.1 (192.168.11.1) 1.004 ms 0.613 ms 0.549 ms

3 02.internet.net (86.92.251.81) 9.349 ms 9.591 ms 9.104 ms

2. IP checking websites

For example, use .ipchicken.com

Go to when existing router internet is up ipchicken.com

Go to when existing router internet is disabled or turned off ipchicken.com

Use DaySaver as Trunk backup (optional)
