INSTALLATION AND
OPERATION MANUAL
PAGE 1
© Rev. 9/2022
1.800.428.4065 TOLL FREE
| www.willoughby-ind.com
WH-1700
MODELS:
WH-1700 and WH-1750
Patient Care Units
TABLE OF CONTENTS
PRE-INSTALLATION INFORMATION....................... 3
PHYSICAL DIMENSIONS .......................................... 4
ROUGH-IN DIMENSIONS ........................................ 6
CHECKING CONTENTS............................................ 8
INSTALLATION INSTRUCTIONS .................................
Step 1: Unpack the WH-1700/1750.............10
Step 2: Install the Anchors .................................10
Step 3: Install the Toilet and
Waste Connections...............................11
Step 4: Install the Vacuum Breaker..................11
Step 5: Install the WH-1700/
WH-1750 Cabinet................................12
Step 6: Install the Solid Surface Lavatory
Top with Integral Bowl..........................12
Step 7: Install Faucet and Connect
Water Supply ........................................12
Step 8: Completing Installation ........................13
Step 9: Install and Adjust the Door Linkage...13
CARE AND MAINTENANCE ...................................14
DETAIL DRAWINGS......................................................
Swivel Toilet Assembly-L H1490-0084.......15
Swivel Toilet Assembly-R H1490-0085 ......16
WARRANTY..............................................................17
WILLOUGHBY
HEALTHCARE
PATIENT CARE UNITS
WH-1750
WH-1700 AND WH-1750
PATIENT CARE UNITS INSTALLATION & OPERATION MANUAL
PAGE 2 © Rev. 9/2022
1.800.428.4065 TOLL FREE
| www.willoughby-ind.com
(PAGE LEFT INTENTIONALLY BLANK)
WH-1700 AND WH-1750
PATIENT CARE UNITS INSTALLATION & OPERATION MANUAL
PAGE 3
© Rev. 9/2022
1.800.428.4065 TOLL FREE
| www.willoughby-ind.com
When installing the Willoughby Industries’ WH-1700 / 1750 Patient Care Units:
Before Step 1 of the Installation Instructions, ensure that rough-ins are in the
correct location. Recessed toilet ange is required with oor outlet toilet xture on
the WH-1700/1750 Series Patient Care Units; see Detail Drawings on “Swivel Toilet
Assembly” for dimension details.
It is essential that the water supply lines be thoroughly ushed prior to making
nal connection to the hot and cold water supply lines. These lines must be ushed
sufciently to remove the small particles of debris that are inherent with new con-
struction projects.
If this debris is not removed, the valving in these units will be damaged. Do not
attempt to remove the aerators to ush debris out of the lavatory. The damage can
only be xed by replacing the valves. Damage to valves caused by debris will not
be covered by the manufacturer’s warranty.
INSTALLATION NOTICE!
CHECK ROUGH-IN LOCATIONS PRIOR TO INSTALLATION
FLUSH LINES THOROUGHLY PRIOR TO HOOK-UP
PRE-INSTALLATION INFORMATION
INSTALLATION NOTICE!
CHECK ROUGH-IN LOCATIONS PRIOR TO INSTALLATION
FLUSH LINES THOROUGHLY PRIOR TO HOOK-UP
WH-1700 AND WH-1750
PATIENT CARE UNITS INSTALLATION & OPERATION MANUAL
PAGE 4 © Rev. 9/2022
1.800.428.4065 TOLL FREE
| www.willoughby-ind.com

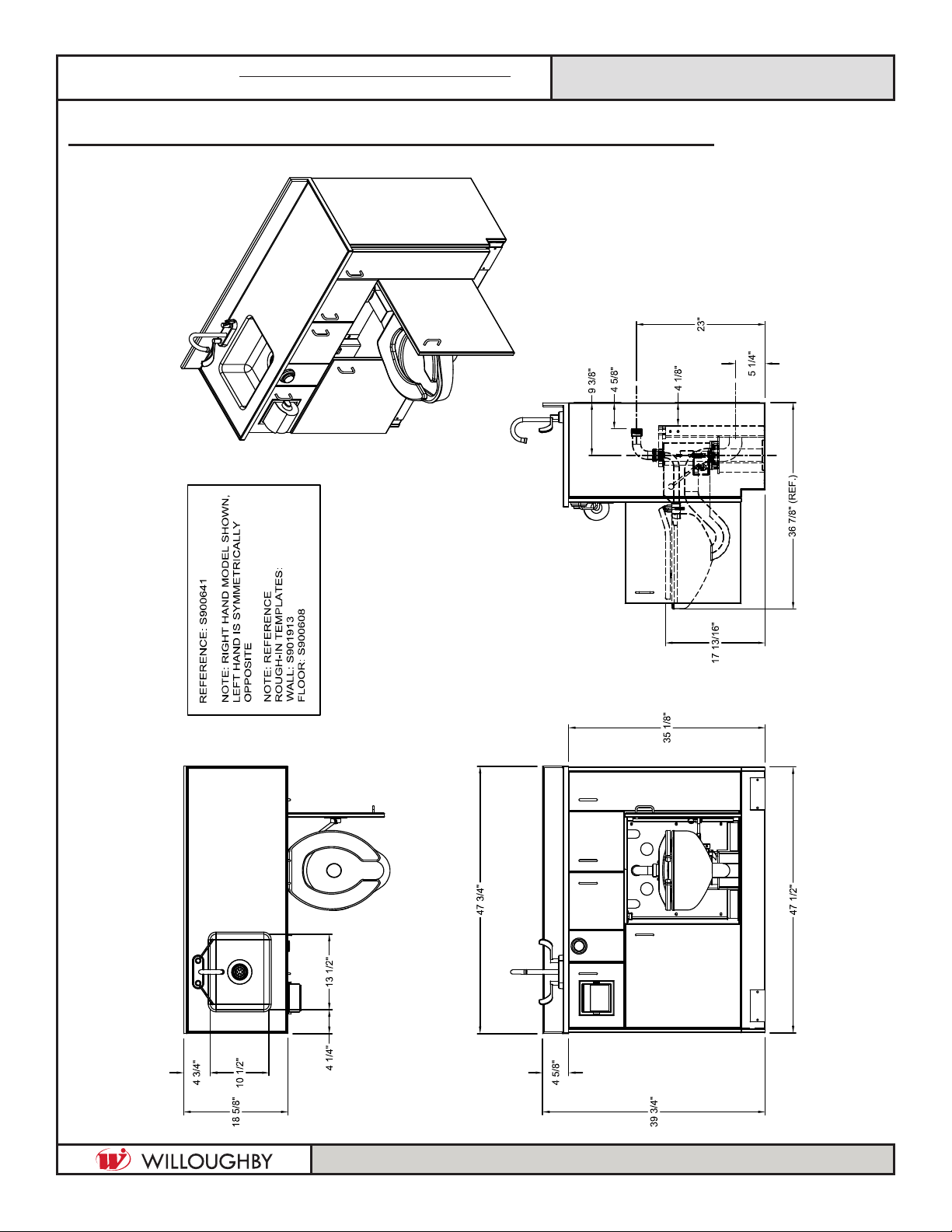

PHYSICAL DIMENSIONS- WH-1700 Series
WH-1700 AND WH-1750
PATIENT CARE UNITS INSTALLATION & OPERATION MANUAL
PAGE 5
© Rev. 9/2022
1.800.428.4065 TOLL FREE
| www.willoughby-ind.com
PHYSICAL DIMENSIONS- WH-1750 Series
WH-1700 AND WH-1750
PATIENT CARE UNITS INSTALLATION & OPERATION MANUAL
PAGE 6 © Rev. 9/2022
1.800.428.4065 TOLL FREE
| www.willoughby-ind.com
C
L
ETCH
FOR WILLOUGHBY UNITS
TOILET WASTE OUTLET
ETCH
1 3/8"
9 3/8"
18 1/2"
17 3/4"
4X
8"
9 1/2"
2 1/2"
10 1/2"
MOUNTING: 4X
5/16"
14 1/2"
1/2"
47 1/2"
16"
CABINET MOUNTING
8 1/16"
SWIVEL TOILET TOWER
12"
5 1/4"
15/16"
3 1/16"
16 1/4" 18 3/4"
8 13/16"
16 7/16"
12 3/4"
C
L
CUTOUT
GFCI OUTLET
WATER INLET
1 1/2" FLUSH VALVE
ETCH
2 1/4" DIALYSIS
BOX DRAIN (MARK
ACCORDINGLY)
23 1/4"
35 1/4"
47 1/2"
HOT WATER INLET
LAVATORY,1 1/8"
1 1/8"
COLD WATER INLET
LAVATORY,
LAV. DRAIN2"
15 7/8"
5 1/4"
26 1/2"
WILL VARY BY GPF)
DISCHARGE (ACTUAL TOILET
WASTE
FOR TOILET WASTE
33 3/4"
WASHER INLET
BEDPAN1 1/8"
BOX INLET, COLD
DIALYSIS1 1/8"
1 1/8"
BOX INLET, HOT
DIALYSIS
29 1/2"
25 1/2"
2 9/16"
4"
16 1/2"
5 3/4"
3 1/2"
2 7/8"
MATERIAL: SHEET, GALV,
G90 DRY, 14GA (150014)
ROUGH-IN DIMENSIONS- WH-1700 Series
WH-1700 FLOOR ROUGH-IN TEMPLATE
WH-1700 BACK-WALL ROUGH-IN TEMPLATE
WH-1700 AND WH-1750
PATIENT CARE UNITS INSTALLATION & OPERATION MANUAL
PAGE 7
© Rev. 9/2022
1.800.428.4065 TOLL FREE
| www.willoughby-ind.com
ROUGH-IN DIMENSIONS- WH-1750 Series
ETCH
C
L
FOR WILLOUGHBY UNITS
TOILET WASTE OUTLET
ETCH
8.065
3 5/8"
17 3/4"
9 3/8"
11 5/8"
2 1/2"
1/2"MOUNTING: 4X
16"
40 5/8"
1 3/8"
4X .312
9 1/2"
7 5/8"
CABINET MOUNTING
8"
SWIVEL TOILET TOWER
12"
4 5/8"
14 15/16"
2 1/2"
6 1/2"
9 5/16"
12 13/16"
15 11/16"
12 1/4"
8 11/16"
C
L
ETCH
NOTE: RIGHT HAND SHOWN,
LEFT HAND IS SYMMETRICALLY
OPPOSITE
LAV.
1 1/8" 33 3/4"
40 5/8"
DISCHARGE
3 1/2"
35 1/4" 2 1/4"
(MARK ACCORDINGLY)
DIALYSIS BOX
23 1/4"
5 1/4"
25 1/2"
DIALYSIS BOX INLET, HOT1 1/8"
SUPPLY, COLD
DIALYSIS BOX INLET, COLD1 1/8"
1 1/2"
VALVE INLET
FLUSH
LAV. DRAIN2"
SUPPLY, HOT
LAV.1 1/8"
WASHER INLET
BEDPAN
1 1/8"
26 1/2"
21 1/8"
23 1/2"
WH-1750 FLOOR ROUGH-IN TEMPLATE
WH-1750 BACK-WALL ROUGH-IN TEMPLATE
WH-1700 AND WH-1750
PATIENT CARE UNITS INSTALLATION & OPERATION MANUAL
PAGE 8 © Rev. 9/2022
1.800.428.4065 TOLL FREE
| www.willoughby-ind.com
CHECK CONTENTS
• Separate all parts from packaging and make sure all parts are accounted for before
discarding any packaging material. If any parts are missing, do not attempt to install
WH-1700/1750 Patient Care Unit until you obtain the missing parts.
NOTE: Before beginning installation, all supply, drain and waste piping for the
WH-1700/1750 must be completed according to specied rough-ins. If you have not
received rough-in details, please contact Willoughby Industries, Inc. (800) 428-4065
IMPORTANT: These installation instructions
cover all of the Willoughby Industries Inc.
WH-1700/1750 Patient Care Units. Simply
omit the steps which do not apply to the
model you are installing.
IMPORTANT: Flush all the water supply
lines before making connections.
WH-1700 AND WH-1750
PATIENT CARE UNITS INSTALLATION & OPERATION MANUAL
PAGE 9
© Rev. 9/2022
1.800.428.4065 TOLL FREE
| www.willoughby-ind.com
□Hardware for waste outlet connections
□Gasket for waste outlet connection
□Shims (for toilet or cabinet installation if necessary)
□Supply piping to toilet, faucet, foot valve, vacuum breaker, bedpan washer (AS NEEDED)
□Waste outlet piping to toilet
□P-trap and drain piping
□Silicone caulk
□Proper mounting hardware
WARNING: Willoughby Industries does not assume any
responsibility for personal injury or damage to equipment due
to an improperly installed WH-1700/1750 Patient Care Unit.
REQUIRED INSTALLATION SUPPLIES
WH-1700 AND WH-1750
PATIENT CARE UNITS INSTALLATION & OPERATION MANUAL
PAGE 10 © Rev. 9/2022
1.800.428.4065 TOLL FREE
| www.willoughby-ind.com
Step 1: Unpacking the Patient Care Unit
1.) Remove the packaging around the unit.
2.) Remove the door linkage on door connected to swivel toilet by removing the pin fastened into
the linkage bracket.
3.) Lift out the trim piece around the toilet on the cabinet oor.
4.) Remove the back trim piece from behind the toilet.
5.) Unbolt the toilet and cabinet assembly.
6.) Locate wall and oor mounting templates and set aside. (DO NOT DISCARD)
NOTE: One (1) wall template per order. Each unit is supplied with a oor
template for shipping purposes.
Step 2: Install the Anchors
NOTE: Templates are not to be installed as part of the cabinet. They are only used to
specify rough-in measurements.
1.) Select the location where the WH-1700/1750 is to be installed. Using the supplied
templates, mark the hole pattern for the toilet and cabinet anchor locations.
NOTE: Lay out anchor locations for the foot valve if required.
2.) Remove the template.
3.) Install appropriate oor anchors to mount both the toilet and cabinet securely to the oor.
(hardware supplied by installer)
NOTE: If the oor concrete is lightweight or less than 4” thick, through bolting
to steel angles under the oor is recommended (hardware supplied by installer).
INSTALLATION INSTRUCTIONS
