Wilson Electronics 801105 Manuale utente

Signal Booster

Installation

Guide

In-Building

Wireless

Smart Technology

Signal Booster

Contents:

Antenna Options and Accessories. . . . . . . . . . . . . . . . . . . 1

Before Getting Started / How It Works . . . . . . . . . . . . . . . 2

Installation Overview .............................3

Installing a Wilson Electronics Outside Antenna ........4

Installing a Wilson Electronics Inside Antenna . . . . . . . . . 5

Installing a Wilson Electronics Signal Booster. . . . . . . . . . 6

Powering Up a Wilson Electronics Signal Booster . . . . . . 7

Understanding the Signal Booster Lights . . . . . . . . . . 8-10

Warnings and Recommendations ..................11

Factor Conversions .............................12

Distance Coverage Chart . . . . . . . . . . . . . . . . . . . . . . . . 13

Guarantee and Warranty .........................14

Signal Booster Specifications . . . . . . . . . . . . . .Back Cover

Wilson

Electronics, Inc.

Note: This manual contains important safety and operating information.

Please read and follow the instructions in this manual. Failure to do so

could be hazardous and result in damage to your signal booster.

1Contact Wilson Electronics Technical Support Team with any questions at 877-594-5766

or email: [email protected]. Hours: 7 am to 6 pm MST.

Installation Instructions for the Following Wilson Signal Boosters:

In-Building Wireless Cellular Smart Technology™ 50 dB Signal Booster

Model # 801105

FCC ID: PWO8011SB IC: 4726A-8011SB

In-Building Wireless Cellular Smart Technology™ 60 dB Signal Booster

Model # 801106, Part # 801108, Part # 801110

FCC ID: PWO8011SB IC: 4726A-8011SB

In-Building Wireless PCS Smart Technology™ 60 dB Signal Booster

Model # 801306

FCC ID: PWO8013SB IC: 4726A-8013SB

In-Building Wireless iDEN Smart Technology™ 50 dB Signal Booster

Model # 804005

FCC ID: PWO8040SB IC: 4726A-8040SB

In-Building Wireless iDEN Smart Technology™ 60 dB Signal Booster

Model # 804006

FCC ID: PWO8040SB IC: 4726A-8040SB

In-Building Wireless 900 MHz Smart Technology™ 60 dB Signal Booster

Model #

801506, Model # 801606, Model # 801170, Model # 801370

Not for sale in the U.S. and Canada.

The term “IC” before the radio certification number only signifies that Industry Canada

technical specifications were met.

A13 dB 800 MHz Yagi Cellular Antenna (301111)

B1900 MHz Yagi PCS Antenna (301124)

C800 MHz Yagi Cellular Antenna (301129)

DDual-Band Panel Antenna (301135)

EDual-Polarity Dome Antenna (301123)

FDual-Band Dome Antenna (301121)

GSplitters (Multiple splitters available)

HSignal Booster Soft Cases

I Omni-Directional Antenna (301201)

J Marine Antenna (301130)

Antenna Options & Accessories

D E

HIJ

Contact Wilson Electronics Technical Support Team with any questions at 877-594-5766

or email: tech@wpsantennas.com. Hours: 7 am to 6 pm MST.

A13 dB 800 MHz Yagi Cellular Antenna (301111)

B1900 MHz Yagi PCS Antenna (301124)

C800 MHz Yagi Cellular Antenna (301129)

DDual-Band Panel Antenna (301135)

EDual-Polarity Dome Antenna (301123)

FDual-Band Dome Antenna (301121)

GSplitters (Multiple splitters available)

HSignal Booster Soft Cases

I Omni-Directional Antenna (301201)

J Marine Antenna (301130)

Before Getting Started

This guide will help you properly install Wilson Electronics In-Building Wireless Smart

Technology™Signal Boosters. It is important to read through all of the installation steps

for your particular application prior to installing any equipment. Read through the

instructions, visualize where all the equipment will need to be installed and do a soft installation

before mounting any equipment. If you do not understand the instructions in full, seek

professional help, or contact Wilson Electronics Technical Support at 877-594-5766.

Inside this Package

• In-building wireless signal booster

• AC/DC 110 volt power supply

Additional Required Equipment (sold separately)

• Outside antenna (Yagi recommended)

• Inside dome, panel or low-profile antenna

• Antenna coax cable

How it Works

Wilson Electronics signal boosters are small, portable, bi-directional devices that deliver service

levels consistent with what would be expected in areas of high cell network coverage. They

amplify a weak or shadowed signal in mobile, marine and in-building applications.

When using a Wilson Electronics signal booster in conjunction with Wilson Electronics

antennas, the outside antenna will collect the cell tower signal and send it through the cable

to the signal booster. The signal is then amplified and broadcast from the inside antenna to

the surrounding area. Cell phones and cellular data cards in that area then communicate

with the improved signal. When a cell phone or cellular device transmits, the signal is

received by the inside antenna, amplified by the signal booster and broadcast back to the

cell tower through the outside antenna.

In-building wireless

signal booster AC/DC plug-in power supply.

(Sold separately in 801175)

3Contact Wilson Electronics Technical Support Team with any questions at 877-594-5766

or email: [email protected]. Hours: 7 am to 6 pm MST.

Installation Overview

The following steps provide a summary of the signal booster/antenna installation process.

However, they are not a substitute for the complete installation instructions on the following

pages, which you should read thoroughly. Contact Wilson Electronics Technical Support

Department with any questions at 877-594-5766.

STEP 1 Install the Outside Antenna

Mount the Yagi antenna so that it points toward the cell tower and away from where the

inside antenna will be located. Depending on your signal booster model, the two antennas

will need 50-75 feet of separation. (See illustrations on pages 5 and 7.)

STEP 2 Install the Inside Antenna

Select a location in the center of where the signal needs to be amplified. Refer to the

instructions included with the inside antenna. (See illustration on page 6 to determine the

inside antenna model that best meets your specific needs.)

STEP 3 Install the Signal Booster

Position the signal booster in a well-ventilated location near a power outlet. Attach the

outside and inside antennas to the signal booster using Wilson 400 low loss coax cable

(available from Wilson Electronics).

STEP 4 Power up the Signal Booster

IMPORTANT! Before connecting the power supply, ensure that both the inside and outside

antenna cables are connected. Also ensure that all cell phones and cellular data cards

within 50 feet of the inside antenna are turned off. Plug in the supplied 6-volt power supply

into the signal booster and then into a wall outlet (power supply sold separately in 801175).

STEP 5 Check the Signal Booster Lights

The PWR light should be green, indicating that the signal booster has power. If all other

lights are also green, the signal booster is operating properly; however, if you do not have

the desired signal coverage area, refer to pages 5, 6, 9 and 10.

Note: if you are using an outdoor Yagi antenna, it must be adjusted for maximum signal.

Contact Wilson Electronics Technical Support Team with any questions at 877-594-5766

or email: [email protected]. Hours: 7 am to 6 pm MST.

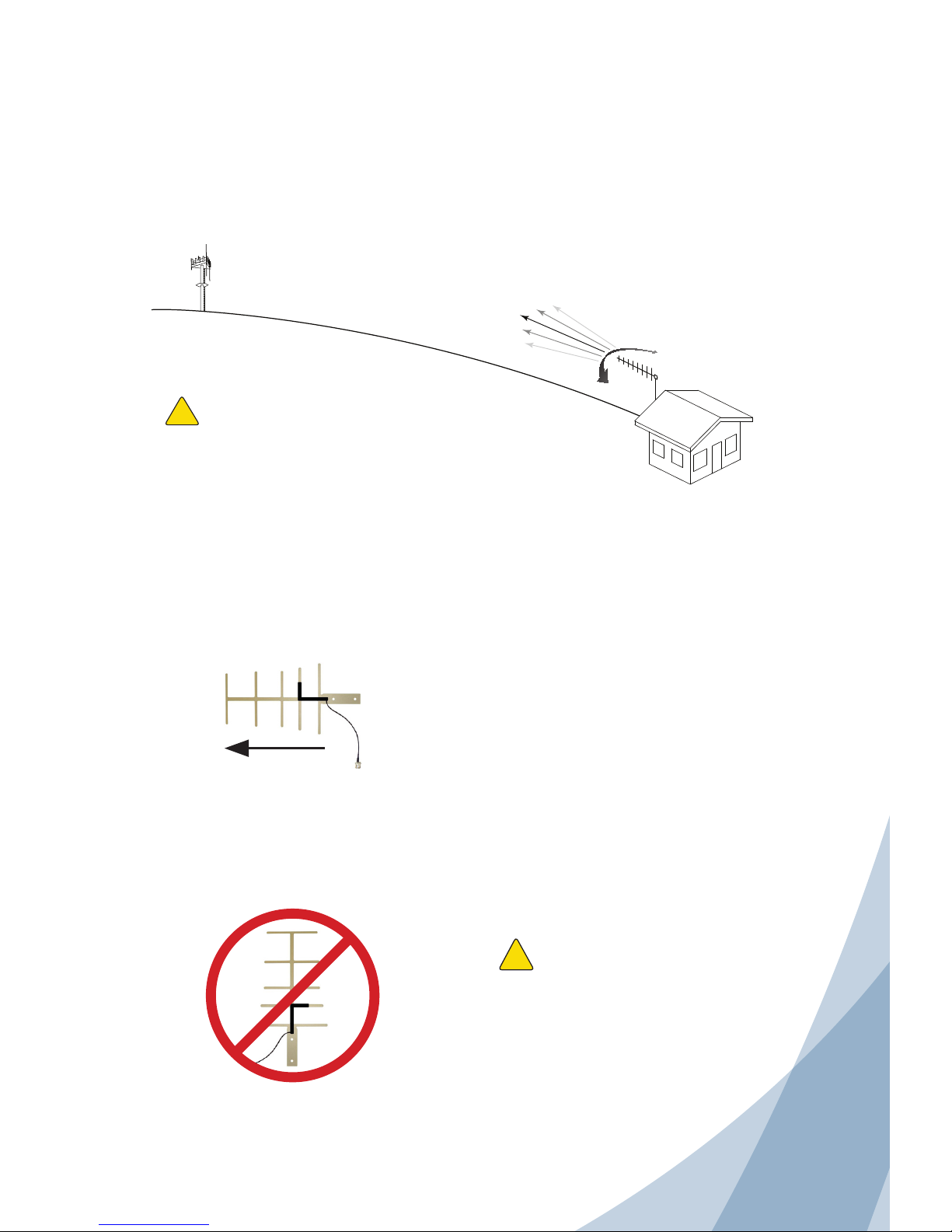

Installing a Wilson Electronics Outside Antenna

Select a location on the roof of the building

to install the outside antenna, using a cell

phone in test mode to find the strongest

signal from the cell tower.

For test mode help, visit

www.wilsonelectronics.com or call

Technical Support at 866-294-1660.

Follow the specific antenna installation

instructions included with the outside

antenna.

Lightning protection is recommended for

all in-building installations. Take extreme

care to ensure neither you nor the antenna

come in contact with any electrical power

lines.

A Yagi antenna must be installed

horizontally with the elements vertical and

the drip hole on the bottom. Ensure there

are three feet of clearance in all directions

surrounding the antenna.

CORRECT

Cell Tower RF Signal

Yagi External Antenna

Warning: The outside antenna must

be installed on an outdoor permanent structure

with a separation of at least 20 feet from all

persons during normal operation.

NOT

CORRECT

Warning: Never point the front

of the Yagi antenna toward the inside

antenna - oscillation will result, causing

amber light and gain reduction.

Pointing toward

cell tower

5Contact Wilson Electronics Technical Support Team with any questions at 877-594-5766

or email: [email protected]. Hours: 7 am to 6 pm MST.

Installing a Wilson Electronics Inside Antenna

Select a suitable location for the inside antenna, preferably in the center of where the signal

needs to be amplified. To determine signal strength and coverage distance, refer to page

12 of this installation guide.

Follow the specific antenna installation instructions included with the inside antenna.

Wilson Electronics has several inside antenna options. The dome and panel antennas are

the most popular for in-building applications.

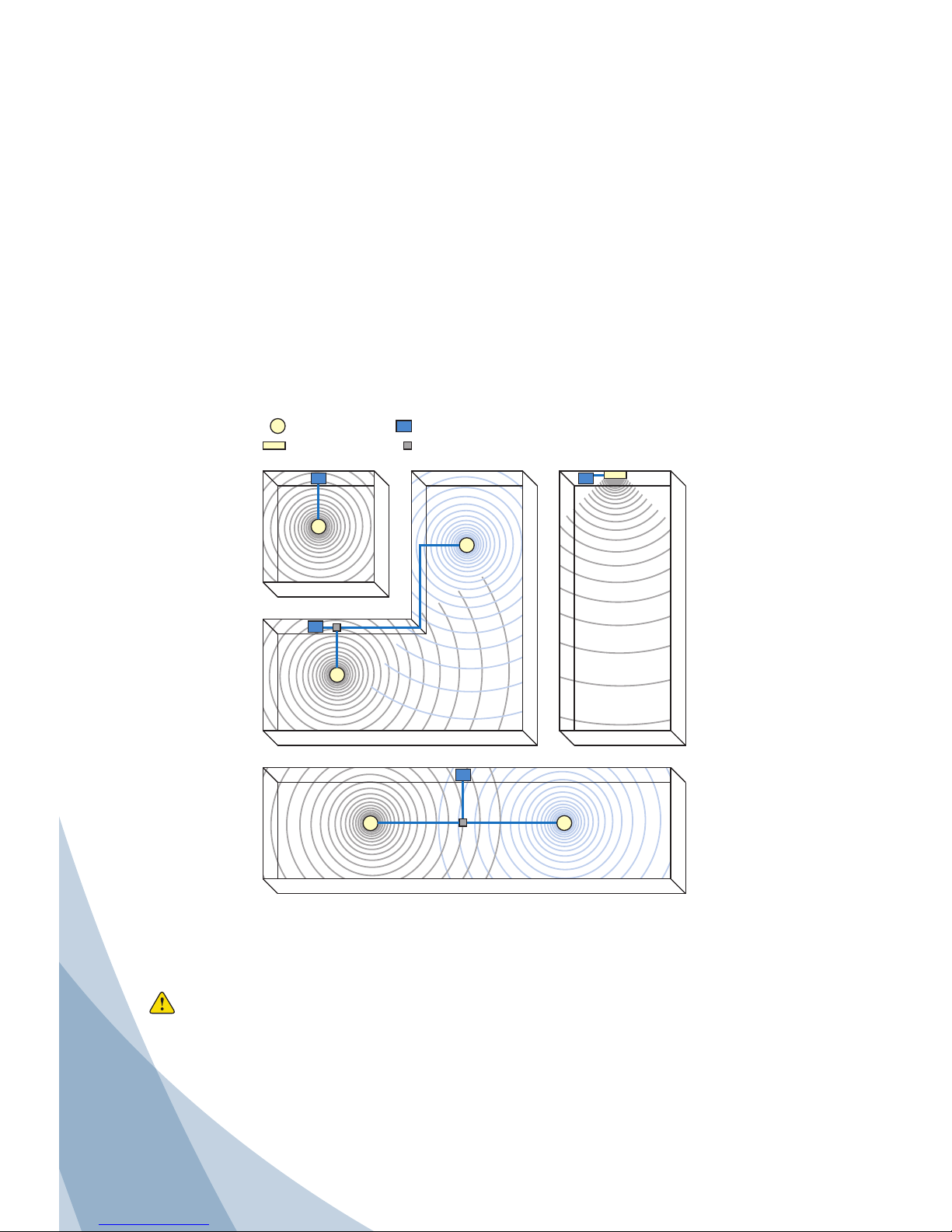

For a square room, a dome antenna will provide better coverage. (A)

For a rectangular room, a panel antenna will provide better coverage. (B)

In some cases, multiple inside antennas may be required (C & D). A signal may be “split”

by using a splitter. If using more than one inside antenna, a separation of at least 20 feet is

necessary between inside antennas.

Connect the coax cable from the signal booster to the inside antenna. For distances of 20 feet or

more, use Wilson 400 low loss coax cable to prevent significant signal loss.

= Dome Antenna

= Panel Antenna = Splitter

= Amplifier

Warning: An inside antenna must have a separation distance from all persons that

is at least 12 inches for the 5.2 dBi dome antenna and 15 inches for the 7

dBi panel antenna.

Contact Wilson Electronics Technical Support Team with any questions at 877-594-5766

or email: [email protected]. Hours: 7 am to 6 pm MST.

Installing a Wilson Electronics Signal Booster

Select a location to install the signal booster that is away from excessive heat, direct

sunlight, moisture and that has proper ventilation. Do not place the signal booster in an

air-tight enclosure.

Recommended installation locations for in-building signal boosters are:

• On a wall

• On the ceiling

• Near a power outlet

Run the outside antenna cable to the signal booster and attach it to the N-Female

connector labeled “outside antenna” on the signal booster. Run the inside antenna cable to

the signal booster and attach it to the N-Female connector labeled “inside antenna” on the

signal booster.

Note: Be careful when plugging the connector in so as not to damage the center pins on

the connectors.

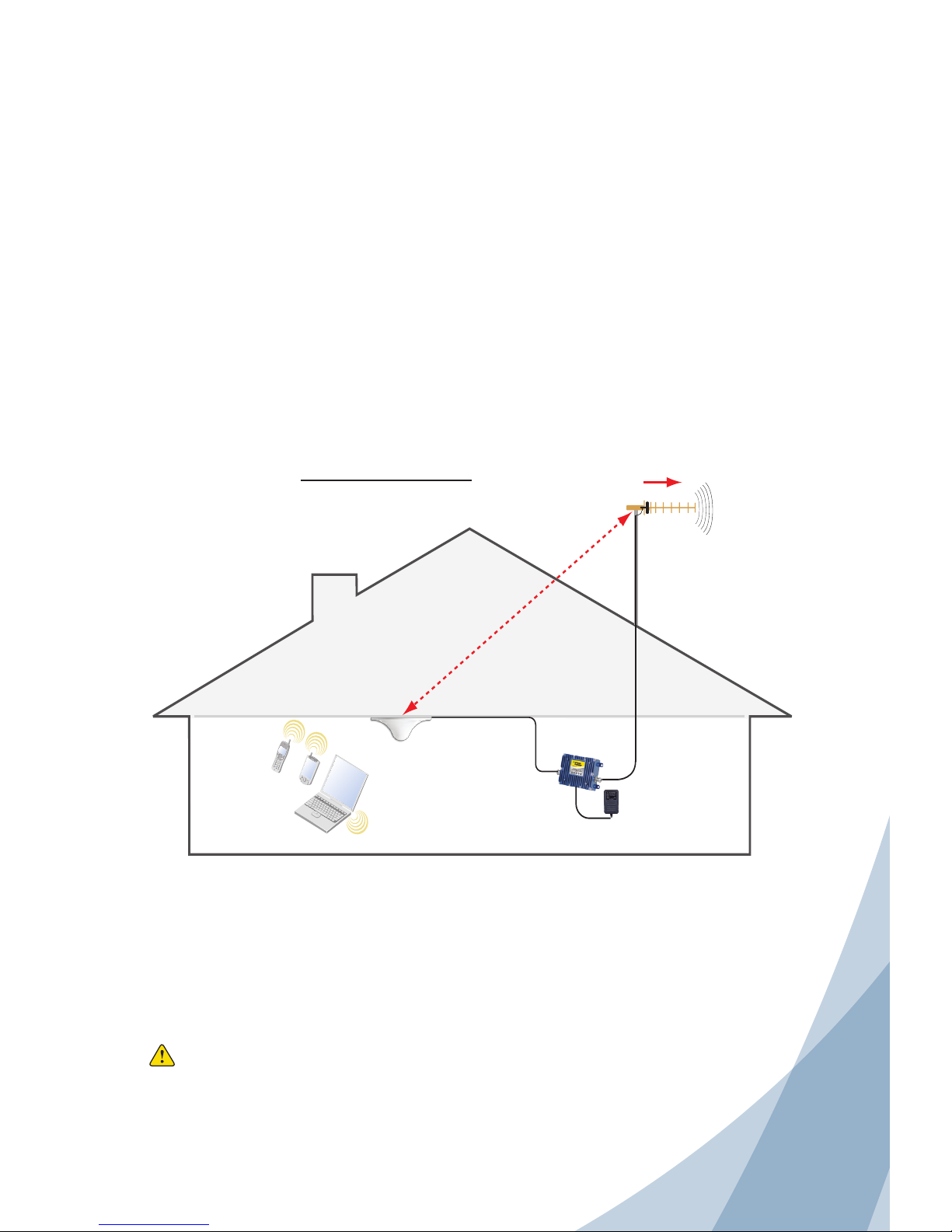

Connect the outside antenna to the signal booster with Wilson 400 low loss coax cable

(available from Wilson Electronics). Place the inside antenna in the center of the area

needing the amplified signal. It is important to have at least 50 feet of separation between

the inside and outside antennas for the 50 dB signal boosters, 68 feet of separation

distance for the 60 dB PCS signal boosters and at least 75 feet of separation distance for

the 60 dB cellular signal boosters.

AC/DC

Power Supply

Amplifier

Cell

Site

Supports

Multiple

Users

Inside Antenna

Optional Dome

Antenna Shown

Point Yagi antenna

away from inside

antenna

Outside

Antenna

1900 MHz Yagi

Antenna Shown

50 feet minimum

separation between inside

and outside antenna for

50 dB cellular amplifier

68 feet for 60 dB PCS amplifier

75 feet for 60 dB cellular

amplifier

Antenna Separation

Warning: Connecting the signal booster directly to the cell phone with use of an

adapter will damage the cell phone.

7Contact Wilson Electronics Technical Support Team with any questions at 877-594-5766

or email: [email protected]. Hours: 7 am to 6 pm MST.

Powering up a Wilson Electronics Signal Booster

1. IMPORTANT! Ensure that all cell phones and cellular data cards within 50 feet of the

inside antenna are turned off.

2. To verify proper installation of the signal booster and antennas, make sure that the

distance between the inside and outside antennas is a minimum of 50 feet for the 50 dB

signal booster, 68 feet of separation distance for the 60 dB PCS signal booster, and 75

feet for the 60 dB cellular signal booster.

3. If you are using an outside Yagi antenna, never point the front of the Yagi toward the inside

antenna.

4. Ensure that both the outside antenna coax cable and the inside antenna coax cable are

connected to the signal booster before powering up the signal booster.

5. Plug the 6-volt power supply into the signal booster input marked “power” (carefully, to

avoid damaging the center pin) and then into a wall outlet.

NOTE: The aluminum casing of a Wilson Electronics signal booster will adjust very

quickly to the ambient temperature of its environment. For example, in the summer,

when the attic of a house can easily exceed 100 degrees Fahrenheit, the signal booster

temperature may be 10 or more degrees higher. The casing will be hot to the touch.

Such high temperatures will not damage the signal booster, nor do they pose a fire

risk. As recommended in these instructions, install the signal booster in a location with

adequate ventilation. Keep the area free of items that could block air flow to the signal

booster.

Warning: Use only the power supply provided in this package. Use of a non-Wilson

Electronics product may damage your equipment (power supply sold

separately in 801175).

Warning: Verify that both the outside antenna and the inside antenna are

connected to the signal booster before powering up the signal booster.

Contact Wilson Electronics Technical Support Team with any questions at 877-594-5766

or email: [email protected]. Hours: 7 am to 6 pm MST.

The signal booster is equipped with sensitive electronics designed to detect signal booster

oscillation or cell phone overload, both of which can hamper signal booster performance. The

signal booster is designed to automatically reduce gain or, if necessary, shut down to prevent

or compensate for these conditions. Oscillation or overload can be caused by improper

equipment installation -- understanding the signal booster lights will help you identify and

solve potential problems.

OSC 40 50 60 When the signal booster is initially powered on, the 60 light will

turn green. This indicates the signal booster is working at the

proper gain level.

If the 50 light is green, an oscillation has been detected and

the signal booster is powering down. Verify that the outside

Yagi antenna is pointed away from the inside antenna and

not across the roof of the building. If need be, redirect the

Yagi antenna so that it is pointing away from the inside

antenna. Then, reset the signal booster by disconnecting and

reconnecting the power supply.

If the 40 light is green, the signal booster is continuing to

power down. Try operating the cell phone farther away from

the inside antenna. If need be, redirect the Yagi antenna so

that it is pointing away from the inside antenna. Then, reset

the signal booster by disconnecting and reconnecting the

power supply.

If the OSC light is solid red, the signal booster has shut

down to prevent oscillation. Try operating the cell phone

farther away from the inside antenna. Verify that the outside

Yagi antenna is pointed away from the inside antenna and

not across the roof of the building. If need be, redirect the

Yagi antenna so that it is pointing away from the inside

antenna. Then, reset the signal booster by disconnecting and

reconnecting the power supply.

If the OSC light is blinking red, the signal booster has shut

down to prevent a receive overload. Try moving the outside

antenna further away from the cell tower.

OSC 40 50 60

If your signal booster has this

light configuration refer to the

instructions below.

Understanding the Signal Booster Lights

OSC 40 50 60

9Contact Wilson Electronics Technical Support Team with any questions at 877-594-5766

or email: [email protected]. Hours: 7 am to 6 pm MST.

The signal booster is equipped with sensitive electronics designed to detect signal booster

oscillation or cell phone overload, both of which can hamper signal booster performance. The

signal booster is designed to automatically reduce gain or, if necessary, shut down to prevent

or compensate for these conditions. Oscillation or overload can be caused by improper

equipment installation -- understanding the signal booster lights will help you identify and

solve potential problems.

OSC 45 55 65 When the signal booster is initially powered on, the 65 light

will turn green. This indicates the signal booster is working at

the proper gain level.

If the 55 light is green, an oscillation has been detected and

the signal booster is powering down. Verify that the outside

Yagi antenna is pointed away from the inside antenna and

not across the roof of the building. If need be, redirect the

Yagi antenna so that it is pointing away from the inside

antenna. Then, reset the signal booster by disconnecting and

reconnecting the power supply.

If the 45 light is green, the signal booster is continuing to

power down. Try operating the cell phone farther away from

the inside antenna. If need be, redirect the Yagi antenna so

that it is pointing away from the inside antenna. Then, reset

the signal booster by disconnecting and reconnecting the

power supply.

If the OSC light is solid red, the signal booster has shut

down to prevent osciallation. Try operating the cell phone

farther away from the inside antenna. Verify that the outside

Yagi antenna is pointed away from the inside antenna and

not across the roof of the building. If need be, redirect the

Yagi antenna so that it is pointing away from the inside

antenna. Then, reset the signal booster by disconnecting and

reconnecting the power supply.

OSC 45 55 65

If your signal booster has this

light configuration refer to the

instructions below.

Understanding the Signal Booster Lights

OSC 45 55 65 If the OSC light is blinking red, the signal booster has shut

down to prevent a receive overload. Try moving the outside

antenna further away from the cell tower.

Altri manuali per 801105

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Wilson Electronics Estensione

Wilson Electronics

Wilson Electronics WeBoost Drive Reach Flex Fleet Manuale utente

Wilson Electronics

Wilson Electronics DB Pro 4G Manuale utente

Wilson Electronics

Wilson Electronics signalboost dt 271265 Manuale utente

Wilson Electronics

Wilson Electronics weBoost Drive Reach RV Guida all'installazione

Wilson Electronics

Wilson Electronics weBoost Connect 4G-X 471104R Manuale utente

Wilson Electronics

Wilson Electronics AG Pro Quint 461104 Manuale utente

Wilson Electronics

Wilson Electronics weBoost DRIVE X Manuale utente

Wilson Electronics

Wilson Electronics MobileMaxx 3G 460011 Manuale utente

Wilson Electronics

Wilson Electronics weboost DRIVE REACH OTR FLEET Manuale utente

Wilson Electronics

Wilson Electronics 2B1401 Manuale utente

Wilson Electronics

Wilson Electronics 460008 Manuale utente

Wilson Electronics

Wilson Electronics weBoost DRIVE X RV Manuale utente

Wilson Electronics

Wilson Electronics Sleek Manuale utente

Wilson Electronics

Wilson Electronics weBoost DRIVE X 475021R Manuale utente

Wilson Electronics

Wilson Electronics AG Pro 75 Manuale utente

Wilson Electronics

Wilson Electronics Sleek Manuale utente

Wilson Electronics

Wilson Electronics AWS 70 Manuale utente

Wilson Electronics

Wilson Electronics SIGNALBOOST MINI-AMP Manuale utente

Wilson Electronics

Wilson Electronics Pro 70 Plus Manuale utente

Wilson Electronics

Wilson Electronics weboost Office 100 Manuale utente

Wilson Electronics

Wilson Electronics 801213 Manuale utente

Wilson Electronics

Wilson Electronics Sleek 4G Manuale utente

Wilson Electronics

Wilson Electronics WilsonPro A500 Manuale utente

Wilson Electronics

Wilson Electronics weBoost Drive Reach RV Manuale utente

Manuali Estensione popolari di altre marche

SY HDBT-60T Manuale utente

Appsys ProAudio

Appsys ProAudio ADX-16 Manuale utente

Atlona

Atlona RS232 Manuale utente

IDK

IDK OPF-TH1000-A Manuale utente

Enable-IT

Enable-IT 824WP Manuale utente

Worx

Worx Landroid RadioLink WA0864 Scheda tecnica

TP-Link

TP-Link TL-WA730RE Manuale utente

Camplex

Camplex CMX-HDMI-SFPL Manuale utente

SC&T

SC&T HE03-4K Manuale utente

Marmitek

Marmitek MegaView70 Manuale utente

Samsung

Samsung SCS-26UC4 Manuale utente

Foxun

Foxun SX-GES24 Manuale utente

MuxLab

MuxLab 500771 Manuale utente

foxunhd

foxunhd SX-AEX01 Manuale utente

TERK Technologies

TERK Technologies LFIRX2 Manuale utente

Devolo

Devolo Audio Extender Manuale

Edimax

Edimax EW-7438RPn V2 Manuale utente

Shinybow USA

Shinybow USA SB-6335T5 Manuale utente
