Wilson Electronics WeBoost DRIVE 4G-X 470510R Manuale utente

______

Index

Package Contents 1

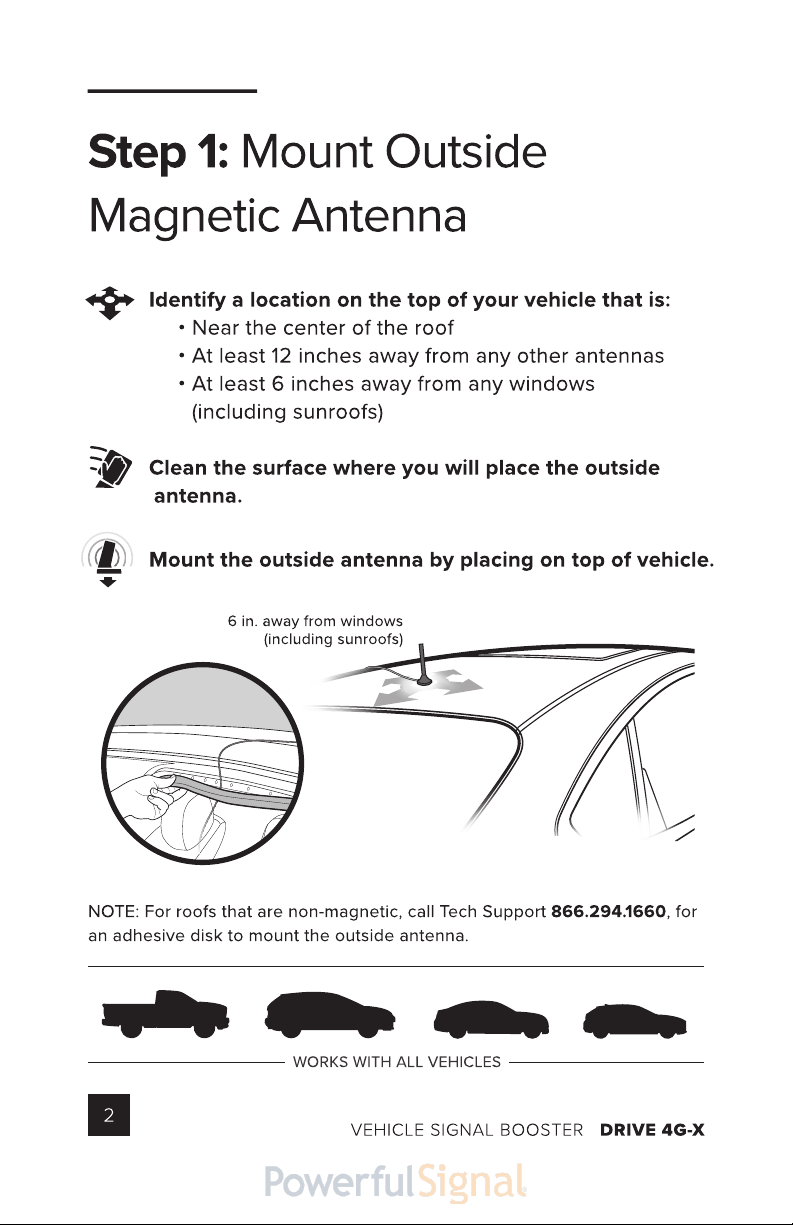

STEP 1: Mount Outside Magnetic Antenna 2

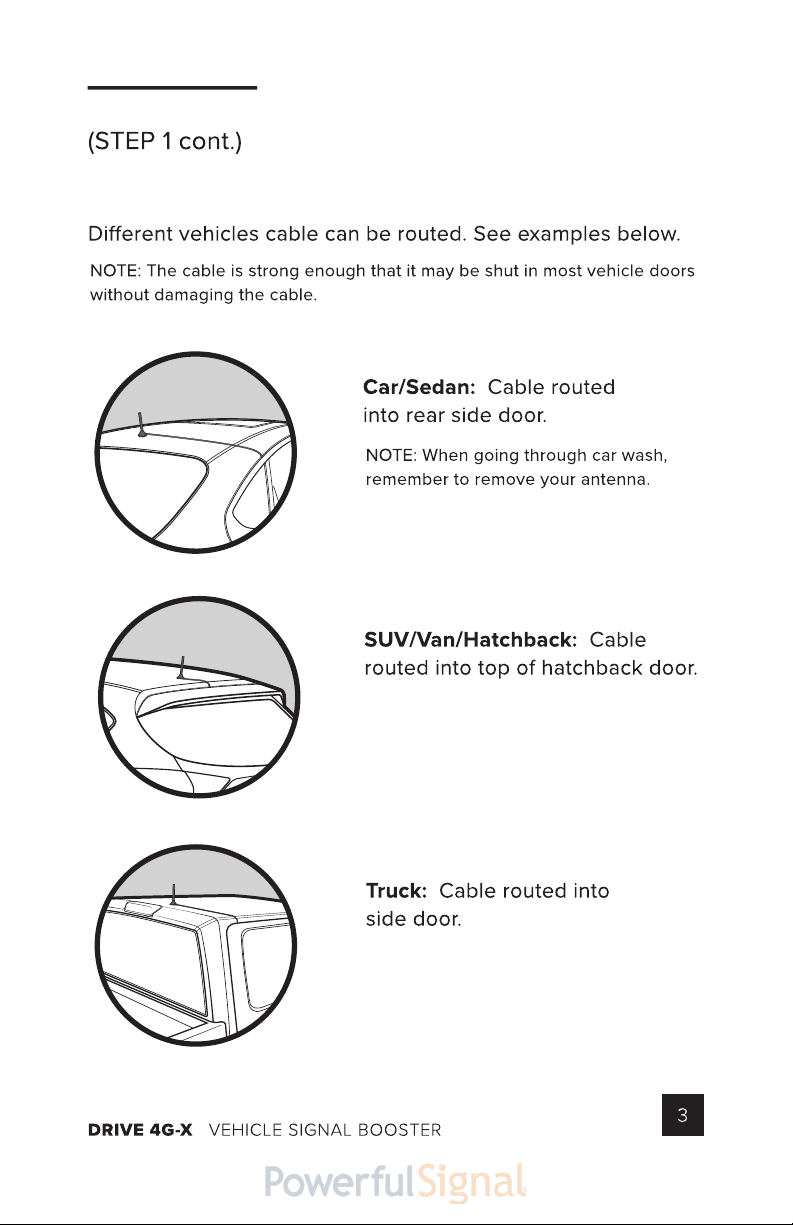

STEP 2: Mount Inside Antenna 4

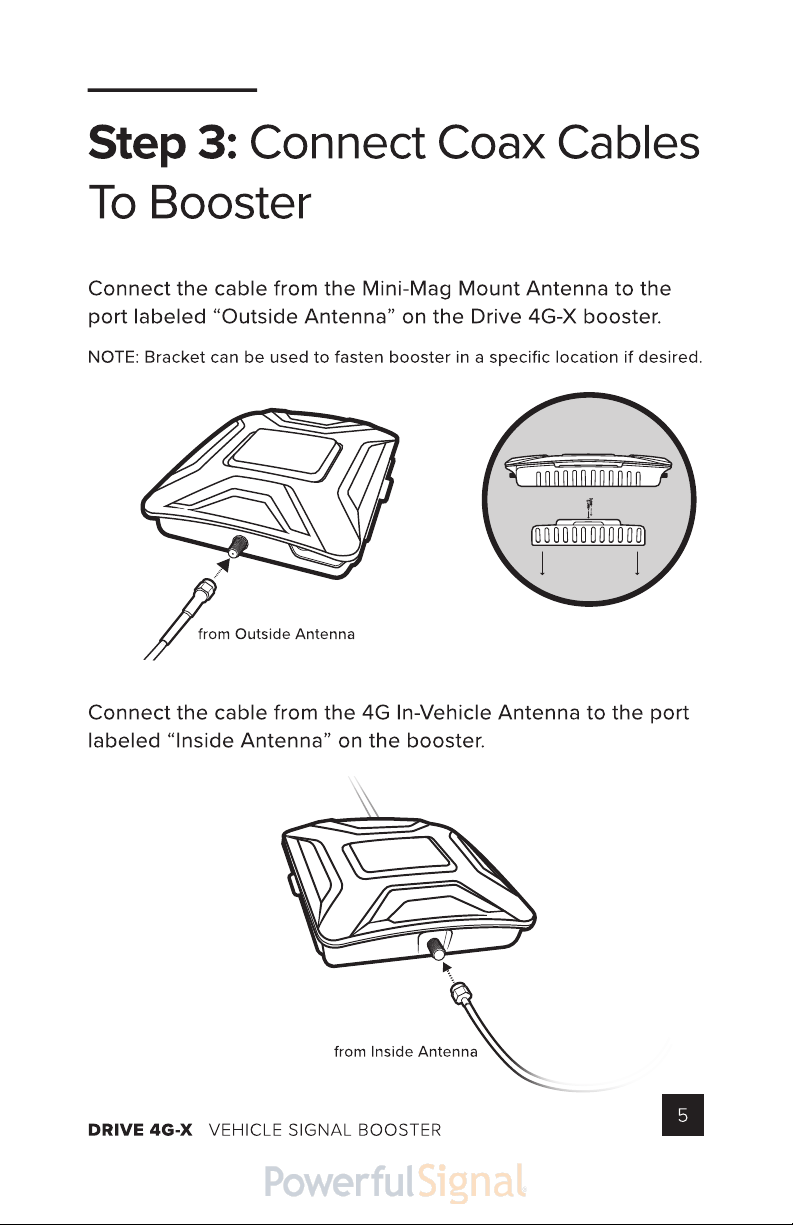

STEP 3: Connect Coax Cables To Booster 5

STEP 4: Connect Power Supply To Booster 6

STEP 5: Plug Power Adapter Into Vehicle’s Power Supply 7

Light Patterns 8

Troubleshooting 9

Safety Guidelines 10

Speciﬁcations 11

Warranty 12

DRIVE 4G-X VEHICLE SIGNAL BOOSTER 1

________

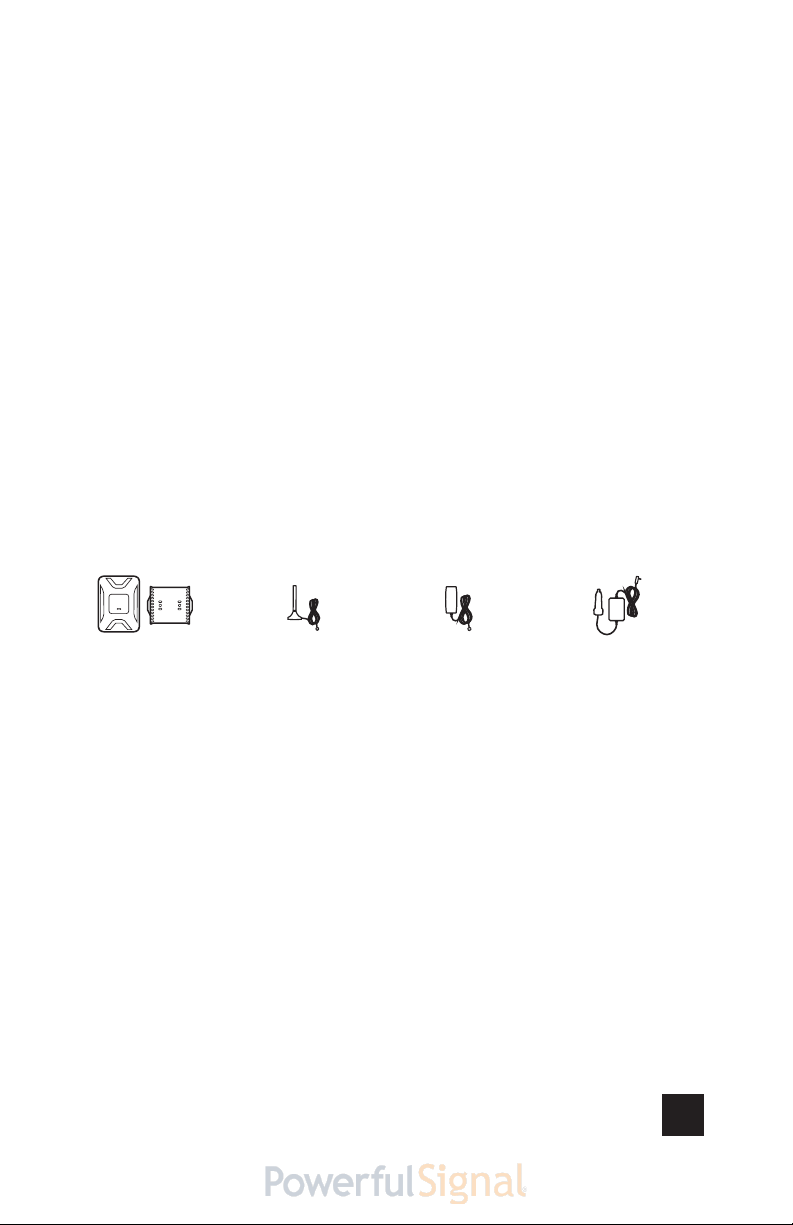

Package

Contents

Booster

& Bracket

Outside

Antenna

Inside

Antenna

Power

Supply

8VEHICLE SIGNAL BOOSTER DRIVE 4G-X

______

Light Patterns

NEED HELP? support.weboost.com 866.294.1660

Solid Green

This indicates that your booster is functioning properly and there are no issues with

installation.

Blinking Red, Then Solid Green

This indicates that one or more of the booster bands has reduced power due

to a feedback loop condition called oscillation. This is a built in safety feature

to prevent harmful interference with a nearby cell tower. If you are already

experiencing the desired signal boost, then no further adjustments are necessary.

If you are not experiencing the desired boost in coverage then refer to the

Troubleshooting section below.

Solid Red

This is due to a feedback loop condition called oscillation. This is a built in safety

feature that causes a band to shut off to prevent harmful interference with a nearby

cell tower. Refer to Troubleshooting section below.

Light O

If the Drive 4G-X Signal Booster’s light is off, verify your power supply has power.

NOTE: The Signal Booster can be reset by disconnecting and reconnecting

the power supply.

After troubleshooting you must initiate a new power cycle by disconnecting and

then reconnecting power to the Booster.
