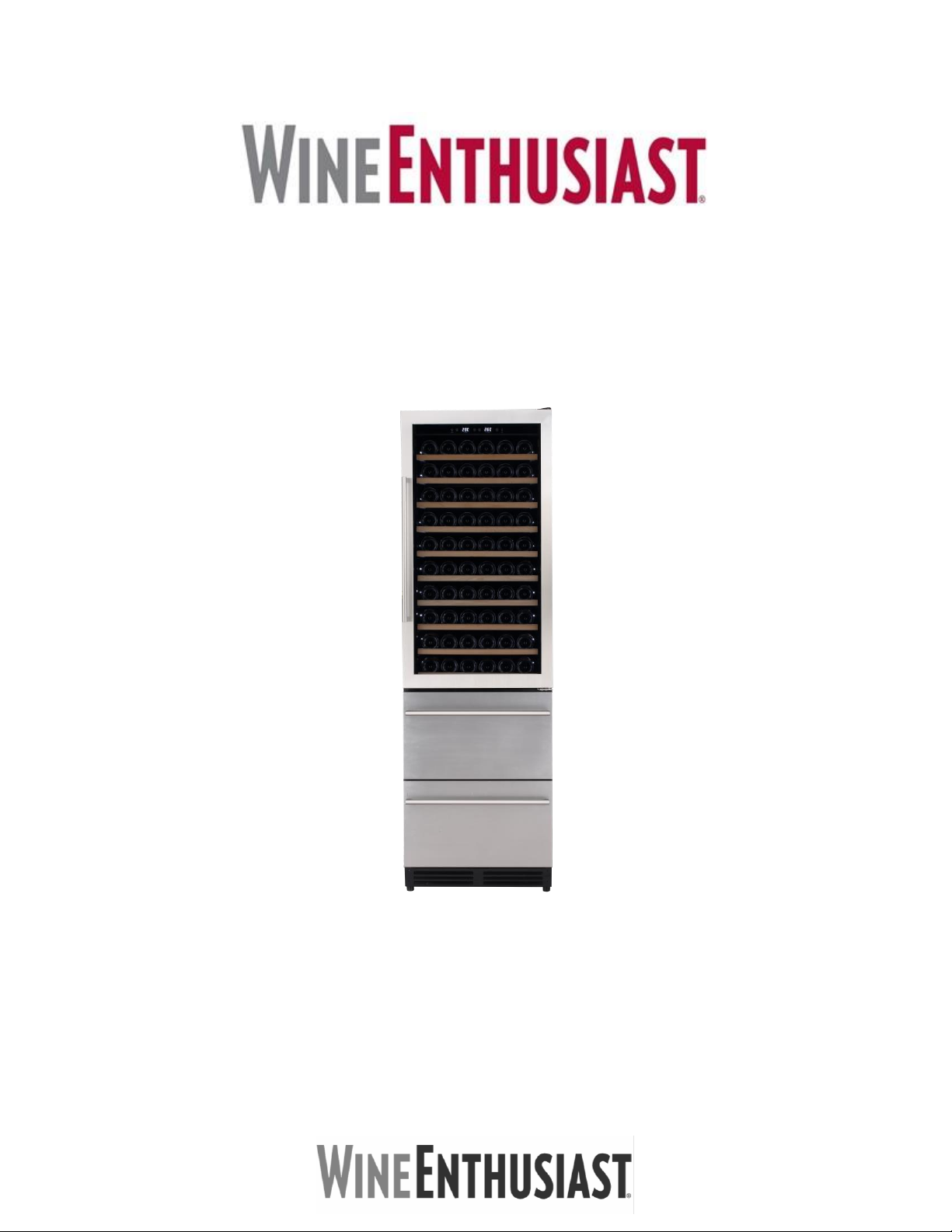

WineEnthusiast NFINITY PRO Manuale utente
N’FINITY HDX WINE &
BEVERAGE COOLER
(Features and Size May Vary)
User Manual
Model # 237 02 78 0Y
Y= 3 (Right Hinge) or 4 (Left Hinge)
PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING AND OPERATING
IMPORTANT SAFEGUARDS
When using this appliance, always exercise basic safety precautions,
including the following:
1. Read all of the instructions before using this appliance.
2. This appliance is not intended for use by persons (including children) with
reduced physical, sensory, or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
3. Children should be supervised to ensure that they do not play with the appliance.
4. Use this appliance only for its intended purpose as described in this use and care
guide.
5. This wine and beverage cooler must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions in the
installation section.
6. Never unplug your appliance by pulling on the power cord. Always grasp the plug
firmly and pull straight out from the outlet.
7. Unplug your wine and beverage cooler before cleaning or before making any
repairs. Note: If for any reason this product requires service, we strongly
recommend that a certified technician performs the service.
8. The SUPPLY CORD cannot be replaced. If the cord is damaged the appliance
should be scrapped.
9. This appliance is designed for free standing installation or can be recessed into
cabinetry.
10. If your old wine and beverage cooler is not being used, we recommend that you
remove the door and leave the shelves in place. This will reduce possibility of
danger to children.
11. Do not operate your appliance in the presence of explosive fumes.
12. Do not store food products in upper wine cellar zone as interior temperature
may not be cool enough to prevent spoilage or may cause bacteria growth.
SAVE THESE INSTRUCTIONS
DANGER
Risk of child entrapment.
Before you throw away your old wine cellar, take off the doors.
Leave the shelves in place so that children may not easily climb
inside.
Thank you for using our Wine Enthusiast
product. This easy-to-use manual
will guide you in getting the best use of
your Wine and Beverage Cooler.
Please remember to record the model and
serial number, they are on a label
on inside wall of the Wine Cellar.
Staple your receipt to this manual.
You will need the receipt to obtain warranty service.
Model number
Serial number
Date of purchase
Table of Contents
IMPORTANT SAFEGUARDS ............................................................................ 2
SAVE THESE INSTRUCTIONS......................................................................... 3
Electrical Requirement............................................................................... 5
Install Limitations ..................................................................................... 5
Use of Extension Cords .............................................................................. 5
Installation as a Built-In Cellar.................................................................... 5
Wine and Beverage Features and Use ............................................................. 6
Initial Setup............................................................................................. 6
Before You Start....................................................................................... 6
Temperature Adjustment ........................................................................... 6
Shelving.................................................................................................. 7
Installing the Handle ................................................................................. 9
Operating Your Wine and Beverage Cooler....................................................... 9
Reprogramming the Temperature Ranges................................................... 10
Replacing the Charcoal Filter .................................................................... 11
Interior Light ......................................................................................... 11
Technical Data .......................................................................................... 12
Proper Wine and Beverage Center Care and Cleaning ...................................... 13
Normal Operating Sounds You May Hear .................................................... 14
Troubleshooting ........................................................................................ 15
Limited Warranty ...................................................................................... 17
Electrical Requirement
• Make sure there is a suitable power Outlet (115 volts, 15 amps outlet) with
proper grounding to power the wine and beverage cooler.
• Avoid the use of three plug adapters or cutting off the third grounding to
accommodate a two-plug outlet. This is a dangerous practice since it
provides no effective grounding for the appliance and may result in shock
hazard.
Install Limitations
• Do not install your wine and beverage cooler in any location not properly
insulated or heated e.g., garage etc. Your wine and beverage cooler was
designed to operate in ambient temperatures 60°F to 90°F only.
• Select a suitable location for the wine and beverage cooler on a hard, even
surface away from direct sunlight or heat source e.g., radiators, baseboard
heaters, cooking appliances etc. Any floor unevenness should be corrected
with the leveling legs located on the front and rear bottom corners of the
appliance.
• This appliance is designed for free standing installation or can be recessed
into cabinetry.
Use of Extension Cords
• Avoid the use of an extension cord because of potential safety hazards
under certain conditions. If it is necessary to use an extension cord, use only
a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot
outlet that will accept the plug. The marked rating of the extension cord
must be equal to or greater than the electrical rating of the appliance.
Installation as a Built-In Cellar
These cut out dimensions show the minimum space required for your wine
cellar to perform as designed. You can remove the leveling legs on the
bottom to reduce its height by 1/2”. You must use shims to level the unit if
you remove the leveling legs.
Unit
Height
(Inches)
Unit
Width
(Inches)
Unit
Depth
(Cabinet)
Built-In
Cut Out
Height
(Inches)
Built-In
Cut Out
Width
(Inches)
Built-In
Cut Out
Depth
(Inches)
NFINITY HDX PRO
77.6”
23.5”
24.8”
78.1”
24”
27”
Wine and Beverage Features and Use
Initial Setup
• Before connecting the appliance to the power source, let it stand upright
for approximately 24 hours. This will reduce the possibility of a malfunction
in the cooling system during transportation.
• Once you have plugged the unit into an electrical outlet, let it unit run for
at least 30 minutes before making any adjustments.
Before You Start
The appliance should be placed in a location where the ambient temperature
is between 60°F and 90°F. If the ambient temperature is above or below this
range, the performance of the unit may be affected. For example, placing
your unit in extreme cold or hot conditions may cause interior temperatures
to fluctuate.
Temperature Adjustment
• When the appliance is plugged in for the first time, the LED display will
show the factory preset temperature.
• The upper wine cooler and lower drawers can be set to any temperature
between 41° and 72°F to accommodate your wine storage and beverage
requirements. To set the temperatures, press the up or down arrow button
to increase or decrease the temperature setting until the desired
temperature is attained. It may take some time to reach the set
temperature. The temperature ranges can be modified, see page 10 -
‘Reprogramming the Temperature Ranges’ to make adjustments.
Shelving
(Type and number of shelves will vary per model)
Your cabinet was designed to store a maximum number of bottles securely.
We recommend that you observe the tips below to optimize loading:
• Remove packing materials once unit is stable and ready for storage.
• Disperse the bottles evenly to avoid concentrating weight in one place.
Bottles must not touch either the back of the cabinet or the step at the
bottom.
• Make sure that the bottles are not all grouped together either at the top or
bottom of the cabinet.
• Only pull out one rolling shelf at a time. Never attempt to pull more than
one.
• Maximum weight capacity per shelf is 44 lbs.
• This wine cellar has 8 shelves that can hold up to 9 bottles.
• You can remove a shelf to accommodate larger diameter bottles on the
shelf below it.

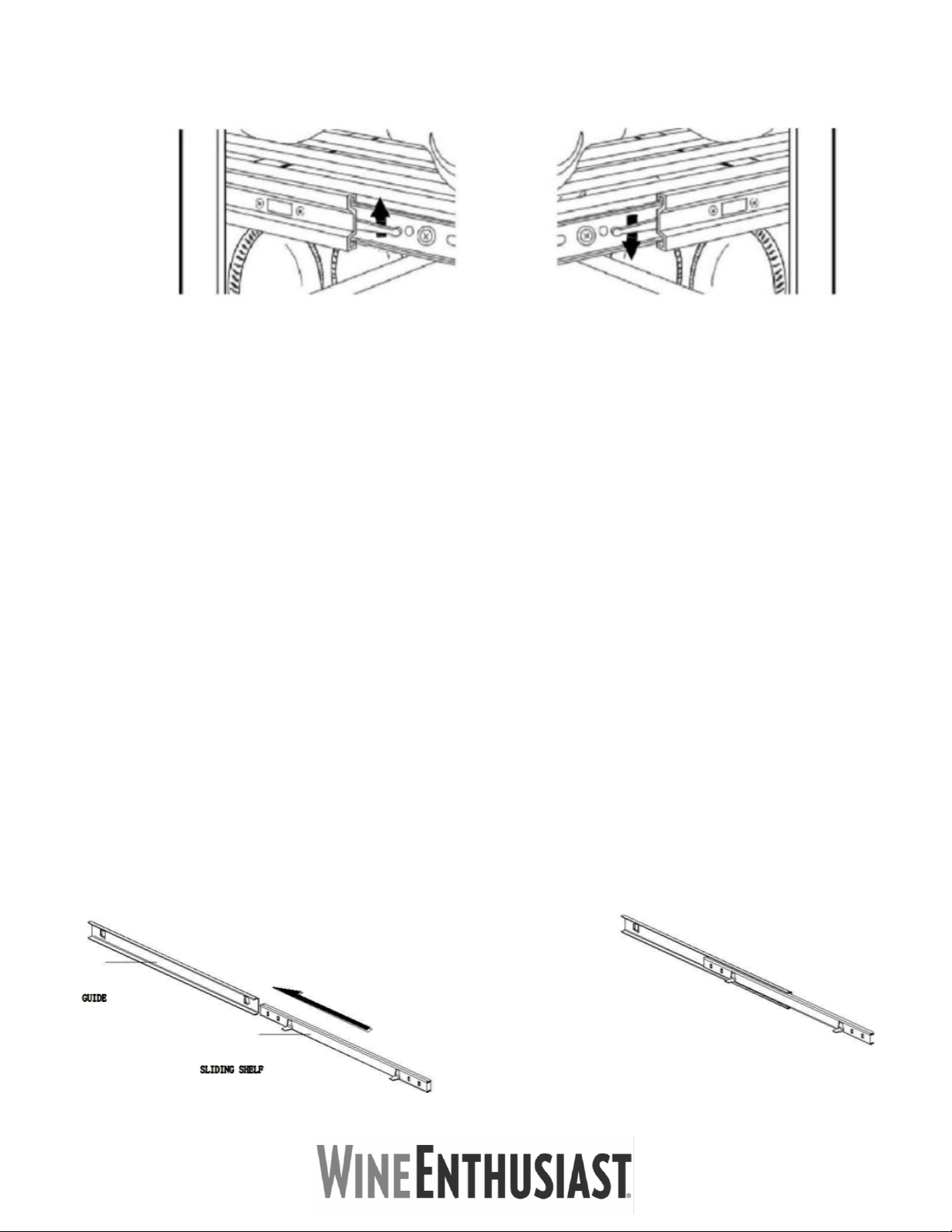

Removing the Shelf
To remove a rolling shelf:
1. Remove all bottles.
2. Pull the shelf out as far as it will go.
3. Push the left side lever downward while pushing the right side lever
upwards (as illustrated below).
4. Remove the shelf.
Rearranging the Shelf Layout
You can rearrange the configuration of your wine and beverage cooler by
moving the location of your shelf brackets. To move a sliding shelf, first
remove all bottles then remove the rolling shelf as illustrated above. You are
now ready to remove the shelf guide rails.
To remove shelf slide rails:
1. Fully extend out the guide rail.
2. Lift the front of the guide rail upwards to separate from the
appliance wall.
3. Pull guide rail towards you to completely release from the appliance.
4. Do not mix up the left and right guide rails.
5. Reposition guide rail to the new location and reinstall in reverse
order.
Installing the Handle
1. Pull back the door seal behind handle location.
2. Insert screws into pre-drilled screw holes.
3. Attach handle and tighten screws.
4. Press door seal back into place.
Operating Your Wine and Beverage
Cooler

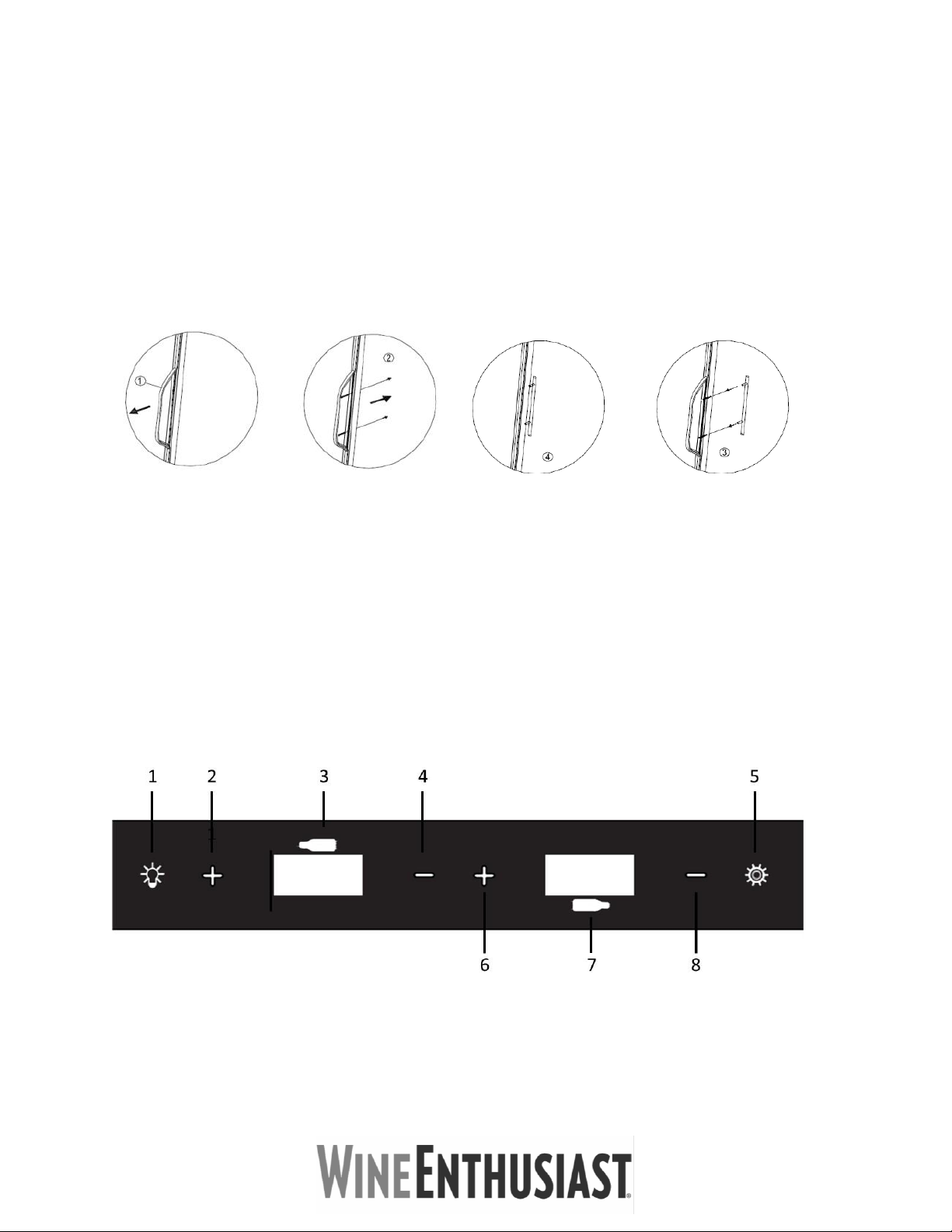

Each wine and beverage cooler includes an operating panel on the front of
the unit. This operating panel includes several features to operate and
control the temperature.
1. Turns the Interior Light ON and OFF. To toggle temperature between
Fahrenheit and Celsius, hold button for 3 seconds.
2. Increases Wine Cooler Temperature
3. Upper Wine Cooler Temperature Display
4. Lowers Wine Cooler Temperature
5. Temperature Set Button
6. Increases Drawers Temperature
7. Drawers Temperature Display
8. Lowers Drawers Temperature
Setting the Temperature Control
NOTE: The temperature readout indicates set temperature while
programming then reverts to the actual temperature.
1. To set the desired temperature press the Temperature Set button.
2. The Upper Wine Zone temperature display will start flashing.
3. Set the desired temperature by pushing the UP (+) or DOWN (-)
button.
4. The temperature increases or decreases 1°F with each push of the UP
(+) or DOWN (-) button.
5. Press the Temperature Set button again, the Lower Drawers Zone display
will start flashing.
6. Set the desired temperature by pushing the UP (+) or DOWN (-)
button.
7. The operating panel will automatically exit programming mode after being
idle for 5 seconds.
NOTE: Temperatures may fluctuate depending on whether the interior light
is ON or OFF and depending on the position of the bottles.
Reprogramming the Temperature Ranges
The default temperature setting for the upper and lower zones is 41°F -
72°F. The ranges can be modified to suit your wine and beverage storage
preferences; minimum temperature of 34°F (lower zone)/41°F (upper zone)
and a maximum of 72°F (both zones).
Questo manuale è adatto per i seguenti modelli
2
Indice
Altri manuali WineEnthusiast Refrigeratore per vino
WineEnthusiast
WineEnthusiast VinoView 269 0X 88 0Y Manuale utente
WineEnthusiast
WineEnthusiast 259 Bottle Wine Cellar Manuale utente
WineEnthusiast
WineEnthusiast WES-45-SB Istruzioni per il montaggio
WineEnthusiast
WineEnthusiast 268 68 40 01 Manuale utente
WineEnthusiast
WineEnthusiast 272 03 09 Manuale utente
WineEnthusiast
WineEnthusiast VinoView L 155 Professional Manuale utente
WineEnthusiast
WineEnthusiast 272 03 07 Manuale utente
WineEnthusiast
WineEnthusiast Q-50-Bottle Manuale utente
WineEnthusiast
WineEnthusiast 12-Bottle Silent Wine Refrigerator Manuale utente
WineEnthusiast
WineEnthusiast N'finity Pro Manuale utente
WineEnthusiast
WineEnthusiast Q-121-Bottle Manuale utente
WineEnthusiast
WineEnthusiast N'Finity 273 02 23 Manuale utente
WineEnthusiast
WineEnthusiast 272 03 29 Manuale utente
WineEnthusiast
WineEnthusiast 642 16 03 Manuale utente
WineEnthusiast
WineEnthusiast 268 68 20 01 Manuale utente
WineEnthusiast
WineEnthusiast Portfolio Collection Manuale utente
WineEnthusiast
WineEnthusiast 272 03 12W Manuale utente
WineEnthusiast
WineEnthusiast 495 15 05 Manuale utente
WineEnthusiast
WineEnthusiast 6 Bottle Wall Hanging Wine Refrigerator Manuale utente
WineEnthusiast
WineEnthusiast 288 02 20 02 Manuale utente
