Welcome

Thank you for purchasing the Winegard®Air™360+and trusting Winegard to

bring connectivity solutions to you while on the go. This product, combined

with the Winegard®Gateway™will provide you more freedom when choosing

where to adventure, all while bringing the comforts of TV and secure internet

to you and your devices.

Before installing or operating please read these instructions completely and

carefully. Failure to follow these instructions could cause damage to the

product and/or RV.

If you have any questions or need help, email [email protected] or call

1-800-320-9992.

Contents

Welcome.....................................................................................1

Contents .....................................................................................1

Speciﬁcations/Features ................................................................2

Parts Included.............................................................................2

Product Information.....................................................................3

Installation Instructions................................................................4

TV Antenna Operation ................................................................10

Troubleshooting .........................................................................12

Warranty Statement ...................................................................13

Disclaimer

Although every effort has been made to ensure that the information in this manual is correct and

complete, no company shall be held liable for any errors or omissions in this manual. Changes

and technological advances are continuously being made in the over-the-air and wireless market.

Information provided in this manual was accurate at time of printing. If the Winegard Air 360+

or Gateway do not function as expected, please contact Winegard Company at 1-800-320-9992,

email [email protected], or visit our website at www.winegard.com.

Prewire

hole cover

Barrel crimp

splice

Power switch

into wall plate

Terminal

insulator (2)

Mounting

screw (10)

Coax to audio

cable

20'Coax

cable

10'Power

cable

Winegard

antenna power

supply/wall plate

w/hardware

Wall plate

screw (2)

Cable tie (1) not shown

–2–

Dome

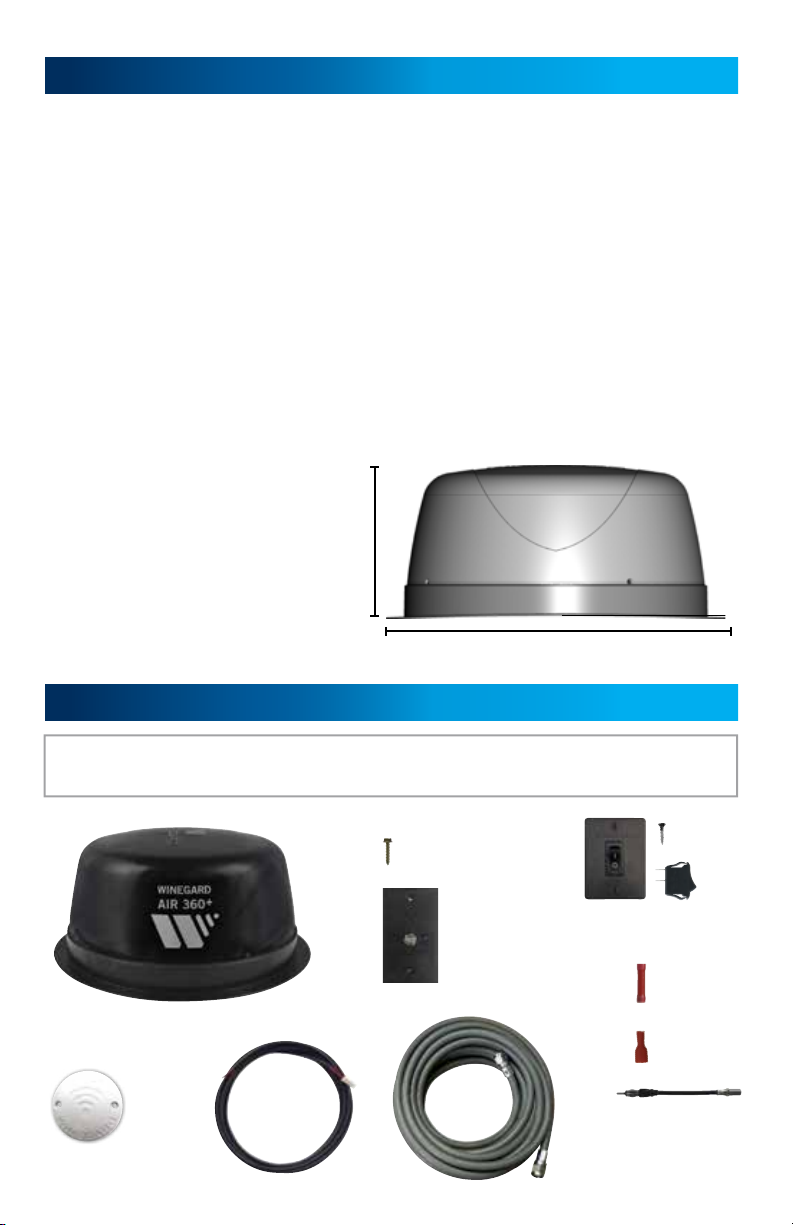

Speciﬁcations/Features

• Designed for RV use

• Durable UV and weather resistant

• 360° Signal Reception

• High Deﬁnition VHF/UHF Digital

Signals

• ATSC 3.0 Ready

• Ampliﬁed

• State of the art pHEMT technology

with 4G LTE Filter

• Range – Up to 55 miles*

• Height – 8.05”

• Diameter of dome – 18.2”

• Frequency Range:

– VHF 54 to 216 MHz

– UHF 470 to 700 MHz

– FM 87.5-108 MHz

• Gain – 18 dB

• Noise – 1 dB

• Impedance – 75 ohms

• Power Supply – DC 12V

• (1) WiFi antenna**

• (2) LTE antennas**

** For use with the Winegard Gateway

Parts Included

Tools needed for installing (not included) – Butyl Tape, Pencil, Scissors,

Hole Saw, Drill, Phillips Screwdriver, Crimping Tool, 18AWG Power Wire

*Antenna mileage figures based on

average terrain. Actual receiving distance

will vary based on transmitting power,

transmitting antenna tower height,

global pattern of transmitter, height of

receiving antenna, weather conditions, &

terrain between receiving path including

trees, buildings, hills, mountains, etc.

WINEGARD COMPANY

Tolerances

unless noted:

18.20

8.05

AIR 360 PLUS DIMENSIONS

TRADE SECRET

The information and data contained herein is secret and shall not be disclosed,used or duplicated

for any purpose whatsoever without written permission of WINEGARD COMPANY, 3000 Kirkwood ST.,

Burlington, Iowa 52601. This legend shall be marked on any reproduction hereof in whole or in part.

Reciept of this document shall be deemed acceptance of the conditions specified herein.

.XX

.XXX

HOLE

ANGLE

ECN NO. DATE REV DESCRIPTION BY

P/N:

CONNECT_2_PREWIRE_BASE_DOME_2

DRAWN BY: D. NEUWEG

SCALE: 0.200 DATE: Mar-28-19

SHEET 1of 1

DWG:

AIR_360_PLUS_DIMENSIONS

8.05” Ht.

18.2” Dia.

7" MAX ROOF THICKNESS

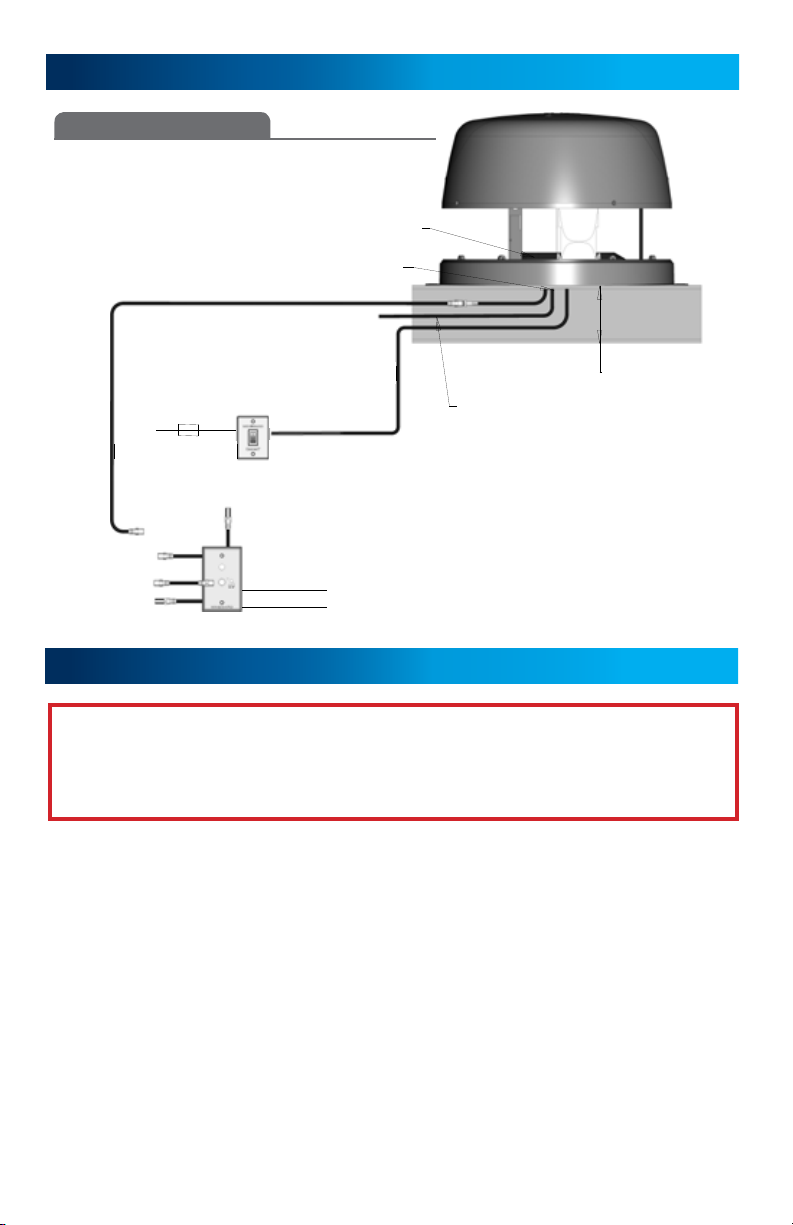

OPTION 3 - GATEWAY ON CEILING

COMPATIBLE WITH ROOF RADIUS OF 230 INCHES TO FLAT

1" HOLE IN ROOF

OTA CABLE WIFI/4G CABLES

1" HOLE IN CEILING*

GATEWAY

ETHERNET CABLE (OPTIONAL)

PREWIRE HOLE COVER

*MUST BE BELOW OUTDOOR UNIT

RED WIRE - TO SWITCH

BLACK WIRE - TO GROUND

PARK CABLE IN

TV OUT 1

TV OUT 2

TO ANT IN

+12V DC

GROUND

+12V DC

3A FUSE RECOMMENDED

WIFI POWER CABLE

ANT IN *Must be below outdoor unit

Compatible with roof radius

of 230 inches to ﬂat

Gateway

1"hole in roof

OTA cable

WiFi power cable

Red wire to switch

Black wire to ground

Ethernet cable (optional)

7"max roof thickness

To Ant in

3A fuse

recommended

+12V DC 1"hole in ceiling*

Prewire hole cover

+12V DC

TV out 2

TV out 1

Ant in

Ground

–3–

WiFi/4G cables

Park Cable in

Product Information

The Winegard®Air™360+system will bring in over-the-air local broadcast

television out of the box but has also been designed with the ability to work

with the Winegard Gateway as a WiFi and 4G LTE Extender. It is not intended

to work with any other router system.

The Air 360+is designed for RVs with a roof-radius of 230 inches to ﬂat and

with a maximum 7 inch roof thickness.

The Air 360+allows the Winegard Gateway™to be installed in two locations;

inside the dome of the antenna or on the ceiling of the RV. For better

performance, it is recommended to install on the ceiling of the RV shown in

Option A below, however either option is acceptable.

The Air 360+can replace another TV antenna and can utilize the coax cable

that has already been installed. If doing this, you must ensure the coax

runs to the Winegard antenna wall plate/power supply and, if the Winegard

Gateway is to be installed, that the power cable is routed to the Gateway wall

plate/power supply.

It is recommended to install the Air 360+before attempting to install the

Gateway™system. Winegard recommends installing the Gateway directly

under the Air 360+. Once the Air 360+has been installed, there are two

requirements to ﬁnding a location on the RV ceiling for installation: +12VDC

must be present, and the three WiFi/4G antenna cables from the Air 360+

must be able to reach the connection points on the Gateway router.

A. Ceiling Mount Install (Recommended)

7" MAX ROOF THICKNESS

OPTION 4 - GATEWAY IN DOME

COMPATIBLE WITH ROOF RADIUS OF 230 INCHES TO FLAT

GATEWAY

1" HOLE IN ROOF

ETHERNET CABLE (OPTIONAL)

PARK CABLE IN

TV OUT 1

TV OUT 2

TO ANT IN

RED WIRE - TO SWITCH

BLACK WIRE - TO GROUND

+12V DC

GROUND

+12V DC

3A FUSE RECOMMENDED

OTA CABLE

WIFI POWER CABLE

ANT IN

–4–

Compatible with roof radius

of 230 inches to ﬂat

Gateway

1"hole in roof

OTA cable

WiFi power cable

+12V DC Red wire to switch

Black wire to ground

Ethernet cable (optional)

TV out 2

TV out 1 +12V DC

Ant in

Ground

7"max roof thickness

To Ant in

3A fuse

recommended

Park Cable in

Installation Instructions

Safety Recommendations

Do not attempt to install this system in the rain or under any wet conditions.

Do not paint this antenna. Painting the antenna will void the warranty.

Before mounting the antenna, determine locations for both the TV antenna

wall plate/power supply and Gateway wall plate/power supply. Keep in mind

the following:

• Coaxial cables will have to run from the power supply to the antenna and

from the power supply to each television.

• If using the Air 360+to receive FM stations, an additional coax cable

(not provided) will have to run from the wall plate to the coax to audio cable

(provided) and into the radio.

• Coax cables will have to be routed through the roof directly under the

perimeter of the antenna. It will not seal correctly for the cables to exit under

the ﬂange. Failure to install correctly could cause damage to the antenna and

possibly the RV.

• A 12 V connection must be made to the back of both power supplies.

B. Air 360+ In Dome Install

Product Information cont.

–5–

Installation Instructions cont.

• The Winegard®Gateway™can always be installed later, however it is

recommended to run the power cable to the intended mounting location of

the Gateway router.

Choose a location for the antenna that meets the following requirements:

• Offers enough support for a secure installation

• Maintains adequate clearance from the edge of the roof and any

obstructions:

– clearance distance of 24 inches needed from center of antenna to front of

the vehicle.

– clearance distance of 18 inches needed from center of antenna to nearest

obstruction and to the edge of the roof.

Step 1 – Remove the dome of the antenna by unscrewing the 4 Phillips screws

on the side of the dome. Carefully remove the dome and set it on its side as a

coax cable is connected to the antenna attached to the roof of the dome.

Step 2 – Place the base of the antenna in the location you intend to mount

with the ﬂange indicating FRONT facing the front of the vehicle. Next, with a

pencil, trace around the base of the unit and the cable pass-thru hole that the

coax cable exits. Remove the base from this location.

> If installing the Winegard Gateway on the RV ceiling continue to Step 3.

> If installing the Winegard Gateway in the dome of the Air™360+continue

to Step 11.

24"18" Obstruction

Front of vehicle

18"

Top of antenna



Front of vehicle

Trace antenna base and

cable pass-thru hole

FRONT

–6–

Cable Feed-Thru

Figure 1

Gateway Ceiling Mount Installation (recommended)

Step 3 – Where the cable pass thru

hole was traced, drill, using a hole

saw, a 1"-1½" diameter hole through

the roof and ceiling of the vehicle.

Be careful not to damage any wiring

between the roof and ceiling.

Do not exceed 1½".

Step 4 – Replace the dome. Verify

the dome holes align with the base

holes. Ensure the dome and gasket

are completely tight and screw in the

four Phillips screws.

Step 5 – Connect the provided 20’ coax

cable to the coax cable that exits the base

of the Air 360+. If replacing an existing antenna, connect the coax cable that

is already ran to the coax cable that exits the base of the Air 360+.

Step 6 – Feed all 4 cables (Coax, Yellow, Green, and Red) into the roof of the RV.

Note: The coax cable will need routed wherever the antenna wall plate/power

supply is going to be installed.

Step 7 – It is recommended to use Butyl tape (not included) for extra

protection under the entire base ﬂange before screwing to the roof. Reposition

the base of the antenna in the location you intend to mount with the ﬂange

indicating FRONT facing the front of the vehicle. Screw in 6 mounting screws

into the 6 mounting holes around the ﬂange of the base and into the roof.

Step 8 – Next, add approved sealant (check with RV Manufacturer) completely

around the ﬂange base and over each screw.

WARNING: Ensure the gasket of the dome is complete sealed and that there

are NO gaps between the sealant and the base of the Air 360+. Failure to do

so could lead to water damage in the RV.

> If planning to install the Winegard Gateway now or at a later time:

Step 9 – Run the Gateway power cable from the hole where the three

antenna cables (Yellow, Green, and Red) enter the ceiling of the RV to the

predetermined location of the Gateway wall plate/power supply. The white

connector of this power cable should be at the same location as the Yellow,

Green, and Red connectors. The Winegard Gateway will use this power cable.

The bare wires of this power cable should be routed to where the On/Off

switch will be for the Winegard Gateway extender.

–7–

Figure 2

Gateway Ceiling Mount Installation (recommended) cont.

> If installing the Winegard®Gateway™now, please review the Winegard

Gateway installation manual followed by reviewing the Power Supply

Installation on page 8 of this manual.

> If installing the Gateway at a later time continue to

Step 10.

Step 10 – Zip tie (provided) the prewire power cable

along with the 4G LTE and WiFi cables (Yellow, Green,

and Red) to the notch on the backside of the white

prewire hole cover shown in ﬁgure 2. Make sure all

the cables are inside the ceiling and screw the white

prewire hole cover with 2 white screws (provided)

into the ceiling.

Continue to the Power Supply Installation section of this manual.

Gateway In Dome Mount Installation

Step 11– Using a hole saw, drill a 1"-

1½" diameter hole through the roof

of the vehicle. Do not drill into the

ceiling and be careful not to damage

any wiring between the roof and

ceiling. Do not exceed 1½".

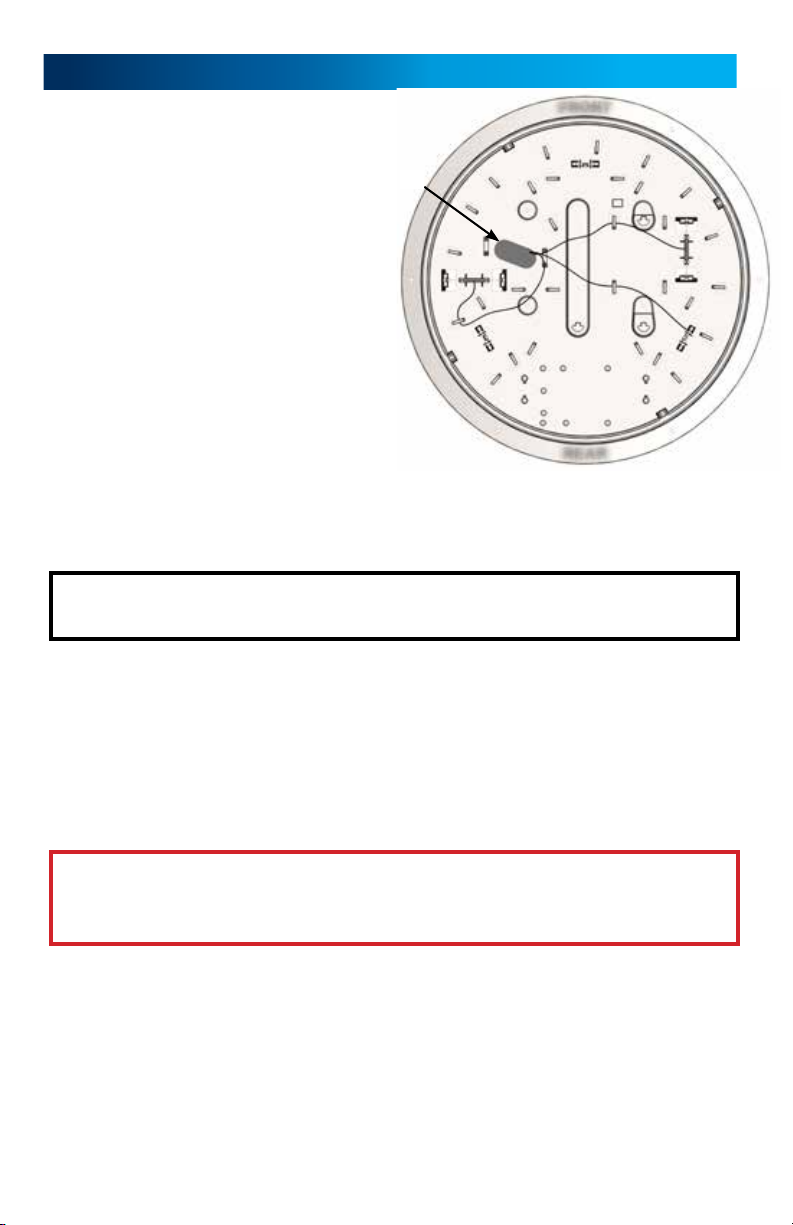

Step 12– Pull the Yellow, Green, and

Red Cables into the dome from the

Cable Pass Thru hole. Secure the

Yellow cable into the A, B, C, and

D clips. Do the same for the Green

cable into the E, F, G, and H clips.

Continue clipping in the Red cable

into the I, J, and K clips. See ﬁgure 3.

Step 13 – Next, using the provided cable tie, zip tie the Gateway prewire

power cable, around 3 inches from the white connector, to tab O in ﬁgure 1

on page 6. With scissors, clip off the excess cable tie after the power cable is

secured. Route this cable into the hole drilled into the roof of the vehicle all

the way to the predetermined location of the Gateway wall plate/power supply.

The Winegard Gateway will use this power cable. The bare wires of this power

cable should be routed to where the On/Off switch will be for the Winegard

Gateway extender.

Cable Feed-Thru

Figure 3

–8–

Gateway In Dome Mount Installation cont.

> If installing the Winegard Gateway now, please review the Winegard Gateway

installation manual followed by reviewing the Power Supply Installation on

page 9 of this manual.

> If installing the Gateway at a later time continue to Step 14.

Step 14 – Replace the dome. Verify the dome holes align with the base holes.

Ensure the dome and gasket are completely tight and screw in the four

Phillips screws.

Step 15 – Connect the provided 20' coax cable to the coax cable that exits the

base of the Air 360+. Feed this cable through the hole drilled in Step 11 and

route the cable to where the antenna wall plate/power supply will be located.

If replacing an existing antenna, connect the coax cable that is already ran to

the coax cable that exits the base of the Air 360+.

Step 16 – It is recommended to use Butyl tape (not included) for extra

protection under the entire base ﬂange before screwing to the roof. Reposition

the base of the antenna in the location you intend to mount with the ﬂange

indicating FRONT facing the front of the vehicle. Screw in 6 mounting screws

into the 6 mounting holes around the ﬂange of the base and into the roof.

Step 17 – Next, add approved sealant (check with RV Manufacturer)

completely around the base and over each screw.

WARNING: Ensure the gasket of the dome is complete sealed and that there

are NO gaps between the sealant and the base of the Air 360+. Failure to do

so could lead to water damage in the RV.

Continue to the Power Supply Installation section of this manual.

–9–

Step 1 – The power supply may be ﬂush mounted in most standard electrical

boxes. To ﬂush mount, cut a hole in the wall to ﬁt the box. Run two #12 wires

between the wall plate and +12 VDC source, and route downlead cable to this

location.

Step 2 – Make a 12 volt connection from the RV to the power supply. Install

the supplied terminals on wires from +12 VDC source, and crimp the

terminals with an appropriate crimping tool.

Step 3 – Push the wires onto tabs on the back of the power supply. (“PWR”

and “GND” are also noted on the underside of the power supply electronics

board).

Step 4 – Connect the coax cable from the antenna to the “ANTENNA” port on

the power supply, and tighten until ﬁngertight. Then, tighten ¼ turn more.

Step 5 – If hooking up the antenna to two televisions, connect a coax cable

from the “SET 2” port to the “Antenna In” port on the second television.

If hooking up a cable input, connect the cable input to the “CABLE” port on

the power supply.

Step 6 – Mount the power supply in wall with the provided screws.

Step 7 – Connect a coax cable from the coax port on the front of the power

supply to the “Antenna In” coax port on the main TV.

Step 8 – Press the “ON” switch on the front of the power supply, and check

that the wall plate indicator light is on.

This unit is equipped with a polyswitch, which will shut down +12 VDC if

there is a direct short between the antenna and power supply. The indicator

light will not light. Once the short is eliminated, the device will reset itself.

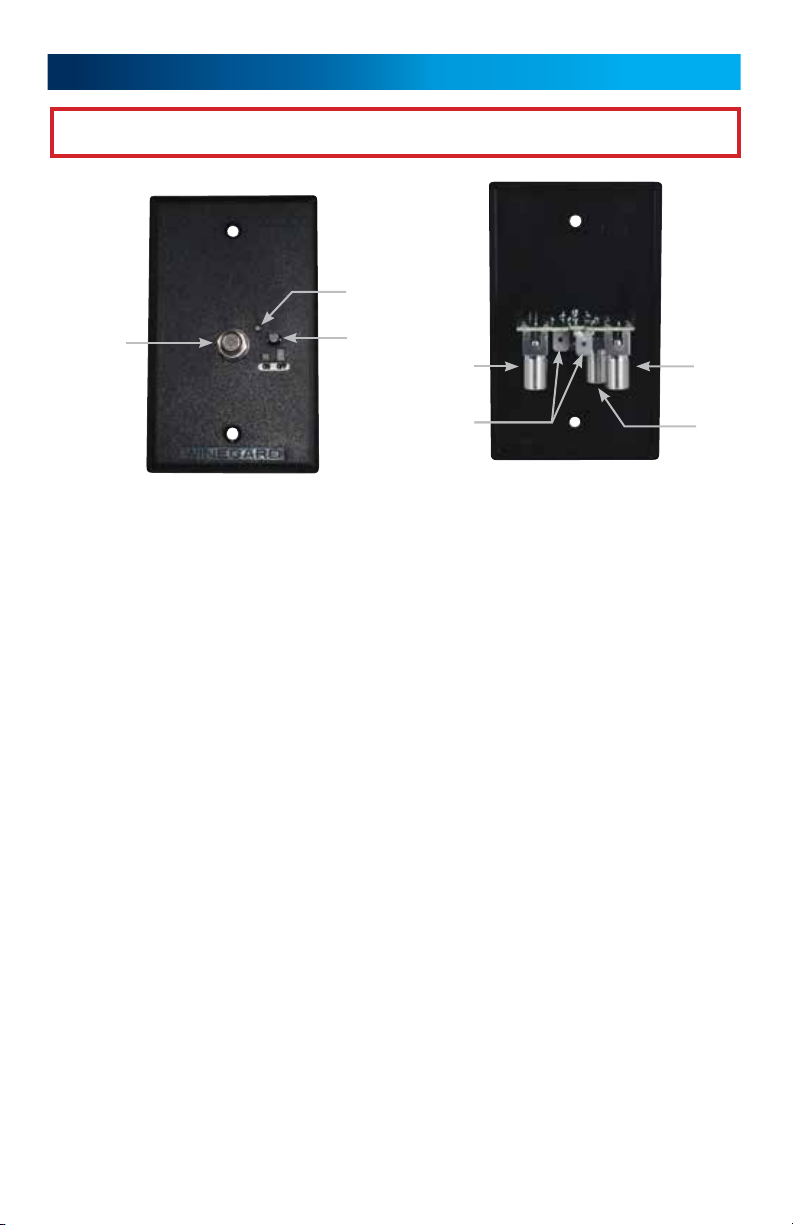

Power Supply Installation – TV Antenna

WARNING: The power supply should be turned off when connecting cables.

Coaxial

port for

main TV

On/Off

button Antenna

port

Power &

Ground

tabs

Cable

port

Set 2

port

Indicator

light

Altri manuali per AIR 360+

Indice

Altri manuali Winegard Antenna

Winegard

Winegard PR-7015 Manuale utente

Winegard

Winegard PR-8800 Manuale utente

Winegard

Winegard roadtrip T4 RT2000T Manuale utente

Winegard

Winegard Rayzar Manuale utente

Winegard

Winegard TR-6100 Manuale utente

Winegard

Winegard TRAV'LER SHAW DIRECT SK-7003 Manuale utente

Winegard

Winegard HD7082P Manuale utente

Winegard

Winegard Prostar 1000 PR-7010 Manuale utente

Winegard

Winegard RZ-6035 Manuale utente

Winegard

Winegard sensar series Manuale utente

Winegard

Winegard Sensar HV CC-10HV Manuale utente

Winegard

Winegard TRAV'LER DIRECTV SK-SWM3 Manuale utente

Winegard

Winegard YA7000C Manuale utente

Winegard

Winegard HD9065P Manuale utente

Winegard

Winegard TRAV'LER SK-73UP Guida rapida

Winegard

Winegard FlatWave Micro Manuale utente

Winegard

Winegard Movin' View MV-1111 Manuale utente

Winegard

Winegard SK-1000 Manuale utente

Winegard

Winegard YA-6260 Manuale utente

Winegard

Winegard Platinum Series/ Manuale utente

Winegard

Winegard Pathway X1 Manuale utente

Winegard

Winegard Carryout PM-2000 Manuale utente

Winegard

Winegard TR-6018 Manuale

Winegard

Winegard 2-WAY SATELLITE INTERNET SYSTEM Manuale utente

Manuali Antenna popolari di altre marche

Alfa Network

Alfa Network APA-L01 Manuale utente

Naval

Naval PR-422CA Manuale utente

Feig Electronic

Feig Electronic ID ISC.ANTH200/200 Series Manuale utente

TERK Technologies

TERK Technologies TV44 Manuale utente

Directive Systems & Engineering

Directive Systems & Engineering DSE2324LYRMK Manuale utente

HP J8999A Manuale utente

MobilSat

MobilSat MSP-S Manuale utente

Steren

Steren ANT-UHF 13 Manuale utente

Novatel

Novatel 600-G Manuale operativo

Radio Shack

Radio Shack Amplified VHF/UHF/FM Indoor Antenna Manuale utente

TRENDnet

TRENDnet TEW-AO12O Manuale utente

Radio Shack

Radio Shack 15-1837 Manuale utente

CommScope

CommScope CMAX-OMFX-43M-I53 Manuale utente

Ramsey Electronics

Ramsey Electronics DAP25 Manuale utente

COBHAM

COBHAM SAILOR 800 VSAT Manuale per l'uso e la cura

Trango Systems

Trango Systems AD900-9 Manuale utente

Steren

Steren ANT-100 Manuale utente

Proxim

Proxim 5054-PA-23 Manuale utente
