Winegard RangePro WB-1035 Manuale utente

LTE-A

LTE-V

CELLULAR

PCS

AWS

POWER

LTE-A

LTE-V

CELLULAR

PCS

AWS

POWER

LTE-A

LTE-V

CELLULAR

PCS

AWS

POWER

LTE-A

LTE-V

CELLULAR

PCS

AWS

POWER

LTE-A

LTE-V

CELLULAR

PCS

AWS

POWER

LTE-A

LTE-V

CELLULAR

PCS

AWS

POWER

To Outside

Antenna

Inside Whip

Antenna

Power

Jack

AC power

DC power

LTE-A

LTE-V

CELLULAR

PCS

AWS

POWER

LTE-A

LTE-V

CELLULAR

PCS

AWS

POWER

antenna

washer

mount

lock washer

bolt

RV Roof

Mount

Coax Cable

(40 ft)

RangePro

Signal Booster

AC or DC

Power Adapter

Outside Omni-

directional Antenna

Inside

Whip Antenna

Note: To avoid possible interference, mount the

antenna at least 15' away from the indoor booster

and allow at least 3' from other RF products (such as

satellites and over-the-air antennas).

The outside antenna must not be collocated or

operating with any other antenna or booster.

Maximum height restriction is 31' 9" (10 meters)

above ground.

We advise you ﬁrst perform a “soft” installation

by routing the outside antenna cable through an

open window (step 4). After completing the “soft”

installation and verifying successful operation,

proceed with installing the external antenna.

Select a location for the outside antenna that

is above the rooﬂine. The outside antenna is

omni-directional, which receives and sends signals

in a 360-degree radius. For maximum performance,

mount the antenna at the highest possible location

outside the vehicle and in an upright position, but

also ensure this is a spot where you can drill a hole

for cable entry.

1. Inside the vehicle, connect the cable leading

to the outside antenna to the port on the

booster labeled “OUTSIDE.” Make sure that all

connections are secure before powering on.

2. Finish permanent cable installation by securing

any loose cables inside the vehicle.

3. Connect the AC power adapter (or 12V adapter)

to the signal booster and plug it into power.

The Power LED will light, indicating that the signal

booster is ready for use. Place a call in a location

you have previously experienced poor signal and

conﬁrm that your phone is receiving a boosted

signal. Normal operation is indicated by green LEDs

(both ﬂashing and solid). In the event red LEDs

appear, antenna adjustments may be needed.

WARNING: The booster is rated for 6-15V input

voltage. DO NOT use the booster with a higher

voltage power supply. This can damage the

booster and/or cause personal injury.

WINEGARD COMPANY 2736 MT. PLEASANT ST. |BURLINGTON, IA 52601 2452456 Rev0

Have questions?

We have answers! Reach out to our US-based support team:

Call: 855-433-2291

Visit: www.winegard.com/support

To register your product please visit winegard.com/login and create

an account. You can then register your product(s) by clicking the

Manage My Accounts button.

Manuel disponible en français au www.winegard/support

Winegard®RangePro™

Cellular Booster for RVs

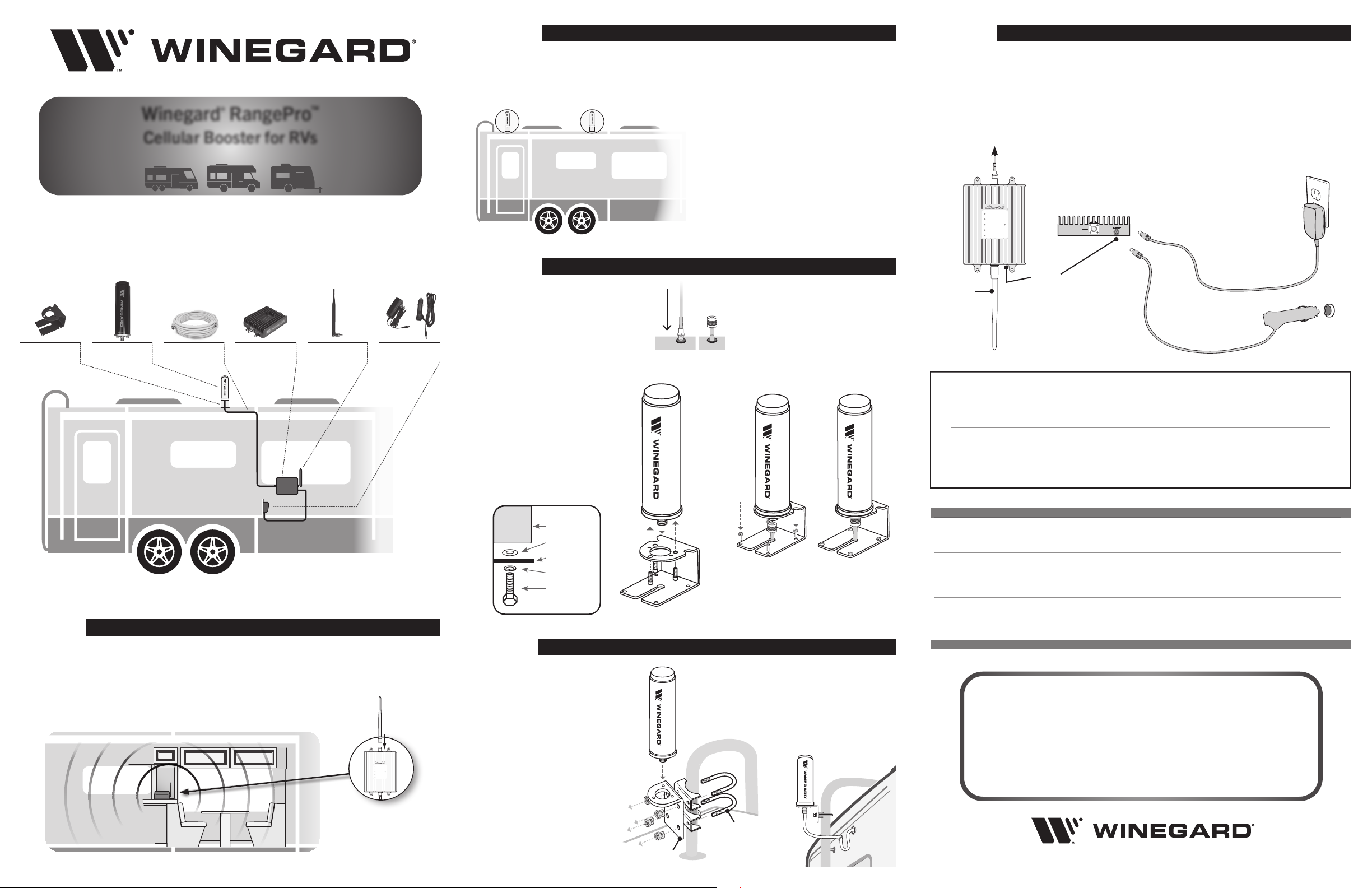

WB-1035 QUICK SETUP GUIDE

Identify a location for the booster that is near the

center of where signal is needed. The location

should be free from excessive heat, direct sunlight,

or moisture—and provide proper ventilation. (We

suggest you mount the booster within a cabinet or

on a side panel close to a power source.)

Connect the inside whip antenna to the port on

the side of the booster labeled “INSIDE”.

Note: The inside antenna sends signals in a

360-degree radius and should be positioned

vertically.

STEP 1.

STEP 2.

INSTALL THE SIGNAL BOOSTER AND CONNECT INSIDE ANTENNA

SELECT A SITE FOR THE OUTSIDE MOUNT

STEP 4.

CONNECT POWER AND VERIFY SUCCESSFUL OPERATION

LED Indicators

Color Condition Indication

Green Solid Indicates normal operation.

Green Flashing Normal operation. Indicates that Automatic Gain Control (AGC) is self-adjusting due to

over-signal or antenna proximity.

Red Flashing Indicates issues caused by overpowering or oscillation.

Adjust your outside and inside antenna locations to maximize separation between them

by increasing distance as well as adding obstructions.

Note that the booster case may become warm during operation. This is normal.

Troubleshooting

Problem Resolution

Signal booster

has no power

Verify that the Power LED is ON.

Connect the power supply to an alternate power source.

Verify that the power source is operational and the fuse is intact.

If it remains OFF, contact tech support at: 1-855-433-2291

After completing

installation, signal

coverage has not

improved

Verify that cable connections are tightly ﬁtted to the booster.

Try further separating the antennas.

Note: Bars are not always a reliable measure of signal. The best way to conﬁrm signal coverage

is the ability to place and hold a call.

6. Position the roof mount over the

cable, threading the cable through

the mount’s channel.

7. Secure the mount on the roof by

inserting and tightening the provided

screws into the four mounting

holes. Verify the provided screws

are approved with the vehicle

manufacturer before installing.

8. Connect the cable to the outside

antenna. Create a moisture barrier

by using manufacturer-approved

permanent sealant around all

screws and holes in the RV roof.

STEP 3.

MOUNT OUTSIDE ANTENNA ON ROOF

MOUNT OUTSIDE ANTENNA USING OPTIONAL LADDER MOUNT

Before you begin, please note that

this installation requires the use

of a ladder, mast or RV mounting

system on which to mount the

outside antenna.

1. Remove the three screws and

washers that are attached to the

outside antenna.

2. Place the antenna through

the hole on the top of the roof

mount and reattach 3 screws

and washers.

3. Assemble the L-bracket with

U-bolts, brackets, nuts and

washers and secure to mast as

shown in the illustration.

4. Secure antenna to the horizontal

plate of L-bracket using screws.

1. After selecting the outside antenna position,

drill the cable hole through the roof in an

area free from other cables or pipes.

2. Feed the small end of the cable through

the hole until only the connector and 1"

of coax remain outside the coach.

3. Remove the three screws and

washers that are attached to

the outside antenna.

4. Place the antenna through the

hole on the top of the roof mount.

5. Align the two small holes

located on the bottom side of

the antenna with the two small

holes on top of the roof mount.

Next, reattach the three screws

and washers through the roof

mount and into the holes on the

base of the antenna.

5. Drill a hole for cable entry on the side

of the vehicle, away from other cables

or pipes. Use a rubber gasket (sold

separately) to protect the cable and

your vehicle surface. Form a drip loop

before entry and create a moisture

barrier using a manufacturer-

approved permanent sealant.

L-bracket

U-bolt

The Winegard RangePro is designed to work with existing cellular signals, and cannot be

used as a standalone cellular hotspot. A cellular plan and device are required for operation.

3-YEAR WARRANTY

Winegard warrants its products for three years from the date of purchase against defects

in workmanship and/or materials. Speciﬁcations are subject to change. The three-year

warranty only applies to products meeting the latest FCC Certiﬁcation Guidelines stated on

2/20/2013 and going into eect April 30, 2014. Products returned by customers must be

in their original, un-modiﬁed condition, shipped in the original or protective packaging with

proof-of-purchase documentation enclosed, and a Return Merchandise Authorization (RMA)

number printed clearly on the outside of the shipping container. Buyers may obtain an RMA

number for warranty returns by calling the Return Department toll-free at 855-433-2291.

Any returns received without an RMA number clearly printed on the outside of the shipping

container will be returned to sender. In order to receive full credit for signal boosters, all

accessories originally included in the signal booster box must be returned with the signal

booster. The Buyer does not need to include accessories sold in addition to the signal

booster. This warranty does not apply to any product determined by Winegard to have been

subjected to misuse, abuse, neglect, or mishandling that alters or damages the product's

physical or electronic properties. Winegard warrants to the Buyer that each of its products,

when shipped, will be free from defects in material and workmanship, and will perform in

full accordance with applicable speciﬁcations. The limit of liability under this warranty is,

at Winegard's option, to repair or replace any product or part thereof as determined by

examination by Winegard and proven defective in material and/or workmanship. Warranty

returns must ﬁrst be authorized in writing. Disassembly of any Winegard product by anyone

other than an authorized representative voids this warranty in its entirety. Winegard reserves

the right to make changes in any of its products without incurring any obligation to make

the same changes on previously delivered products. Products sold by Winegard shall not

be considered defective or non-conforming to the Buyer's order if they satisfactorily fulﬁll

the performance requirements that were published in the product speciﬁcation literature,

or in accordance with samples provided by Winegard. This warranty shall not apply to any

products or parts thereof which have been subject to accident, negligence, alteration, abuse,

or misuse. Winegard makes no warranty whatsoever in respect to accessories or parts not

supplied by it.

LIMITATIONS OF WARRANTY, DAMAGES AND LIABILITY

Except as expressly set forth herein, there are no warranties, conditions, guarantees, or

representations as to merchantability, ﬁtness for a particular purpose, or other warranties,

conditions, guarantees, or representations, whether expressed or implied, in law or in fact,

oral or in writing. Winegard aggregate liability in damages or otherwise shall not exceed the

payment, if any, received for the unit of product or service furnished or to be furnished, as the

case may be, which is the subject of a claim or dispute. In no event shall Winegard be liable

for incidental, consequential, or special damages, howsoever caused. All matters regarding

this warranty shall be interpreted in accordance with the laws of the State of Minnesota, and

any controversy that cannot be settled directly shall be settled by arbitration in Minnesota

in accordance with the rules then prevailing of the American Arbitration Association, and

judgment upon the award rendered may be entered in any court having jurisdiction thereof.

If one or more provisions provided herein are held to be invalid or unenforceable under

applicable law, then such provision shall be ineective and excluded to the extent of such

invalidity or unenforceability without aecting in any way the remaining provisions hereof.

SAFETY INFORMATION

This is a CONSUMER device. BEFORE USE, you MUST REGISTER THIS DEVICE with your

wireless provider and have your provider's consent. Most wireless providers consent to

the use of signal boosters. Some providers may not consent to the use of this device on

their network. If you are unsure, contact your provider. You MUST operate this device with

approved antennas and cables as speciﬁed by the manufacturer. Antennas MUST be installed

at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately

if requested by the FCC or a licensed wireless service provider.

WARNING: E911 location information may not be provided or may be inaccurate for calls

served BY USING THIS DEVICE. Winegard has made a good faith eort to ensure the accuracy

of the information in this document and disclaims the implied warranties of merchantability

and ﬁtness for a particular purpose and makes no express warranties, except as may be

stated in its written agreement with and for its customers. Winegard shall not be held liable

to anyone for any indirect, special or consequential damages due to omissions or errors. The

information and speciﬁcations in this document are subject to change without notice.

WINEGARD COMPANY 2736 MT. PLEASANT ST. |BURLINGTON, IA 52601

Speciﬁcations

Product: RangePro WB-1035

Uplink Frequency Range: 698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755 (MHz)

Downlink Frequency Range: 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155 (MHz)

Supported Standards: CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all cellular standards

Input / Output Impedance: 50 Ω

Maximum Gain: 50 dB

Noise Figure: ≤ 5 dB

VWSR: ≤ 2.0

Gain Adjustment: 20 dB (Automatic)

DC Power: 6-15V

Maximum Output Power: 1 Watt EIRP

Cable: SC-240

RF Connectors: FME Male (both ends)

Power Consumption: ≤ 10W

Operation Temperature: -4º to +158º F

Dimensions: 5.625 x 4 x 1.125 inches

Weight: 1.43 lbs

Certiﬁcations: FCC ID: RSNF2GO3 / IC: 7784A-F2GO3

Warning: Unauthorized antennas, cables, and/or coupling devices are prohibited by FCC new rules.Changes or modiﬁcations

not expressly approved by Winegard could void the user’s authority to operate the equipment.

FCC 27.50(d)(4) Statement: Fixed, mobile and portable (hand-held) stations operating in the 1720-1755 MHz band are

limited 1 Watt EIRP. Fixed stations operating in this band are limited to a maximum antenna height of 10 meters above

ground. Mobile and portable stations operating in this band must employ a means for limiting power to the minimum

necessary for successful communications.

FCC 15.105 Statement This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

15.19 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device

may not cause harmful interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

Altri manuali Winegard Accessori per automobili

Winegard

Winegard RK-2000 Manuale utente

Manuali Accessori per automobili popolari di altre marche

James Baroud

James Baroud Odyssey Manuale utente

Motorola

Motorola i50sx Manuale utente

Yakima

Yakima 9MM STANDARD BIKE MOUNT Manuale utente

Feniex

Feniex T3 Manuale utente

Renault

Renault 77 11 423 180 Manuale utente

Kia

Kia E8300-4D000 Manuale utente

Brink

Brink 756843 Manuale utente

Whispbar

Whispbar K085W Manuale utente

v.link

v.link CI-VL2-PC-HSD Manuale utente

Viking

Viking Stack-Rack Guida rapida alla configurazione

Aries

Aries 203015 Manuale utente

Choetech

Choetech AT0005 Manuale utente

ZZ2

ZZ2 ZZAIR-PRO Manuale utente

Holman

Holman 4A80L Manuale utente

Thule

Thule 2075 Manuale utente

Motorola

Motorola T325 Manuale utente

TAUBENREUTHER

TAUBENREUTHER 16-3950 Guida all'installazione

DV8

DV8 FBJL-02 Manuale utente
