Winix AM90 Manuale utente

•Please read and follow all safety rules and instructions

in this manual before operating.

•The product warranty is printed on the back of this

guide, so please keep it in a safe place for future use.

•This product is manufactured for use only in USA/CA.

WINIX AIR PURIFIER

AM90

User Manual

Model

Use & Care

Guide



AM90English

CONTENTS

This product is suitable for 120V only.

3-STAGE AIR PURIFICATION3

CONTROLS4

WHERE TO USE5

INSTALLING FILTERS6

SAFETY AND CAUTIONS8

INITIAL OPERATION9

AUTO & SLEEP10

MANUAL & PLASMAWAVE

11

AIR QUALITY INDICATOR12

FILTER CARE13

CLEANING CARE17

FREQUENTLY ASKED QUESTIONS18

UNIT SPECIFICATIONS20

SAFETY INSTRUCTIONS21

PRODUCT WARRANTY22



English AM90

3-STAGE AIR PURIFICATION

Power cord with plug

Front panel

(This product is suitable

for 120V only.)

PlasmaWave

Light sensor

Odor sensor

Odor Absorbing

Carbon Filter

Control Panel

/ Display Panel

Pre-lter

True HEPA lter

User Manual

ㆍ

Pleaseread and follow all safety rules and instructions

inthis manual before operating.

Theproduct warranty is printed on the back of this

guide,so please keep it in a safe place for future use.

Thisproduct is manufactured for use only in USA/CA

WINIX AIR PURIFIER

AM90

UserManual

Model

Use&Care

Guide

Unit Pre-lter/(4) Odor

Absorbing Carbon Filters/

(1) True HEPA Filter



English AM90

CONTROLS

Air

Outlet

Vent

Light Sensor

Detects the

amount of

ambient light

within the

environment,

to adjust the

brightness

of the LED

indicators.

PlasmaWave®

Indicator

Indicates whether

PlasmaWave®

in enabled

or disabled.

PlasmaWave®

Button

Enable or disable

PlasmaWave®.

Power Button

Turns the unit on

or o.

Fan Speed Button

(UP/DOWN)

Enables Manual operation

of the unit. Press to cycle

through and set the desired

fan speed (Auto, Low,

Medium, High, Turbo).

Change Filter Indicator

LED light indicates when it is

time to change the lter.

Wi Button

Enable or disable

the Wi feature.

Sleep Indicator

LED light indicates when

sleep mode is active or disabled.

Fan Speed Indicator

Indicates the current fan speed.

Reset Button

After replacing the lter,

press the RESET button for at

least 5 seconds.

Odor Sensor

When in Auto

Mode, detects the

amount of odor in

the environment

to adjust fan speeds.

Air Quality Indicator

Color-coded LED indicates

one of three levels of air quality.

Wi Indicator

Indicates when

Winix Smart feature is

Enabled or disabled.



English AM90

WHERE TO USE

Allow 12 ~ 18 in. of space between TVs, radios, and other electronic products

electromagnetic interference from certain electronics may cause product malfunction.

Place indoors away from direct sun light

direct exposure may cause product malfunction or failure.

Only place on hard, flat surfaces

flimsy or slanted surfaces may result in abnormal noise and vibrations.

12~18 in 4 in

WARNING Follow these instructions to reduce the risk of serious injury

or death and to reduce risk of damaging the unit.

Do not use around mist or fumes from

industrial oil or around large quantities of

metallic dust

Do not place around heating elements

Do not install in any sort of motor or

transport vehicle (trucks, boats, ships, etc.)

Do not place in an area with excessive

amounts of noxious gases

Do not place near any flammable

materials (aerosols, fuel, gases etc.) Do not have unit facing into wind or draft

Do not place below any electrical outlet Do not place in excessively humid areas

where unit may become wet

This unit is not intended to be used to preserve documents or in art conservation.



English AM90

This product comes with all the required filters. The protective plastic wrap must be

removed from the filters before use.

Operating the unit without removing the plastic wrap may result in product failure.

Unplug and make sure the unit is turned off before installing filters.

 



•To remove the front panel release the

latch at the lower edge of the panel.

Latch

 Press the Pre-filter tabs near the top of the

filter, release and remove.

 Remove filters from protective plastic wrap.

•Operating the unit without removing

filters from plastic wrap may cause

abnormal noise, deformation, or fire as a

result of overheating.

INSTALLING FILTERS

NOTE •Refer to pages 13 - 15 for details on how to replace filters.



English AM90

INSTALLING FILTERS

 Install the filters until they fit securely in

place.

Filters must be installed in this order:

3 True HEPA filter (rear)

2 Carbon filter (middle)

1 Pre-filter (front)

•To install the Pre-filter, insert bottom tabs

into the slots on either side of the lower part

of the unit, then rotate upward to insert the

upper tabs into the slots at the top part of

the unit until sides audibly click into place.

Pre-lter

Carbon

Filter

True HEPA

Filter

 Replace the front panel by first inserting

the latch at the bottom edge into the base

of the unit, then rotate the panel upward

toward the top of the unit until the magnets

pull the lid closed.

Latch

 When to service and replace filters:

Filter Indicator Light When to

service When to replace

1 Pre-filter none Clean once every

14days Permanent

2 Carbon filter none

Can NOT be

WASHED

Replace every

3 months

3 True HEPA filter Lasts up to

12 months

Intervals between filter replacement may vary depending on environment.

For optimal use, Pre-filter can be cleaned once every 14 days which can extend the

life of other filters.

To purchase replacement

Winix filters:

(877)-699-4649

www.winixamerica.com

This unit

is compatible

with this

ﬁlter

ITEM: 115115

FILTER



English AM90

SAFETY AND CAUTIONS

Before operating this equipment, carefully read and follow these safety cautions

Ensure filters are inserted before running unit

running unit without filters can shorten the units life and cause electric shock or injury.

Be sure foreign objects are NOT inserted into the vents on the unit

objects can include pins, rods, and coins.

Do not touch any part of the interior of the unit with wet hands

the high voltage may cause electric shock.

Ensure unit intake and outlet vents do not become blocked

blockage may lead to increased internal termperatures causing product failure and derformation.

Do not use the unit as a step stool or place heavy objects on it

personal injury may occur or product failure and deformation.

WARNING Follow these instructions to reduce the risk of serious

injury or death and to reduce risk of damaging the unit.

Do not pull on the power cord when

unplugging the unit

Do not tie or knot power cord when unit

is in operation

If the unit becomes submerged in water,

unplug it and contact customer service

Do not unplug or move the unit while in

operation

Do not plug additional appliances into

the same outlet or power supply Do not touch the plug with wet hands

Unplug unit when not in operation for

extended periods of time

Cord can become damaged by forcefully

bending, pulling, twisting, bundling,

pinching or placing heavy objects on it



English AM90

INITIAL OPERATION

 Insert the power cord into an electrical

outlet.

 Press the‘Power’ button.

NOTE •During the first 4 minutes of power up, the Air Quality

Indicator will flash as the Smart Sensors measure the air

quality in the environment, after which normal operation will

begin.

 By default, when the unit first powers on, the

mode will be set to Auto with PlasmaWave

enabled.

•When in Auto mode, the fan speed will

be automatically adjusted according to

the environments air quality.

•PlasmaWave® works to remove harmful

airborne contaminants.

NOTE •In Auto mode, as the indoor air quality improves, the fan

speed will automatically be reduced to Low.

•When the unit is running, you may hear a chirping or buzzing

sound. The sound is from large particles passing through

PlasmaWave®, it is normal and does not signify product

failure. To disable PlasmaWave®, see page 12.



English AM90

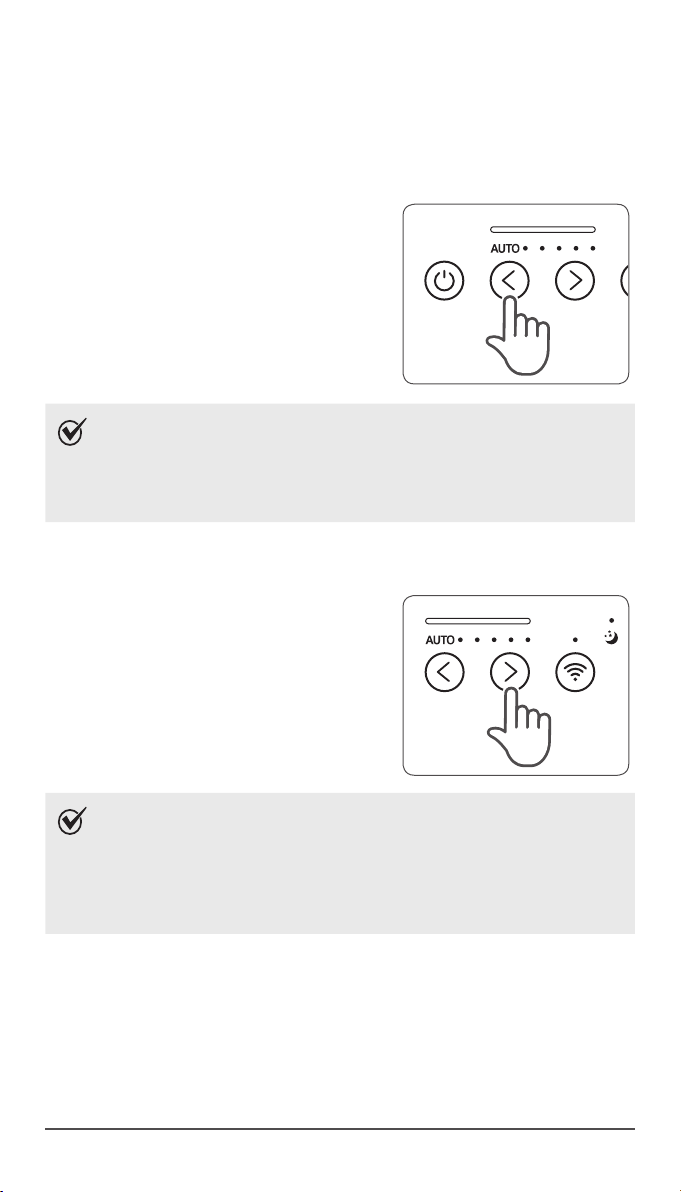

AUTO & SLEEP

1. Auto Mode

Enables auto operation based on the unit's air quality Smart Sensors.

 Press the Mode button to select Auto mode.

•The LED 'Auto' light will indicate when

Auto mode is activated, and operation

will begin.

NOTE •When in Auto mode the fan speed is automatically adjusted

according to the indoor air quality. As the indoor air quality

improves, the fan speed will automatically be reduced. If the

indoor air quality decreases, the fan speed will automatically

increase.

2. Sleep Mode

 Press the Mode button to select Sleep mode.

•The LED 'Sleep' light will indicate when

Sleep mode is activated, and operation

will begin.

NOTE •When Sleep mode is selected, the fan speed is automatically

set to Low. The fan speed can be manually changed by

pressing the Fan Speed button, changing the unit into

manual mode.

•When Sleep Mode is activated, the Air Quality Indicator LED

light is disabled.

Altri manuali per AM90

Indice

Lingue:

Altri manuali Winix Purificatore d'aria

Winix

Winix 5300-2 Manuale utente

Winix

Winix FreshHome PlasmaWave WACP150 Manuale utente

Winix

Winix HR900 Manuale utente

Winix

Winix Zero S Manuale utente

Winix

Winix ZERO+ Manuale utente

Winix

Winix PlasmaWave 5300 Manuale utente

Winix

Winix 6300 Manuale utente

Winix

Winix PlasmaWave WAC-9000 Manuale utente

Winix

Winix 2020EU Manuale utente

Winix

Winix T810 Manuale utente

Winix

Winix AUS-0850AAPU Manuale utente

Winix

Winix PlasmaWave 5300 Manuale utente

Winix

Winix AAPU500-JLE Manuale utente

Winix

Winix AM90 Manuale utente

Winix

Winix D480 Manuale utente

Winix

Winix A231 Manuale utente

Winix

Winix A231 Manuale utente

Winix

Winix ZERO Pro Manuale utente

Winix

Winix AZSU350-JWB Manuale utente

Winix

Winix NK305 Manuale utente

Winix

Winix NK300 Manuale utente

Winix

Winix PlasmaWave WAC-9000 Manuale utente

Winix

Winix AAPU450-JDE Manuale utente

Winix

Winix NK300 Manuale utente

Manuali Purificatore d'aria popolari di altre marche

IKEA

IKEA UPPÅTVIND Manuale utente

Nash

Nash AP-1 PureSmart Manuale utente

LG PH-U450 Series Manuale utente

DeLonghi

DeLonghi DDSX 220WFA Manuale utente

Mitsubishi Electric

Mitsubishi Electric MA-E85R-E Manuale utente

Sharp

Sharp FU-40SE Manuale utente

Philips

Philips AC2721 Manuale utente

Hitachi

Hitachi EP-A3000 Manuale utente

TruSens

TruSens Z-2000 Manuale utente

Motorola

Motorola MBP87SN Manuale utente

Beko

Beko ATP 7100I Manuale utente

Carrier

Carrier INFINITY 1620 Manuale utente

AtmosAir

AtmosAir P2002 Manuale utente

Friedrich

Friedrich C-90A Istruzioni per l'uso e l'installazione

Surgically Clean Air

Surgically Clean Air JADE2.0 Manuale utente

Base aire

Base aire 555 Pro Manuale utente

Champion

Champion CP25 Manuale utente

vollara

vollara Air & Surface Pro+ Manuale utente
