Wisenet PRO-7310B6 Manuale utente

PRO-7310B6

PRO-7510B4

PC NVR for Recording

Quick Guide

Trademark

Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered

trademark of their respective company.

Restriction

Copyright of this document is reserved. Under no circumstances, this document shall be reproduced, distributed or changed, partially or

wholly, without formal authorization.

Disclaimer

Hanwha Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee

shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own responsibility.

Hanwha Techwin reserves the right to change the contents of this document without prior notice.

Design and specications are subject to change without prior notice.

PC NVR for Recording

Quick Guide

●TABLE OF CONTENTS

Table of Contents

OVERVIEW

4Before reading the user manual

6Conguration and Tips of User Manual

7Package Contents of PRO-7310B6

8Package Contents of PRO-7510B4

9Part Names and Functions

HDD INSTALLATION

11 How to Install HDD

12 How to Attach HDD

EXECUTION

15 Power Supply

16 How to create a logical drive

17 How to congure advanced logical drives

24 Network settings

25 How to create network teaming

30 How to Launch SSM

31 Menu Description

4_ Overview

Overview

Before reading the user manual

Be sure to read the following before reading the user manual.

• This manual is copyrighted by the manufacturer.

• This manual cannot be reproduced without permission.

• We are not responsible for any damage caused by using products other than the standard product or using the

product for the purpose other than mentioned in the manual.

• If you need to open the case and touch the inside of the case for troubleshooting, always contact the dealer where

you purchased the product for professional help.

• Do not allow water or liquid to come into contact with the connections of the product.

• Do not apply excessive force or shock.

• Do not pull the power cord by force.

• Do not disassemble the product.

• Use only within the rated input/output power range.

• Use only approved power cords.

• For products with an input ground, be sure to use it with a grounded power plug.

• If a wrong battery is used, there is a risk of an explosion. Never replace the batteries with ones that aren’t the same

model or equivalent product.

• Be cautious so that the batteries are not exposed to excessive heat, such as sunlight or fire.

• Place the power plug where it can be easily operated. If there is a problem with the product, you should unplug the

power plug to completely terminate the power. The power will not be completely terminated by only turning off

the main body’s power button.

●OVERVIEW

PUSH

REC

1234

5678

910 11 12

ALARM POWER

NETWORKRAID

USB

HDD

PUSH

1234

5678

910 1112

USB

PUSH

HDD

1234

5678

910 11 12

USB

HDD

PUSH

Checking the Installation Environment

This product is a state-of-the-art security equipment with a high capacity hard disk and important circuitry

inside.

When the temperature inside the product is too high, its life cycle might be shortened, or it might be broken.

Therefore, install it so that it is well-ventilated, and refer to the following recommendations before installation.

When installing this product in a rack, observe the following recommendations.

1. Make sure that the inside of the rack where the product is installed is not

sealed.

2. As shown in the gure, make air circulation smooth through the intake and

exhaust ports.

3. If you are stacking the product together with other rack-mounted products as

shown in the gure, secure a certain amount of space or install a vent for air

circulation.

4. For natural convection of air, install the intake port at the bottom of the rack

and the exhaust port at the top.

5. It is highly recommended to install a fan motor for air circulation in each intake

and exhaust port. (Install a lter that lters dust or foreign matter in the intake

fan.)

6. Keep the temperature inside the rack or around the product between 5 °C and

40 °C as shown.

6_ Overview

Overview

The manual of this product is composed as follows.

yQuick Guide

ySSM User Manual

ySystem User Manual

This User Manual is the default setting for user's guide. The User Manual contains the following in order:

If you want to apply the modification to the actual operating environment, refer to the SSM User Manual and the

System User Manual.

yChecking components

yProduct name and functions

yHow to install a hard disk

yHow to create a logical drive

yHow to set up a network

yGuide to SSM operation and installation start

`The operating system and application software installed on this product are optimized for the hardware of this

equipment.

Do not add or remove any hardware, or update the operating system, or install any other software.

Or it may cause the risk of electric shock and product performance degradation.

Configuration and Tips of User Manual

●OVERVIEW

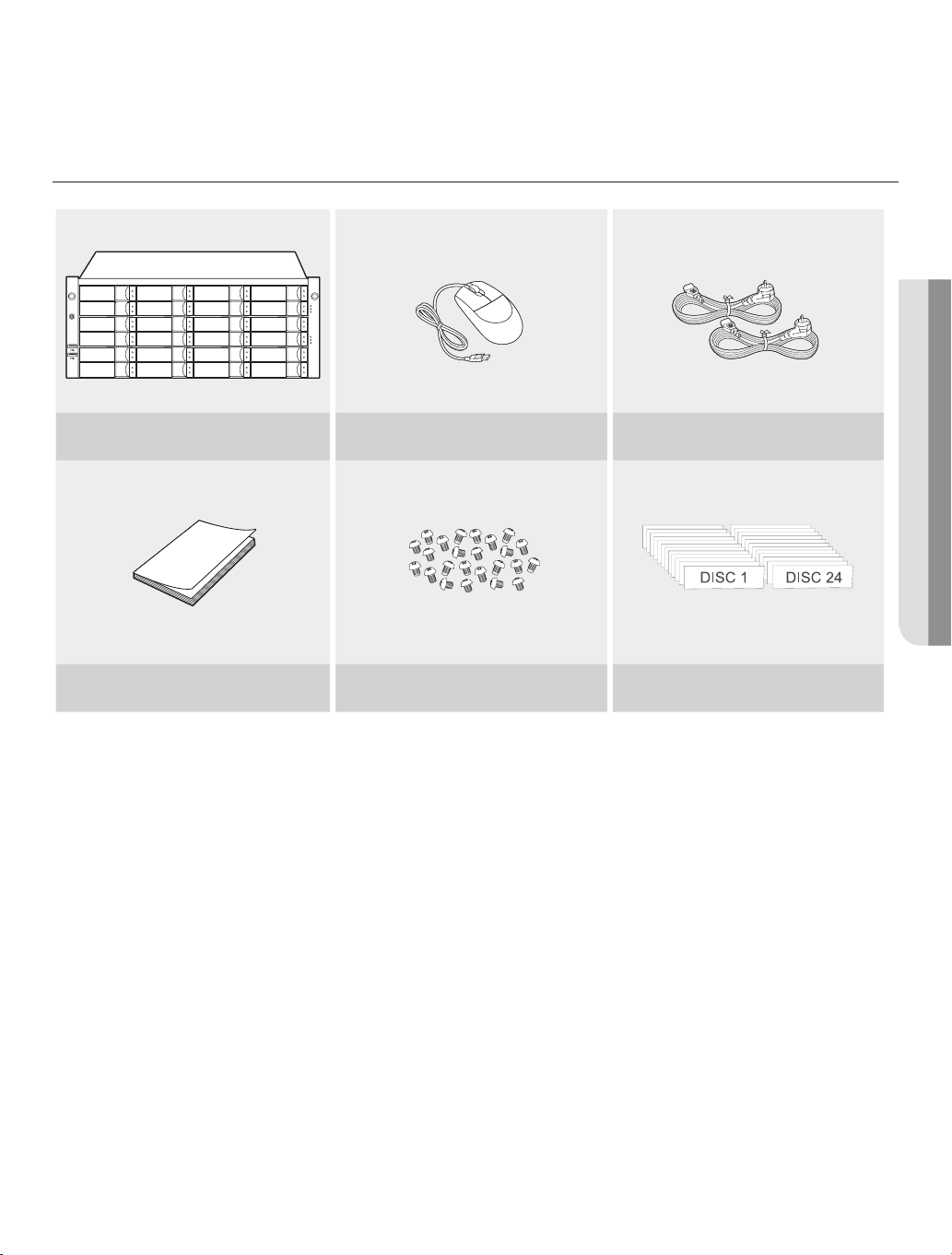

Package Contents of PRO-7310B6

NVR Mouse Power cord

Quick Guide HDD mounting screws Hard disk tray label

`Accessories other than the NVR body are consumables and are excluded from the warranty.

`All manuals can be downloaded from our homepage (www.hanwha-security.com).

`Rack mounting brackets for mounting in the server rack are sold separately.

8_ Overview

Overview

Package Contents of PRO-7510B4

NVR Mouse Power cord

DISC 1 DISC 16

Quick Guide HDD mounting screws Hard disk tray label

`Accessories other than the NVR body are consumables and are excluded from the warranty.

`All manuals can be downloaded from our homepage (www.hanwha-security.com).

`Rack mounting brackets for mounting in the server rack are sold separately.

●OVERVIEW

Part Names and Functions

Front (PRO-7310B6)

Front (PRO-7510B4)

No Name

Power button

USB Port

Hard disk tray

Power and status LEDs

10_ Overview

Overview

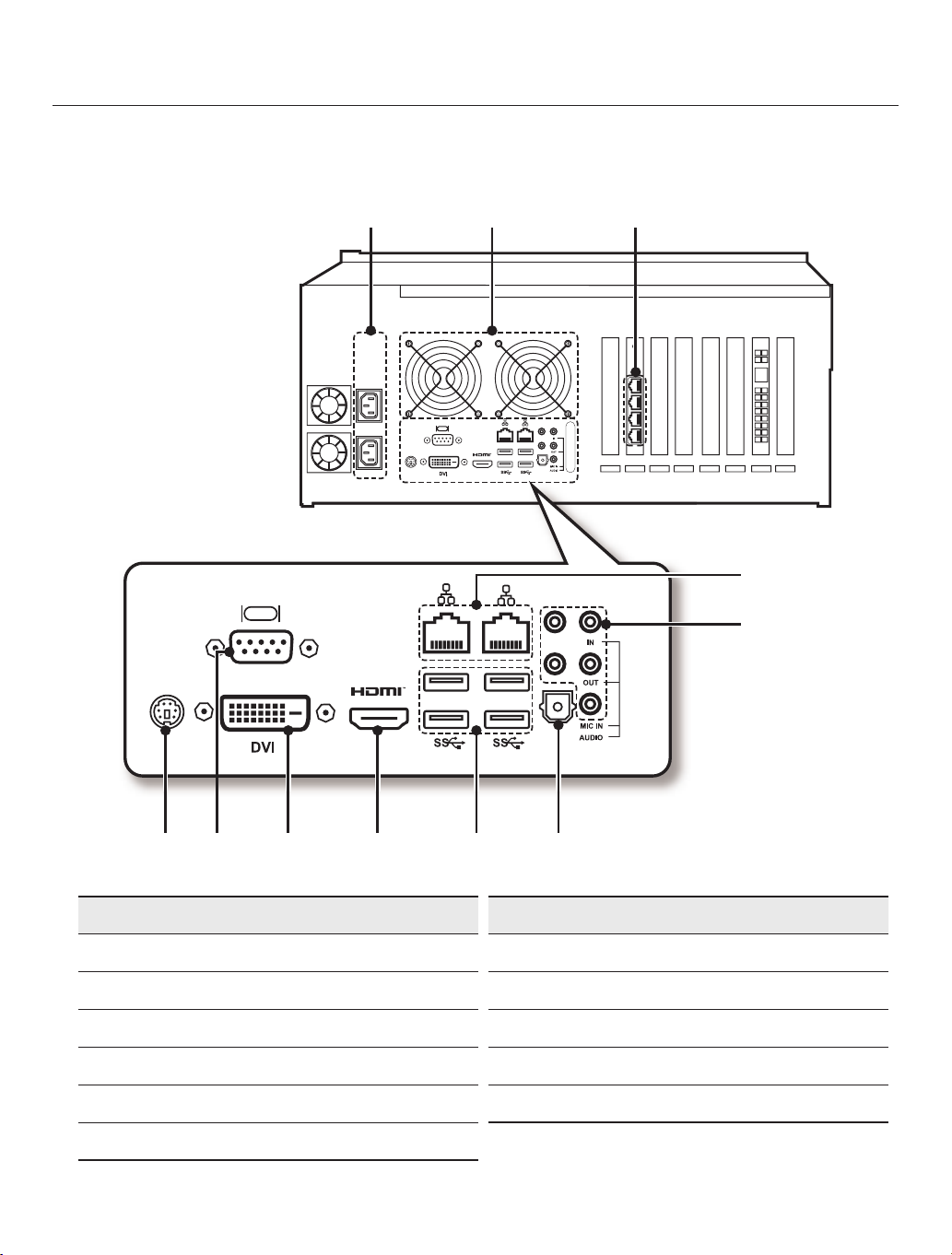

Rear

a b k

c d e f g h

No Name No Name

Power input

USB 3.0 (4 ports)

System fan

Optical SPDIF output port

PS/2 Mouse/Keyboard port

Audio IO port

VGA port

1000BASE-T RJ-45 (Internal 2 ports)

DVI port

1000BASE-T RJ-45 (External 4 ports)

HDMI port
