Wisenet SmartCam D1 Manuale utente
1
Installation Guide Part 1: Doorbell Setup
SmartCam D1
2
SmartCam D1 Overview
Thank you for purchasing the SmartCam D1 Video Doorbell. To get you started with your doorbell, please follow the steps below.
1Check page 3 to see the list of compatible chimes.
2Follow the instructions on pages 7-8 to connect the Power Stabilizer Kit to your existing mechanical/electrical chime.
3Install the doorbell by following the instructions on pages 9-11.
4Download the Wisenet SmartCam+ app for app setup.
5Once app setup is complete, follow the instructions on page 14.
3

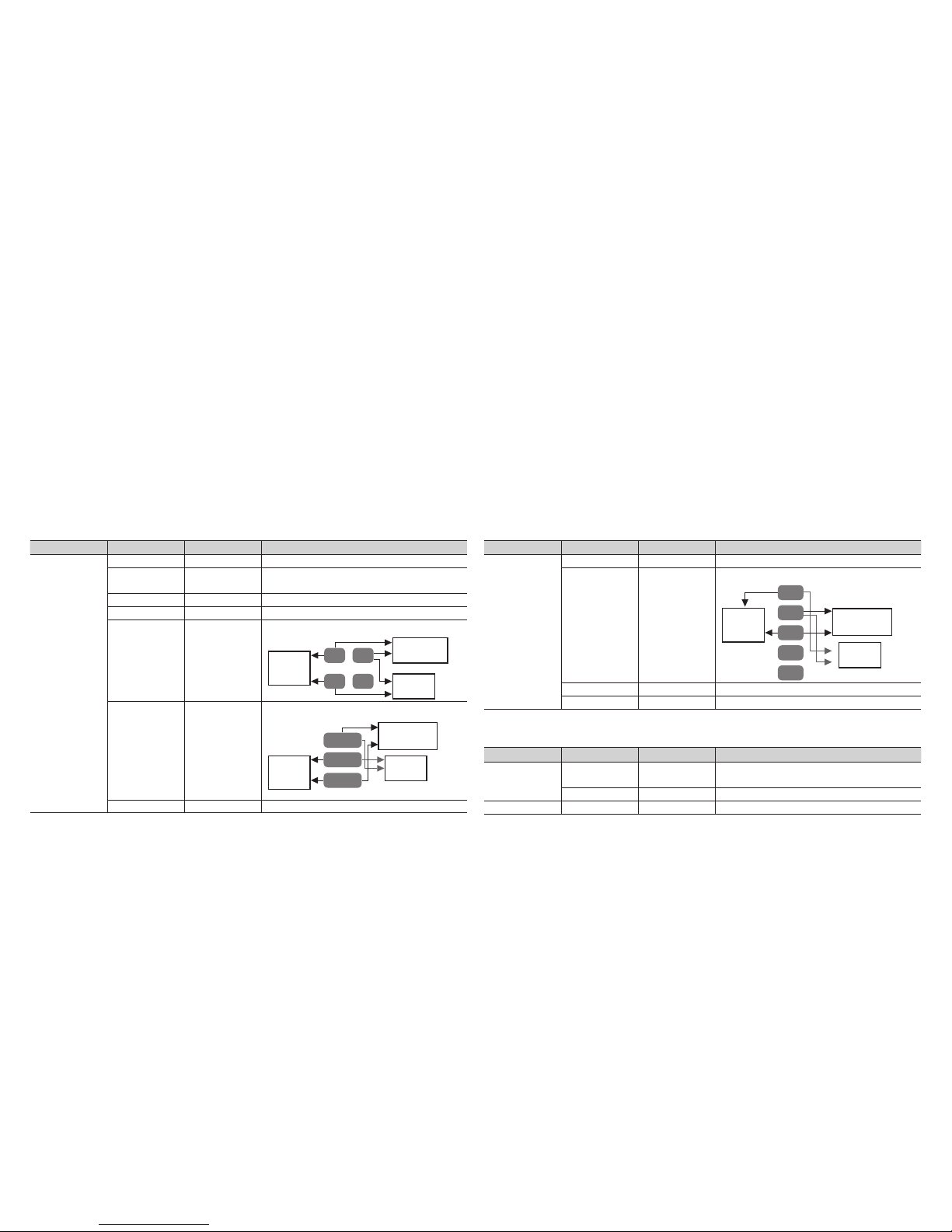

SmartCam D1 - Home Chime Compatibility List
Compatible chime
Chime type Manufacturer Model Description
Mechanical
Heath-Zenith SL-2796
Carlon DH506
DH120
Craftmade C102X2L
Edwards C212W-2L
Honeywell RCW100N
RCW110N
for RCW110N (Honeywell)
Power
Stabilizer
Smartcam D1
AC 16V
0(F) 1
3(T) 2
NuTone
LA11WH
LA14WH
BK125LWH-1
BK115LWH
BK131LPB
LA70MA
for LA70MA (NuTone)
Power
Stabilizer
AC 16V
Common
Trans
Front
Smartcam D1
Atlantic Al BCK1-PWH
Chime type Manufacturer Model Description
Electrical
Heath-Zenith DC-3338
Honeywell RCW3501N
RCW3505N
for RCW3501N (Honeywell)
Power
Stabilizer
AC
V/AC
C1
C2
C3
AC 16V
Smartcam D1
IQ America DW1402A
Nutone LA600WH
Incompatible chime
Chime type Manufacturer Model Description
Mechanical Edwards C210
C210-W
Nicor 18888
Electrical NuTone LA174WH
※Check the compatibility list below before installation.
Most mechanical chimes share the same composition except for chimes with special functions.
※To find out the latest compatible chime list with Smartcam D1, check out the FAQ. (www.wisenetlife.com>Support > SNH-V6435DN > FAQ)
4
Power Stabilizer
Power Stabilizer
Cable
Power Stabilizer
Connectors
(Terminal Blocks)
VIDEO
DOORBELL
Power Stabilizer
* Power Stabilizer Kit for Mechanical/Electrical Chimes

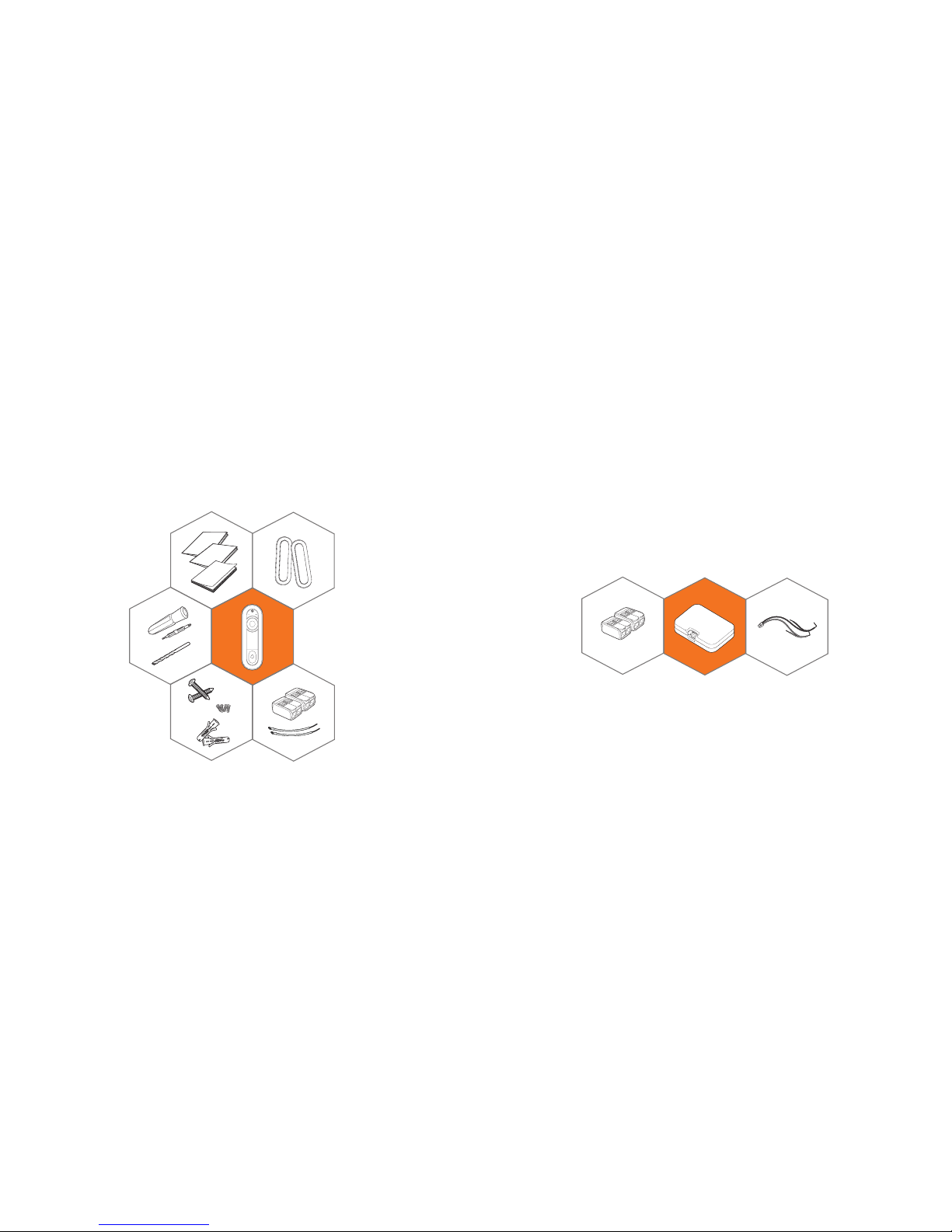

What’s in the box
SmartCam D1
Power Extender Connectors
(Terminal Blocks) for D1 /
Power Extender Cables for D1
Faceplate
(Gold/Silver/Black)
Security Screws /
Faceplate Screws /
Plastic Anchors
Warranty Card /
GPL License /
Quick Start Guide
Screw Driver /
Drill Bit
* Power Extension Kit
5
System Requirements
.
iOS 8 or higher
.
Android OS 5.0 or higher
.
Wi-Fi 802.11 a/b/g/n/ac (2.4GHz / 5GHz)
.
Recommended : 2.5Mbps or higher
.Requires existing hardwired Mechanical/
Electrical chime bell.
.Requires wiring to a 16-24 VAC
Transformer.
6

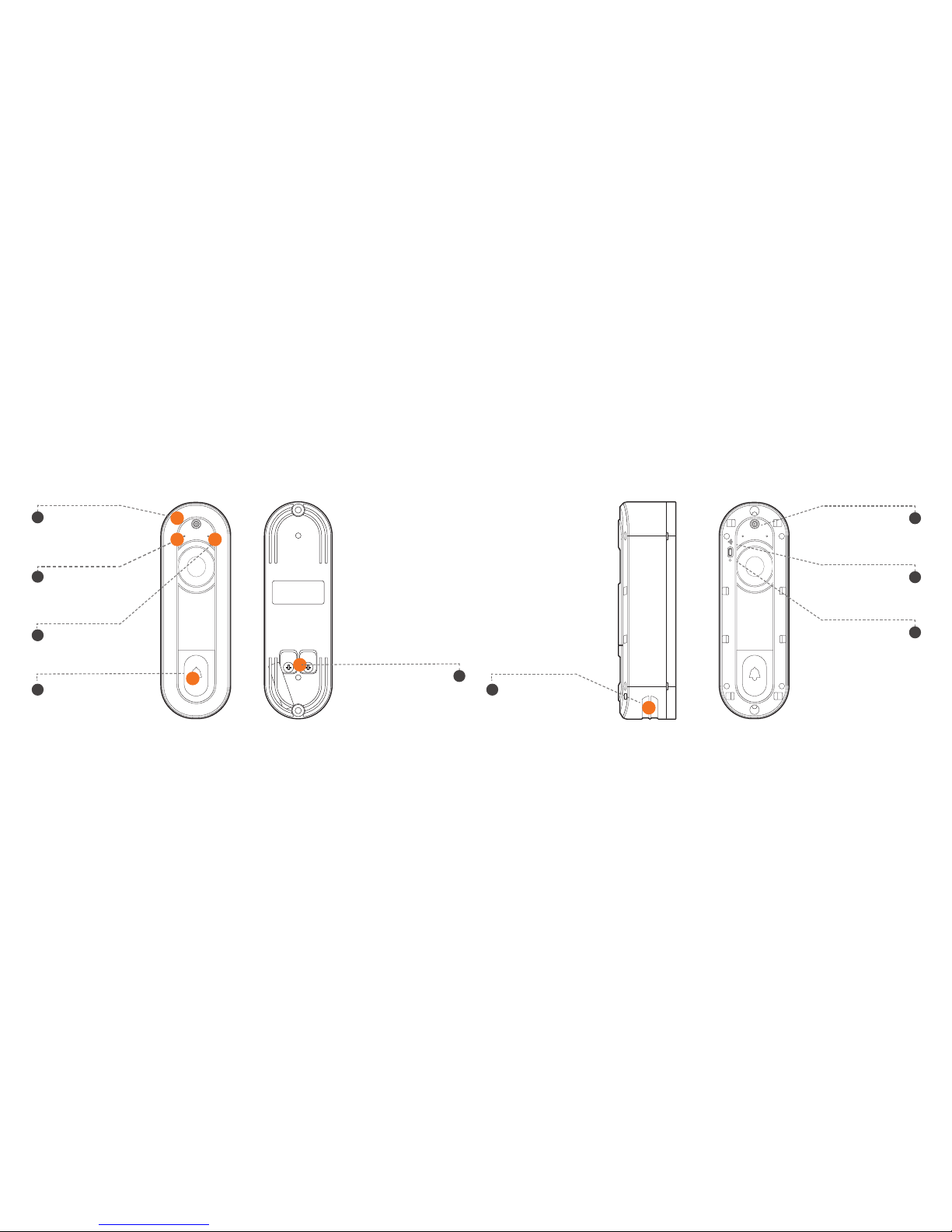

SmartCam D1 Overview
4
5
Faceplate
Microphone
LED Status
Indicator
Bell Button
5
Power Input
1
2
3
4
1
2 3
RESET
1
Speaker Hole
3
Wi-Fi Direct
Button
2
Illumination
Sensor
4
Reset Button
1
7

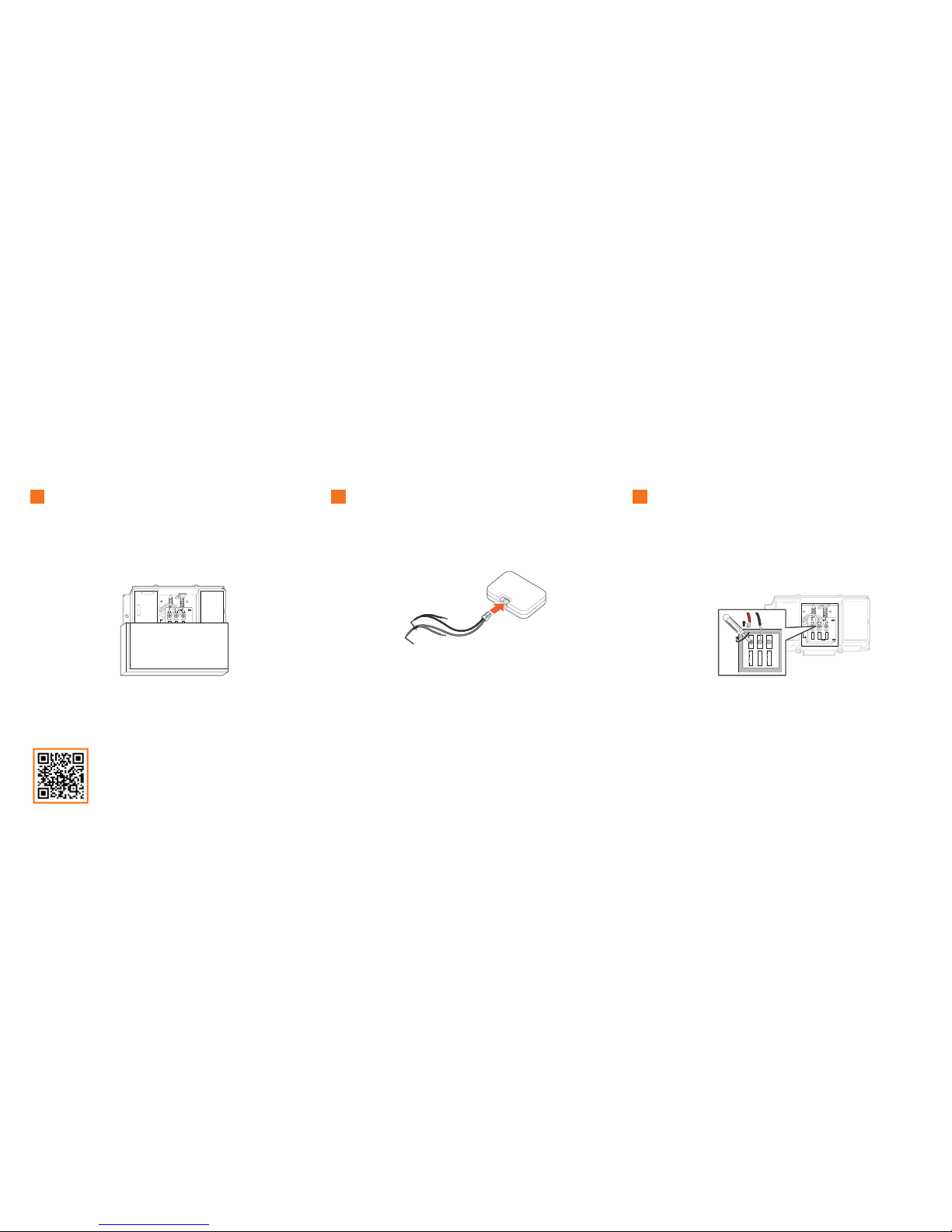

Connecting the Power Stabilizer to the Chime
1Open the cover on your existing chime.
J `
Before you start, you must turn off the circuit breaker for
safety purposes.
2Open the "Power Stabilizer Kit" and insert the wire
connector into the Power Stabilizer Box.
3Use a screwdriver to loosen the screws on the [FRONT]
and [TRANS] terminals and then remove the cables.
k `
Make sure to label the terminal cables before disconnecting
them. You will need to connect them to the terminal blocks
later.
VIDEO
DOORBELL
Power Stabilizer
FRONT
TRANS
REAR
※Scan the QR code or enter“ www.wisenetlife.com/news/video/smartcam.mp4 ” for video instructions to guide you through the D1 doorbell installation process.
※Download a QR Code app to scan the QR code.
※To see the video installation guide, go to www.wisenetlife.com > Products > SmartCam > SmartCam D1(SNH-V6435DN) >“Video”tab.
8
Connecting the Power Stabilizer to the Chime
4Connect Power Stabilizer to Chime
aPull up the orange levers on the terminal block.
bInsert the Power Stabilizer cable into one of the
slots and push the orange lever back down.
cInsert the wire labeled “Front” into the remaining
opening of the terminal block.
dAttach the L-shaped end of the Power Stabilizer to
the [Front] terminal on the Chime.
k `
Make sure the end of the wire is properly aligned to the
metal strip before closing the orange lever.
5Repeat Step 4 for the [Trans] cable. 6Put the chime cover back on once you are finished.
k `
Make sure to tuck the cables and Power Stabilizer box into
an open space within the chime before putting the cover
back on.
FRONT
TRANS
REAR
Pre-existing
chime cable
Power Stabilizer
cable
FRONT
TRANS
REAR
FRONT
TRANS
REAR
Pre-existing
chime cable
Power
Stabilizer cable
FRONT
TRANS
REAR
9
Mounting the SmartCam D1
RESET
1Use a screwdriver to remove your existing doorbell. Disconnect the wires from
behind the doorbell carefully.
2Mark the position of the mounting holes for your new doorbell.
10
Mounting the SmartCam D1

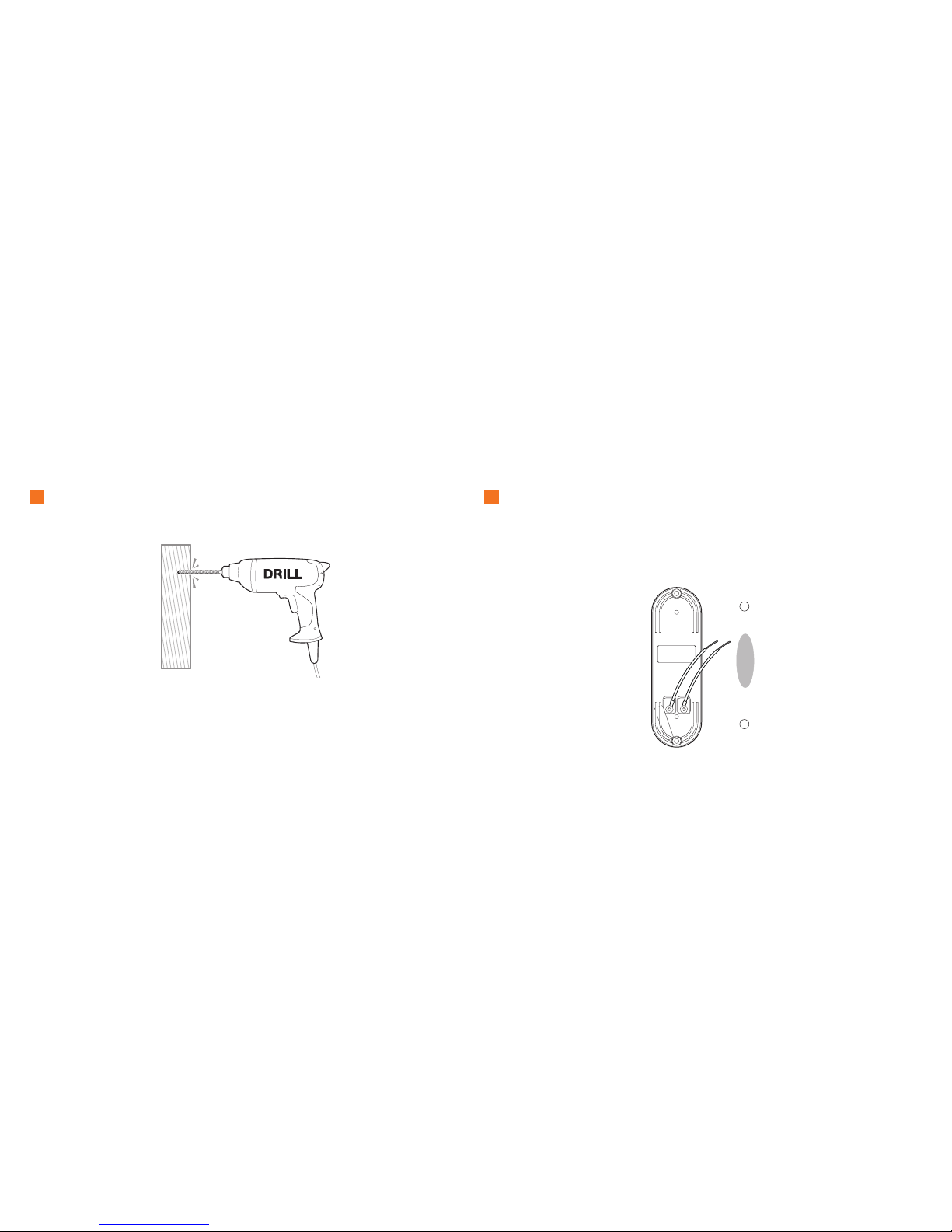

3Drill the holes about 1.2 inches deep into the wall. (Recommended Drill Bit size is 0.2
inches)
4Unscrew one of the power terminals on the back of your SmartCam D1, and wrap
the existing wiring from your doorbell around the terminal, and then tighten the
screw.
k `
It doesn't matter which cable you use on which side of the terminal back.
